Instrument Cluster
4-56
OAEPH049534L

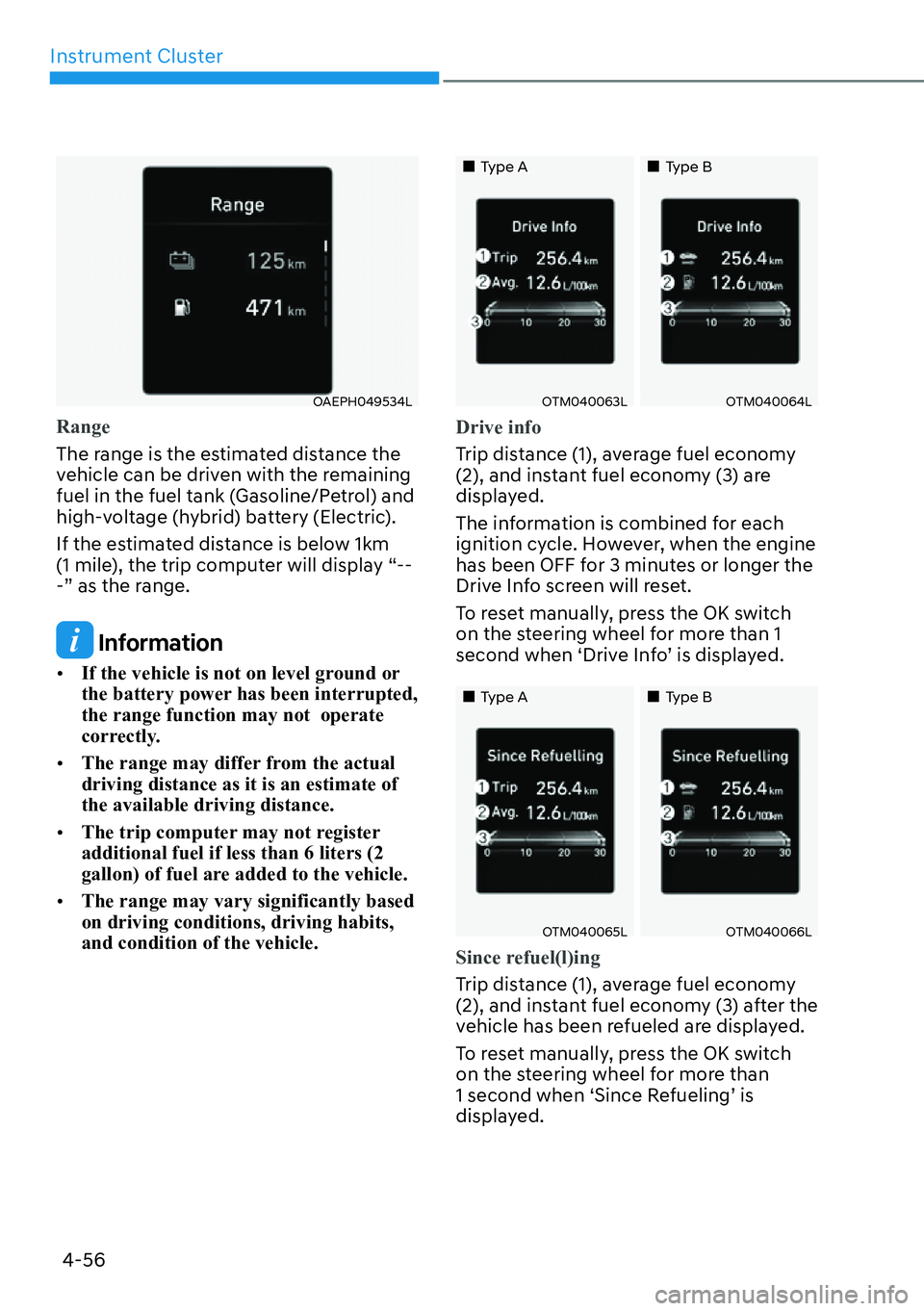

Range
The range is the estimated distance the
vehicle can be driven with the remaining
fuel in the fuel tank (Gasoline/Petrol) and
high-voltage (hybrid) battery (Electric).
If the estimated distance is below 1km
(1 mile), the trip computer will display “--
-” as the range.
Information
[ If the vehicle is not on level ground or
the battery power has been interrupted, the range function may not operate
correctly.
[ The range may differ from the actual driving distance as it is an estimate of the available driving distance.
[ The trip computer may not register additional fuel if less than 6 liters (2
gallon) of fuel are added to the vehicle.
[ The range may vary significantly based on driving conditions, driving habits, and condition of the vehicle.
„Type A „Type B
OTM040063LOTM040064L
Drive info
Trip distance (1), average fuel economy
(2), and instant fuel economy (3) are
displayed.
The information is combined for each
ignition cycle. However, when the engine
has been OFF for 3 minutes or longer the
Drive Info screen will reset.
To reset manually, press the OK switch
on the steering wheel for more than 1
second when ‘Drive Info’ is displayed.
„Type A „Type B
OTM040065LOTM040066L
Since refuel(l)ing
Trip distance (1), average fuel economy
(2), and instant fuel economy (3) after the
vehicle has been refueled are displayed.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Since Refueling’ is
displayed.
Page 202 of 638
04
4-57
„Type A „Type B
OTM040067LOTM040068L

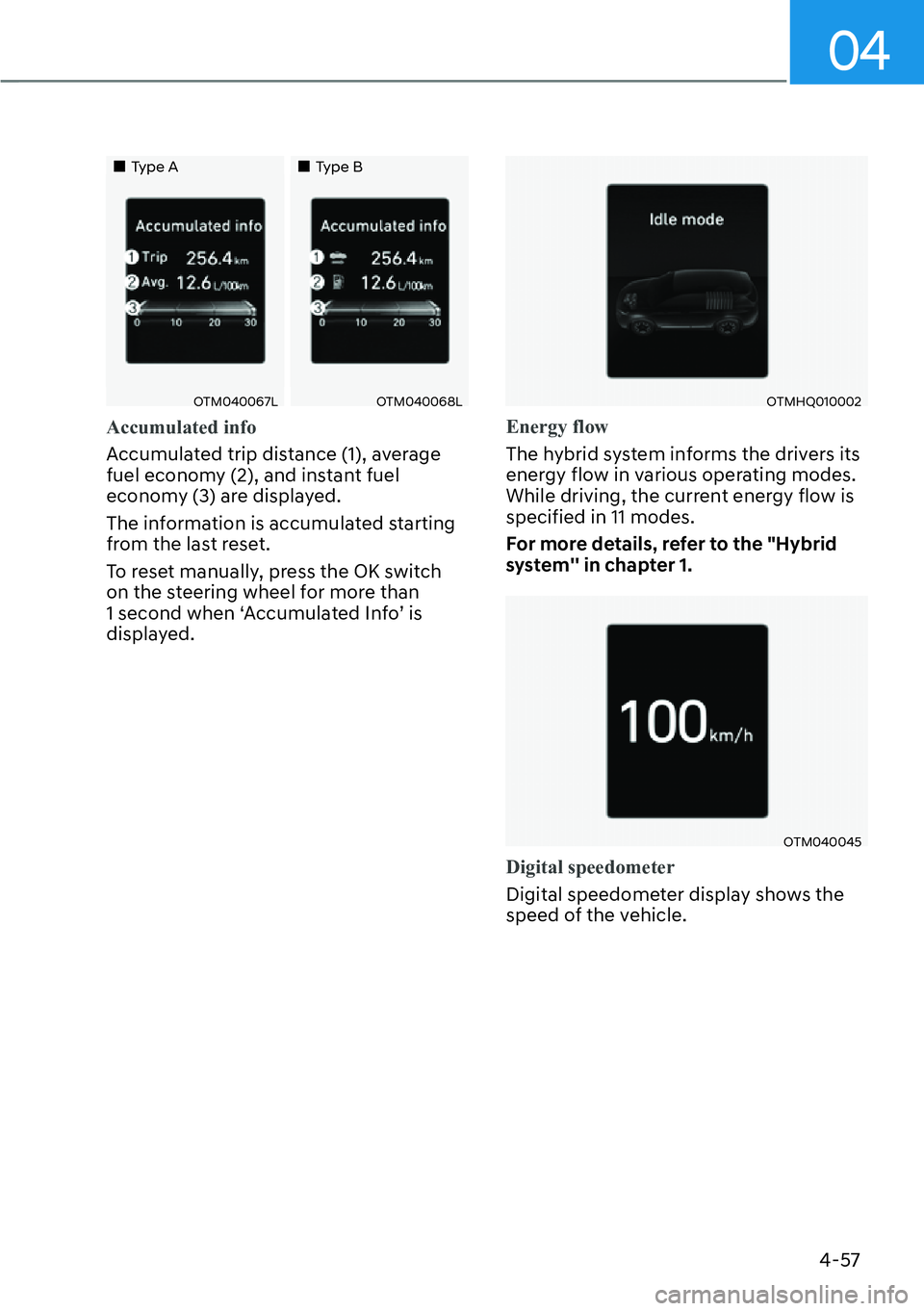

Accumulated info
Accumulated trip distance (1), average
fuel economy (2), and instant fuel
economy (3) are displayed.
The information is accumulated starting
from the last reset.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Accumulated Info’ is
displayed.
OTMHQ010002
Energy flow
The hybrid system informs the drivers its
energy flow in various operating modes.
While driving, the current energy flow is specified in 11 modes.
For more details, refer to the "Hybrid
system'' in chapter 1.
OTM040045
Digital speedometer
Digital speedometer display shows the
speed of the vehicle.
Page 203 of 638
Instrument Cluster
4-58

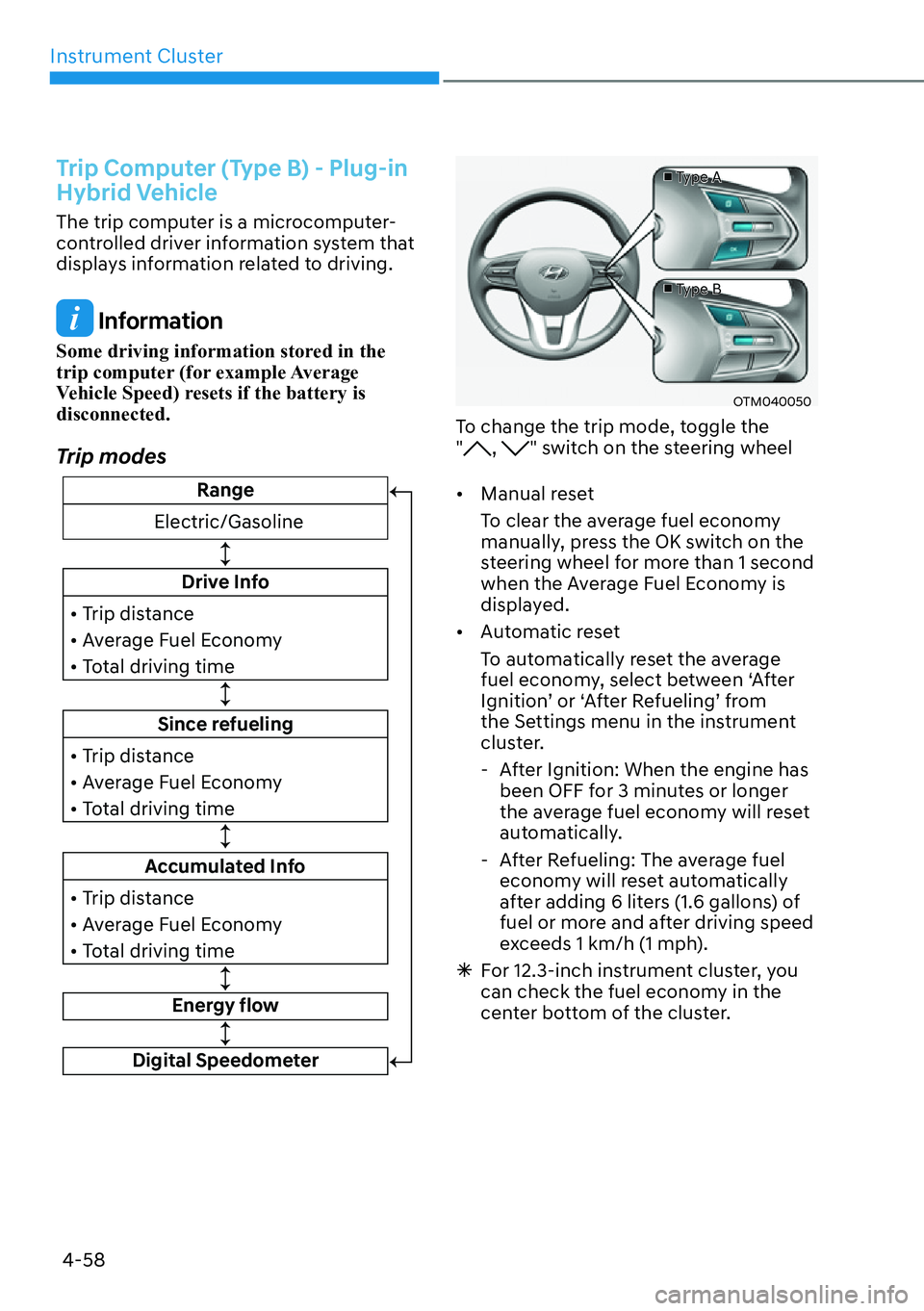

Trip Computer (Type B) - Plug-in
Hybrid Vehicle
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is disconnected.
Trip modes
Since refueling
[ 7 U L S G L V W D Q F H
[ $ Y H U D J H ) X H O ( F R Q R P \
[ 7 R W D O G U L Y L Q J W L P H
Drive Info
[ 7 U L S G L V W D Q F H
[ $ Y H U D J H ) X H O ( F R Q R P \
[ 7 R W D O G U L Y L Q J W L P H
Accumulated Info
[ 7 U L S G L V W D Q F H
[ $ Y H U D J H ) X H O ( F R Q R P \
[ 7 R W D O G U L Y L Q J W L P H
Energy flow
Digital Speedometer
Range
( O H F W U L F * D V R O L Q H
v Type A
v Type B
OTM040050
To change the trip mode, toggle the "
, " switch on the steering wheel
[ Manual reset
To clear the average fuel economy
manually, press the OK switch on the
steering wheel for more than 1 second
when the Average Fuel Economy is
displayed.
[ Automatic reset
To automatically reset the average
fuel economy, select between ‘After
Ignition’ or ‘After Refueling’ from
the Settings menu in the instrument
cluster.
- After Ignition: When the engine has
been OFF for 3 minutes or longer
the average fuel economy will reset
automatically.
- After Refueling: The average fuel economy will reset automatically
after adding 6 liters (1.6 gallons) of
fuel or more and after driving speed
exceeds 1 km/h (1 mph).
à For 12.3-inch instrument cluster, you
can check the fuel economy in the
center bottom of the cluster.
Page 204 of 638
04
4-59
OAEPH049534L

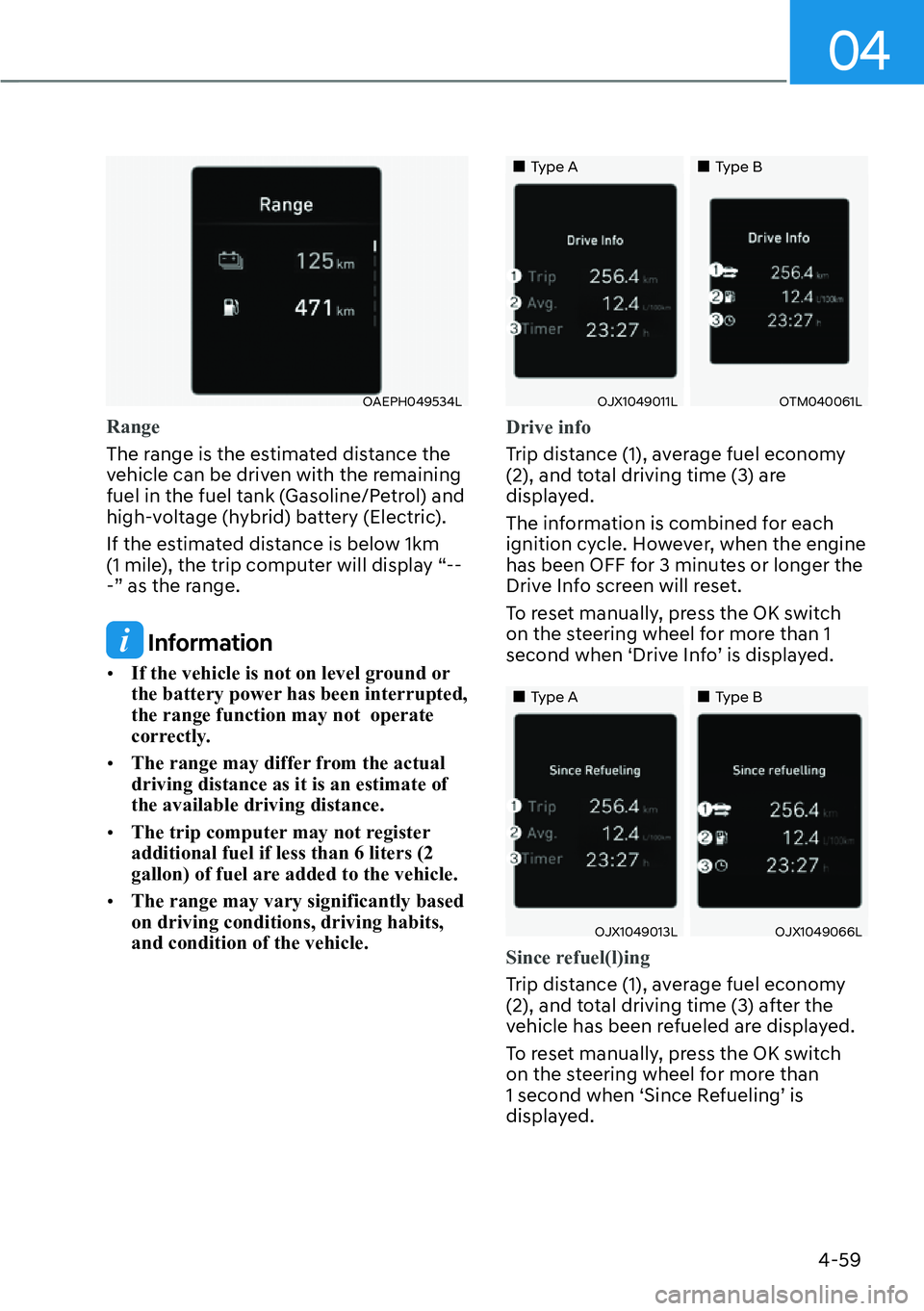

Range
The range is the estimated distance the
vehicle can be driven with the remaining
fuel in the fuel tank (Gasoline/Petrol) and
high-voltage (hybrid) battery (Electric).
If the estimated distance is below 1km
(1 mile), the trip computer will display “--
-” as the range.
Information
[ If the vehicle is not on level ground or
the battery power has been interrupted, the range function may not operate
correctly.
[ The range may differ from the actual driving distance as it is an estimate of the available driving distance.
[ The trip computer may not register additional fuel if less than 6 liters (2
gallon) of fuel are added to the vehicle.
[ The range may vary significantly based on driving conditions, driving habits, and condition of the vehicle.
„Type A „Type B
OJX1049011LOTM040061L
Drive info
Trip distance (1), average fuel economy
(2), and total driving time (3) are
displayed.
The information is combined for each
ignition cycle. However, when the engine
has been OFF for 3 minutes or longer the
Drive Info screen will reset.
To reset manually, press the OK switch
on the steering wheel for more than 1
second when ‘Drive Info’ is displayed.
„Type A „Type B
OJX1049013L OJX1049066L
Since refuel(l)ing
Trip distance (1), average fuel economy
(2), and total driving time (3) after the
vehicle has been refueled are displayed.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Since Refueling’ is
displayed.
Page 205 of 638
Instrument Cluster
4-60
„Type A „Type B
OJX1049012L OJX1049067L

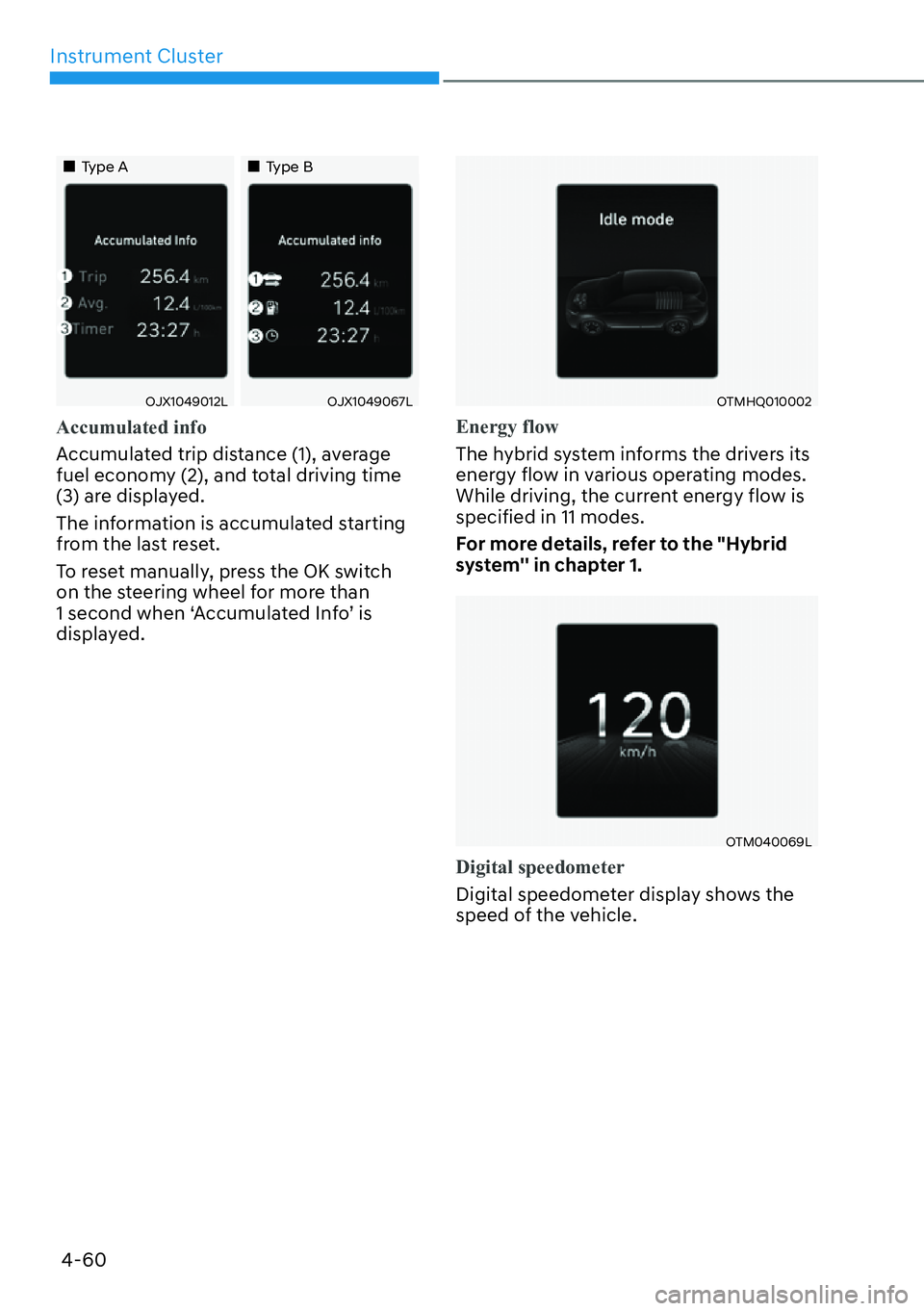

Accumulated info
Accumulated trip distance (1), average
fuel economy (2), and total driving time
(3) are displayed.
The information is accumulated starting
from the last reset.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Accumulated Info’ is
displayed.
OTMHQ010002
Energy flow
The hybrid system informs the drivers its
energy flow in various operating modes.
While driving, the current energy flow is specified in 11 modes.
For more details, refer to the "Hybrid
system'' in chapter 1.
OTM040069L
Digital speedometer
Digital speedometer display shows the
speed of the vehicle.
