HYUNDAI SANTA FE HYBRID 2022 Owners Manual

Convenience Features
5-36

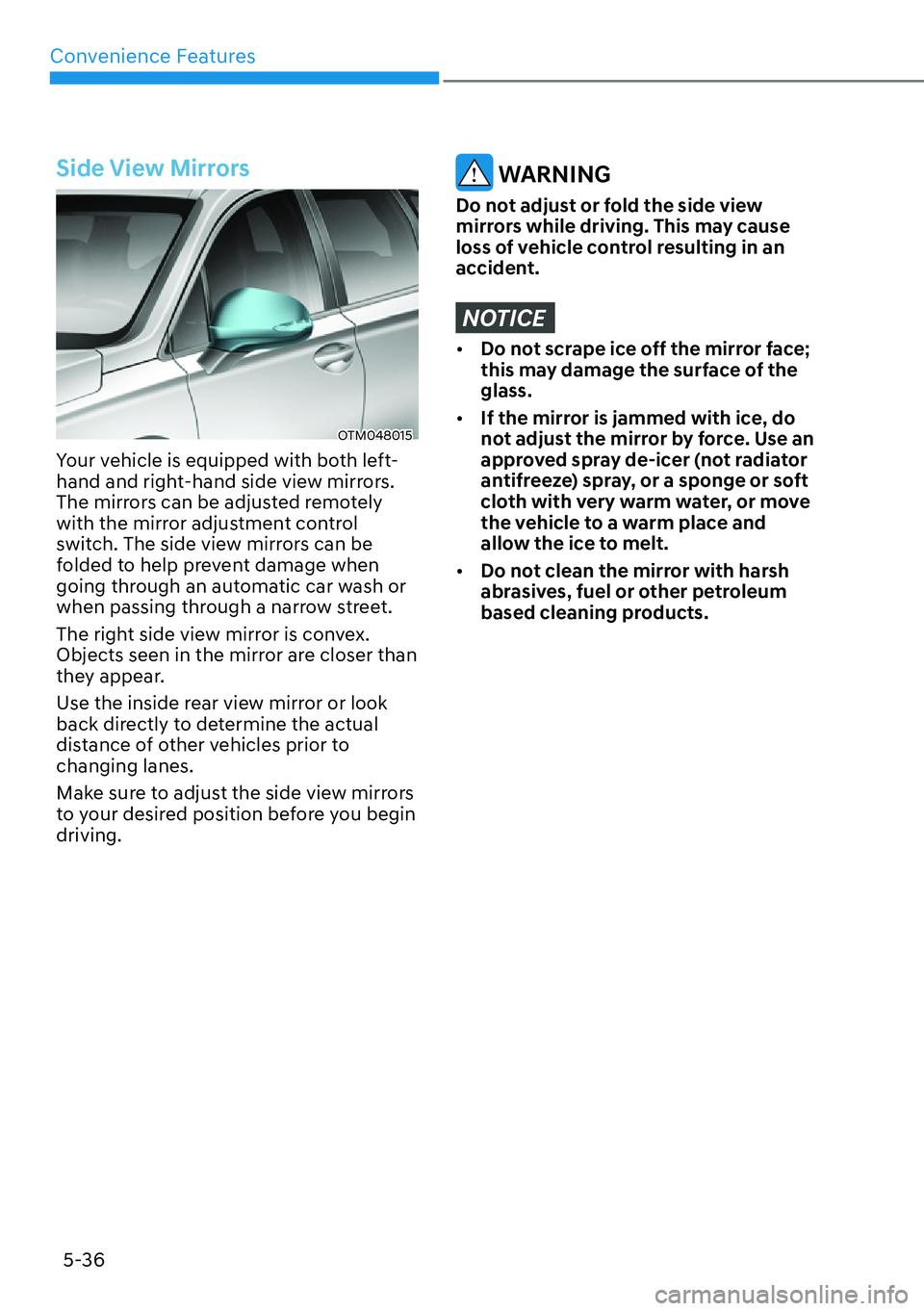

Side View Mirrors
OTM048015
Your vehicle is equipped with both left-
hand and right-hand side view mirrors.
The mirrors can be adjusted remotely
with the mirror adjustment control
switch. The side view mirrors can be
folded to help prevent damage when
going through an automatic car wash or
when passing through a narrow street.
The right side view mirror is convex.
Objects seen in the mirror are closer than
they appear.
Use the inside rear view mirror or look
back directly to determine the actual
distance of other vehicles prior to changing lanes.
Make sure to adjust the side view mirrors
to your desired position before you begin driving.
WARNING
Do not adjust or fold the side view
mirrors while driving. This may cause
loss of vehicle control resulting in an accident.
NOTICE

[ Do not scrape ice off the mirror face;
this may damage the surface of the glass.

[ If the mirror is jammed with ice, do
not adjust the mirror by force. Use an
approved spray de-icer (not radiator
antifreeze) spray, or a sponge or soft
cloth with very warm water, or move
the vehicle to a warm place and
allow the ice to melt.

[ Do not clean the mirror with harsh
abrasives, fuel or other petroleum
based cleaning products.

05
5-37

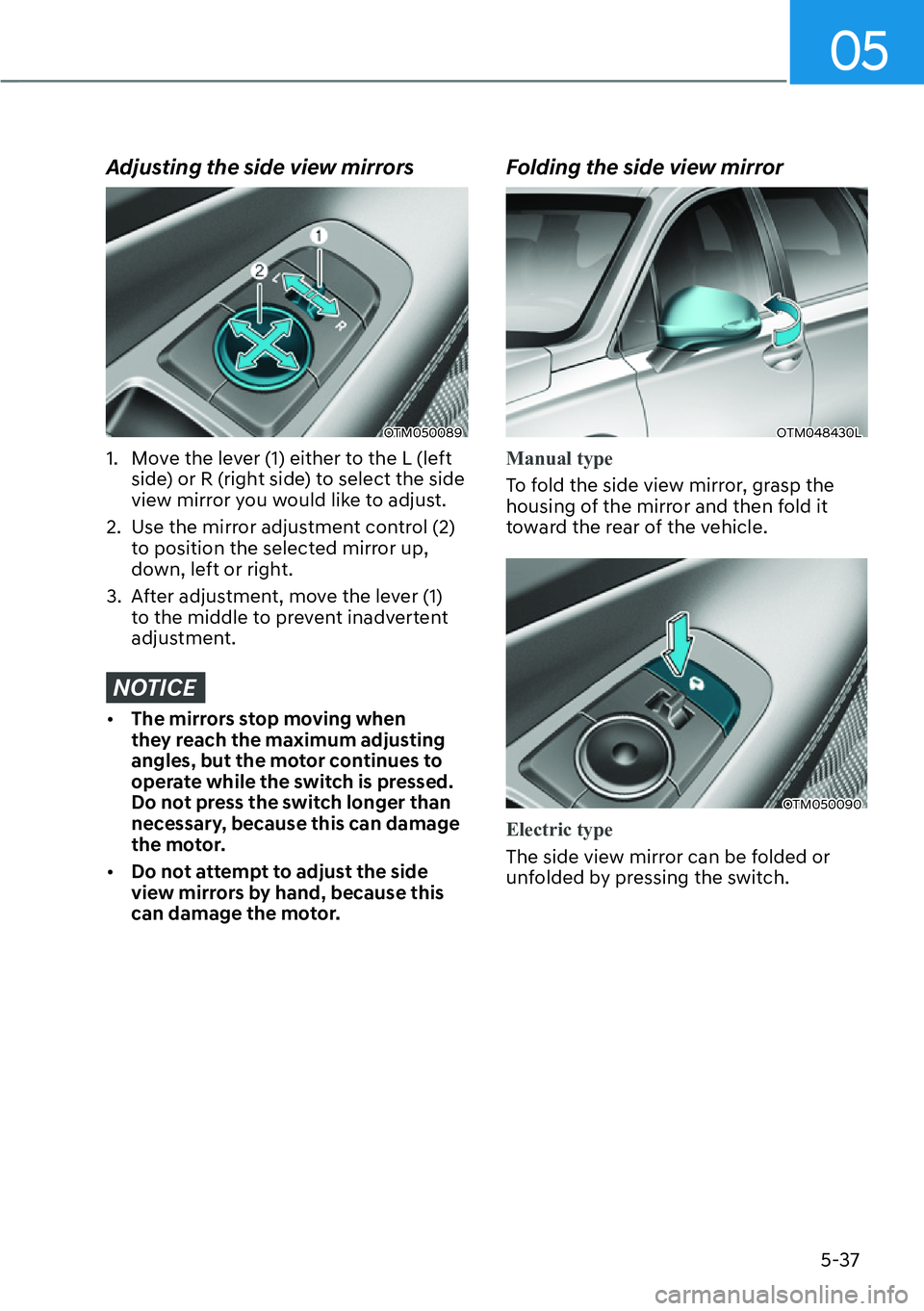

Adjusting the side view mirrors
OTM050089
1. Move the lever (1) either to the L (left side) or R (right side) to select the side
view mirror you would like to adjust.
2. Use the mirror adjustment control (2) to position the selected mirror up,
down, left or right.
3. After adjustment, move the lever (1) to the middle to prevent inadvertent
adjustment.
NOTICE

[The mirrors stop moving when
they reach the maximum adjusting
angles, but the motor continues to
operate while the switch is pressed.
Do not press the switch longer than
necessary, because this can damage
the motor.

[ Do not attempt to adjust the side
view mirrors by hand, because this
can damage the motor. Folding the side view mirror
OTM048430L
Manual type
To fold the side view mirror, grasp the
housing of the mirror and then fold it
toward the rear of the vehicle.
OTM050090
Electric type
The side view mirror can be folded or
unfolded by pressing the switch.

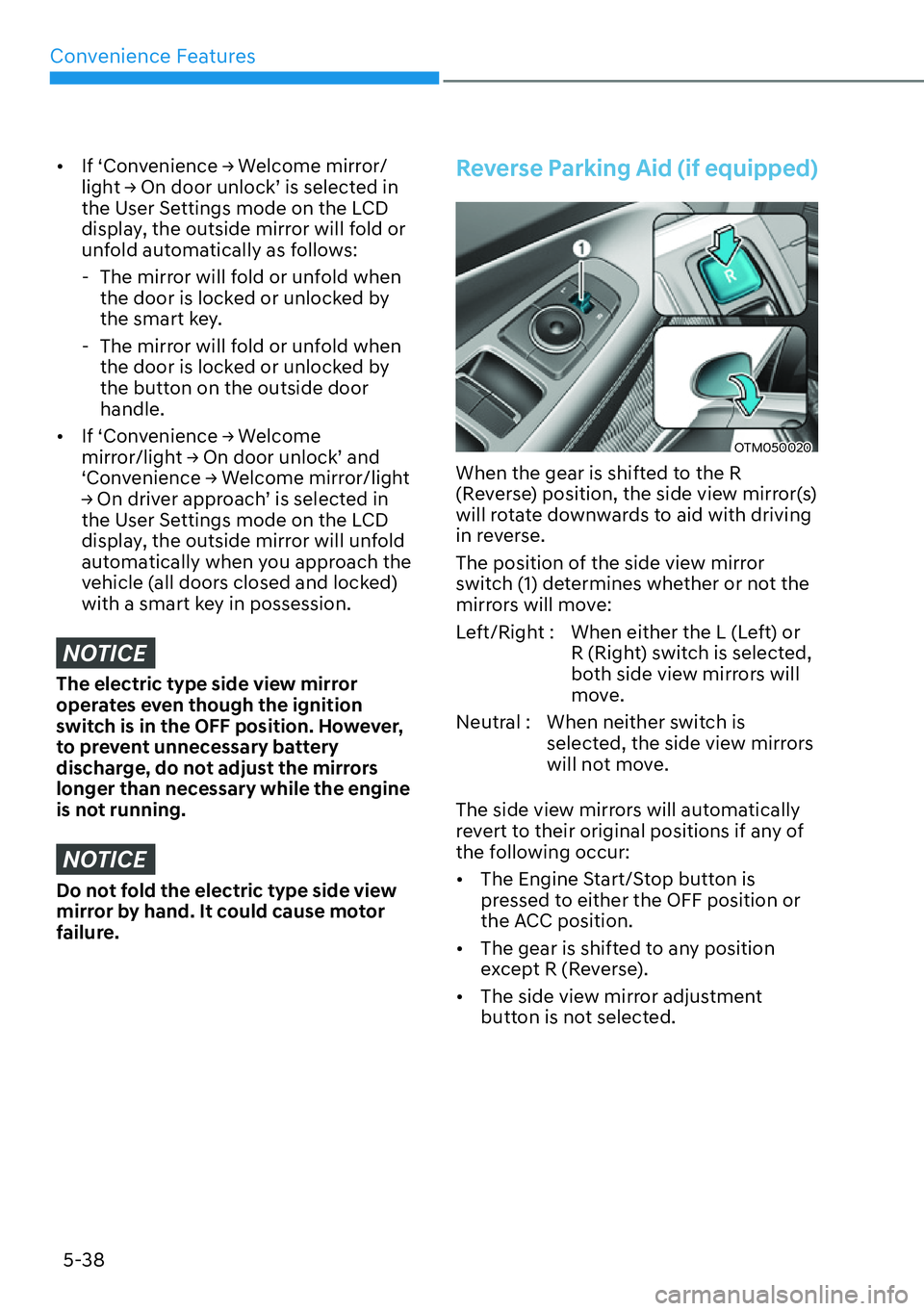

Convenience Features
5-38

[ ,I
S&RQYHQLHQFH
Ÿ:HOFRPHPLUURUOLJKW
Ÿ2QGRRUXQORFN
TLVVHOHFWHGLQ
the User Settings mode on the LCD
display, the outside mirror will fold or
unfold automatically as follows:
- The mirror will fold or unfold when the door is locked or unlocked by
the smart key.
- The mirror will fold or unfold when the door is locked or unlocked by
the button on the outside door handle.

[ ,I
S&RQYHQLHQFH
Ÿ:HOFRPH PLUURUOLJKW
Ÿ2QGRRUXQORFN
TDQG

S&RQYHQLHQFH
Ÿ:HOFRPHPLUURUOLJKW

Ÿ2QGULYHUDSSURDFK
TLVVHOHFWHGLQ
the User Settings mode on the LCD
display, the outside mirror will unfold
automatically when you approach the
vehicle (all doors closed and locked)
with a smart key in possession.
NOTICE
The electric type side view mirror
operates even though the ignition
switch is in the OFF position. However,
to prevent unnecessary battery
discharge, do not adjust the mirrors longer than necessary while the engine
is not running.
NOTICE
Do not fold the electric type side view
mirror by hand. It could cause motor
failure.
Reverse Parking Aid (if equipped)
OTM050020
When the gear is shifted to the R
(Reverse) position, the side view mirror(s)
will rotate downwards to aid with driving
in reverse.
The position of the side view mirror
switch (1) determines whether or not the
mirrors will move:
Left/Right : When either the L (Left) or R (Right) switch is selected,
both side view mirrors will
move.
Neutral : When neither switch is selected, the side view mirrors
will not move.
The side view mirrors will automatically
revert to their original positions if any of
the following occur:
[ The Engine Start/Stop button is
pressed to either the OFF position or
the ACC position.

[ The gear is shifted to any position
except R (Reverse).

[ The side view mirror adjustment
button is not selected.

05
5-39

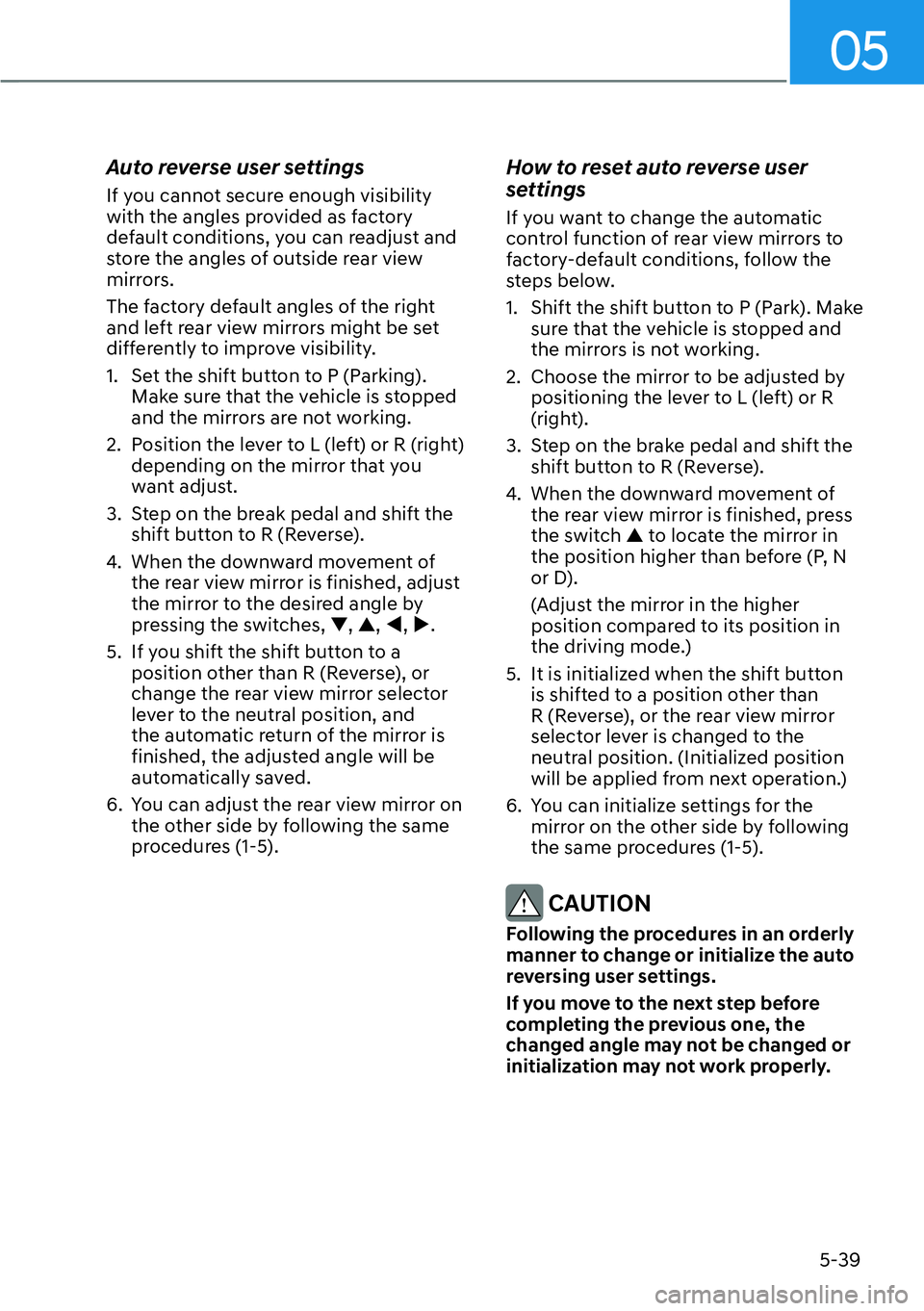

Auto reverse user settings
If you cannot secure enough visibility
with the angles provided as factory
default conditions, you can readjust and
store the angles of outside rear view
mirrors.
The factory default angles of the right
and left rear view mirrors might be set
differently to improve visibility.
1. Set the shift button to P (Parking).
Make sure that the vehicle is stopped
and the mirrors are not working.
2. Position the lever to L (left) or R (right) depending on the mirror that you
want adjust.
3. Step on the break pedal and shift the shift button to R (Reverse).
4. When the downward movement of the rear view mirror is finished, adjust
the mirror to the desired angle by
pressing the switches, ▼, ▲ , W , X .
5. If you shift the shift button to a position other than R (Reverse), or
change the rear view mirror selector
lever to the neutral position, and
the automatic return of the mirror is
finished, the adjusted angle will be
automatically saved.
6. You can adjust the rear view mirror on the other side by following the same
procedures (1-5). How to reset auto reverse user
settings
If you want to change the automatic
control function of rear view mirrors to
factory-default conditions, follow the
steps below.
1. Shift the shift button to P (Park). Make
sure that the vehicle is stopped and
the mirrors is not working.
2. Choose the mirror to be adjusted by positioning the lever to L (left) or R
(right).
3. Step on the brake pedal and shift the shift button to R (Reverse).
4. When the downward movement of the rear view mirror is finished, press
the switch ▲ to locate the mirror in
the position higher than before (P, N
or D).
(Adjust the mirror in the higher
position compared to its position in
the driving mode.)
5. It is initialized when the shift button is shifted to a position other than
R (Reverse), or the rear view mirror
selector lever is changed to the
neutral position. (Initialized position
will be applied from next operation.)
6. You can initialize settings for the mirror on the other side by following
the same procedures (1-5).
CAUTION
Following the procedures in an orderly
manner to change or initialize the auto
reversing user settings.
If you move to the next step before
completing the previous one, the
changed angle may not be changed or
initialization may not work properly.

Convenience Features
5-40
OTMA050018

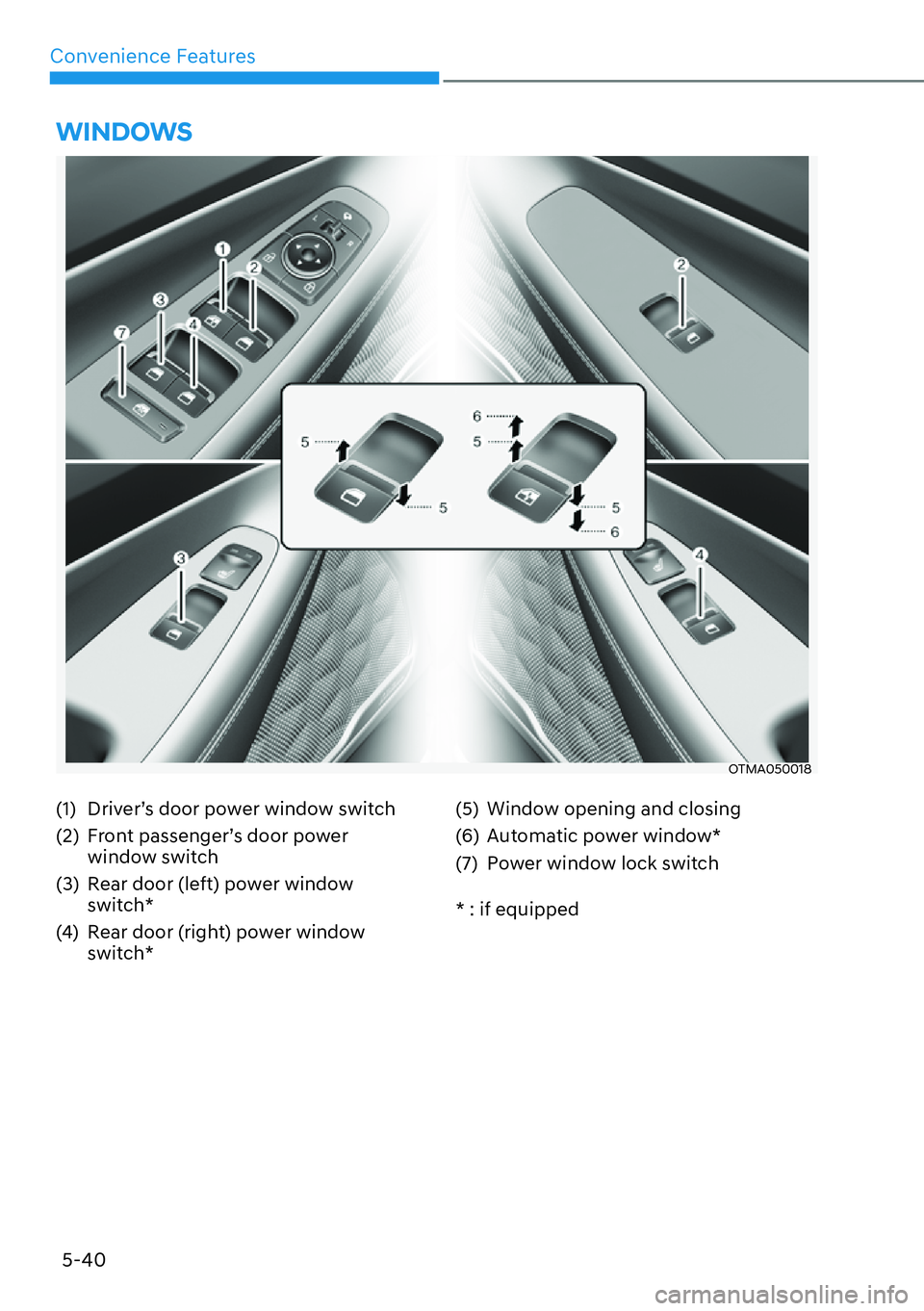

WINDOWS
(1) Driver’s door power window switch
(2) Front passenger’s door power window switch
(3) Rear door (left) power window switch*
(4) Rear door (right) power window switch* (5) Window opening and closing
(6) Automatic power window*
(7) Power window lock switch * : if equipped

05
5-41

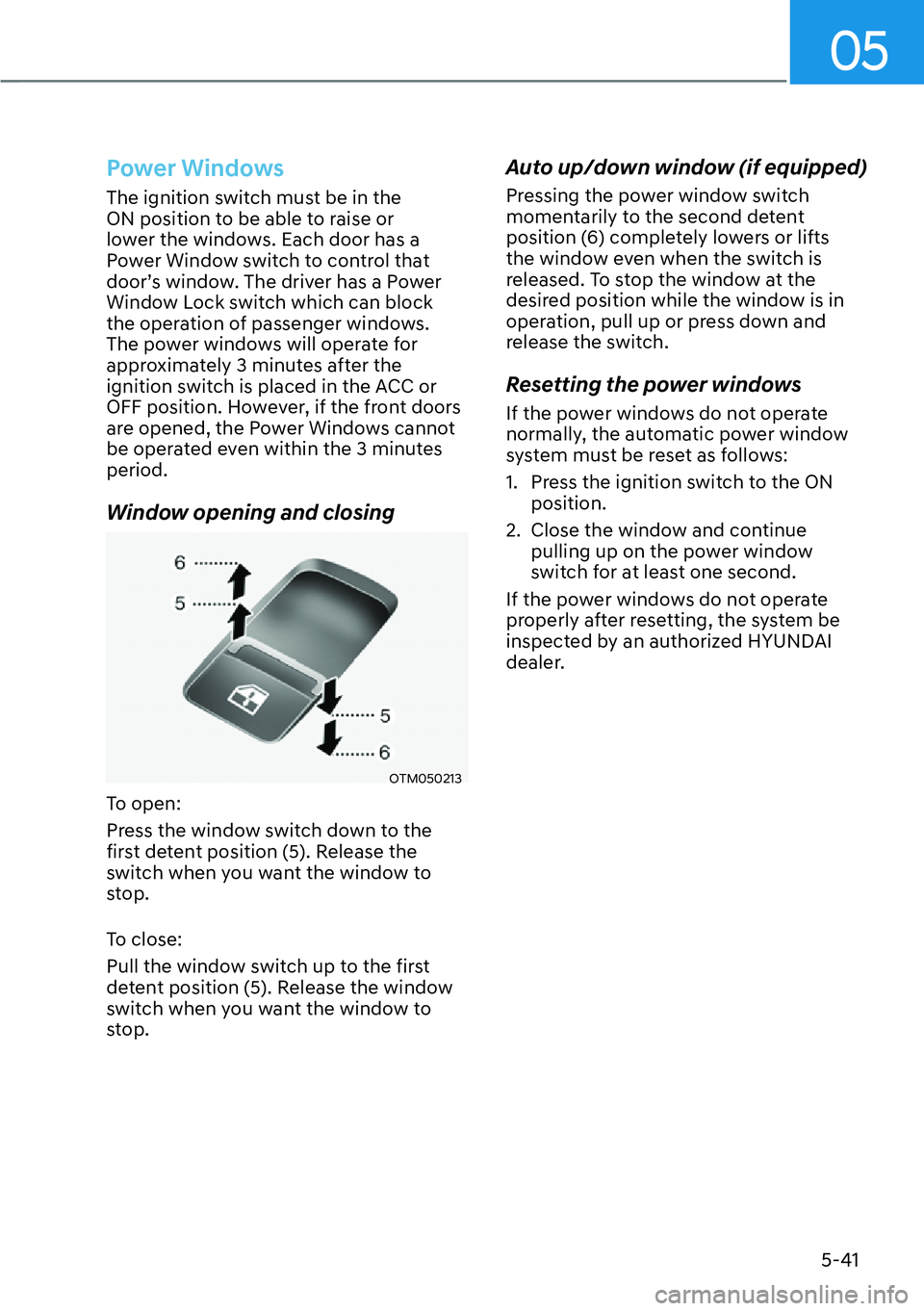

Power Windows
The ignition switch must be in the
ON position to be able to raise or
lower the windows. Each door has a
Power Window switch to control that
door’s window. The driver has a Power
Window Lock switch which can block
the operation of passenger windows.
The power windows will operate for
approximately 3 minutes after the
ignition switch is placed in the ACC or
OFF position. However, if the front doors
are opened, the Power Windows cannot
be operated even within the 3 minutes period.
Window opening and closing
OTM050213
To open:
Press the window switch down to the
first detent position (5). Release the
switch when you want the window to
stop.
To close:
Pull the window switch up to the first
detent position (5). Release the window
switch when you want the window to
stop. Auto up/down window (if equipped)
Pressing the power window switch
momentarily to the second detent
position (6) completely lowers or lifts
the window even when the switch is
released. To stop the window at the
desired position while the window is in
operation, pull up or press down and
release the switch.
Resetting the power windows
If the power windows do not operate
normally, the automatic power window
system must be reset as follows:
1. Press the ignition switch to the ON
position.
2. Close the window and continue pulling up on the power window
switch for at least one second.
If the power windows do not operate
properly after resetting, the system be
inspected by an authorized HYUNDAI
dealer.

Convenience Features
5-42

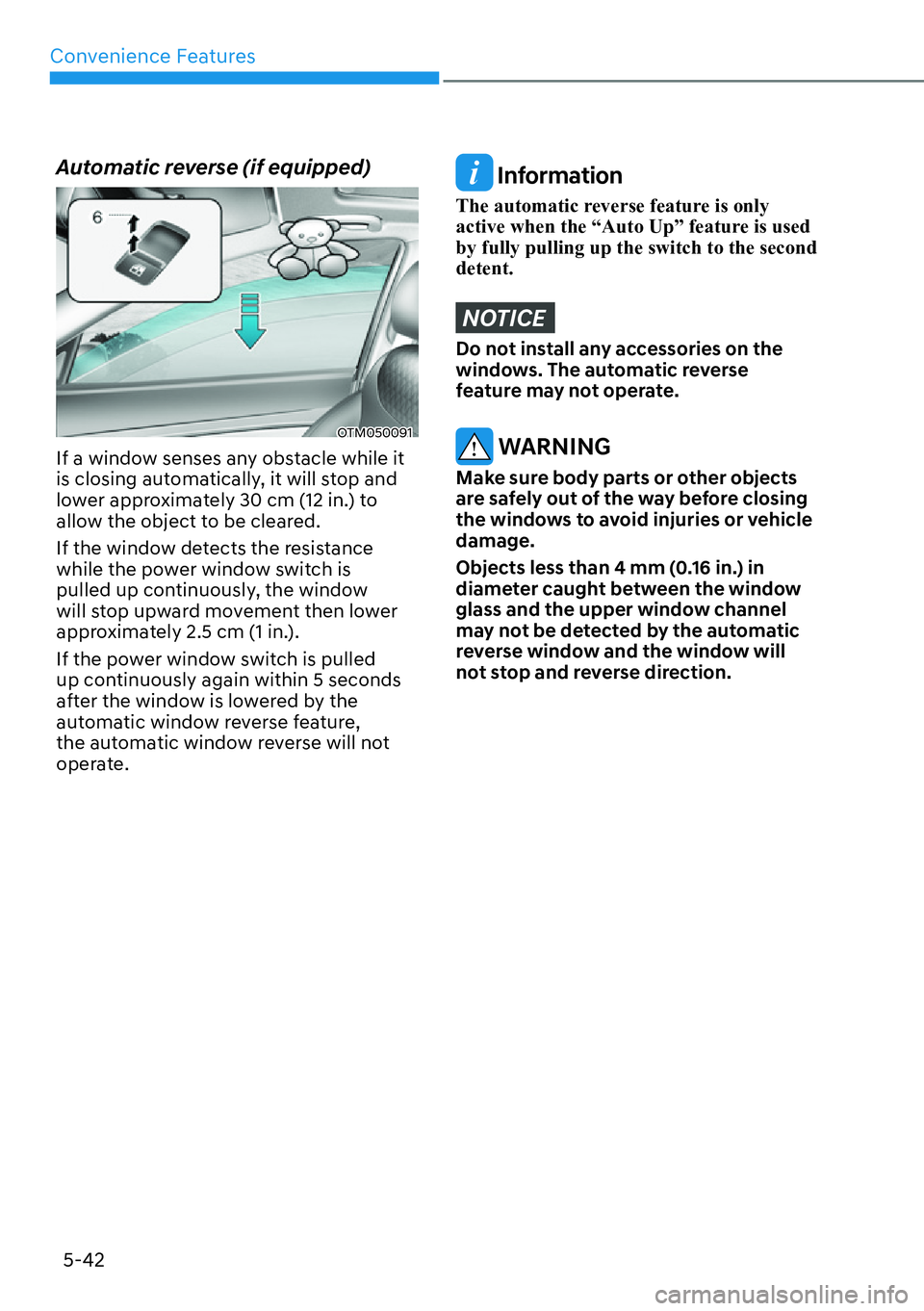

Automatic reverse (if equipped)
OTM050091
If a window senses any obstacle while it
is closing automatically, it will stop and
lower approximately 30 cm (12 in.) to
allow the object to be cleared.
If the window detects the resistance
while the power window switch is
pulled up continuously, the window
will stop upward movement then lower
approximately 2.5 cm (1 in.).
If the power window switch is pulled up continuously again within 5 seconds
after the window is lowered by the
automatic window reverse feature,
the automatic window reverse will not
operate.
Information
The automatic reverse feature is only
active when the “Auto Up” feature is used by fully pulling up the switch to the second detent.
NOTICE
Do not install any accessories on the
windows. The automatic reverse
feature may not operate.
WARNING
Make sure body parts or other objects
are safely out of the way before closing
the windows to avoid injuries or vehicle damage.
Objects less than 4 mm (0.16 in.) in
diameter caught between the window
glass and the upper window channel
may not be detected by the automatic
reverse window and the window will
not stop and reverse direction.

05
5-43

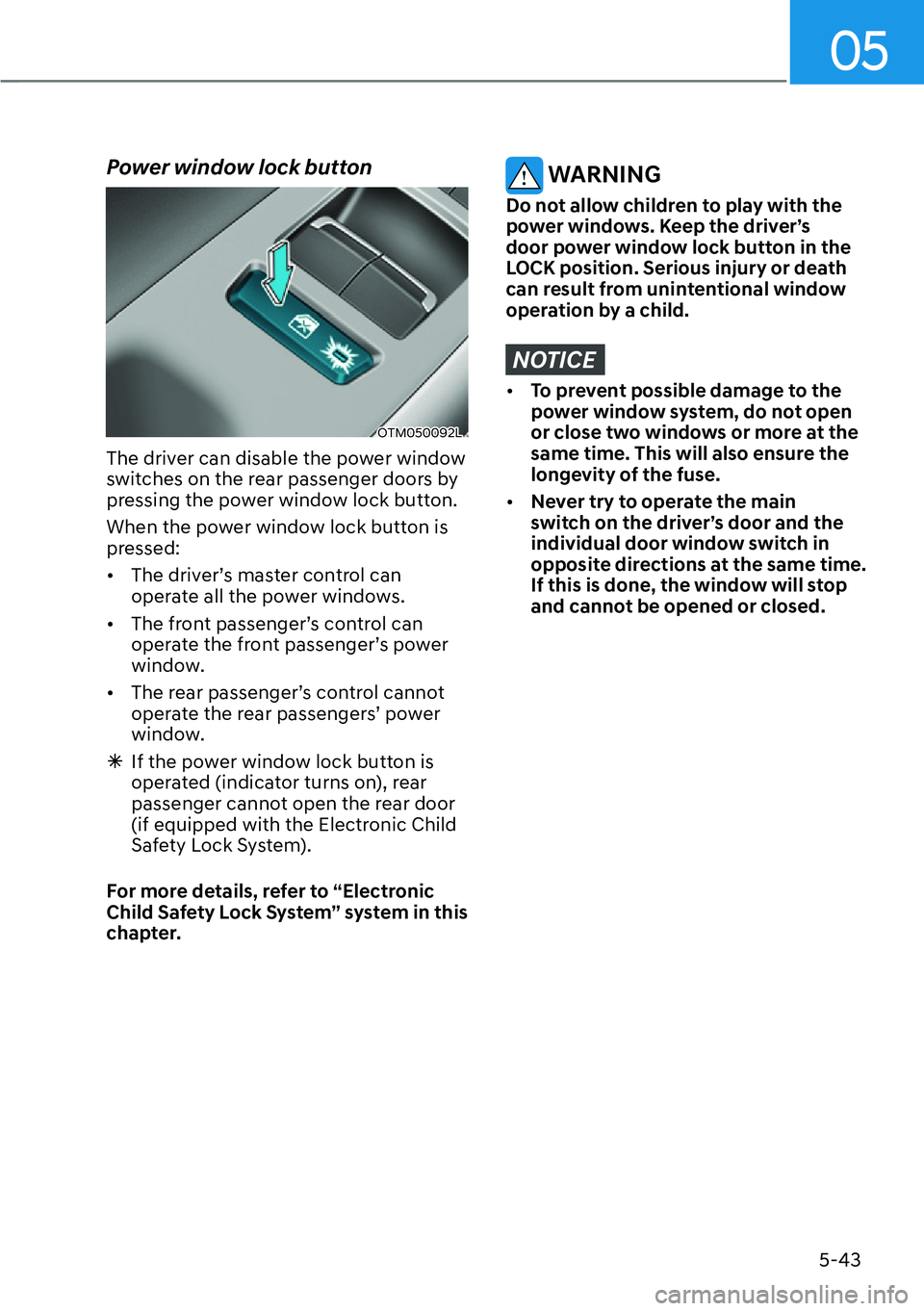

Power window lock button
OTM050092L
The driver can disable the power window
switches on the rear passenger doors by
pressing the power window lock button.
When the power window lock button is
pressed:
[ The driver’s master control can
operate all the power windows.

[ The front passenger’s control can
operate the front passenger’s power
window.

[ The rear passenger’s control cannot
operate the rear passengers’ power
window.

à If the power window lock button is
operated (indicator turns on), rear
passenger cannot open the rear door
(if equipped with the Electronic Child
Safety Lock System).
For more details, refer to “Electronic
Child Safety Lock System” system in this
chapter.
WARNING
Do not allow children to play with the
power windows. Keep the driver’s
door power window lock button in the
LOCK position. Serious injury or death
can result from unintentional window
operation by a child.
NOTICE

[ To prevent possible damage to the
power window system, do not open
or close two windows or more at the
same time. This will also ensure the
longevity of the fuse.

[ Never try to operate the main
switch on the driver’s door and the
individual door window switch in
opposite directions at the same time.
If this is done, the window will stop
and cannot be opened or closed.

Convenience Features
5-44

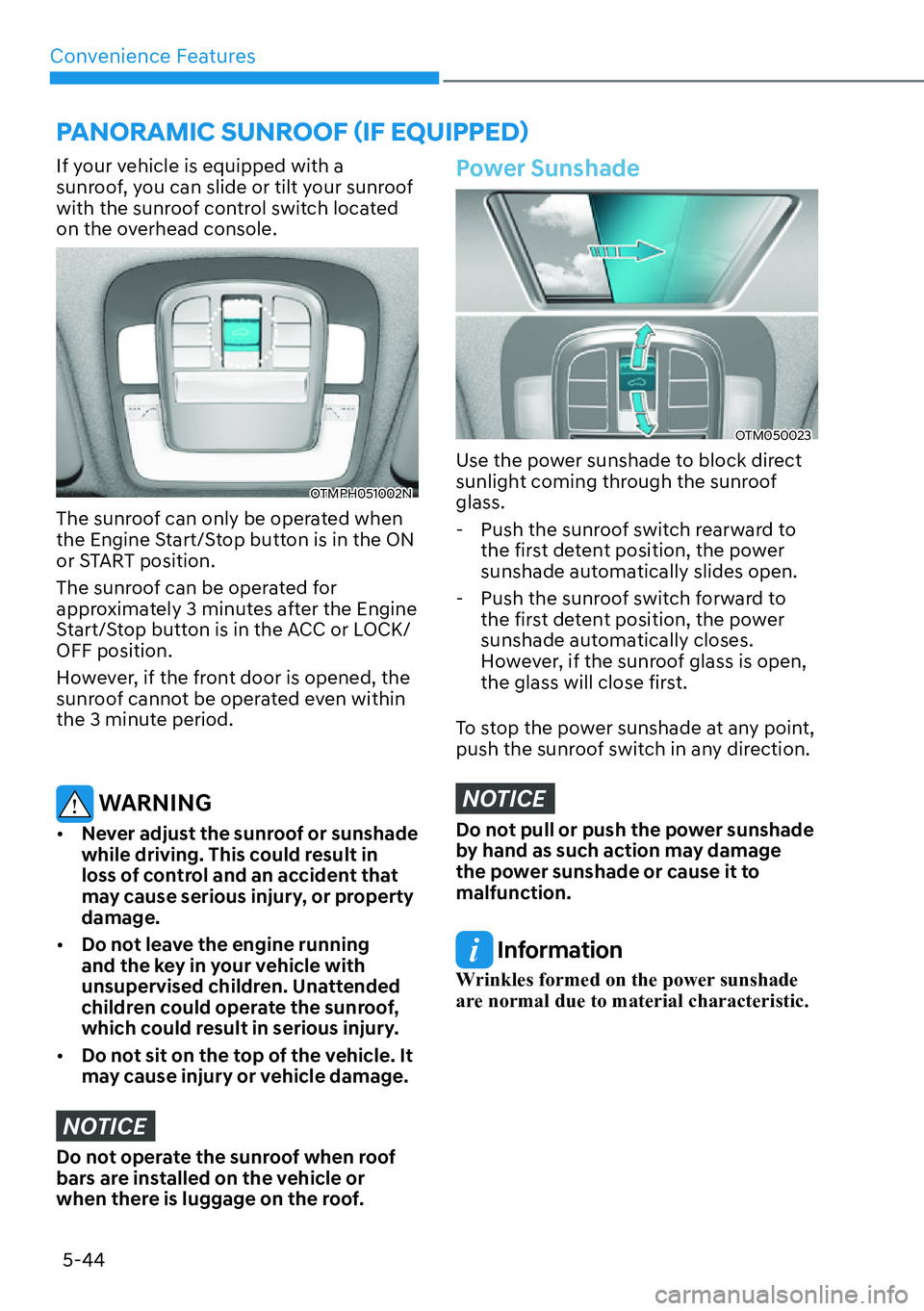

If your vehicle is equipped with a
sunroof, you can slide or tilt your sunroof
with the sunroof control switch located
on the overhead console.
OTMPH051002N
The sunroof can only be operated when
the Engine Start/Stop button is in the ON
or START position.
The sunroof can be operated for
approximately 3 minutes after the Engine
Start/Stop button is in the ACC or LOCK/OFF position.
However, if the front door is opened, the
sunroof cannot be operated even within
the 3 minute period.
WARNING

[ Never adjust the sunroof or sunshade
while driving. This could result in
loss of control and an accident that
may cause serious injury, or property damage.

[ Do not leave the engine running
and the key in your vehicle with
unsupervised children. Unattended
children could operate the sunroof,
which could result in serious injury.

[ Do not sit on the top of the vehicle. It
may cause injury or vehicle damage.
NOTICE
Do not operate the sunroof when roof
bars are installed on the vehicle or
when there is luggage on the roof.
Power Sunshade
OTM050023
Use the power sunshade to block direct
sunlight coming through the sunroof glass.
- Push the sunroof switch rearward to the first detent position, the power
sunshade automatically slides open.
- Push the sunroof switch forward to the first detent position, the power
sunshade automatically closes.
However, if the sunroof glass is open,
the glass will close first.
To stop the power sunshade at any point,
push the sunroof switch in any direction.
NOTICE
Do not pull or push the power sunshade
by hand as such action may damage
the power sunshade or cause it to malfunction.
Information
Wrinkles formed on the power sunshade
are normal due to material characteristic.
3$125$0,&681522)
ã,)(48,33('
ä

05
5-45
Tilt Open/Close
OTM050025

[ Push the sunroof switch upward, the
sunroof glass tilts open. However,
if the power sunshade is close, the
sunshade will open first.

[ Push the sunroof switch forward, the
sunroof glass automatically closes.
To stop the sunroof movement at any
point, push the sunroof switch in any
direction.
Slide Open/Close
OTM050024

[ Push the sunroof switch rearward, the
sunroof glass slides open.
However, if the power sunshade is close,
the power sunshade will open first.
Push the sunroof switch forward, the
sunroof glass closes.
[ Push the sunroof switch forward or
rearward to the first detent position,
the sunroof glass moves until the
switch is released.

[ Push the sunroof switch forward
or rearward to the second detent
position, the sunroof glass operated
automatically (auto slide feature).
To stop the sunroof movement at any
point, push the sunroof switch in any
direction.
