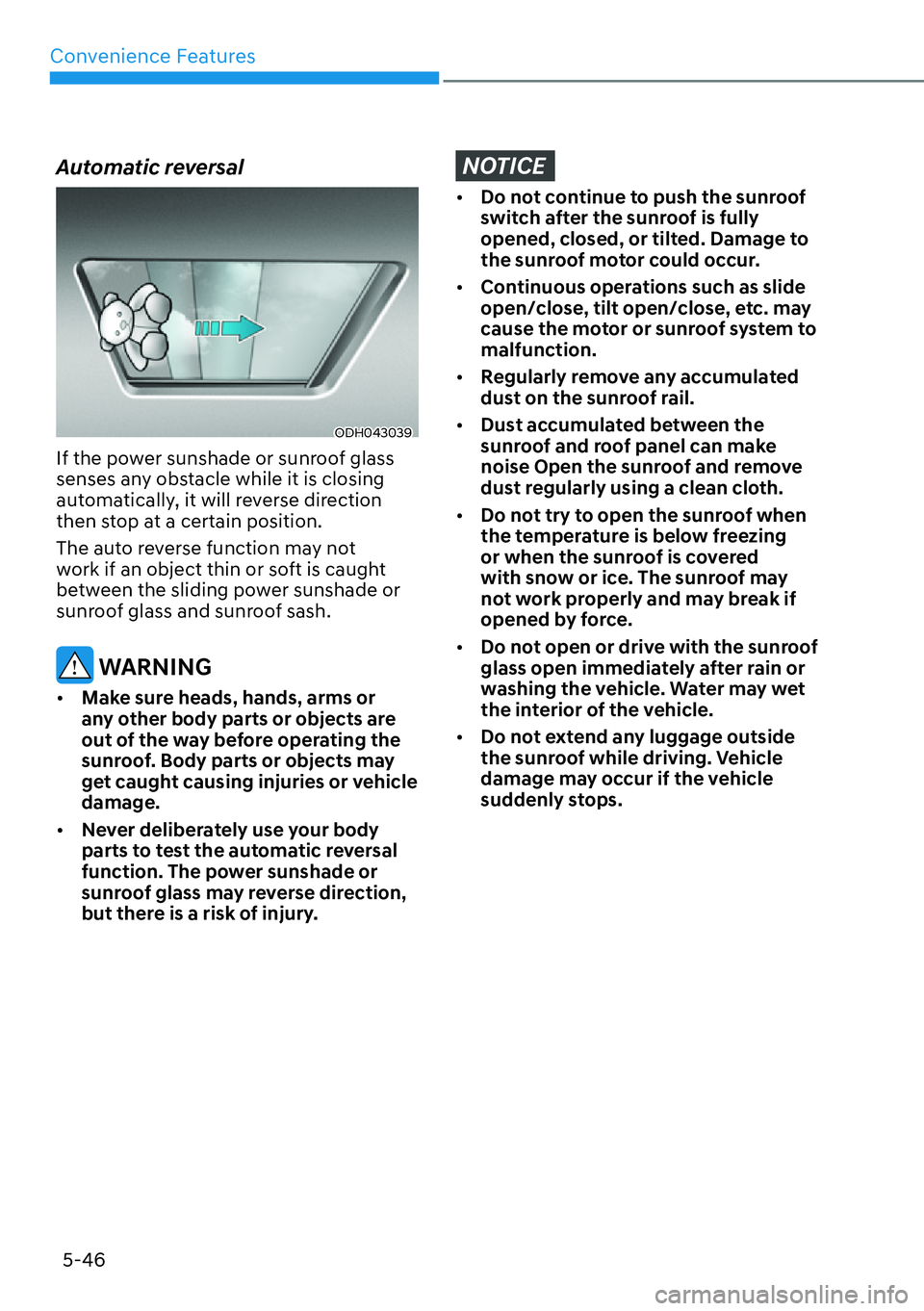

HYUNDAI SANTA FE HYBRID 2022 Owners Manual

Convenience Features
5-46
Automatic reversal
ODH043039
If the power sunshade or sunroof glass
senses any obstacle while it is closing
automatically, it will reverse direction
then stop at a certain position.
The auto reverse function may not
work if an object thin or soft is caught
between the sliding power sunshade or
sunroof glass and sunroof sash.
WARNING

[ Make sure heads, hands, arms or
any other body parts or objects are
out of the way before operating the
sunroof. Body parts or objects may
get caught causing injuries or vehicle damage.

[ Never deliberately use your body
parts to test the automatic reversal
function. The power sunshade or
sunroof glass may reverse direction,
but there is a risk of injury.
NOTICE

[Do not continue to push the sunroof
switch after the sunroof is fully
opened, closed, or tilted. Damage to
the sunroof motor could occur.

[ Continuous operations such as slide
open/close, tilt open/close, etc. may
cause the motor or sunroof system to malfunction.

[ Regularly remove any accumulated
dust on the sunroof rail.

[ Dust accumulated between the
sunroof and roof panel can make
noise Open the sunroof and remove
dust regularly using a clean cloth.

[ Do not try to open the sunroof when
the temperature is below freezing
or when the sunroof is covered
with snow or ice. The sunroof may
not work properly and may break if
opened by force.

[ Do not open or drive with the sunroof
glass open immediately after rain or
washing the vehicle. Water may wet
the interior of the vehicle.

[ Do not extend any luggage outside
the sunroof while driving. Vehicle
damage may occur if the vehicle
suddenly stops.

05
5-47

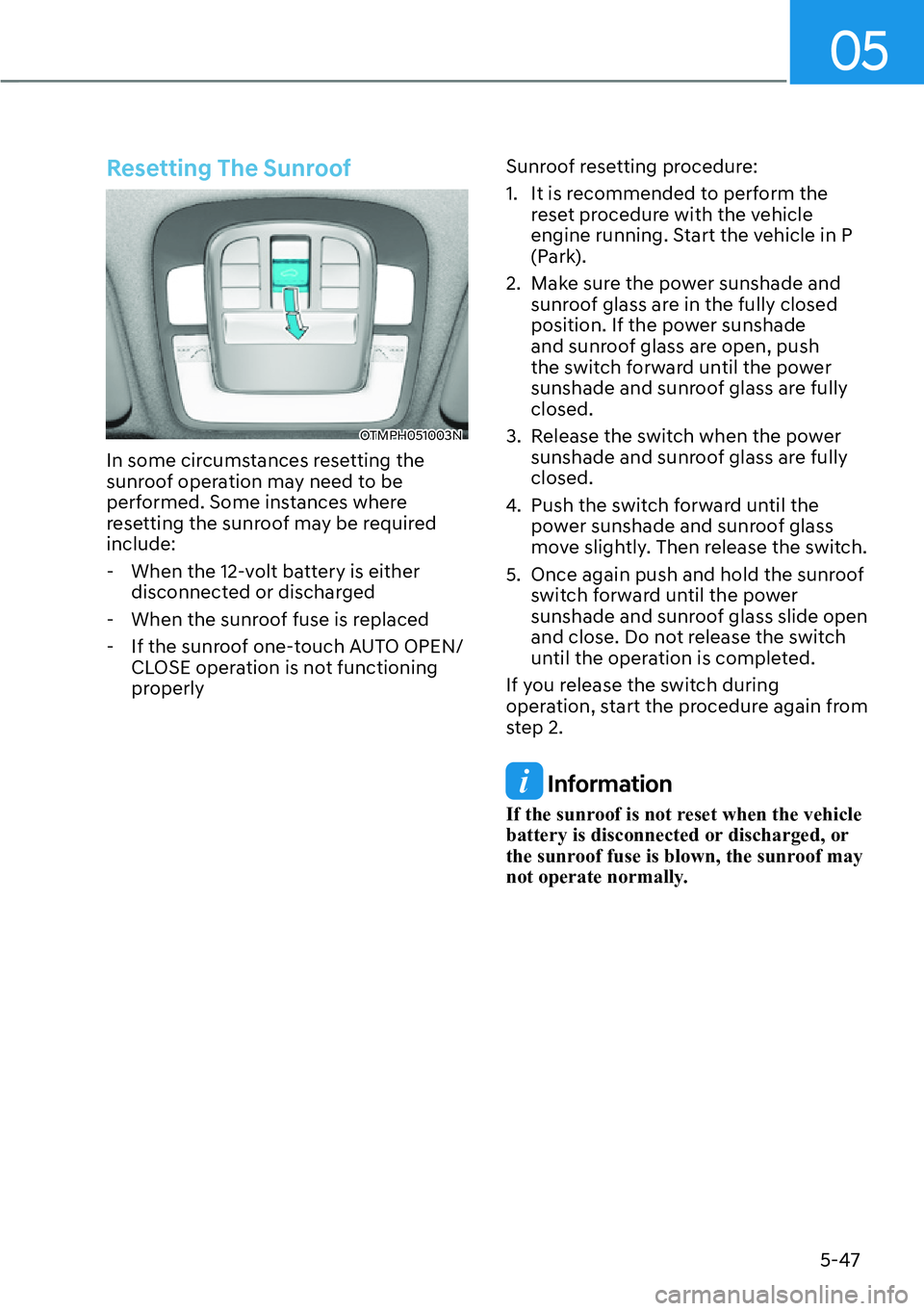

Resetting The Sunroof
OTMPH051003N
In some circumstances resetting the
sunroof operation may need to be
performed. Some instances where
resetting the sunroof may be required include:
- When the 12-volt battery is either disconnected or discharged
- When the sunroof fuse is replaced
- If the sunroof one-touch AUTO OPEN/ CLOSE operation is not functioning
properly Sunroof resetting procedure:
1. It is recommended to perform the
reset procedure with the vehicle
engine running. Start the vehicle in P
(Park).
2. Make sure the power sunshade and sunroof glass are in the fully closed
position. If the power sunshade
and sunroof glass are open, push
the switch forward until the power
sunshade and sunroof glass are fully closed.
3. Release the switch when the power sunshade and sunroof glass are fully closed.
4. Push the switch forward until the power sunshade and sunroof glass
move slightly. Then release the switch.
5. Once again push and hold the sunroof switch forward until the power
sunshade and sunroof glass slide open
and close. Do not release the switch
until the operation is completed.
If you release the switch during
operation, start the procedure again from
step 2.
Information
If the sunroof is not reset when the vehicle
battery is disconnected or discharged, or
the sunroof fuse is blown, the sunroof may
not operate normally.

Convenience Features
5-48

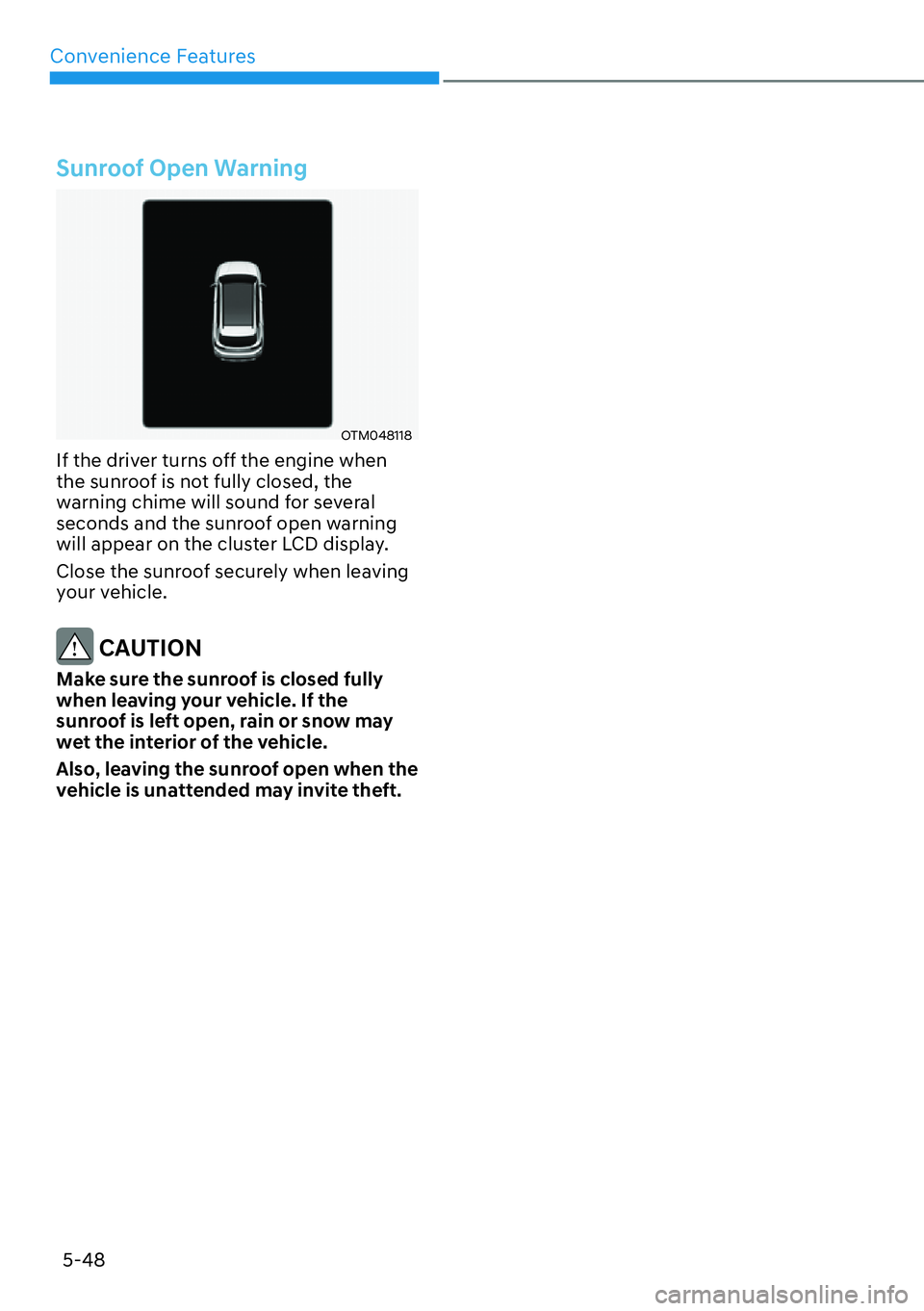

Sunroof Open Warning
OTM048118
If the driver turns off the engine when
the sunroof is not fully closed, the
warning chime will sound for several
seconds and the sunroof open warning
will appear on the cluster LCD display.
Close the sunroof securely when leaving
your vehicle.
CAUTION
Make sure the sunroof is closed fully
when leaving your vehicle. If the
sunroof is left open, rain or snow may
wet the interior of the vehicle.
Also, leaving the sunroof open when the
vehicle is unattended may invite theft.

05
5-49
Hood
Opening the hood
OTM050032
1. Park the vehicle and set the parking brake.
2. Pull the release lever to unlatch the hood. The hood should pop open
slightly.
OTM050069
3. Go to the front of the vehicle, raise the hood slightly, push up the secondary
latch (1) inside of the hood center and lift the hood.
After the hood has been lifted halfway,
it will raise completely by itself. Closing the hood
1. Before closing the hood, check in and
around the engine compartment to
ensure the following:
- Any tools or other loose objects are removed from the engine room
area or hood opening area
- All glove, rags, or other combustible material is removed
from the engine compartment
- All filler caps are tightly and correctly installed
2. Lower the hood halfway (lifted approximately 30 cm (12 in.) from the
closed position) and push down to
securely lock in place. Then double
check to be sure the hood is secure.
If the hood can be raised slightly, it is
not securely locked. Open it again and
close it with more force.
WARNING

[ Before closing the hood, ensure
all obstructions are removed from
around the hood opening.

[ Always double check to be sure that
the hood is firmly latched before
driving away. Check there is no
hood open warning light or message
displayed on the instrument cluster.
Driving with the hood opened may
cause a total loss of visibility, which
might result in an accident.

[ Do not move the vehicle with the
hood in the raised position, as vision
is obstructed, which might result in
an accident, and the hood could fall or be damaged.
EXTERIOR FEATURES

Convenience Features
5-50

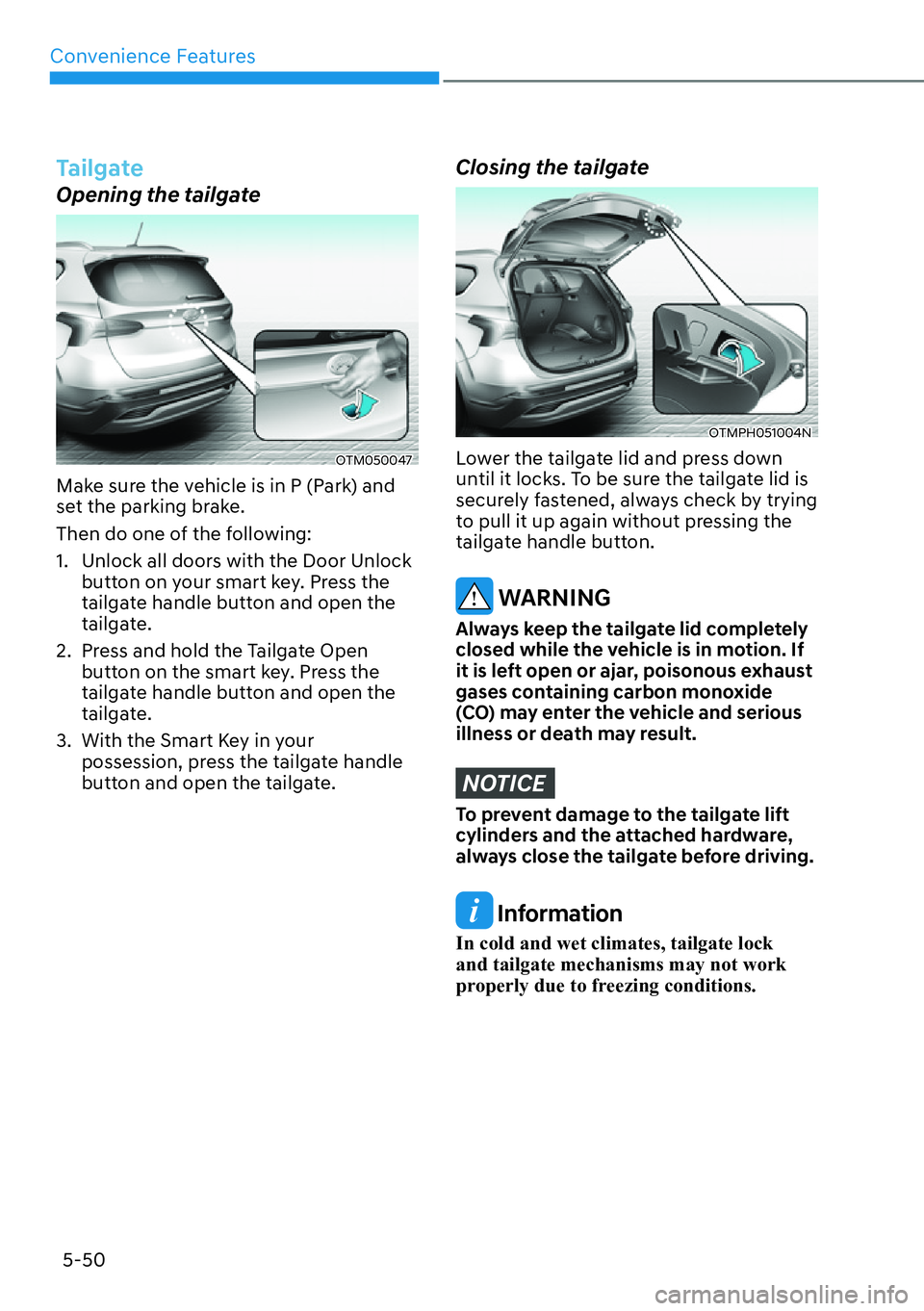

Tailgate
Opening the tailgate
OTM050047
Make sure the vehicle is in P (Park) and
set the parking brake.
Then do one of the following:
1. Unlock all doors with the Door Unlock button on your smart key. Press the
tailgate handle button and open the
tailgate.
2. Press and hold the Tailgate Open button on the smart key. Press the
tailgate handle button and open the
tailgate.
3. With the Smart Key in your possession, press the tailgate handle
button and open the tailgate.
Closing the tailgate
OTMPH051004N
Lower the tailgate lid and press down
until it locks. To be sure the tailgate lid is
securely fastened, always check by trying
to pull it up again without pressing the
tailgate handle button.
WARNING
Always keep the tailgate lid completely
closed while the vehicle is in motion. If
it is left open or ajar, poisonous exhaust
gases containing carbon monoxide
(CO) may enter the vehicle and serious
illness or death may result.
NOTICE
To prevent damage to the tailgate lift
cylinders and the attached hardware,
always close the tailgate before driving.
Information
In cold and wet climates, tailgate lock and tailgate mechanisms may not work
properly due to freezing conditions.

05
5-51

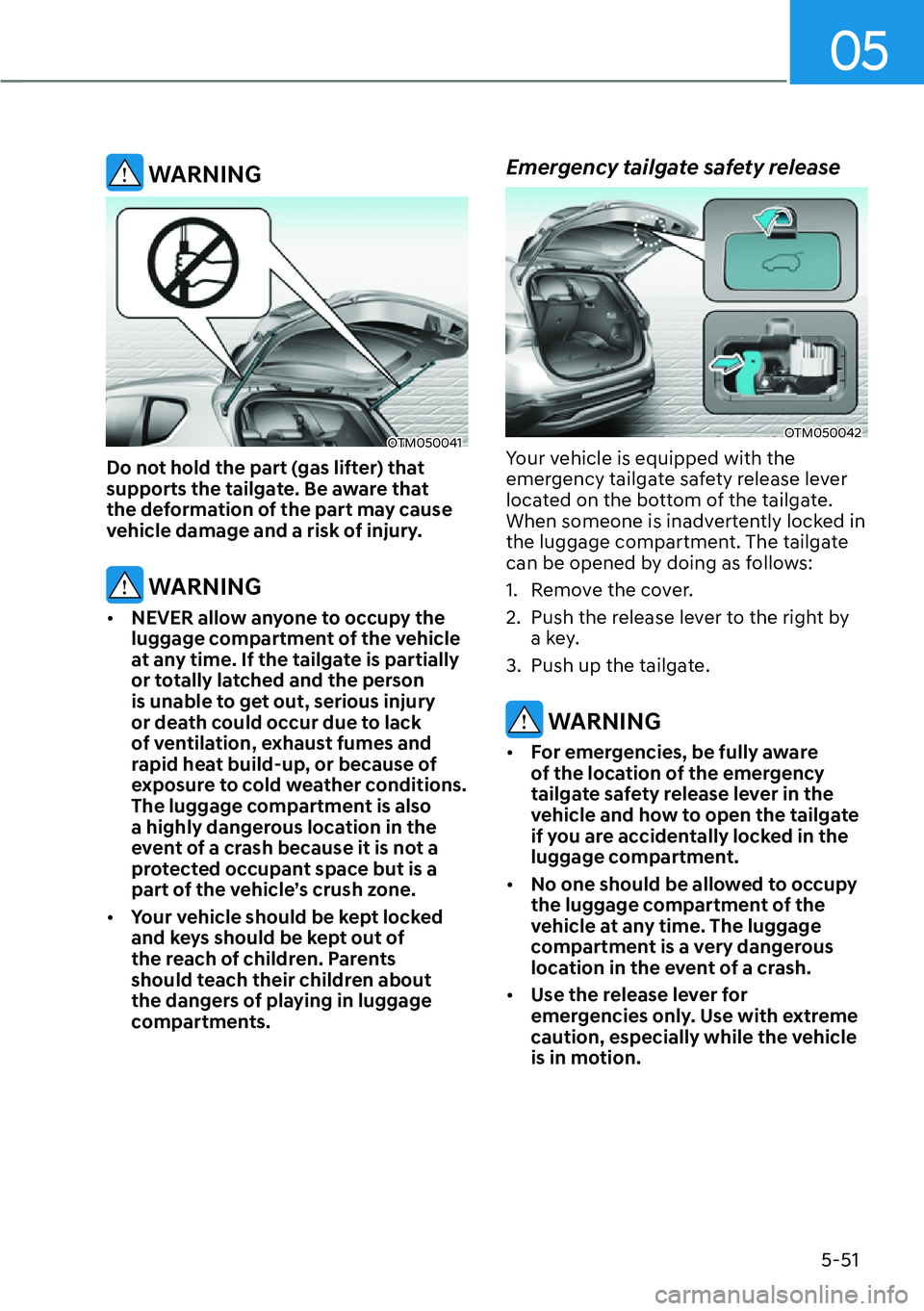

WARNING
OTM050041
Do not hold the part (gas lifter) that
supports the tailgate. Be aware that
the deformation of the part may cause
vehicle damage and a risk of injury.
WARNING

[ NEVER allow anyone to occupy the
luggage compartment of the vehicle
at any time. If the tailgate is partially
or totally latched and the person
is unable to get out, serious injury
or death could occur due to lack
of ventilation, exhaust fumes and
rapid heat build-up, or because of
exposure to cold weather conditions. The luggage compartment is also
a highly dangerous location in the
event of a crash because it is not a
protected occupant space but is a
part of the vehicle’s crush zone.

[ Your vehicle should be kept locked
and keys should be kept out of
the reach of children. Parents
should teach their children about
the dangers of playing in luggage compartments. Emergency tailgate safety release
OTM050042
Your vehicle is equipped with the
emergency tailgate safety release lever
located on the bottom of the tailgate.
When someone is inadvertently locked in
the luggage compartment. The tailgate
can be opened by doing as follows:
1. Remove the cover.
2. Push the release lever to the right by a key.
3. Push up the tailgate.
WARNING

[ For emergencies, be fully aware
of the location of the emergency
tailgate safety release lever in the
vehicle and how to open the tailgate
if you are accidentally locked in the luggage compartment.

[ No one should be allowed to occupy
the luggage compartment of the
vehicle at any time. The luggage
compartment is a very dangerous
location in the event of a crash.

[ Use the release lever for
emergencies only. Use with extreme
caution, especially while the vehicle
is in motion.

Convenience Features
5-52

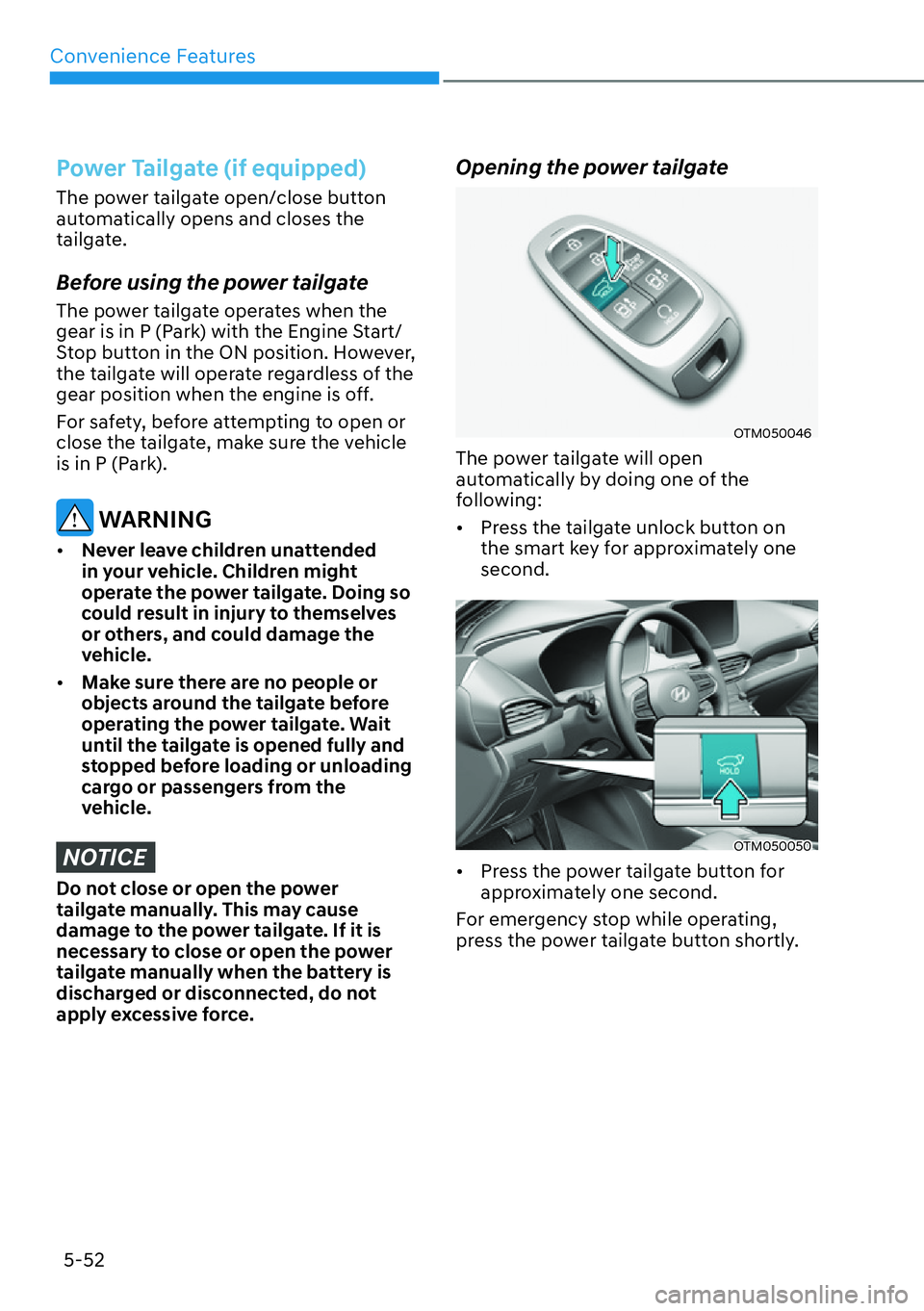

Power Tailgate (if equipped)
The power tailgate open/close button
automatically opens and closes the
tailgate.
Before using the power tailgate
The power tailgate operates when the
gear is in P (Park) with the Engine Start/
Stop button in the ON position. However,
the tailgate will operate regardless of the
gear position when the engine is off.
For safety, before attempting to open or
close the tailgate, make sure the vehicle
is in P (Park).
WARNING

[ Never leave children unattended
in your vehicle. Children might
operate the power tailgate. Doing so
could result in injury to themselves
or others, and could damage the
vehicle.

[ Make sure there are no people or
objects around the tailgate before
operating the power tailgate. Wait
until the tailgate is opened fully and
stopped before loading or unloading
cargo or passengers from the
vehicle.
NOTICE
Do not close or open the power
tailgate manually. This may cause
damage to the power tailgate. If it is
necessary to close or open the power
tailgate manually when the battery is
discharged or disconnected, do not
apply excessive force. Opening the power tailgate
OTM050046
The power tailgate will open
automatically by doing one of the
following:
[ Press the tailgate unlock button on
the smart key for approximately one second.
OTM050050

[ Press the power tailgate button for
approximately one second.
For emergency stop while operating,
press the power tailgate button shortly.

05
5-53
OTM050036

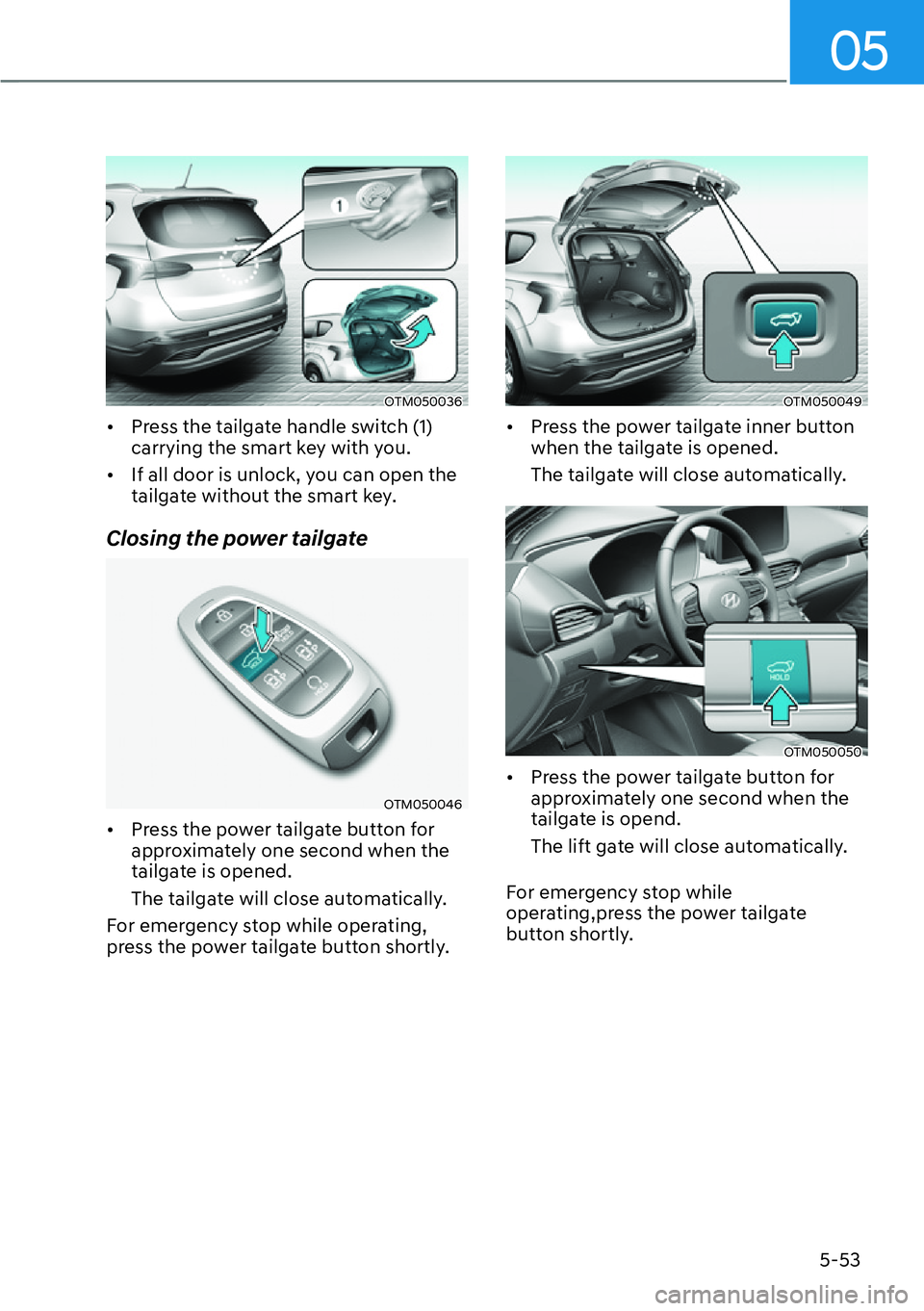

[ Press the tailgate handle switch (1)
carrying the smart key with you.

[ If all door is unlock, you can open the
tailgate without the smart key.
Closing the power tailgate
OTM050046

[ Press the power tailgate button for
approximately one second when the
tailgate is opened.
The tailgate will close automatically.
For emergency stop while operating,
press the power tailgate button shortly.
OTM050049

[ Press the power tailgate inner button
when the tailgate is opened.
The tailgate will close automatically.
OTM050050

[ Press the power tailgate button for
approximately one second when the
tailgate is opend.
The lift gate will close automatically.
For emergency stop while
operating,press the power tailgate
button shortly.

Convenience Features
5-54

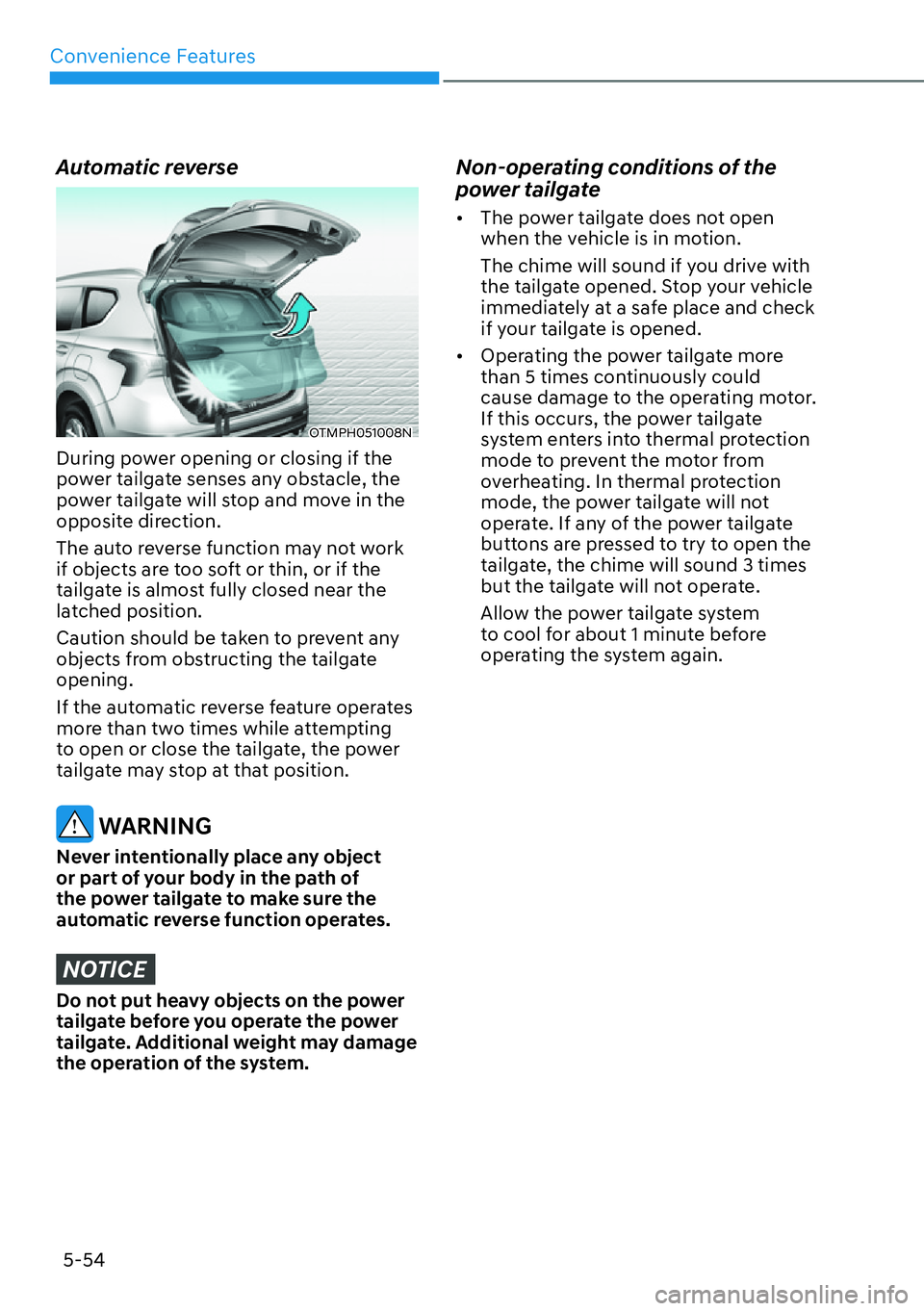

Automatic reverse
OTMPH051008N
During power opening or closing if the
power tailgate senses any obstacle, the
power tailgate will stop and move in the
opposite direction.
The auto reverse function may not work
if objects are too soft or thin, or if the
tailgate is almost fully closed near the
latched position.
Caution should be taken to prevent any
objects from obstructing the tailgate opening.
If the automatic reverse feature operates
more than two times while attempting
to open or close the tailgate, the power
tailgate may stop at that position.
WARNING
Never intentionally place any object
or part of your body in the path of
the power tailgate to make sure the
automatic reverse function operates.
NOTICE
Do not put heavy objects on the power
tailgate before you operate the power
tailgate. Additional weight may damage
the operation of the system. Non-operating conditions of the
power tailgate
[
The power tailgate does not open
when the vehicle is in motion.
The chime will sound if you drive with
the tailgate opened. Stop your vehicle
immediately at a safe place and check
if your tailgate is opened.

[ Operating the power tailgate more
than 5 times continuously could
cause damage to the operating motor.
If this occurs, the power tailgate
system enters into thermal protection
mode to prevent the motor from
overheating. In thermal protection
mode, the power tailgate will not
operate. If any of the power tailgate
buttons are pressed to try to open the
tailgate, the chime will sound 3 times
but the tailgate will not operate.
Allow the power tailgate system
to cool for about 1 minute before
operating the system again.

05
5-55

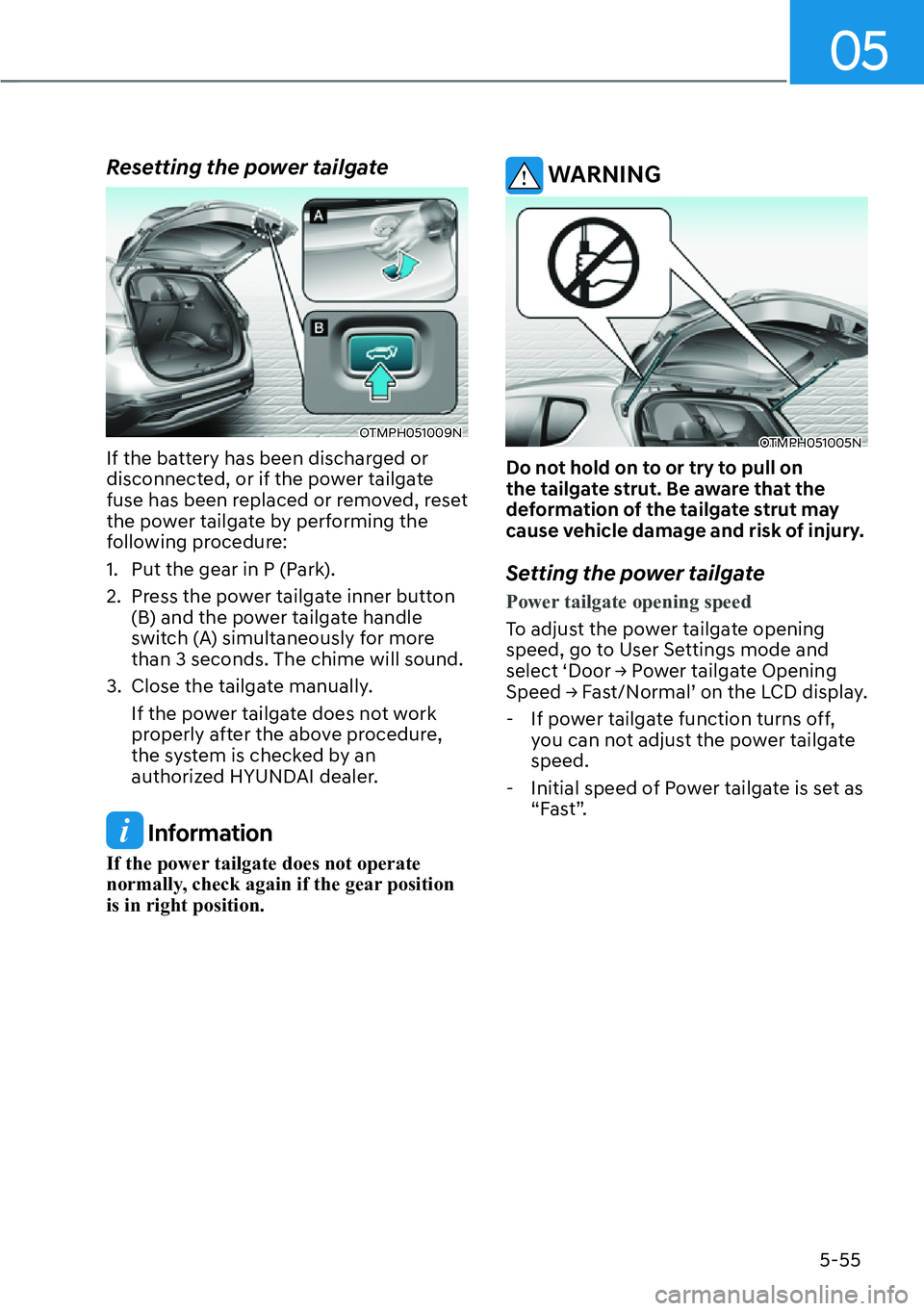

Resetting the power tailgate
OTMPH051009N
If the battery has been discharged or
disconnected, or if the power tailgate
fuse has been replaced or removed, reset
the power tailgate by performing the
following procedure:
1. Put the gear in P (Park).
2. Press the power tailgate inner button (B) and the power tailgate handle
switch (A) simultaneously for more than 3 seconds. The chime will sound.
3. Close the tailgate manually. If the power tailgate does not work
properly after the above procedure,
the system is checked by an
authorized HYUNDAI dealer.
Information
If the power tailgate does not operate
normally, check again if the gear position is in right position.
WARNING
OTMPH051005N
Do not hold on to or try to pull on
the tailgate strut. Be aware that the
deformation of the tailgate strut may
cause vehicle damage and risk of injury.
Setting the power tailgate
Power tailgate opening speed
To adjust the power tailgate opening
speed, go to User Settings mode and
VHOHFW
S'RRU
Ÿ3RZHUWDLOJDWH2SHQLQJ
6SHHG
Ÿ)DVW1RUPDO
TRQWKH/&'GLVSOD\
- If power tailgate function turns off, you can not adjust the power tailgate speed.
- Initial speed of Power tailgate is set as “Fast”.
