Hyundai Santa Fe Sport 2016 Owner's Manual
Manufacturer: HYUNDAI, Model Year: 2016, Model line: Santa Fe Sport, Model: Hyundai Santa Fe Sport 2016Pages: 763, PDF Size: 37.75 MB
Page 741 of 763

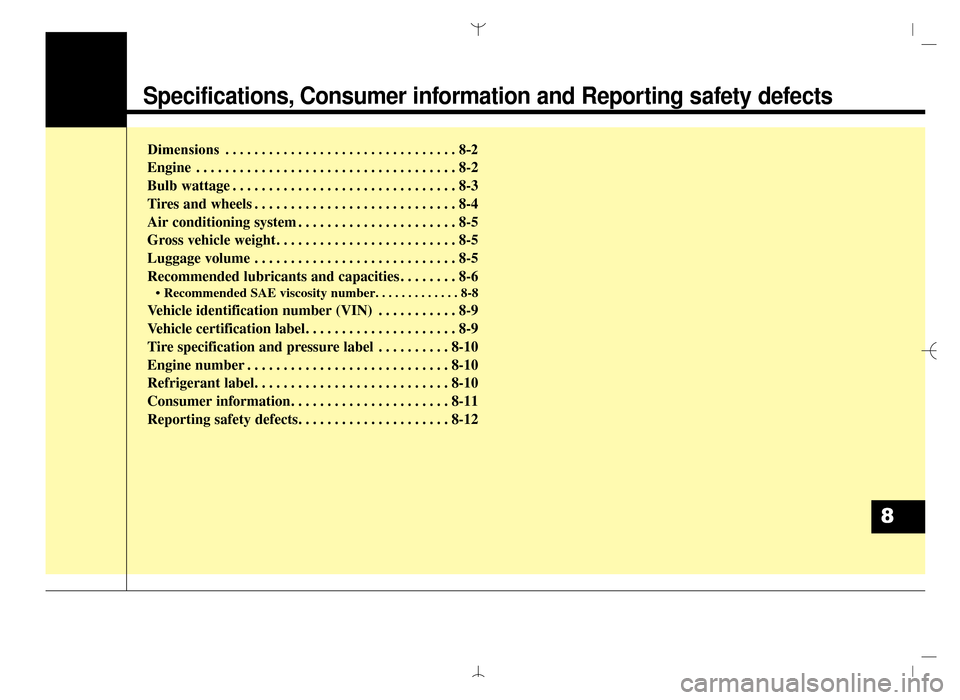

Specifications, Consumer information and Reporting safety defects
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
8-2
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . 8-5
Gross vehicle weight. . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Recommended lubricants and capacities . . . . . . . . 8-6
• Recommended SAE viscosity number. . . . . . . . . . . . . 8-8
Vehicle identification number (VIN) . . . . . . . . . . . 8-9
Vehicle certification label. . . . . . . . . . . . . . . . . . . . . 8-9
Tire specification and pressure label . . . . . . . . . . 8-10
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10
Refrigerant label. . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10
Consumer information. . . . . . . . . . . . . . . . . . . . . . 8-11
Reporting safety defects. . . . . . . . . . . . . . . . . . . . . 8-12
8
AN HMA 8.QXP 2015-02-03 ¿ ¨˜ 1:55 Page 1
Page 742 of 763

Specifications, Consumer information, Reporting safety defects
28

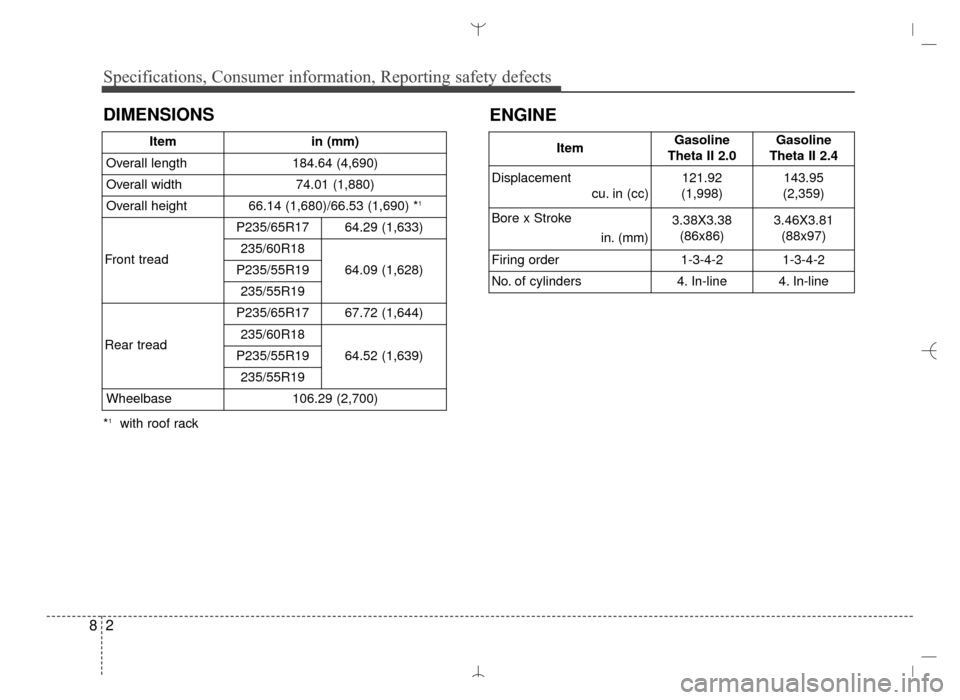

DIMENSIONS
*1with roof rackItem
in (mm)
Overall length 184.64 (4,690)
Overall width 74.01 (1,880)
Overall height 66.14 (1,680)/66.53 (1,690) *
1
Front tread P235/65R17 64.29 (1,633)235/60R18
64.09 (1,628)P235/55R19
235/55R19
Rear tread
P235/65R1767.72 (1,644)
235/60R18 64.52 (1,639)
P235/55R19
235/55R19
Wheelbase 106.29 (2,700)
ItemGasoline
Theta II 2.0 Gasoline
Theta II 2.4
Displacement cu. in (cc)
121.92
(1,998) 143.95
(2,359)
Bore x Stroke in. (mm)
3.38X3.38(86x86) 3.46X3.81
(88x97)
Firing order
1-3-4-2 1-3-4-2
No. of cylinders
4. In-line 4. In-line
ENGINE
AN HMA 8.QXP 2015-02-03 ¿ ¨˜ 1:55 Page 2
Page 743 of 763

83
Specifications, Consumer information, Reporting safety defects

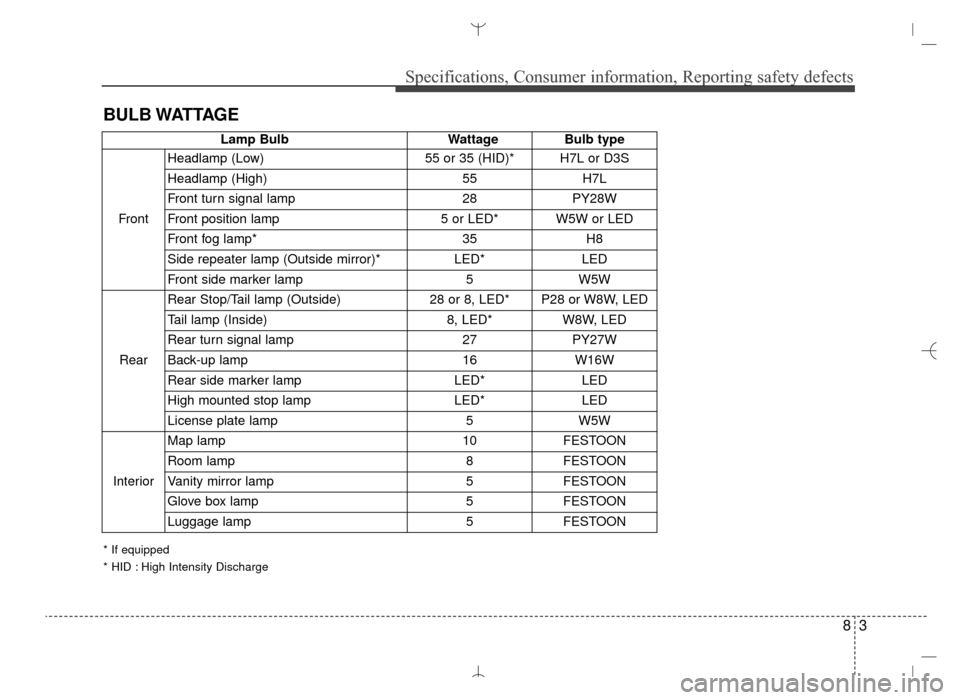

BULB WATTAGE
Lamp BulbWattageBulb type
Front Headlamp (Low)
55 or 35 (HID)* H7L or D3S
Headlamp (High) 55H7L
Front turn signal lamp 28PY28W
Front position lamp 5 or LED* W5W or LED
Front fog lamp* 35H8
Side repeater lamp (Outside mirror)* LED*LED
Front side marker lamp 5W5W
Rear Rear Stop/Tail lamp (Outside)
28 or 8, LED* P28 or W8W, LED
Tail lamp (Inside) 8, LED*W8W, LED
Rear turn signal lamp 27PY27W
Back-up lamp 16W16W
Rear side marker lamp LED*LED
High mounted stop lamp LED*LED
License plate lamp 5W5W
Interior Map lamp
10FESTOON
Room lamp 8FESTOON
Vanity mirror lamp 5FESTOON
Glove box lamp 5FESTOON
Luggage lamp 5FESTOON
* If equipped
* HID : High Intensity Discharge
AN HMA 8.QXP 2015-02-03 ¿ ¨˜ 1:55 Page 3
Page 744 of 763
![Hyundai Santa Fe Sport 2016 Owners Manual Specifications, Consumer information, Reporting safety defects
48
TIRES AND WHEELS
ItemTire size Wheel size Inflation pressure [psi (kPa)]
Wheel lug nut torque lb•ft, N
Normal load
()Maximum load() Hyundai Santa Fe Sport 2016 Owners Manual Specifications, Consumer information, Reporting safety defects
48
TIRES AND WHEELS
ItemTire size Wheel size Inflation pressure [psi (kPa)]
Wheel lug nut torque lb•ft, N
Normal load
()Maximum load()](/img/35/16754/w960_16754-743.png)
Specifications, Consumer information, Reporting safety defects
48

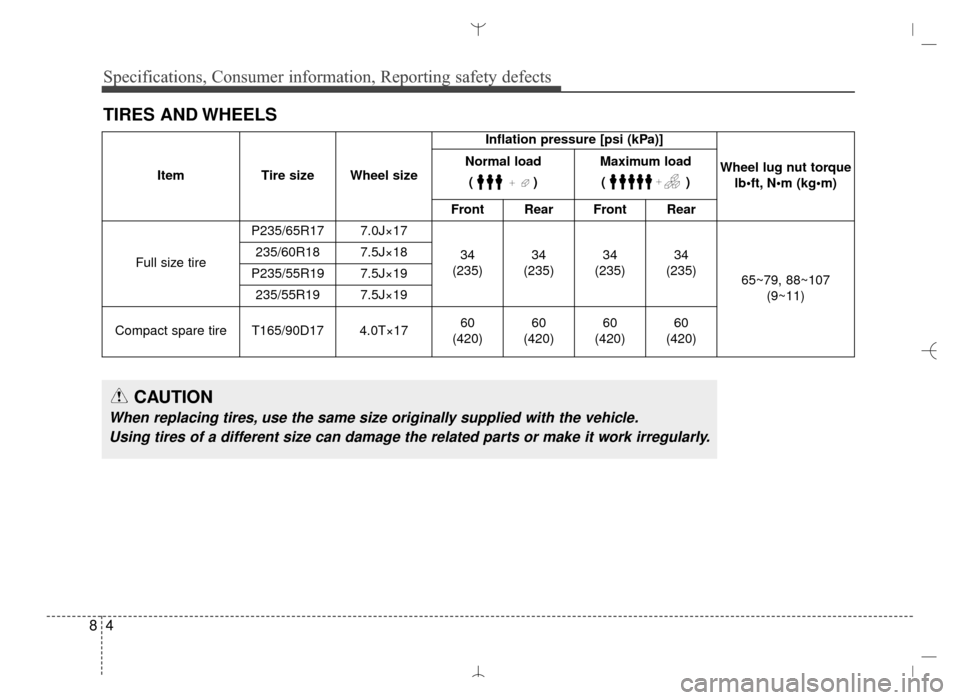

TIRES AND WHEELS
ItemTire size Wheel size Inflation pressure [psi (kPa)]
Wheel lug nut torque lb•ft, N
Normal load
()Maximum load()
Front Rear Front Rear
Full size tire P235/65R17 7.0J×17
34
(235) 34
(235) 34
(235) 34
(235) 65~79, 88~107
(9~11)
235/60R18 7.5J×18
P235/55R19 7.5J×19 235/55R19 7.5J×19
Compact spare tire T165/90D17 4.0T×17 60
(420) 60
(420) 60
(420) 60
(420)
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or make it work irregularly.
AN HMA 8.QXP 2015-02-03 ¿ ¨˜ 1:55 Page 4
Page 745 of 763

85
Specifications, Consumer information, Reporting safety defects

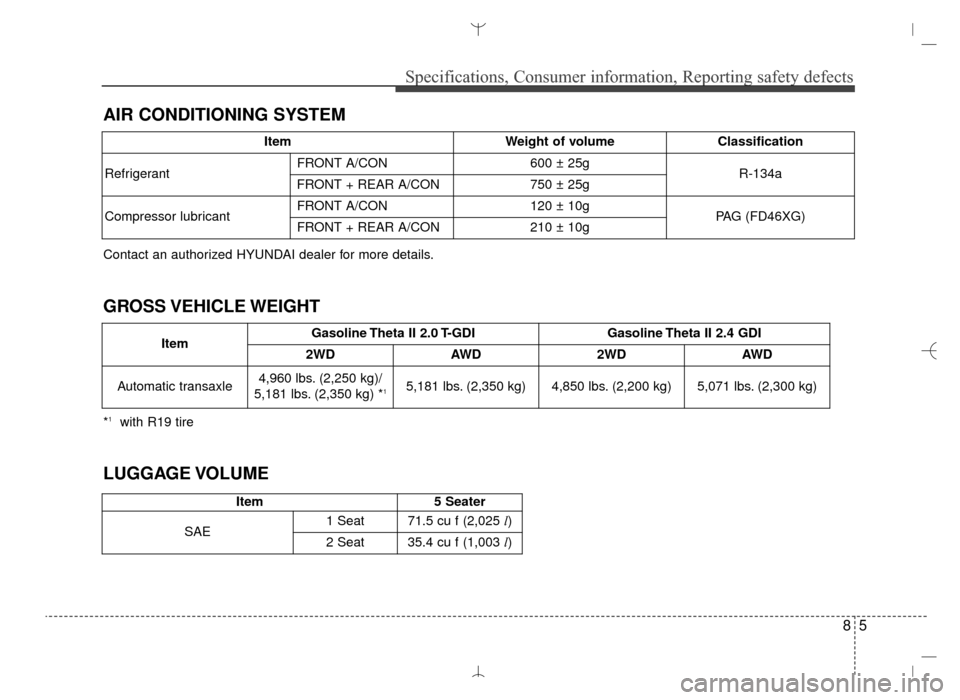

GROSS VEHICLE WEIGHT
LUGGAGE VOLUME
Item5 Seater
SAE 1 Seat
71.5 cu f (2,025
l)
2 Seat 35.4 cu f (1,003
l)
Item Gasoline Theta II 2.0 T-GDI Gasoline Theta II 2.4 GDI
2WD AWD 2WD AWD
Automatic transaxle 4,960 lbs. (2,250 kg)/
5,181 lbs. (2,350 kg) *
15,181 lbs. (2,350 kg) 4,850 lbs. (2,200 kg) 5,071 lbs. (2,300 kg)
*1with R19 tire
AIR CONDITIONING SYSTEM
ItemWeight of volume Classification
Refrigerant FRONT A/CON
600 ± 25g
R-134a
FRONT + REAR A/CON
750 ± 25g
Compressor lubricant FRONT A/CON
120 ± 10g
PAG (FD46XG)
FRONT + REAR A/CON
210 ± 10g
Contact an authorized HYUNDAI dealer for more details.
AN HMA 8.QXP 2015-02-03 ¿ ¨˜ 1:55 Page 5
Page 746 of 763

Specifications, Consumer information, Reporting safety defects
68

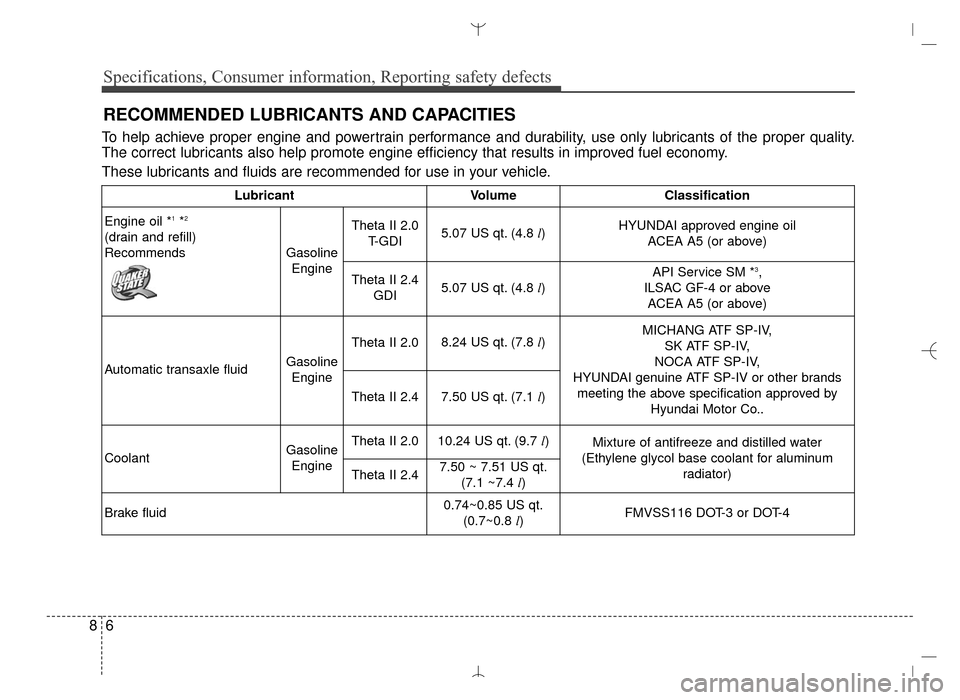

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Engine oil *
1*2
(drain and refill)
Recommends Gasoline EngineTheta II 2.0
T-GDI 5.07 US qt. (4.8
l)HYUNDAI approved engine oil
ACEA A5 (or above)
Theta II 2.4 GDI 5.07 US qt. (4.8
l) API Service SM *
3,
ILSAC GF-4 or above ACEA A5 (or above)
Automatic transaxle fluid Gasoline
Engine Theta II 2.0
8.24 US qt. (7.8 l) MICHANG ATF SP-IV,
SK ATF SP-IV,
NOCA ATF SP-IV,
HYUNDAI genuine ATF SP-IV or other brands meeting the above specification approved by Hyundai Motor Co..
Theta II 2.4
7.50 US qt. (7.1
l)
Coolant Gasoline
Engine Theta II 2.0
10.24 US qt. (9.7 l)
Mixture of antifreeze and distilled water
(Ethylene glycol base coolant for aluminum radiator)
Theta II 2.4 7.50 ~ 7.51 US qt.
(7.1 ~7.4 l)
Brake fluid 0.74~0.85 US qt.
(0.7~0.8 l) FMVSS116 DOT-3 or DOT-4
AN HMA 8.QXP 2015-02-03 ¿ ¨˜ 1:55 Page 6
Page 747 of 763

87
Specifications, Consumer information, Reporting safety defects

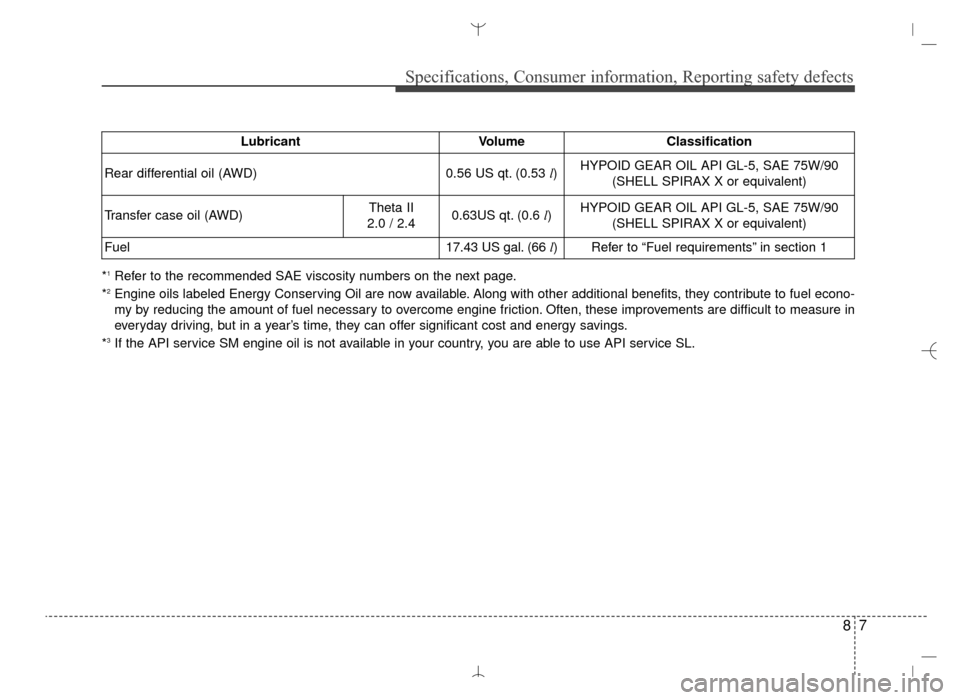

*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econo -
my by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in
everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*
3If the API service SM engine oil is not available in your country, you are able to use API service SL. Lubricant Volume Classification
Rear differential oil (AWD) 0.56 US qt. (0.53
l)HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
Transfer case oil (AWD) Theta II
2.0 / 2.4 0.63US qt. (0.6 l)
HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
Fuel 17.43 US gal. (66
l)
Refer to “Fuel requirements” in section 1
AN HMA 8.QXP 2015-02-03 ¿ ¨˜ 1:55 Page 7
Page 748 of 763

Specifications, Consumer information, Reporting safety defects
88

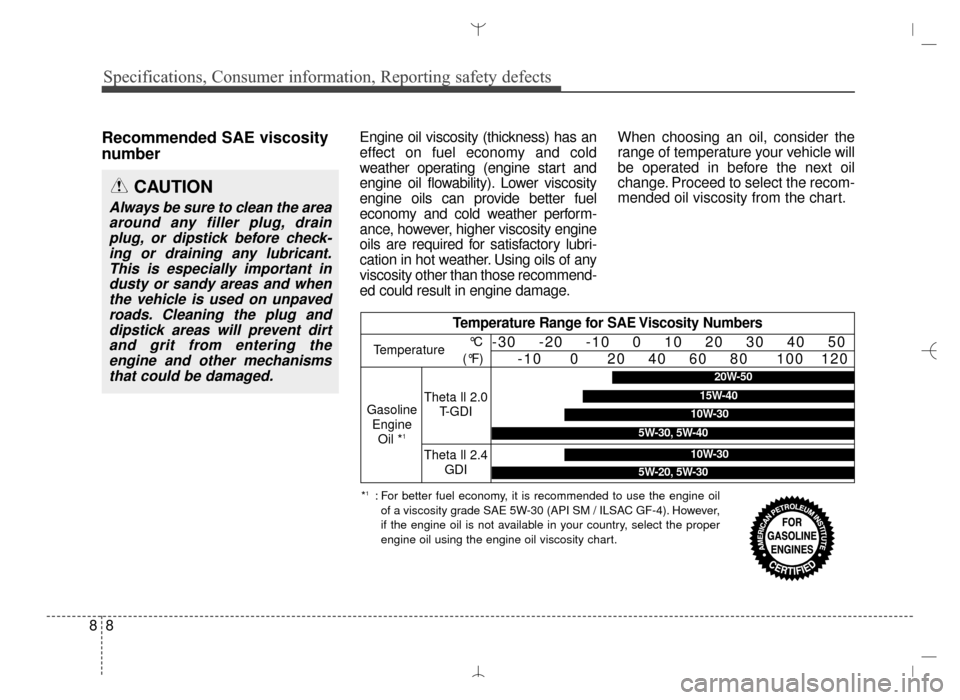

Recommended SAE viscosity
number Engine oil viscosity (thickness) has an
effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosity
engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity engine
oils are required for satisfactory lubri-
cation in hot weather. Using oils of any
viscosity other than those recommend-
ed could result in engine damage.When choosing an oil, consider the
range of temperature your vehicle will
be operated in before the next oil
change. Proceed to select the recom-
mended oil viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drainplug, or dipstick before check-ing or draining any lubricant.This is especially important industy or sandy areas and whenthe vehicle is used on unpavedroads. Cleaning the plug anddipstick areas will prevent dirtand grit from entering theengine and other mechanismsthat could be damaged.
*1: For better fuel economy, it is recommended to use the engine oil
of a viscosity grade SAE 5W-30 (API SM / ILSAC GF-4). However,
if the engine oil is not available in your country, select the proper
engine oil using the engine oil viscosity chart.
Temperature Range for SAE Viscosity Numbers
Temperature
Theta ll 2.0T-GDI
Gasoline
Engine Oil *
1
°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Theta ll 2.4GDI10W-30
5W-20, 5W-30
20W-50
10W-30
15W-40
5W-30, 5W-40
AN HMA 8.QXP 2015-02-03 ¿ ¨˜ 1:55 Page 8
Page 749 of 763

89
Specifications, Consumer information, Reporting safety defects

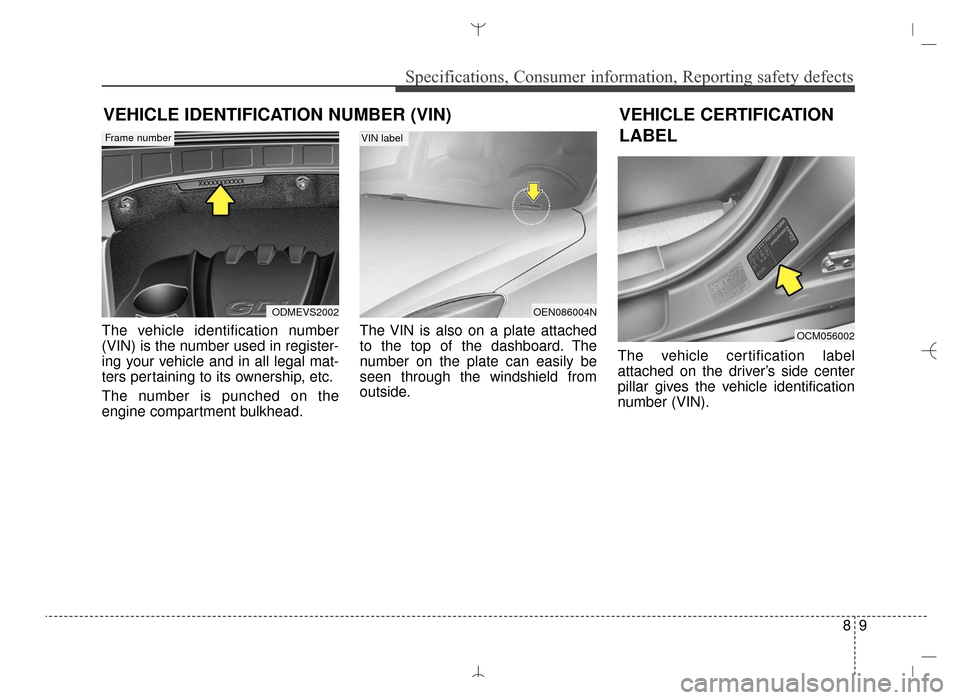

The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched on the
engine compartment bulkhead.The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.
The vehicle certification label
attached on the driver’s side center
pillar gives the vehicle identification
number (VIN).
VEHICLE IDENTIFICATION NUMBER (VIN)
ODMEVS2002
Frame number
VEHICLE CERTIFICATION
LABEL
OEN086004N
VIN label
OCM056002
AN HMA 8.QXP 2015-02-03 ¿ ¨˜ 1:55 Page 9
Page 750 of 763

Specifications, Consumer information, Reporting safety defects
10
8

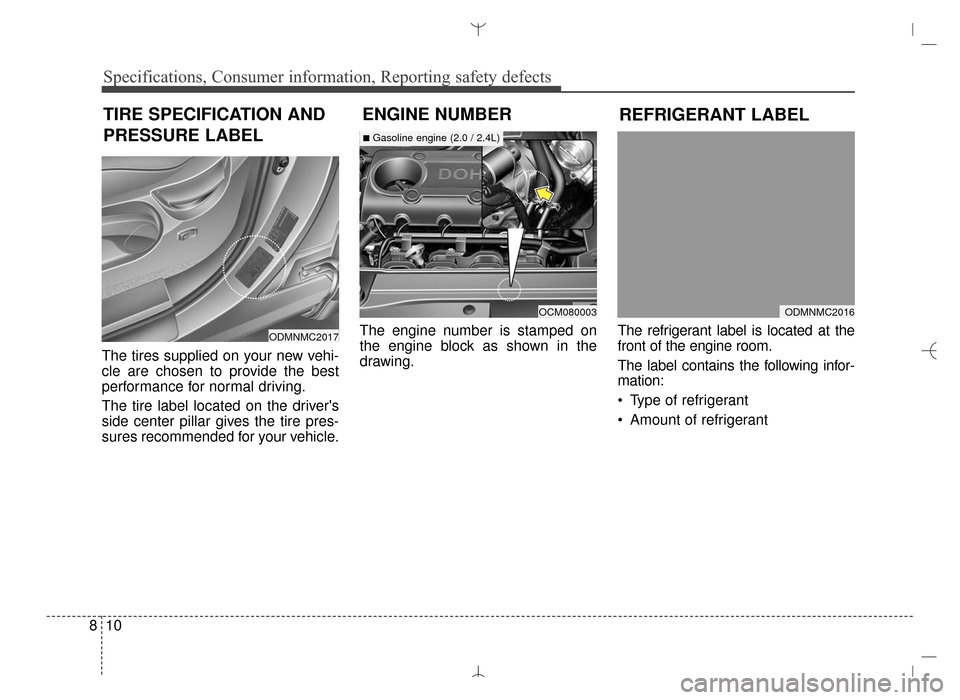

REFRIGERANT LABEL
TIRE SPECIFICATION AND
PRESSURE LABEL ENGINE NUMBER
The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your vehicle. The engine number is stamped on
the engine block as shown in the
drawing.
The refrigerant label is located at the
front of the engine room.
The label contains the following infor-
mation:
Type of refrigerant
Amount of refrigerant
ODMNMC2016
ODMNMC2017
OCM080003
■Gasoline engine (2.0 / 2.4L)
