Hyundai Santa Fe Sport 2016 Owner's Manual

763
Maintenance

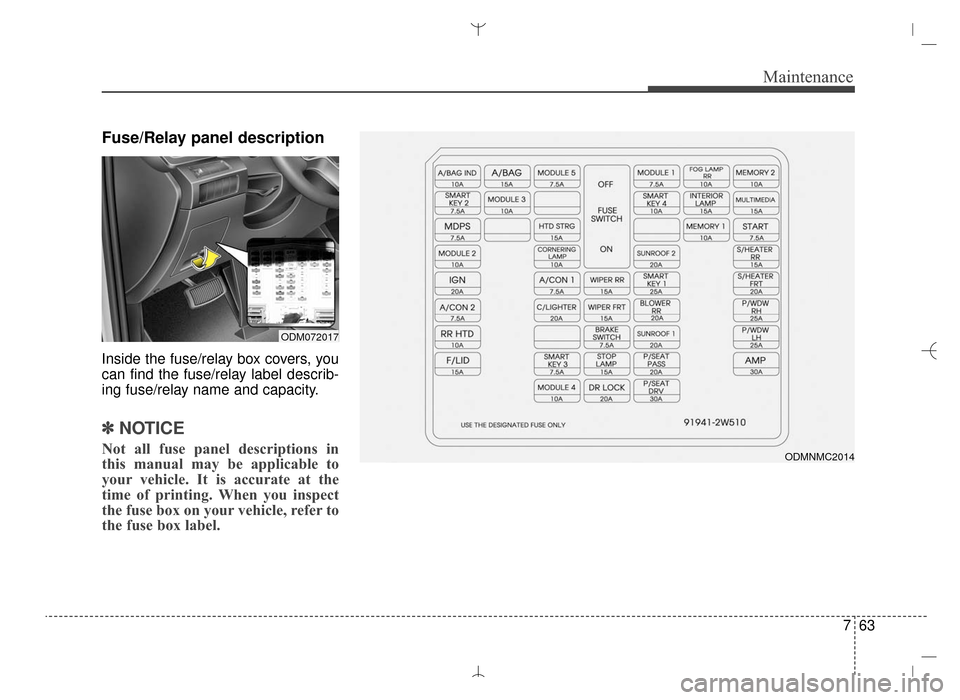

Fuse/Relay panel description
Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
✽ ✽NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse box on your vehicle, refer to
the fuse box label.
ODM072017
ODMNMC2014
AN HMA 7.QXP 3/5/2015 3:25 PM Page 63

Maintenance
64
7

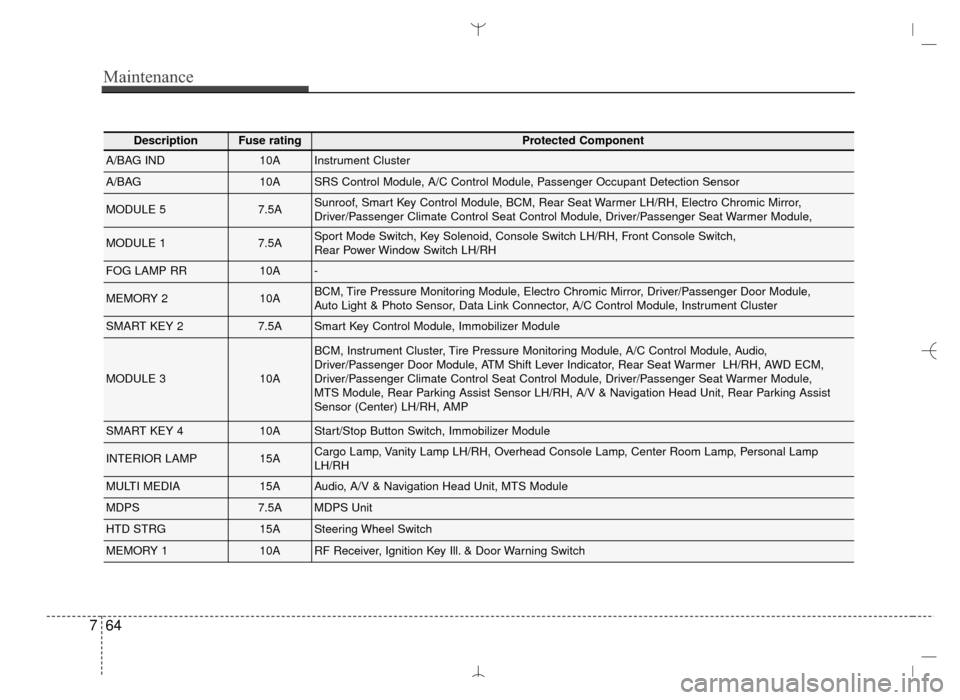

DescriptionFuse ratingProtected Component
A/BAG IND10AInstrument Cluster
A/BAG10ASRS Control Module, A/C Control Module, Passenger Occupant Detection Sensor
MODULE 57.5ASunroof, Smart Key Control Module, BCM, Rear Seat Warmer LH/RH, Electro Chromic Mirror,
Driver/Passenger Climate Control Seat Control Module, Driver/Passenger Seat Warmer Module,
MODULE 17.5ASport Mode Switch, Key Solenoid, Console Switch LH/RH, Front Console Switch,
Rear Power Window Switch LH/RH
FOG LAMP RR10A-
MEMORY 210ABCM, Tire Pressure Monitoring Module, Electro Chromic Mirror, Driver/Passenger Door Module,
Auto Light & Photo Sensor, Data Link Connector, A/C Control Module, Instrument Cluster
SMART KEY 27.5ASmart Key Control Module, Immobilizer Module
MODULE 310A
BCM, Instrument Cluster, Tire Pressure Monitoring Module, A/C Control Module, Audio,
Driver/Passenger Door Module, ATM Shift Lever Indicator, Rear Seat Warmer LH/RH, AWD ECM,
Driver/Passenger Climate Control Seat Control Module, Driver/Passenger Seat Warmer Module,
MTS Module, Rear Parking Assist Sensor LH/RH, A/V & Navigation Head Unit, Rear Parking Assist
Sensor (Center) LH/RH, AMP
SMART KEY 410AStart/Stop Button Switch, Immobilizer Module
INTERIOR LAMP15ACargo Lamp, Vanity Lamp LH/RH, Overhead Console Lamp, Center Room Lamp, Personal Lamp
LH/RH
MULTI MEDIA15AAudio, A/V & Navigation Head Unit, MTS Module
MDPS7.5AMDPS Unit
HTD STRG15ASteering Wheel Switch
MEMORY 110ARF Receiver, Ignition Key Ill. & Door Warning Switch
AN HMA 7.QXP 3/5/2015 3:25 PM Page 64

765
Maintenance

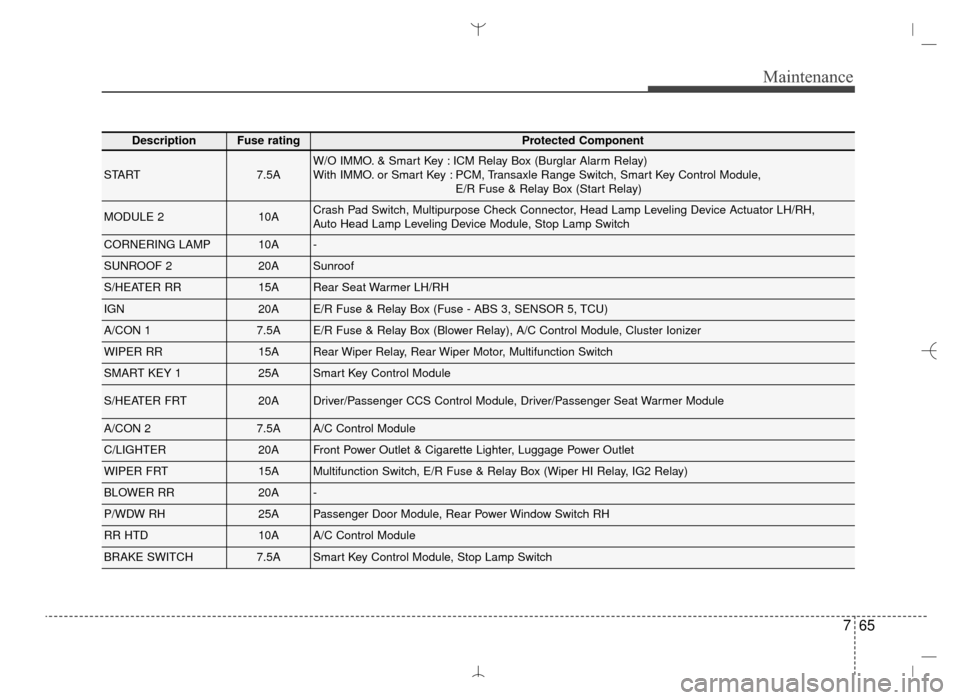

DescriptionFuse ratingProtected Component
START7.5AW/O IMMO. & Smart Key : ICM Relay Box (Burglar Alarm Relay)
With IMMO. or Smart Key : PCM, Transaxle Range Switch, Smart Key Control Module, E/R Fuse & Relay Box (Start Relay)
MODULE 210ACrash Pad Switch, Multipurpose Check Connector, Head Lamp Leveling Device Actuator LH/RH,
Auto Head Lamp Leveling Device Module, Stop Lamp Switch
CORNERING LAMP10A-
SUNROOF 220ASunroof
S/HEATER RR15ARear Seat Warmer LH/RH
IGN20AE/R Fuse & Relay Box (Fuse - ABS 3, SENSOR 5, TCU)
A/CON 17.5AE/R Fuse & Relay Box (Blower Relay), A/C Control Module, Cluster Ionizer
WIPER RR15ARear Wiper Relay, Rear Wiper Motor, Multifunction Switch
SMART KEY 125ASmart Key Control Module
S/HEATER FRT20ADriver/Passenger CCS Control Module, Driver/Passenger Seat Warmer Module
A/CON 27.5AA/C Control Module
C/LIGHTER20AFront Power Outlet & Cigarette Lighter, Luggage Power Outlet
WIPER FRT15AMultifunction Switch, E/R Fuse & Relay Box (Wiper HI Relay, IG2 Relay)
BLOWER RR20A-
P/WDW RH 25APassenger Door Module, Rear Power Window Switch RH
RR HTD10AA/C Control Module
BRAKE SWITCH7.5ASmart Key Control Module, Stop Lamp Switch
AN HMA 7.QXP 3/5/2015 3:25 PM Page 65

Maintenance
66
7

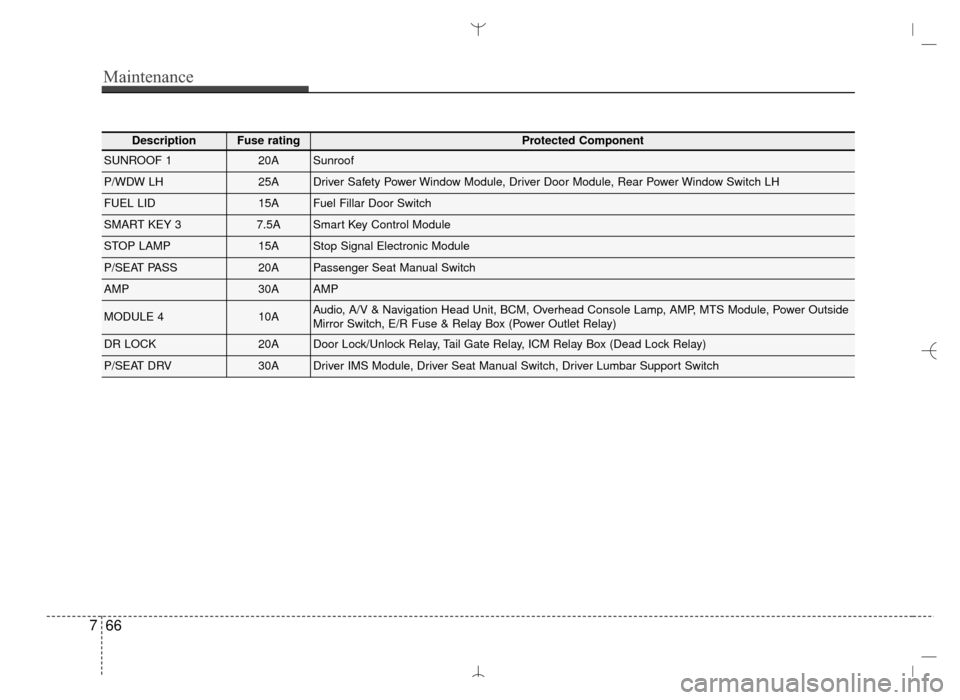

DescriptionFuse ratingProtected Component
SUNROOF 120ASunroof
P/WDW LH25ADriver Safety Power Window Module, Driver Door Module, Rear Power Window Switch LH
FUEL LID15AFuel Fillar Door Switch
SMART KEY 37.5ASmart Key Control Module
STOP LAMP15AStop Signal Electronic Module
P/SEAT PASS20APassenger Seat Manual Switch
AMP30AAMP
MODULE 410AAudio, A/V & Navigation Head Unit, BCM, Overhead Console Lamp, AMP, MTS Module, Power Outside
Mirror Switch, E/R Fuse & Relay Box (Power Outlet Relay)
DR LOCK20ADoor Lock/Unlock Relay, Tail Gate Relay, ICM Relay Box (Dead Lock Relay)
P/SEAT DRV30ADriver IMS Module, Driver Seat Manual Switch, Driver Lumbar Support Switch
AN HMA 7.QXP 3/5/2015 3:25 PM Page 66

767
Maintenance
Engine compartment fuse panel
ODM072050
ODMNMC2015
AN HMA 7.QXP 3/5/2015 3:25 PM Page 67

Maintenance
68
7

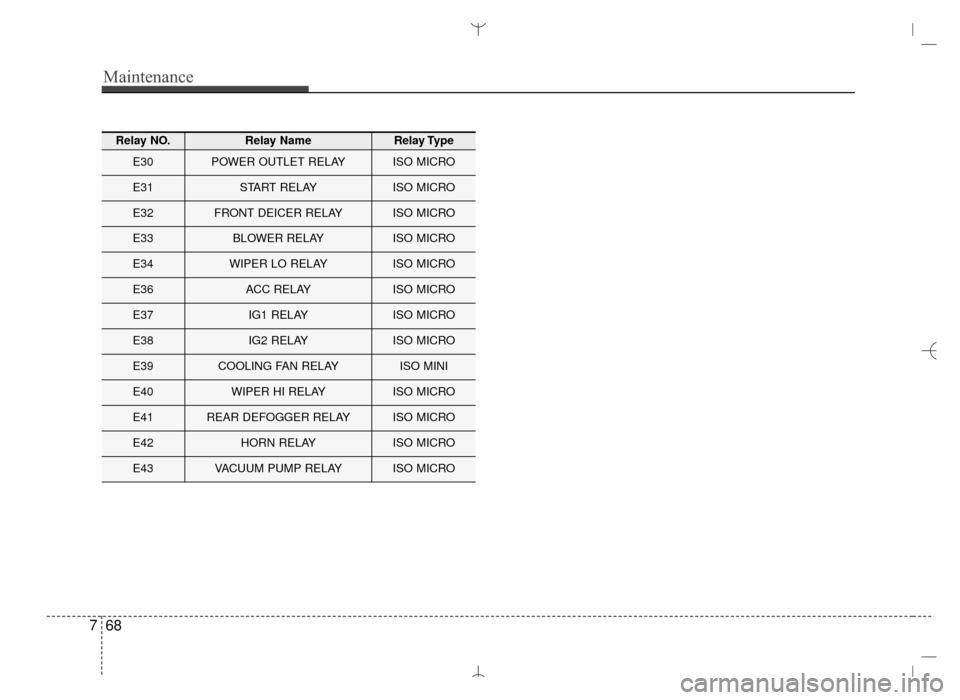

Relay NO.Relay NameRelay Type
E30POWER OUTLET RELAYISO MICRO
E31START RELAYISO MICRO
E32FRONT DEICER RELAYISO MICRO
E33BLOWER RELAYISO MICRO
E34WIPER LO RELAYISO MICRO
E36ACC RELAYISO MICRO
E37IG1 RELAYISO MICRO
E38IG2 RELAYISO MICRO
E39COOLING FAN RELAYISO MINI
E40WIPER HI RELAYISO MICRO
E41REAR DEFOGGER RELAYISO MICRO
E42HORN RELAYISO MICRO
E43VACUUM PUMP RELAYISO MICRO
AN HMA 7.QXP 3/5/2015 3:25 PM Page 68

769
Maintenance

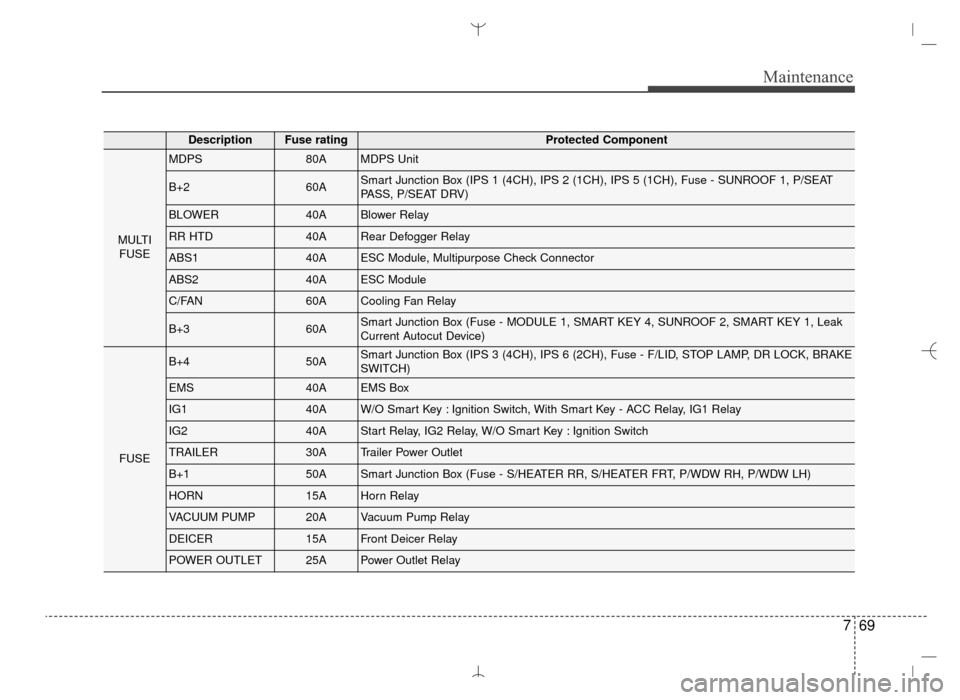

DescriptionFuse ratingProtected Component
MULTIFUSE
MDPS80AMDPS Unit
B+260ASmart Junction Box (IPS 1 (4CH), IPS 2 (1CH), IPS 5 (1CH), Fuse - SUNROOF 1, P/SEAT
PASS, P/SEAT DRV)
BLOWER40ABlower Relay
RR HTD40ARear Defogger Relay
ABS140AESC Module, Multipurpose Check Connector
ABS240AESC Module
C/FAN60ACooling Fan Relay
B+360ASmart Junction Box (Fuse - MODULE 1, SMART KEY 4, SUNROOF 2, SMART KEY 1, Leak
Current Autocut Device)
FUSE
B+450ASmart Junction Box (IPS 3 (4CH), IPS 6 (2CH), Fuse - F/LID, STOP LAMP, DR LOCK, BRAKE
SWITCH)
EMS40AEMS Box
IG140AW/O Smart Key : Ignition Switch, With Smart Key - ACC Relay, IG1 Relay
IG240AStart Relay, IG2 Relay, W/O Smart Key : Ignition Switch
TRAILER30ATrailer Power Outlet
B+150ASmart Junction Box (Fuse - S/HEATER RR, S/HEATER FRT, P/WDW RH, P/WDW LH)
HORN15AHorn Relay
VACUUM PUMP20AVacuum Pump Relay
DEICER15AFront Deicer Relay
POWER OUTLET25APower Outlet Relay
AN HMA 7.QXP 3/5/2015 3:25 PM Page 69

Maintenance
70
7

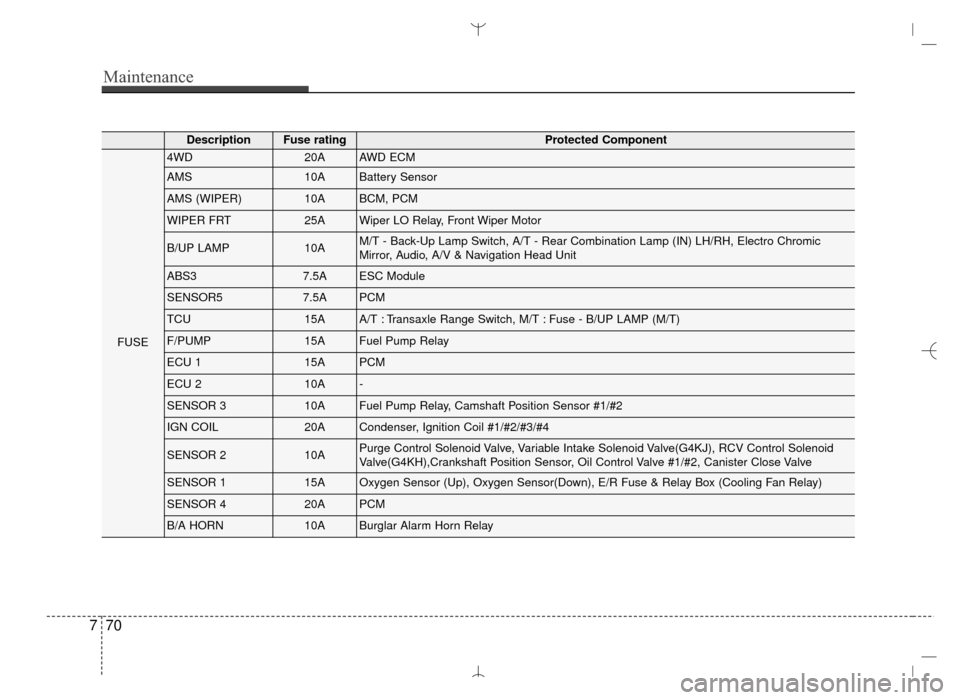

DescriptionFuse ratingProtected Component
FUSE
4WD20AAWD ECM
AMS10ABattery Sensor
AMS (WIPER)10ABCM, PCM
WIPER FRT25AWiper LO Relay, Front Wiper Motor
B/UP LAMP10AM/T - Back-Up Lamp Switch, A/T - Rear Combination Lamp (IN) LH/RH, Electro Chro\
mic
Mirror, Audio, A/V & Navigation Head Unit
ABS37.5AESC Module
SENSOR57.5APCM
TCU15AA/T : Transaxle Range Switch, M/T : Fuse - B/UP LAMP (M/T)
F/PUMP15AFuel Pump Relay
ECU 115APCM
ECU 210A-
SENSOR 310AFuel Pump Relay, Camshaft Position Sensor #1/#2
IGN COIL20ACondenser, Ignition Coil #1/#2/#3/#4
SENSOR 210APurge Control Solenoid Valve, Variable Intake Solenoid Valve(G4KJ), RCV Control Solenoid
Valve(G4KH),Crankshaft Position Sensor, Oil Control Valve #1/#2, Canister Close Valve
SENSOR 115AOxygen Sensor (Up), Oxygen Sensor(Down), E/R Fuse & Relay Box (Cooling Fan Relay)
SENSOR 420APCM
B/A HORN10ABurglar Alarm Horn Relay
AN HMA 7.QXP 3/5/2015 3:25 PM Page 70

771
Maintenance

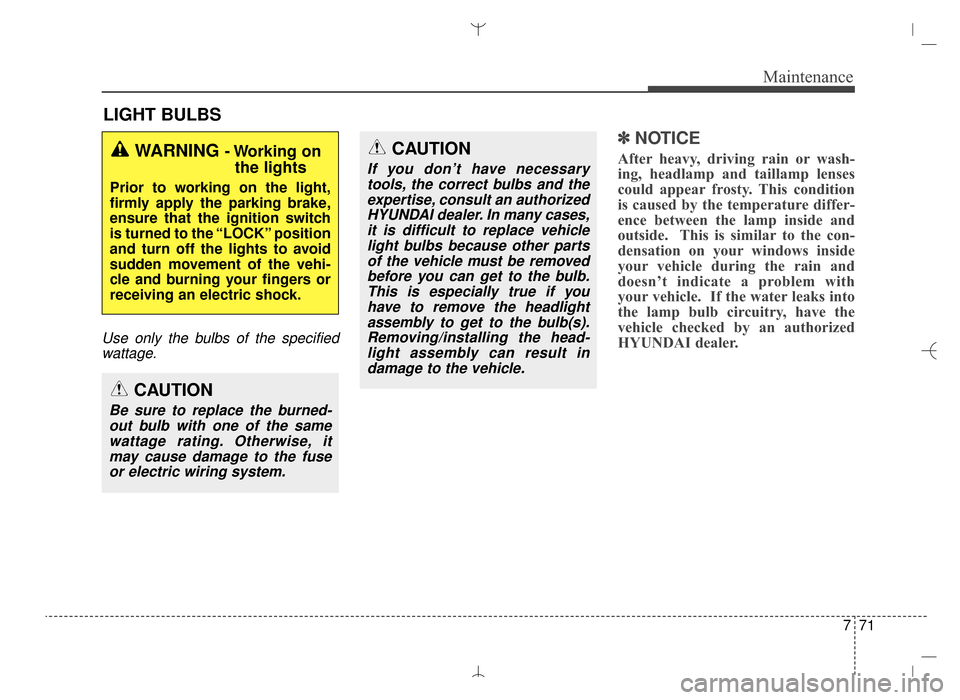

LIGHT BULBS
Use only the bulbs of the specifiedwattage.
✽
✽ NOTICE
After heavy, driving rain or wash-
ing, headlamp and taillamp lenses
could appear frosty. This condition
is caused by the temperature differ-
ence between the lamp inside and
outside. This is similar to the con-
densation on your windows inside
your vehicle during the rain and
doesn’t indicate a problem with
your vehicle. If the water leaks into
the lamp bulb circuitry, have the
vehicle checked by an authorized
HYUNDAI dealer.WARNING - Working on
the lights
Prior to working on the light,
firmly apply the parking brake,
ensure that the ignition switch
is turned to the “LOCK” position
and turn off the lights to avoid
sudden movement of the vehi-
cle and burning your fingers or
receiving an electric shock.
CAUTION
Be sure to replace the burned-
out bulb with one of the samewattage rating. Otherwise, itmay cause damage to the fuseor electric wiring system.
CAUTION
If you don’t have necessarytools, the correct bulbs and theexpertise, consult an authorizedHYUNDAI dealer. In many cases,it is difficult to replace vehiclelight bulbs because other partsof the vehicle must be removedbefore you can get to the bulb.This is especially true if youhave to remove the headlightassembly to get to the bulb(s).Removing/installing the head-light assembly can result indamage to the vehicle.
AN HMA 7.QXP 3/5/2015 3:25 PM Page 71

Maintenance
72
7
Headlamp, Front position
lamp, Front turn signal lamp,
Front fog lamp bulb replace-
ment
(1) Headlamp (High)
(2) Headlamp (Low) (3) Front position lamp
(4) Front turn signal lamp/Front side
marker
(5) Front fog lamp (if equipped)
Headlamp bulb
ODM072029
ODMEMC2017
■Type A
■ Type B
OHD076046
WARNING- Halogen bulbs
Halogen bulbs contain pres-
surized gas that will produce
flying pieces of glass if bro-
ken.
(Continued)
