Hyundai Santa Fe Sport 2017 Owner's Manual

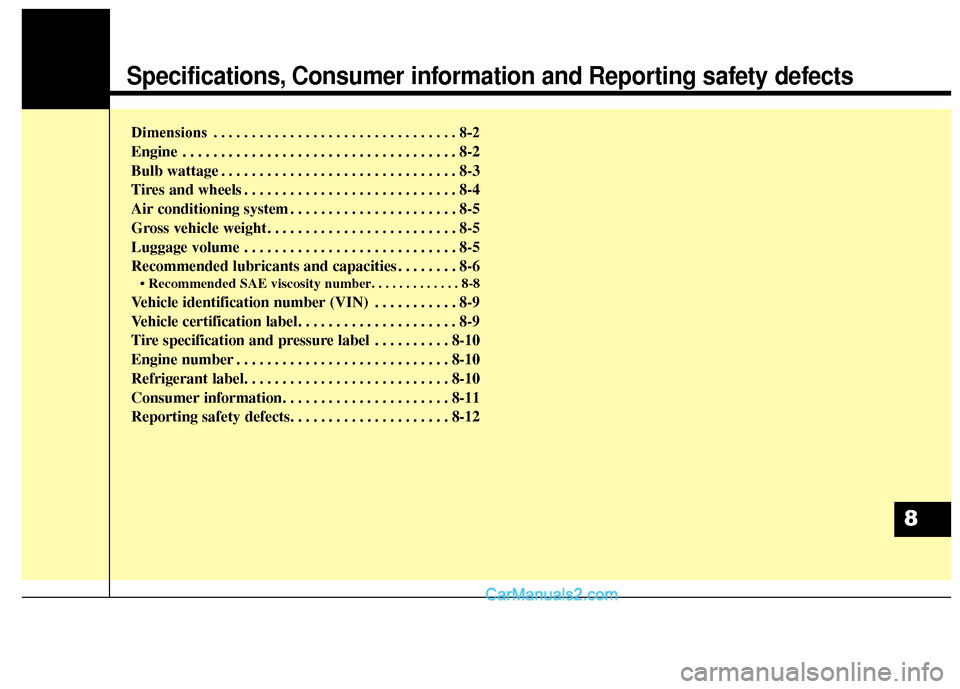

Specifications, Consumer information and Reporting safety defects
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
8-2
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . 8-5
Gross vehicle weight. . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Recommended lubricants and capacities . . . . . . . . 8-6
• Recommended SAE viscosity number. . . . . . . . . . . . . 8-8
Vehicle identification number (VIN) . . . . . . . . . . . 8-9
Vehicle certification label. . . . . . . . . . . . . . . . . . . . . 8-9
Tire specification and pressure label . . . . . . . . . . 8-10
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10
Refrigerant label. . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10
Consumer information. . . . . . . . . . . . . . . . . . . . . . 8-11
Reporting safety defects. . . . . . . . . . . . . . . . . . . . . 8-12
8

Specifications, Consumer information, Reporting safety defects
28
DIMENSIONS
Itemin (mm)
Overall length 185.03 (4,700)
Overall width 74.01 (1,880)
Overall height 66.14 (1,680)/66.53 (1,690) *
1
Front tread235/65R17 64.29 (1,633)
235/60R1864.09 (1,628)
235/55R1964.09 (1,628)
P235/65R1764.29 (1,633)
P235/55R1964.09 (1,628)
Rear tread
235/65R1764.72 (1,644)
235/60R18 64.52 (1,639)
235/55R19 64.52 (1,639)
P235/65R17 64.72 (1,644)
P235/55R19 64.52 (1,639)
Wheelbase 106.29 (2,700)
ItemGasoline
Theta II 2.0 Gasoline
Theta II 2.4
Displacement cu. in (cc)
121.92
(1,998) 143.95
(2,359)
Bore x Stroke in. (mm)
3.38X3.38(86x86) 3.46X3.81
(88x97)
Firing order
1-3-4-2 1-3-4-2
No. of cylinders
4. In-line 4. In-line
ENGINE
*1with roof rack

83
Specifications, Consumer information, Reporting safety defects

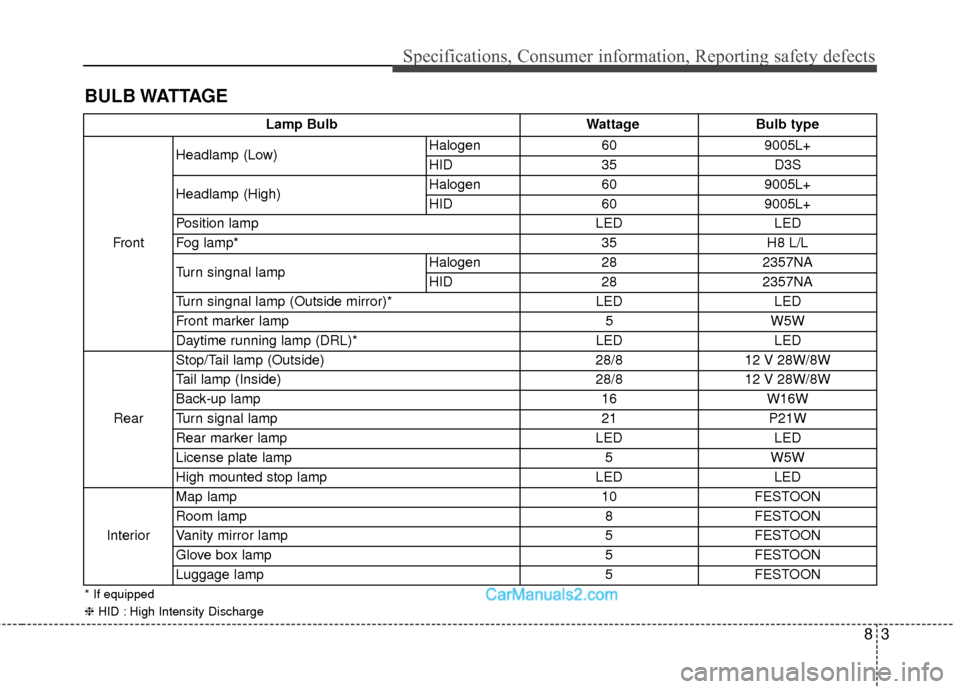

BULB WATTAGE
Lamp BulbWattageBulb type
Front Headlamp (Low)
Halogen
609005L+
HID 35 D3S
Headlamp (High) Halogen
609005L+
HID 609005L+
Position lamp LEDLED
Fog lamp* 35H8 L/L
Turn singnal lamp Halogen
282357NA
HID 282357NA
Turn singnal lamp (Outside mirror)* LEDLED
Front marker lamp 5W5W
Daytime running lamp (DRL)* LEDLED
Rear Stop/Tail lamp (Outside)
28/812 V 28W/8W
Tail lamp (Inside) 28/812 V 28W/8W
Back-up lamp 16W16W
Turn signal lamp 21P21W
Rear marker lamp LEDLED
License plate lamp 5W5W
High mounted stop lamp LEDLED
Interior Map lamp
10FESTOON
Room lamp 8FESTOON
Vanity mirror lamp 5FESTOON
Glove box lamp 5FESTOON
Luggage lamp 5FESTOON
* If equipped
❈HID : High Intensity Discharge

Specifications, Consumer information, Reporting safety defects
48

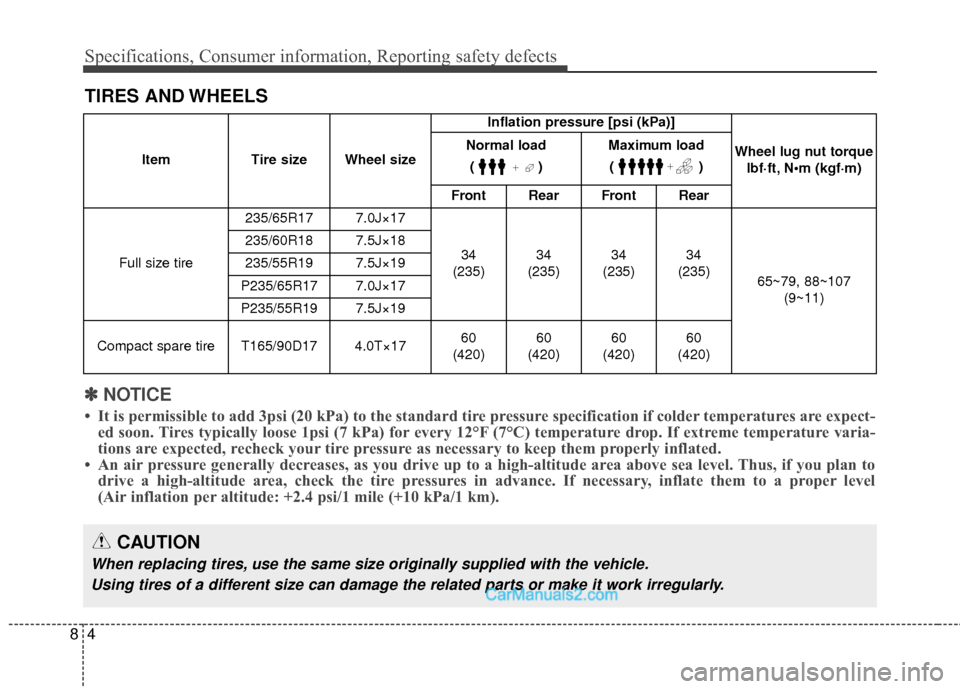

TIRES AND WHEELS
ItemTire size Wheel size Inflation pressure [psi (kPa)]
Wheel lug nut torque lbf·ft, N
Normal load
()Maximum load()
Front Rear Front Rear
Full size tire 235/65R17 7.0J×17
34
(235) 34
(235) 34
(235) 34
(235) 65~79, 88~107
(9~11)
235/60R18 7.5J×18
235/55R19 7.5J×19
P235/65R17 7.0J×17
P235/55R19 7.5J×19
Compact spare tire T165/90D17 4.0T×17 60
(420) 60
(420) 60
(420) 60
(420)
✽ ✽ NOTICE
• It is permissible to add 3psi (20 kPa) to the standard tire pressure specification if colder temperatures are expect-
ed soon. Tires typically loose 1psi (7 kPa) for every 12°F (7°C) temperature drop. If extreme temperature varia-
tions are expected, recheck your tire pressure as necessary to keep them properly inflated.
• An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you plan to drive a high-altitude area, check the tire pressures in advance. If necessary, inflate them to a proper level
(Air inflation per altitude: +2.4 psi/1 mile (+10 kPa/1 km).
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or make it work irregularly.

85
Specifications, Consumer information, Reporting safety defects

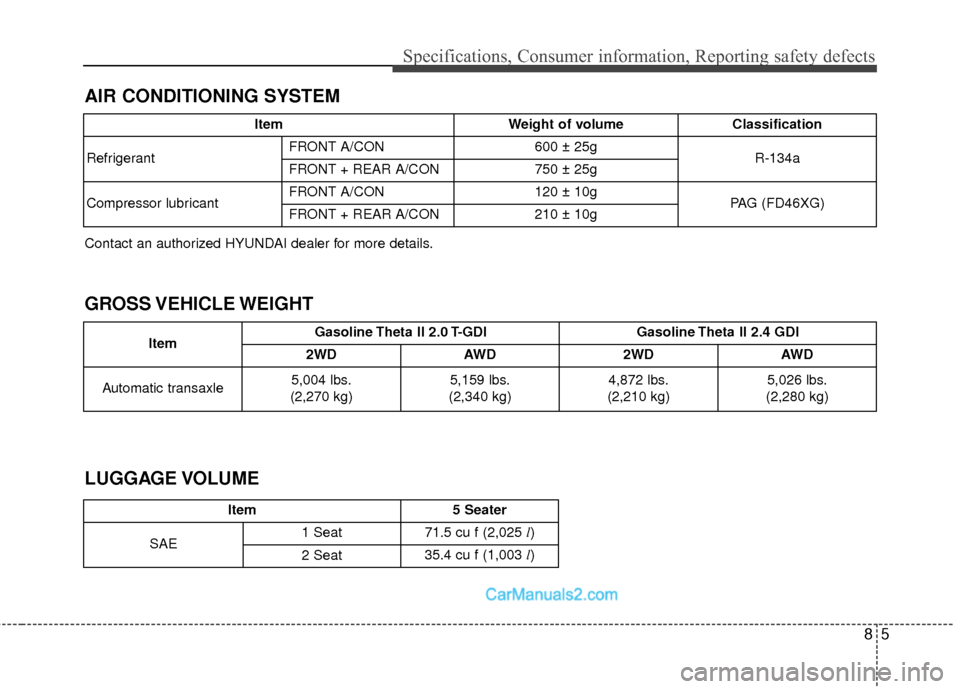

GROSS VEHICLE WEIGHT
LUGGAGE VOLUME
Item5 Seater
SAE 1 Seat
71.5 cu f (2,025
l)
2 Seat 35.4 cu f (1,003
l)
Item Gasoline Theta II 2.0 T-GDI Gasoline Theta II 2.4 GDI
2WD AWD 2WD AWD
Automatic transaxle 5,004 lbs.
(2,270 kg) 5,159 lbs.
(2,340 kg) 4,872 lbs.
(2,210 kg) 5,026 lbs.
(2,280 kg)
AIR CONDITIONING SYSTEM
ItemWeight of volume Classification
Refrigerant FRONT A/CON
600 ± 25g
R-134a
FRONT + REAR A/CON
750 ± 25g
Compressor lubricant FRONT A/CON
120 ± 10g
PAG (FD46XG)
FRONT + REAR A/CON
210 ± 10g
Contact an authorized HYUNDAI dealer for more details.

Specifications, Consumer information, Reporting safety defects
68

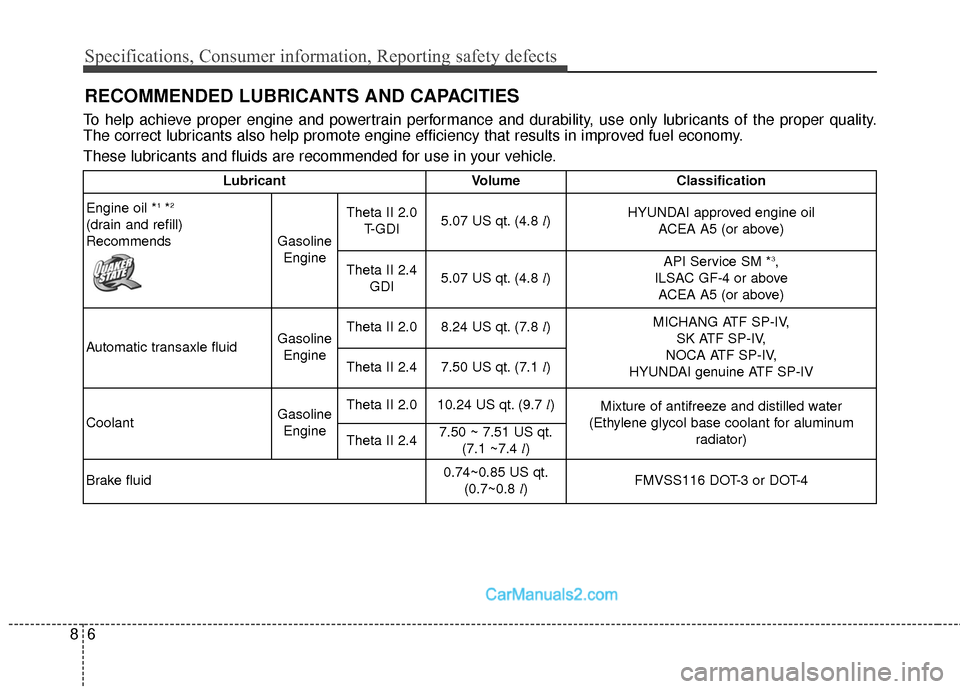

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Engine oil *
1*2
(drain and refill)
Recommends Gasoline EngineTheta II 2.0
T-GDI 5.07 US qt. (4.8
l)HYUNDAI approved engine oil
ACEA A5 (or above)
Theta II 2.4 GDI 5.07 US qt. (4.8
l) API Service SM *
3,
ILSAC GF-4 or above ACEA A5 (or above)
Automatic transaxle fluid Gasoline
Engine Theta II 2.0
8.24 US qt. (7.8
l) MICHANG ATF SP-IV,
SK ATF SP-IV,
NOCA ATF SP-IV,
HYUNDAI genuine ATF SP-IV
Theta II 2.4
7.50 US qt. (7.1
l)
Coolant Gasoline
Engine Theta II 2.0
10.24 US qt. (9.7
l)
Mixture of antifreeze and distilled water
(Ethylene glycol base coolant for aluminum radiator)
Theta II 2.4 7.50 ~ 7.51 US qt.
(7.1 ~7.4 l)
Brake fluid 0.74~0.85 US qt.
(0.7~0.8 l) FMVSS116 DOT-3 or DOT-4

87
Specifications, Consumer information, Reporting safety defects
*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econo -
my by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in
everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*
3If the API service SM engine oil is not available in your state, you are able to use API service SL. Lubricant Volume Classification
Rear differential oil (AWD) 0.56 US qt. (0.53
l)HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
Transfer case oil (AWD) Theta II
2.0 / 2.4 0.63US qt. (0.6 l)
HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
Fuel 17.43 US gal. (66
l)
Refer to “Fuel requirements” in section 1

Specifications, Consumer information, Reporting safety defects
88

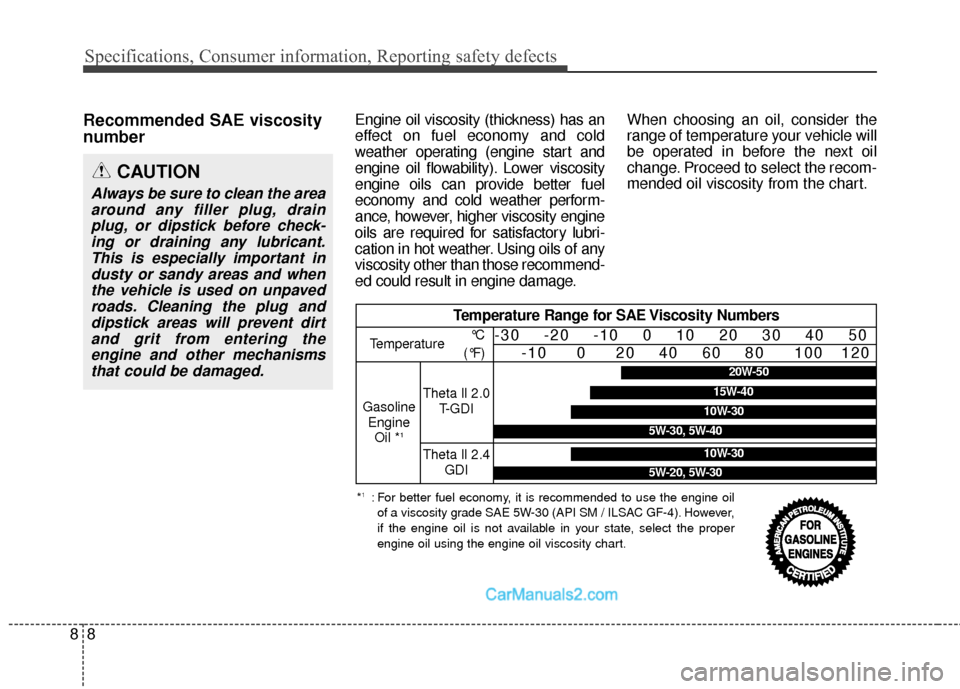

Recommended SAE viscosity
number Engine oil viscosity (thickness) has an
effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosity
engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity engine
oils are required for satisfactory lubri-
cation in hot weather. Using oils of any
viscosity other than those recommend-
ed could result in engine damage.When choosing an oil, consider the
range of temperature your vehicle will
be operated in before the next oil
change. Proceed to select the recom-
mended oil viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drainplug, or dipstick before check-ing or draining any lubricant.This is especially important industy or sandy areas and whenthe vehicle is used on unpavedroads. Cleaning the plug anddipstick areas will prevent dirtand grit from entering theengine and other mechanismsthat could be damaged.
*1: For better fuel economy, it is recommended to use the engine oil
of a viscosity grade SAE 5W-30 (API SM / ILSAC GF-4). However,
if the engine oil is not available in your state, select the proper
engine oil using the engine oil viscosity chart.
Temperature Range for SAE Viscosity Numbers
Temperature
Theta ll 2.0T-GDI
Gasoline
Engine Oil *
1
°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Theta ll 2.4GDI10W-30
5W-20, 5W-30
20W-50
10W-30
15W-40
5W-30, 5W-40

89
Specifications, Consumer information, Reporting safety defects

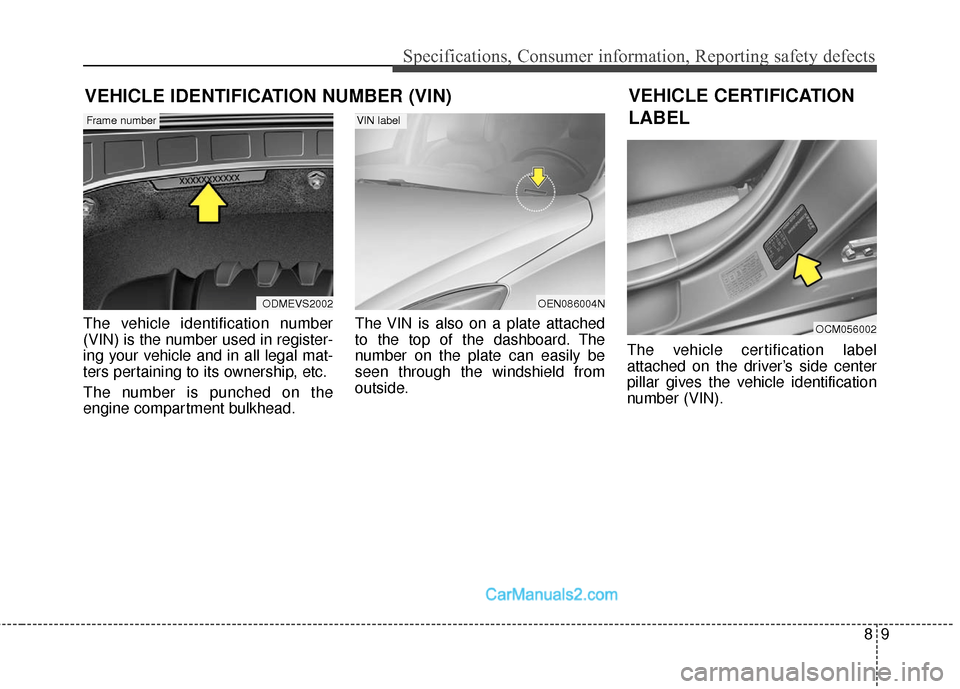

The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched on the
engine compartment bulkhead.The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.
The vehicle certification label
attached on the driver’s side center
pillar gives the vehicle identification
number (VIN).
VEHICLE IDENTIFICATION NUMBER (VIN)
ODMEVS2002
Frame number
VEHICLE CERTIFICATION
LABEL
OEN086004N
VIN label
OCM056002

Specifications, Consumer information, Reporting safety defects
10
8

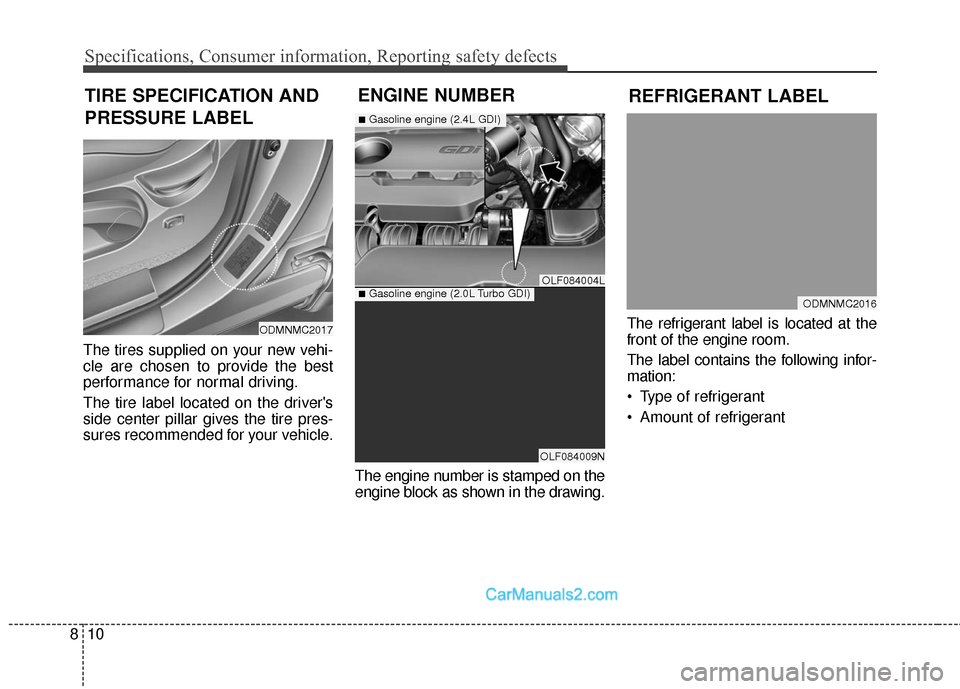

REFRIGERANT LABEL
TIRE SPECIFICATION AND
PRESSURE LABEL ENGINE NUMBER
The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your vehicle.
The engine number is stamped on the
engine block as shown in the drawing.The refrigerant label is located at the
front of the engine room.
The label contains the following infor-
mation:
Type of refrigerant
Amount of refrigerant
ODMNMC2016
ODMNMC2017
OLF084004L
■Gasoline engine (2.4L GDI)
OLF084009N
■Gasoline engine (2.0L Turbo GDI)
