1-2 I Basic

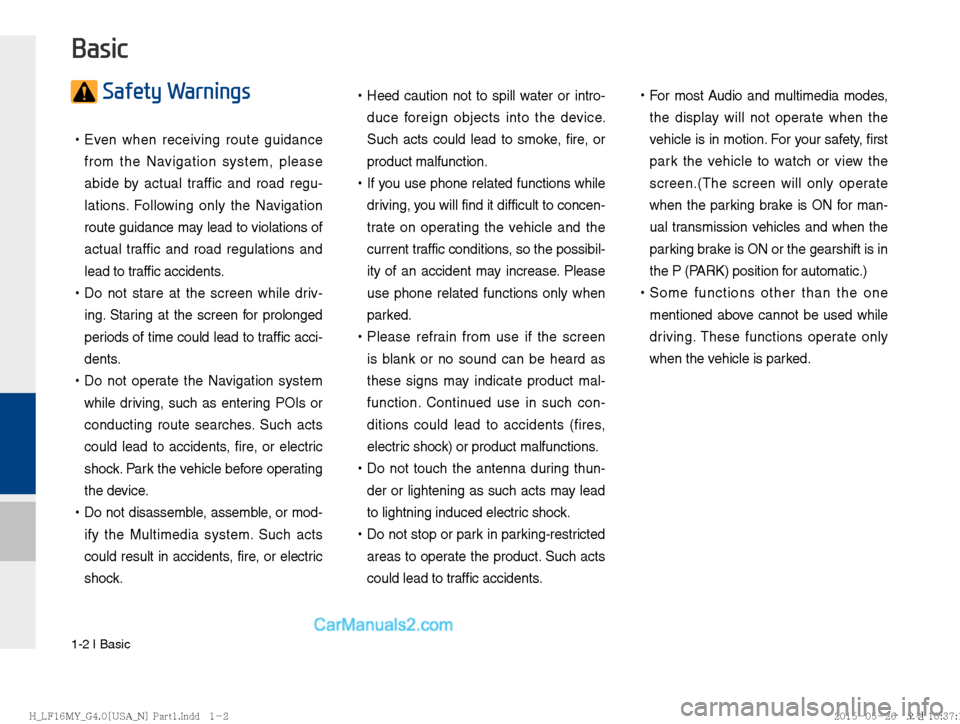

Safety Warnings

!Ÿ
Even when receiving route guidance
from the Navigation system, please
abide by actual traffic and road regu-
lations. Following only the Navigation
route guidance may lead to violations of
actual traffic and road regulations and
lead to traffic accidents.

!Ÿ
Do not stare at the screen while driv-
ing. Staring at the screen for prolonged
periods of time could lead to traffic acci-
dents.

!Ÿ
Do not operate the Navigation system
while driving, such as entering POIs or
conducting route searches. Such acts
could lead to accidents, fire, or electric
shock. Park the vehicle before operating
the device.

!Ÿ
Do not disassemble, assemble, or mod-
ify the Multimedia system. Such acts
could result in accidents, fire, or electric
shock.
!Ÿ
Heed caution not to spill water or intro-
duce foreign objects into the device.
Such acts could lead to smoke, fire, or
product malfunction.

!Ÿ
If you use phone related functions while
driving, you will find it difficult to concen-
trate on operating the vehicle and the
current traffic conditions, so the possibil-
ity of an accident may increase. Please
use phone related functions only when
parked.

!Ÿ
Please refrain from use if the screen
is blank or no sound can be heard as
these signs may indicate product mal-
function. Continued use in such con-
ditions could lead to accidents (fires,
electric shock) or product malfunctions.

!Ÿ
Do not touch the antenna during thun-
der or lightening as such acts may lead
to lightning induced electric shock.

!Ÿ
Do not stop or park in parking-restricted
areas to operate the product. Such acts
could lead to traffic accidents.
!Ÿ
For most Audio and multimedia modes,
the display will not operate when the
vehicle is in motion. For your safety, first
park the vehicle to watch or view the
screen.(The screen will only operate
when the parking brake is ON for man-
ual transmission vehicles and when the
parking brake is ON or the gearshift is in
the P (PARK) position for automatic.)

!Ÿ
Some functions other than the one
mentioned above cannot be used while
driving. These functions operate only
when the vehicle is parked.
Basic
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




Warnings and Cautions I 1-3
01

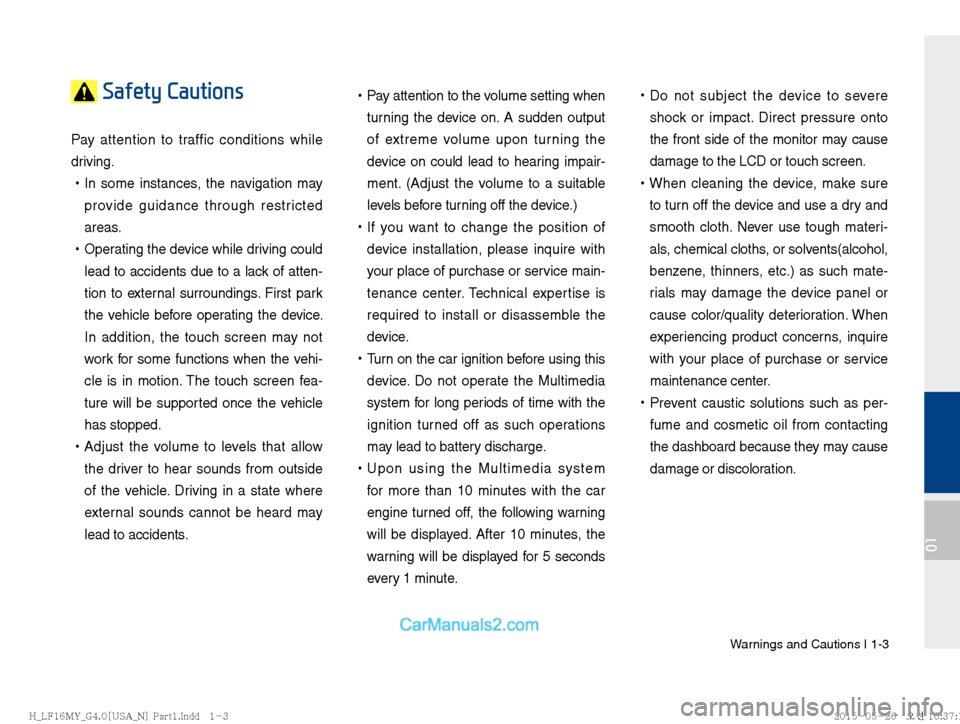

Safety Cautions
Pay attention to traffic conditions while
driving.
!Ÿ
In some instances, the navigation may
provide guidance through restricted
areas.

!Ÿ
Operating the device while driving could
lead to accidents due to a lack of atten-
tion to external surroundings. First park
the vehicle before operating the device.
In addition, the touch screen may not
work for some functions when the vehi-
cle is in motion. The touch screen fea-
ture will be supported once the vehicle
has stopped.

!Ÿ
Adjust the volume to levels that allow
the driver to hear sounds from outside
of the vehicle. Driving in a state where
external sounds cannot be heard may
lead to accidents.
!Ÿ
Pay attention to the volume setting when
turning the device on. A sudden output
of extreme volume upon turning the
device on could lead to hearing impair-
ment. (Adjust the volume to a suitable
levels before turning off the device.)

!Ÿ
If you want to change the position of
device installation, please inquire with
your place of purchase or service main-
tenance center. Technical expertise is
required to install or disassemble the
device.

!Ÿ
Turn on the car ignition before using this
device. Do not operate the Multimedia
system for long periods of time with the
ignition turned off as such operations
may lead to battery discharge.

!Ÿ
Upon using the Multimedia system
for more than 10 minutes with the car
engine turned off, the following warning
will be displayed. After 10 minutes, the
warning will be displayed for 5 seconds
every 1 minute.
!Ÿ
Do not subject the device to severe
shock or impact. Direct pressure onto
the front side of the monitor may cause
damage to the LCD or touch screen.

!Ÿ
When cleaning the device, make sure
to turn off the device and use a dry and
smooth cloth. Never use tough materi-
als, chemical cloths, or solvents(alcohol,
benzene, thinners, etc.) as such mate-
rials may damage the device panel or
cause color/quality deterioration. When
experiencing product concerns
, inquire
with y our place of purchase or ser vice


maintenance center.

!Ÿ
Prevent caustic solutions such as per-
fume and cosmetic oil from contacting
the dashboard because they may cause
damage or discoloration.
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




1-4 I Basic
DisplayWide TFT-LCD Display

!Ÿ
Provides high quality video through a Wide TFT-
LCD Display using an LED Back Light.

!Ÿ
Touch screen for maximum user convenience.
Radio Digital Tuner Feature

!Ÿ
Digital Tuner using PPL method that supports
memory of 12 broadcast stations for each AM
and FM modes.
Radio broadcast station name
!Ÿ
Displays broadcast station names.
HD Radio™/Satellite Radio feature
!Ÿ
Supports HD Radio™ reception and Satellite
Radio (SiriusXM™).
Multimedia Player Support for various Media Formats

!Ÿ
Support for various media formats, including
Radio, Audio CD, MP3, USB, iPod, AUX and
Bluetooth
® Audio Streaming modes
My Music
!Ÿ
Supports copying of music stored within USB
devices into My Music (internal memory) mode

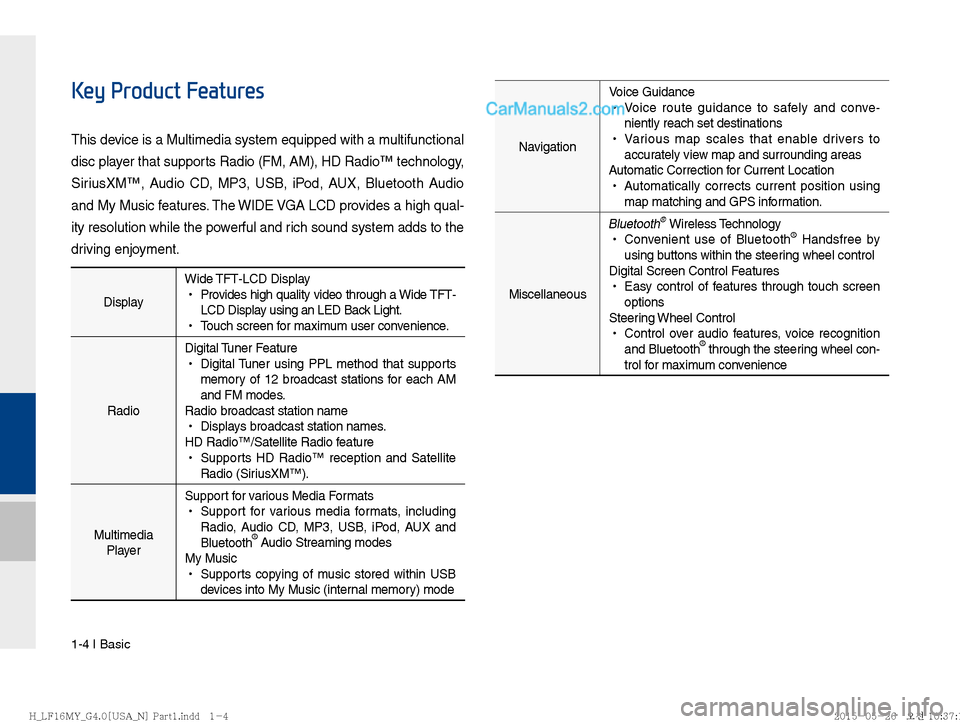

Key Product Features
This device is a Multimedia system equipped with a multifunctional
disc player that supports Radio (FM, AM), HD Radio™ technology,
SiriusXM™, Audio CD, MP3, USB, iPod, AUX, Bluetooth Audio
and My Music features. The WIDE VGA LCD provides a high qual-
ity resolution while the powerful and rich sound system adds to the
driving enjoyment.Navigation Voice Guidance

!Ÿ
Voice route guidance to safely and conve-
niently reach set destinations

!Ÿ
Various map scales that enable drivers to
accur ately vie
w map and surrounding areas
A
utomatic Correction for Current Location
!Ÿ
Automatically corrects current position using
map matching and GPS information.
Miscellaneous
Bluetooth® Wireless Technology

!Ÿ
Convenient use of Bluetooth® Handsfree by
using buttons within the steering wheel control
Digital Screen Control Features
!Ÿ
Easy control of features through touch screen
options
Steering Wheel Control
!Ÿ
Control over audio features, voice recognition
and Bluetooth
® through the steering wheel con-
trol for maximum convenience
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




Component Names and Functions I 1-5
01
Component Names and Functions
Head Unit
NameDescription
POWER/
VOL

!Ÿ
When power is off, press to turn power on

!Ÿ
When power is on, press and hold (over 0.8
seconds) to turn power off

!Ÿ
When power is on, press quickly (under 0.8
seconds) to turn Audio off

!Ÿ
Turn left/right to control volume
TUNE

!Ÿ
FM/AM mode : changes the frequency

!Ÿ
SiriusXM™ mode : changes the channel

!Ÿ
MEDIA (Disc/USB/iPod/My Music) mode :
changes the track, file or title changes the
track, file or title (except USB Image, Bluetooth
Audio and AUX)
RADIO
Converts to FM/AM/SiriusXM™ mode

!Ÿ
Each time the key is pressed, the mode is
changed in order of FM ª
AM ª
SiriusXM™ ª

FM
Name Description
MEDIA
Converts to MEDIA mode

!Ÿ
If the media is not connected or the CD player is not
available for this model, MEDIA mode will not be
activated.

!Ÿ
Press this key to move to the last mode that you
accessed in MEDIA mode. Press it again to dis-
play the screen where you can select a MEDIA
mode.
PHONETakes user to phone screen
BLUELINKDisplays the Blue Link mode
MAPVOICEDisplays the map for the current position
NAVITakes you to the menu screen where you can find
your destination and set the route.
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




1-6 I Basic
NameDescription
SEEK
TRACK
When key is pressed shortly. (under 0.8 seconds)

!Ÿ
FM/AM mode : plays previous/next frequency

!Ÿ
SiriusXM™ mode : plays the previous/next channel

!Ÿ
MEDIA (Disc/USB/iPod/My Music) mode : changes
the track, file or title (except USB Image and AUX)
When key is pressed and held. (over 0.8 seconds)
!Ÿ
FM/AM mode : continuously changes the frequency
until the key is released

!Ÿ
SiriusXM™ mode : continuously changes the chan-
nel until the key is released and plays the current
channel

!Ÿ
MEDIA (Disc/USB/iPod/My Music) mode : rewinds
or fastforwards the track or file (except USB Image,
Bluetooth Audio and AUX)
Name Description
SD card insert slot
Press to insert or eject disc
DISPTurns the screen on/off.
INFODisplays the information mode
SETUPDisplays the Setup mode
RESETResets the system settings. (Preset radio channels
and other data will not be deleted)

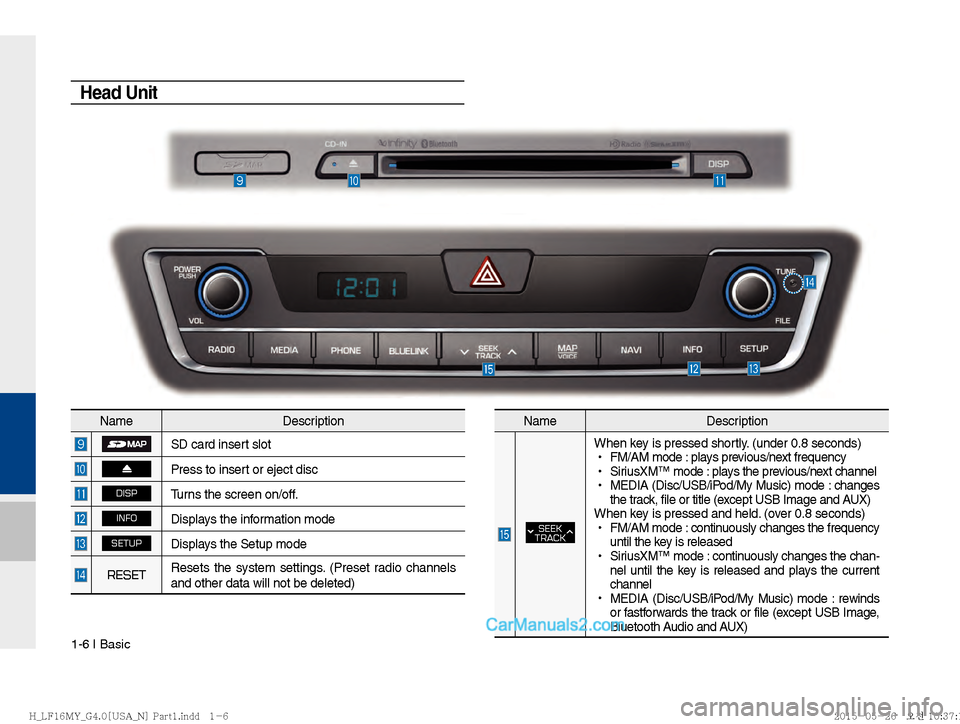

Head Unit
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




Component Names and Functions I 1-7
01
NameDescription
VOL+
VOL-Controls the volume
MODE

!Ÿ
Each time this key is pressed, mode is changed
in the order FM ª
AM ª
SiriusXM™ ª
Disc ª

USB Music or iPod ª
AUX ª
Bluetooth Audio ª

My Music ª

Android Auto ª

FM

!Ÿ
If the media is not connected, the corresponding
modes will be disabled

!Ÿ
Press and hold the key (more than 0.8 seconds)
to turn the Audio system on/off

!Ÿ
When power is off, press the key to turn power
back on


When keys are pressed quickly. (less than 0.8 sec-
onds)

!Ÿ
FM/AM mode : searches broadcast frequencies
saved to Presets

!Ÿ
SiriusXM™ mode : searches broadcast channels
saved to Presets

!Ÿ
MEDIA (Disc/USB/iPod/My Music) mode :
changes the track, file or title (except USB Image,
AUX)
When keys are pressed and held. (more than 0.8
seconds)
!Ÿ
FM/AM mode : automatically searches broadcast
frequencies

!Ÿ
SiriusXM™ mode : automatically searches broad-
cast channels

!Ÿ
MEDIA (Disc/USB/iPod/My Music) mode : quickly
looks up songs (excluding USB images, AUX and
Bluetooth audio files)

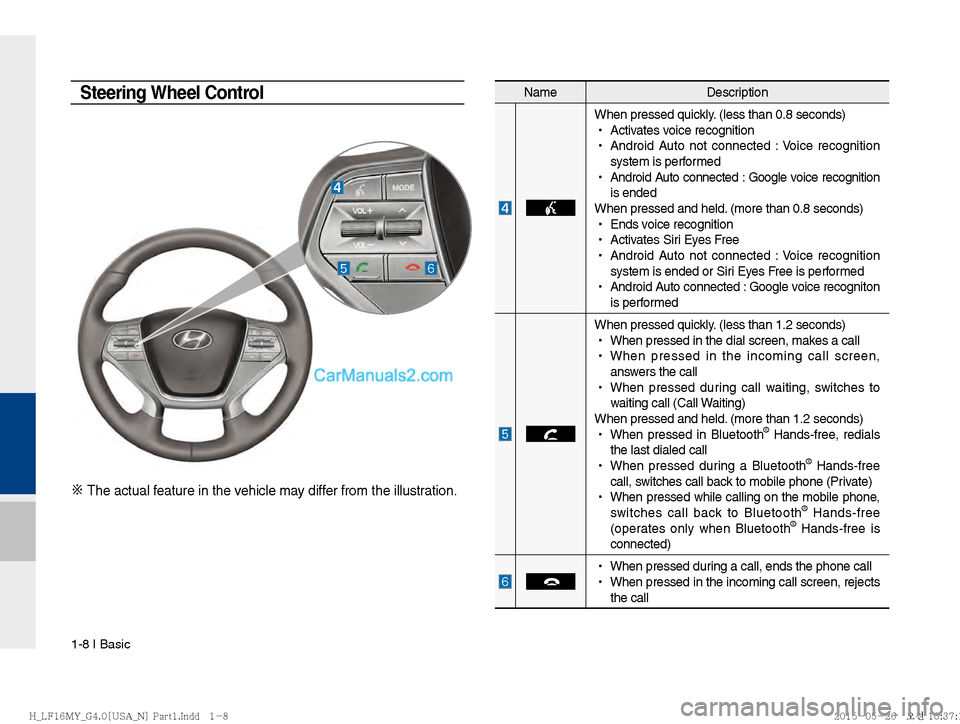

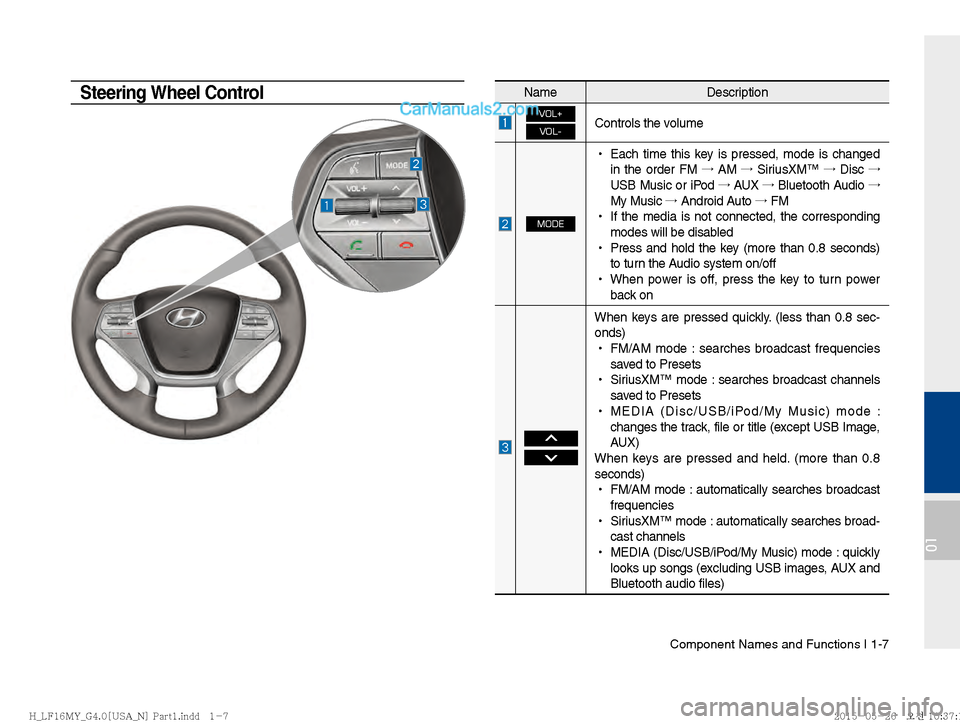

Steering Wheel Control
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




1-8 I Basic
NameDescription
When pressed quickly. (less than 0.8 seconds)

!Ÿ
Activates voice recognition

!Ÿ
Android Auto not connected : Voice recognition
system is performed

!Ÿ
Android Auto connected : Google voice recognition
is ended
When pressed and held. (more than 0.8 seconds)
!Ÿ
Ends voice recognition

!Ÿ
Activates Siri Eyes Free

!Ÿ
Android Auto not connected : Voice recognition
system is ended or Siri Eyes Free is performed

!Ÿ
Android Auto connected : Google voice recogniton
is performed
When pressed quickly. (less than 1.2 seconds)

!Ÿ
When pressed in the dial screen, makes a call

!Ÿ
When pressed in the incoming call screen,
answers the call

!Ÿ
When pressed during call waiting, switches to
waiting call (Call Waiting)
When pressed and held. (more than 1.2 seconds)
!Ÿ
When pressed in Bluetooth
® Hands-free, redials
the last dialed call

!Ÿ
When pressed dur ing a Bluetooth
® Hands-free
call, switches call back to mobile phone (Private)

!Ÿ
When pressed while calling on the mobile phone,
switches call back to Bluetooth
® Hands-free
(operates only when Bluetooth® Hands-free is
connected)

!Ÿ
When pressed during a call, ends the phone call

!Ÿ
When pressed in the incoming call screen, rejects
the call
Steering Wheel Control
※ The actual feature in the vehicle may differ from the illustration.
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




Starting the System for the First Time I 1-9
01

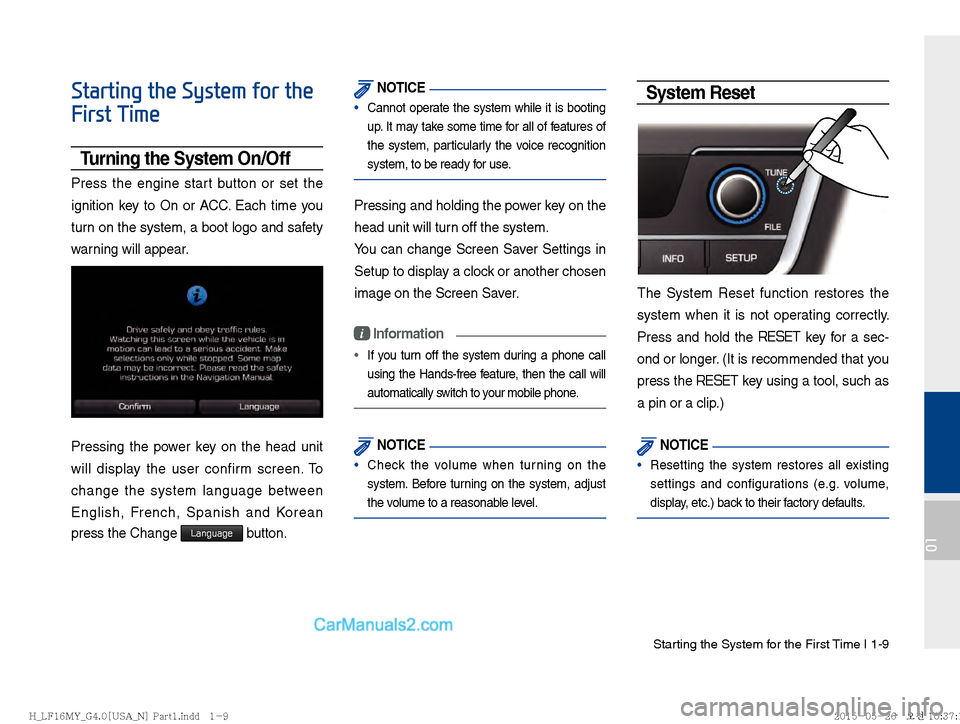

Starting the System for the
First Time
Turning the System On/Off
Press the engine start button or set the
ignition key to On or ACC. Each time you
turn on the system, a boot logo and safety
warning will appear.
Pressing the power key on the head unit
will display the user confirm screen. To
change the system language between
English, French, Spanish and Korean
press the Change
Language button.
NOTICE
Cannot operate the system while it is booting
up. It ma
y take some time for all of features of
the system, particularly the voice recognition
system, to be ready for use.
Pressing and holding the power key on the
head unit will turn off the system.
You can change Screen Saver Settings in
Setup to display a clock or another chosen
image on the Screen Saver.
i Information
If you turn off the system during a phone call
using the Hands-free feature, then the call will

automatically switch to your mobile phone.
NOTICE
Check the volume when turning on the
system. Before tur
ning on the system, adjust
the volume to a reasonable level.
System Reset
The System Reset function restores the
system when it is not operating correctly.
Press and hold the RESET
key f
or a sec-
ond or longer. (It is recommended that you
press the RESET
key using a tool, such as
a pin or a clip.)
NOTICE
Resetting the system restores all existing
settings and configurations (e.g.
volume,
display, etc.) back to their factory defaults.
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




1-10 I Basic

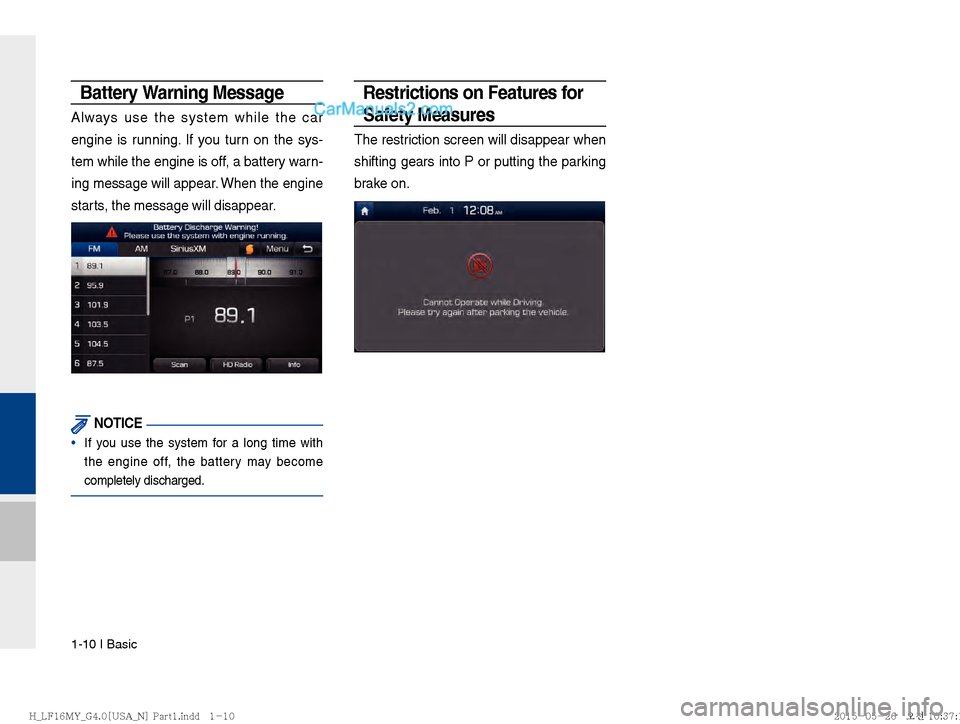

Battery Warning Message
Always use the system while the car
engine is running. If you turn on the sys-
tem while the engine is off, a battery warn-
ing message will appear. When the engine
starts, the message will disappear.

NOTICE
If you use the system for a long time with
the engine off, the battery ma
y become
completely discharged.
Restrictions on Features for
Safety Measures
The restriction screen will disappear when
shifting gears into P or putting the parking
brake on.
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE
