Hyundai Sonata 2016 Car Multimedia System Manual

CD I 2-17
02
NameDescription

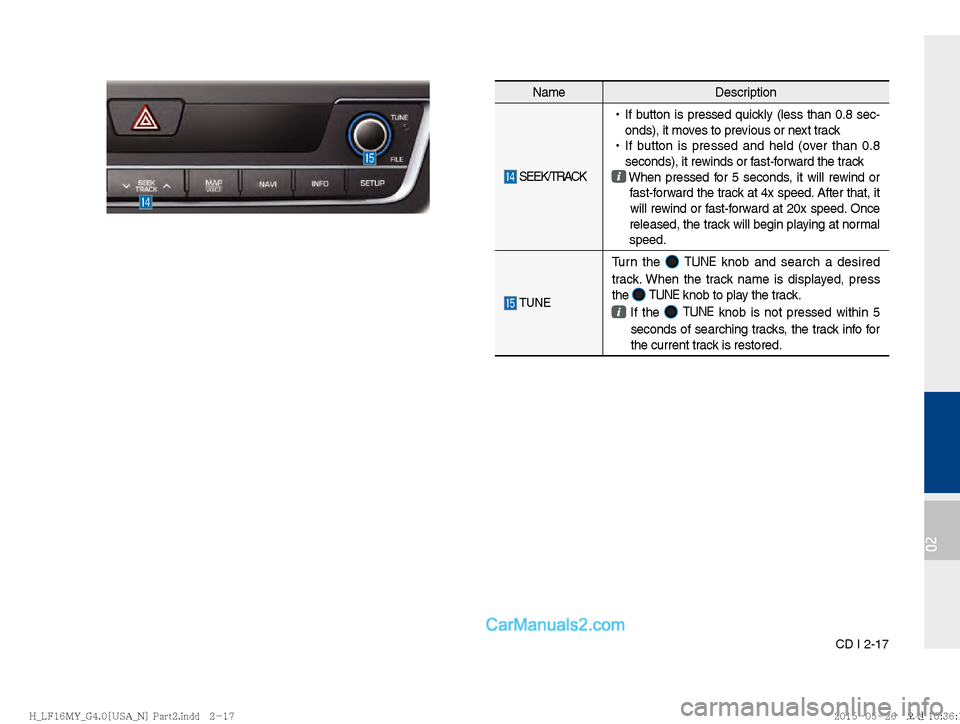

SEEK/TRACK
!Ÿ
If button is pressed quickly (less than 0.8 sec-
onds), it moves to previous or next track

!Ÿ
If button is pressed and held (over than 0.8
seconds), it rewinds or fast-forward the track When pressed for 5 seconds, it will rewind or
fast-forward the track at 4x speed. After that, it
will rewind or fast-forward at 20x speed. Once
released, the track will begin playing at normal
speed.
TUNE
Turn the
TUNE knob and search a desired
track. When the track name is displayed, press
the

TUNE knob to play the track.
If the
TUNE knob is not pressed within 5
seconds of searching tracks, the track info for
the current track is restored.
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




2-18 I AV
NameDescription

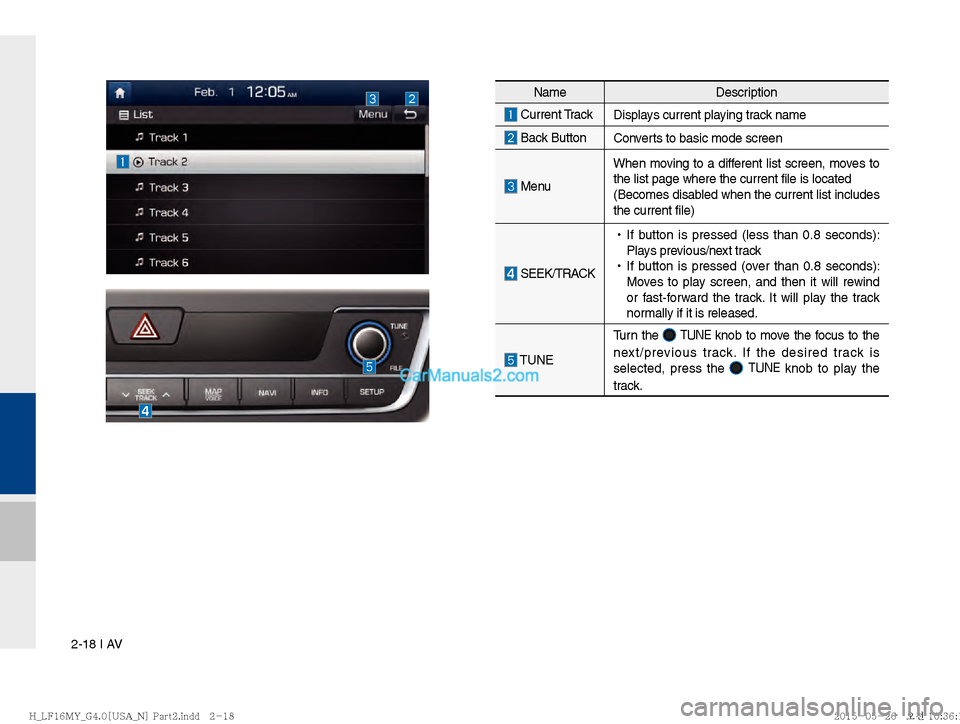

Current Track
Displays current playing track name
Back ButtonConverts to basic mode screen
MenuWhen moving to a different list screen, moves to
the list page where the current file is located
(Becomes disabled when the current list includes
the current file)
SEEK/TRACK
!Ÿ
If button is pressed (less than 0.8 seconds):
Plays previous/next track

!Ÿ
If button is pressed (over than 0.8 seconds):
Moves to play screen, and then it will rewind
or fast-forward the track. It will play the track
normally if it is released.
TUNE Turn the


TUNE knob to move the focus to the
next/previous track. If the desired track is
selected, press the

TUNE knob to play the
track.
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




MP3 I 2-19
02
MP3

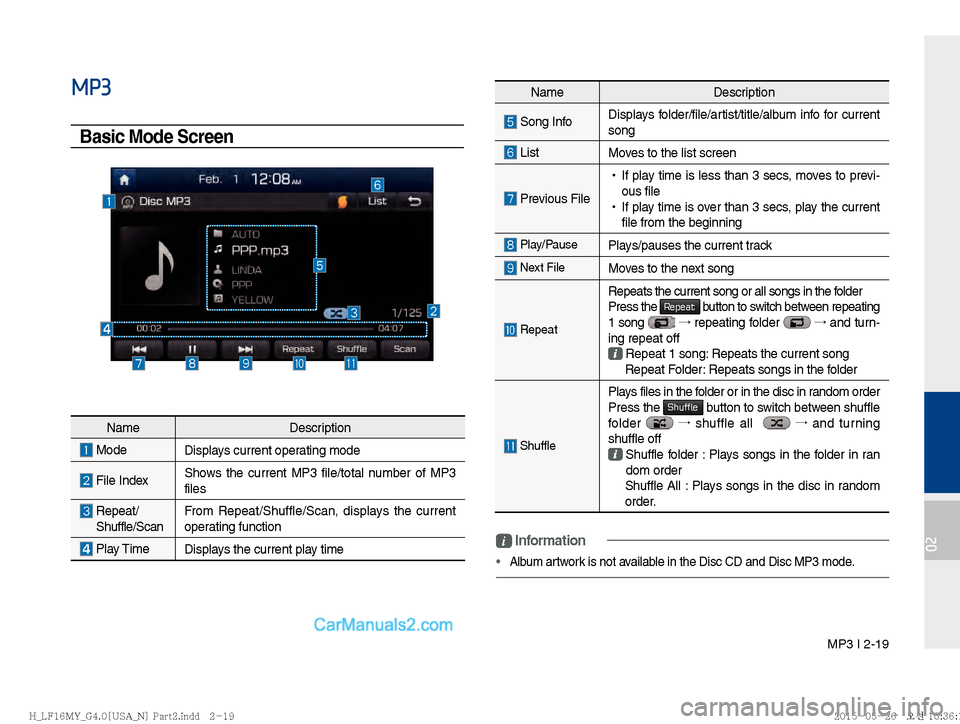

Basic Mode Screen
NameDescription
Song InfoDisplays folder/file/artist/title/album info for current
song
List
Moves to the list screen
Previous File
!Ÿ
If play time is less than 3 secs, moves to previ-
ous file

!Ÿ
If play time is over than 3 secs, play the current
file from the beginning
Play/PausePlays/pauses the current track
Next FileMoves to the next song
Repeat
Repeats the current song or all songs in the folder
Press the Repeat button to switch between repeating
1 song ª
repeating folder ª
and turn-
ing repeat off
Repeat 1 song: Repeats the current song
Repeat Folder: Repeats songs in the folder
Shuffle
Plays files in the folder or in the disc in random order
Press the Shuffle button to switch between shuffle
folder ª
shuffle all ª
and turning
shuffle off
Shuffle folder : Plays songs in the folder in ran
dom order
Shuffle All : Plays songs in the disc in random
order.
Name Description
Mode
Displays current operating mode
File IndexShows the current MP3 file/total number of MP3
files
Repeat/
Shuffle/Scan From Repeat/Shuffle/Scan, displays the current
operating function
Play Time
Displays the current play timei Information
Album artwork is not available in the Disc CD and Disc MP3 mode.
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




2-20 I AV
NameDescription

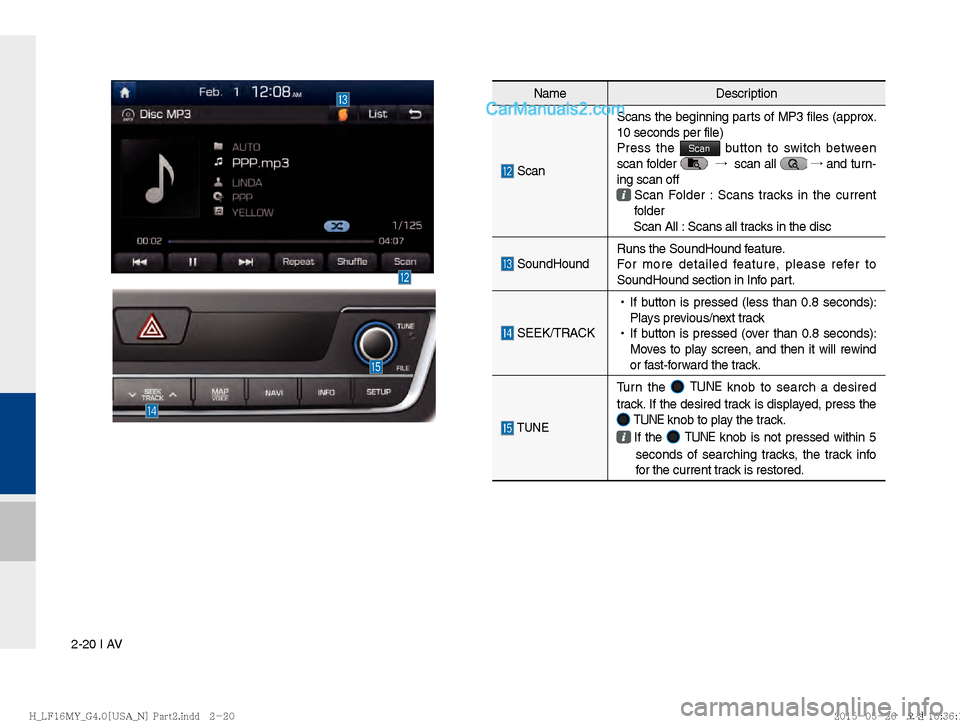

Scan Scans the beginning parts of MP3 files (approx.
10 seconds per file)
Press the
Scan button to switch between
scan folder ª
scan all ª
and turn-
ing scan off
Scan Folder : Scans tracks in the current
folder
Scan All : Scans all tracks in the disc
SoundHound Runs the SoundHound feature.
For more detailed feature, please refer to
SoundHound section in Info part.
SEEK/TRACK
!Ÿ
If button is pressed (less than 0.8 seconds):
Plays previous/next track

!Ÿ
If button is pressed (over than 0.8 seconds):
Moves to play screen, and then it will rewind
or fast-forward the track.
TUNE
Turn the
TUNE knob to search a desired
track. If the desired track is displayed, press the

TUNE knob to play the track.
If the

TUNE knob is not pressed within 5
seconds of searching tracks, the track info
for the current track is restored.
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




MP3 I 2-21
02
NameDescription

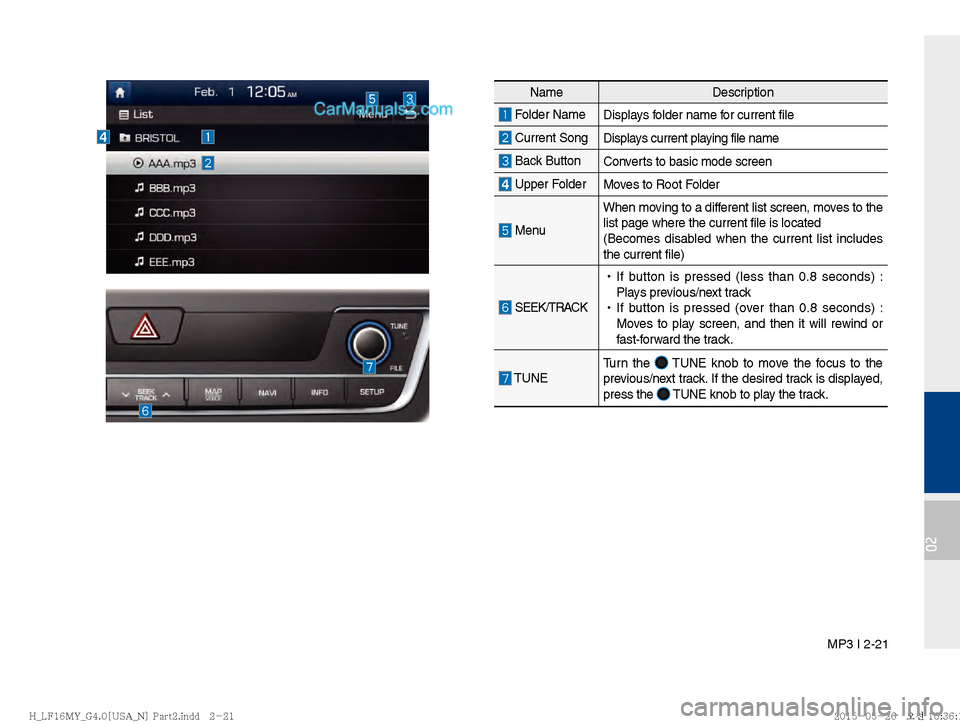

Folder Name
Displays folder name for current file
Current SongDisplays current playing file name
Back ButtonConverts to basic mode screen
Upper FolderMoves to Root Folder
MenuWhen moving to a different list screen, moves to the
list page where the current file is located
(Becomes disabled when the current list includes
the current file)
SEEK/TRACK
!Ÿ
If button is pressed (less than 0.8 seconds) :
Plays previous/next track

!Ÿ
If button is pressed (over than 0.8 seconds) :
Moves to play screen, and then it will rewind or
fast-forward the track.
TUNE Turn the TUNE knob to move the focus to the
previous/next track. If the desired track is displayed,
press the
TUNE knob to play the track.
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




2-22 I AV
USB

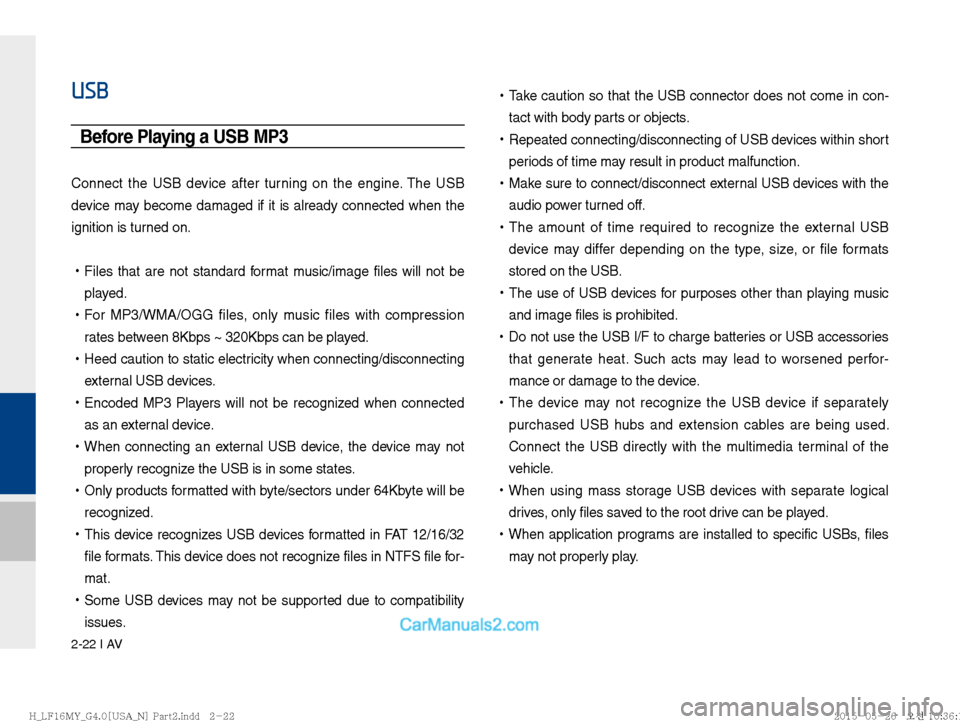

Before Playing a USB MP3
Connect the USB device after turning on the engine. The USB
device may become damaged if it is already connected when the
ignition is turned on.
!Ÿ
Files that are not standard format music/image files will not be
played.

!Ÿ
For MP3/WMA/OGG files, only music files with compression
rates between 8Kbps ~ 320Kbps can be played.

!Ÿ
Heed caution to static electricity when connecting/disconnecting
external USB devices.

!Ÿ
Encoded MP3 Players will not be recognized when connected
as an external device.

!Ÿ
When connecting an external USB device, the device may not
properly recognize the USB is in some states.

!Ÿ
Only products formatted with byte/sectors under 64Kbyte will be
recognized.

!Ÿ
This device recognizes USB devices formatted in FAT 12/16/32
file formats. This device does not recognize files in NTFS file for-
mat.

!Ÿ
Some USB devices may not be supported due to compatibility
issues.
!Ÿ
Take caution so that the USB connector does not come in con-
tact with body parts or objects.

!Ÿ
Repeated connecting/disconnecting of USB devices within short
periods of time may result in product malfunction.

!Ÿ
Make sure to connect/disconnect external USB devices with the
audio power turned off.

!Ÿ
The amount of time required to recognize the external USB
device may differ depending on the type, size, or file formats
stored on the USB.

!Ÿ
The use of USB devices for purposes other than playing music
and image files is prohibited.

!Ÿ
Do not use the USB I/F to charge batteries or USB accessories
that generate heat. Such acts may lead to worsened perfor-
mance or damage to the device.

!Ÿ
The device may not recognize the USB device if separately
purchased USB hubs and extension cables are being used.
Connect the USB directly with the multimedia terminal of the
vehicle.

!Ÿ
When using mass storage USB devices with separate logical
drives, only files saved to the root drive can be played.

!Ÿ
When application programs are installed to specific USBs, files
may not properly play.
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




USB I 2-23
02

!Ÿ
The device may not operate normally if MP3 Players, cellu-
lar phones, digital cameras, or other electronic devices (USB
devices not recognized as portable disk drives) are connected
with the device.

!Ÿ
Charging through the USB may not work for some mobile
devices.

!Ÿ
The device may not support normal operation when using a USB
memory type besides Metal Cover Type USB Memory.

!Ÿ
The device may not support normal operation when using for-
mats such as HDD Type, CF, or SD Memory.

!Ÿ
Upon playing iPods, please use a dedicated iPod car cable.

!Ÿ
Normal operations cannot be guaranteed when other cables are
being used.

!Ÿ
The device will not support files locked by DRM. (Digital Rights
Management)

!Ÿ
USB memory sticks used by connecting an Adaptor (SD Type or
CF Type) may not be properly recognized.

!Ÿ
Only use Plug type connector products, as shown in the figure
below.
Plug Type Connector
Product Name
Manufacturer
XTICK LG
BMK BMK Technology
SKY-DRV Sky Digital
TRANSCEND JetFlash Transcend
Sandisk Cruzer SanDisk
Micro ZyRUS ZyRUS
NEXTIK Digiworks
i Information
Problems that occur through use of USB devices not listed within the
above tab
le are not covered by the product warranty.
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




2-24 I AV
Supported Image Speci cations
Name Description
Image format JPG, GIF, BMP, PNG (animated GIF, etc.
are not supported)
Supported image
resolution 5M pixels for JPG, BMP, PNG (1M pixels
maximum for GIF)
Supported image file
size 5M pixels for JPG, BMP, PNG (1M pixels
maximum for GIF)

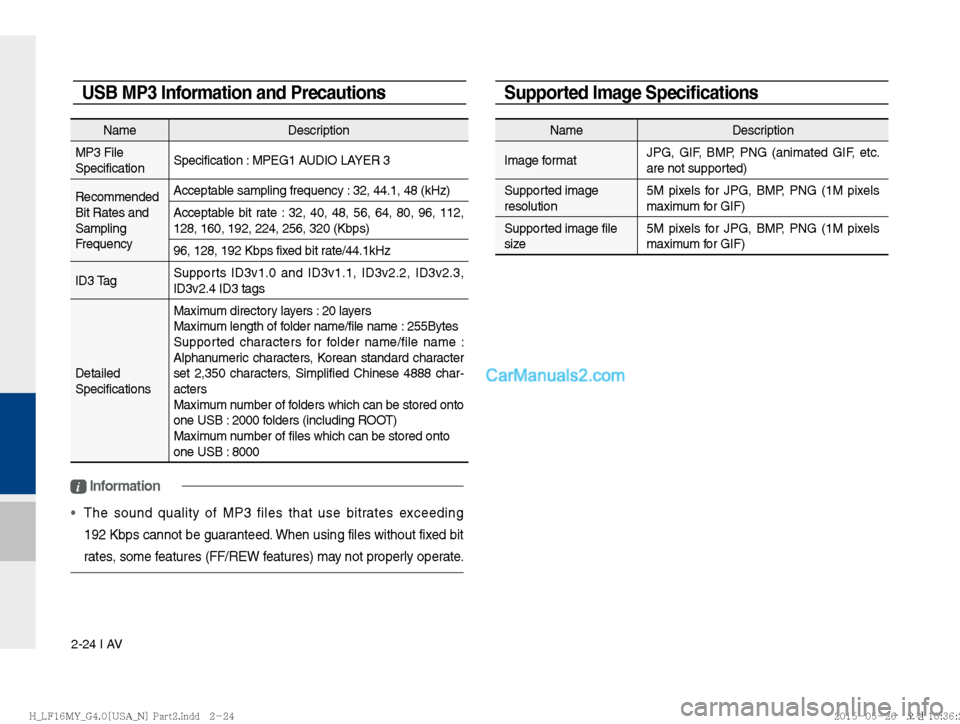

USB MP3 Information and Precautions
Name
Description
MP3 File
Specification Specification : MPEG1 AUDIO LAYER 3
Recommended
Bit Rates and
Sampling
Frequency Acceptable sampling frequency : 32, 44.1, 48 (kHz)
Acceptable bit rate : 32, 40, 48, 56, 64, 80, 96, 112,
128, 160, 192, 224, 256, 320 (Kbps)
96, 128, 192 Kbps fixed bit rate/44.1kHz
ID3 Tag Supports ID3v1.0 and ID3v1.1, ID3v2.2, ID3v2.3,
ID3v2.4 ID3 tags
Detailed
Specifications Maximum directory layers : 20 layers
Maximum length of folder name/file name : 255Bytes
Supported characters for folder name/file name :
Alphanumeric characters, Korean standard character
set 2,350 characters, Simplified Chinese 4888 char-
acters
Maximum number of folders which can be stored onto
one USB : 2000 folders (including ROOT)
Maximum number of files which can be stored onto
one USB : 8000
i Information

The sound quality of MP3 files that use bitrates exceeding
192 Kbps cannot be guaranteed.
When using files without fixed bit
rates, some features (FF/REW features) may not properly operate.
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




USB I 2-25
02
FeaturesDescription
Previous FileIf button is pressed (less than 0.8 seconds) :
Moves to the previous file or play the current file
from the beginning (Depends on the play time)

!Ÿ
If play time is less than 3 seconds, moves to
previous file

!Ÿ
If play time is over than 3 seconds, play the
current file from the beginning
If button is pressed (over than 0.8 seconds) it
rewinds the track
Play/Pause Plays/pauses the current file
Next File
!Ÿ
If button is pressed (less than 0.8 seconds) :
Moves to the next file

!Ÿ
If button is pressed (over than 0.8 seconds) :
It fast-forwards the track
Repeat Repeats the current file

!Ÿ
If select the song in the file tab on the list
screen : Press the
Repeat button to switch
between repeating one song , repeating
folder , and turning repeat off

!Ÿ
If select the song in the other tabs (Playlist,
Artist, Song, Album, Genre) on the list screen
: Press the
Repeat button to switch between
repeating one song and turning repeat
off
Back Button Converts to basic mode screen
ShufflePlays files in random order

!Ÿ
If select the song in the file tab on the list
screen : Press the
Shuffle button to switch
between Shuffle Folder , Shuffle All , and turning shuffle off

!Ÿ
If select the song in the other tabs (Playlist, Artist,
Song, Album, Genre) on the list screen : Press
the
Shuffle button to switch between Shuffle
Category and turning shuffle off

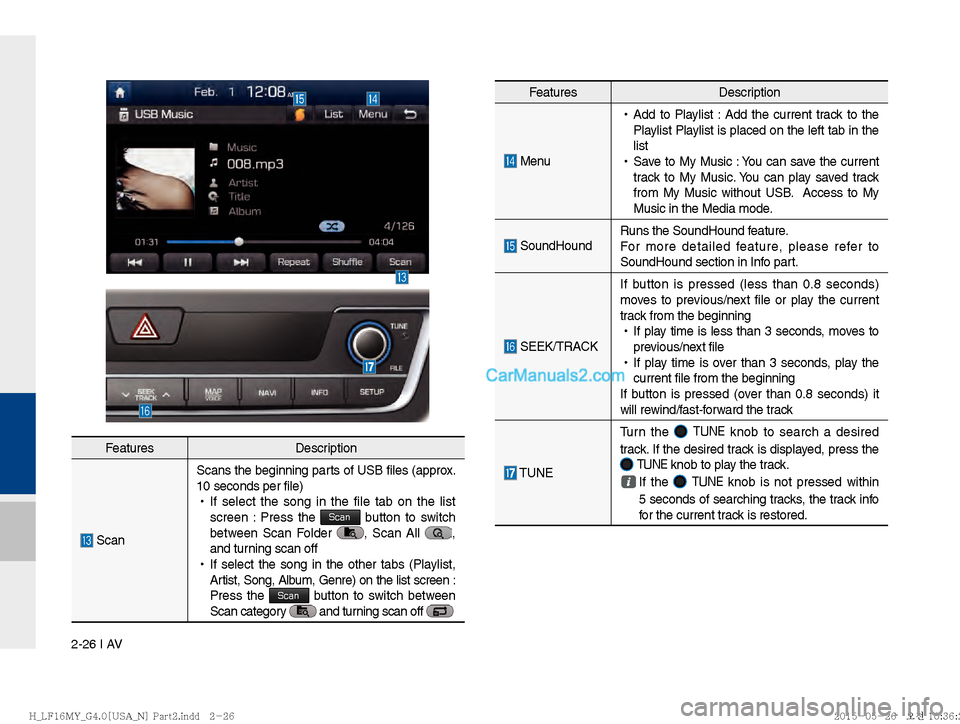

USB Music
Features Description

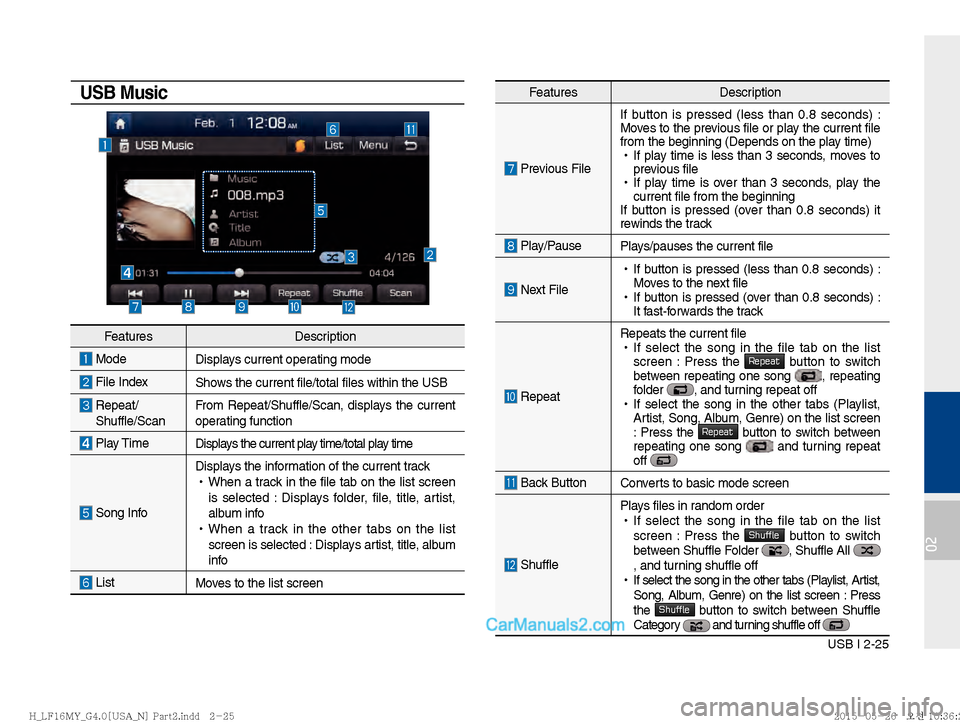

Mode
Displays current operating mode
File IndexShows the current file/total files within the USB
Repeat/
Shuffle/Scan From Repeat/Shuffle/Scan, displays the current
operating function
Play Time
Displays the current play time/total play time
Song InfoDisplays the information of the current track

!Ÿ
When a track in the file tab on the list screen
is selected : Displays folder, file, title, artist,
album info

!Ÿ
When a track in the other tabs on the list
screen is selected : Displays artist, title, album
info
List Moves to the list screen
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




2-26 I AV
FeaturesDescription
Menu
!Ÿ
Add to Playlist : Add the current track to the
Playlist Playlist is placed on the left tab in the
list

!Ÿ
Save to My Music : You can save the current
track to My Music. You can play saved track
from My Music without USB. Access to My
Music in the Media mode.
SoundHound Runs the SoundHound feature.
For more detailed feature, please refer to
SoundHound section in Info part.
SEEK/TRACKIf button is pressed (less than 0.8 seconds)
moves to previous/next file or play the current
track from the beginning

!Ÿ
If play time is less than 3 seconds, moves to
previous/next file

!Ÿ
If play time is over than 3 seconds, play the
current file from the beginning
If button is pressed (over than 0.8 seconds) it
will rewind/fast-forward the track
TUNE Turn the


TUNE knob to search a desired
track. If the desired track is displayed, press the

TUNE knob to play the track.
If the

TUNE knob is not pressed within
5 seconds of searching tracks, the track info
for the current track is restored.

Features Description
ScanScans the beginning parts of USB files (approx.
10 seconds per file)

!Ÿ
If select the song in the file tab on the list
screen : Press the
Scan button to switch
between Scan Folder
, Scan All ,
and turning scan off

!Ÿ
If select the song in the other tabs (Playlist,
Artist, Song, Album, Genre) on the list screen :
Press the
Scan button to switch between
Scan category and turning scan off
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE
