Page 31 of 308
SiriusXM™ I 2-7
02
FeaturesDescription
Play Live
It will change to listening live broadcast mode.
Skip BackwardRepeats the previously broadcasted program.
!Ÿ
Holding for less than 0.8 seconds : Moves to
the previous segment
!Ÿ
Holding for longer than 0.8 seconds: Moves
to the previous 5 seconds
Play Pause Pauses/plays the current broadcasting program.
Skip ForwardMoves to the next segment.
ListDisplays SiriusXM™ Radio Categories/Channel
Lists
MenuWhat’s on My Preset?
The program schedule saved in my preset. (For
more details, see Section 2.5. Viewing Menu.)
!Ÿ
Featured Favorite
Theme channels recommended by SiriusXM™ .
(For more details, see Section 2.5. Viewing
Menu.)
!Ÿ
Preset Scan
Plays preset frequencies for 5 seconds each.
SoundHound Runs the SoundHound feature.
For more detailed feature, please refer to
SoundHound section in Info part.
SEEK/TRACKWhen key is pressed quickly.(under 0.8 seconds)
Plays the previous/next channel
When key is pressed and held.(over 0.8 seconds)
Continuously changes the channel until the key
is released and plays the current channel
TUNE
Changes the channel
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 32 of 308
2-8 I AV

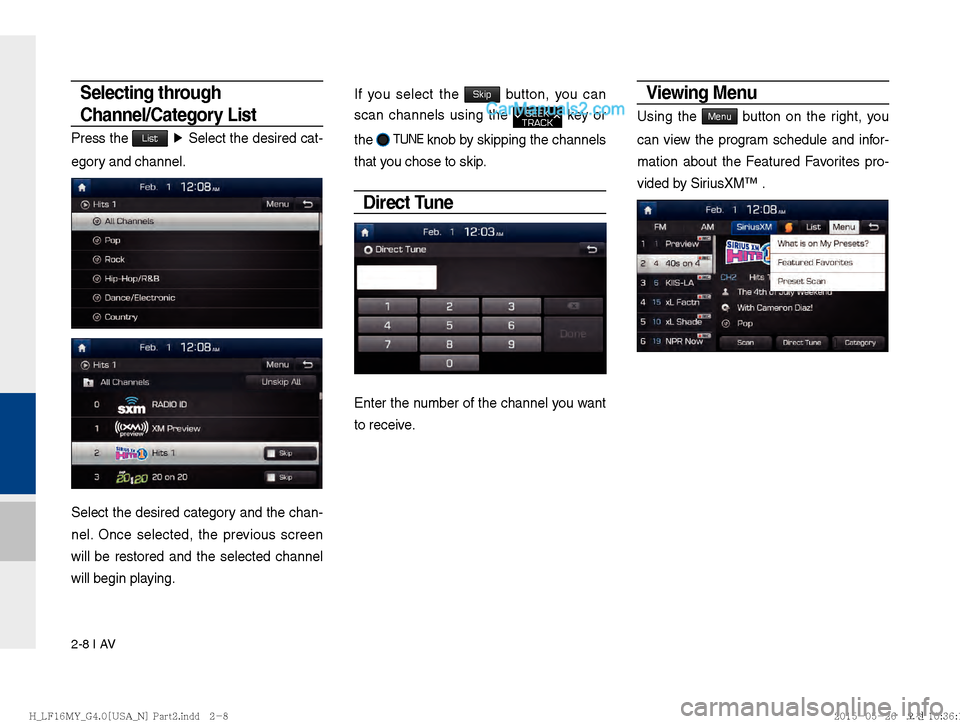

Selecting through
Channel/Category List
Press the List Ü
Select the desired cat-
egory and channel.
Select the desired category and the chan-
nel. Once selected, the previous screen
will be restored and the selected channel
will begin playing.
If you select the Skip button, you can
scan channels using the
SEEK
TRACK key or
the
TUNE
knob by skipping the channels
that you chose to skip.
Direct Tune
Enter the number of the channel you want
to receive.
Viewing Menu
Using the Menu button on the right, you
can view the program schedule and infor-
mation about the Featured Favorites pro-
vided by SiriusXM™ .
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 33 of 308
SiriusXM™ I 2-9
02

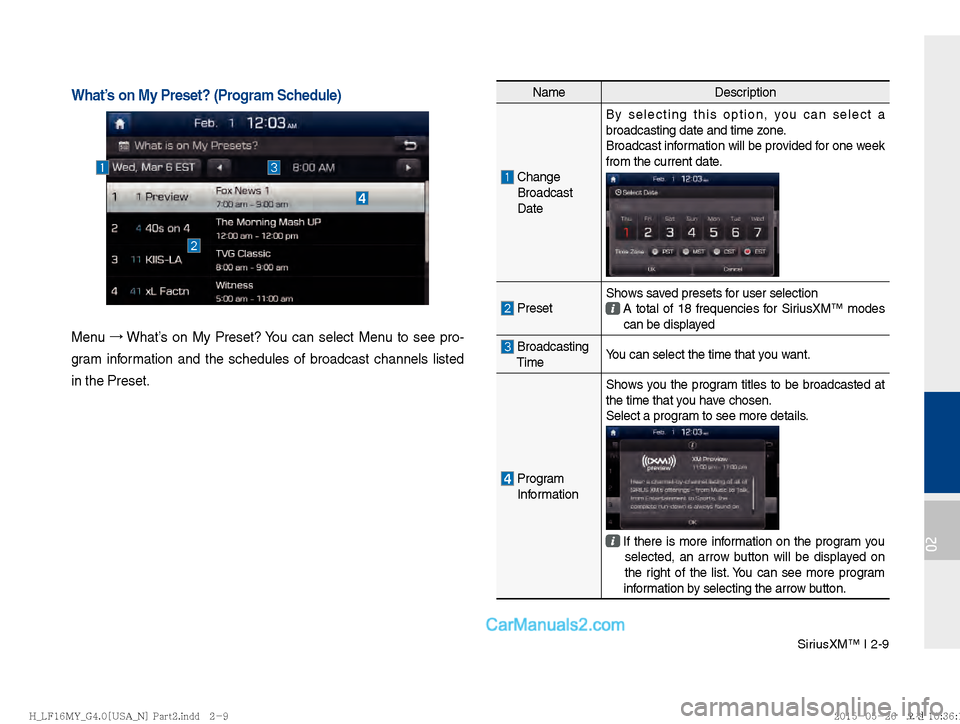

NameDescription
Change
Broadcast
Date By selecting this option, you can select a
broadcasting date and time zone.
Broadcast information will be provided for one week
from the current date.
Preset
Shows saved presets for user selection
A total of 18 frequencies for SiriusXM™ modes
can be displayed
Broadcasting Time You can select the time that you want.
Program
Information Shows you the program titles to be broadcasted at
the time that you have chosen.
Select a program to see more details.
If there is more information on the program you
selected, an arrow button will be displayed on
the right of the list. You can see more program
information by selecting the arrow button.
What’s on My Preset? (Program Schedule)
Menu →
What’s on My Preset? You can select Menu to see pro-
gram information and the schedules of broadcast channels listed
in the Preset.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 34 of 308
2-10 I AV

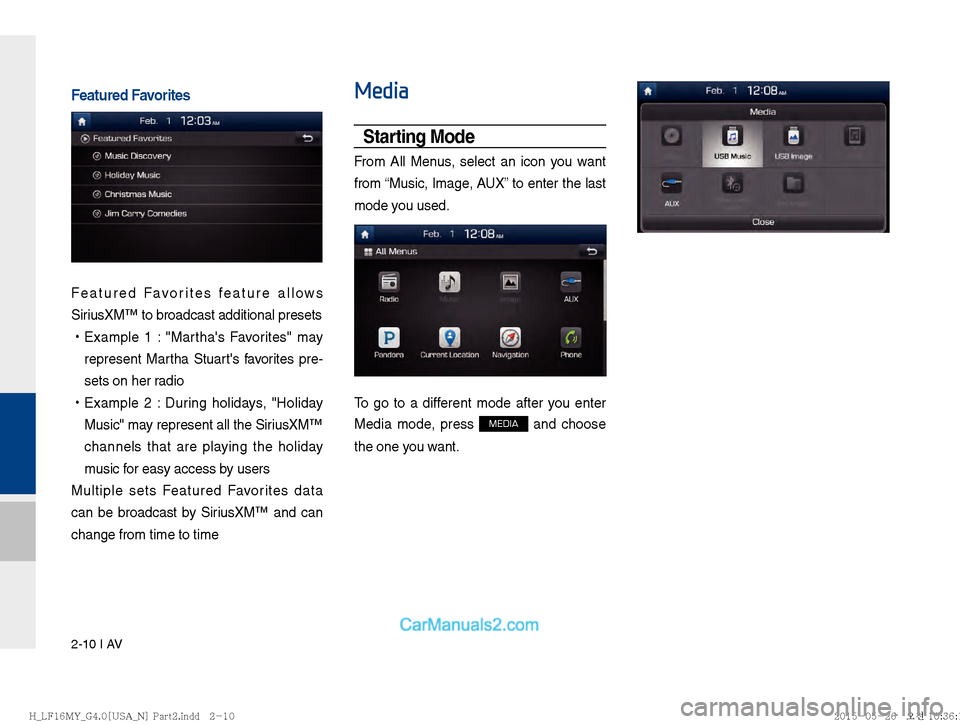

Featured Favorites
Featured Favorites feature allows
SiriusXM™ to broadcast additional presets
!Ÿ
Example 1 : "Martha's Favorites" may
represent Martha Stuart's favorites pre-
sets on her radio
!Ÿ
Example 2 : During holidays, "Holiday
Music" may represent all the SiriusXM™
channels that are playing the holiday
music for easy access by users
Multiple sets Featured Favorites data
can be broadcast by SiriusXM™ and can
change from time to time
Media
Starting Mode
From All Menus, select an icon you want
from “Music, Image, AUX” to enter the last
mode you used.
To go to a different mode after you enter
Media mode, press
MEDIA and choose
the one you want.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 35 of 308
About Disc I 2-11
02

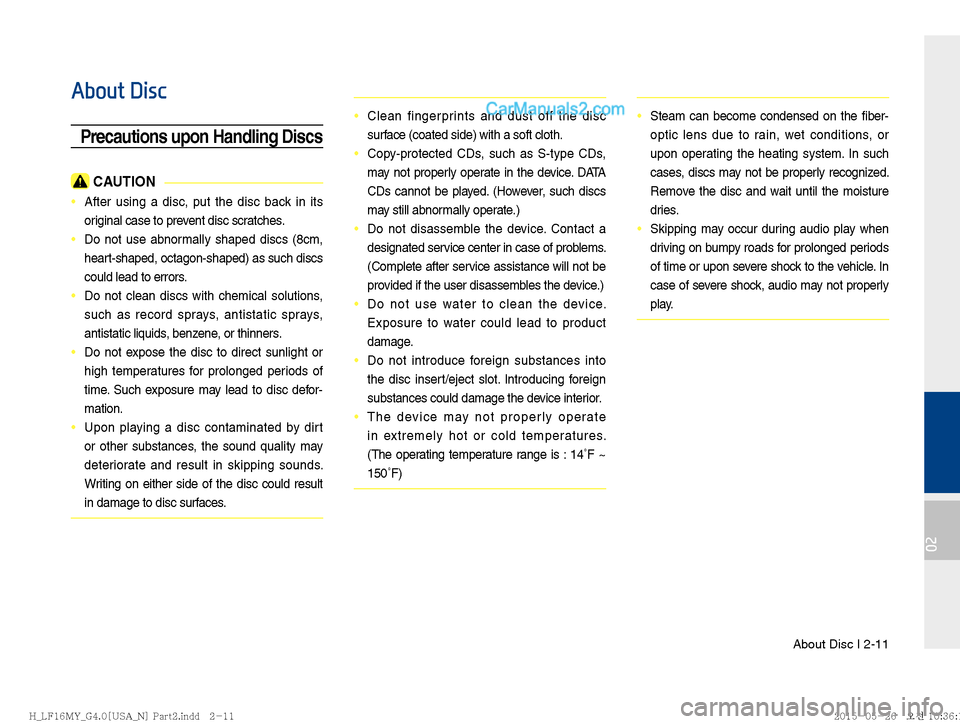

About Disc
Precautions upon Handling Discs
CAUTION
After using a disc, put the disc back in its
original case to prev
ent disc scratches.
Do not use abnormally shaped discs (8cm,
heart-shaped, octagon-shaped) as such discs
could lead to errors .
Do not clean discs with chemical solutions
,
such as record spr a
ys
, antistatic sprays,
antistatic liquids, benzene, or thinners.
Do not expose the disc to direct sunlight or
high temper atures f
or prolonged per
iods of
time. Such exposure may lead to disc defor-
mation.
Upon playing a disc contaminated by dirt
or other substances , the sound quality ma
y
deteriorate and result in skipping sounds.
Writing on either side of the disc could result
in damage to disc surfaces.
Clean fingerprints and dust off the disc
surface (coated side) with a soft cloth.
Copy-protected CDs
, such as S-type CDs,
ma y not proper
ly oper
ate in the device. DATA
CDs cannot be played. (However, such discs
may still abnormally operate.)
Do not disassemble the device. Contact a
designated ser vice center in case of prob
lems
.
(Complete after service assistance will not be
provided if the user disassembles the device.)
Do not use water to clean the device.
Exposure to w ater could lead to product
damage
.
Do not introduce foreign substances into
the disc inser t/eject slot.
Introducing f
oreign
substances could damage the device interior.
The device may not properly operate
in e xtremely hot or cold temper
atures
.
(The operating temperature range is : 14 F ~
150 F)
Steam can become condensed on the ber-
optic lens due to rain, wet conditions , or
upon operating the heating system. In such
cases, discs may not be properly recognized.
Remove the disc and wait until the moisture
dries.
Skipping may occur during audio play when
driving on b
ump
y roads for prolonged periods
of time or upon severe shock to the vehicle. In
case of severe shock, audio may not properly
play.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 36 of 308
2-12 I AV

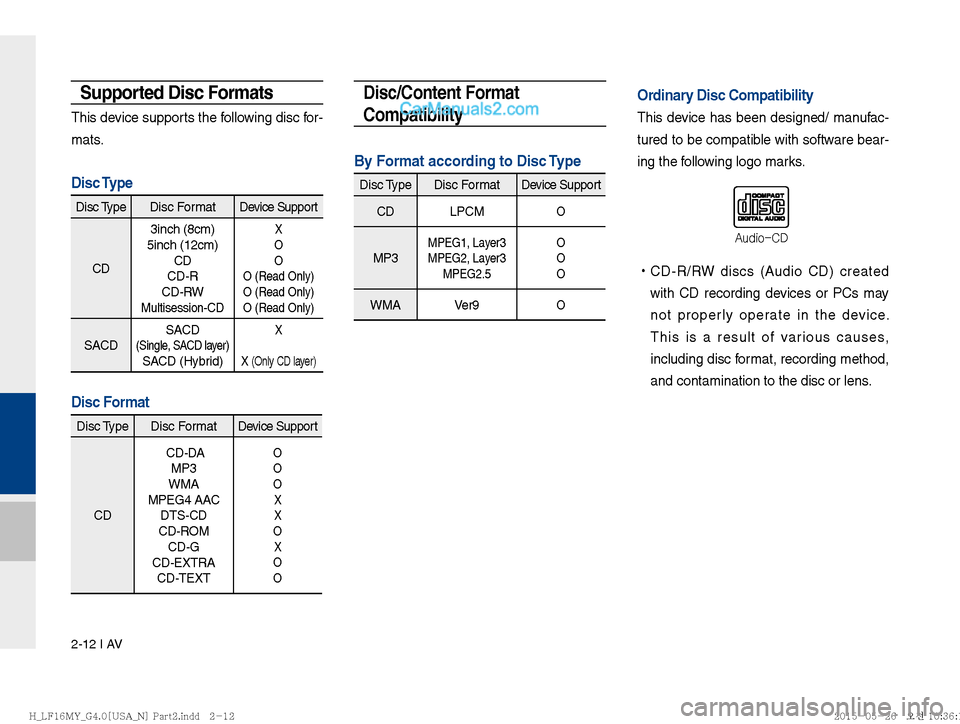

Supported Disc Formats
This device supports the following disc for-
mats.
Disc Type
Disc TypeDisc Format De vice Support
CD 3inch (8cm)
5inch (12cm) CD
CD-R
CD-RW
Multisession-CD
X
O
O
O (Read Only)
O (Read Only)
O (Read Only)
SACD SACD (Single, SACD layer) SACD (Hybrid)
X
X (Only CD layer)
Disc Format
Disc Type Disc Format Device S
upport
CD CD-DA
MP3
WMA
MPEG4 AAC DTS-CD
CD-ROM CD-G
CD-EXTRA CD-TEXT
O
O
O
X
X
O
X
O
O
Disc/Content Format
Compatibility
By Format according to Disc Type
Disc Type Disc Format De
vice Support
CD LPCM
O
MP3MPEG1, Layer3
MPEG2, Layer3 MPEG2.5 O
O
O
WMA Ver9O
Ordinary Disc Compatibility
This device has been designed/ manufac-
tured to be compatible with software bear-
ing the following logo marks.
!Ÿ
CD-R/RW discs (Audio CD) created
with CD recording devices or PCs may
not properly operate in the device.
This is a result of various causes,
including disc format, recording method,
and contamination to the disc or lens.
h œ ‹
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 37 of 308
About Disc I 2-13
02

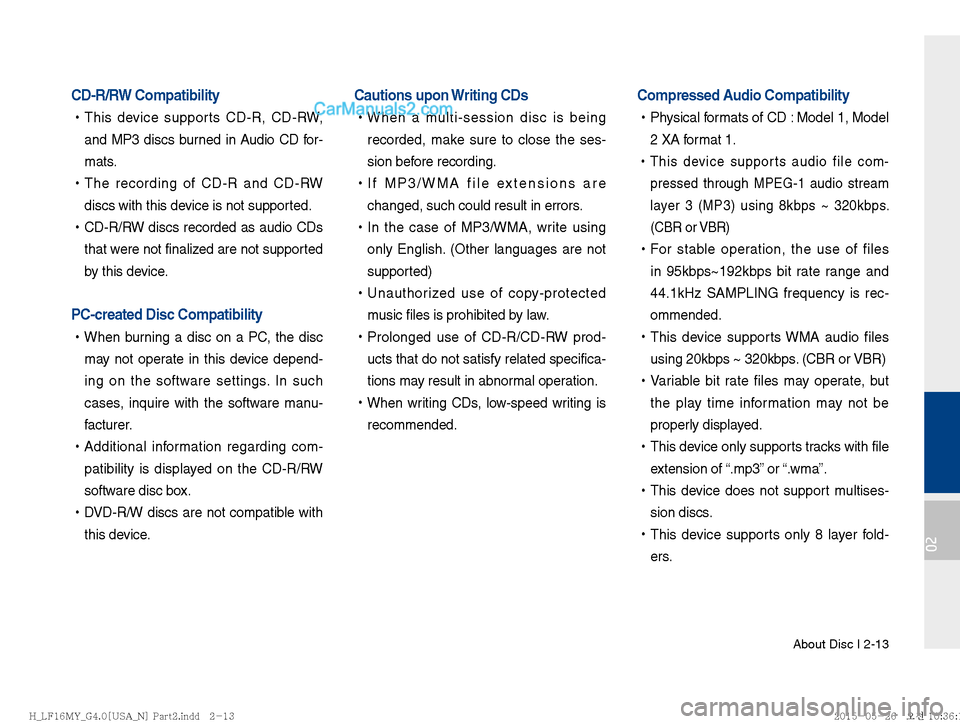

CD-R/RW Compatibility
!Ÿ
This device supports CD-R, CD-RW,
and MP3 discs burned in Audio CD for-
mats.
!Ÿ
The recording of CD-R and CD-RW
discs with this device is not supported.
!Ÿ
CD-R/RW discs recorded as audio CDs
that were not finalized are not supported
by this device.
PC-created Disc Compatibility
!Ÿ
When burning a disc on a PC, the disc
may not operate in this device depend-
ing on the software settings. In such
cases, inquire with the software manu-
facturer.
!Ÿ
Additional information regarding com-
patibility is displayed on the CD-R/RW
software disc box.
!Ÿ
DVD-R/W discs are not compatible with
this device.
Cautions upon Writing CDs
!Ÿ
When a multi-session disc is being
recorded, make sure to close the ses-
sion before recording.
!Ÿ
If MP3/WMA file extensions are
changed, such could result in errors.
!Ÿ
In the case of MP3/WMA, write using
only English. (Other languages are not
supported)
!Ÿ
Unauthorized use of copy-protected
music files is prohibited by law.
!Ÿ
Prolonged use of CD-R/CD-RW prod-
ucts that do not satisfy related specifica-
tions may result in abnormal operation.
!Ÿ
When writing CDs, low-speed writing is
recommended.
Compressed Audio Compatibility
!Ÿ
Physical formats of CD : Model 1, Model
2 XA format 1.
!Ÿ
This device supports audio file com-
pressed through MPEG-1 audio stream
layer 3 (MP3) using 8kbps ~ 320kbps.
(CBR or VBR)
!Ÿ
For stable operation, the use of files
in 95kbps~192kbps bit rate range and
44.1kHz SAMPLING frequency is rec-
ommended.
!Ÿ
This device supports WMA audio files
using 20kbps ~ 320kbps. (CBR or VBR)
!Ÿ
Variable bit rate files may operate, but
the play time information may not be
properly displayed.
!Ÿ
This device only supports tracks with file
extension of “.mp3” or “.wma”.
!Ÿ
This device does not support multises-
sion discs.
!Ÿ
This device supports only 8 layer fold-
ers.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 38 of 308
2-14 I AV
!Ÿ
This device supports MP3 ID3 tag ver-
sions of Ver. 1.0, Ver. 1.1, Ver. 2.2, Ver.
2.3, Ver. 2.4. When using discs with
other versions, the ID3 info will not be
displayed.
!Ÿ
Although this device has been desig-
nated to be compatible with various bit
rates, playing low bit rate MP3 tracks
may result in low quality sound.Before Playing an MP3 Disc
Supported MP3 File Speci cation
!Ÿ
Acceptable standard: MPEG1 Audio
Layer 3.
!Ÿ
Acceptable sampling frequency :
8, 11.025, 12, 16, 22.05, 24, 32, 44.1,
48(kHz).
!Ÿ
Acceptable bit rate : 8 ~ 320 (Kbps).
Recommended Bit Rates and Frequency
!Ÿ
Sampling frequency : 96 ~ 192 Kbps
fixed bit rate/44.1kHz.
NOTICE
Supported ID3 tags : ID3v1.0, ID3v1.1,
ID3v1.2, ID3v2.2, ID3v2.3, ID3v2.4.
Supported MP3 Media :
CD-ROM.
Supported media formats : ISO9660 LEVEL1
and LEVEL2.
Detailed Speci cation
!Ÿ
Maximum directory layers : 8 layers.
!Ÿ
Maximum folder length : 64 bytes, file
name length: 64 bytes.
!Ÿ
Supported characters for folder name/file
name: 2350 characters for Alphanumeric
character and Korean character sets,
4888 characters for Simplified Chinese
character set.
!Ÿ
Maximum number of folders per disc :
256 folders. (including ROOT)
!Ÿ
Maximum number of files per disc : 512
files.
Precautions upon Burning MP3 Files
!Ÿ
The use of ISO 9660 LEVEL 2 JOLIET
format is recommended.
!Ÿ
Up to 32 characters in Korean/Chinese
are supported for file names and up to
20 characters in Korean/Chinese are
supported for folder names.
!Ÿ
The use of CDs exceeding 700MB may
result in faulty disc recognition or errors
upon play.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 39 of 308

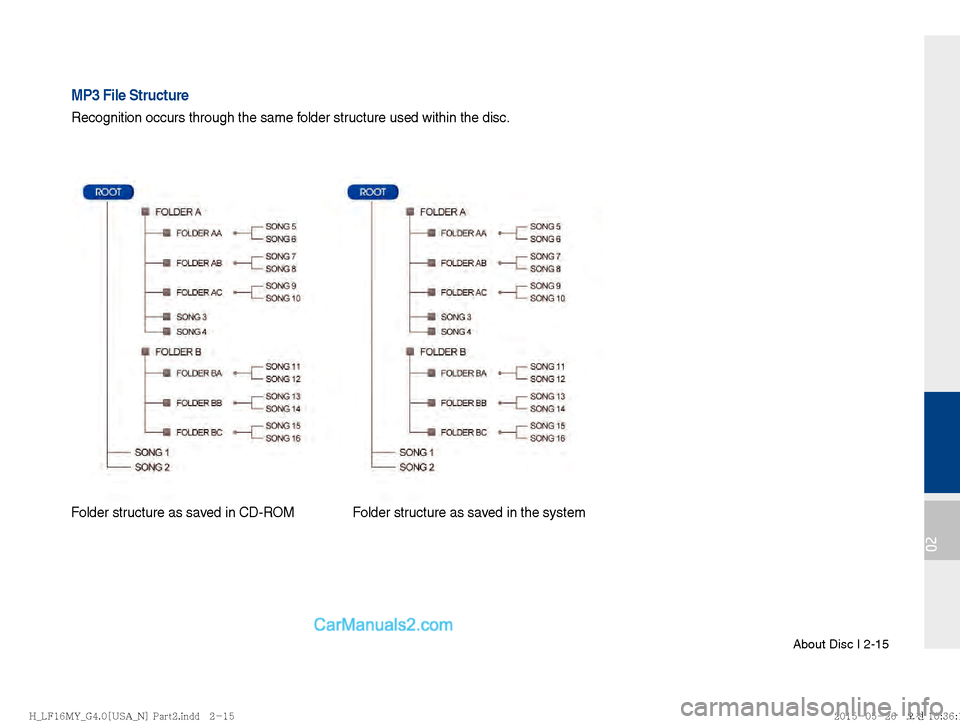

About Disc I 2-15
02
MP3 File Structure
Recognition occurs through the same folder structure used within the disc.
Folder structure as saved in CD-ROM Folder structure as saved in the system
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 40 of 308
2-16 I AV
CD

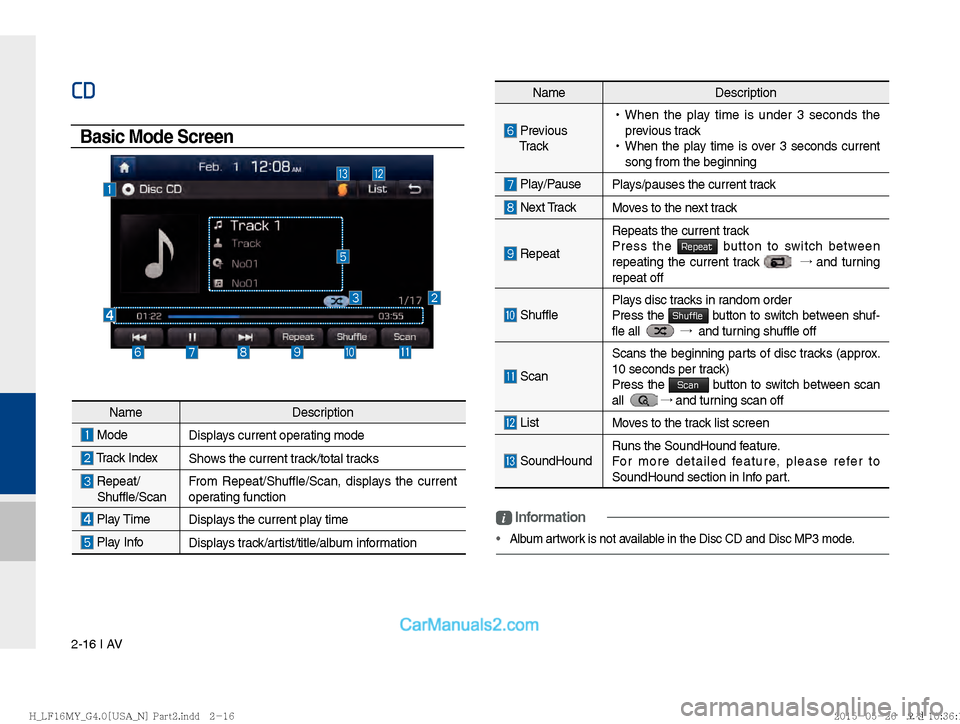

Basic Mode Screen
NameDescription
Previous
Tr a c k
!Ÿ
When the play time is under 3 seconds the
previous track
!Ÿ
When the play time is over 3 seconds current
song from the beginning
Play/Pause Plays/pauses the current track
Next Track Moves to the next track
RepeatRepeats the current track
Press the Repeat button to switch between
repeating the current track ª
and turning
repeat off
Shuffle Plays disc tracks in random order
Press the Shuffle button to switch between shuf-
fle all ª
and turning shuffle off
Scan Scans the beginning parts of disc tracks (approx.
10 seconds per track)
Press the Scan button to switch between scan
all ª
and turning scan off
List Moves to the track list screen
SoundHoundRuns the SoundHound feature.
For more detailed feature, please refer to
SoundHound section in Info part.
i Information
Album artwork is not available in the Disc CD and Disc MP3 mode.
Name Description
Mode
Displays current operating mode
Track IndexShows the current track/total tracks
Repeat/
Shuffle/Scan From Repeat/Shuffle/Scan, displays the current
operating function
Play Time
Displays the current play time
Play InfoDisplays track/artist/title/album information
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
