Hyundai Sonata

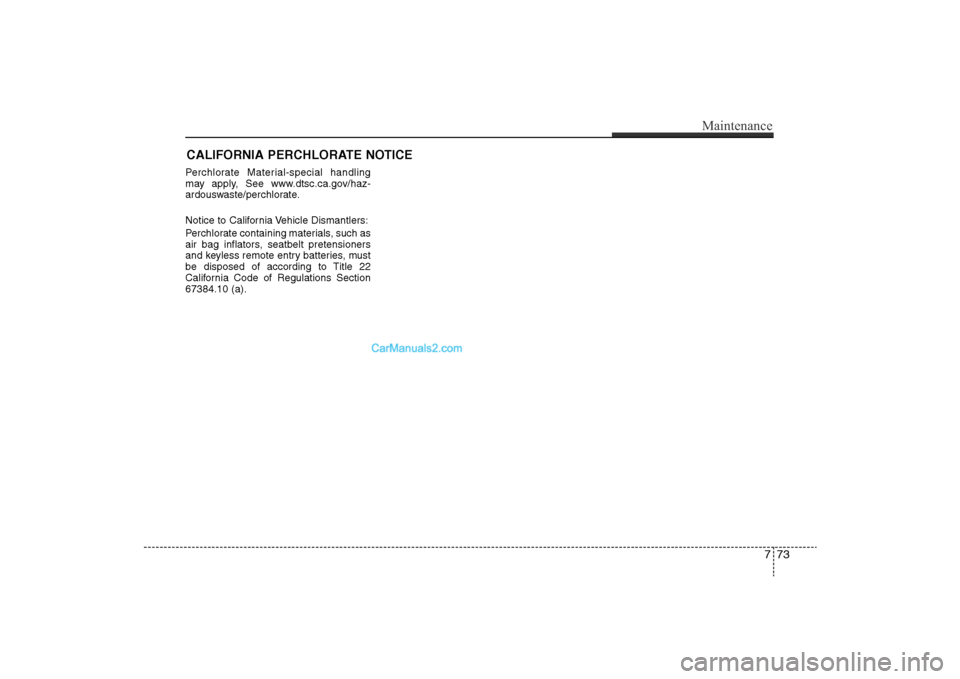

CALIFORNIA PERCHLORATE NOTICEPerchlorate Material-special handling
may apply, See www.dtsc.ca.gov/haz-
ardouswaste/perchlorate.
Notice to California Vehicle Dismantlers:
Perchlorate containing materials, such as
air bag inflators, seatbelt pretensioners
and keyless remote entry batteries, must
be disposed of according to Title 22
California Code of Regulations Section
67384.10 (a).
Maintenance
73
7

YF HMA 7.QXP 11/25/2009 1:54 PM Page 73

8
Dimensions / 8-2
Bulb wattage / 8-2
Tires and wheels / 8-3
Recommended lubricants and capacities / 8-4
Vehicle identification number (VIN) / 8-6
Vehicle certification label / 8-6
Tire specification and pressure label / 8-7
Engine number / 8-7
Consumer information / 8-8
Reporting safety defects / 8-9
Binding arbitration / 8-9
Specifications, Consumer information,
Reporting safety defects

YF HMA 8.QXP 12/24/2009 5:23 PM Page 1

Specifications, Consumer information, Reporting safety defeccts2

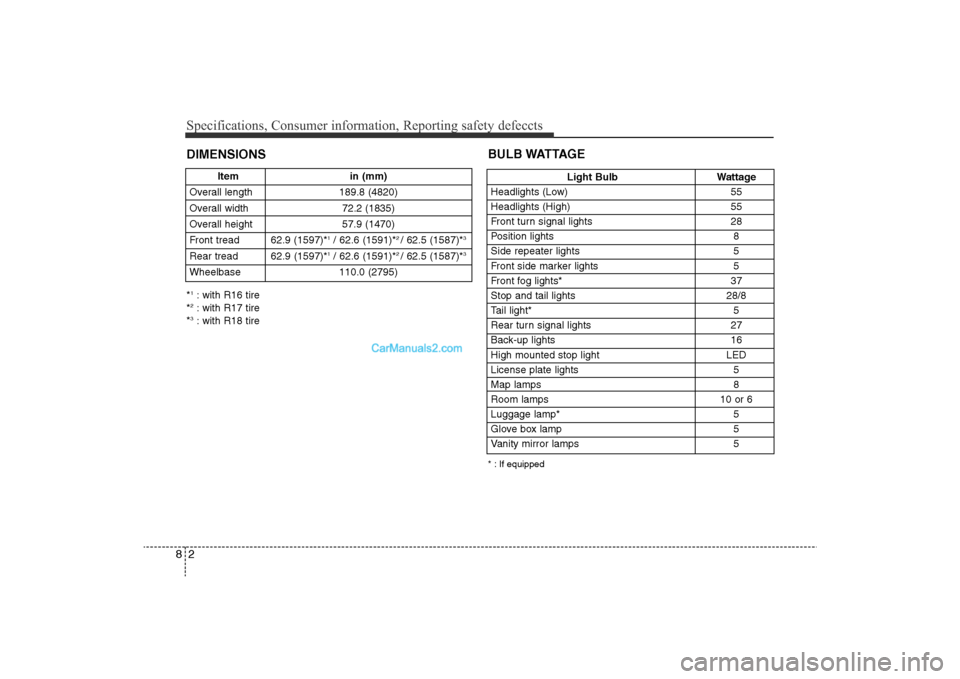

8DIMENSIONS
Light Bulb Wattage
Headlights (Low) 55
Headlights (High) 55
Front turn signal lights 28
Position lights 8
Side repeater lights 5
Front side marker lights 5
Front fog lights* 37
Stop and tail lights 28/8
Tail light* 5
Rear turn signal lights 27
Back-up lights 16
High mounted stop light LED
License plate lights 5
Map lamps 8
Room lamps 10 or 6
Luggage lamp* 5
Glove box lamp 5
Vanity mirror lamps 5
BULB WATTAGE* : If equipped
Item in (mm)
Overall length 189.8 (4820)
Overall width 72.2 (1835)
Overall height 57.9 (1470)
Front tread 62.9 (1597)*
1/ 62.6 (1591)*
2/ 62.5 (1587)*
3
Rear tread 62.9 (1597)*
1/ 62.6 (1591)*
2/ 62.5 (1587)*
3
Wheelbase 110.0 (2795)*1: with R16 tire
*2: with R17 tire
*3: with R18 tire

YF HMA 8.QXP 12/24/2009 5:23 PM Page 2

83
Specifications, Consumer information, Reporting safety defeccts

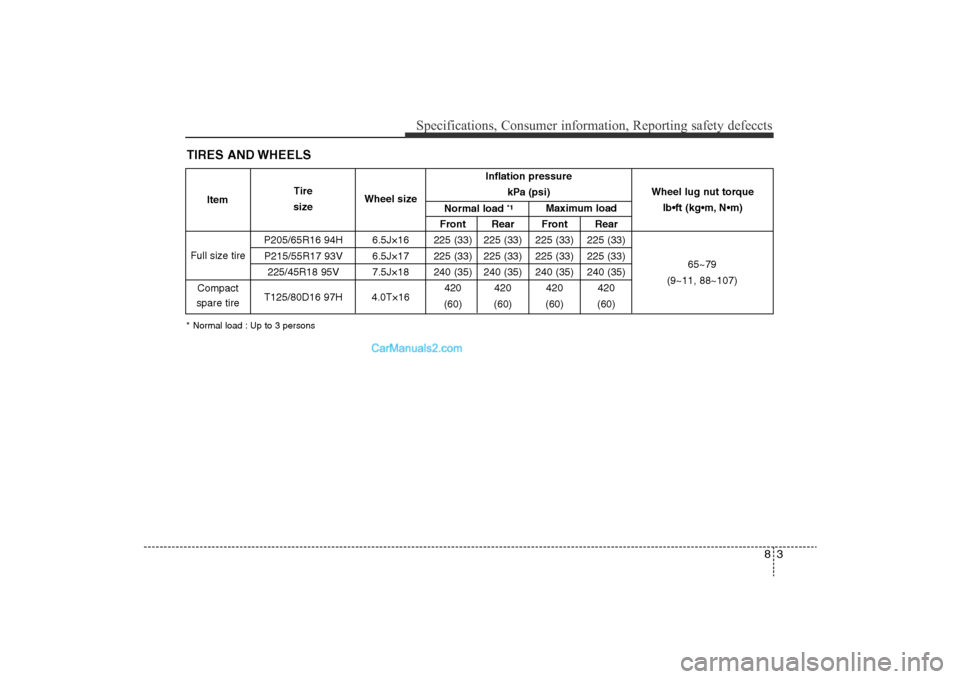

TIRES AND WHEELS* Normal load : Up to 3 persons
Inflation pressurekPa (psi)
Front Rear Front Rear
P205/65R16 94H 6.5J×16 225 (33) 225 (33) 225 (33) 225 (33) P215/55R17 93V 6.5J×17 225 (33) 225 (33) 225 (33) 225 (33) 225/45R18 95V 7.5J×18 240 (35) 240 (35) 240 (35) 240 (35)
T125/80D16 97H 4.0T×16 420 420 420 420
(60) (60) (60) (60)
Full size tire
Compact
spare tire Wheel lug nut torque
lb•ft (kg•m, N•m)
65~79
(9~11, 88~107)
Item
Tire
size Wheel size
Normal load
*1
Maximum load

YF HMA 8.QXP 12/24/2009 5:23 PM Page 3

Specifications, Consumer information, Reporting safety defeccts4
8RECOMMENDED LUBRICANTS AND CAPACITIES To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.These lubricants and fluids are recommended for use in your vehicle.*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econo my by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving , but in a year’s
time, they can offer significant cost and energy savings.
*3If the API service SM engine oil is not available in your country, you are able to use API service SL.
Lubricant
Volume
Classification
Engine oil
*1 *2
(drain and refill)
Recommends
4.86 US qt. (4.6
l)
API Service SM*
3,
ILSAC GF-4 or above
Manual transaxle fluid
1.90 US qt. (1.8
l)
API GL-4, SAE 75W/85
Automatic transaxle fluid
7.50 US qt. (7.1
l)
MICHANG ATF SP-IV, SK ATF SP-IV
NOCA ATF SP-IV, HYUNDAI genuine ATF SP-IV or other brands meeting the above specification approved by Hyundai Motor Co.,
Coolant
6.97 US qt. (6.6
l)
Mixture of antifreeze and water (Ethylene glycol basecoolant for aluminum radiator)
Brake/clutch fluid
0.7~0.8 US qt.
(0.7~0.8
l)
FMVSS116 DOT-3 or DOT-4
Fuel
18.49 US gal. (70
l)
Unleaded gasoline

YF HMA 8.QXP 12/24/2009 5:23 PM Page 4

85
Specifications, Consumer information, Reporting safety defeccts

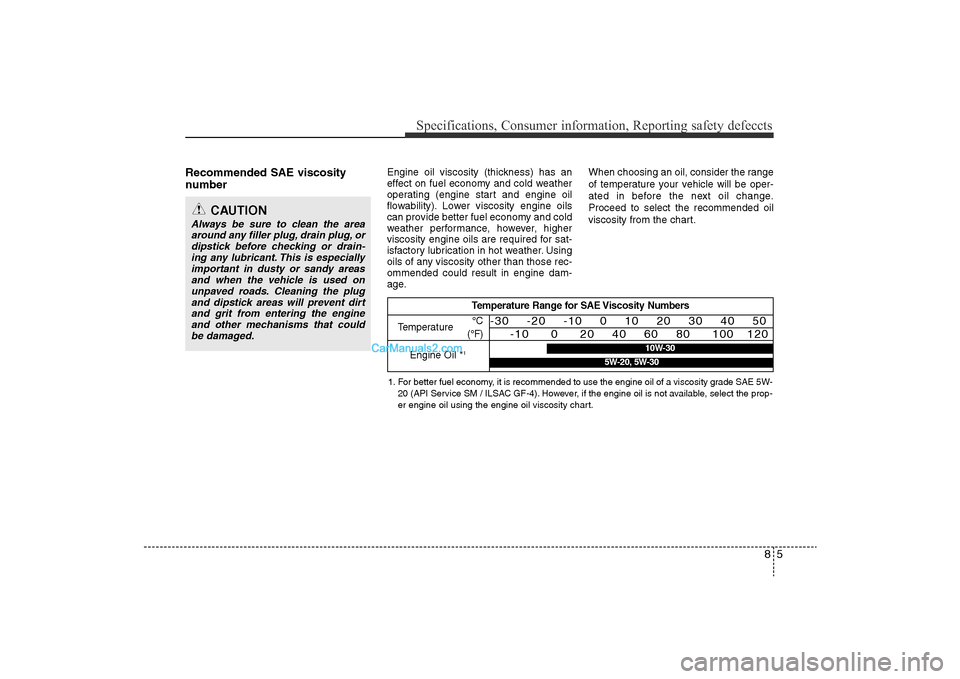

Recommended SAE viscosity
number
Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and cold
weather performance, however, higher
viscosity engine oils are required for sat-
isfactory lubrication in hot weather. Using
oils of any viscosity other than those rec-
ommended could result in engine dam-
age.When choosing an oil, consider the range
of temperature your vehicle will be oper-
ated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, ordipstick before checking or drain- ing any lubricant. This is especiallyimportant in dusty or sandy areasand when the vehicle is used on unpaved roads. Cleaning the plugand dipstick areas will prevent dirt and grit from entering the engineand other mechanisms that could be damaged.
Temperature Range for SAE Viscosity Numbers
Temperature
Engine Oil *
1°C
(°F)
-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
1. For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W-
20 (API Service SM / ILSAC GF-4). However, if the engine oil is not available, select the prop-
er engine oil using the engine oil viscosity chart.
10W-30
5W-20, 5W-30

YF HMA 8.QXP 12/24/2009 5:23 PM Page 5

Specifications, Consumer information, Reporting safety defeccts6

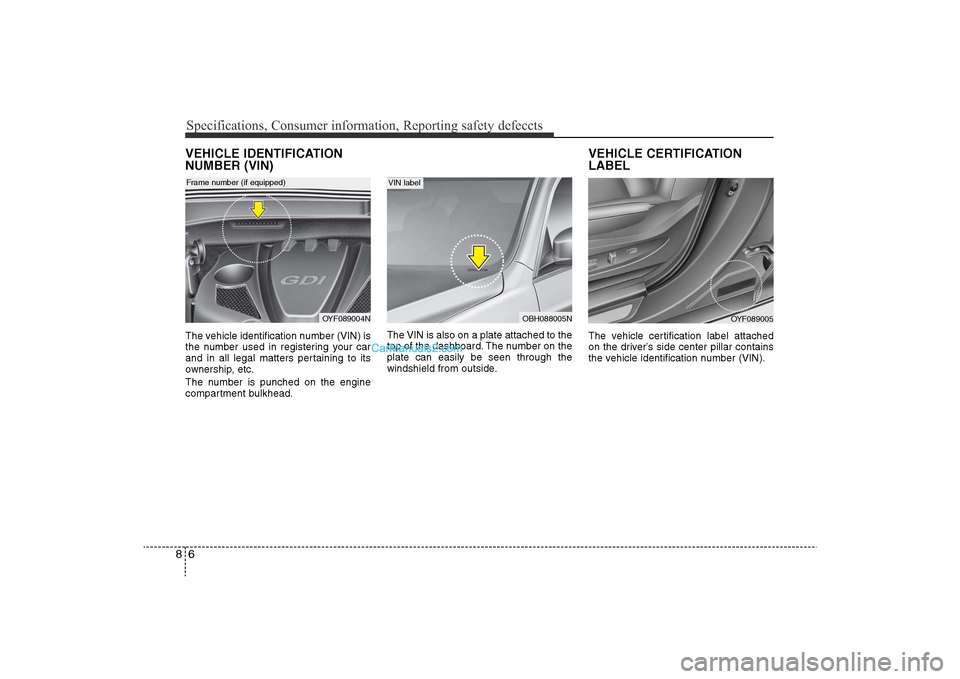

8VEHICLE IDENTIFICATION
NUMBER (VIN)The vehicle identification number (VIN) is
the number used in registering your car
and in all legal matters pertaining to its
ownership, etc.
The number is punched on the engine
compartment bulkhead. The VIN is also on a plate attached to the
top of the dashboard. The number on the
plate can easily be seen through the
windshield from outside.
VEHICLE CERTIFICATION
LABELThe vehicle certification label attached
on the driver’s side center pillar contains
the vehicle identification number (VIN).

OYF089005

OYF089004N

OBH088005N
Frame number (if equipped)
VIN label

YF HMA 8.QXP 12/24/2009 5:23 PM Page 6

87
Specifications, Consumer information, Reporting safety defeccts

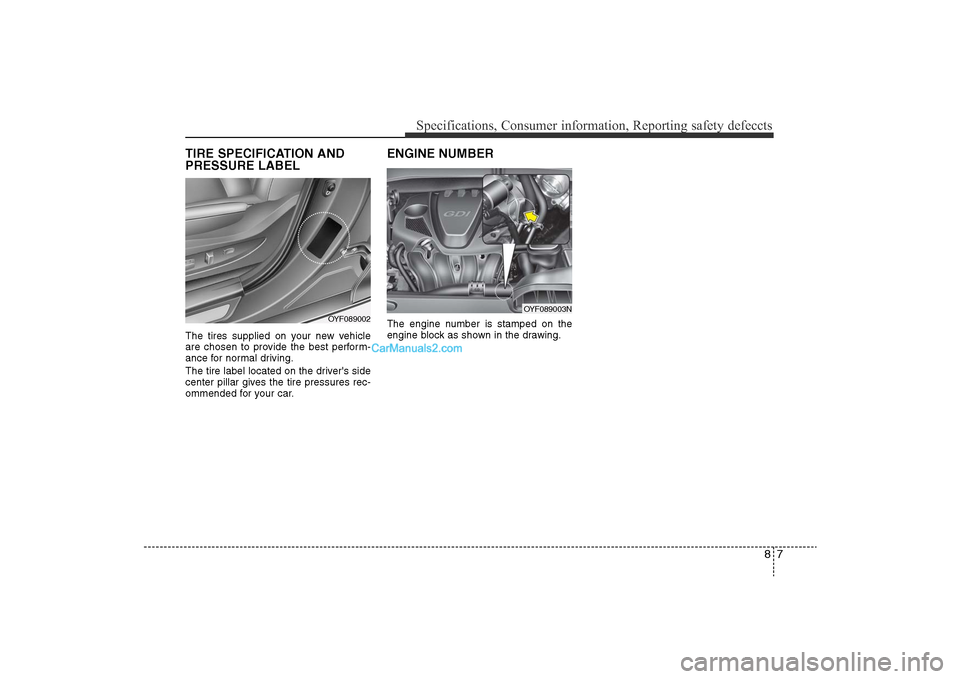

TIRE SPECIFICATION AND
PRESSURE LABELThe tires supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tire label located on the driver's side
center pillar gives the tire pressures rec-
ommended for your car.
ENGINE NUMBERThe engine number is stamped on the
engine block as shown in the drawing.

OYF089002

OYF089003N

YF HMA 8.QXP 12/24/2009 5:23 PM Page 7

Specifications, Consumer information, Reporting safety defeccts8

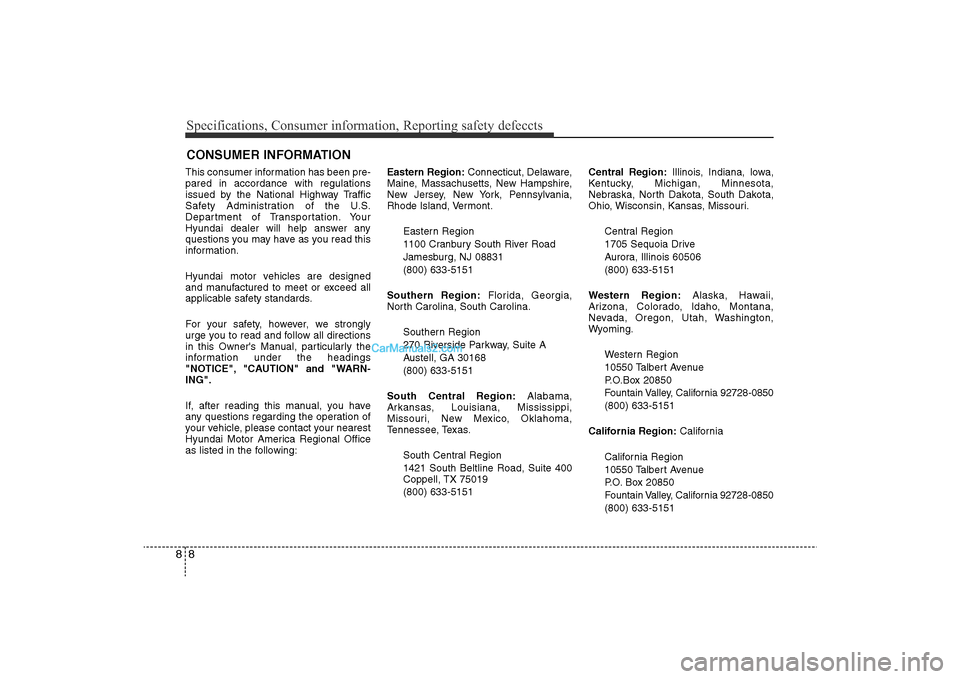

8This consumer information has been pre-
pared in accordance with regulations
issued by the National Highway Traffic
Safety Administration of the U.S.
Department of Transportation. Your
Hyundai dealer will help answer any
questions you may have as you read this
information.
Hyundai motor vehicles are designed
and manufactured to meet or exceed all
applicable safety standards.
For your safety, however, we strongly
urge you to read and follow all directions
in this Owner's Manual, particularly the
information under the headings
"NOTICE", "CAUTION" and "WARN-
ING".
If, after reading this manual, you have
any questions regarding the operation of
your vehicle, please contact your nearest
Hyundai Motor America Regional Office
as listed in the following: Eastern Region:
Connecticut, Delaware,
Maine, Massachusetts, New Hampshire,
New Jersey, New York, Pennsylvania,
Rhode Island, Vermont.
Eastern Region
1100 Cranbury South River Road
Jamesburg, NJ 08831
(800) 633-5151
Southern Region: Florida, Georgia,
North Carolina, South Carolina.
Southern Region
270 Riverside Parkway, Suite A
Austell, GA 30168
(800) 633-5151
South Central Region: Alabama,
Arkansas, Louisiana, Mississippi,
Missouri, New Mexico, Oklahoma,
Tennessee, Texas.
South Central Region
1421 South Beltline Road, Suite 400
Coppell, TX 75019
(800) 633-5151 Central Region:
Illinois, Indiana, lowa,
Kentucky, Michigan, Minnesota,
Nebraska, North Dakota, South Dakota,
Ohio, Wisconsin, Kansas, Missouri.
Central Region
1705 Sequoia Drive
Aurora, Illinois 60506
(800) 633-5151
Western Region: Alaska, Hawaii,
Arizona, Colorado, ldaho, Montana,
Nevada, Oregon, Utah, Washington,
Wyoming.
Western Region
10550 Talbert Avenue
P.O.Box 20850
Fountain Valley, California 92728-0850(800) 633-5151
California Region: California
California Region
10550 Talbert Avenue
P.O. Box 20850
Fountain Valley, California 92728-0850
(800) 633-5151
CONSUMER INFORMATION

YF HMA 8.QXP 12/24/2009 5:23 PM Page 8

89
Specifications, Consumer information, Reporting safety defeccts

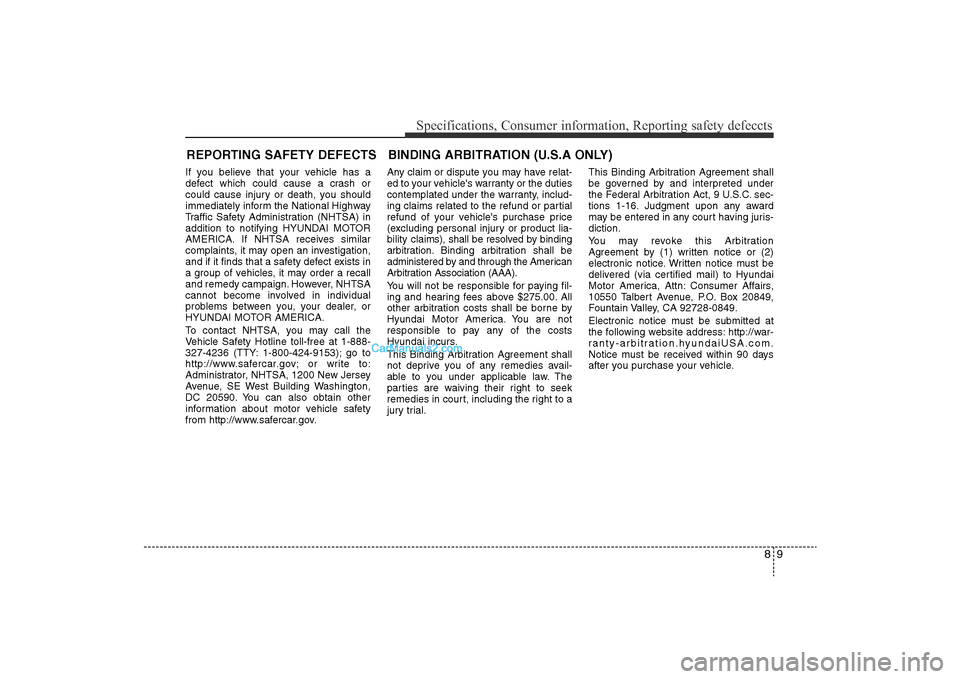

If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform the National Highway
Traffic Safety Administration (NHTSA) in
addition to notifying HYUNDAI MOTOR
AMERICA. If NHTSA receives similar
complaints, it may open an investigation,
and if it finds that a safety defect exists in
a group of vehicles, it may order a recall
and remedy campaign. However, NHTSA
cannot become involved in individual
problems between you, your dealer, or
HYUNDAI MOTOR AMERICA.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov; or write to:
Administrator, NHTSA, 1200 New Jersey
Avenue, SE West Building Washington,
DC 20590. You can also obtain other
information about motor vehicle safety
from http://www.safercar.gov.Any claim or dispute you may have relat-
ed to your vehicle's warranty or the duties
contemplated under the warranty, includ-
ing claims related to the refund or partial
refund of your vehicle's purchase price
(excluding personal injury or product lia-
bility cla
ims), shall be resolved by binding
arbitration. Binding arbitration shall be
administered by and through the American
Arbitration Association (AAA).
You will not be responsible for paying fil-
ing and hearing fees above $275.00. All
other arbitration costs shall be borne by
Hyundai Motor America. You are not
responsible to pay any of the costs
Hyundai incurs.
This Binding Arbitration Agreement shall
not deprive you of any remedies avail-
able to you under applicable law. The
parties are waiving their right to seek
remedies in court, including the right to a
jury trial. This Binding Arbitration Agreement shall
be governed by and interpreted under
the Federal Arbitration Act, 9 U.S.C. sec-
tions 1-16. Judgment upon any award
may be entered in any court having juris-
diction.
You may revoke this Arbitration
Agreement by (1) written notice or (2)
electronic notice. Written notice must be
delivered (via certified mail) to Hyundai
Motor America, Attn: Consumer Affairs,
10550 Talbert Avenue, P.O. Box 20849,
Fountain Valley, CA 92728-0849.
Electronic notice must be submitted at
the following website address: http://war-
ranty-arbitration.hyundaiUSA.com.
Notice must be received within 90 days
after you purchase your vehicle.REPORTING SAFETY DEFECTS
BINDING ARBITRATION (U.S.A ONLY)

YF HMA 8.QXP 12/24/2009 5:23 PM Page 9
