Hyundai Terracan 2006 Owner's Manual

7
EMISSION CONTROL SYSTEMS
3
DH010B1-E

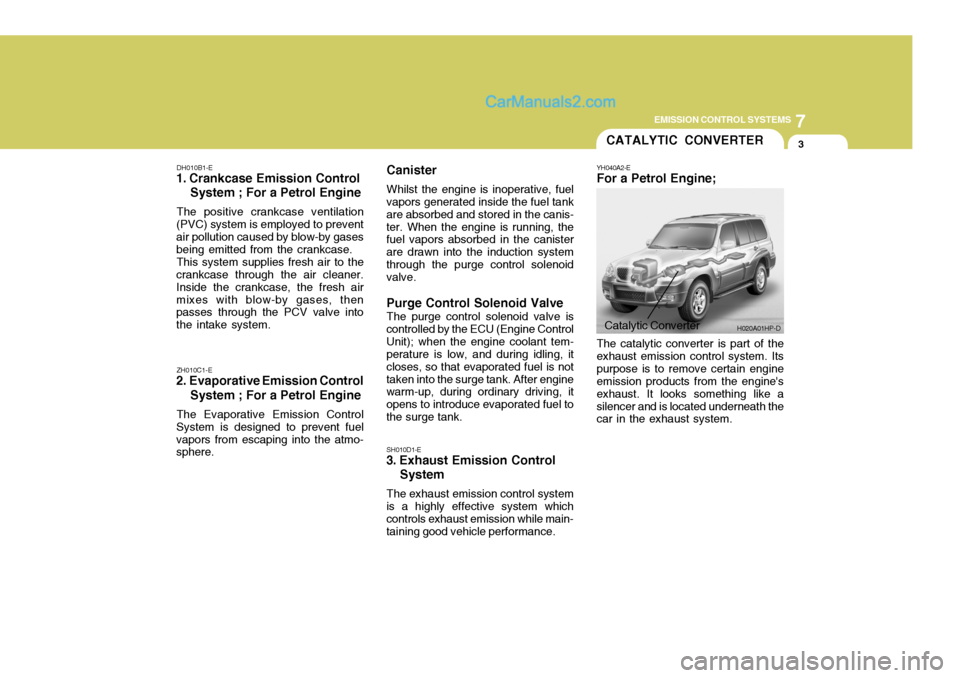

1. Crankcase Emission Control System ; For a Petrol Engine
The positive crankcase ventilation
(PVC) system is employed to prevent air pollution caused by blow-by gases being emitted from the crankcase.
This system supplies fresh air to the
crankcase through the air cleaner.Inside the crankcase, the fresh airmixes with blow-by gases, then passes through the PCV valve into the intake system.
ZH010C1-E
2. Evaporative Emission Control System ; For a Petrol Engine
The Evaporative Emission Control
System is designed to prevent fuel vapors from escaping into the atmo- sphere. Canister
Whilst the engine is inoperative, fuel
vapors generated inside the fuel tank are absorbed and stored in the canis-ter. When the engine is running, the fuel vapors absorbed in the canister are drawn into the induction systemthrough the purge control solenoid valve. Purge Control Solenoid Valve
The purge control solenoid valve is
controlled by the ECU (Engine Control Unit); when the engine coolant tem- perature is low, and during idling, it closes, so that evaporated fuel is nottaken into the surge tank. After engine warm-up, during ordinary driving, it opens to introduce evaporated fuel tothe surge tank.
SH010D1-E
3. Exhaust Emission Control System
The exhaust emission control system
is a highly effective system which controls exhaust emission while main- taining good vehicle performance.
Catalytic Converter H020A01HP-D
CATALYTIC CONVERTER
YH040A2-E For a Petrol Engine; The catalytic converter is part of the exhaust emission control system. Itspurpose is to remove certain engine emission products from the engine's exhaust. It looks something like asilencer and is located underneath the car in the exhaust system.

7EMISSION CONTROL SYSTEMS
4

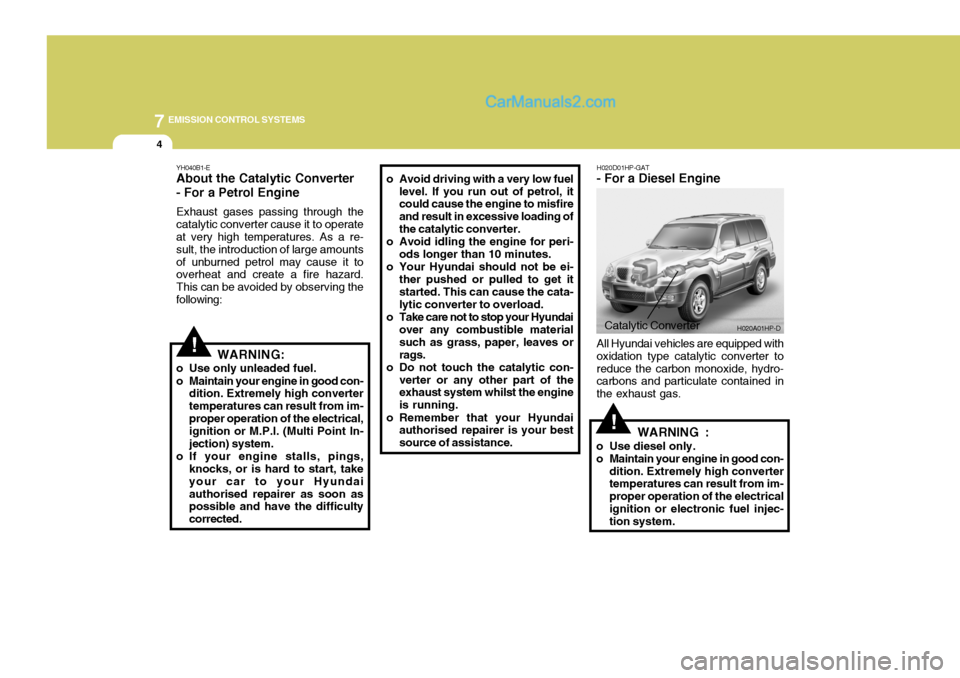

YH040B1-E About the Catalytic Converter
- For a Petrol Engine Exhaust gases passing through the catalytic converter cause it to operate at very high temperatures. As a re- sult, the introduction of large amountsof unburned petrol may cause it to overheat and create a fire hazard. This can be avoided by observing thefollowing: H020D01HP-GAT
- For a Diesel Engine
!WARNING:
o Use only unleaded fuel.
o Maintain your engine in good con- dition. Extremely high converter temperatures can result from im-proper operation of the electrical, ignition or M.P.I. (Multi Point In- jection) system.
o If your engine stalls, pings, knocks, or is hard to start, takeyour car to your Hyundaiauthorised repairer as soon as possible and have the difficulty corrected. o Avoid driving with a very low fuel
level. If you run out of petrol, it could cause the engine to misfire and result in excessive loading ofthe catalytic converter.
o Avoid idling the engine for peri- ods longer than 10 minutes.
o Your Hyundai should not be ei- ther pushed or pulled to get itstarted. This can cause the cata- lytic converter to overload.
o Take care not to stop your Hyundai over any combustible material such as grass, paper, leaves orrags.
o Do not touch the catalytic con- verter or any other part of the exhaust system whilst the engine is running.
o Remember that your Hyundai authorised repairer is your bestsource of assistance.
Catalytic Converter H020A01HP-D
!
All Hyundai vehicles are equipped with oxidation type catalytic converter toreduce the carbon monoxide, hydro- carbons and particulate contained in the exhaust gas.
WARNING :
o Use diesel only.
o Maintain your engine in good con- dition. Extremely high converter temperatures can result from im- proper operation of the electricalignition or electronic fuel injec- tion system.

7
EMISSION CONTROL SYSTEMS
5
o If your engine stalls, pings, or is
hard to start, take your car to your Hyundai authorised repairer as soon as possible and have thedifficulty corrected.
o Avoid driving with a very low fuel level. If you run out of diesel, it could cause the engine to stop and result in damage to the cata-lytic converter.
o Avoid idling the engine for peri- ods longer than 10 minutes.
o Your Hyundai should not be ei- ther pushed or pulled to get itstarted. This can cause the cata- lytic converter to overload.
o Take care not to stop your Hyundai over any combustible material such as grass, paper, leaves orrags.
o Do not touch the catalytic con- verter or any other part of theexhaust system whilst the engine is running.
o Remember that your Hyundai authorised repairer is your best source of assistance.

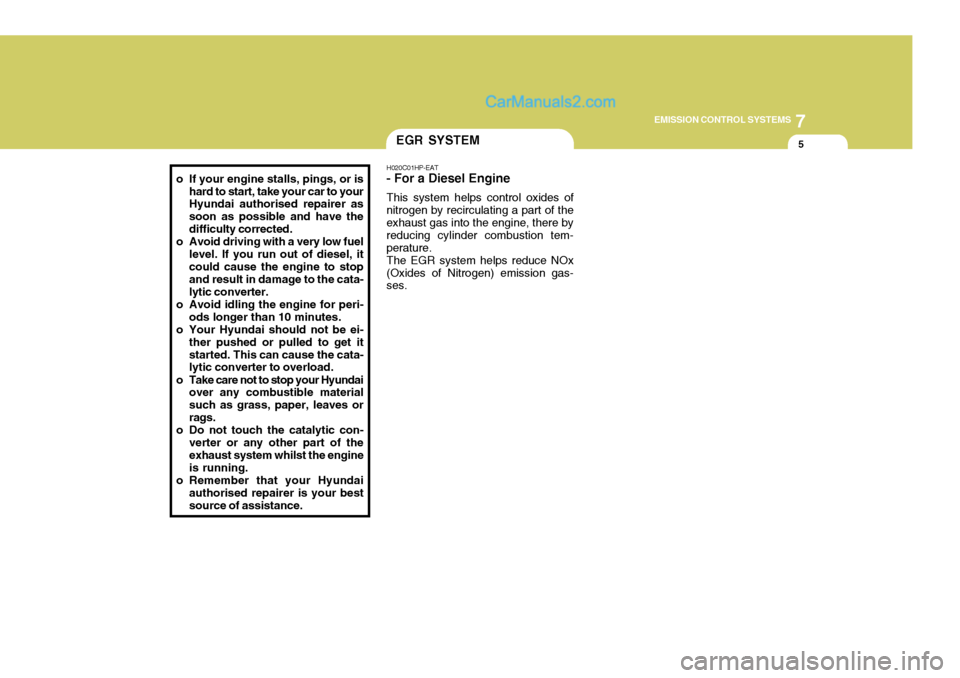

EGR SYSTEM
H020C01HP-EAT
- For a Diesel Engine
This system helps control oxides of
nitrogen by recirculating a part of the exhaust gas into the engine, there by reducing cylinder combustion tem-perature. The EGR system helps reduce NOx
(Oxides of Nitrogen) emission gas- ses.

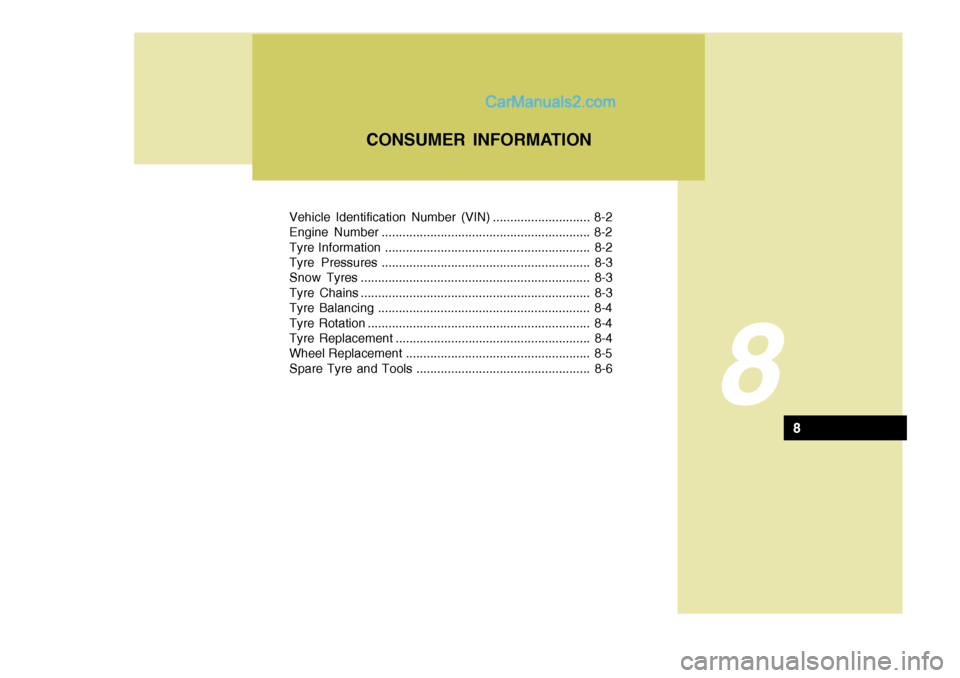

Vehicle Identification Number (VIN) ............................ 8-2
Engine Number ............................................................ 8-2
Tyre Information ........................................................... 8-2
Tyre Pressures ............................................................ 8-3
Snow Tyres .................................................................. 8-3
Tyre Chains .................................................................. 8-3
Tyre Balancing ............................................................. 8-4
Tyre Rotation ................................................................ 8-4
Tyre Replacement ........................................................ 8-4
Wheel Replacement ..................................................... 8-5
Spare Tyre and Tools .................................................. 8-6
8
CONSUMER INFORMATION
8

8CONSUMER INFORMATION
2

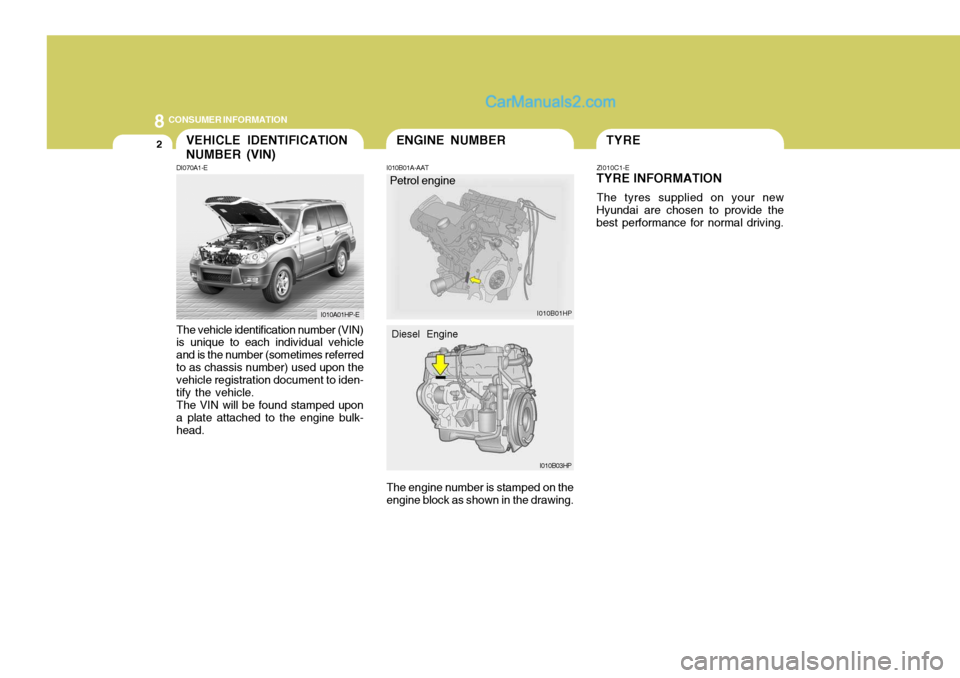

The vehicle identification number (VIN) is unique to each individual vehicle and is the number (sometimes referredto as chassis number) used upon the vehicle registration document to iden- tify the vehicle.The VIN will be found stamped upona plate attached to the engine bulk-head. The engine number is stamped on theengine block as shown in the drawing.
ZI010C1-E TYRE INFORMATION The tyres supplied on your new Hyundai are chosen to provide thebest performance for normal driving.VEHICLE IDENTIFICATION NUMBER (VIN)
DI070A1-E
I010A01HP-E
ENGINE NUMBER
Petrol engine
I010B01HP
I010B03HP
Diesel Engine
I010B01A-AAT
TYRE
ZI010C1-E
TYRE INFORMATION
The tyres supplied on your new
Hyundai are chosen to provide the best performance for normal driving.

8
CONSUMER INFORMATION
3

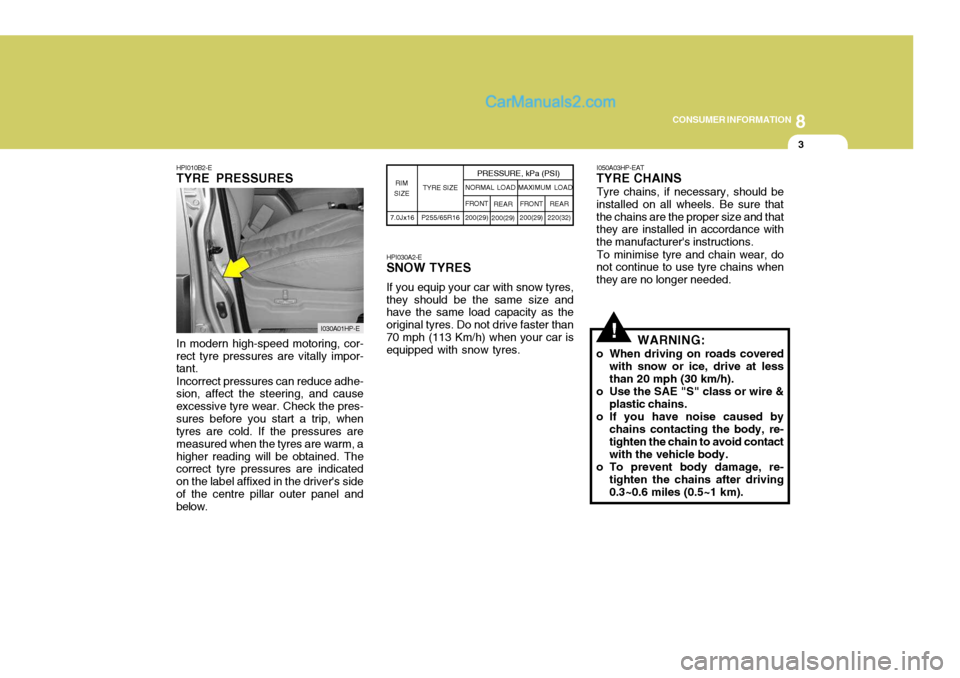

!In modern high-speed motoring, cor-
rect tyre pressures are vitally impor- tant.
Incorrect pressures can reduce adhe-
sion, affect the steering, and cause excessive tyre wear. Check the pres-sures before you start a trip, when tyres are cold. If the pressures are measured when the tyres are warm, ahigher reading will be obtained. The correct tyre pressures are indicated on the label affixed in the driver's sideof the centre pillar outer panel and below. HPI030A2-E SNOW TYRES If you equip your car with snow tyres, they should be the same size and have the same load capacity as the original tyres. Do not drive faster than70 mph (113 Km/h) when your car is equipped with snow tyres.
I050A03HP-EAT
TYRE CHAINS
Tyre chains, if necessary, should be
installed on all wheels. Be sure that the chains are the proper size and that they are installed in accordance with the manufacturer's instructions.
To minimise tyre and chain wear, do
not continue to use tyre chains whenthey are no longer needed.
WARNING:
o When driving on roads covered with snow or ice, drive at lessthan 20 mph (30 km/h).
o Use the SAE "S" class or wire &
plastic chains.
o If you have noise caused by chains contacting the body, re-tighten the chain to avoid contact with the vehicle body.
o To prevent body damage, re- tighten the chains after driving0.3~0.6 miles (0.5~1 km).
7.0Jx16
TYRE SIZE
RIM
SIZE PRESSURE, kPa (PSI)
P255/65R16 REAR
200(29) FRONT
200(29)
NORMAL LOAD MAXIMUM LOAD
REAR
220(32)
FRONT 200(29)
HPI010B2-E
TYRE PRESSURES
I030A01HP-E

8CONSUMER INFORMATION
4

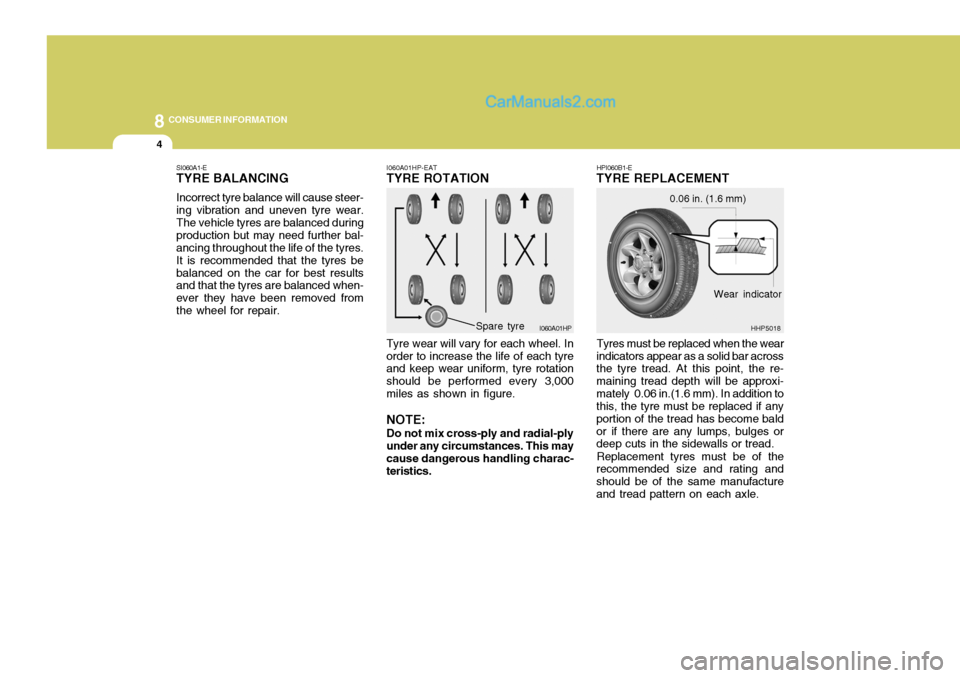

I060A01HP-EAT TYRE ROTATION Tyre wear will vary for each wheel. In order to increase the life of each tyre and keep wear uniform, tyre rotation should be performed every 3,000miles as shown in figure. NOTE: Do not mix cross-ply and radial-ply under any circumstances. This may cause dangerous handling charac-teristics.HPI060B1-E
TYRE REPLACEMENT
Tyres must be replaced when the wear
indicators appear as a solid bar across the tyre tread. At this point, the re- maining tread depth will be approxi-mately 0.06 in.(1.6 mm). In addition to this, the tyre must be replaced if any portion of the tread has become baldor if there are any lumps, bulges or deep cuts in the sidewalls or tread.
Replacement tyres must be of the
recommended size and rating and should be of the same manufactureand tread pattern on each axle.
SI060A1-E TYRE BALANCING Incorrect tyre balance will cause steer- ing vibration and uneven tyre wear. The vehicle tyres are balanced during production but may need further bal-ancing throughout the life of the tyres.It is recommended that the tyres bebalanced on the car for best results and that the tyres are balanced when- ever they have been removed fromthe wheel for repair.
I060A01HPSpare tyre
0.06 in. (1.6 mm)
Wear indicatorHHP5018

8
CONSUMER INFORMATION
5

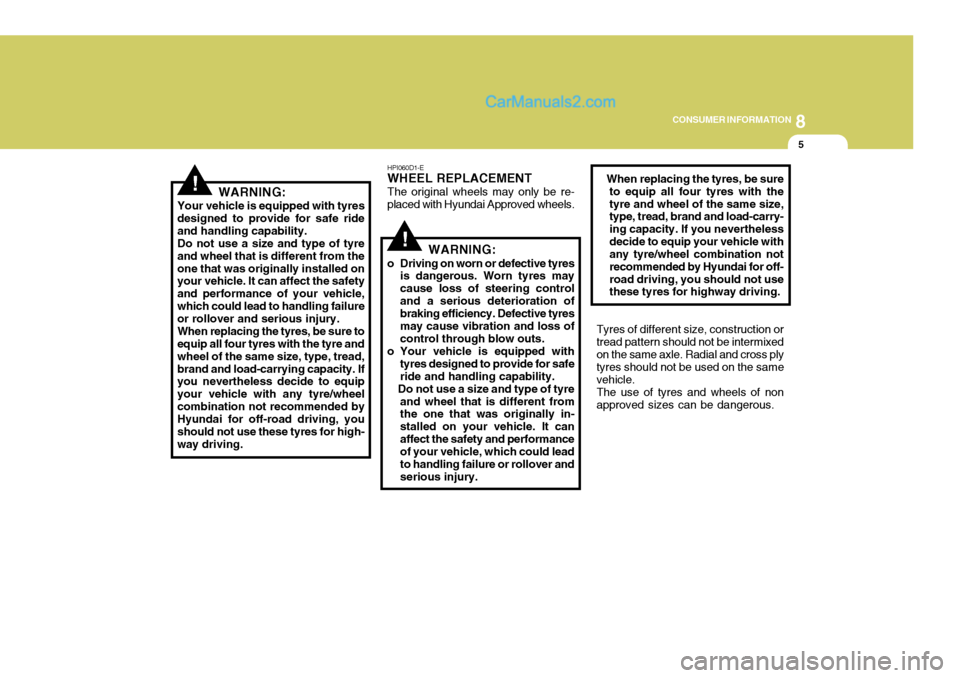

!WARNING:
Your vehicle is equipped with tyres designed to provide for safe ride and handling capability.Do not use a size and type of tyreand wheel that is different from theone that was originally installed on your vehicle. It can affect the safety and performance of your vehicle,which could lead to handling failure or rollover and serious injury. When replacing the tyres, be sure to equip all four tyres with the tyre and wheel of the same size, type, tread,brand and load-carrying capacity. If you nevertheless decide to equip your vehicle with any tyre/wheelcombination not recommended by Hyundai for off-road driving, you should not use these tyres for high-way driving.
!
HPI060D1-E WHEEL REPLACEMENT The original wheels may only be re- placed with Hyundai Approved wheels.
WARNING:
o Driving on worn or defective tyres is dangerous. Worn tyres maycause loss of steering controland a serious deterioration of braking efficiency. Defective tyres may cause vibration and loss ofcontrol through blow outs.
o Your vehicle is equipped with
tyres designed to provide for saferide and handling capability.
Do not use a size and type of tyre and wheel that is different from the one that was originally in- stalled on your vehicle. It canaffect the safety and performance of your vehicle, which could lead to handling failure or rollover andserious injury.
When replacing the tyres, be sure
to equip all four tyres with the tyre and wheel of the same size, type, tread, brand and load-carry- ing capacity. If you neverthelessdecide to equip your vehicle with any tyre/wheel combination not recommended by Hyundai for off-road driving, you should not use these tyres for highway driving.
Tyres of different size, construction or tread pattern should not be intermixed on the same axle. Radial and cross ply tyres should not be used on the samevehicle.The use of tyres and wheels of nonapproved sizes can be dangerous.

8CONSUMER INFORMATION
6

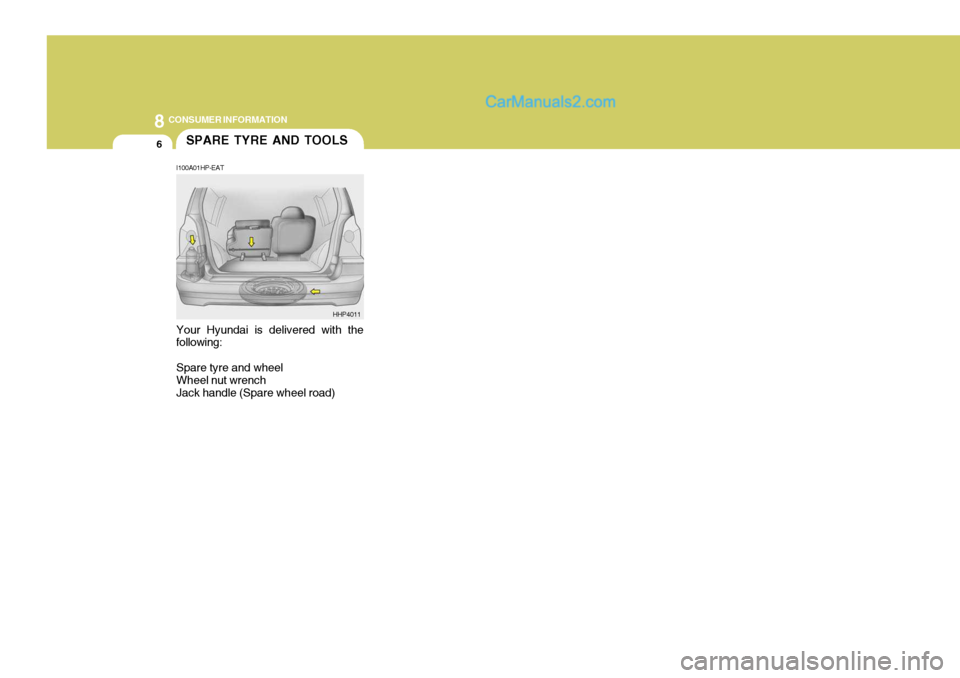

Your Hyundai is delivered with the following: Spare tyre and wheel Wheel nut wrench Jack handle (Spare wheel road)SPARE TYRE AND TOOLS
I100A01HP-EAT
HHP4011

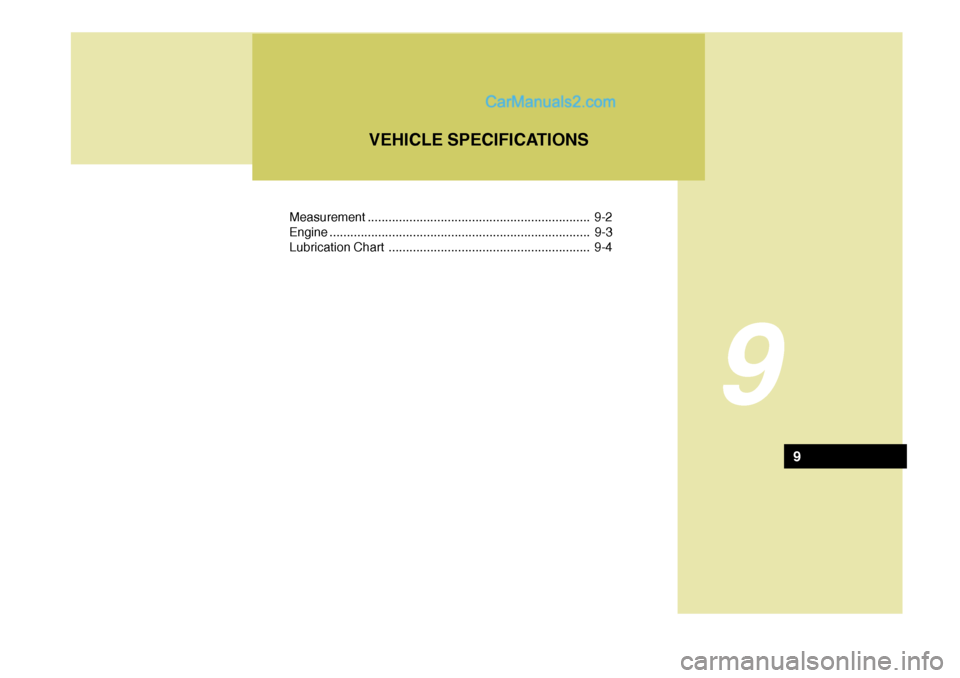

Measurement................................................................ 9-2
Engine ........................................................................... 9-3
Lubrication Chart .......................................................... 9-4
9
VEHICLE SPECIFICATIONS
9
