HYUNDAI TUCSON 2009 Owners Manual

6
DO-IT-YOURSELF MAINTENANCE
27
SPECIFICATION:
"H";
Horizontal center line of headlights from
ground: 35.6 in.(904 mm)
"W";
Distance between each headlight cen-
ter:
53.4 in.(1,356 mm)
"L";
Distance between the headlights and
the wall that the lights are tested against:
118 in. (3,000 mm).

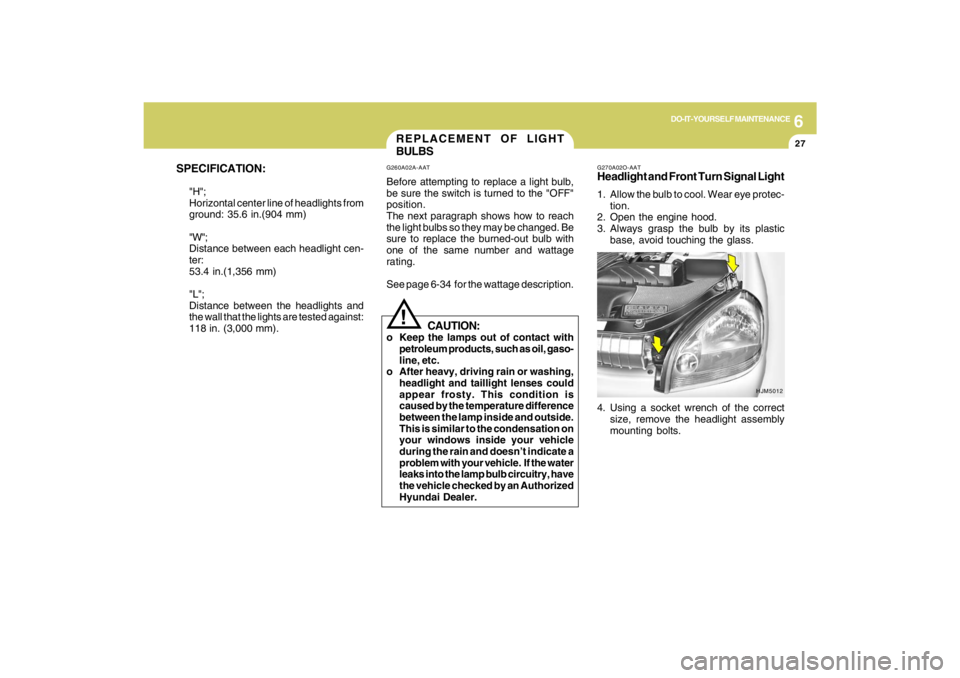

REPLACEMENT OF LIGHT
BULBS!
G260A02A-AATBefore attempting to replace a light bulb,
be sure the switch is turned to the "OFF"
position.
The next paragraph shows how to reach
the light bulbs so they may be changed. Be
sure to replace the burned-out bulb with
one of the same number and wattage
rating.
See page 6-34 for the wattage description.
CAUTION:
o Keep the lamps out of contact with
petroleum products, such as oil, gaso-
line, etc.
o After heavy, driving rain or washing,
headlight and taillight lenses could
appear frosty. This condition is
caused by the temperature difference
between the lamp inside and outside.
This is similar to the condensation on
your windows inside your vehicle
during the rain and doesn’t indicate a
problem with your vehicle. If the water
leaks into the lamp bulb circuitry, have
the vehicle checked by an Authorized
Hyundai Dealer.
G270A02O-AATHeadlight and Front Turn Signal Light1. Allow the bulb to cool. Wear eye protec-
tion.
2. Open the engine hood.
3. Always grasp the bulb by its plastic
base, avoid touching the glass.
4. Using a socket wrench of the correct
size, remove the headlight assembly
mounting bolts.
HJM5012

6
DO-IT-YOURSELF MAINTENANCE
28
HJM5016
HJM5017

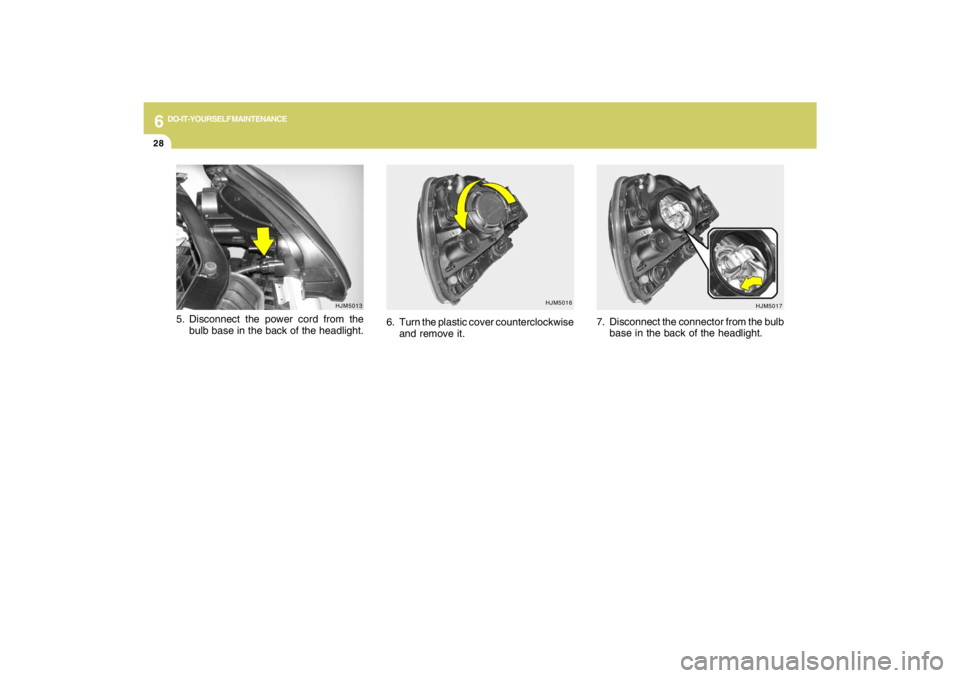

6. Turn the plastic cover counterclockwise
and remove it.7. Disconnect the connector from the bulb
base in the back of the headlight.
HJM5013
5. Disconnect the power cord from the
bulb base in the back of the headlight.

6
DO-IT-YOURSELF MAINTENANCE
29

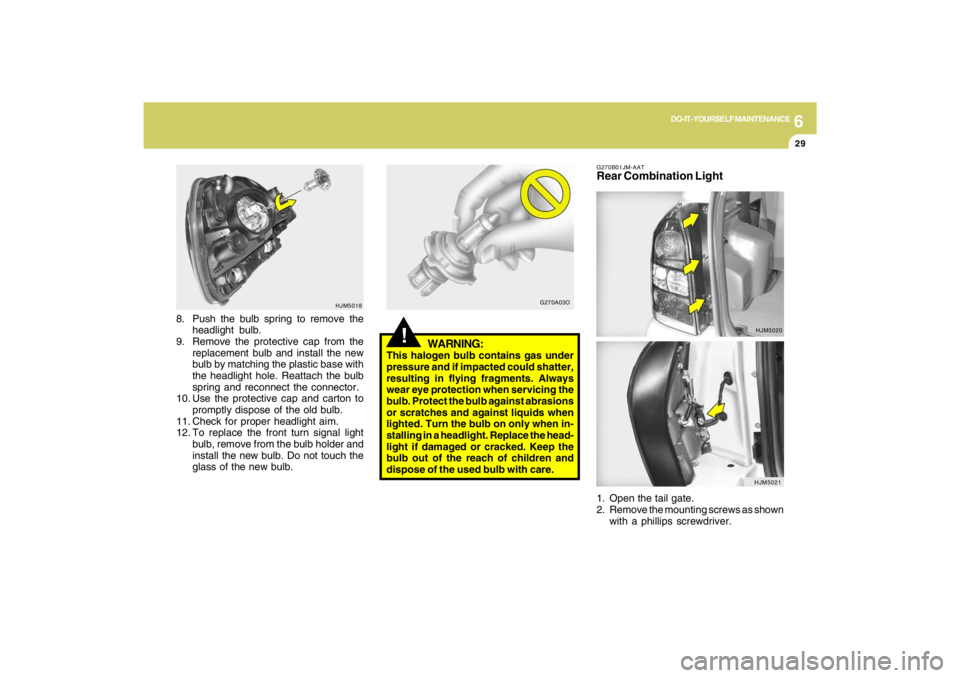

8. Push the bulb spring to remove the
headlight bulb.
9. Remove the protective cap from the
replacement bulb and install the new
bulb by matching the plastic base with
the headlight hole. Reattach the bulb
spring and reconnect the connector.
10. Use the protective cap and carton to
promptly dispose of the old bulb.
11. Check for proper headlight aim.
12. To replace the front turn signal light
bulb, remove from the bulb holder and
install the new bulb. Do not touch the
glass of the new bulb.
HJM5018G270B01JM-AAT
Rear Combination Light
!
WARNING:
This halogen bulb contains gas under
pressure and if impacted could shatter,
resulting in flying fragments. Always
wear eye protection when servicing the
bulb. Protect the bulb against abrasions
or scratches and against liquids when
lighted. Turn the bulb on only when in-
stalling in a headlight. Replace the head-
light if damaged or cracked. Keep the
bulb out of the reach of children and
dispose of the used bulb with care.
G270A03O
HJM5020
HJM5021
1. Open the tail gate.
2. Remove the mounting screws as shown
with a phillips screwdriver.

6
DO-IT-YOURSELF MAINTENANCE
30

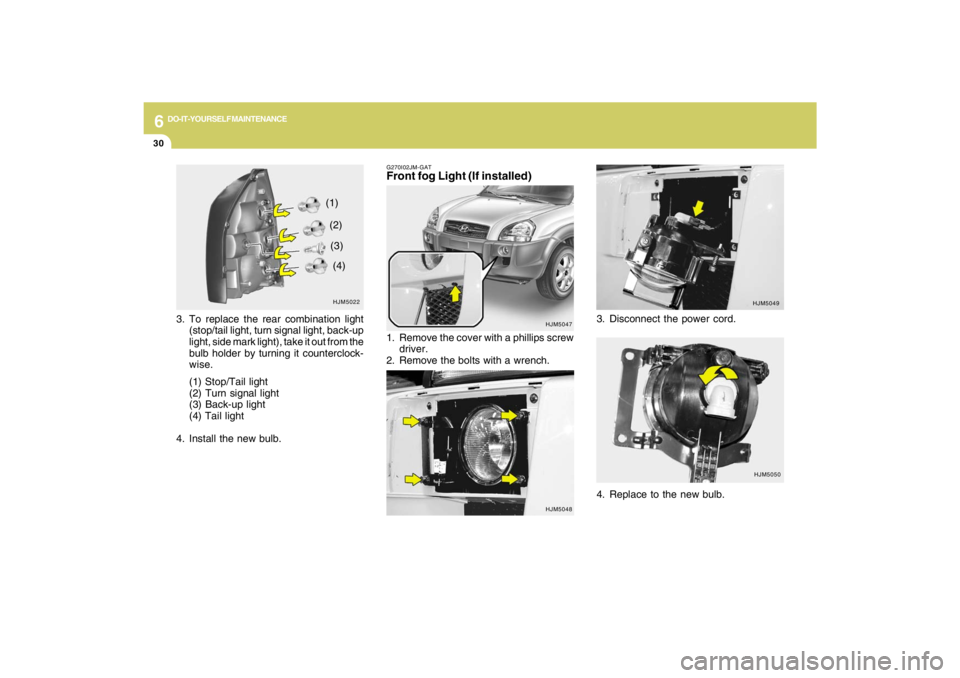

G270I02JM-GATFront fog Light (If installed)
HJM5047
1. Remove the cover with a phillips screw
driver.
2. Remove the bolts with a wrench.3. Disconnect the power cord.
HJM5049
HJM5050
4. Replace to the new bulb.
HJM5048
HJM5022(1)
(2)
(3)
(4)
3. To replace the rear combination light
(stop/tail light, turn signal light, back-up
light, side mark light), take it out from the
bulb holder by turning it counterclock-
wise.
(1) Stop/Tail light
(2) Turn signal light
(3) Back-up light
(4) Tail light
4. Install the new bulb.

6
DO-IT-YOURSELF MAINTENANCE
31

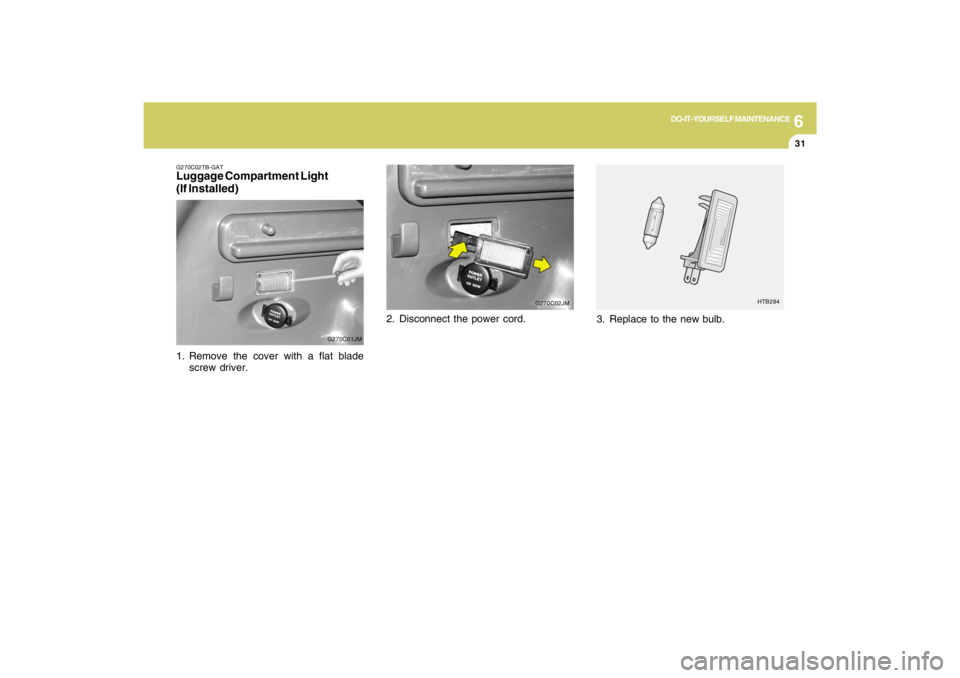

G270C02TB-GATLuggage Compartment Light
(If Installed)
G270C01JM
1. Remove the cover with a flat blade
screw driver.
3. Replace to the new bulb.
HTB284
2. Disconnect the power cord.
G270C02JM

6
DO-IT-YOURSELF MAINTENANCE
32

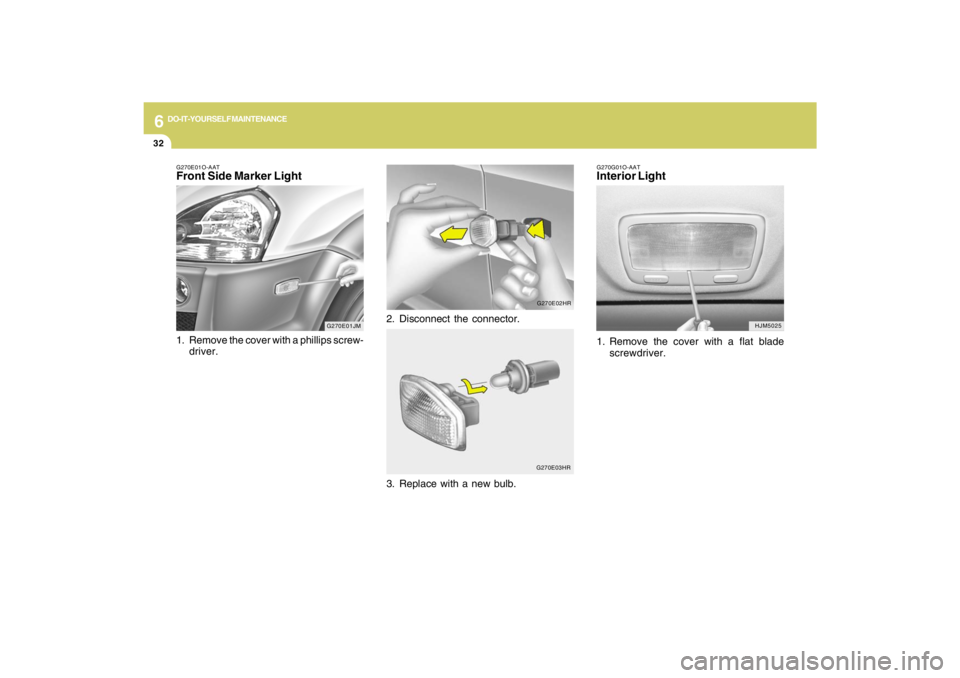

G270G01O-AATInterior Light1. Remove the cover with a flat blade
screwdriver.
HJM5025
G270E01JM G270E01O-AAT
Front Side Marker Light1. Remove the cover with a phillips screw-
driver.2. Disconnect the connector.
G270E02HRG270E03HR
3. Replace with a new bulb.

6
DO-IT-YOURSELF MAINTENANCE
33

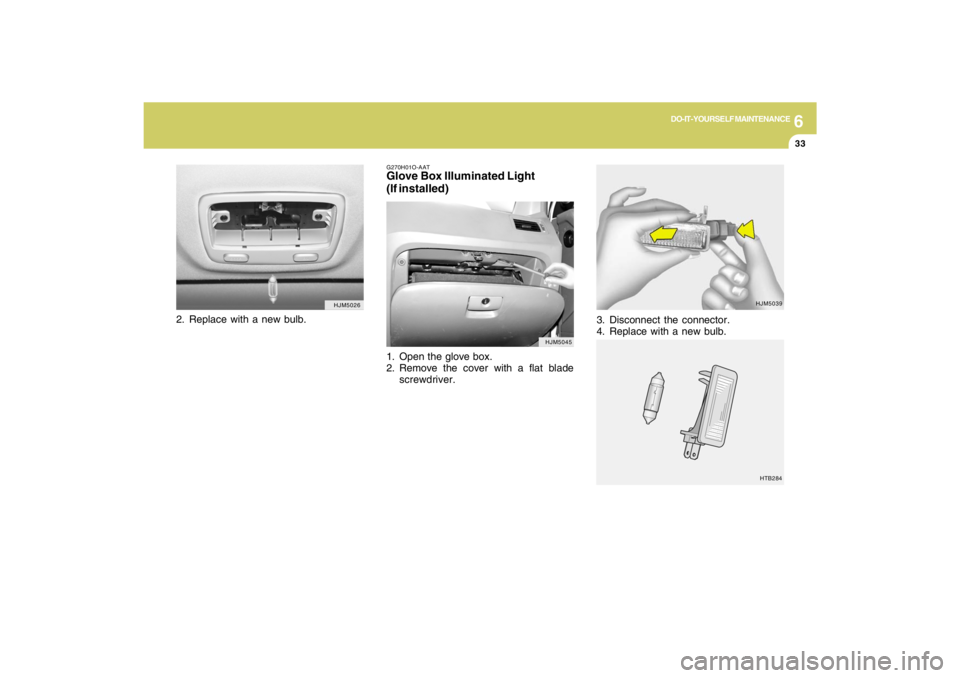

G270H01O-AATGlove Box Illuminated Light
(If installed)1. Open the glove box.
2. Remove the cover with a flat blade
screwdriver.
HJM5026
HJM5045
2. Replace with a new bulb.
3. Disconnect the connector.
4. Replace with a new bulb.
HJM5039
HTB284

6
DO-IT-YOURSELF MAINTENANCE
34

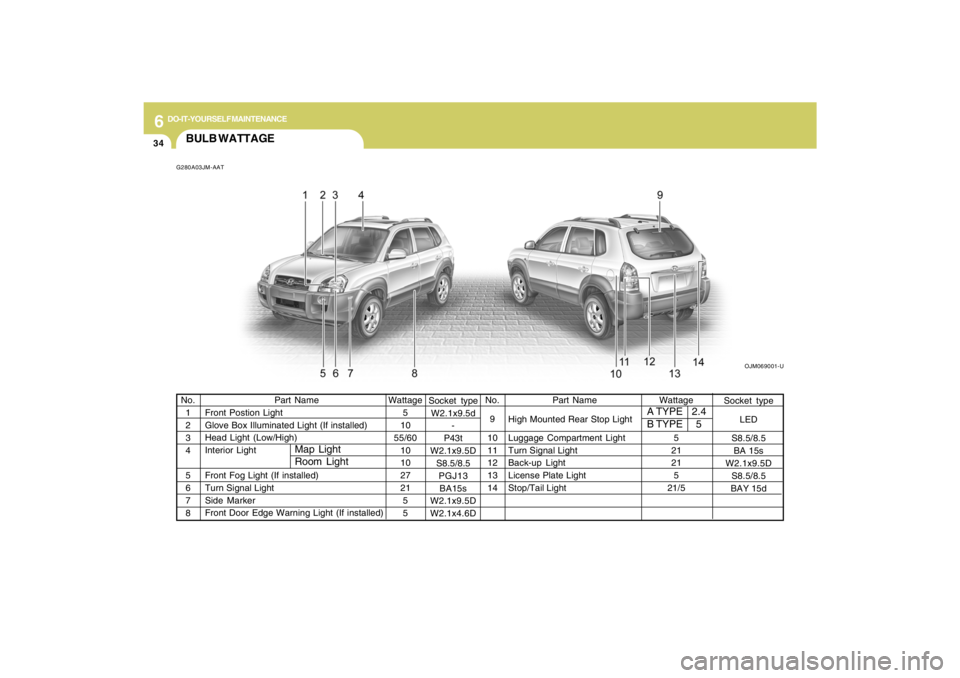

BULB WATTAGEG280A03JM-AAT
OJM069001-U
Part Name
Front Postion Light
Glove Box Illuminated Light (If installed)
Head Light (Low/High)
Interior Light
Front Fog Light (If installed)
Turn Signal Light
Side Marker
Front Door Edge Warning Light (If installed) No.
1
2
3
4
5
6
7
8Wattage
5
10
55/60
10
10
27
21
5
5Wattage
5
21
21
5
21/5 No.
9
10
11
12
13
14
Part Name
High Mounted Rear Stop Light
Luggage Compartment Light
Turn Signal Light
Back-up Light
License Plate Light
Stop/Tail Light
Map Light
Room Light
A TYPE
B TYPE2.4
5
Socket type
LED
S8.5/8.5
BA 15s
W2.1x9.5D
S8.5/8.5
BAY 15d Socket type
W2.1x9.5d
-
P43t
W2.1x9.5D
S8.5/8.5
PGJ13
BA15s
W2.1x9.5D
W2.1x4.6D

6
DO-IT-YOURSELF MAINTENANCE
35
FUSE PANEL DESCRIPTIONG200C01JM-GATEngine Compartment
G200C01JM
NOTE:Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you
inspect the fuse box on your vehicle, refer to the fuse box label.
FUSE
RATING
30A
30A
50A
50A
30A
40A
30A
30A
15A
10A
15A
15A
15A
15A
15A
15APROTECTED COMPONENTS
Start relay, Ignition switch
Engine control, Fuel pump , A/C, Generator, ATM
Ignition switch, Power connector
Cooling fan
ABS, ESC
ABS, ESC
Blower
Ignition switch, Power connector
Injector
Cooling fan, Stop lamp switch, Oxygen sensor, ECM/PCM
DRL
Front fog lamp
Horn, Siren
A/C
Head lamp (HIGH)
Head lamp (LOW)
IGN
ECU
BATT #1
C/FAN
ABS #1
ABS #2
BLOWER
BATT #2
INJ
SNSR
DRL
F/FOG
HORN
A/CON
H/LP (HI)
H/LP (LOW) FUSIBLE
LINK
FUSE
DESCRIPTION

6
DO-IT-YOURSELF MAINTENANCE
36
G200E01JM-AATInner Panel
G200E02JM
