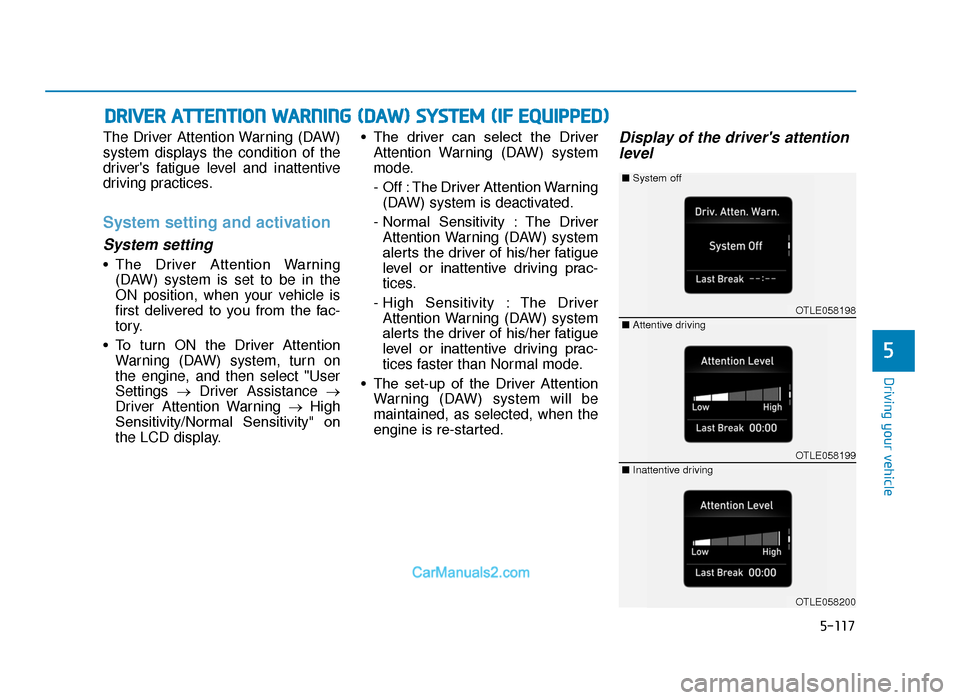

Hyundai Tucson 2019 Owner's Manual - RHD (UK, Australia)

5-117
Driving your vehicle
5
The Driver Attention Warning (DAW)
system displays the condition of the
driver's fatigue level and inattentive
driving practices.
System setting and activation
System setting
• The Driver Attention Warning(DAW) system is set to be in the
ON position, when your vehicle is
first delivered to you from the fac-
tory.
• To turn ON the Driver Attention Warning (DAW) system, turn on
the engine, and then select "User
Settings →Driver Assistance →
Driver Attention Warning →High
Sensitivity/Normal Sensitivity" on
the LCD display. • The driver can select the Driver
Attention Warning (DAW) system
mode.
- Off : The Driver Attention Warning(DAW) system is deactivated.
- Normal Sensitivity : The Driver Attention Warning (DAW) system
alerts the driver of his/her fatigue
level or inattentive driving prac-
tices.
- High Sensitivity : The Driver Attention Warning (DAW) system
alerts the driver of his/her fatigue
level or inattentive driving prac-
tices faster than Normal mode.
• The set-up of the Driver Attention Warning (DAW) system will be
maintained, as selected, when the
engine is re-started.
Display of the driver's attentionlevel
DRIVER ATTENTION WARNING (DAW) SYSTEM (IF EQUIPPED)
OTLE058198
OTLE058199
OTLE058200
■ Attentive driving
■
System off
■ Inattentive driving
TLe UK 5.qxp 5/10/2018 12:27 PM Page 117

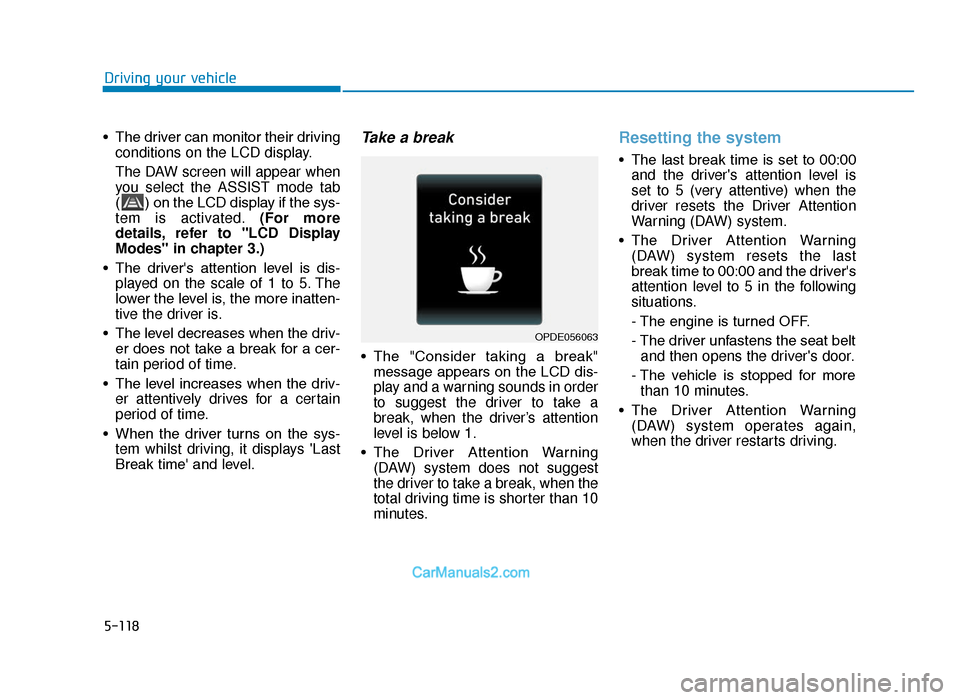

5-118
Driving your vehicle
• The driver can monitor their driving conditions on the LCD display.
The DAW screen will appear when
you select the ASSIST mode tab
( ) on the LCD display if the sys-
tem is activated. (For more
details, refer to "LCD Display
Modes" in chapter 3.)
• The driver's attention level is dis- played on the scale of 1 to 5. The
lower the level is, the more inatten-
tive the driver is.
• The level decreases when the driv- er does not take a break for a cer-
tain period of time.
• The level increases when the driv- er attentively drives for a certain
period of time.
• When the driver turns on the sys- tem whilst driving, it displays 'Last
Break time' and level.
Take a break
• The "Consider taking a break"message appears on the LCD dis-
play and a warning sounds in order
to suggest the driver to take a
break, when the driver’s attention
level is below 1.
• The Driver Attention Warning (DAW) system does not suggest
the driver to take a break, when the
total driving time is shorter than 10
minutes.
Resetting the system
• The last break time is set to 00:00and the driver's attention level is
set to 5 (very attentive) when the
driver resets the Driver Attention
Warning (DAW) system.
• The Driver Attention Warning (DAW) system resets the last
break time to 00:00 and the driver's
attention level to 5 in the following
situations.
- The engine is turned OFF.
- The driver unfastens the seat beltand then opens the driver's door.
- The vehicle is stopped for more than 10 minutes.
• The Driver Attention Warning (DAW) system operates again,
when the driver restarts driving.
OPDE056063
TLe UK 5.qxp 5/10/2018 12:27 PM Page 118

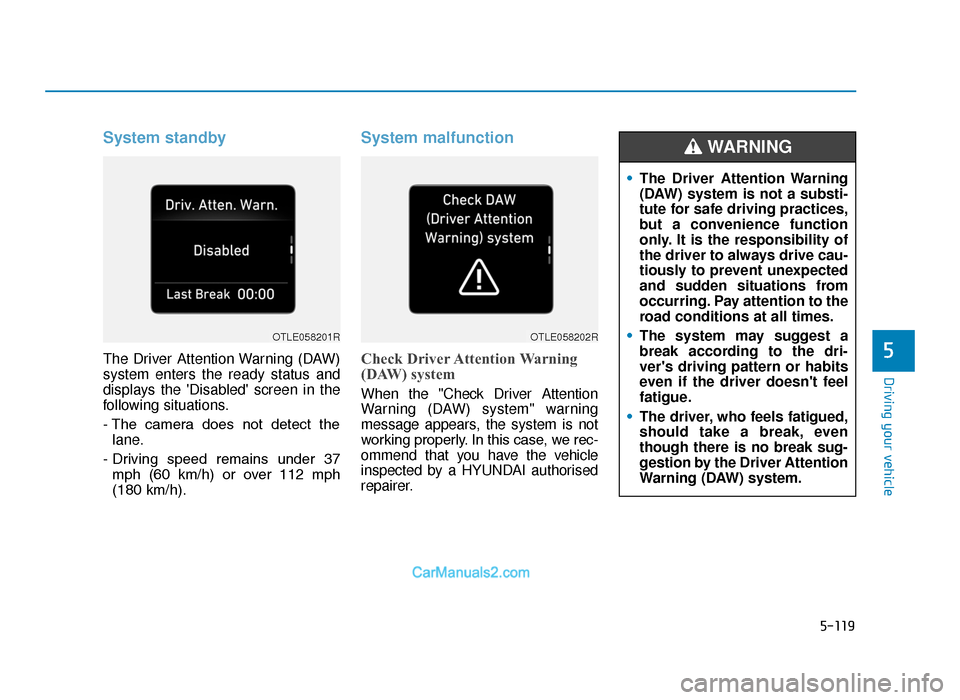

5-119
Driving your vehicle
5
System standby
The Driver Attention Warning (DAW)
system enters the ready status and
displays the 'Disabled' screen in the
following situations.
- The camera does not detect thelane.
- Driving speed remains under 37 mph (60 km/h) or over 112 mph
(180 km/h).
System malfunction
Check Driver Attention Warning
(DAW) system
When the "Check Driver Attention
Warning (DAW) system" warning
message appears, the system is not
working properly. In this case, we rec-
ommend that you have the vehicle
inspected by a HYUNDAI authorised
repairer.
OTLE058201ROTLE058202R
• The Driver Attention Warning
(DAW) system is not a substi-
tute for safe driving practices,
but a convenience function
only. It is the responsibility of
the driver to always drive cau-
tiously to prevent unexpected
and sudden situations from
occurring. Pay attention to the
road conditions at all times.
• The system may suggest a
break according to the dri-
ver's driving pattern or habits
even if the driver doesn't feel
fatigue.
• The driver, who feels fatigued,
should take a break, even
though there is no break sug-
gestion by the Driver Attention
Warning (DAW) system.
WARNING
TLe UK 5.qxp 5/10/2018 12:27 PM Page 119

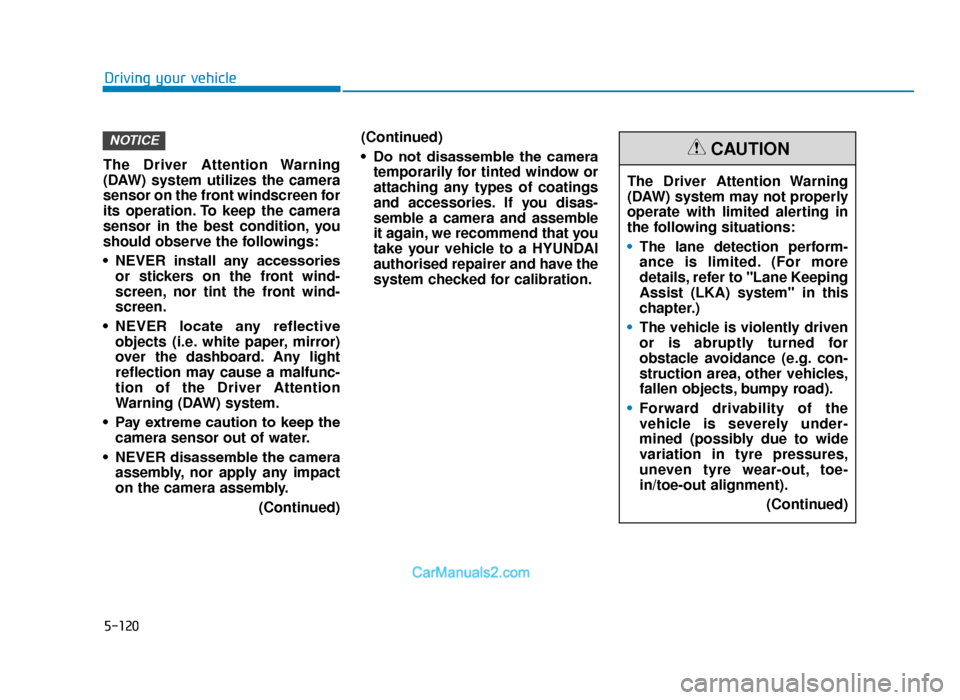

5-120
Driving your vehicle
The Driver Attention Warning
(DAW) system utilizes the camera
sensor on the front windscreen for
its operation. To keep the camera
sensor in the best condition, you
should observe the followings:
• NEVER install any accessories or stickers on the front wind-
screen, nor tint the front wind-
screen.
• NEVER locate any reflective objects (i.e. white paper, mirror)
over the dashboard. Any light
reflection may cause a malfunc-
tion of the Driver Attention
Warning (DAW) system.
• Pay extreme caution to keep the camera sensor out of water.
• NEVER disassemble the camera assembly, nor apply any impact
on the camera assembly.
(Continued)(Continued)
• Do not disassemble the camera
temporarily for tinted window or
attaching any types of coatings
and accessories. If you disas-
semble a camera and assemble
it again, we recommend that you
take your vehicle to a HYUNDAI
authorised repairer and have the
system checked for calibration.
NOTICE
The Driver Attention Warning
(DAW) system may not properly
operate with limited alerting in
the following situations:
•The lane detection perform-
ance is limited. (For more
details, refer to "Lane Keeping
Assist (LKA) system" in this
chapter.)
• The vehicle is violently driven
or is abruptly turned for
obstacle avoidance (e.g. con-
struction area, other vehicles,
fallen objects, bumpy road).
• Forward drivability of the
vehicle is severely under-
mined (possibly due to wide
variation in tyre pressures,
uneven tyre wear-out, toe-
in/toe-out alignment).
(Continued)
CAUTION
TLe UK 5.qxp 5/10/2018 12:27 PM Page 120

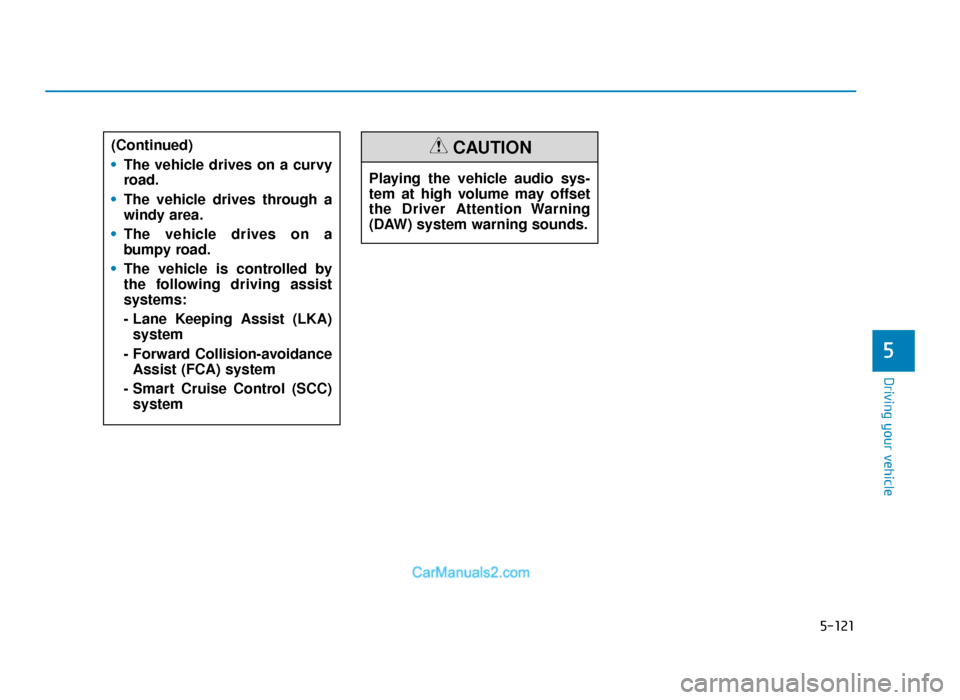

5-121
Driving your vehicle
5
Playing the vehicle audio sys-
tem at high volume may offset
the Driver Attention Warning
(DAW) system warning sounds.
CAUTION(Continued)
•The vehicle drives on a curvy
road.
• The vehicle drives through a
windy area.
• The vehicle drives on a
bumpy road.
• The vehicle is controlled by
the following driving assist
systems:
- Lane Keeping Assist (LKA)
system
- Forward Collision-avoidance Assist (FCA) system
- Smart Cruise Control (SCC) system
TLe UK 5.qxp 5/10/2018 12:27 PM Page 121

5-122
Driving your vehicle
Speed Limit Control Operation
You can set the speed limit when you
do not want to drive over a specific
speed.
If you drive over the preset speed
limit, the warning system operates
(set speed limit will blink and chime
will sound) until the vehicle speed
returns within the speed limit.
Information
Whilst speed limit control is in opera-
tion, the cruise control system cannot
be activated.
Speed limit control switch
: Turns speed limit control sys-tem on or off.
: Changes mode between cruise control system and speed limit
control system.
RES+: Resumes or increases speed limit control speed.
SET-: Sets or decreases speed limit control speed.
To set speed limit
1. Press the button on the steer-
ing wheel, and then press the
button to turn the system on. The
speed limit indicator in the instru-
ment cluster will illuminate.
i
SPEED LIMIT CONTROL SYSTEM (IF EQUIPPED)
OTLE055056
OTLE055057
OTLE055060
System off Cruise Control / Smart Cruise Control
Speed Limit Control
TLe UK 5.qxp 5/10/2018 12:27 PM Page 122

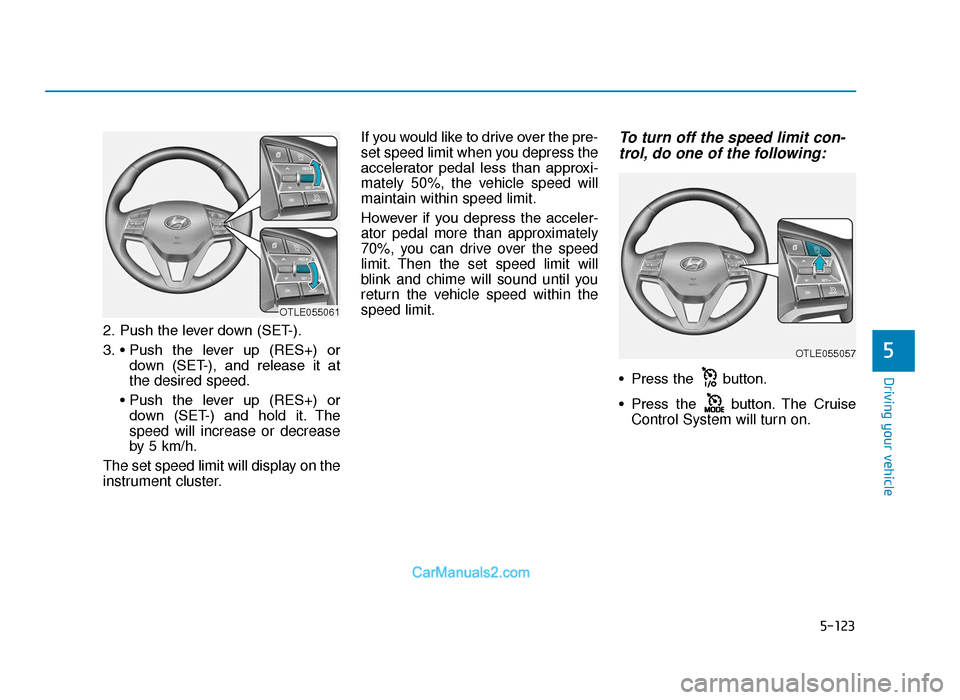

5-123
Driving your vehicle
5
2. Push the lever down (SET-).
3. • Push the lever up (RES+) ordown (SET-), and release it at
the desired speed.
• Push the lever up (RES+) or down (SET-) and hold it. The
speed will increase or decrease
by 5 km/h.
The set speed limit will display on the
instrument cluster. If you would like to drive over the pre-
set speed limit when you depress the
accelerator pedal less than approxi-
mately 50%, the vehicle speed will
maintain within speed limit.
However if you depress the acceler-
ator pedal more than approximately
70%, you can drive over the speed
limit. Then the set speed limit will
blink and chime will sound until you
return the vehicle speed within the
speed limit.
To turn off the speed limit con-
trol, do one of the following:
• Press the button.
• Press the button. The Cruise
Control System will turn on.
OTLE055057
OTLE055061
TLe UK 5.qxp 5/10/2018 12:27 PM Page 123

5-124
Driving your vehicle
The ISLW displays the speed limit
information and overtaking restric-
tion of current road and detail condi-
tional through the instrument cluster
and the navigation. The ISLW reads
the traffic signs through the camera,
which is attached on the upper part
of the inner front windscreen.
The ISLW also utilizes the navigation
and vehicle information to display the
speed limit information.
INTELLIGENT SPEED LIMIT WARNING (ISLW) SYSTEM (IF EQUIPPED)
OTLE058182
(Continued)
•Pay extreme caution to keep
the camera sensor out of
water.
•Do not arbitrarily disassemble
the camera assembly, nor
apply any impact on the cam-
era assembly.
•Do not disassemble camera
temporarily for tinted window
or attaching any types of coat-
ings and accessories. If you
disassemble a camera and
assemble it again, take your
vehicle to a HYUNDAI autho-
rised repairer and have the
system checked to need a cal-
ibration.
•Do not locate any reflective
objects (i.e. white paper, mir-
ror) over the dashboard. Any
light reflection may cause a
malfunction system.
•The system is not available in
all countries.
•Intelligent Speed Limit
Warning (ISLW) system is
only a supplemental system
and is not always able to cor-
rectly display speed limits
and overtaking restrictions.
•The driver still holds the
responsibility not to exceed
the maximum speed limit.
•Do not install any accessories
and stickers. Do not tint the
front windscreen, especially
near the rearview mirror.
•The ISLW detects the traffic
signs through the camera to
display the speed limit infor-
mation.
Therefore, the ISLW may not
properly operate, when it is
hard to detect the traffic signs.
For further details, please
refer to the "Limitations of the
system". (Continued)
WARNING
TLe UK 5.qxp 5/10/2018 12:27 PM Page 124

5-125
Driving your vehicle
5
Information
We recommend that you have the sys-
tem checked by a HYUNDAI autho-
rised repairer when:
• The windscreen glass is replaced.
• The camera or related parts arerepaired or removed.
System setting and activation
System setting
• The driver can activate the SpeedLimit Warning by selecting 'User
Settings →Driver Assistance →
Speed Limit Warning.
• When the ISLW is activated, the symbols appear on the instrument
cluster to display the speed limit
information and overtaking restric-
tion.
• When the ISLW is activated in the navigation setting, the above infor-
mation and the restriction are also
displayed on the navigation.
System activation
• The ISLW displays the speed limitinformation and alerts the overtak-
ing restriction, when your vehicle
passes by the relevant traffic signs.
• With the ignition switch in the ON position, the driver can activate the
ISLW by selecting 'User Settings
→ Driver assistance → Speed
Limit Warning'.
• The ISLW displays the previous speed limit information, right after
the ignition switch is placed to the
ON position.
• You may find different speed limit information for the same road. The
information is displayed depending
on the driving situations. Because,
traffic signs with additional sign
(e.g. rainy, arrow, etc.) are also
detected and compared with vehi-
cle internal data (e.g. wiper opera-
tion, turn signal, etc.).
Information
The speed limit information on the
instrument cluster may differ from
the one on the navigation. In this case,
check the speed unit setting on the
navigation.
i
i
TLe UK 5.qxp 5/10/2018 12:27 PM Page 125

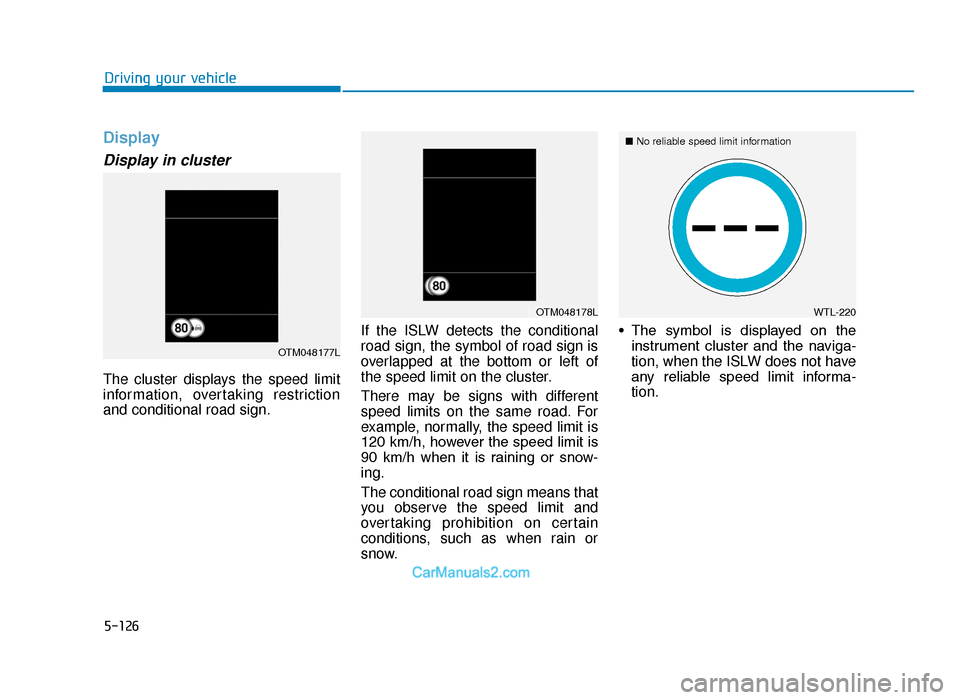

5-126
Driving your vehicle
Display
Display in cluster
The cluster displays the speed limit
information, overtaking restriction
and conditional road sign.If the ISLW detects the conditional
road sign, the symbol of road sign is
overlapped at the bottom or left of
the speed limit on the cluster.
There may be signs with different
speed limits on the same road. For
example, normally, the speed limit is
120 km/h, however the speed limit is
90 km/h when it is raining or snow-
ing.
The conditional road sign means that
you observe the speed limit and
overtaking prohibition on certain
conditions, such as when rain or
snow.• The symbol is displayed on the
instrument cluster and the naviga-
tion, when the ISLW does not have
any reliable speed limit informa-
tion.

WTL-220
■
No reliable speed limit information
OTM048177L
OTM048178L
TLe UK 5.qxp 5/10/2018 12:28 PM Page 126
