1-6
Your vehicle at a glance
ENGINE COMPARTMENT
1. Engine coolant reservoir/Radiator cap.........................................7-20
2. Brake/clutch fluid reservoir ..................7-24
3. Air cleaner ............................................7-27
4. Engine oil dipstick ................................7-15
5. Engine oil filler cap ..............................7-16
6. Windscreen washer fluid reservoir ......7-25
7. Fuse box ..............................................7-59
8. Battery..................................................7-33
OTLE075101R/OTLE075002R
■Petrol 1.6 GDI
■Petrol 1.6 T-GDI
The actual engine compartment in the vehicle may differ from the illustration.
TLe UK 1.qxp 5/10/2018 11:28 AM Page 6
Page 19 of 685

1-7
Your vehicle at a glance
1
1. Engine coolant reservoir/Radiator cap.........................................7-20
2. Brake/clutch fluid reservoir ..................7-24
3. Air cleaner ............................................7-27
4. Engine oil dipstick ................................7-15
5. Engine oil filler cap ..............................7-16
6. Windscreen washer fluid reservoir ......7-25
7. Fuse box ..............................................7-59
8. Battery..................................................7-33
OTL075103R/OTLE078104R
■Petrol 2.0 MPI
■Petrol 2.4 GDI
The actual engine compartment in the vehicle may differ from the illustration.
TLe UK 1.qxp 5/10/2018 11:28 AM Page 7
Page 20 of 685

1-8
Your vehicle at a glance
1. Engine coolant reservoir/Radiator cap.........................................7-20
2. Brake/clutch fluid reservoir ..................7-24
3. Air cleaner ............................................7-27
4. Engine oil dipstick ................................7-17
5. Engine oil filler cap ..............................7-18
6. Windscreen washer fluid reservoir ......7-25
7. Fuse box ..............................................7-59
8. Battery..................................................7-33
9. Fuel filter .............................................7-26
OTLE078002/OTLE078001R
■Smartstream D1.6
■Diesel 2.0 TCI / Diesel 2.0 48V MHEV
The actual engine compartment in the vehicle may differ from the illustration.
TLe UK 1.qxp 5/10/2018 11:28 AM Page 8
Page 164 of 685

3-72
Convenient features of your vehicle

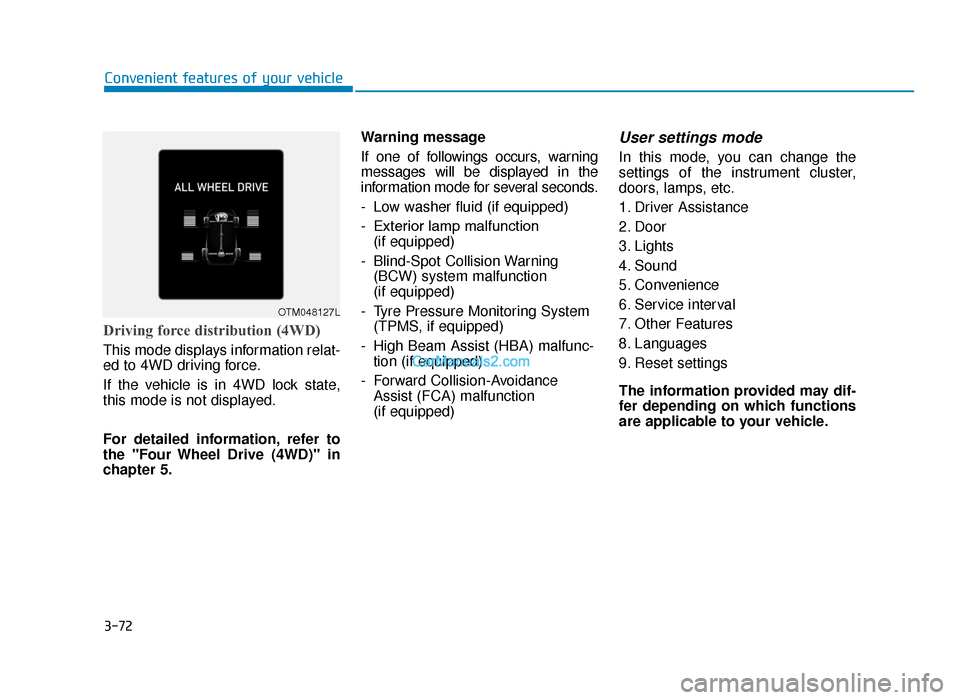

Driving force distribution (4WD)
This mode displays information relat-
ed to 4WD driving force.
If the vehicle is in 4WD lock state,
this mode is not displayed.
For detailed information, refer to
the "Four Wheel Drive (4WD)" in
chapter 5.Warning message
If one of followings occurs, warning
messages will be displayed in the
information mode for several seconds.
- Low washer fluid (if equipped)
- Exterior lamp malfunction
(if equipped)
- Blind-Spot Collision Warning (BCW) system malfunction
(if equipped)
- Tyre Pressure Monitoring System (TPMS, if equipped)
- High Beam Assist (HBA) malfunc- tion (if equipped)
- Forward Collision-Avoidance Assist (FCA) malfunction
(if equipped)
User settings mode
In this mode, you can change the
settings of the instrument cluster,
doors, lamps, etc.
1. Driver Assistance
2. Door
3. Lights
4. Sound
5. Convenience
6. Service interval
7. Other Features
8. Languages
9. Reset settings
The information provided may dif-
fer depending on which functions
are applicable to your vehicle.
OTM048127L
TLe UK 3a(~109).qxp 6/12/2018 2:27 PM Page 72
Page 175 of 685

3-83
Convenient features of your vehicle
3
Turn FUSE SWITCH on
This warning message illuminates if
the fuse switch located on the fuse
box under the steering wheel is OFF.
You should turn the fuse switch on.
For more details, refer to “Fuses”
in chapter 7.
Low Washer Fluid (if equipped)
This warning message illuminates in
the service reminder mode if the
washer fluid level in the reservoir is
nearly empty.
Refill the washer fluid.
Low Fuel
This warning message illuminates if
the fuel tank is nearly empty.
- When the low fuel level warninglight is illuminates.
- When the trip computer displays “--- mile (or km)” as distance to empty.
Add fuel as soon as possible.
Check 48V system (if equipped)
This warning message illuminates
when there is a problem with the mild
hybrid control system.
Refrain from driving when the warn-
ing message is displayed.
In this case, we recommend that you
have your vehicle inspected by a
HYUNDAI authorised repairer.
OTLE048609OTLE048610
TLe UK 3a(~109).qxp 6/12/2018 2:27 PM Page 83
Page 192 of 685

3-100
Convenient features of your vehicle

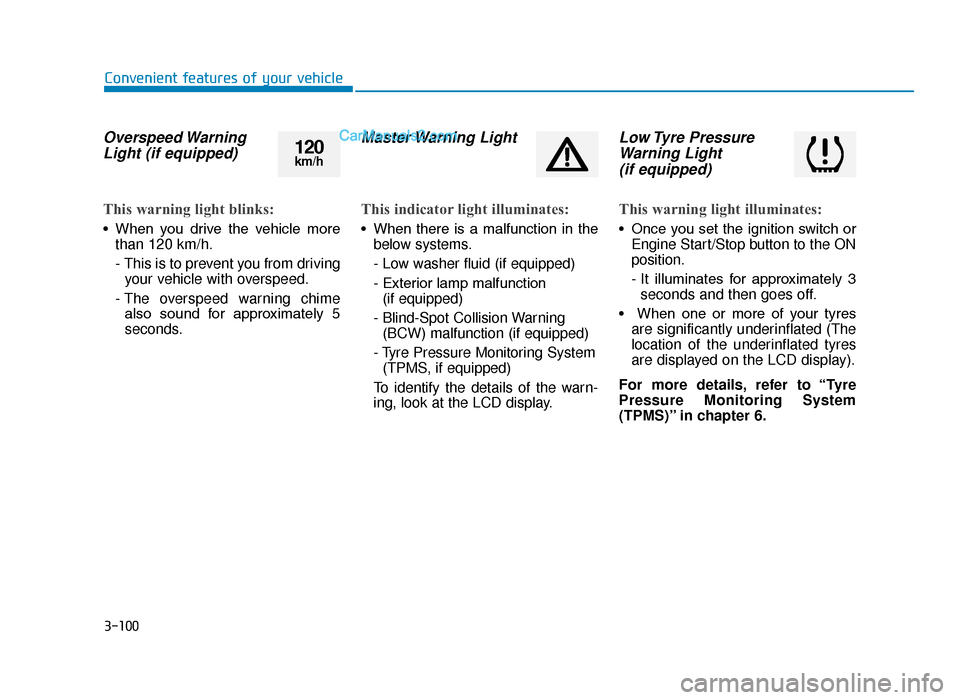

Overspeed WarningLight (if equipped)
This warning light blinks:
• When you drive the vehicle more
than 120 km/h.
- This is to prevent you from drivingyour vehicle with overspeed.
- The overspeed warning chime also sound for approximately 5
seconds.
Master Warning Light
This indicator light illuminates:
• When there is a malfunction in the below systems.
- Low washer fluid (if equipped)
- Exterior lamp malfunction(if equipped)
- Blind-Spot Collision Warning (BCW) malfunction (if equipped)
- Tyre Pressure Monitoring System (TPMS, if equipped)
To identify the details of the warn-
ing, look at the LCD display.
Low Tyre Pressure Warning Light (if equipped)
This warning light illuminates:
• Once you set the ignition switch or
Engine Start/Stop button to the ON
position.
- It illuminates for approximately 3seconds and then goes off.
• When one or more of your tyres are significantly underinflated (The
location of the underinflated tyres
are displayed on the LCD display).
For more details, refer to “Tyre
Pressure Monitoring System
(TPMS)” in chapter 6.
120km/h
TLe UK 3a(~109).qxp 6/12/2018 2:28 PM Page 100
Page 211 of 685

3-119
Convenient features of your vehicle
3

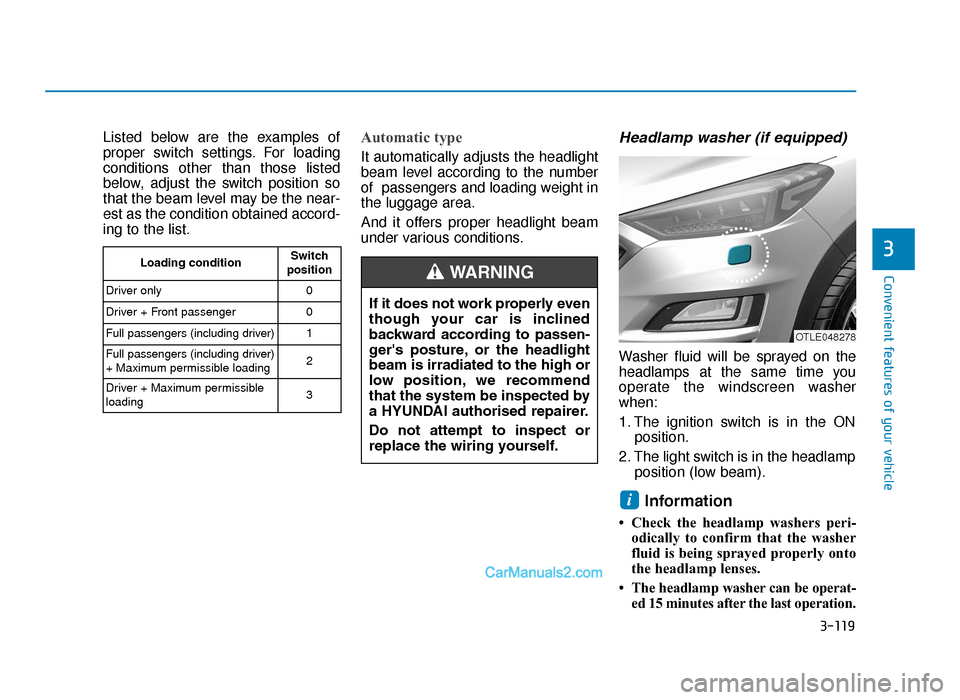

Listed below are the examples of
proper switch settings. For loading
conditions other than those listed
below, adjust the switch position so
that the beam level may be the near-
est as the condition obtained accord-
ing to the list.Automatic type
It automatically adjusts the headlight
beam level according to the number
of passengers and loading weight in
the luggage area.
And it offers proper headlight beam
under various conditions.
Headlamp washer (if equipped)
Washer fluid will be sprayed on the
headlamps at the same time you
operate the windscreen washer
when:
1. The ignition switch is in the ONposition.
2. The light switch is in the headlamp position (low beam).
Information
• Check the headlamp washers peri-odically to confirm that the washer
fluid is being sprayed properly onto
the headlamp lenses.
• The headlamp washer can be operat- ed 15 minutes after the last operation.
i
Loading conditionSwitch
position
Driver only0
Driver + Front passenger0
Full passengers (including driver)1
Full passengers (including driver)
+ Maximum permissible loading2
Driver + Maximum permissible
loading 3
If it does not work properly even
though your car is inclined
backward according to passen-
ger's posture, or the headlight
beam is irradiated to the high or
low position, we recommend
that the system be inspected by
a HYUNDAI authorised repairer.
Do not attempt to inspect or
replace the wiring yourself.
WARNING
OTLE048278
TLe UK 3b(110~).qxp 6/12/2018 2:35 PM Page 119
Page 219 of 685

3-127
Convenient features of your vehicle
3
Windscreen washers
In the O (OFF) position, pull the lever
gently toward you to spray washer
fluid on the windscreen and to run the
wipers 1-3 cycles. The spray and
wiper operation will continue until you
release the lever.If the washer does not work, you may
need to add washer fluid to the wash-
er fluid reservoir.
If equipped with the Headlamp
Washer, washer fluid will be sprayed
on the headlamp at the same time you
operate the windscreen washer when:
1. The ignition switch is in the ON
position.
2. The light switch is in the headlamp position.
When the outside temperature
is below freezing, ALWAYS
warm the windscreen using the
defroster to prevent the washer
fluid from freezing on the wind-
screen and obscuring your
vision which could result in an
accident and serious injury or
death.
WARNING
• To prevent possible damage
to the washer pump, do not
operate the washer when the
fluid reservoir is empty.
• To prevent possible damage
to the wipers or windscreen,
do not operate the wipers
when the windscreen is dry.
• To prevent damage to the
wiper arms and other compo-
nents, do not attempt to move
the wipers manually.
• To prevent possible damage
to the wipers and washer sys-
tem, use anti-freezing washer
fluids in the winter season or
cold weather.
CAUTION
OTLE045163
OTLE045164
■ Type A
■Type B
TLe UK 3b(110~).qxp 6/12/2018 2:36 PM Page 127
Page 220 of 685

3-128
Convenient features of your vehicle
Rear window wiper and wash-
er switch (if equipped)
The rear window wiper and washer
switch is located at the end of the
wiper and washer switch lever.Turn the switch to the desired posi-
tion to operate the rear wiper and
washer.
2 – High wiper speed
1 – Low wiper speed
O – Off
Push the lever away from you to
spray rear washer fluid and to run the
rear wipers 1~3 cycles. The spray
and wiper operation will continue until
you release the lever. (if equipped)
Auto rear wiper (if equipped)
The rear wiper will operate whilst the
vehicle is in reverse with the front
wipers ON by selecting the function
on the LCD display.
Go to ‘User Settings
→
Convenience
→ Auto rear wiper (reverse)’.
OTLE045167
OTLE045165
■Type A
■Type B
OTLE045168
OTLE045166
■Type A
■Type B
TLe UK 3b(110~).qxp 6/12/2018 2:37 PM Page 128
Page 491 of 685

5-167
Driving your vehicle
5

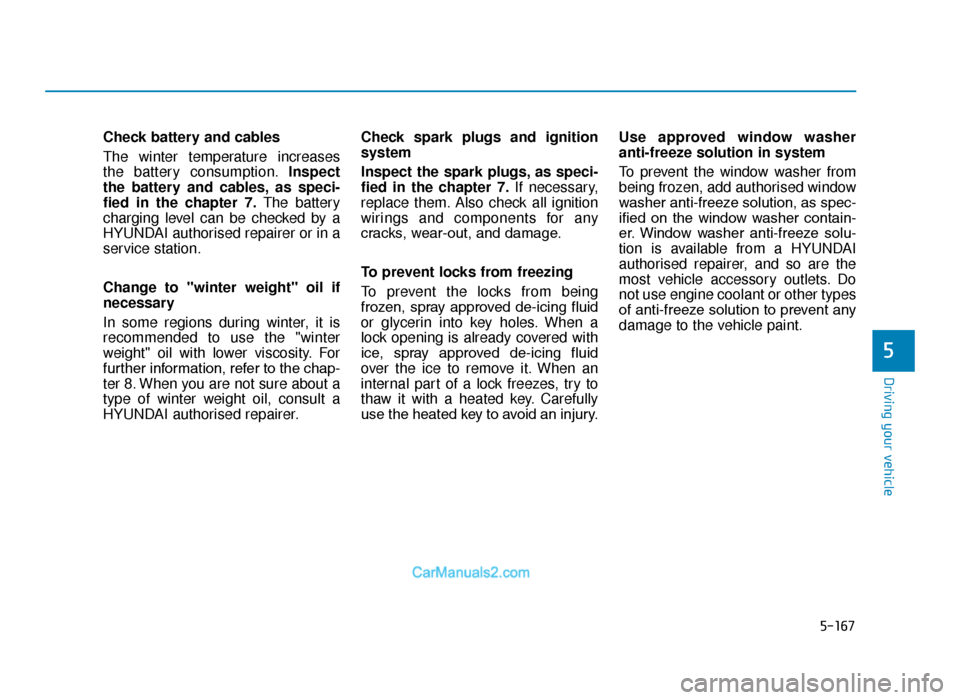

Check battery and cables
The winter temperature increases
the battery consumption.Inspect
the battery and cables, as speci-
fied in the chapter 7. The battery
charging level can be checked by a
HYUNDAI authorised repairer or in a
service station.
Change to "winter weight" oil if
necessary
In some regions during winter, it is
recommended to use the "winter
weight" oil with lower viscosity. For
further information, refer to the chap-
ter 8. When you are not sure about a
type of winter weight oil, consult a
HYUNDAI authorised repairer. Check spark plugs and ignition
system
Inspect the spark plugs, as speci-
fied in the chapter 7.
If necessary,
replace them. Also check all ignition
wirings and components for any
cracks, wear-out, and damage.
To prevent locks from freezing
To prevent the locks from being
frozen, spray approved de-icing fluid
or glycerin into key holes. When a
lock opening is already covered with
ice, spray approved de-icing fluid
over the ice to remove it. When an
internal part of a lock freezes, try to
thaw it with a heated key. Carefully
use the heated key to avoid an injury. Use approved window washer
anti-freeze solution in system
To prevent the window washer from
being frozen, add authorised window
washer anti-freeze solution, as spec-
ified on the window washer contain-
er. Window washer anti-freeze solu-
tion is available from a HYUNDAI
authorised repairer, and so are the
most vehicle accessory outlets. Do
not use engine coolant or other types
of anti-freeze solution to prevent any
damage to the vehicle paint.
TLe UK 5.qxp 5/10/2018 12:32 PM Page 167
