Hyundai Tucson 2020 Owner's Manual - RHD (UK, Australia)

7-105
7
Maintenance

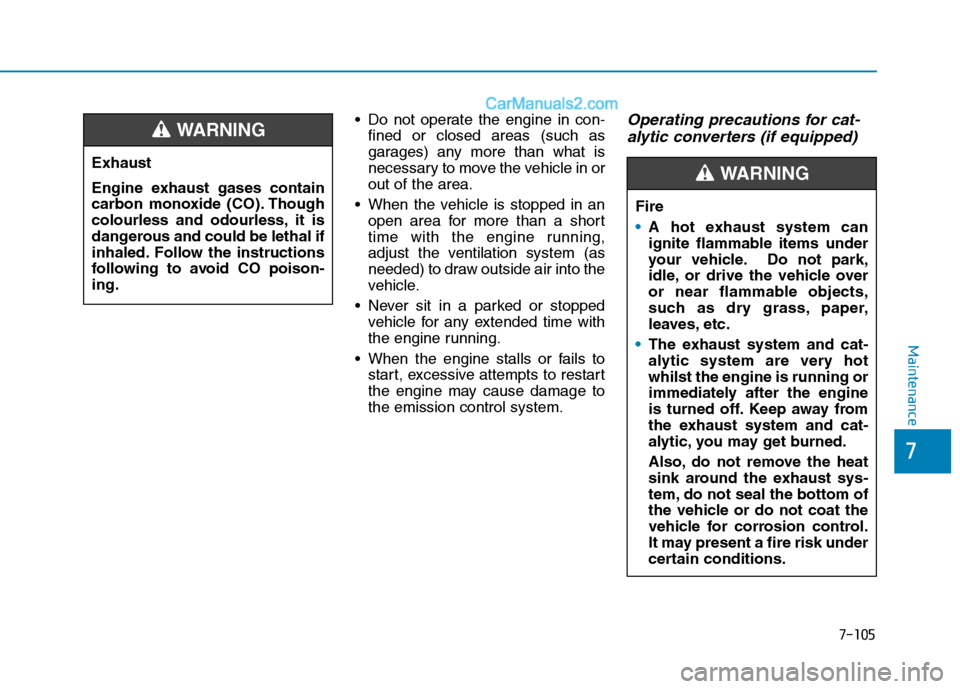

Do not operate the engine in con-
fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in or
out of the area.
When the vehicle is stopped in an
open area for more than a short
time with the engine running,
adjust the ventilation system (as
needed) to draw outside air into the
vehicle.
Never sit in a parked or stopped
vehicle for any extended time with
the engine running.
When the engine stalls or fails to
start, excessive attempts to restart
the engine may cause damage to
the emission control system.Operating precautions for cat-
alytic converters (if equipped)
Exhaust
Engine exhaust gases contain
carbon monoxide (CO). Though
colourless and odourless, it is
dangerous and could be lethal if
inhaled. Follow the instructions
following to avoid CO poison-
ing.
WARNING
Fire
A hot exhaust system can
ignite flammable items under
your vehicle. Do not park,
idle, or drive the vehicle over
or near flammable objects,
such as dry grass, paper,
leaves, etc.
The exhaust system and cat-
alytic system are very hot
whilst the engine is running or
immediately after the engine
is turned off. Keep away from
the exhaust system and cat-
alytic, you may get burned.
Also, do not remove the heat
sink around the exhaust sys-
tem, do not seal the bottom of
the vehicle or do not coat the
vehicle for corrosion control.
It may present a fire risk under
certain conditions.
WARNING

7-106
Maintenance

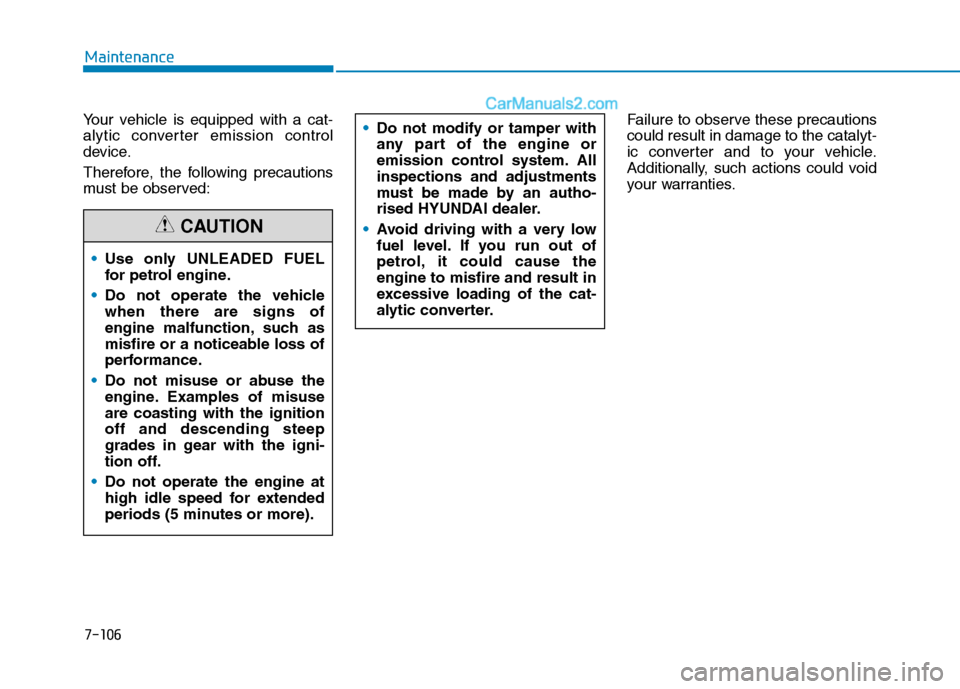

Your vehicle is equipped with a cat-
alytic converter emission control
device.
Therefore, the following precautions
must be observed:Failure to observe these precautions
could result in damage to the catalyt-
ic converter and to your vehicle.
Additionally, such actions could void
your warranties.
Use only UNLEADED FUEL
for petrol engine.
Do not operate the vehicle
when there are signs of
engine malfunction, such as
misfire or a noticeable loss of
performance.
Do not misuse or abuse the
engine. Examples of misuse
are coasting with the ignition
off and descending steep
grades in gear with the igni-
tion off.
Do not operate the engine at
high idle speed for extended
periods (5 minutes or more).
Do not modify or tamper with
any part of the engine or
emission control system. All
inspections and adjustments
must be made by an autho-
rised HYUNDAI dealer.
Avoid driving with a very low
fuel level. If you run out of
petrol, it could cause the
engine to misfire and result in
excessive loading of the cat-
alytic converter.
CAUTION

7-107
7
Maintenance

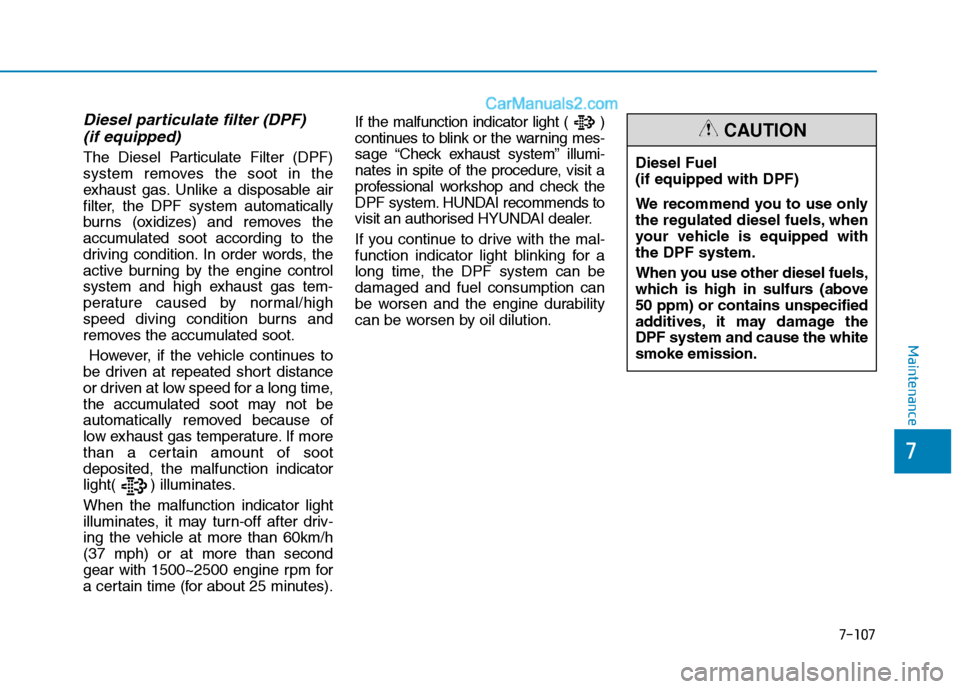

Diesel particulate filter (DPF)
(if equipped)
The Diesel Particulate Filter (DPF)
system removes the soot in the
exhaust gas. Unlike a disposable air
filter, the DPF system automatically
burns (oxidizes) and removes the
accumulated soot according to the
driving condition. In order words, the
active burning by the engine control
system and high exhaust gas tem-
perature caused by normal/high
speed diving condition burns and
removes the accumulated soot.
However, if the vehicle continues to
be driven at repeated short distance
or driven at low speed for a long time,
the accumulated soot may not be
automatically removed because of
low exhaust gas temperature. If more
than a certain amount of soot
deposited, the malfunction indicator
light( ) illuminates.
When the malfunction indicator light
illuminates, it may turn-off after driv-
ing the vehicle at more than 60km/h
(37 mph) or at more than second
gear with 1500~2500 engine rpm for
a certain time (for about 25 minutes).If the malfunction indicator light ( )
continues to blink or the warning mes-
sage “Check exhaust system” illumi-
nates in spite of the procedure, visit a
professional workshop and check the
DPF system. HUNDAI recommends to
visit an authorised HYUNDAI dealer.
If you continue to drive with the mal-
function indicator light blinking for a
long time, the DPF system can be
damaged and fuel consumption can
be worsen and the engine durability
can be worsen by oil dilution.Diesel Fuel
(if equipped with DPF)
We recommend you to use only
the regulated diesel fuels, when
your vehicle is equipped with
the DPF system.
When you use other diesel fuels,
which is high in sulfurs (above
50 ppm) or contains unspecified
additives, it may damage the
DPF system and cause the white
smoke emission.
CAUTION

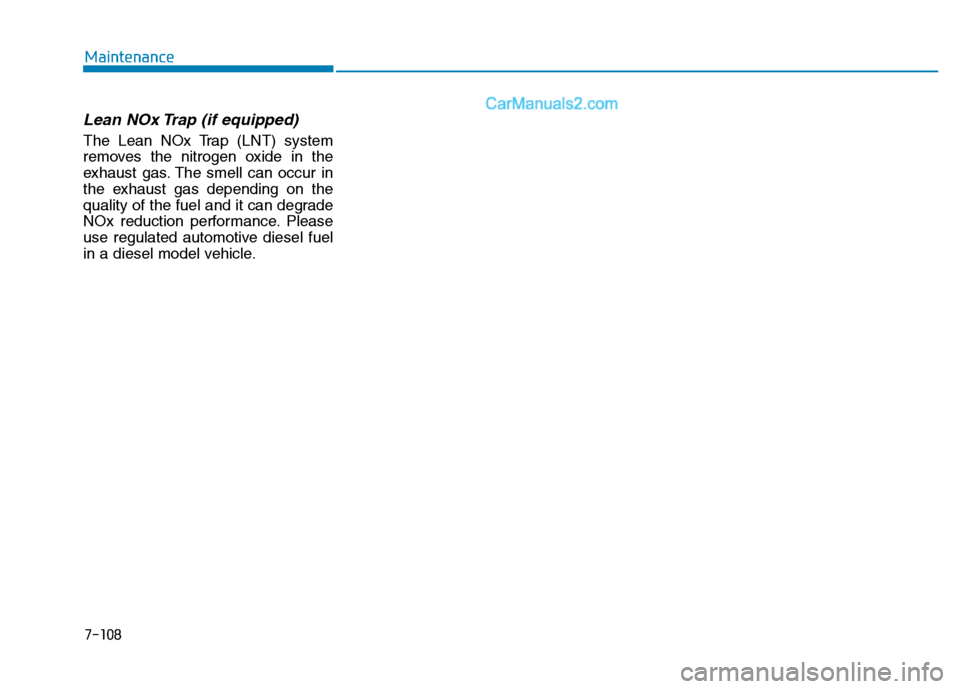

Lean NOx Trap (if equipped)
The Lean NOx Trap (LNT) system
removes the nitrogen oxide in the
exhaust gas. The smell can occur in
the exhaust gas depending on the
quality of the fuel and it can degrade
NOx reduction performance. Please
use regulated automotive diesel fuel
in a diesel model vehicle.Maintenance
7-108

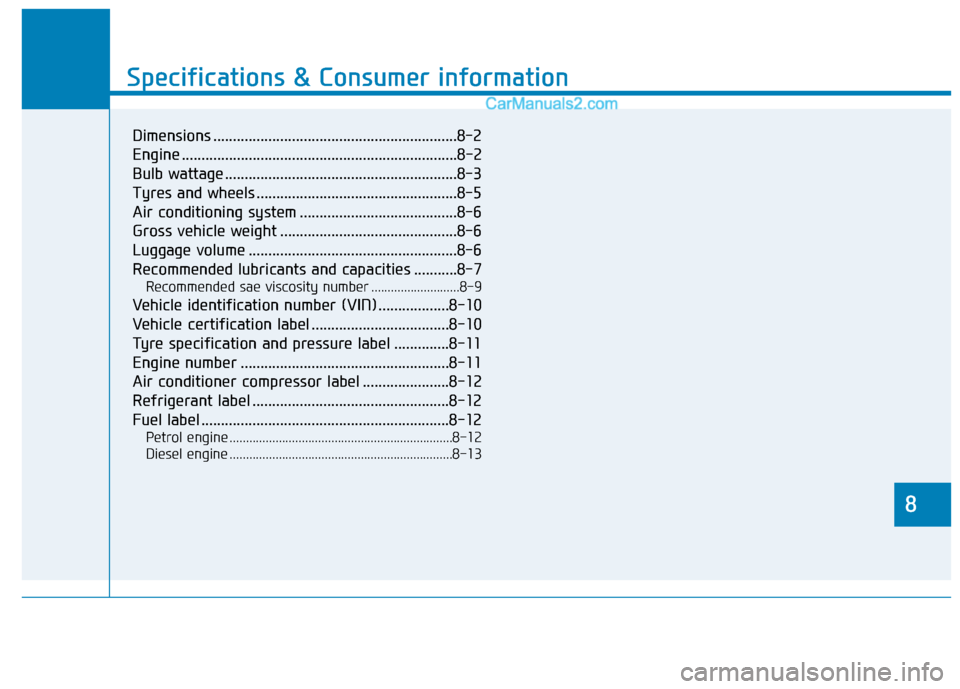

8
Specifications & Consumer information
8
Specifications & Consumer information
8
Dimensions ..............................................................8-2
Engine ......................................................................8-2
Bulb wattage ...........................................................8-3
Tyres and wheels ...................................................8-5
Air conditioning system ........................................8-6
Gross vehicle weight .............................................8-6
Luggage volume .....................................................8-6
Recommended lubricants and capacities ...........8-7
Recommended sae viscosity number ...........................8-9
Vehicle identification number (VIN) ..................8-10
Vehicle certification label ...................................8-10
Tyre specification and pressure label ..............8-11
Engine number .....................................................8-11
Air conditioner compressor label ......................8-12
Refrigerant label ..................................................8-12
Fuel label ...............................................................8-12
Petrol engine ....................................................................8-12
Diesel engine ....................................................................8-13

8-2
Specifications & Consumer information
D DI
IM
ME
EN
NS
SI
IO
ON
NS
S
E EN
NG
GI
IN
NE
E

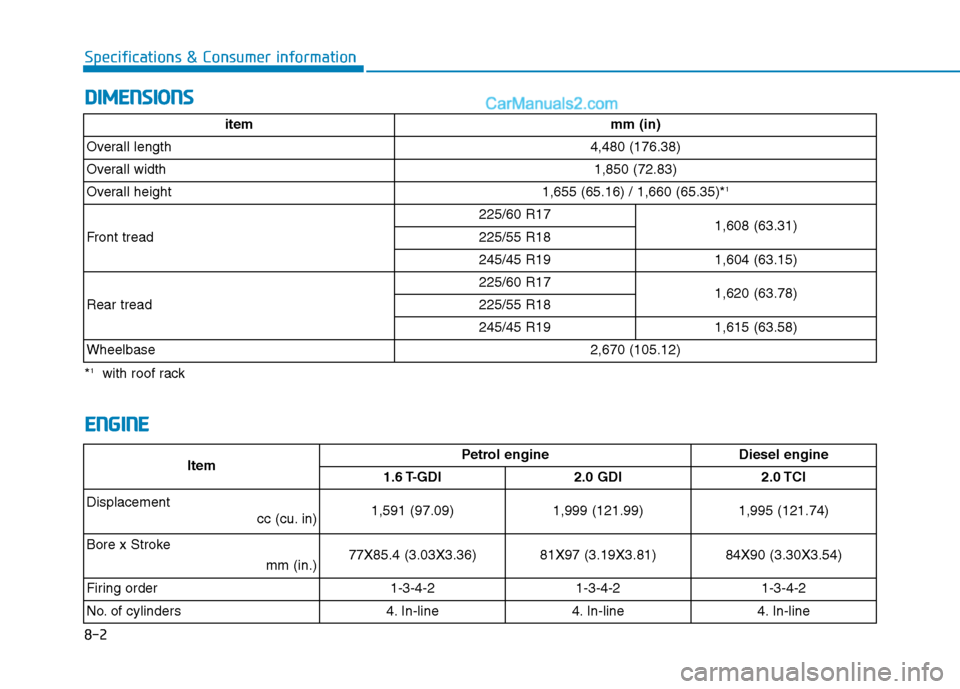

item mm (in)
Overall length 4,480 (176.38)
Overall width 1,850 (72.83)
Overall height 1,655 (65.16) / 1,660 (65.35)*
1
Front tread225/60 R17
1,608 (63.31)
225/55 R18
245/45 R19 1,604 (63.15)
Rear tread225/60 R17
1,620 (63.78)
225/55 R18
245/45 R19 1,615 (63.58)
Wheelbase 2,670 (105.12)
*1with roof rack
ItemPetrol engine
Diesel engine
1.6 T-GDI 2.0 GDI
2.0 TCI
Displacement
cc (cu. in) 1,591 (97.09) 1,999 (121.99)
1,995 (121.74)
Bore x Stroke
mm (in.)77X85.4 (3.03X3.36) 81X97 (3.19X3.81)
84X90 (3.30X3.54)
Firing order 1-3-4-2 1-3-4-2
1-3-4-2
No. of cylinders 4. In-line 4. In-line
4. In-line

8-3
8
Specifications & Consumer information
B BU
UL
LB
B
W
WA
AT
TT
TA
AG
GE
E

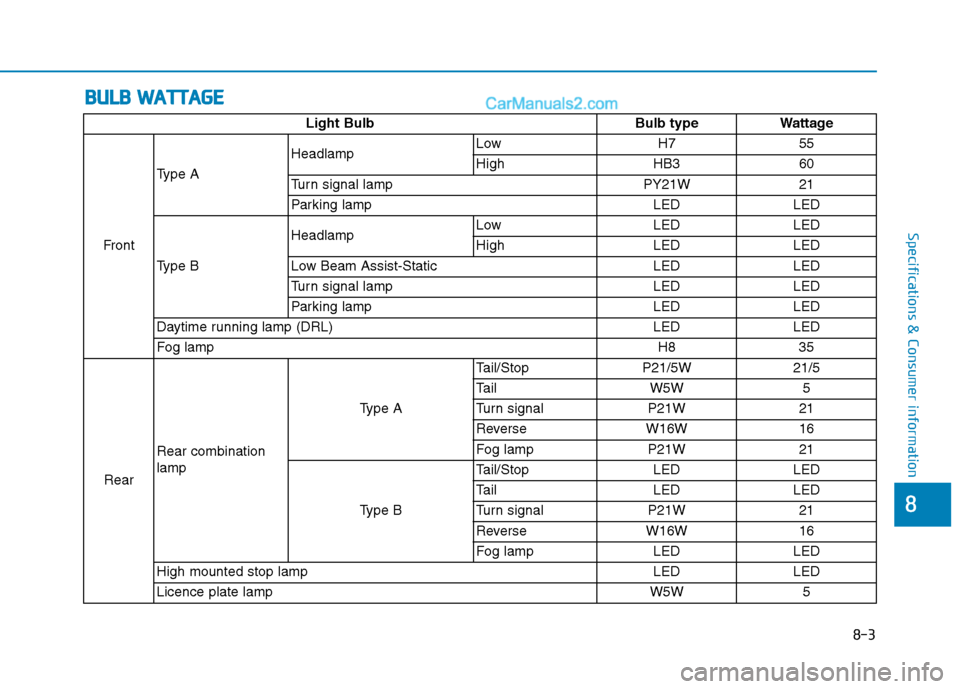

Light Bulb Bulb type Wattage
FrontType AHeadlampLow H7 55
High HB3 60
Turn signal lamp PY21W 21
Parking lamp LED LED
Type BHeadlampLow LED LED
High LED LED
Low Beam Assist-Static LED LED
Turn signal lamp LED LED
Parking lamp LED LED
Daytime running lamp (DRL) LED LED
Fog lampH8 35
RearRear combination
lampType ATail/Stop P21/5W 21/5
Tail W5W 5
Turn signal P21W 21
Reverse W16W 16
Fog lamp P21W 21
Type BTail/Stop LED LED
Tail LED LED
Turn signal P21W 21
Reverse W16W 16
Fog lamp LED LED
High mounted stop lamp LED LED
Licence plate lamp W5W 5

8-4
Specifications & Consumer information

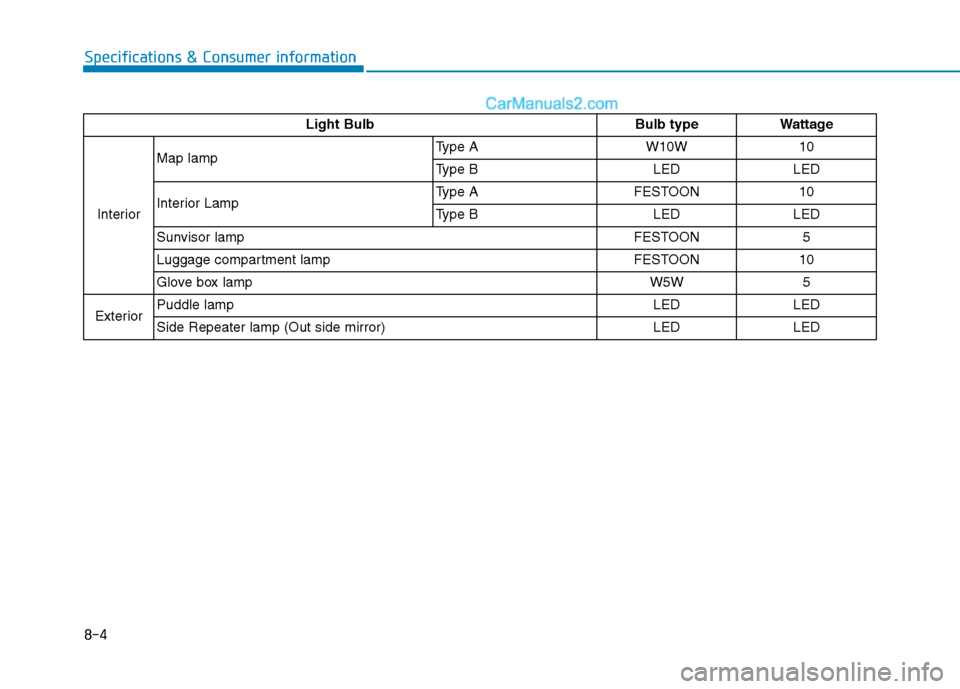

Light Bulb Bulb type Wattage
InteriorMap lampType A W10W 10
Type B LED LED
Interior LampType A FESTOON 10
Type B LED LED
Sunvisor lamp FESTOON 5
Luggage compartment lamp FESTOON 10
Glove box lamp W5W 5
ExteriorPuddle lamp LED LED
Side Repeater lamp (Out side mirror) LED LED

8-5
8
Specifications & Consumer information
T TY
YR
RE
ES
S
A
AN
ND
D
W
WH
HE
EE
EL
LS
S

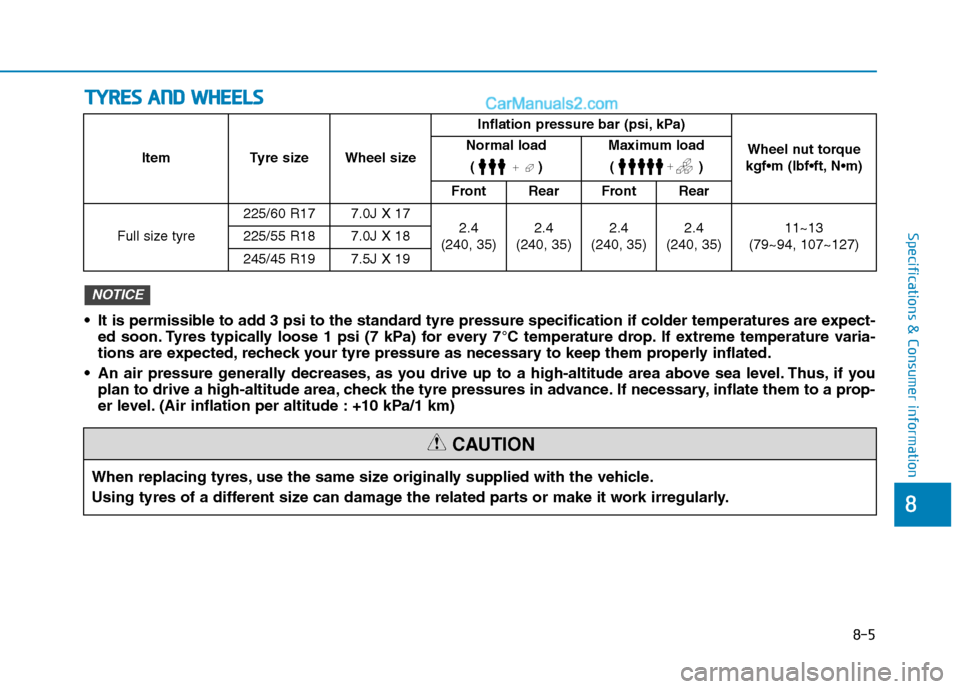

When replacing tyres, use the same size originally supplied with the vehicle.
Using tyres of a different size can damage the related parts or make it work irregularly.
CAUTION
Item Tyre size Wheel sizeInflation pressure bar (psi, kPa)
Wheel nut torque
kgf•m (lbf N Normal load
()Maximum load
()
Front Rear Front Rear
Full size tyre225/60 R17 7.0J X 17
2.4
(240, 35)2.4
(240, 35)2.4
(240, 35)2.4
(240, 35)11~13
(79~94, 107~127) 225/55 R18 7.0J X 18
245/45 R19 7.5J X 19
It is permissible to add 3 psi to the standard tyre pressure specification if colder temperatures are expect-
ed soon. Tyres typically loose 1 psi (7 kPa) for every 7°C temperature drop. If extreme temperature varia-
tions are expected, recheck your tyre pressure as necessary to keep them properly inflated.
An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you
plan to drive a high-altitude area, check the tyre pressures in advance. If necessary, inflate them to a prop-
er level. (Air inflation per altitude : +10 kPa/1 km)
NOTICE

8-6
Specifications & Consumer information
G GR
RO
OS
SS
S
V
VE
EH
HI
IC
CL
LE
E
W
WE
EI
IG
GH
HT
T
L LU
UG
GG
GA
AG
GE
E
V
VO
OL
LU
UM
ME
E

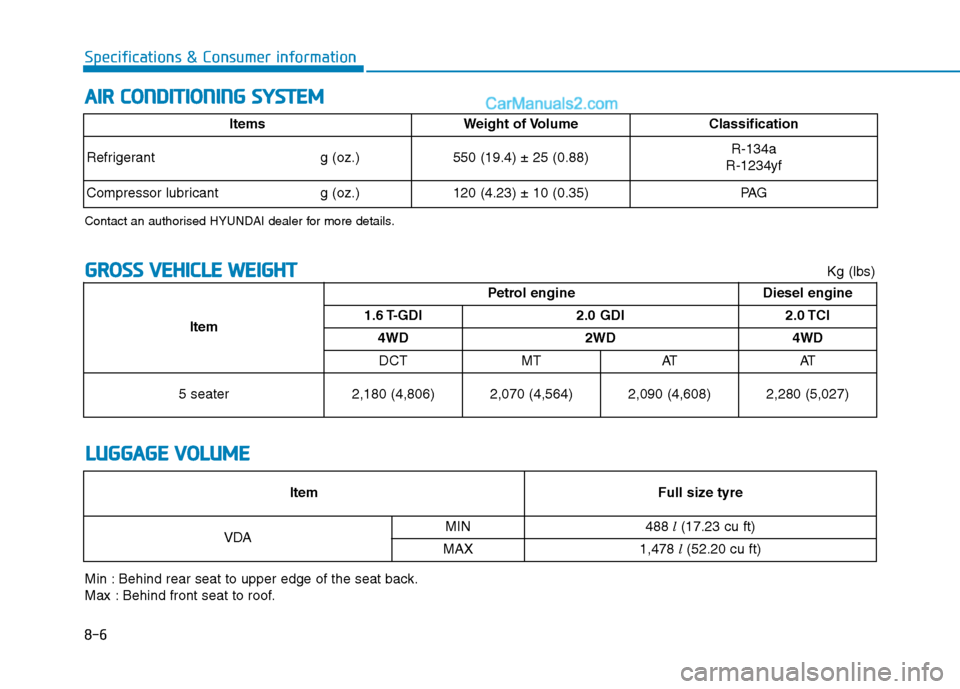

Min : Behind rear seat to upper edge of the seat back.
Max : Behind front seat to roof.Item Full size tyre
VDAMIN488 l(17.23 cu ft)
MAX1,478 l(52.20 cu ft)
Kg (lbs)
ItemPetrol engine Diesel engine
1.6 T-GDI 2.0 GDI 2.0 TCI
4WD 2WD 4WD
D C T M T AT AT
5 seater 2,180 (4,806) 2,070 (4,564) 2,090 (4,608) 2,280 (5,027)
A AI
IR
R
C
CO
ON
ND
DI
IT
TI
IO
ON
NI
IN
NG
G
S
SY
YS
ST
TE
EM
M
ItemsWeight of Volume Classification
Refrigerant g (oz.)550 (19.4) ± 25 (0.88)R-134a
R-1234yf
Compressor lubricant g (oz.)120 (4.23) ± 10 (0.35)PA G
Contact an authorised HYUNDAI dealer for more details.
