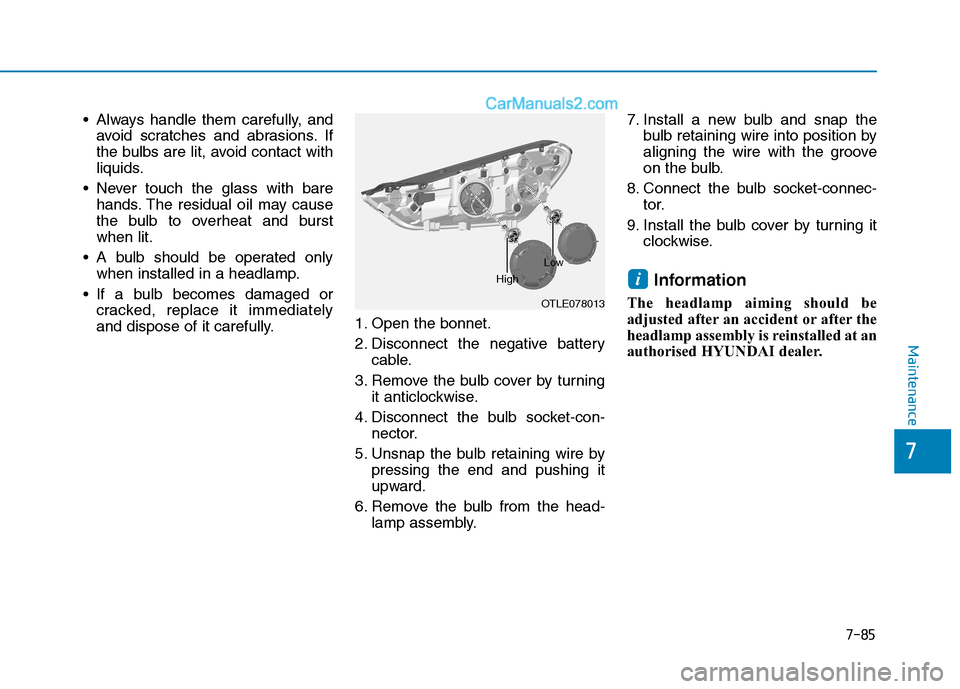

Always handle them carefully, and
avoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids.
Never touch the glass with bare
hands. The residual oil may cause
the bulb to overheat and burst
when lit.
A bulb should be operated only
when installed in a headlamp.
If a bulb becomes damaged or
cracked, replace it immediately
and dispose of it carefully.1. Open the bonnet.
2. Disconnect the negative battery
cable.
3. Remove the bulb cover by turning
it anticlockwise.
4. Disconnect the bulb socket-con-
nector.
5. Unsnap the bulb retaining wire by
pressing the end and pushing it
upward.
6. Remove the bulb from the head-
lamp assembly.7. Install a new bulb and snap the
bulb retaining wire into position by
aligning the wire with the groove
on the bulb.
8. Connect the bulb socket-connec-
tor.
9. Install the bulb cover by turning it
clockwise.
Information
The headlamp aiming should be
adjusted after an accident or after the
headlamp assembly is reinstalled at an
authorised HYUNDAI dealer.
i
OTLE078013
High
Low

7-86
Maintenance

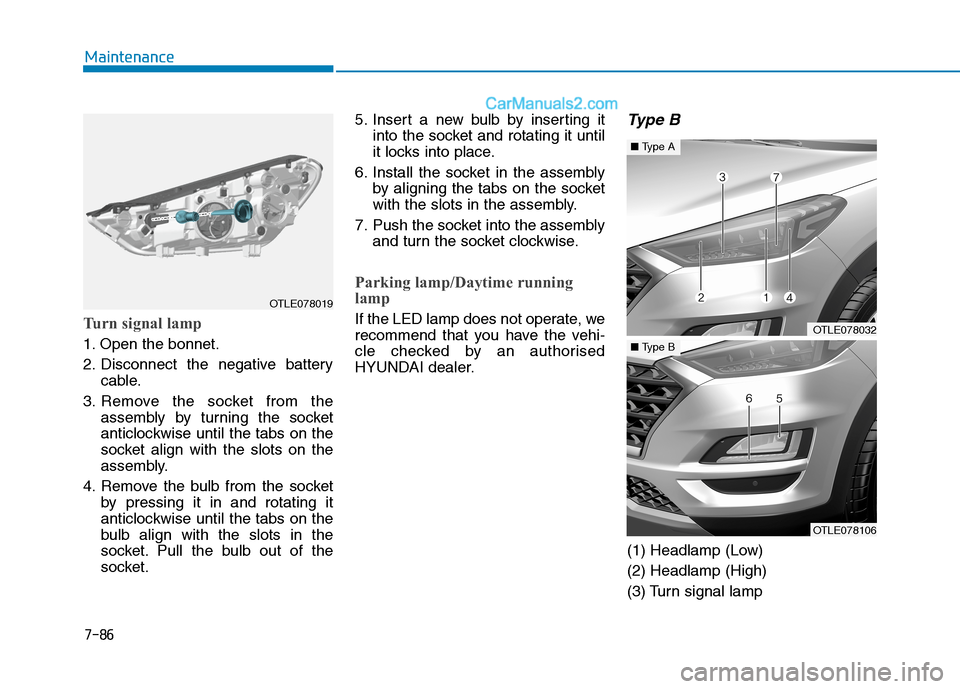

Turn signal lamp
1. Open the bonnet.
2. Disconnect the negative battery
cable.
3. Remove the socket from the
assembly by turning the socket
anticlockwise until the tabs on the
socket align with the slots on the
assembly.
4. Remove the bulb from the socket
by pressing it in and rotating it
anticlockwise until the tabs on the
bulb align with the slots in the
socket. Pull the bulb out of the
socket.5. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.
6. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
7. Push the socket into the assembly
and turn the socket clockwise.
Parking lamp/Daytime running
lamp
If the LED lamp does not operate, we
recommend that you have the vehi-
cle checked by an authorised
HYUNDAI dealer.
Type B
(1) Headlamp (Low)
(2) Headlamp (High)
(3) Turn signal lamp
OTLE078019
OTLE078032
■Type A
OTLE078106
■Type B

7-87
7
Maintenance
(4) Parking lamp
(5) Fog lamp
(6) Daytime running lamp
(7) Low Beam Assist-Static light
Lamps
If the LED lamp does not operate, we
recommend that you have the vehi-
cle checked by an authorised
HYUNDAI dealer.

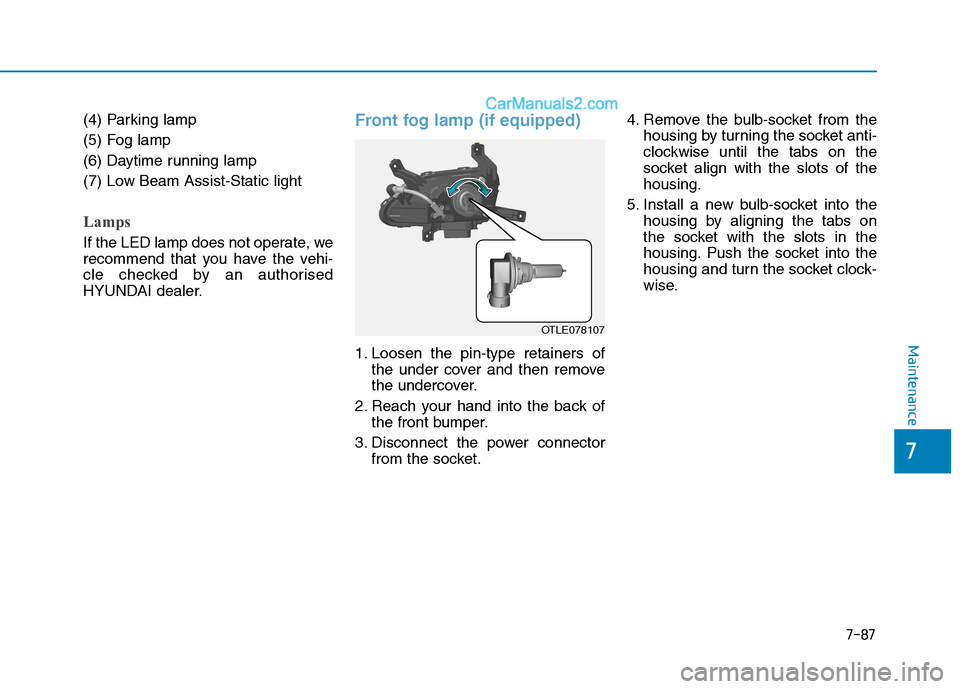

Front fog lamp (if equipped)
1. Loosen the pin-type retainers of
the under cover and then remove
the undercover.
2. Reach your hand into the back of
the front bumper.
3. Disconnect the power connector
from the socket.4. Remove the bulb-socket from the
housing by turning the socket anti-
clockwise until the tabs on the
socket align with the slots of the
housing.
5. Install a new bulb-socket into the
housing by aligning the tabs on
the socket with the slots in the
housing. Push the socket into the
housing and turn the socket clock-
wise.
OTLE078107

7-88
Maintenance

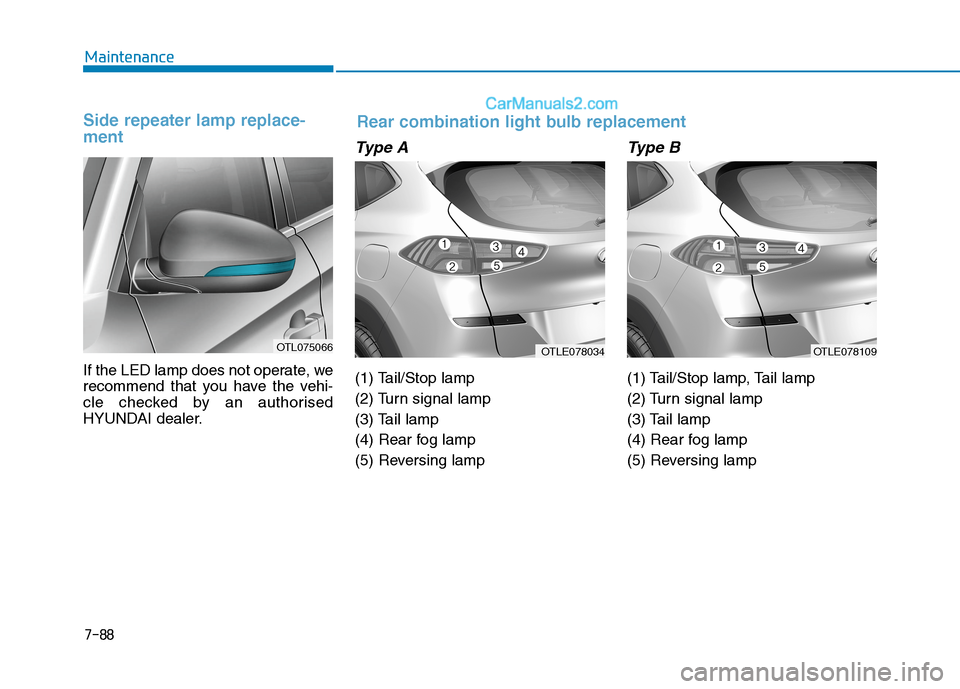

Side repeater lamp replace-
ment
If the LED lamp does not operate, we
recommend that you have the vehi-
cle checked by an authorised
HYUNDAI dealer.
Type A
(1) Tail/Stop lamp
(2) Turn signal lamp
(3) Tail lamp
(4) Rear fog lamp
(5) Reversing lamp
Type B
(1) Tail/Stop lamp, Tail lamp
(2) Turn signal lamp
(3) Tail lamp
(4) Rear fog lamp
(5) Reversing lamp
OTL075066OTLE078034OTLE078109
Rear combination light bulb replacement

7-89
7
Maintenance

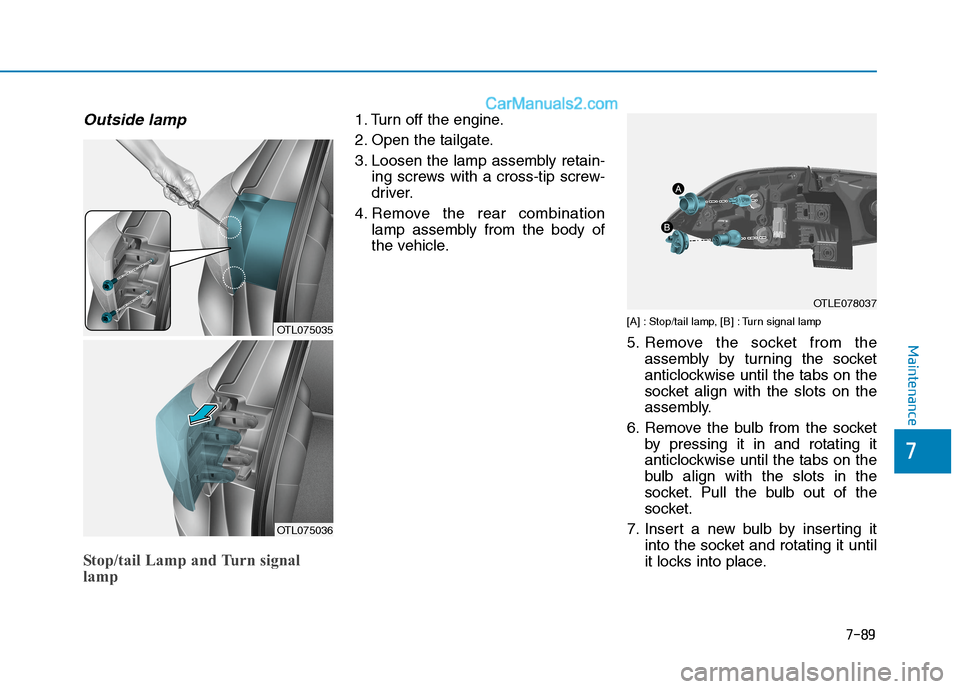

Outside lamp
Stop/tail Lamp and Turn signal
lamp
1. Turn off the engine.
2. Open the tailgate.
3. Loosen the lamp assembly retain-
ing screws with a cross-tip screw-
driver.
4. Remove the rear combination
lamp assembly from the body of
the vehicle.
[A] : Stop/tail lamp, [B] : Turn signal lamp
5. Remove the socket from the
assembly by turning the socket
anticlockwise until the tabs on the
socket align with the slots on the
assembly.
6. Remove the bulb from the socket
by pressing it in and rotating it
anticlockwise until the tabs on the
bulb align with the slots in the
socket. Pull the bulb out of the
socket.
7. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.OTL075035
OTL075036
OTLE078037

7-90
Maintenance
8. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
9. Reinstall the lamp assembly to the
body of the vehicle.
Stop/Tail lamp, Tail lamp
(Type B, LED)
If the LED lamp does not operate, we
recommend that you have the vehi-
cle checked by an authorised
HYUNDAI dealer.

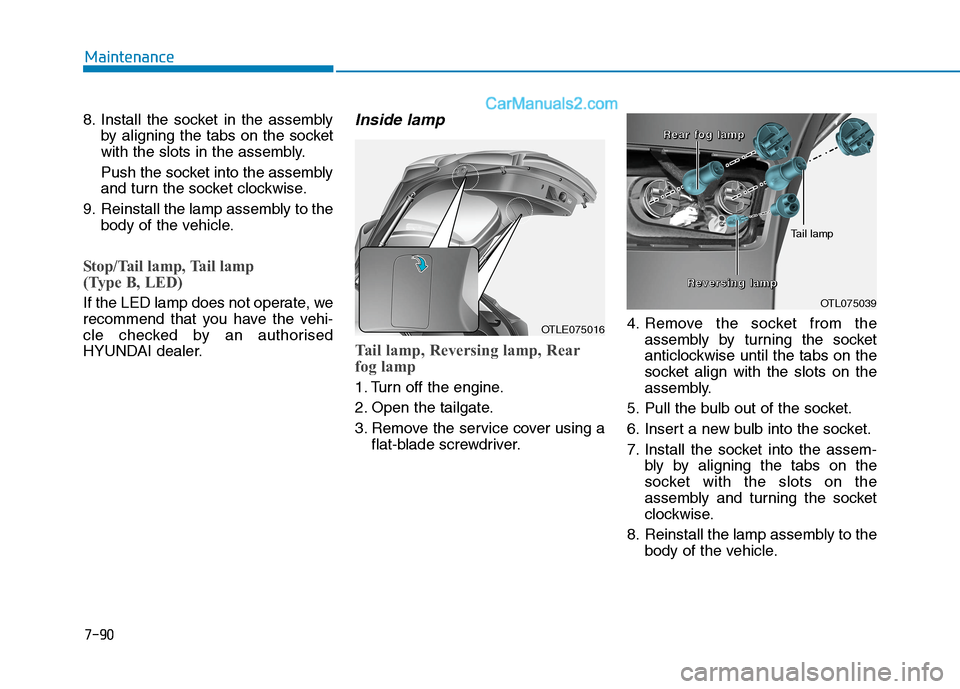

Inside lamp
Tail lamp, Reversing lamp, Rear
fog lamp
1. Turn off the engine.
2. Open the tailgate.
3. Remove the service cover using a
flat-blade screwdriver.4. Remove the socket from the
assembly by turning the socket
anticlockwise until the tabs on the
socket align with the slots on the
assembly.
5. Pull the bulb out of the socket.
6. Insert a new bulb into the socket.
7. Install the socket into the assem-
bly by aligning the tabs on the
socket with the slots on the
assembly and turning the socket
clockwise.
8. Reinstall the lamp assembly to the
body of the vehicle.
OTLE075016
OTL075039
Tail lamp
R R R R
e e e e
v v v v
e e e e
r r r r
s s s s
i i i i
n n n n
g g g g

l l l l
a a a a
m m m m
p p p p
R
R R R
e e e e
a a a a
r r r r

f f f f
o o o o
g g g g

l l l l
a a a a
m m m m
p p p p

7-91
7
Maintenance
Tail lamp, Rear fog lamp
(Type B, LED)
If the LED lamp does not operate, we
recommend that you have the vehi-
cle checked by an authorised
HYUNDAI dealer.

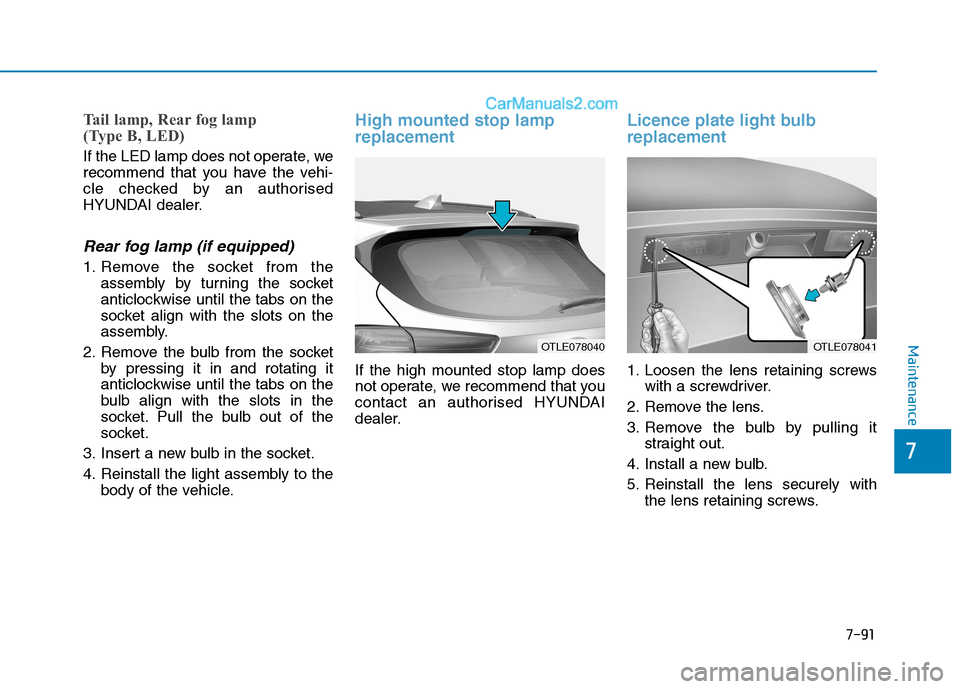

Rear fog lamp (if equipped)
1. Remove the socket from the
assembly by turning the socket
anticlockwise until the tabs on the
socket align with the slots on the
assembly.
2. Remove the bulb from the socket
by pressing it in and rotating it
anticlockwise until the tabs on the
bulb align with the slots in the
socket. Pull the bulb out of the
socket.
3. Insert a new bulb in the socket.
4. Reinstall the light assembly to the
body of the vehicle.
High mounted stop lamp
replacement
If the high mounted stop lamp does
not operate, we recommend that you
contact an authorised HYUNDAI
dealer.
Licence plate light bulb
replacement
1. Loosen the lens retaining screws
with a screwdriver.
2. Remove the lens.
3. Remove the bulb by pulling it
straight out.
4. Install a new bulb.
5. Reinstall the lens securely with
the lens retaining screws.
OTLE078040OTLE078041

7-92
Maintenance
OTLE075017
OTL075044
■Map lamp
■Interior Lamp
■Map lamp
OTLE075018
OLFH074029
■Interior Lamp
■Vanity mirror lamp
■Luggage compartment lamp
OTL075043
OTL075045

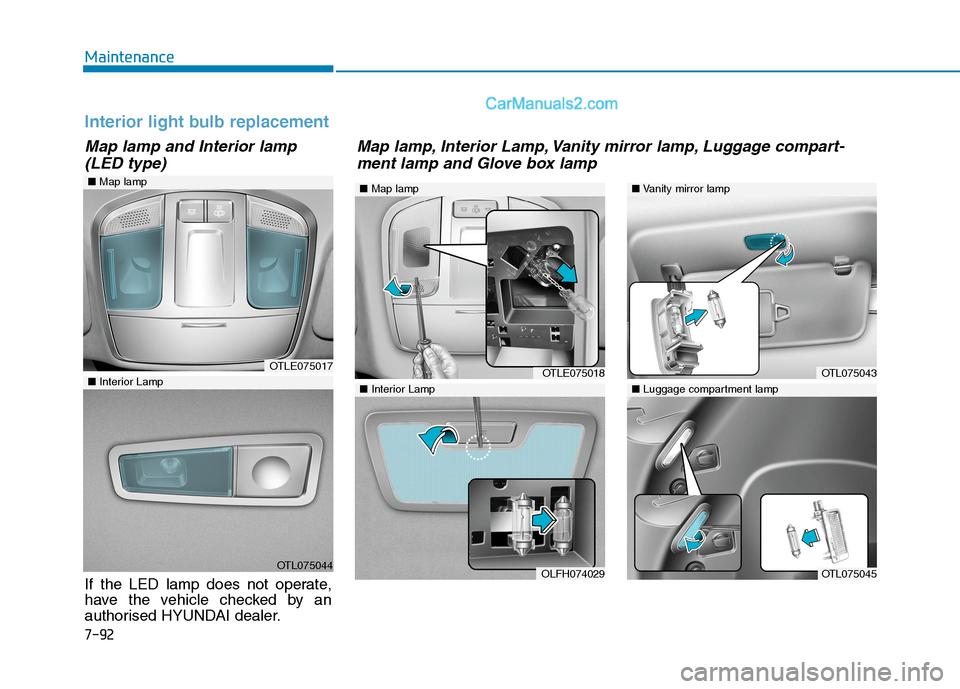

Interior light bulb replacement
Map lamp and Interior lamp
(LED type)Map lamp, Interior Lamp, Vanity mirror lamp, Luggage compart-
ment lamp and Glove box lamp
If the LED lamp does not operate,
have the vehicle checked by an
authorised HYUNDAI dealer.

7-93
7
Maintenance

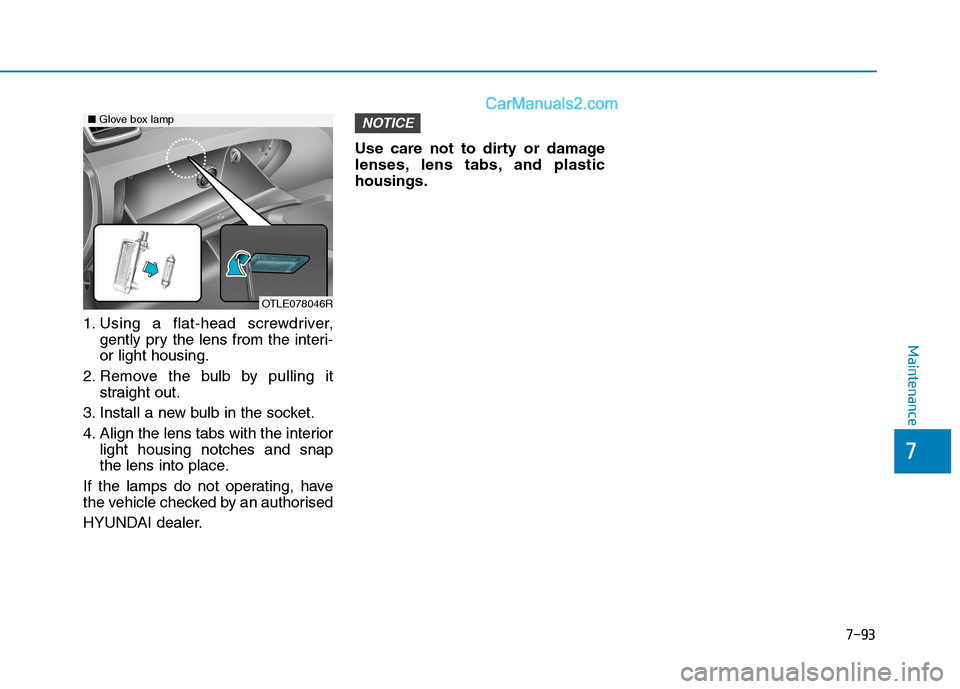

1. Using a flat-head screwdriver,
gently pry the lens from the interi-
or light housing.
2. Remove the bulb by pulling it
straight out.
3. Install a new bulb in the socket.
4. Align the lens tabs with the interior
light housing notches and snap
the lens into place.
If the lamps do not operating, have
the vehicle checked by an authorised
HYUNDAI dealer.Use care not to dirty or damage
lenses, lens tabs, and plastic
housings.
NOTICE
OTLE078046R
■Glove box lamp

7-94
Maintenance
A AP
PP
PE
EA
AR
RA
AN
NC
CE
E
C
CA
AR
RE
E

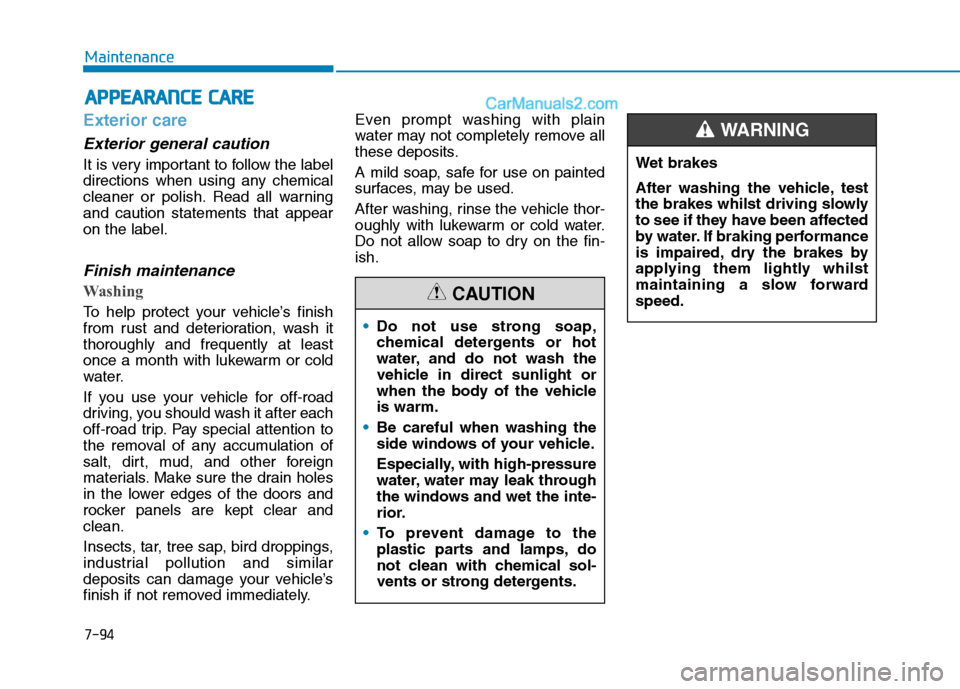

Exterior care
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning
and caution statements that appear
on the label.
Finish maintenance
Washing
To help protect your vehicle’s finish
from rust and deterioration, wash it
thoroughly and frequently at least
once a month with lukewarm or cold
water.
If you use your vehicle for off-road
driving, you should wash it after each
off-road trip. Pay special attention to
the removal of any accumulation of
salt, dirt, mud, and other foreign
materials. Make sure the drain holes
in the lower edges of the doors and
rocker panels are kept clear and
clean.
Insects, tar, tree sap, bird droppings,
industrial pollution and similar
deposits can damage your vehicle’s
finish if not removed immediately.Even prompt washing with plain
water may not completely remove all
these deposits.
A mild soap, safe for use on painted
surfaces, may be used.
After washing, rinse the vehicle thor-
oughly with lukewarm or cold water.
Do not allow soap to dry on the fin-
ish.
Do not use strong soap,
chemical detergents or hot
water, and do not wash the
vehicle in direct sunlight or
when the body of the vehicle
is warm.
Be careful when washing the
side windows of your vehicle.
Especially, with high-pressure
water, water may leak through
the windows and wet the inte-
rior.
To prevent damage to the
plastic parts and lamps, do
not clean with chemical sol-
vents or strong detergents.
CAUTION
Wet brakes
After washing the vehicle, test
the brakes whilst driving slowly
to see if they have been affected
by water. If braking performance
is impaired, dry the brakes by
applying them lightly whilst
maintaining a slow forward
speed.
WARNING
