HYUNDAI VELOSTER N 2022 Owners Manual

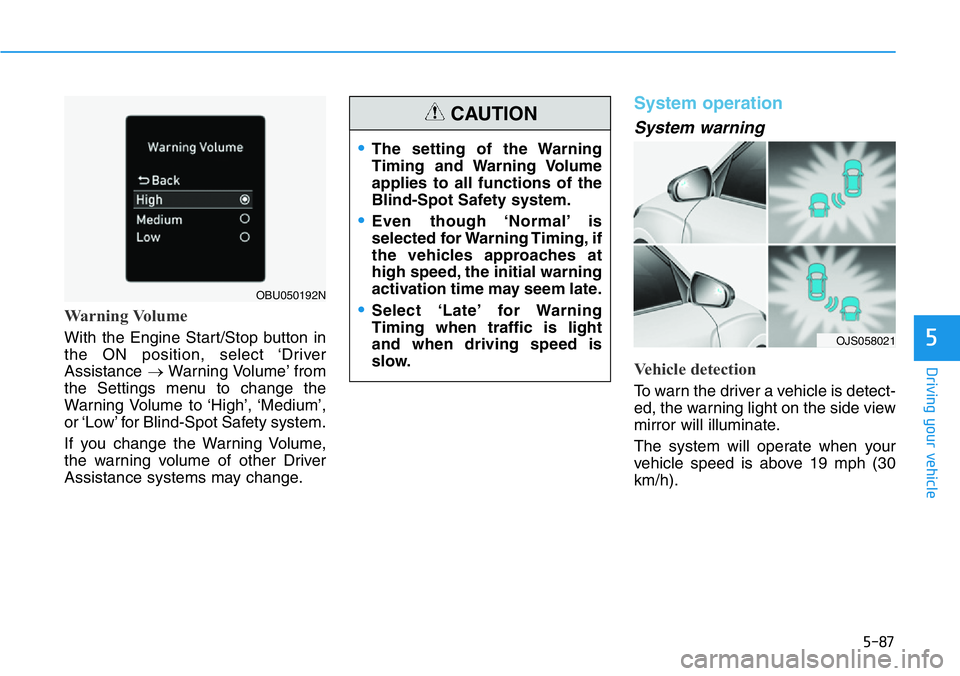

5-87
Driving your vehicle
5
Warning Volume
With the Engine Start/Stop button in
the ON position, select ‘Driver
Assistance →Warning Volume’ from
the Settings menu to change the
Warning Volume to ‘High’, ‘Medium’,
or ‘Low’ for Blind-Spot Safety system.
If you change the Warning Volume,
the warning volume of other Driver
Assistance systems may change.
System operation
System warning
Vehicle detection
To warn the driver a vehicle is detect-
ed, the warning light on the side view
mirror will illuminate.
The system will operate when your
vehicle speed is above 19 mph (30
km/h).
OBU050192N
•The setting of the Warning
Timing and Warning Volume
applies to all functions of the
Blind-Spot Safety system.
•Even though ‘Normal’ is
selected for Warning Timing, if
the vehicles approaches at
high speed, the initial warning
activation time may seem late.
•Select ‘Late’ for Warning
Timing when traffic is light
and when driving speed is
slow.
CAUTION
OJS058021

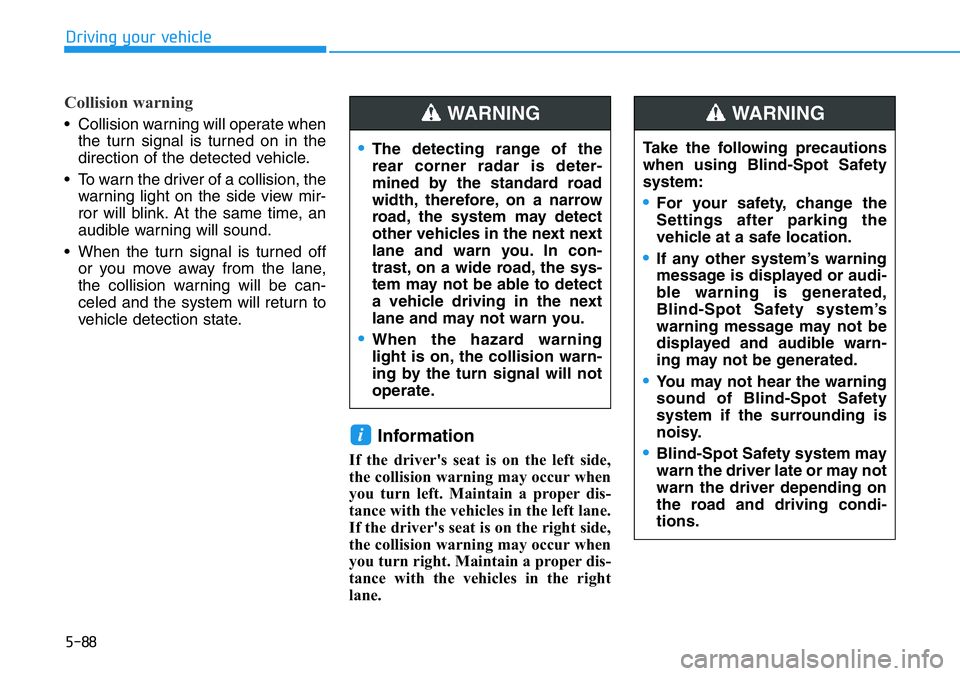

5-88
Driving your vehicle
Collision warning
• Collision warning will operate when
the turn signal is turned on in the
direction of the detected vehicle.
• To warn the driver of a collision, the
warning light on the side view mir-
ror will blink. At the same time, an
audible warning will sound.
• When the turn signal is turned off
or you move away from the lane,
the collision warning will be can-
celed and the system will return to
vehicle detection state.
Information
If the driver's seat is on the left side,
the collision warning may occur when
you turn left. Maintain a proper dis-
tance with the vehicles in the left lane.
If the driver's seat is on the right side,
the collision warning may occur when
you turn right. Maintain a proper dis-
tance with the vehicles in the right
lane.
i
•The detecting range of the
rear corner radar is deter-
mined by the standard road
width, therefore, on a narrow
road, the system may detect
other vehicles in the next next
lane and warn you. In con-
trast, on a wide road, the sys-
tem may not be able to detect
a vehicle driving in the next
lane and may not warn you.
•When the hazard warning
light is on, the collision warn-
ing by the turn signal will not
operate.
WARNING
Take the following precautions
when using Blind-Spot Safety
system:
•For your safety, change the
Settings after parking the
vehicle at a safe location.
•If any other system’s warning
message is displayed or audi-
ble warning is generated,
Blind-Spot Safety system’s
warning message may not be
displayed and audible warn-
ing may not be generated.
•You may not hear the warning
sound of Blind-Spot Safety
system if the surrounding is
noisy.
•Blind-Spot Safety system may
warn the driver late or may not
warn the driver depending on
the road and driving condi-
tions.
WARNING

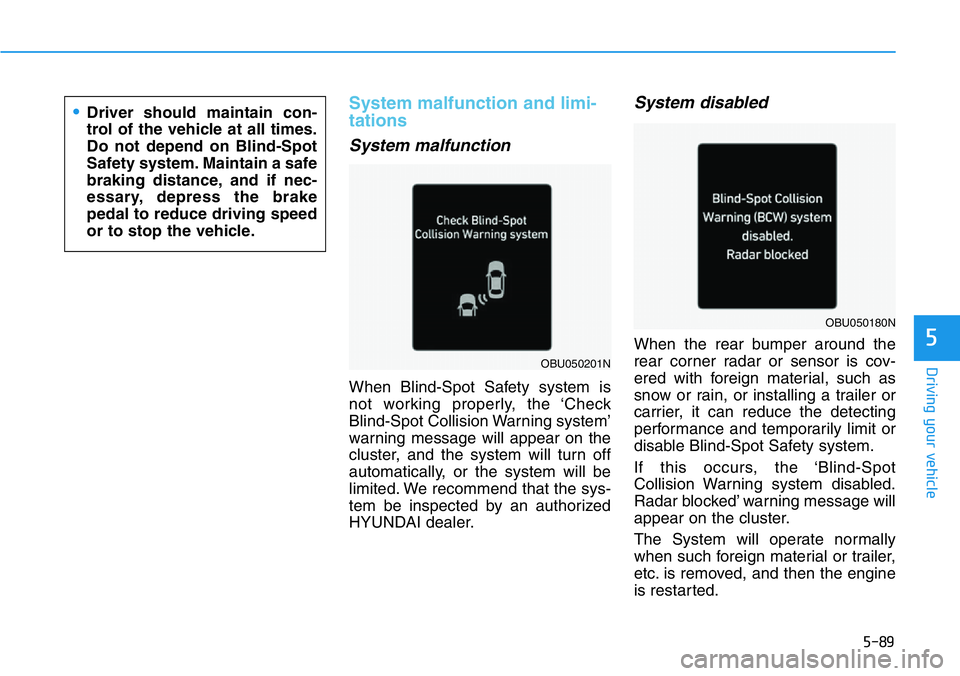

5-89
Driving your vehicle
5
System malfunction and limi-
tations
System malfunction
When Blind-Spot Safety system is
not working properly, the ‘Check
Blind-Spot Collision Warning system’
warning message will appear on the
cluster, and the system will turn off
automatically, or the system will be
limited. We recommend that the sys-
tem be inspected by an authorized
HYUNDAI dealer.
System disabled
When the rear bumper around the
rear corner radar or sensor is cov-
ered with foreign material, such as
snow or rain, or installing a trailer or
carrier, it can reduce the detecting
performance and temporarily limit or
disable Blind-Spot Safety system.
If this occurs, the ‘Blind-Spot
Collision Warning system disabled.
Radar blocked’ warning message will
appear on the cluster.
The System will operate normally
when such foreign material or trailer,
etc. is removed, and then the engine
is restarted.
•Driver should maintain con-
trol of the vehicle at all times.
Do not depend on Blind-Spot
Safety system. Maintain a safe
braking distance, and if nec-
essary, depress the brake
pedal to reduce driving speed
or to stop the vehicle.
OBU050201N
OBU050180N

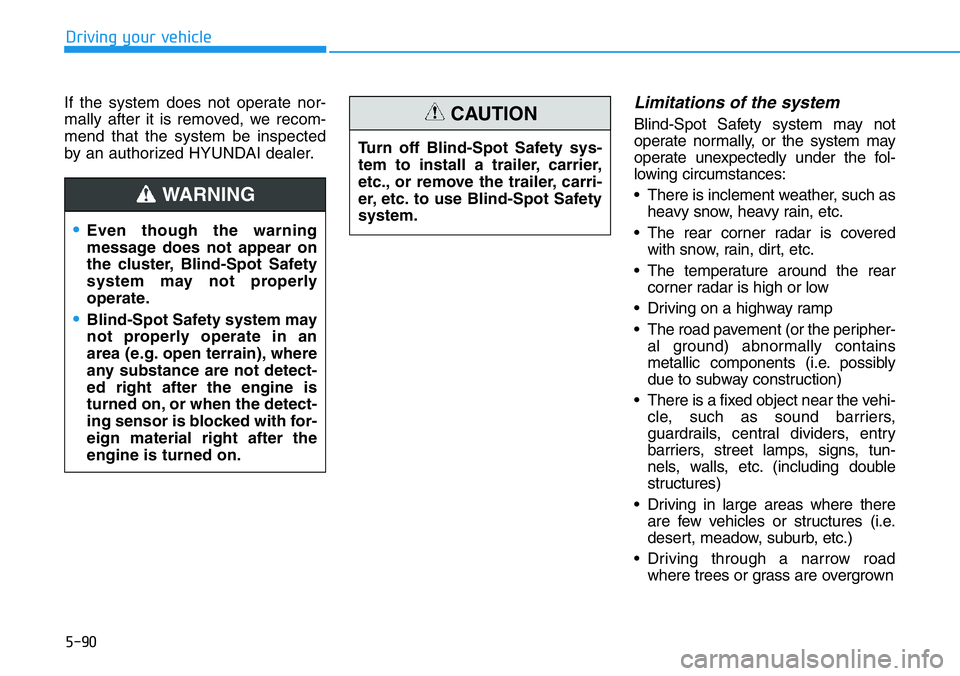

5-90
Driving your vehicle
If the system does not operate nor-
mally after it is removed, we recom-
mend that the system be inspected
by an authorized HYUNDAI dealer.
Limitations of the system
Blind-Spot Safety system may not
operate normally, or the system may
operate unexpectedly under the fol-
lowing circumstances:
• There is inclement weather, such as
heavy snow, heavy rain, etc.
• The rear corner radar is covered
with snow, rain, dirt, etc.
• The temperature around the rear
corner radar is high or low
• Driving on a highway ramp
• The road pavement (or the peripher-
al ground) abnormally contains
metallic components (i.e. possibly
due to subway construction)
• There is a fixed object near the vehi-
cle, such as sound barriers,
guardrails, central dividers, entry
barriers, street lamps, signs, tun-
nels, walls, etc. (including double
structures)
• Driving in large areas where there
are few vehicles or structures (i.e.
desert, meadow, suburb, etc.)
• Driving through a narrow road
where trees or grass are overgrown
•Even though the warning
message does not appear on
the cluster, Blind-Spot Safety
system may not properly
operate.
•Blind-Spot Safety system may
not properly operate in an
area (e.g. open terrain), where
any substance are not detect-
ed right after the engine is
turned on, or when the detect-
ing sensor is blocked with for-
eign material right after the
engine is turned on.
WARNING
Turn off Blind-Spot Safety sys-
tem to install a trailer, carrier,
etc., or remove the trailer, carri-
er, etc. to use Blind-Spot Safety
system.
CAUTION

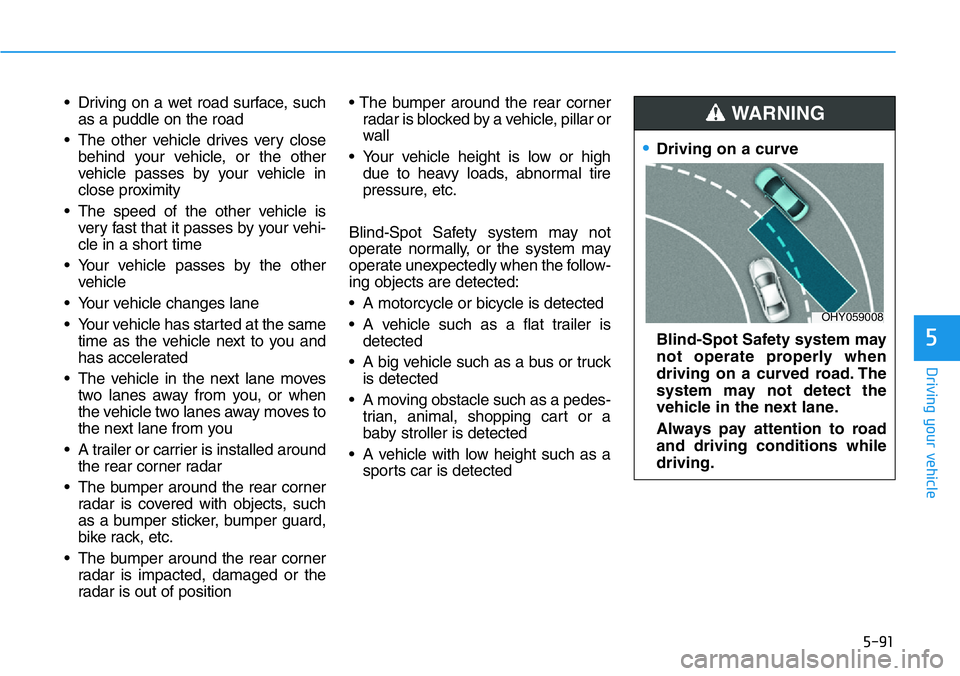

5-91
Driving your vehicle
5
• Driving on a wet road surface, such
as a puddle on the road
• The other vehicle drives very close
behind your vehicle, or the other
vehicle passes by your vehicle in
close proximity
• The speed of the other vehicle is
very fast that it passes by your vehi-
cle in a short time
• Your vehicle passes by the other
vehicle
• Your vehicle changes lane
• Your vehicle has started at the same
time as the vehicle next to you and
has accelerated
• The vehicle in the next lane moves
two lanes away from you, or when
the vehicle two lanes away moves to
the next lane from you
• A trailer or carrier is installed around
the rear corner radar
• The bumper around the rear corner
radar is covered with objects, such
as a bumper sticker, bumper guard,
bike rack, etc.
• The bumper around the rear corner
radar is impacted, damaged or the
radar is out of position• The bumper around the rear corner
radar is blocked by a vehicle, pillar or
wall
• Your vehicle height is low or high
due to heavy loads, abnormal tire
pressure, etc.
Blind-Spot Safety system may not
operate normally, or the system may
operate unexpectedly when the follow-
ing objects are detected:
• A motorcycle or bicycle is detected
• A vehicle such as a flat trailer is
detected
• A big vehicle such as a bus or truck
is detected
• A moving obstacle such as a pedes-
trian, animal, shopping cart or a
baby stroller is detected
• A vehicle with low height such as a
sports car is detected
•Driving on a curve
Blind-Spot Safety system may
not operate properly when
driving on a curved road. The
system may not detect the
vehicle in the next lane.
Always pay attention to road
and driving conditions while
driving.
WARNING
OHY059008

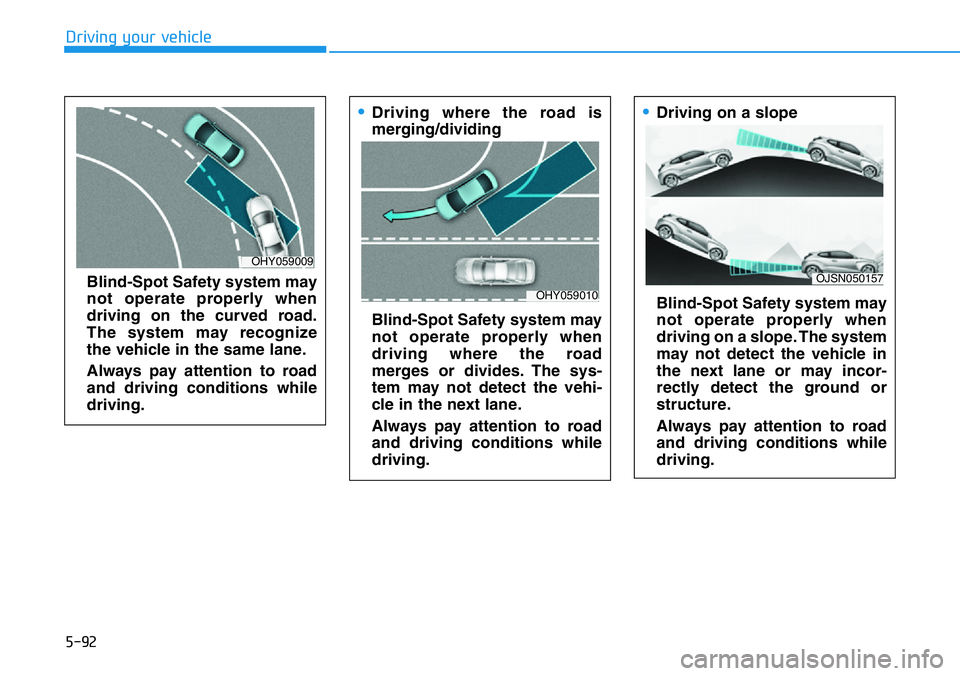

5-92
Driving your vehicle
Blind-Spot Safety system may
not operate properly when
driving on the curved road.
The system may recognize
the vehicle in the same lane.
Always pay attention to road
and driving conditions while
driving.
•Driving where the road is
merging/dividing
Blind-Spot Safety system may
not operate properly when
driving where the road
merges or divides. The sys-
tem may not detect the vehi-
cle in the next lane.
Always pay attention to road
and driving conditions while
driving.
OHY059009
OHY059010
•Driving on a slope
Blind-Spot Safety system may
not operate properly when
driving on a slope. The system
may not detect the vehicle in
the next lane or may incor-
rectly detect the ground or
structure.
Always pay attention to road
and driving conditions while
driving.
OJSN050157

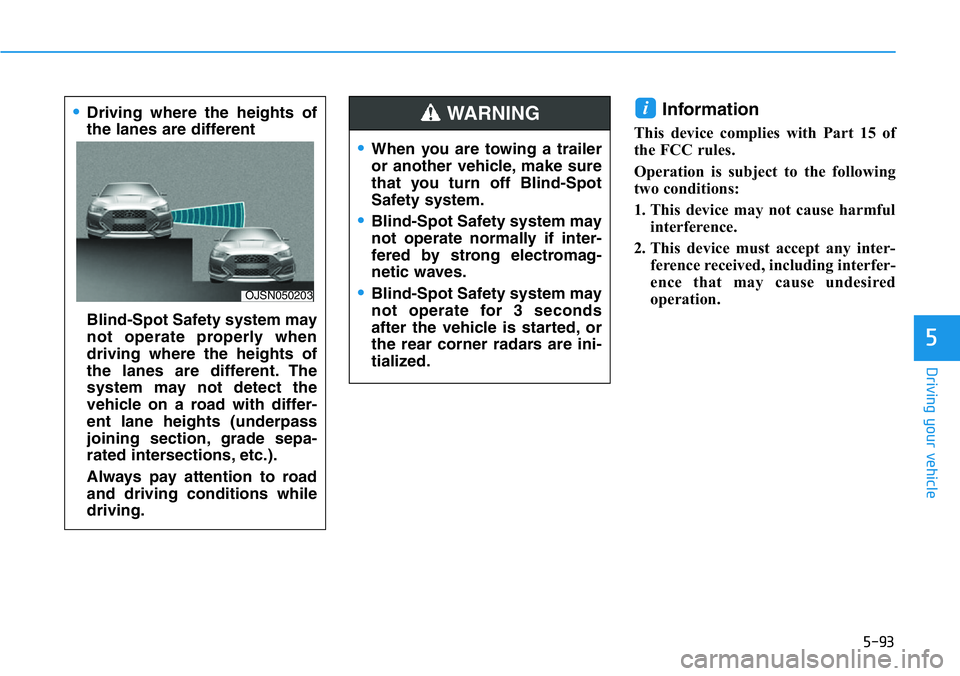

5-93
Driving your vehicle
5
Information
This device complies with Part 15 of
the FCC rules.
Operation is subject to the following
two conditions:
1. This device may not cause harmful
interference.
2. This device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
i•Driving where the heights of
the lanes are different
Blind-Spot Safety system may
not operate properly when
driving where the heights of
the lanes are different. The
system may not detect the
vehicle on a road with differ-
ent lane heights (underpass
joining section, grade sepa-
rated intersections, etc.).
Always pay attention to road
and driving conditions while
driving.
OJSN050203
•When you are towing a trailer
or another vehicle, make sure
that you turn off Blind-Spot
Safety system.
•Blind-Spot Safety system may
not operate normally if inter-
fered by strong electromag-
netic waves.
•Blind-Spot Safety system may
not operate for 3 seconds
after the vehicle is started, or
the rear corner radars are ini-
tialized.
WARNING

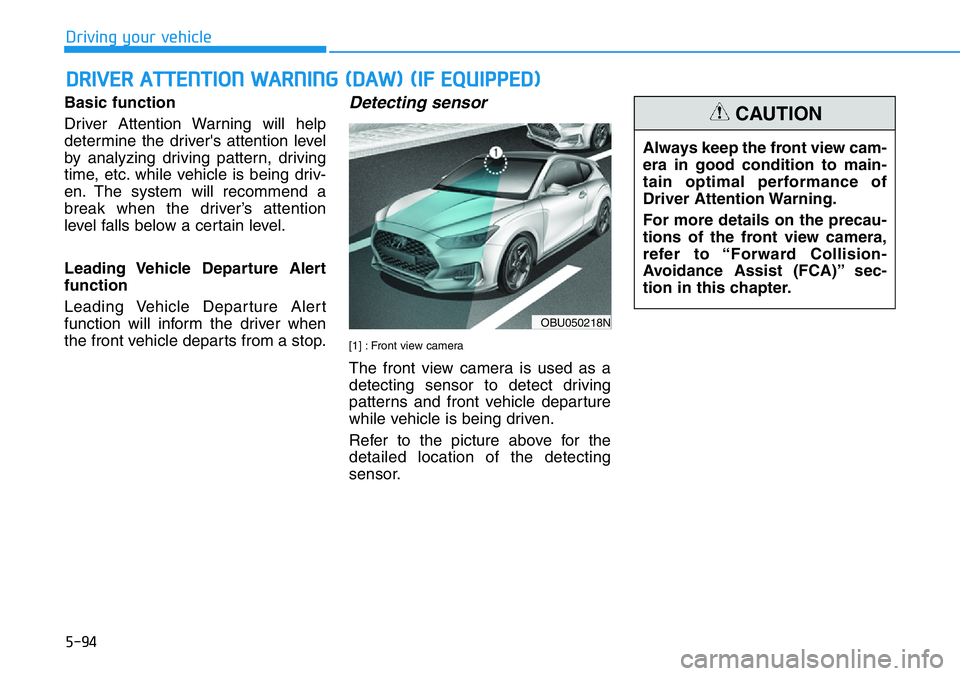

5-94
Driving your vehicle
Basic function
Driver Attention Warning will help
determine the driver's attention level
by analyzing driving pattern, driving
time, etc. while vehicle is being driv-
en. The system will recommend a
break when the driver’s attention
level falls below a certain level.
Leading Vehicle Departure Alert
function
Leading Vehicle Departure Alert
function will inform the driver when
the front vehicle departs from a stop.
Detecting sensor
[1] : Front view camera
The front view camera is used as a
detecting sensor to detect driving
patterns and front vehicle departure
while vehicle is being driven.
Refer to the picture above for the
detailed location of the detecting
sensor.
DRIVER ATTENTION WARNING (DAW) (IF EQUIPPED)
OBU050218N
Always keep the front view cam-
era in good condition to main-
tain optimal performance of
Driver Attention Warning.
For more details on the precau-
tions of the front view camera,
refer to “Forward Collision-
Avoidance Assist (FCA)” sec-
tion in this chapter.
CAUTION

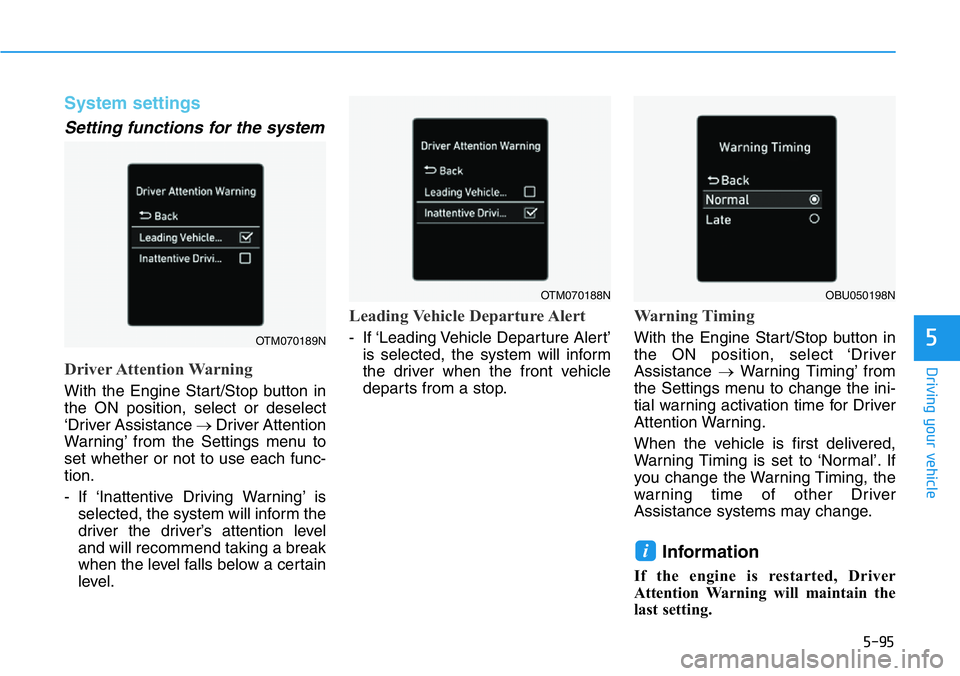

5-95
Driving your vehicle
5
System settings
Setting functions for the system
Driver Attention Warning
With the Engine Start/Stop button in
the ON position, select or deselect
‘Driver Assistance →Driver Attention
Warning’ from the Settings menu to
set whether or not to use each func-
tion.
- If ‘Inattentive Driving Warning’ is
selected, the system will inform the
driver the driver’s attention level
and will recommend taking a break
when the level falls below a certain
level.
Leading Vehicle Departure Alert
- If ‘Leading Vehicle Departure Alert’
is selected, the system will inform
the driver when the front vehicle
departs from a stop.
Warning Timing
With the Engine Start/Stop button in
the ON position, select ‘Driver
Assistance →Warning Timing’ from
the Settings menu to change the ini-
tial warning activation time for Driver
Attention Warning.
When the vehicle is first delivered,
Warning Timing is set to ‘Normal’. If
you change the Warning Timing, the
warning time of other Driver
Assistance systems may change.
Information
If the engine is restarted, Driver
Attention Warning will maintain the
last setting.
i
OTM070189N
OTM070188NOBU050198N

5-96
Driving your vehicle
System operation
Basic function
System display and warning
The basic function of Driver Attention
Warning is to inform the driver the
‘Attention Level’ and to warn the driv-
er to ‘Consider taking a break’.Attention level
• The driver can monitor his/her driv-
ing conditions on the cluster.
- When the ‘Inattentive Driving
Warning’ is deselected from the
Settings menu, ‘System Off’ is
displayed.- The system will operate when
vehicle speed is between 0~110
mph (0~180 km/h).
- When vehicle speed is not within
the operating speed, the mes-
sage ‘Standby’ will be displayed.
- The driver’s attention level is dis-
played on the scale of 1 to 5. The
lower the level is, the more inat-
tentive the driver is.
- The level decreases when the
driver does not take a break for a
certain period of time.
OBU050225N
OBU050182N/OBU050184N
■System off■Standby/Disabled
