Page 341 of 429

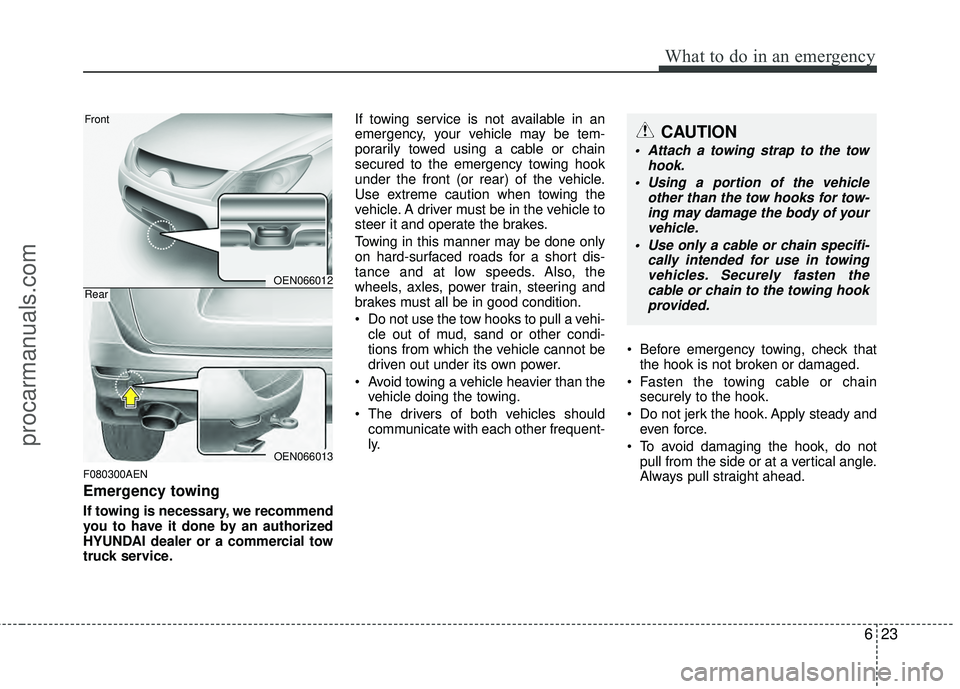

HYUNDAI VERACRUZ 2012  Owners Manual 623
What to do in an emergency
F080300AEN
Emergency towing
If towing is necessary, we recommend
you to have it done by an authorized
HYUNDAI dealer or a commercial tow
truck service.If towing service

Page 342 of 429

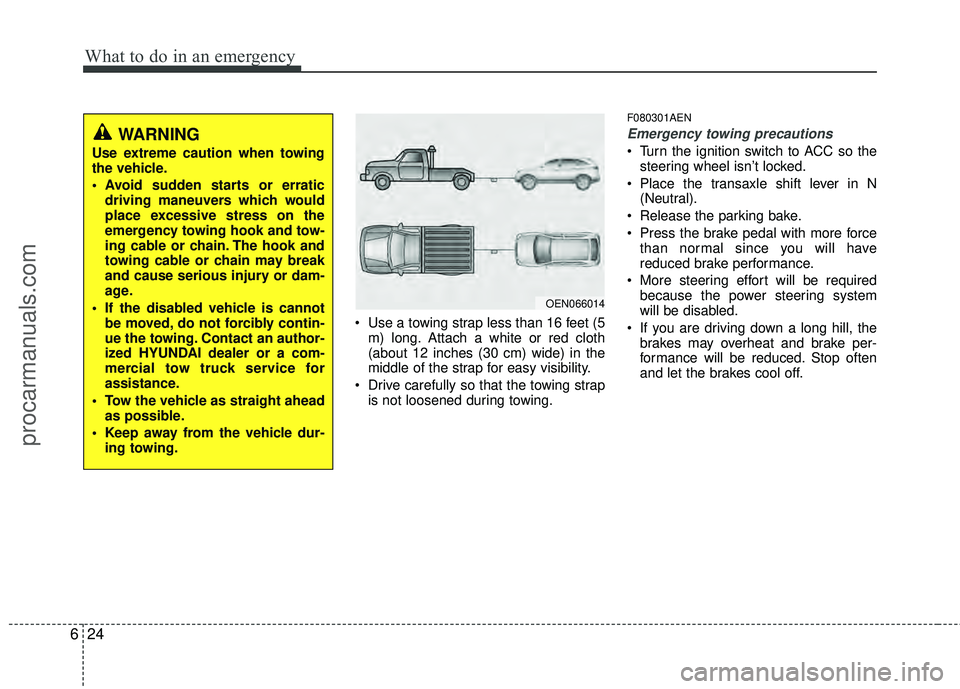

HYUNDAI VERACRUZ 2012  Owners Manual What to do in an emergency
24
6
 Use a towing strap less than 16 feet (5
m) long. Attach a white or red cloth
(about 12 inches (30 cm) wide) in the
middle of the strap for easy visibility.
 Drive care

Page 343 of 429

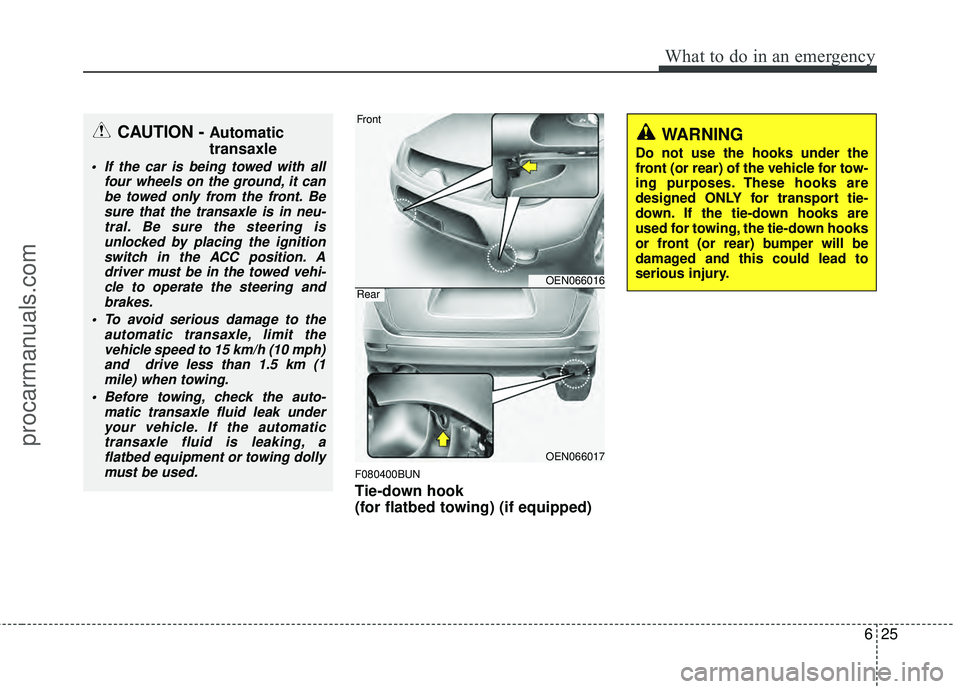

HYUNDAI VERACRUZ 2012  Owners Manual 625
What to do in an emergency
F080400BUN
Tie-down hook
(for flatbed towing) (if equipped)
CAUTION - Automatic
transaxle
 If the car is being towed with allfour wheels on the ground, it canbe towed o

Page 344 of 429

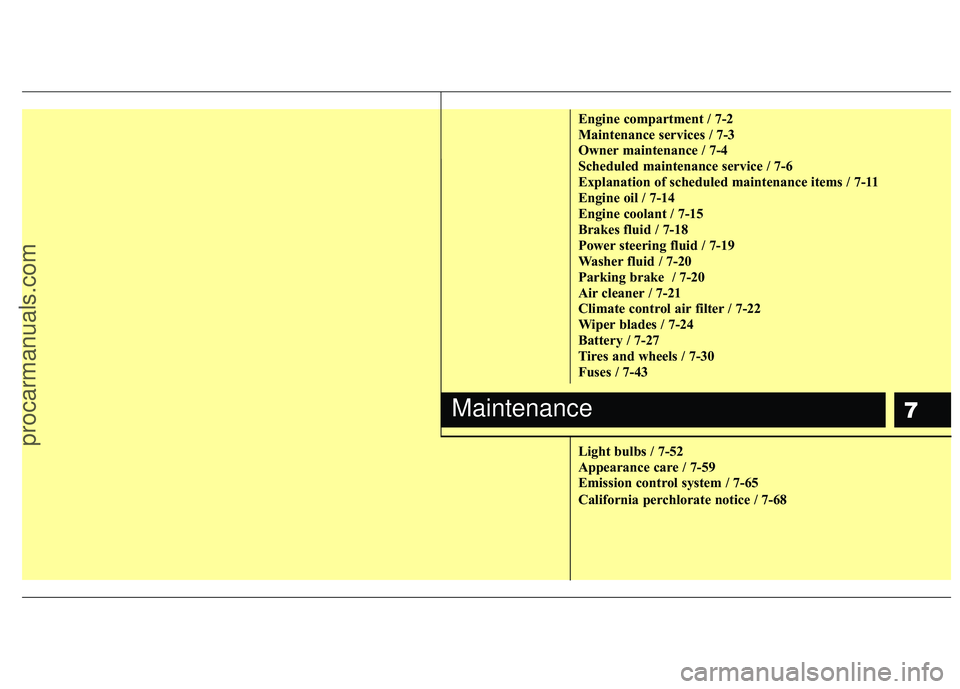

HYUNDAI VERACRUZ 2012  Owners Manual 7
Engine compartment / 7-2
Maintenance services / 7-3
Owner maintenance / 7-4
Scheduled maintenance service / 7-6
Explanation of scheduled maintenance items / 7-11
Engine oil / 7-14
Engine coolant / 7

Page 345 of 429

HYUNDAI VERACRUZ 2012  Owners Manual Maintenance
27

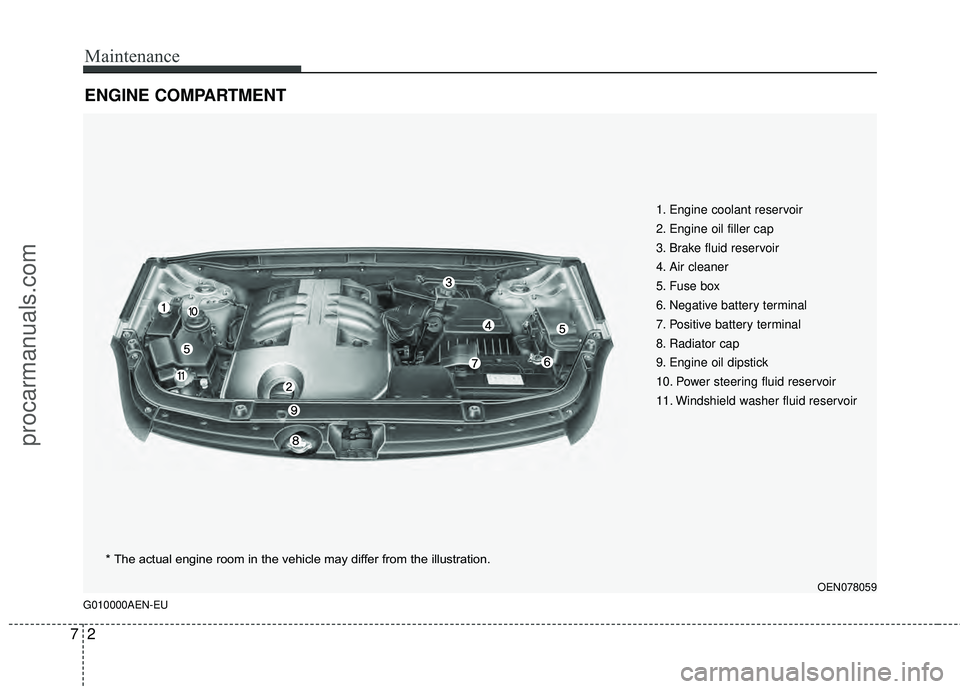

ENGINE COMPARTMENT
G010000AEN-EU
OEN078059
1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Air cleaner
5. Fuse box
6. Negative battery terminal
7. Posi

Page 346 of 429

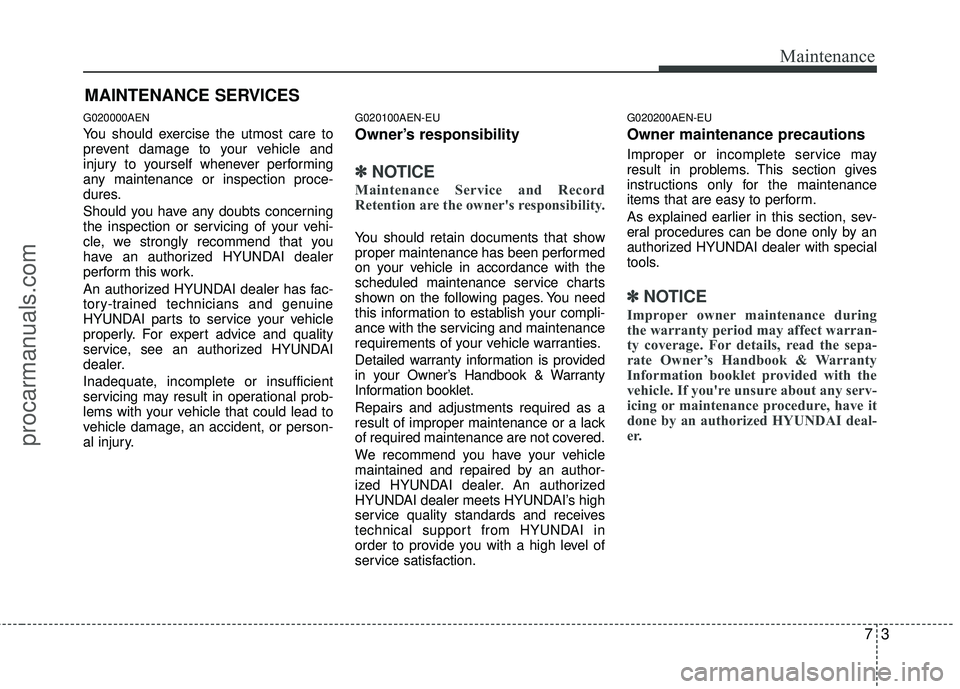

HYUNDAI VERACRUZ 2012  Owners Manual 73
Maintenance
MAINTENANCE SERVICES
G020000AEN
You should exercise the utmost care to
prevent damage to your vehicle and
injury to yourself whenever performing
any maintenance or inspection proce-
dur

Page 347 of 429

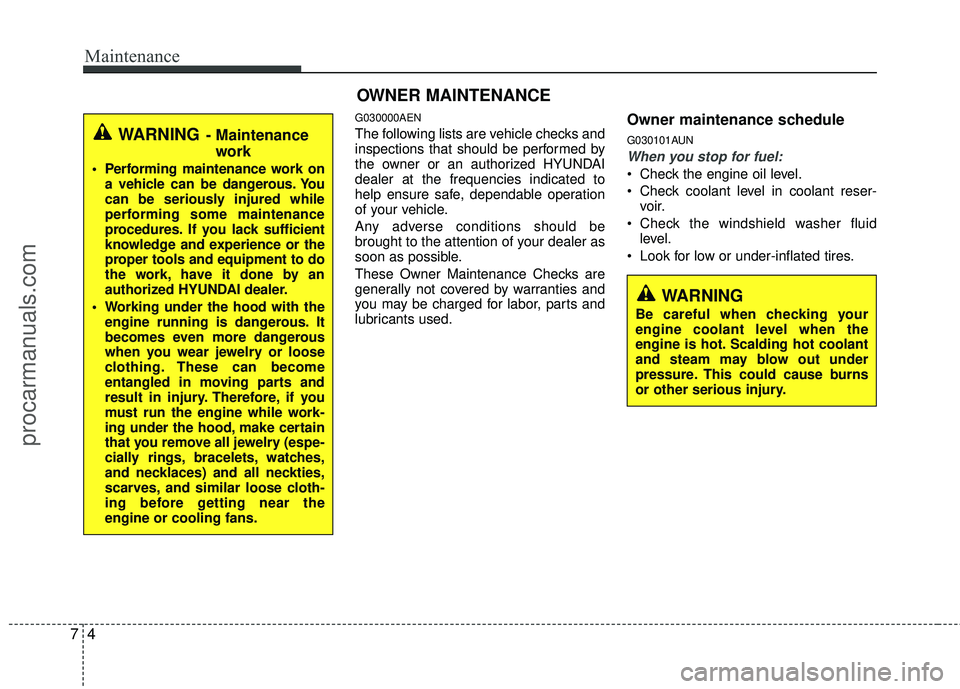

HYUNDAI VERACRUZ 2012  Owners Manual Maintenance
47
WARNING
Be careful when checking your
engine coolant level when the
engine is hot. Scalding hot coolant
and steam may blow out under
pressure. This could cause burns
or other serious i

Page 348 of 429

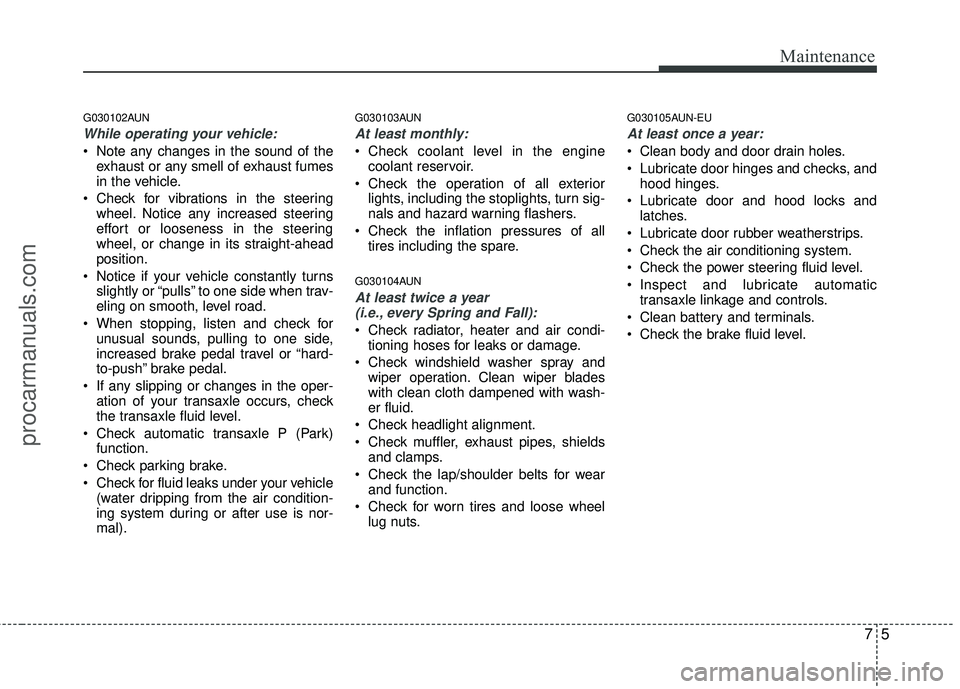

HYUNDAI VERACRUZ 2012  Owners Manual 75
Maintenance
G030102AUN
While operating your vehicle:
 Note any changes in the sound of theexhaust or any smell of exhaust fumes
in the vehicle.
 Check for vibrations in the steering wheel. Notice a

Page 349 of 429

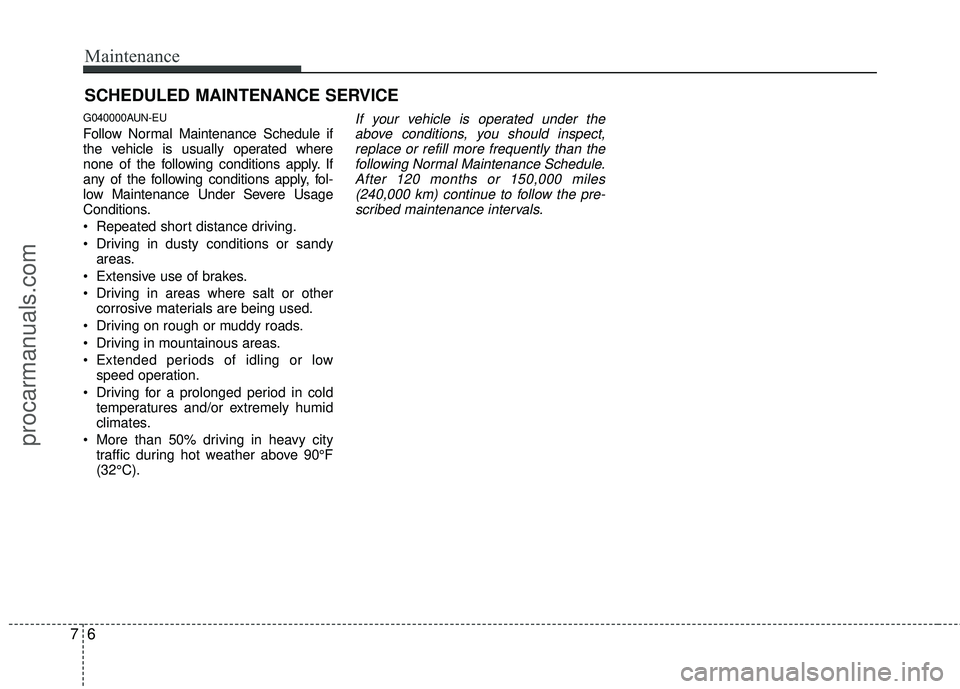

HYUNDAI VERACRUZ 2012  Owners Manual Maintenance
67
SCHEDULED MAINTENANCE SERVICE
G040000AUN-EU
Follow Normal Maintenance Schedule if
the vehicle is usually operated where
none of the following conditions apply. If
any of the following

Page 350 of 429

HYUNDAI VERACRUZ 2012  Owners Manual 77
Maintenance
G040100AEN-EU
NORMAL MAINTENANCE SCHEDULE
The following maintenance services must be performed to ensure good emission control and performance. Keep receipts for all
vehicle emission se
