Page 361 of 429

HYUNDAI VERACRUZ 2012  Owners Manual Maintenance
18
7

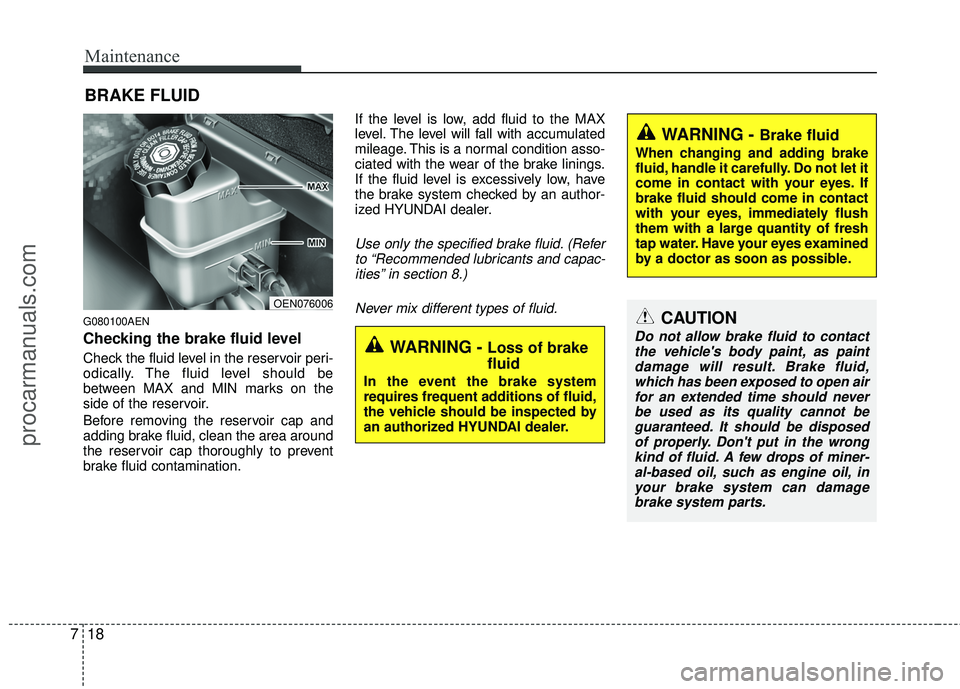

BRAKE FLUID
G080100AEN
Checking the brake fluid level
Check the fluid level in the reservoir peri-
odically. The fluid level should be
between MAX and MIN marks on the
side of the r

Page 362 of 429

HYUNDAI VERACRUZ 2012  Owners Manual 719
Maintenance

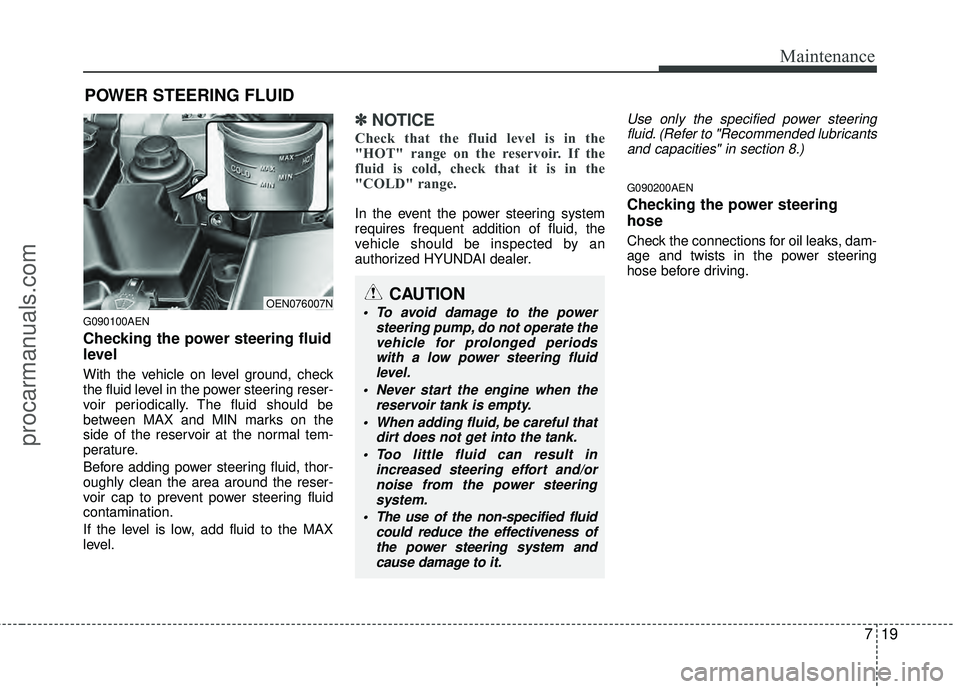

POWER STEERING FLUID
G090100AEN
Checking the power steering fluid
level
With the vehicle on level ground, check
the fluid level in the power steering reser-
voir periodically. The fl

Page 363 of 429

HYUNDAI VERACRUZ 2012  Owners Manual Maintenance
20
7

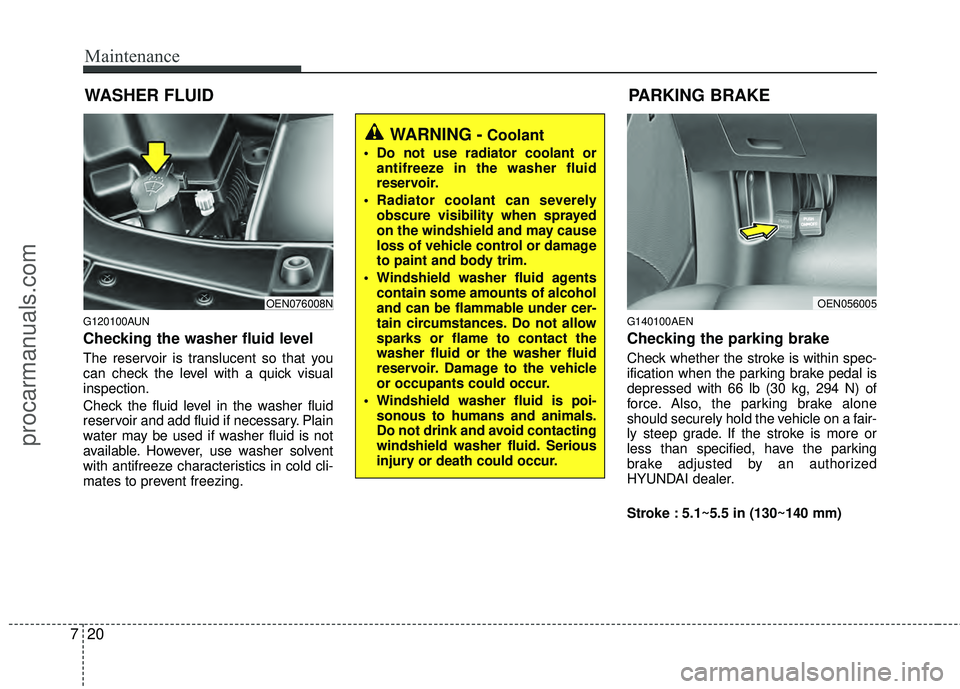

WASHER FLUID
G120100AUN
Checking the washer fluid level
The reservoir is translucent so that you
can check the level with a quick visual
inspection.
Check the fluid level in the was

Page 364 of 429

HYUNDAI VERACRUZ 2012  Owners Manual 721
Maintenance

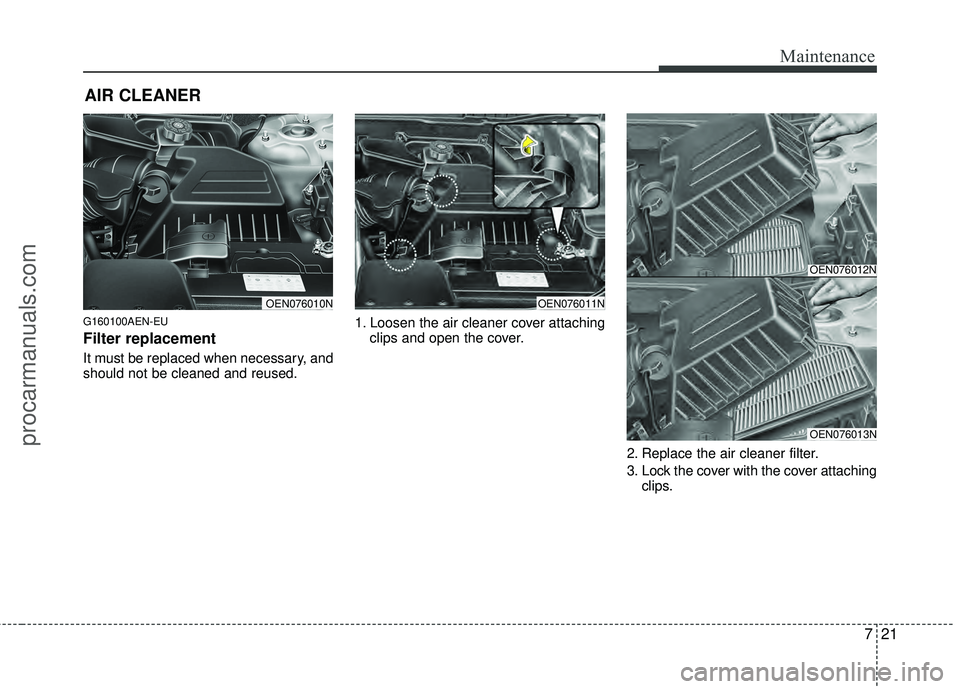

AIR CLEANER
G160100AEN-EU
Filter replacement
It must be replaced when necessary, and
should not be cleaned and reused.1. Loosen the air cleaner cover attaching
clips and open the co

Page 365 of 429

HYUNDAI VERACRUZ 2012  Owners Manual Maintenance
22
7

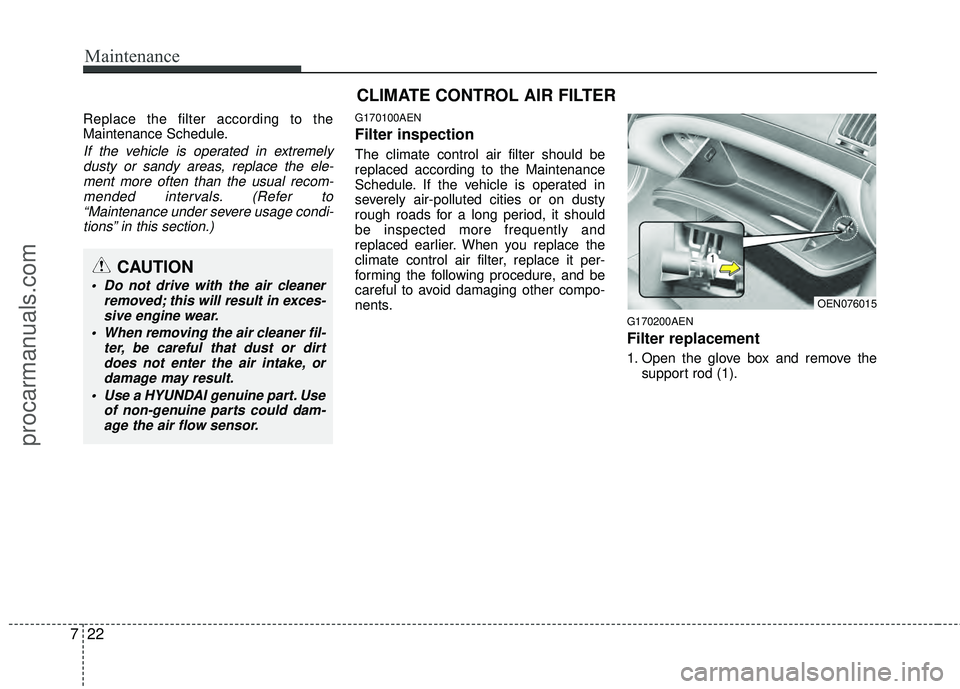

Replace the filter according to the
Maintenance Schedule.
If the vehicle is operated in extremely
dusty or sandy areas, replace the ele-ment more often than the usual recom-mended int

Page 366 of 429

HYUNDAI VERACRUZ 2012  Owners Manual 723
Maintenance

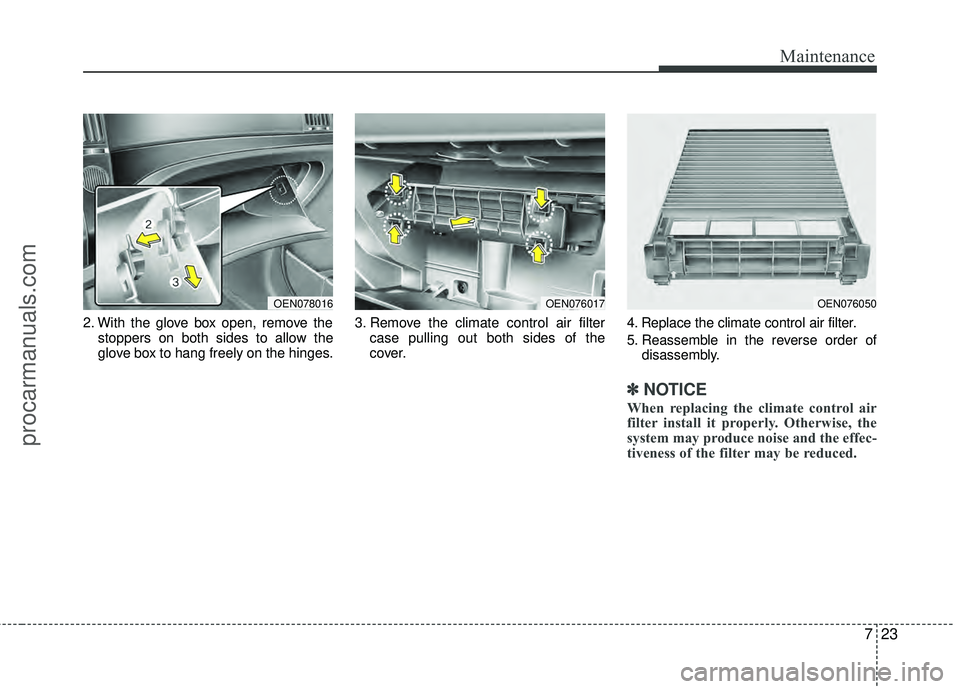

2. With the glove box open, remove thestoppers on both sides to allow the
glove box to hang freely on the hinges. 3. Remove the climate control air filter
case pulling out both sides o

Page 367 of 429

HYUNDAI VERACRUZ 2012  Owners Manual Maintenance
24
7

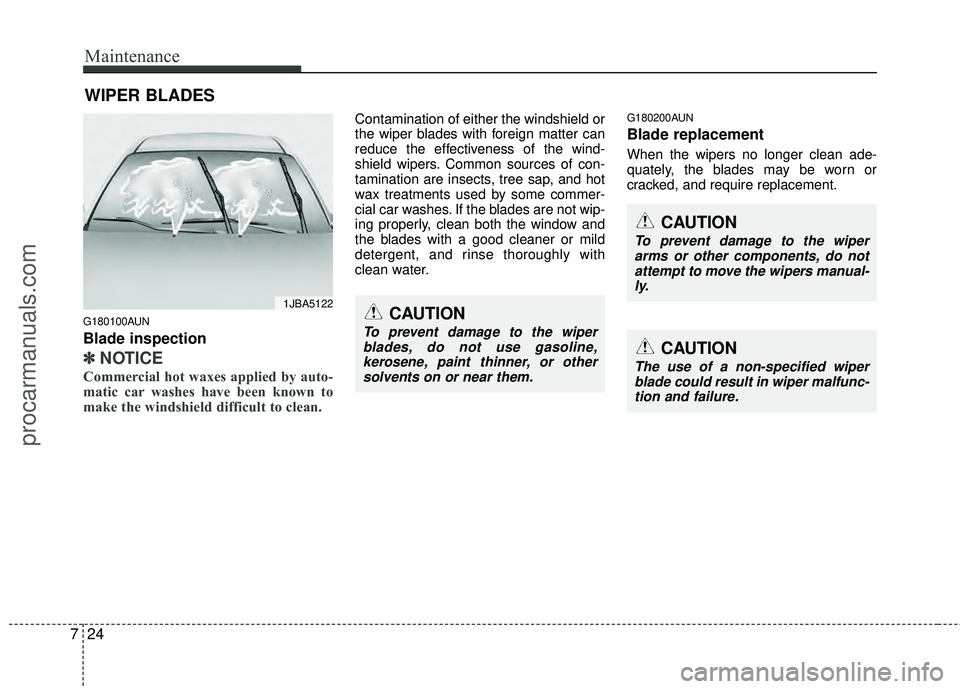

WIPER BLADES
G180100AUN
Blade inspection
✽
✽
NOTICE
Commercial hot waxes applied by auto-
matic car washes have been known to
make the windshield difficult to clean.
Contaminat

Page 368 of 429

HYUNDAI VERACRUZ 2012  Owners Manual 725
Maintenance

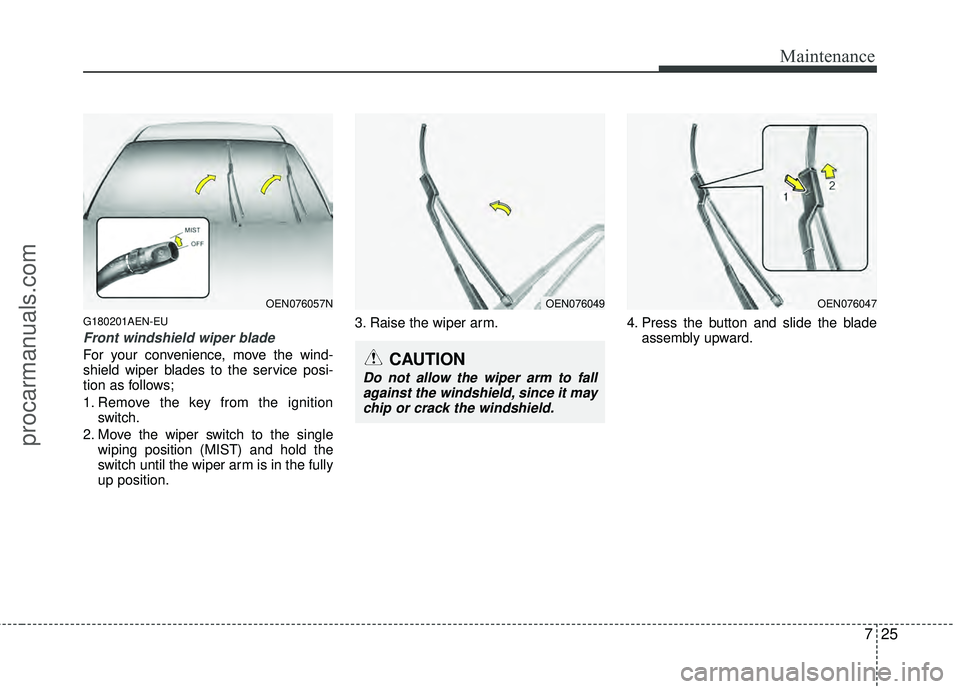

G180201AEN-EU
Front windshield wiper blade
For your convenience, move the wind-
shield wiper blades to the service posi-
tion as follows;
1. Remove the key from the ignitionswitch.
2.

Page 369 of 429

HYUNDAI VERACRUZ 2012  Owners Manual Maintenance
26
7

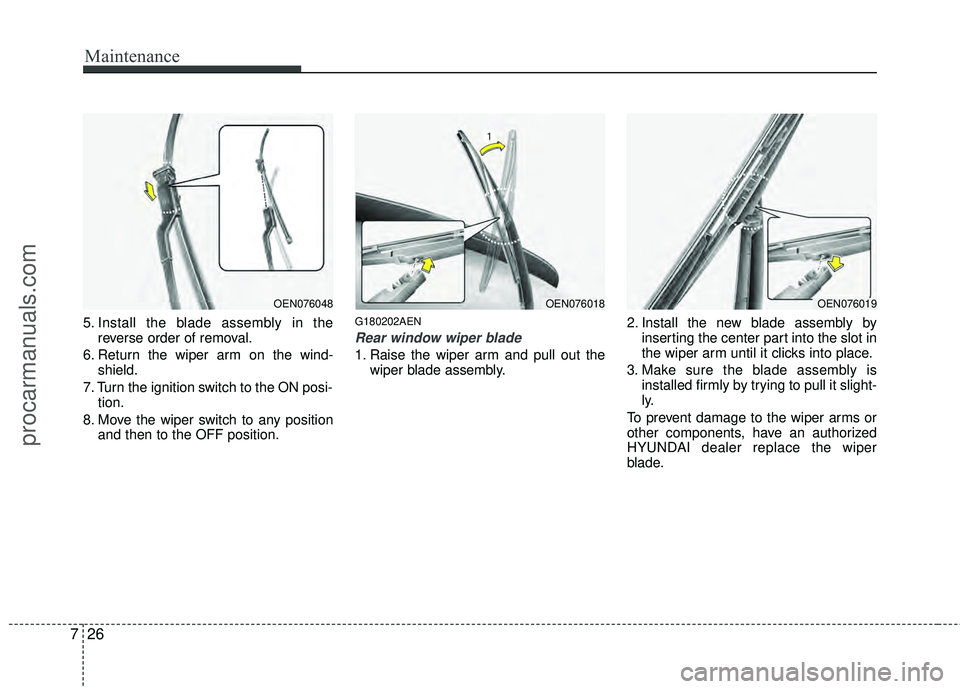

5. Install the blade assembly in the
reverse order of removal.
6. Return the wiper arm on the wind- shield.
7. Turn the ignition switch to the ON posi- tion.
8. Move the wiper switch

Page 370 of 429

HYUNDAI VERACRUZ 2012  Owners Manual 727
Maintenance

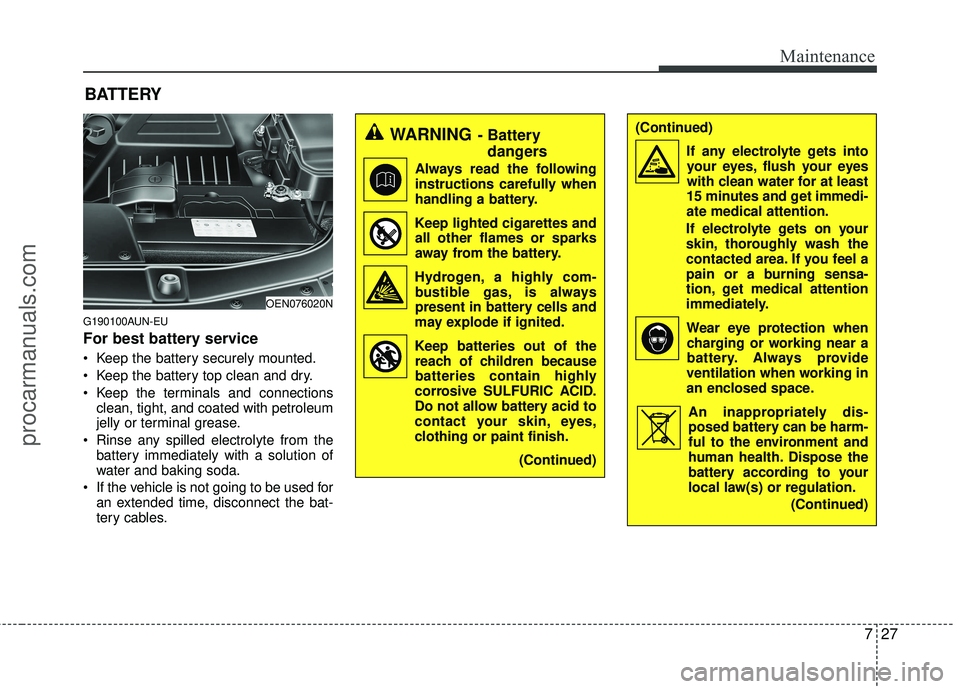

G190100AUN-EU
For best battery service
 Keep the battery securely mounted.
 Keep the battery top clean and dry.
 Keep the terminals and connectionsclean, tight, and coated with petrole
