Page 371 of 429

HYUNDAI VERACRUZ 2012  Owners Manual Maintenance
28
7
G190200AUN

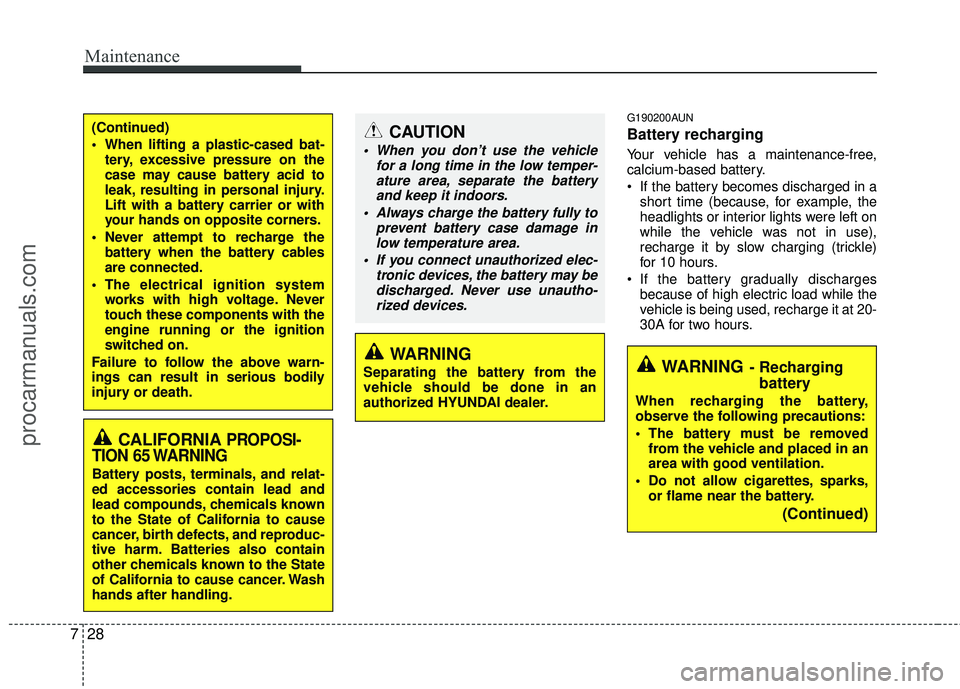

Battery recharging
Your vehicle has a maintenance-free,
calcium-based battery.
 If the battery becomes discharged in a
short time (because, for example, the
headlights or

Page 372 of 429

HYUNDAI VERACRUZ 2012  Owners Manual 729
Maintenance
G190400AEN

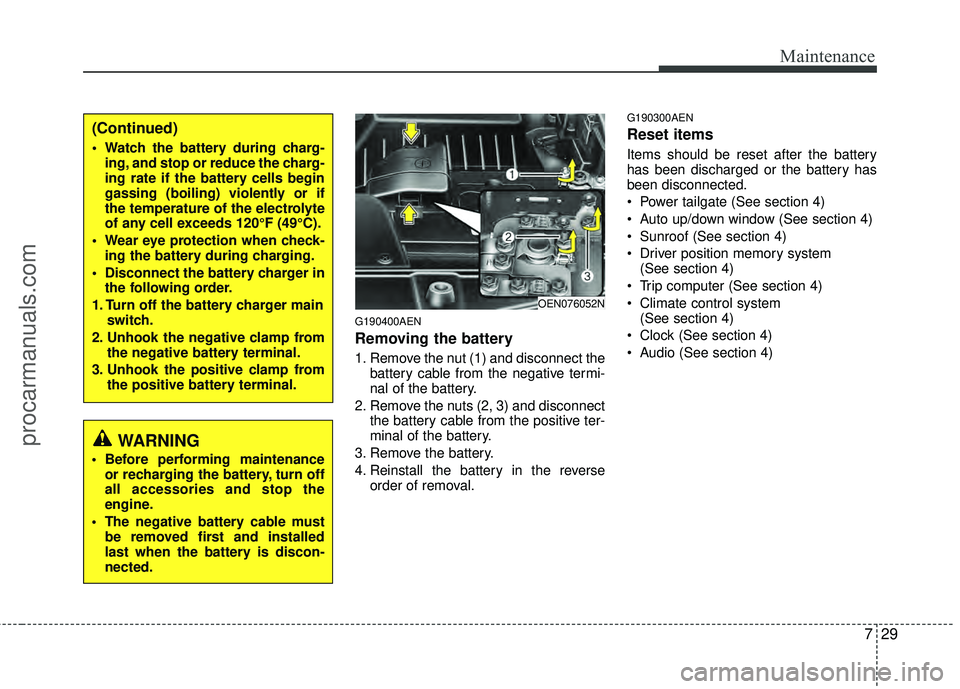

Removing the battery
1. Remove the nut (1) and disconnect thebattery cable from the negative termi-
nal of the battery.
2. Remove the nuts (2, 3) and disconnect the battery

Page 373 of 429

HYUNDAI VERACRUZ 2012  Owners Manual Maintenance
30
7

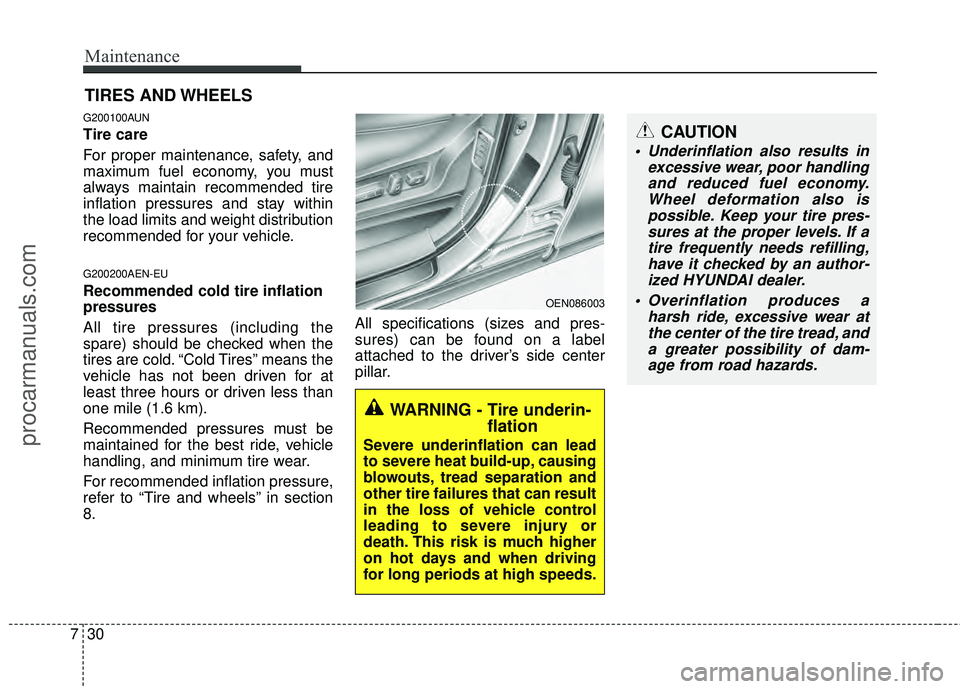

CAUTION
 Underinflation also results in
excessive wear, poor handlingand reduced fuel economy.Wheel deformation also ispossible. Keep your tire pres-sures at the proper levels. If ati

Page 374 of 429

HYUNDAI VERACRUZ 2012  Owners Manual 731
Maintenance
G200300AUN
Checking tire inflation pressure
Check your tires once a month or
more.
Also, check the tire pressure of the
spare tire.
G200301AEN
How to check
Use a good quality gage to c

Page 375 of 429

HYUNDAI VERACRUZ 2012  Owners Manual Maintenance
32
7

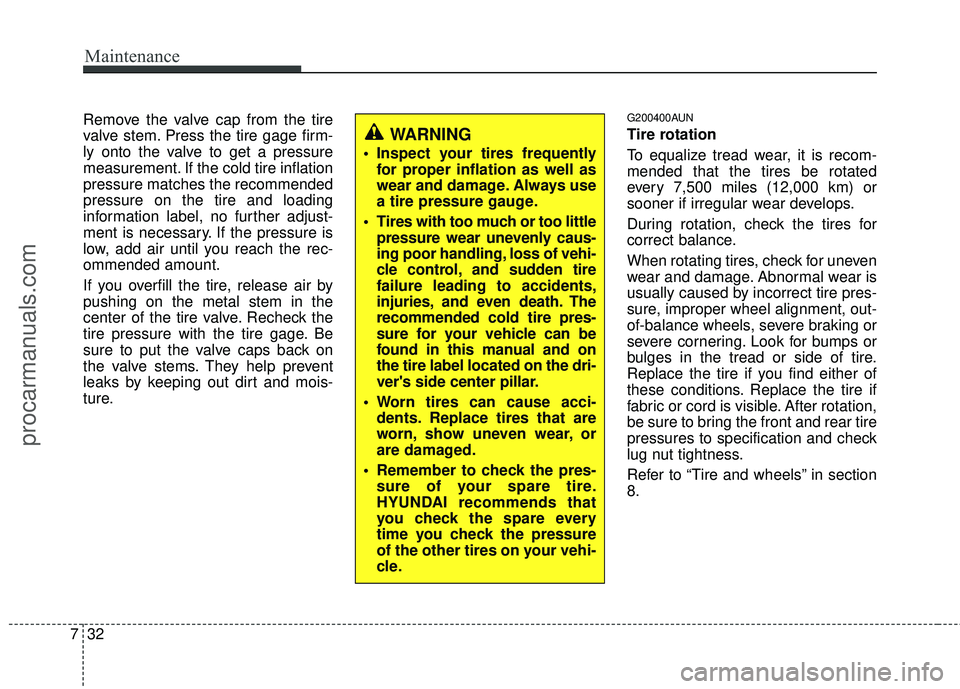

Remove the valve cap from the tire
valve stem. Press the tire gage firm-
ly onto the valve to get a pressure
measurement. If the cold tire inflation
pressure matches the recommended
p

Page 376 of 429

HYUNDAI VERACRUZ 2012  Owners Manual 733
Maintenance

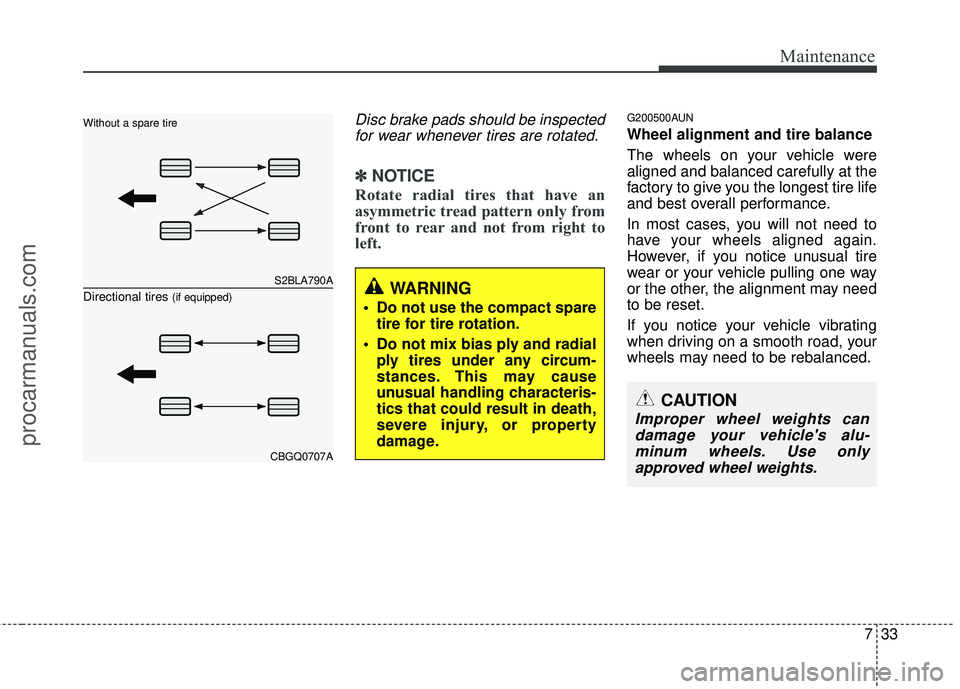

Disc brake pads should be inspectedfor wear whenever tires are rotated.
✽
✽ NOTICE
Rotate radial tires that have an
asymmetric tread pattern only from
front to rear and not from ri

Page 377 of 429

HYUNDAI VERACRUZ 2012  Owners Manual Maintenance
34
7
G200600BEN

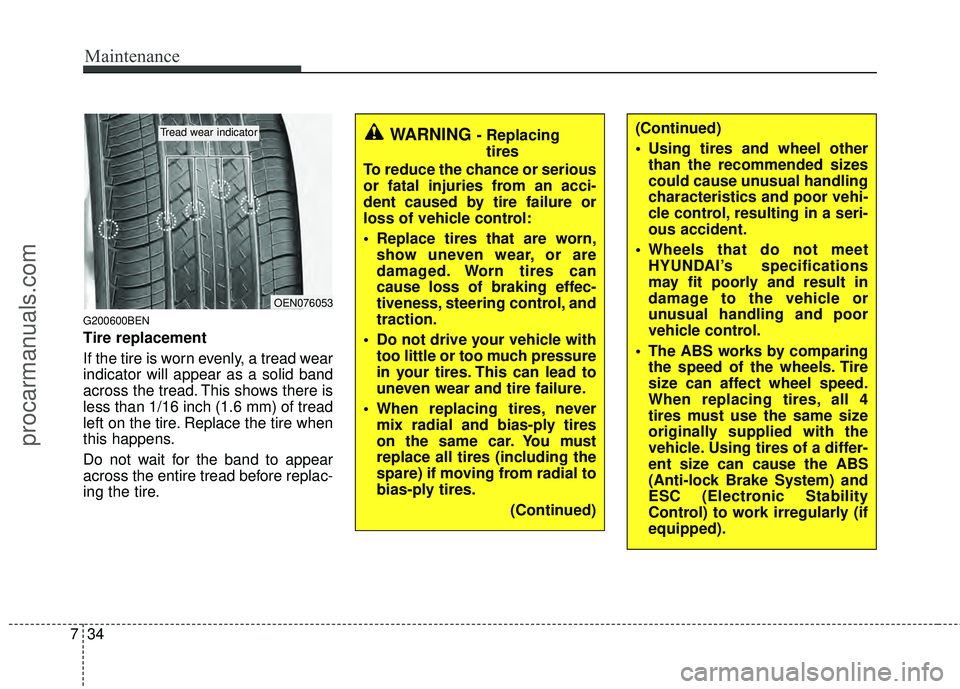

Tire replacement
If the tire is worn evenly, a tread wear
indicator will appear as a solid band
across the tread. This shows there is
less than 1/16 inch (1.6 mm) of tread

Page 378 of 429

HYUNDAI VERACRUZ 2012  Owners Manual 735
Maintenance
G200601AUN

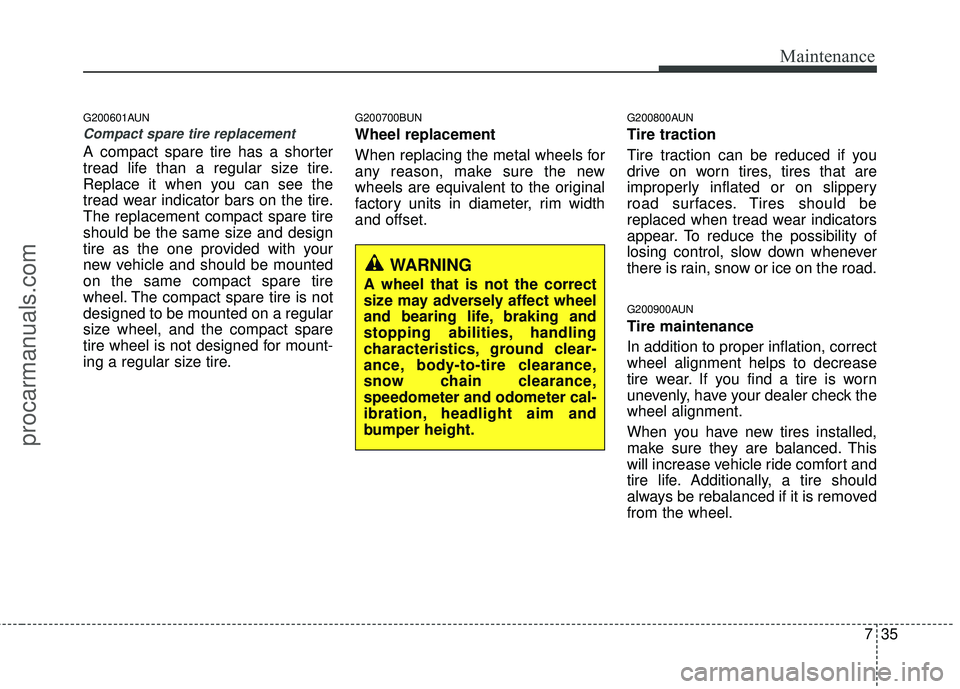

Compact spare tire replacement
A compact spare tire has a shorter
tread life than a regular size tire.
Replace it when you can see the
tread wear indicator bars on the tire

Page 379 of 429

HYUNDAI VERACRUZ 2012  Owners Manual Maintenance
36
7
G201000AUN
Tire sidewall labeling
This information identifies and
describes the fundamental charac-
teristics of the tire and also provides
the tire identification number (TIN)
for sa

Page 380 of 429

HYUNDAI VERACRUZ 2012  Owners Manual 737
Maintenance

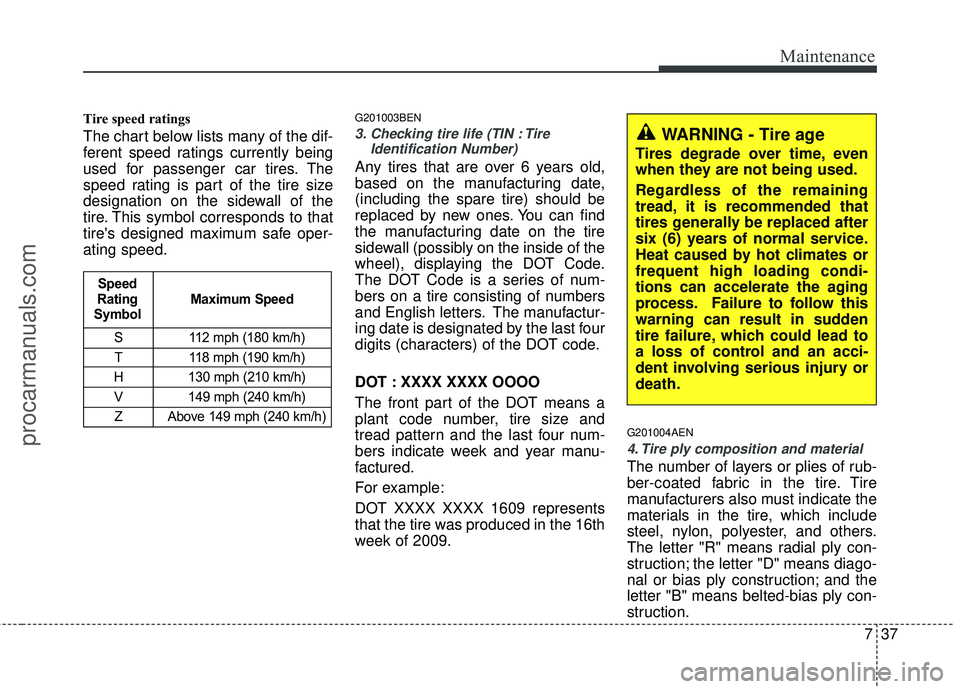

Tire speed ratings
The chart below lists many of the dif-
ferent speed ratings currently being
used for passenger car tires. The
speed rating is part of the tire size
designation on
