Page 391 of 429

HYUNDAI VERACRUZ 2012  Owners Manual Maintenance
48
7

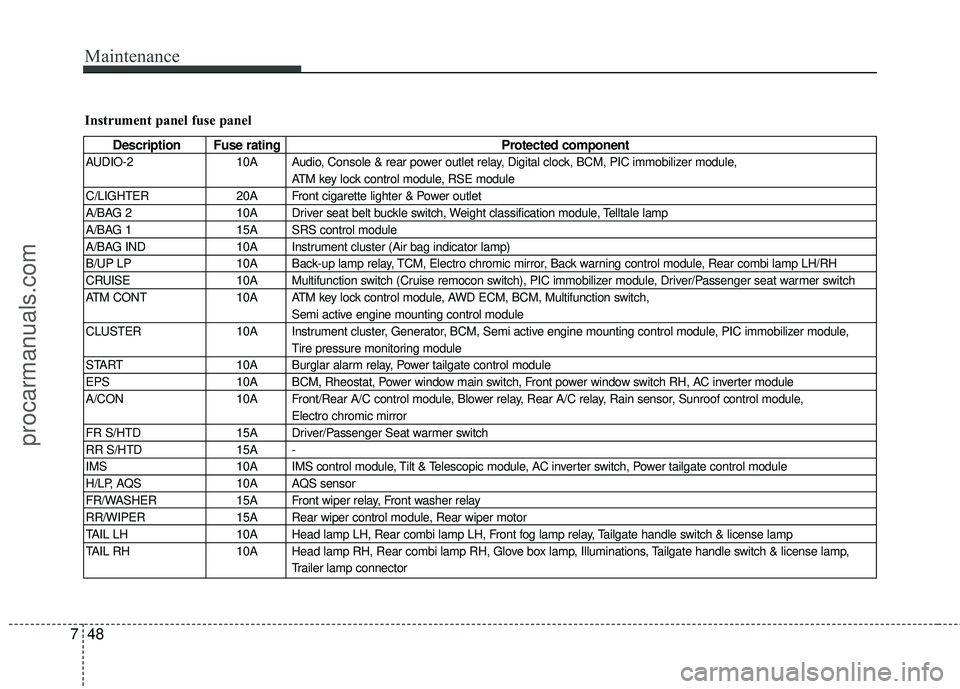

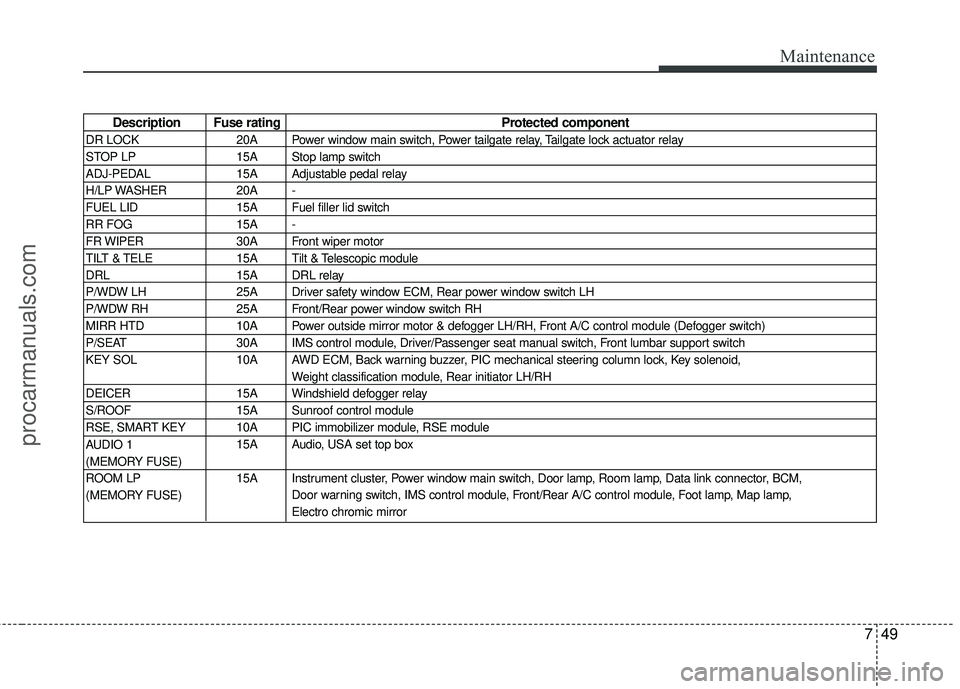

Instrument panel fuse panel
Description Fuse rating Protected component
AUDIO-2 10A  Audio, Console & rear power outlet relay, Digital clock, BCM, PIC immobilizer module,
ATM key loc

Page 392 of 429

HYUNDAI VERACRUZ 2012  Owners Manual 749
Maintenance
Description Fuse ratingProtected component
DR LOCK 20A  Power window main switch, Power tailgate relay, Tailgate lock actuator relay
STOP LP  15A  Stop lamp switch
ADJ-PEDAL  15A  Adj

Page 393 of 429

HYUNDAI VERACRUZ 2012  Owners Manual Maintenance
50
7

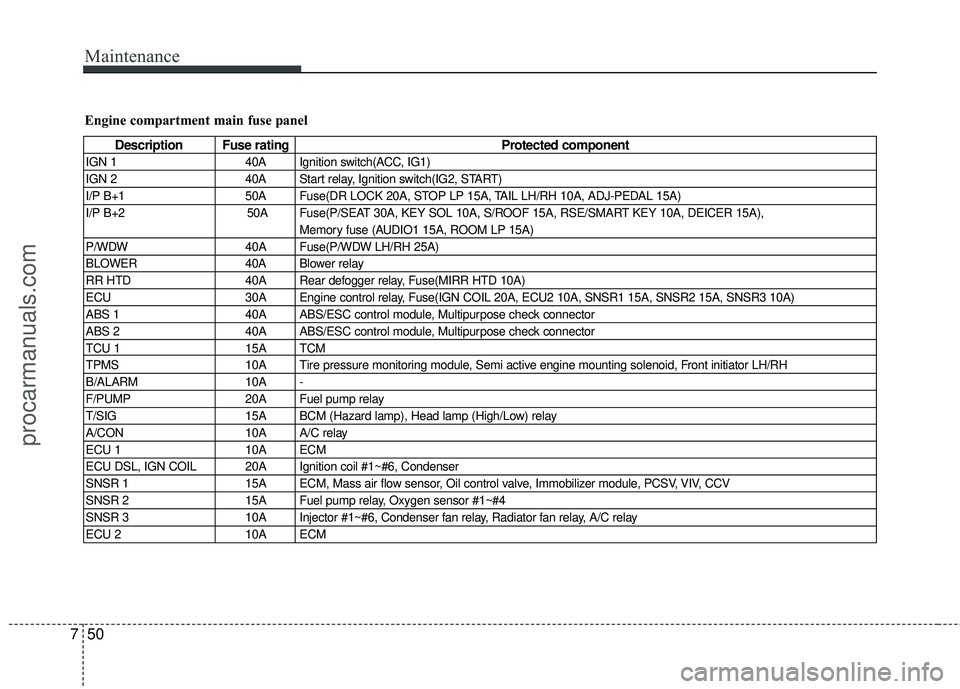

Engine compartment main fuse panel
Description Fuse rating Protected component
IGN 1 40A  Ignition switch(ACC, IG1)
IGN 2  40A  Start relay, Ignition switch(IG2, START)
I/P B+1  50A

Page 394 of 429

HYUNDAI VERACRUZ 2012  Owners Manual 751
Maintenance

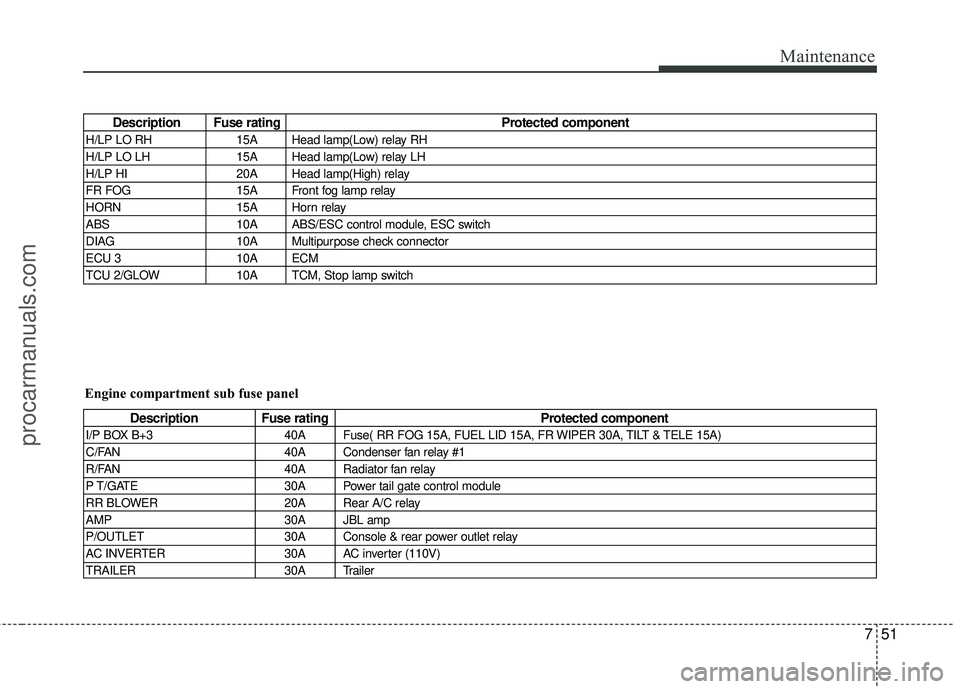

Description Fuse ratingProtected component
H/LP LO RH 15A  Head lamp(Low) relay RH
H/LP LO LH  15A  Head lamp(Low) relay LH
H/LP HI  20A  Head lamp(High) relay
FR FOG  15A  Front fo

Page 395 of 429

HYUNDAI VERACRUZ 2012  Owners Manual Maintenance
52
7

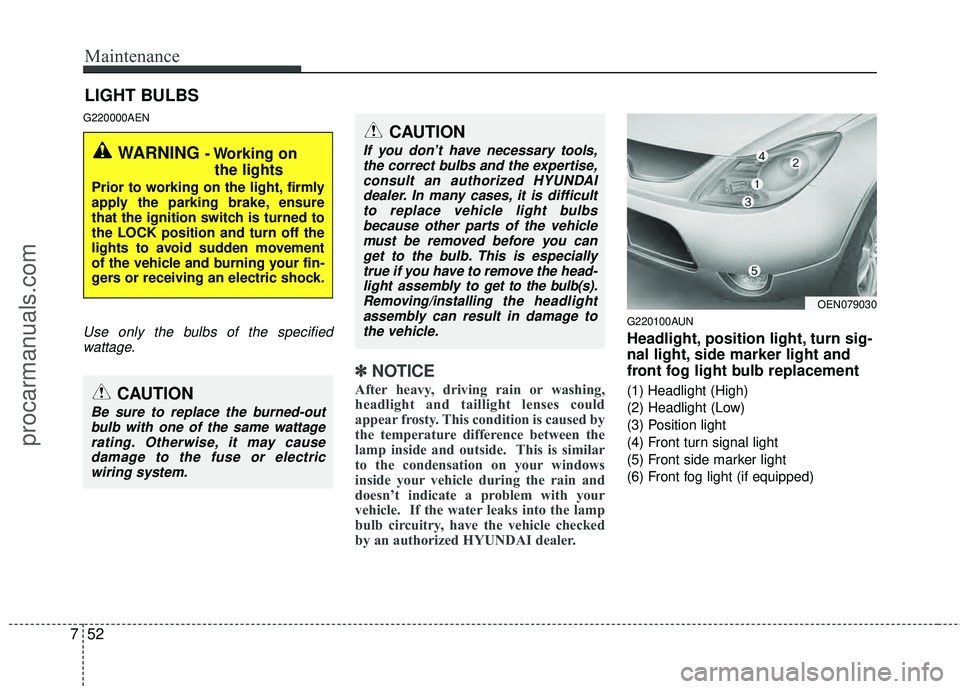

LIGHT BULBS
G220000AEN
Use only the bulbs of the specified
wattage.
✽
✽ NOTICE
After heavy, driving rain or washing,
headlight and taillight lenses could
appear frosty. This condi

Page 396 of 429

HYUNDAI VERACRUZ 2012  Owners Manual 753
Maintenance
G220101AUN-EU

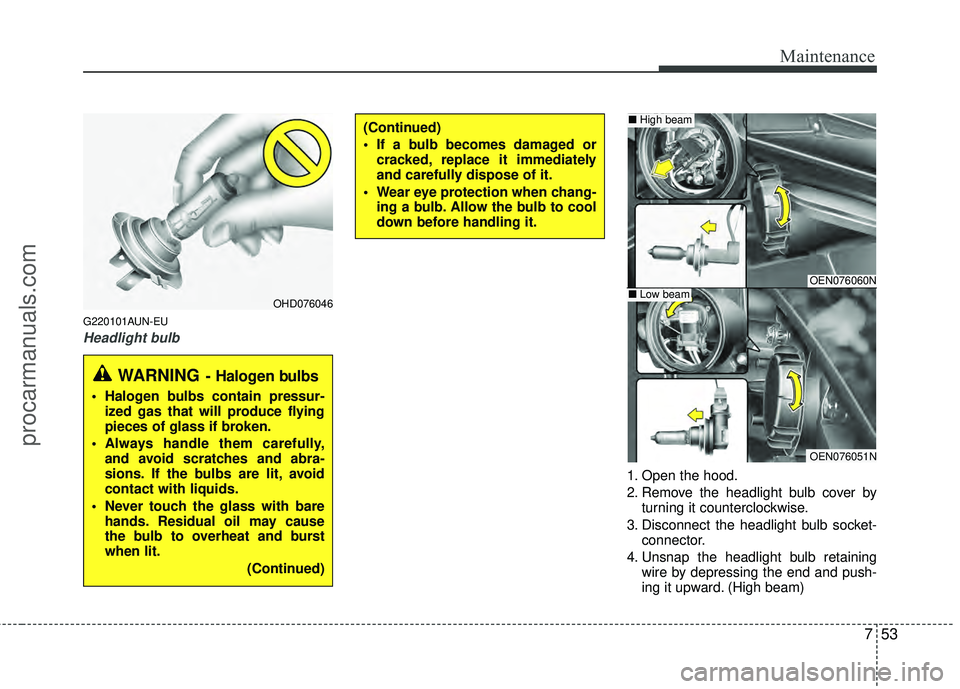

Headlight bulb
1. Open the hood.
2. Remove the headlight bulb cover byturning it counterclockwise.
3. Disconnect the headlight bulb socket- connector.
4. Unsnap the headl

Page 397 of 429

HYUNDAI VERACRUZ 2012  Owners Manual Maintenance
54
7

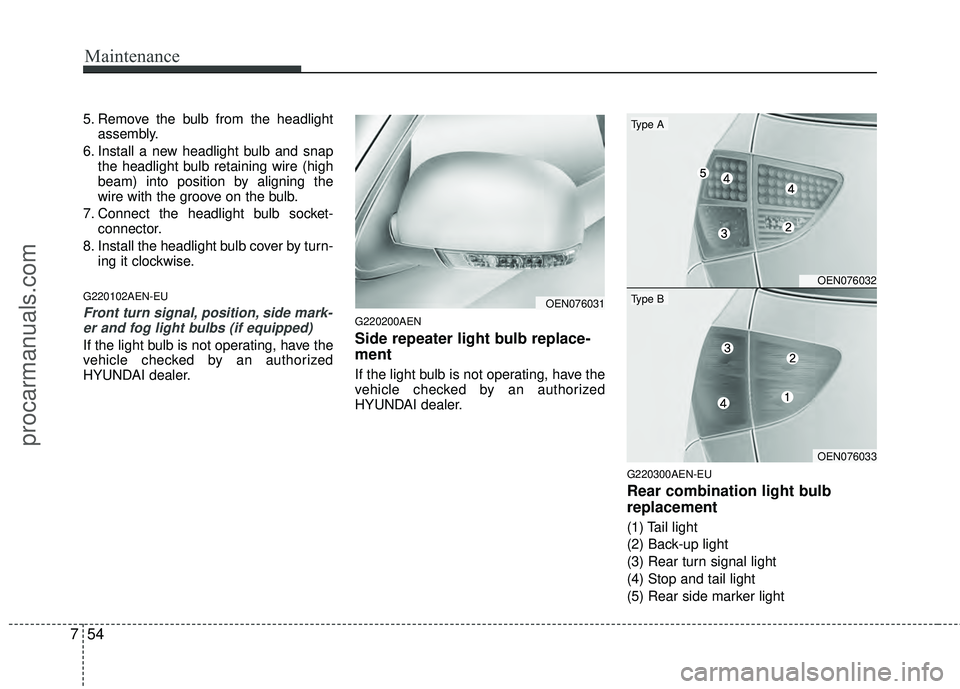

5. Remove the bulb from the headlight
assembly.
6. Install a new headlight bulb and snap the headlight bulb retaining wire (high
beam) into position by aligning the
wire with the groo

Page 398 of 429

HYUNDAI VERACRUZ 2012  Owners Manual 755
Maintenance

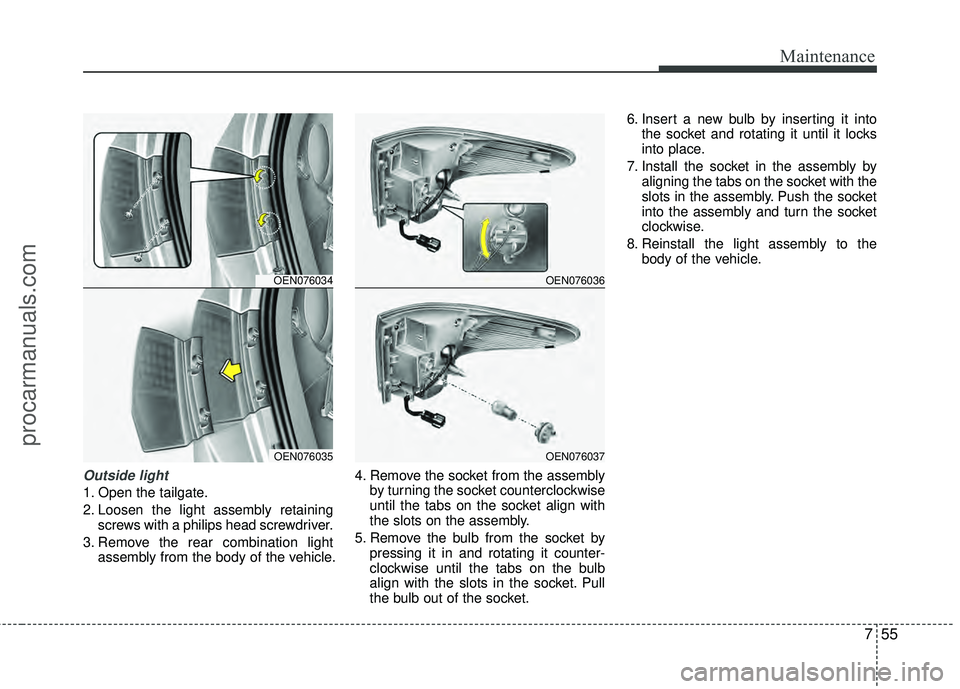

Outside light
1. Open the tailgate.
2. Loosen the light assembly retainingscrews with a philips head screwdriver.
3. Remove the rear combination light assembly from the body of the veh

Page 399 of 429

HYUNDAI VERACRUZ 2012  Owners Manual Maintenance
56
7

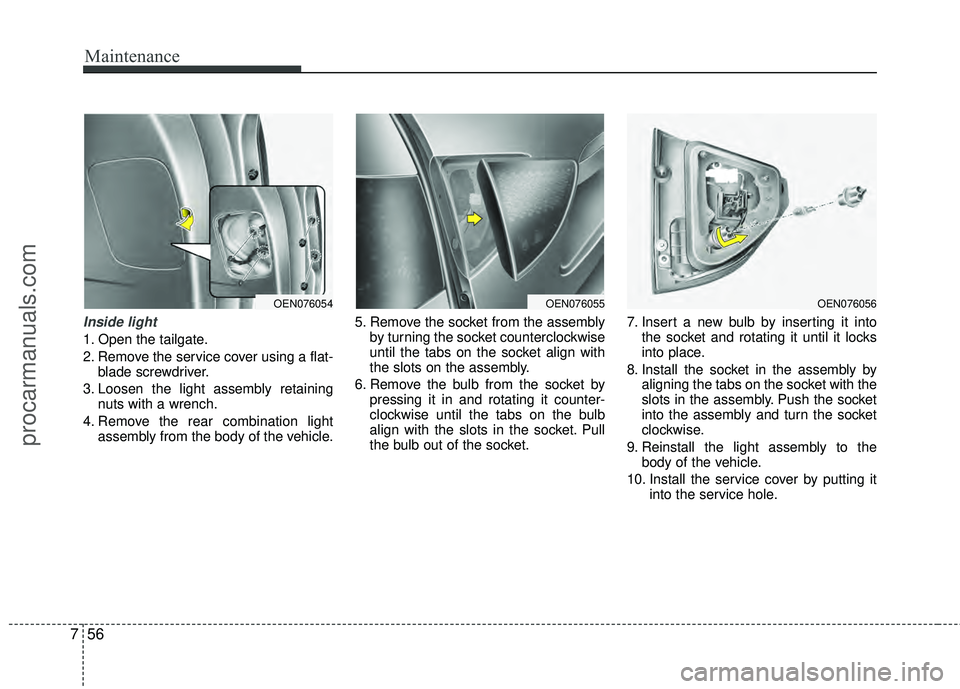

Inside light
1. Open the tailgate.
2. Remove the service cover using a flat-
blade screwdriver.
3. Loosen the light assembly retaining nuts with a wrench.
4. Remove the rear combinati

Page 400 of 429

HYUNDAI VERACRUZ 2012  Owners Manual 757
Maintenance
G220400AEN

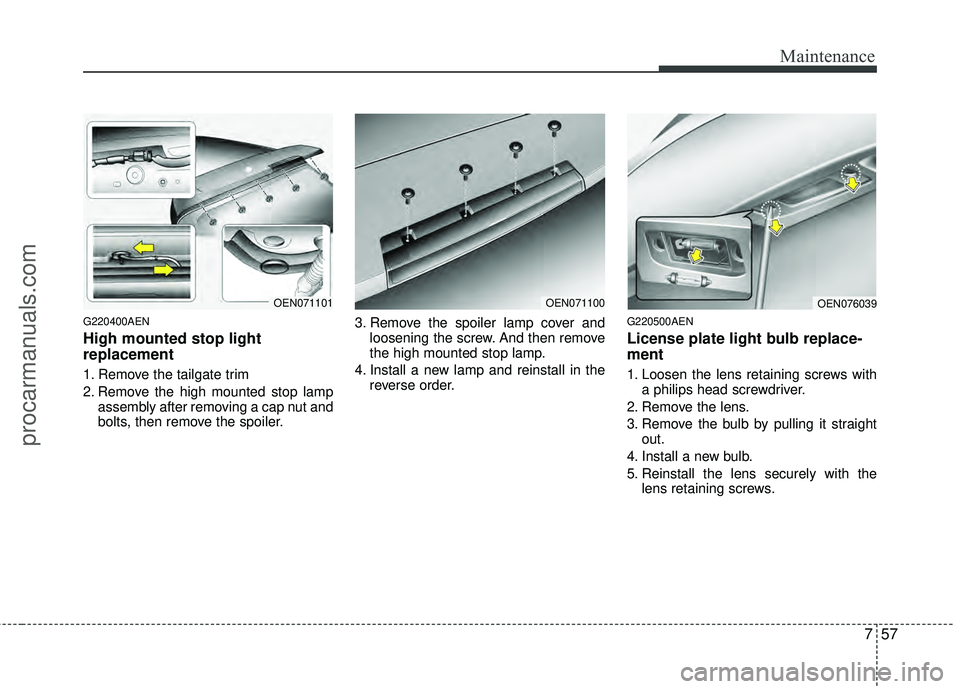

High mounted stop light
replacement
1. Remove the tailgate trim
2. Remove the high mounted stop lampassembly after removing a cap nut and
bolts, then remove the spoiler. 3.
