●The distance to the vehicle ahead will
change according to the vehicle speed. The
higher the vehicle speed, the longer the
distance. ●
If the engine is stopped, the set distance
becomes “long”. (Each time the engine is
started, the initial setting becomes “long”.)
Approach warning
If your vehicle comes closer to the vehicle
ahead due to rapid deceleration of that vehicle
or if another vehicle cuts in, the system warns
the driver with the chime and ICC system dis-
play. Decelerate by depressing the brake pedal
to maintain a safe vehicle distance if:
● The chime sounds.
● The vehicle ahead detection and set dis-
tance indicator blink.
The warning chime may not sound in some
cases when there is a short distance between
vehicles. Some examples are:
● When the vehicles are traveling at the same
speed and the distance between vehicles is
not changing
● When the vehicle ahead is traveling faster
and the distance between vehicles is in-
creasing
● When a vehicle cuts in near your vehicle
The warning chime will not sound when:
● the vehicle approaches other vehicles that
are parked or moving slowly.
● the accelerator pedal is depressed, overrid-
ing the system.
SSD0613C
5-42Starting and driving
—
—
08/03/09—pattie


PREVIEW FUNCTION (for Intelligent
Cruise Control system equipped
models)
The ICC system with the preview function iden-
tifies the need to apply emergency braking by
sensing the vehicle ahead in the same lane and
the distance to the vehicle ahead and relative
speed from it, it applies the brake pre-pressure
before the driver depresses the brake pedal and
helps improve brake response by reducing
pedal free play.
For more details, see “BRAKE ASSIST” later in
this section.The Distance Control Assist (DCA) system
brakes and moves the accelerator pedal upward
according to the distance from and the relative
speed of the vehicle ahead to help assist the
driver to maintain a following distance.
WARNING
●
Always drive carefully and attentively when
using the Distance Control Assist system.
Read and understand the Owner’s Manual
thoroughly before using the DCA system. To
avoid serious injury or death, do not rely on
the system to prevent accidents or to control
the vehicle’s speed in emergency situations.
Do not use the Distance Control Assist sys-
tem except in appropriate road and traffic
conditions.
● If the vehicle ahead comes to a stop, the
vehicle decelerates to a standstill within the
limitations of the system. The system will
cancel once it judges that the vehicle has
come to a standstill with a warning chime. To
prevent the vehicle from moving, the driver
must depress the brake pedal.
● The DCA system will not apply brake control
while the driver’s foot is on the accelerator
pedal.
PRECAUTIONS ON DISTANCE CONTROL
ASSIST SYSTEM
The system is intended to assist the driver to
keep a following distance from the vehicle
ahead traveling in the same lane and direction.
If the distance sensor
Adetects a slower
moving vehicle ahead, the system will reduce
the vehicle speed to help assist the driver to
maintain a following distance.
The system automatically controls the throttle
and applies the brakes (up to 25% of vehicle
braking power) if necessary.
The detection range of the sensor is approxi-
mately 390 ft (120 m) ahead.
SSD0738
DISTANCE CONTROL ASSIST (DCA) SYSTEM
(if so equipped)
Starting and driving5-49
—
—
08/03/09—pattie


DISTANCE CONTROL ASSIST
OPERATION
Always pay attention to the operation of the
vehicle and be ready to manually decelerate to
maintain the proper following distance. The
Distance Control Assist (DCA) system may not
be able to decelerate the vehicle under some
circumstances.
The DCA system uses a sensor
Alocated on
the front of the vehicle to detect vehicles trav-
eling ahead. The sensor generally detects the
signals returned from the reflectors on a vehicle
ahead. Therefore, if the sensor cannot detect
the reflector on the vehicle ahead, the DCA
system may not operate. The following are some conditions in which the
sensor cannot detect the signals:
●
When the reflector of the vehicle ahead is
positioned high on the vehicle (trailer, etc.)
● When the reflector on the vehicle ahead is
missing, damaged or covered
● When the reflector of the vehicle ahead is
covered with dirt, snow and road spray
● When the snow or road spray from traveling
vehicles reduces the sensor’s visibility
● When dense exhaust or other smoke (black
smoke) from vehicles reduces the sensor’s
visibility
● When excessively heavy baggage is loaded
in the rear seat or the luggage room of your
vehicle
The DCA system is designed to automatically
check the sensor’s operation. When the sensor
is covered with dirt or is obstructed, the system
will automatically be canceled. If the sensor is
covered with ice, a transparent or translucent
vinyl bag, etc., the DCA system may not detect
them. In these instances, the Distance Control
Assist (DCA) system may not be able to decel-
erate the vehicle properly. Be sure to check and
clean the sensor regularly. The DCA system is designed to help assist the
driver to maintain a following distance from the
vehicle ahead. The system will decelerate as
necessary and if the vehicle ahead comes to a
stop, the vehicle decelerates to a standstill.
However, the DCA system can only apply up to
25% of the vehicles total braking power. If a
vehicle moves into the traveling lane ahead or if
a vehicle traveling ahead rapidly decelerates,
the distance between vehicles may become
closer because the DCA system cannot deceler-
ate the vehicle quickly enough. If this occurs,
the DCA system will sound a warning chime and
blink the system display to notify the driver to
take necessary action.
See “Approach warning” later in this section.
This system only brakes and moves the accel-
erator pedal upward to help assist the driver to
maintain a following distance from the vehicle
ahead. Acceleration should be operated by the
driver.
The DCA system does not control vehicle speed
or warn you when you approach stationary and
slow moving vehicles. You must pay attention to
vehicle operation to maintain proper distance
from vehicles ahead.
SSD0738
Starting and driving5-51
—
—
08/03/09—pattie


1. System set display with vehicle ahead
2. System set display without vehicle aheadSystem operation
WARNING
The Distance Control Assist system automati-
cally decelerates your vehicle to help assist the
driver to maintain a following distance from the
vehicle ahead. Manually brake when decelera-
tion is required to maintain a safe distance
upon sudden braking by the vehicle ahead or
when a vehicle suddenly appears in front of
you. Always stay alert when using the DCA
system.The Distance Control Assist (DCA) system helps
assist the driver to keep a following distance to
the vehicle ahead by braking and moving the
accelerator pedal upward in the normal driving
condition.
When a vehicle is detected ahead :
The vehicle ahead detection indicator comes
on.
When vehicle approaches a vehicle ahead :
●
If the driver’s foot is not on the accelerator
pedal, the system activates the brakes to
decelerate smoothly as necessary. If the
vehicle ahead comes to a stop, the vehicle
decelerates to a standstill within the limita-
tions of the system.
● If the driver’s foot is on the accelerator
pedal, the system moves the accelerator
pedal upward to assist the driver to release
the accelerator pedal.
When brake operation by driver is required :
The system alerts the driver by a warning chime
and blinking the vehicle ahead detection indi-
cator. If the driver’s foot is on the accelerator
pedal after the warning, the system moves the
accelerator pedal upward to assist the driver to
switch to the brake pedal.
SSD0746
Starting and driving5-57
—
—
08/03/09—pattie


The stoplights of the vehicle come on and the
brake pedal depresses when braking is per-
formed by the DCA system.
When the brake operates, a noise may be heard.
This is not a malfunction.
WARNING
●When the vehicle ahead detection indicator
light is not illuminated, system will not con-
trol or warn the driver.
● Never place your foot under the brake pedal.
Your foot may be caught when the system
controls the brake.
● Depending on the position of the accelerator
pedal, the system may not be able to assist
the driver to release the accelerator pedal
appropriately.
● If the vehicle ahead comes to a standstill,
the vehicle decelerates to a standstill within
the limitations of the system. The system
will release brake control with a warning
chime once it judges the vehicle is at a
standstill. To prevent the vehicle from mov-
ing, the driver must depress the brake pedal.
(The system will resume control automati-
cally once the system reaches 3 MPH
(5 km/h)). Overriding the system :
The following driver’s operation overrides the
system operation.
●
When the driver depresses the accelerator
pedal even further while the system is mov-
ing the accelerator pedal upward, the DCA
system control of the accelerator pedal is
canceled.
● When the driver’s foot is on the accelerator
pedal, the brake control by the system is not
operated.
● When the driver’s foot is on the brake pedal,
neither the brake control nor the alert by the
system operates.
● When the Intelligent Cruise Control system is
set, the DCA system will be cancelled.
Approach warning
If your vehicle comes closer to the vehicle
ahead due to rapid deceleration of that vehicle
or if another vehicle cuts in, the system warns
the driver with the chime and DCA system
display. Decelerate by depressing the brake
pedal to maintain a safe vehicle distance if:
● The chime sounds.
● The vehicle ahead detection indicator blinks.
The warning chime may not sound in some
cases when there is a short distance between
vehicles. Some examples are:
● When the vehicles are traveling at the same
speed and the distance between vehicles is
not changing
● When the vehicle ahead is traveling faster
and the distance between vehicles is in-
creasing
● When a vehicle cuts in near your vehicle
The warning chime will not sound when your
vehicle approaches vehicles that are parked or
moving slowly.
5-58Starting and driving
—
—
08/03/09—pattie


– When abruptly accelerating ordecelerating.
– On a steep downhill slope or on roads with sharp curves.
– When there is a highly reflective object near the vehicle ahead (i.e., being very
close to another vehicle, signboard, etc.)
– When you are towing a trailer.
● Depending on certain road conditions
(curved or beginning of a curve), vehicle con-
ditions (steering position or vehicle posi-
tion), or the preceding vehicle’s conditions
(position in lane, etc.), the system may not
function properly. The system may detect
highly reflective objects such as reflectors,
signs, white markers, and other stationary
objects on the road or near the traveling lane
and provide unnecessary warning.
● The system may not function in offset
conditions.
● The system may not function when the dis-
tance to the vehicle ahead is extremely
close. ●
The system is designed to automatically
check the sensor’s functionality. If the sen-
sor is covered with ice, a transparent or
translucent plastic bag, etc., the system may
not detect them. In these instances the sys-
tem may not be able to warn the driver prop-
erly. Be sure to check and clean the sensor
regularly.
● Excessive noise will interfere with the warn-
ing chime sound, and the chime may not be
heard.
● A sudden appearance of a vehicle in front
(i.e., it abruptly cuts in) may not be detected
and the system may not warn the driver soon
enough.
● The system will be cancelled automatically
with a beep sound and the IBA OFF indicator
light will illuminate under the following
conditions:
– When the sensor window is dirty
– When the system malfunctions If the IBA OFF indicator light
Ailluminates with
a beep sound, pull off the road to a safe
location, stop the vehicle and turn the engine
off. Check to see if the sensor window is dirty.
If the sensor window is dirty, clean it with a soft
cloth and restart the engine. If the sensor
window is not dirty, restart the engine. If the
IBA OFF indicator light continues to illuminate
even if the IBA system is turned on with the IBA
OFF switch
B, have the system checked by an
INFINITI retailer.
To turn on the IBA system, see “INTELLIGENT
BRAKE ASSIST (IBA) SYSTEM” later in this sec-
tion.
SSD0748
Starting and driving5-63
—
—
08/03/09—pattie


●The system is designed to automatically
check the sensor’s functionality. If the sen-
sor is covered with ice, a transparent or
translucent plastic bag, etc., the system may
not detect them. In these instances the sys-
tem may not be able to warn the driver prop-
erly. Be sure to check and clean the sensor
regularly.
● Excessive noise will interfere with the warn-
ing chime sound, and the chime may not be
heard.
● Never place your foot under the brake pedal
when the IBA system turns on. Your foot may
be caught when the system controls the
brake.
● A sudden appearance of a vehicle in front
(i.e., it abruptly cuts in) may not be detected
and the system may not warn the driver soon
enough.
● The system will be cancelled automatically
with a beep sound and the IBA warning light
will illuminate under the following
conditions:
– When the sensor window is dirty
– When the system malfunctions If the IBA OFF indicator light illuminates with a
beep sound, pull off the road to a safe location,
stop the vehicle and turn the engine off. Check
to see if the sensor window is dirty. If the
sensor window is dirty, clean it with a soft cloth
and restart the engine. If the sensor window is
not dirty, restart the engine. If the IBA OFF
indicator light continues to illuminate even if
the IBA system is turned on, have the system
checked by an INFINITI retailer.
IBA system operation
The IBA system will function when your vehicle
is driven at speeds of approximately 10 MPH (15
km/h) or above, and when the vehicle’s speed
is approximately 10 MPH (15 km/h) faster than
that of the vehicle ahead.
To turn the system off/on, push and hold the
IBA OFF switch
Bfor more than 1 second after
starting the engine. When the IBA OFF indicator
light
Aon the instrument panel turns off and
the IBA OFF switch is pushed, the system will
turn off and the IBA OFF indicator light will
illuminate. When the IBA OFF switch is pushed
again, the system will turn on and the IBA OFF
indicator light will turn off.
SSD0748
Starting and driving5-67
—
—
08/03/09—pattie


The IBA system will remain in the last ON or OFF
state it was left in until it is manually changed
by pressing the IBA OFF switch.
Illumination of the IBA OFF indicator light with-
out the warning chime sound is an indication
that the IBA system is temporarily unavailable.
It will occur under the following conditions:
– When driving into a strong light (for example,sunlight)
The IBA OFF indicator light will turn off when the
system returns to its normal operating condi-
tions.
For the sensor maintenance, see “INTELLIGENT
CRUISE CONTROL (ICC) SYSTEM (FULL SPEED
RANGE)” earlier in this section.CAUTION
During the first 1,200 miles (2,000 km), follow
these recommendations to obtain maximum
engine performance and ensure the future reli-
ability and economy of your new vehicle.
Failure to follow these recommendations may
result in shortened engine life and reduced en-
gine performance.
● Avoid driving for long periods at constant
speed, either fast or slow. Do not run the
engine over 4,000 rpm.
● Do not accelerate at full throttle in any gear.
● Avoid quick starts.
● Avoid hard braking as much as possible.
● Do not tow a trailer for the first 500 miles
(805 km). ●
Accelerate slowly and smoothly. Maintain
cruising speeds with a constant accelerator
position.
● Drive at moderate speeds on the highway.
● Avoid unnecessary stopping and braking.
Keep a safe distance behind other vehicles.
● Select a gear range suitable to road condi-
tions.
● Avoid unnecessary prolonged engine idling.
● Keep your engine tuned up.
● Follow the recommended periodic mainte-
nance schedule.
● Keep the tires inflated at the correct pres-
sure. Improper tire pressure will increase
wear and waste fuel.
● Make sure the front wheels are properly
aligned. Improper alignment will cause pre-
mature tire wear and lower fuel economy.
● Climate control operation lowers fuel
economy. Use the air conditioner only when
necessary.
● When cruising at highway speeds, it is more
economical to use the air conditioner and
leave the windows closed to reduce drag.
BREAK-IN SCHEDULE INCREASING FUEL ECONOMY
5-68Starting and driving
—
—
08/03/09—pattie


The AWD warning light is located in the meter.
The AWD warning light comes on when the
ignition switch is pushed to the ON position. It
turns off soon after the engine is started.If any malfunction occurs in the AWD system
while the engine is running, the warning light
will come on.
The warning light may blink rapidly (about twice
per second) while trying to free a stuck vehicle
due to high power train oil temperature. The
driving mode may change to two-wheel drive. If
the warning light blinks rapidly during opera-
tion, stop the vehicle with the engine idling in a
safe place immediately. Then if the light goes
off after a while, you can continue driving.
A large difference between the diameters of
front and rear wheels will make the warning
light blink slowly (about once per two seconds).
Pull off the road in a safe area, and idle the
engine. Check that all tire sizes are the same,
tire pressure is correct and tires are not worn.
If the warning light is blinking after the above
operation, have your vehicle checked by an
INFINITI retailer as soon as possible.
WARNING
●
For AWD equipped vehicles, do not attempt
to raise two wheels off the ground and shift
the transmission to any drive or reverse po-
sition with the engine running. Doing so may
result in drivetrain damage or unexpected
vehicle movement which could result in seri-
ous vehicle damage or personal injury.
● Do not attempt to test an AWD equipped ve-
hicle on a 2-wheel dynamometer (such as
the dynamometers used by some states for
emissions testing) or similar equipment
even if the other two wheels are raised off
the ground. Make sure that you inform the
test facility personnel that your vehicle is
equipped with AWD before it is placed on a
dynamometer. Using the wrong test equip-
ment may result in drivetrain damage or un-
expected vehicle movement which could re-
sult in serious vehicle damage or personal
injury.
CAUTION
● Do not operate the engine on a free roller
when any of the wheels are raised.
SSD0336
ALL-WHEEL DRIVE (AWD) (if so equipped)
Starting and driving5-69
—
—
08/03/09—pattie

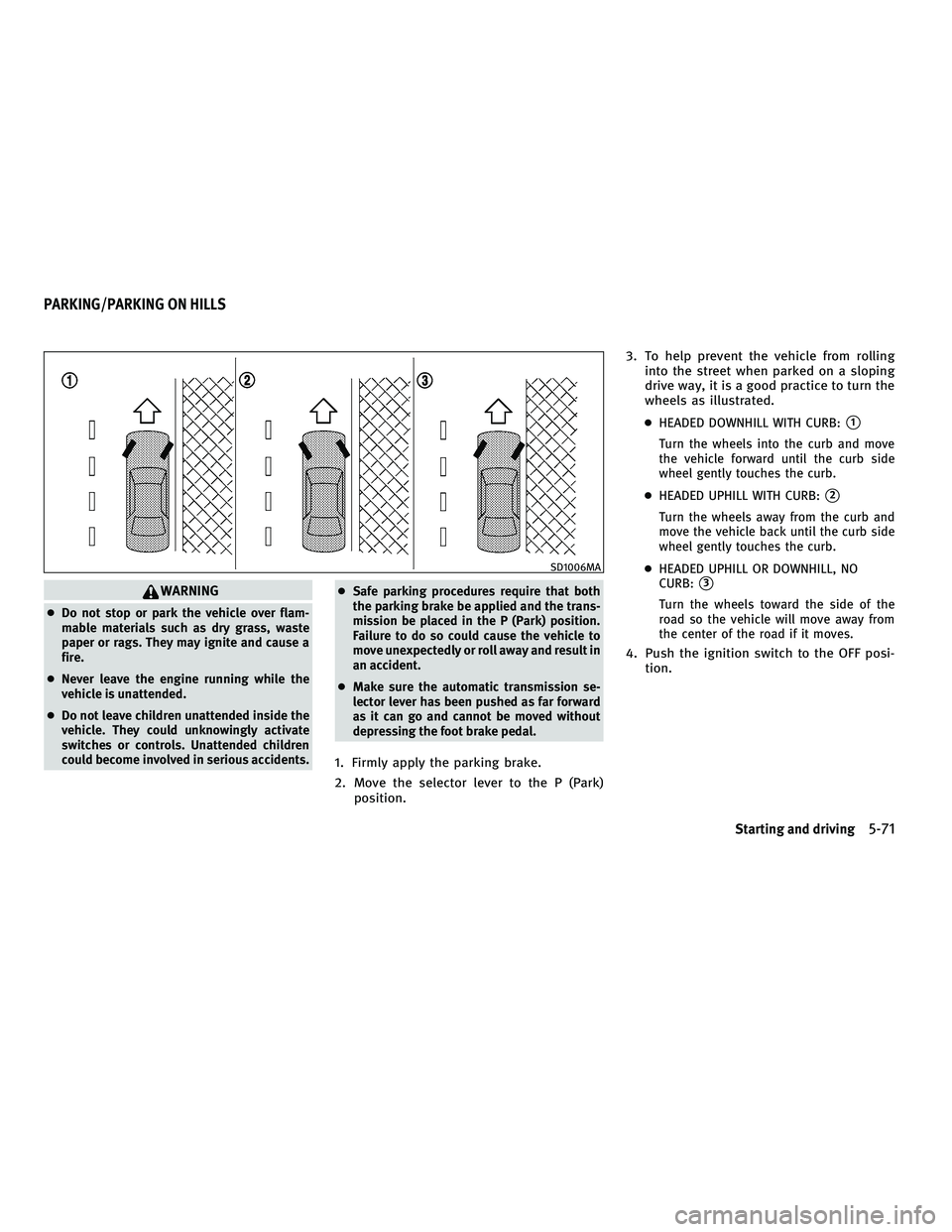

WARNING
●Do not stop or park the vehicle over flam-
mable materials such as dry grass, waste
paper or rags. They may ignite and cause a
fire.
● Never leave the engine running while the
vehicle is unattended.
● Do not leave children unattended inside the
vehicle. They could unknowingly activate
switches or controls. Unattended children
could become involved in serious accidents. ●
Safe parking procedures require that both
the parking brake be applied and the trans-
mission be placed in the P (Park) position.
Failure to do so could cause the vehicle to
move unexpectedly or roll away and result in
an accident.
● Make sure the automatic transmission se-
lector lever has been pushed as far forward
as it can go and cannot be moved without
depressing the foot brake pedal.
1. Firmly apply the parking brake.
2. Move the selector lever to the P (Park)
position. 3. To help prevent the vehicle from rolling
into the street when parked on a sloping
drive way, it is a good practice to turn the
wheels as illustrated.
●HEADED DOWNHILL WITH CURB:1
Turn the wheels into the curb and move
the vehicle forward until the curb side
wheel gently touches the curb.
● HEADED UPHILL WITH CURB:
2
Turn the wheels away from the curb and
move the vehicle back until the curb side
wheel gently touches the curb.
● HEADED UPHILL OR DOWNHILL, NO
CURB:
3
Turn the wheels toward the side of the
road so the vehicle will move away from
the center of the road if it moves.
4. Push the ignition switch to the OFF posi- tion.
SD1006MA
PARKING/PARKING ON HILLS
Starting and driving5-71
—
—
08/03/09—tbrooks
