CHARGING SYSTEMPFP:23100
System DescriptionAKS0079I
The alternator provides DC voltage to operate the vehicle's electrical system and to keep the battery charged.
The voltage output is controlled by the IC regulator.
Power is supplied at all times:

through 10A fuse (No. 33, located in the fuse and fusible link box)

to alternator terminal 4 (S).
Terminal B supplies power to charge the battery and operate the vehicle's electrical system. Output voltage is
controlled by the IC regulator at terminal 4 (S) detecting the input voltage.
The charging circuit is protected by the 120A fusible link (VK45DE and VQ35DE AWD).
The alternator is grounded to the engine block.
With the ignition switch in the ON or START position, power is supplied:

through 10A fuse [No. 14, located in the fuse block (J/B)]

to combination meter terminal 7 for the charge warning lamp.
Ground is supplied:

to combination meter terminal 2

through alternator terminal 3 (L)

to alternator terminal E (VK45DE) or through body ground (VQ35DE)

through body ground E304 (VK45DE).
With power and ground supplied, the charge warning lamp will illuminate. When the alternator is providing suf-
ficient voltage with the engine running, the ground is opened and the charge warning lamp will go off.
If the charge warning lamp illuminates with the engine running, a malfunction is indicated.

CHARGING SYSTEM
SC-29
C
D
E
F
G
H
I
J
L
MA
B
SC
Revision: 2004 November 2004 FX35/FX45
DIAGNOSTIC PROCEDURE 1
Check “L” Terminal Circuit
1. CHECK “L” TERMINAL CONNECTION
1. Turn ignition switch OFF.
2. Check to see if “L” terminal is clean and tight.
OK or NG
OK >> GO TO 2.
NG >> Repair “L” terminal connection. Confirm repair by performing complete Battery/Starting/Charging
system test.
2. CHECK “L” TERMINAL CIRCUIT
1. Disconnect alternator connector.
2. Apply ground to alternator harness connector E311
*1 or F26*2
terminal 3 (OR) with the ignition switch in the ON position.
NOTE:
*1: VK45DE, *2: VQ35DE
OK or NG
OK >> Go to SC-28, "WORK FLOW" .
NG >> Check the following.

10A fuse [No. 14, located in fuse block (J/B)]

CHARGE lamp

Harness for open or short between combination meter and fuse

Harness for open or short between combination meter and alternator CHARGE lamp should light up.
PKIA2815E

CHARGING SYSTEM
SC-31
C
D
E
F
G
H
I
J
L
MA
B
SC
Revision: 2004 November 2004 FX35/FX45
DIAGNOSTIC PROCEDURE 3
Check “L” Terminal Circuit
1. CHECK “L” TERMINAL CONNECTION
1. Turn ignition switch OFF.
2. Check to see if “L” terminal is clean and tight.
OK or NG
OK >> GO TO 2.
NG >> Repair “L” terminal connection. Confirm repair by performing complete Battery/Starting/Charging
system test.
2. CHECK “L” TERMINAL CIRCUIT
1. Disconnect alternator connector.
2. Apply ground to alternator harness connector E311
*1 or F26*2
terminal 3 (OR) with the ignition switch in the ON position.
NOTE:
*1: VK45DE, *2: VQ35DE
OK or NG
OK >> Replace the alternator. Confirm repair by performing
complete Battery/Starting/Charging system test.
NG >> Check the following.

10A fuse [No. 14, located in fuse block (J/B)]

CHARGE lamp

Harness for open or short between combination meter and fuse

Harness for open or short between combination meter and alternator CHARGE lamp should light up.
PKIA2815E

SE-36
AUTOMATIC DRIVE POSITIONER
Revision: 2004 November 2004 FX35/FX45

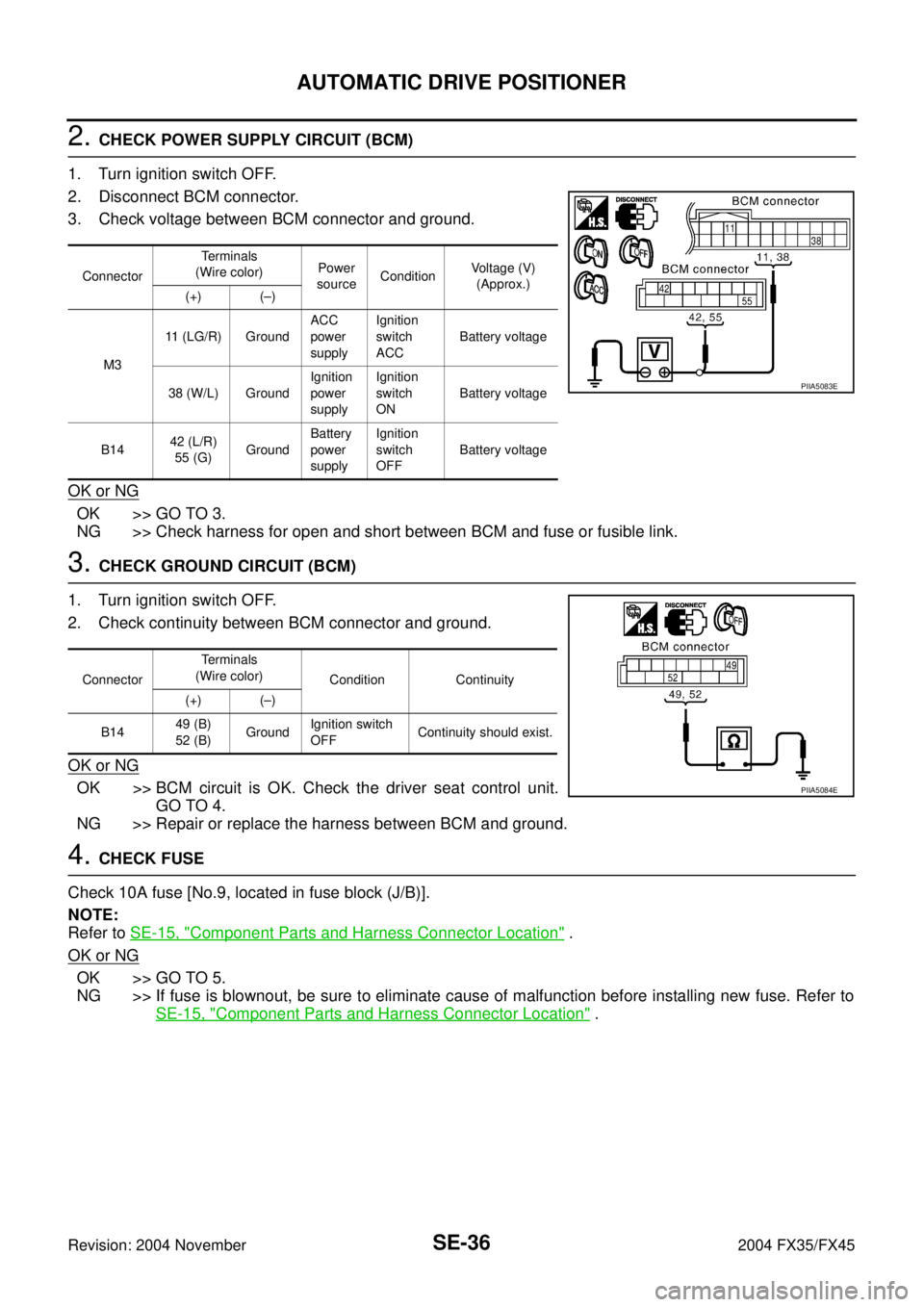

2. CHECK POWER SUPPLY CIRCUIT (BCM)
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check voltage between BCM connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness for open and short between BCM and fuse or fusible link.
3. CHECK GROUND CIRCUIT (BCM)
1. Turn ignition switch OFF.
2. Check continuity between BCM connector and ground.
OK or NG
OK >> BCM circuit is OK. Check the driver seat control unit.
GO TO 4.
NG >> Repair or replace the harness between BCM and ground.
4. CHECK FUSE
Check 10A fuse [No.9, located in fuse block (J/B)].
NOTE:
Refer to SE-15, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 5.
NG >> If fuse is blownout, be sure to eliminate cause of malfunction before installing new fuse. Refer to
SE-15, "
Component Parts and Harness Connector Location" .
ConnectorTe r m i n a l s
(Wire color)Power
sourceConditionVoltage (V)
(Approx.)
(+) (–)
M311 (LG/R) GroundACC
power
supplyIgnition
switch
ACCBattery voltage
38 (W/L) GroundIgnition
power
supplyIgnition
switch
ONBattery voltage
B1442 (L/R)
55 (G)GroundBattery
power
supplyIgnition
switch
OFFBattery voltage
PIIA5083E
ConnectorTe r m i n a l s
(Wire color)
Condition Continuity
(+) (–)
B1449 (B)
52 (B)GroundIgnition switch
OFFContinuity should exist.
PIIA5084E

AUTOMATIC DRIVE POSITIONER
SE-37
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2004 November 2004 FX35/FX45

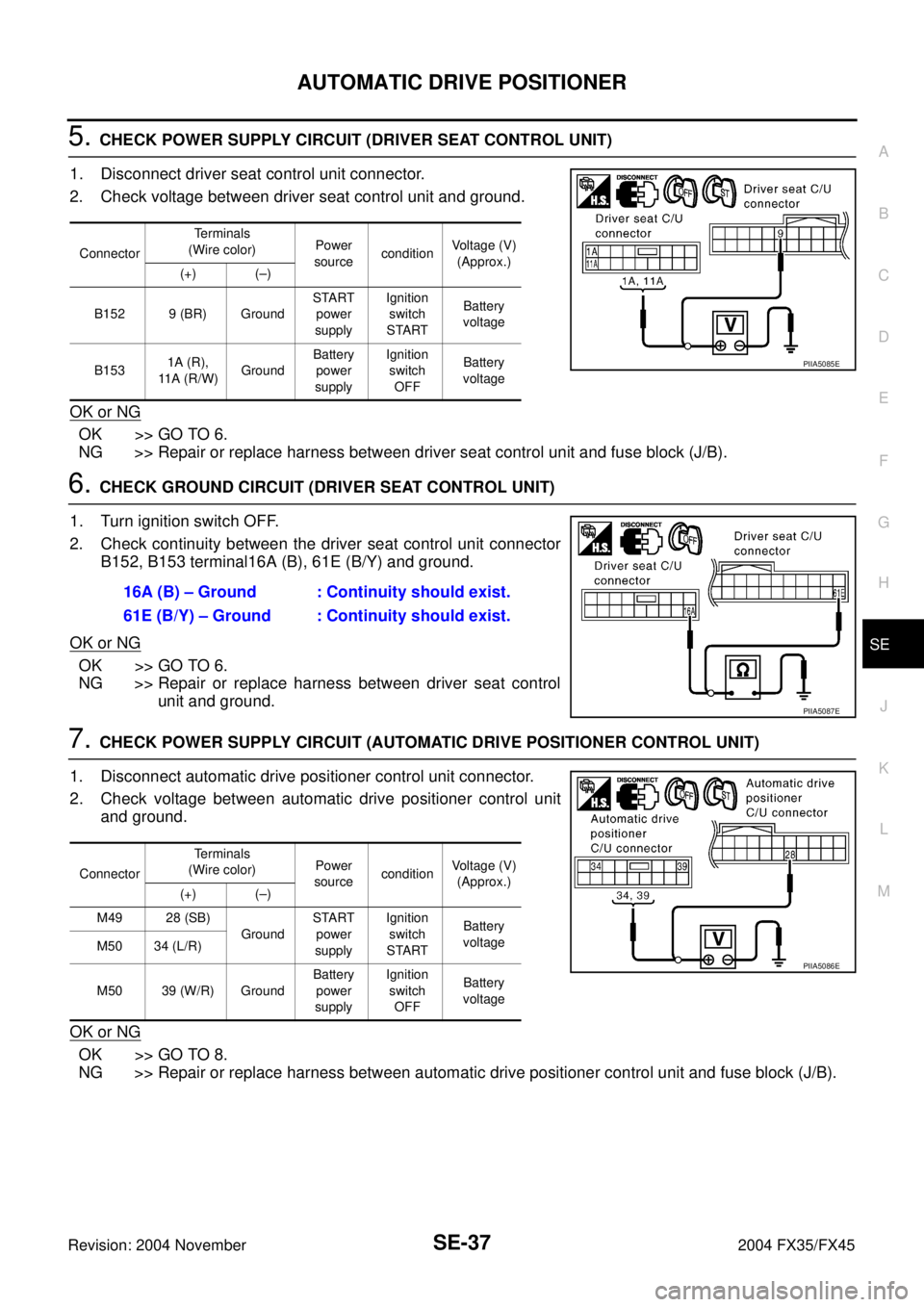

5. CHECK POWER SUPPLY CIRCUIT (DRIVER SEAT CONTROL UNIT)
1. Disconnect driver seat control unit connector.
2. Check voltage between driver seat control unit and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair or replace harness between driver seat control unit and fuse block (J/B).
6. CHECK GROUND CIRCUIT (DRIVER SEAT CONTROL UNIT)
1. Turn ignition switch OFF.
2. Check continuity between the driver seat control unit connector
B152, B153 terminal16A (B), 61E (B/Y) and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair or replace harness between driver seat control
unit and ground.
7. CHECK POWER SUPPLY CIRCUIT (AUTOMATIC DRIVE POSITIONER CONTROL UNIT)
1. Disconnect automatic drive positioner control unit connector.
2. Check voltage between automatic drive positioner control unit
and ground.
OK or NG
OK >> GO TO 8.
NG >> Repair or replace harness between automatic drive positioner control unit and fuse block (J/B).
ConnectorTerminals
(Wire color)Power
sourceconditionVoltage (V)
(Approx.)
(+) (–)
B152 9 (BR) GroundSTART
power
supplyIgnition
switch
STARTBattery
voltage
B1531A (R),
11 A ( R / W )GroundBattery
power
supplyIgnition
switch
OFFBattery
voltage
PIIA5085E
16A (B) – Ground : Continuity should exist.
61E (B/Y) – Ground : Continuity should exist.
PIIA5087E
ConnectorTerminals
(Wire color)Power
sourceconditionVoltage (V)
(Approx.)
(+) (–)
M49 28 (SB)
GroundSTART
power
supplyIgnition
switch
STARTBattery
voltage
M50 34 (L/R)
M50 39 (W/R) GroundBattery
power
supplyIgnition
switch
OFFBattery
voltage
PIIA5086E

SE-88
AUTOMATIC DRIVE POSITIONER
Revision: 2004 November 2004 FX35/FX45

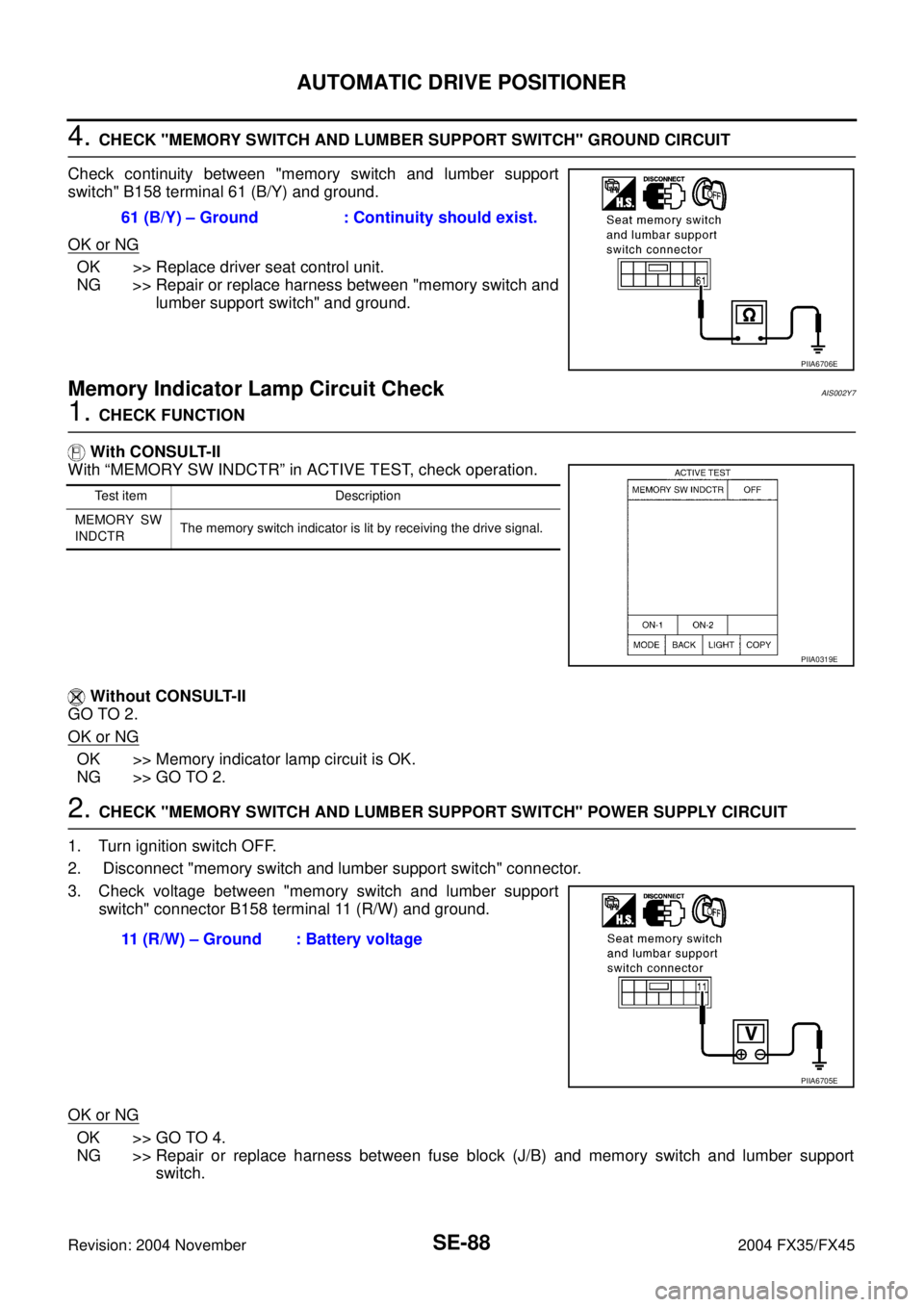

4. CHECK "MEMORY SWITCH AND LUMBER SUPPORT SWITCH" GROUND CIRCUIT
Check continuity between "memory switch and lumber support
switch" B158 terminal 61 (B/Y) and ground.
OK or NG
OK >> Replace driver seat control unit.
NG >> Repair or replace harness between "memory switch and
lumber support switch" and ground.
Memory Indicator Lamp Circuit CheckAIS002Y7
1. CHECK FUNCTION
With CONSULT-II
With “MEMORY SW INDCTR” in ACTIVE TEST, check operation.
Without CONSULT-II
GO TO 2.
OK or NG
OK >> Memory indicator lamp circuit is OK.
NG >> GO TO 2.
2. CHECK "MEMORY SWITCH AND LUMBER SUPPORT SWITCH" POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect "memory switch and lumber support switch" connector.
3. Check voltage between "memory switch and lumber support
switch" connector B158 terminal 11 (R/W) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness between fuse block (J/B) and memory switch and lumber support
switch. 61 (B/Y) – Ground : Continuity should exist.
PIIA6706E
Test item Description
MEMORY SW
INDCTRThe memory switch indicator is lit by receiving the drive signal.
PIIA0319E
11 (R/W) – Ground : Battery voltage
PIIA6705E

AUTOMATIC DRIVE POSITIONER
SE-91
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2004 November 2004 FX35/FX45
Lumber Support Circuit CheckAIS003C1

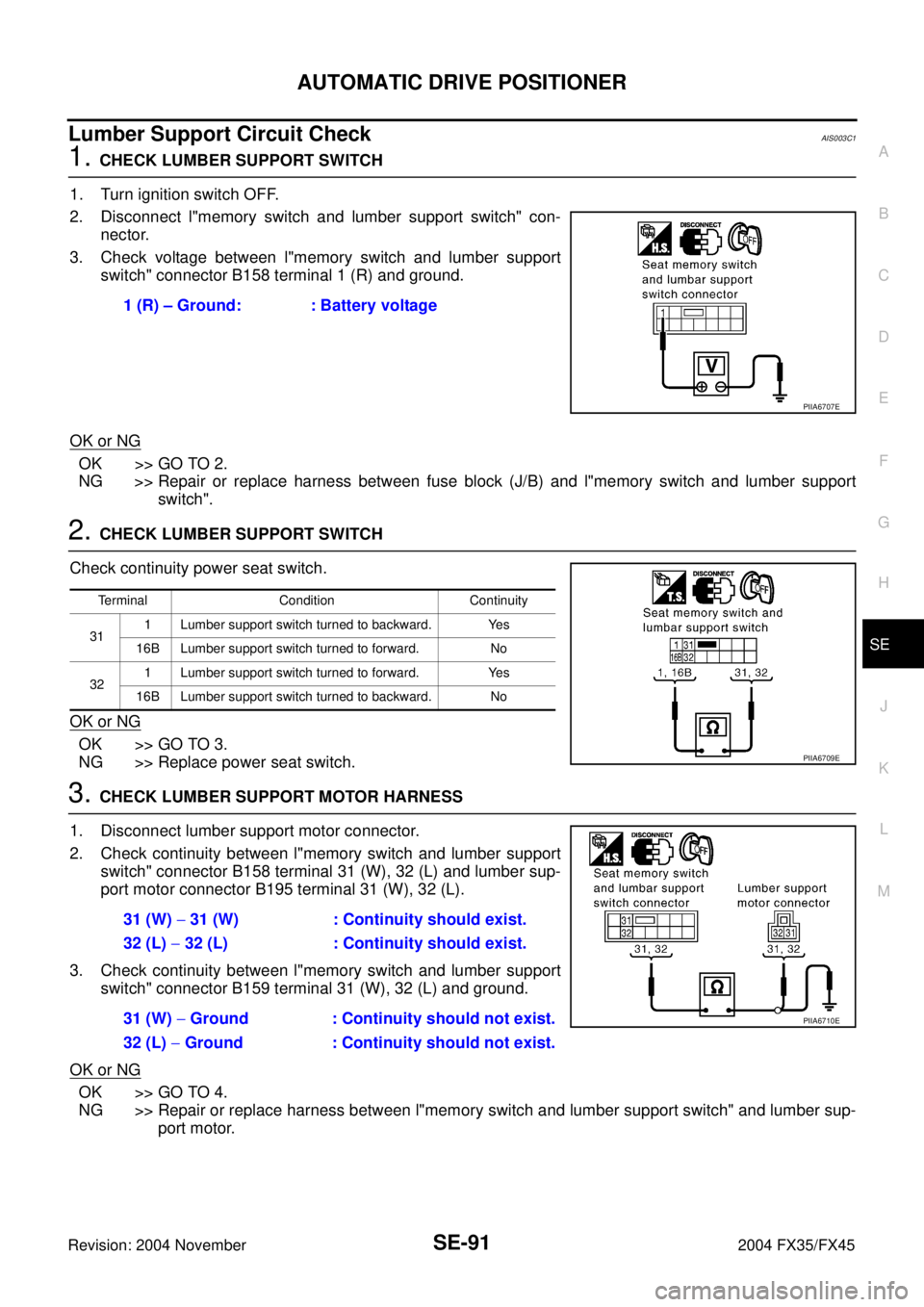

1. CHECK LUMBER SUPPORT SWITCH
1. Turn ignition switch OFF.
2. Disconnect l"memory switch and lumber support switch" con-
nector.
3. Check voltage between l"memory switch and lumber support
switch" connector B158 terminal 1 (R) and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace harness between fuse block (J/B) and l"memory switch and lumber support
switch".
2. CHECK LUMBER SUPPORT SWITCH
Check continuity power seat switch.
OK or NG
OK >> GO TO 3.
NG >> Replace power seat switch.
3. CHECK LUMBER SUPPORT MOTOR HARNESS
1. Disconnect lumber support motor connector.
2. Check continuity between l"memory switch and lumber support
switch" connector B158 terminal 31 (W), 32 (L) and lumber sup-
port motor connector B195 terminal 31 (W), 32 (L).
3. Check continuity between l"memory switch and lumber support
switch" connector B159 terminal 31 (W), 32 (L) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness between l"memory switch and lumber support switch" and lumber sup-
port motor. 1 (R) – Ground: : Battery voltage
PIIA6707E
Terminal Condition Continuity
311 Lumber support switch turned to backward. Yes
16B Lumber support switch turned to forward. No
321 Lumber support switch turned to forward. Yes
16B Lumber support switch turned to backward. No
PIIA6709E
31 (W) − 31 (W) : Continuity should exist.
32 (L) − 32 (L) : Continuity should exist.
31 (W) − Ground : Continuity should not exist.
32 (L) − Ground : Continuity should not exist.
PIIA6710E

SRS-34
TROUBLE DIAGNOSIS
Revision: 2004 November 2004 FX35/FX45
Trouble Diagnosis: “AIR BAG” Warning Lamp Does Not Turn OFFAHS000HU
DIAGNOSTIC PROCEDURE 7
1. CHECK THE DEPLOYMENT OF AIR BAG MODULE
Is air bag module deployed?
YES or NO
YES >> Refer to SRS-56, "COLLISION DIAGNOSIS" .
NO >> GO TO 2.
2. CHECK THE AIR BAG FUSE
Check 10A fuse [No. 13, located in fuse block (J/B)].
Refer to PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. CHECK AIR BAG FUSE AGAIN
Replace “AIR BAG” fuse and turn ignition switch ON.
Does the
“AIR BAG” fuse blow again?
YES >> Repair main harness.
NO >>INSPECTION END
4. CHECK DIAGNOSIS SENSOR UNIT
Connect CONSULT-II and touch “START”.

Is “AIR BAG” displayed on CONSULT-II?
YES or NO
YES >> GO TO 5.
NO >> Visually check the wiring harness connection of diagno-
sis sensor unit. If the harness connection check result is
OK, replace diagnosis sensor unit.
5. CHECK HARNESS CONNECTION
Is harness connection between warning lamp and diagnosis sensor unit OK?
OK or NG
OK >> Replace diagnosis sensor unit.
NG >> Connect “AIR BAG” warning lamp and diagnosis sensor unit connector properly. If “AIR BAG”
warning lamp still does not go off, replace harness.
SRS771

TROUBLE DIAGNOSIS
SRS-35
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: 2004 November 2004 FX35/FX45
Trouble Diagnosis: “AIR BAG” Warning Lamp Does Not Turn ONAHS000HV
DIAGNOSTIC PROCEDURE 8
1. CHECK METER FUSE
Check 10A fuse [No. 14, located in fuse block (J/B)].
Refer to PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. CHECK METER FUSE AGAIN
Replace 10A fuse [No. 14, located in fuse block (J/B)] and turn ignition switch ON.
Does the meter fuse blow again?
YES >> Repair the related harness.
NO >>INSPECTION END
3. CHECK HARNESS CONNECTION BETWEEN DIAGNOSIS SENSOR UNIT AND COMBINATION
METER
Disconnect diagnosis sensor unit connector and turn ignition switch ON.

Does “AIR BAG” warning lamp turn ON?
YES or NO
YES >> Replace diagnosis sensor unit.
NO >> Check the ground circuit of “AIR BAG” warning lamp.

TROUBLE DIAGNOSIS FOR SYSTEM
TF-25
C
E
F
G
H
I
J
K
L
MA
B
TF
Revision: 2004 November 2004 FX35/FX45
TROUBLE DIAGNOSIS FOR SYSTEMPFP:00000
Power Supply Circuit For AWD Control UnitADS000SX
CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Data are reference value.
DIAGNOSTIC PROCEDURE
1. CHECK POWER SUPPLY
1. Turn ignition switch “OFF”.
2. Disconnect AWD control unit harness connector.
3. Turn ignition switch “ON”. (Do not start engine.)
4. Check voltage between AWD control unit harness connector ter-
minals and ground.
5. Turn ignition switch “OFF”.
6. Check voltage between AWD control unit harness connector ter-
minals and ground.
OK or NG
OK >> GO TO 2.
NG >> Check the following. If any items are damaged, repair or
replace damaged parts.

10A fuse [No. 12 or 21, located in the fuse block (J/B)]

Harness for short or open between battery and AWD control unit harness connector terminal 9

Harness for short or open between ignition switch and AWD control unit harness connector ter-
minal 7

Ignition switch. Refer to PG-3, "POWER SUPPLY ROUTING CIRCUIT" .
Monitored item [Unit] Condition Display value (Approx.)
BATTERY VOLT [V] Ignition switch: ON Battery voltage
Connector Terminal (Wire color) Voltage (Approx.)
M927 (G/R) - Ground
Battery voltage
9 (G/W) - Ground
SDIA2319E
Connector Terminal (Wire color) Voltage (Approx.)
M927 (G/R) - Ground 0V
9 (G/W) - Ground Battery voltage
SDIA2320E
