display INFINITI FX35 2004 Service Manual

INTEGRATED DISPLAY SYSTEM
AV-63
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2004 November 2004 FX35/FX45
Wiring Diagram — INF/D — AKS00BOA
TKWM0580E

AV-64
INTEGRATED DISPLAY SYSTEM
Revision: 2004 November 2004 FX35/FX45

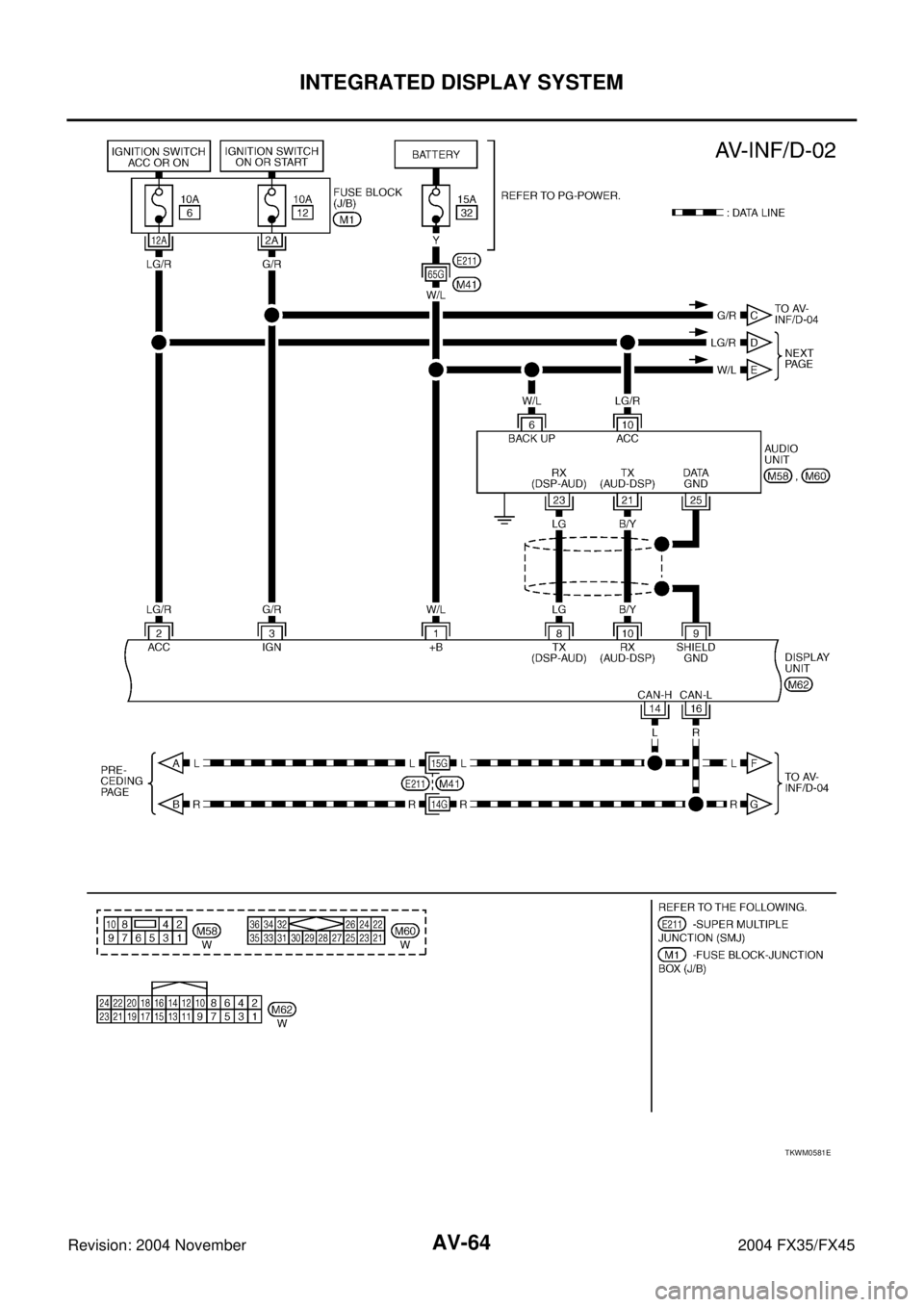

TKWM0581E

INTEGRATED DISPLAY SYSTEM
AV-65
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2004 November 2004 FX35/FX45
TKWM0582E

AV-66
INTEGRATED DISPLAY SYSTEM
Revision: 2004 November 2004 FX35/FX45
TKWM0583E

INTEGRATED DISPLAY SYSTEM
AV-67
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2004 November 2004 FX35/FX45
TKWM0811E

AV-68
INTEGRATED DISPLAY SYSTEM
Revision: 2004 November 2004 FX35/FX45
SchematicAKS00BOB
TKWM0591E

INTEGRATED DISPLAY SYSTEM
AV-69
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2004 November 2004 FX35/FX45
Wiring Diagram — COMM —AKS00BOC
TKWM0592E

AV-70
INTEGRATED DISPLAY SYSTEM
Revision: 2004 November 2004 FX35/FX45
TKWM0593E

INTEGRATED DISPLAY SYSTEM
AV-71
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2004 November 2004 FX35/FX45
TKWM0594E

AV-72
INTEGRATED DISPLAY SYSTEM
Revision: 2004 November 2004 FX35/FX45
Terminals and Reference Value for Display UnitAKS00BOD
Terminal No.
(Wire color)
ItemSignal
input/
outputCondition
VoltageExample of
symptom
+–Ignition
switchOperation
1 (W/L) GroundBattery power
supplyInput OFF - Battery voltageSystem does not
work properly.
2 (LG/R) GroundACC power
supplyInput ACC - Battery voltageSystem does not
work properly.
3 (G/R) Ground Ignition signal Input ON - Battery voltageA/C operation is
not possible.
Vehicle informa-
tion setting is not
possible.
4 (R/L) GroundIllumination
signalInput OFFLighting switch is
ON .Approx. 12VScreen does not
switch to night-
time mode after
the lighting switch
is turned ON. Llighting switch is
OFF.Approx. 0V
6 (B) Ground Ground - ON - Approx. 0V -
7 (R/G) GroundVehicle speed
signal (8-pulse)Input ONWhen vehicle
speed is approx.
40 km/h (25 MPH)Drive computer
item is not dis-
played correctly.
8 (LG) Ground Audio TX Output ONOperate audio
volume.Audio does not
operate properly.
9 - Shield ground - - - - -
10 (B/Y) Ground Audio RX Input ONOperate audio
volume.Audio does not
operate properly.
11 (B/R) GroundCommunica-
tion signal (+)Input/
outputON -System does not
work properly.
12 - Shield ground - - - - -
PKIA1935E
SKIA4402E
SKIA4403E
SKIA0175E
