INFINITI FX35 2004 Service Manual

GW-2Revision: 2004 November 2004 FX35/FX45DATE MONITOR ................................................. 41
Trouble Diagnosis Symptom Chart / With Front
Power Window Anti-pinch System .......................... 42
Trouble Diagnosis Symptom Chart / With Front and
Rear Power Window Anti-pinch System ................. 43
BCM Power Supply and Ground Circuit Check ...... 44
Power Window Main Switch Power Supply Circuit
Check ..................................................................... 45
Front Power Window Switch (Passenger Side)
Power Supply and Ground Circuit Check ............... 46
Rear Power Window Switch (LH or RH) Power Sup-
ply and Ground Circuit Check / With Front and Rear
Power Window Anti-pinch System .......................... 47
Front Power Window Motor (Driver Side) Circuit
Check ..................................................................... 48
Front Power Window Motor (Passenger Side) Cir-
cuit Check ............................................................... 49
Rear Power Window Motor (LH) Circuit Check / With
Front Anti-pinch Power Window System ................ 50
Rear Power Window Motor (RH) Circuit Check / With
Front Anti-pinch Power Window System ................ 52
Rear Power Window Motor (LH or RH) Circuit Check
/ With Front and Rear Power Window Anti-pinch
System .................................................................... 55
Limit Switch Circuit Check (Driver Side) ................. 56
Limit Switch Circuit Check (Passenger Side) ......... 57
Limit Switch Circuit Check (Rear LH or RH) / With
Front and Rear Anti-pinch System ......................... 59
Encoder Circuit Check (Driver Side) ....................... 61
Encoder Circuit Check (Passenger Side) ............... 63
Encoder Circuit Check (Rear LH or RH) / With Front
and Rear Power Window Anti-pinch System .......... 65
Door Switch Check ................................................. 67
Front Door Key Cylinder Switch Check .................. 69
Power Window Serial Link Check (Passenger Side) ... 71
Power Window Serial Link Check (Rear LH or RH)
/ With Front and Rear Power Window Anti-pinch
System .................................................................... 73
Power Window Lock Switch Check ........................ 73
SIDE WINDOW GLASS ............................................ 74
Removal and Installation ........................................ 74
REMOVAL ........................................................... 74
INSTALLATION .................................................... 75
FRONT DOOR GLASS AND REGULATOR ............. 76
Removal and Installation ........................................ 76
DOOR GLASS ..................................................... 76
REGULATOR ASSEMBLY .................................. 77
Disassembly and assembly .................................... 78
REGULATOR ASSEMBLY .................................. 78
Inspection after Installation ..................................... 78
SETTING OF LIMIT SWITCH .............................. 78
FITTING INSPECTION ........................................ 78
REAR DOOR GLASS AND REGULATOR ............... 80
Removal and Installation ........................................ 80
DOOR GLASS ..................................................... 80REGULATOR ASSEMBLY ................................... 81
Disassembly and assembly .................................... 82
REGULATOR ASSEMBLY ................................... 82
Inspection after Installation ..................................... 82
SETTING OF LIMIT SWITCH (WITH ANTI-
PINCH SYSTEM ONLY) ...................................... 82
FITTING INSPECTION ........................................ 83
INSIDE MIRROR ....................................................... 84
Wiring Diagram —I/MIRR— ................................... 84
Removal and Installation ......................................... 85
REMOVAL ............................................................ 85
INSTALLATION .................................................... 85
COMPASS ........................................................... 85
REAR WINDOW DEFOGGER .................................. 86
Component Parts and Harness Connector Location ... 86
System Description ................................................. 86
CAN Communication System Description .............. 88
CAN Communication Unit ....................................... 88
Schematic ............................................................... 89
Wiring Diagram —DEF— ........................................ 90
Terminal and Reference Value for BCM .................. 94
Terminal and Reference Value for IPDM E/R .......... 94
Work Flow ............................................................... 94
CONSULT-II Inspection Procedure ......................... 95
DATA MONITOR .................................................. 96
ACTIVE TEST ...................................................... 96
Trouble Diagnoses Symptom Chart ........................ 97
BCM Power Supply and Ground Circuit Check ...... 97
Rear Window Defogger Switch Circuit Check ......... 98
Rear Window Defogger Power Supply Circuit
Check ....................................................................100
Rear Window Defogger Circuit Check ..................102
Door Mirror Defogger Power Supply Circuit Check .103
Driver Side Door Mirror Defogger Circuit Check ...104
Passenger Side Door Mirror Defogger Circuit Check
.105
Rear Window Defogger Signal Check ..................106
Filament Check .....................................................107
Filament Repair .....................................................107
REPAIR EQUIPMENT .......................................107
REPAIRING PROCEDURE ...............................108
DOOR MIRROR .......................................................109
Door Mirror (Only Manual Operation) ...................109
WRING DIAGRAM —MIRROR— FOR MAN-
UAL OPERATION DOOR MIRROR ...................109
Automatic Drive Positioner Interlocking Door Mirror .110
WRING DIAGRAM –MIRROR– FOR AUTO-
MATIC DRIVE POSITIONER INTERLOCKING
DOOR MIRROR ................................................. 111
Removal and Installation .......................................113
REMOVAL ..........................................................113
INSTALLATION ..................................................113
Disassembly and Assembly ..................................113
DISASSEMBLY ..................................................113
ASSEMBLY ........................................................114

PRECAUTIONS
GW-3
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2004 November 2004 FX35/FX45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
AIS0039V
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Handling for Adhesive and PrimerAIS0039W

Do not use an adhesive which is past its usable date. Shelf life of this product is limited to six months after
the date of manufacture. Carefully adhere to the expiration or manufacture date printed on the box.

Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

Open the seal of the primer and adhesive just before application. Discard the remainder.

Before application, be sure to shake the primer container to stir the contents. If any floating material is
found, do not use it.

If any primer or adhesive contacts the skin, wipe it off with gasoline or equivalent and wash the skin with
soap.

When using primer and adhesive, always observe the precautions in the instruction manual.
Wiring Diagrams and Trouble Diagnosis AIS0039X
When you read wiring diagrams, refer to the following:

GI-15, "How to Read Wiring Diagrams".

PG-3, "POWER SUPPLY ROUTING CIRCUIT".
When you perform trouble diagnosis, refer to the following:

GI-11, "HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSES".

GI-27, "How to Perform Efficient Diagnosis for an Electrical Incident".
Check for any service bulletins before servicing the vehicle.

GW-4
PREPARATION
Revision: 2004 November 2004 FX35/FX45
PREPARATIONPFP:00002
Special Service ToolsAIS0039Y
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Commercial Service ToolsAIS0039Z
Tool number
(Kent-Moore No.)
Tool nameDescription
(J-39570)
Chassis earLocating the noise
(J-43980)
NISSAN Squeak and
Rattle KitRepairing the cause of noise
SIIA0993E
SIIA0994E
Tool name Description
Engine ear Locating the noise
SIIA0995E

SQUEAK AND RATTLE TROUBLE DIAGNOSES
GW-5
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2004 November 2004 FX35/FX45
SQUEAK AND RATTLE TROUBLE DIAGNOSESPFP:00000
Work FlowAIS003A0
CUSTOMER INTERVIEW
Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diag-
nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any

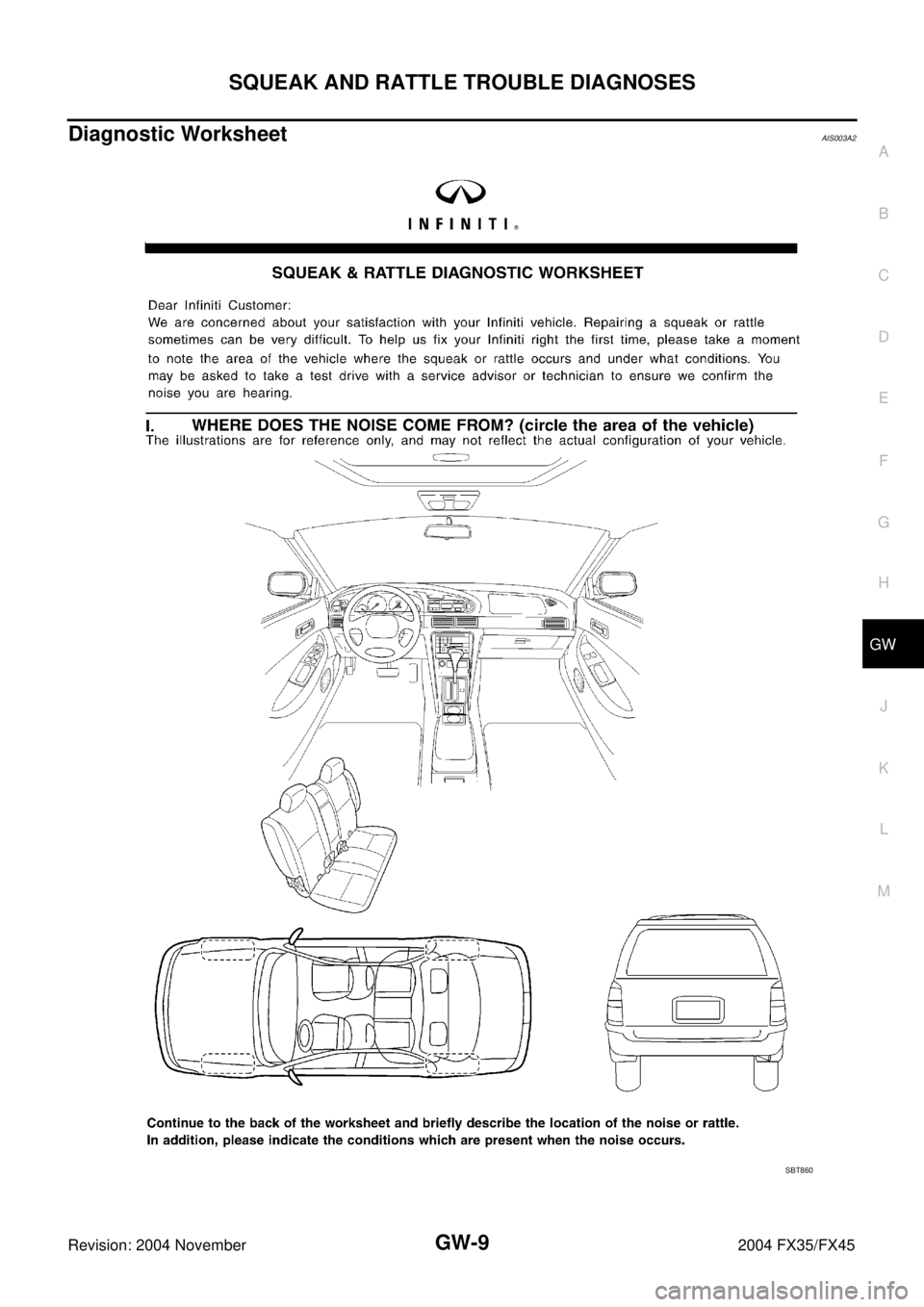

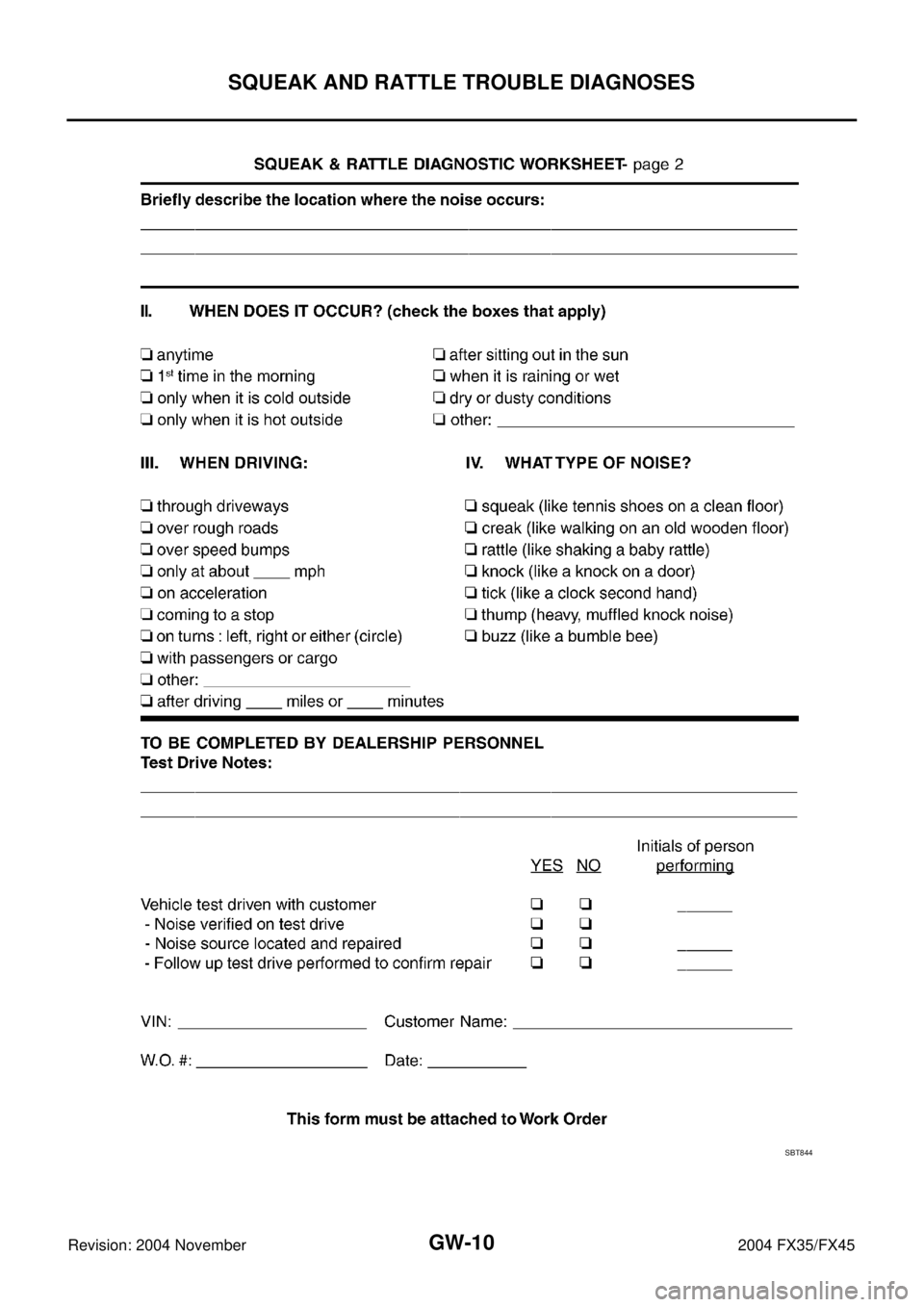

customer's comments; refer to GW-9, "
Diagnostic Worksheet" . This information is necessary to duplicate the
conditions that exist when the noise occurs.

The customer may not be able to provide a detailed description or the location of the noise. Attempt to
obtain all the facts and conditions that exist when the noise occurs (or does not occur).

If there is more than one noise in the vehicle, be sure to diagnose and repair the noise that the customer
is concerned about. This can be accomplished by test driving the vehicle with the customer.

After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics
are provided so the customer, service adviser and technician are all speaking the same language when
defining the noise.

Squeak —(Like tennis shoes on a clean floor)
Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard sur-
faces=higher pitch noise/softer surfaces=lower pitch noises/edge to surface=chirping

Creak—(Like walking on an old wooden floor)
Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch
dependent on materials/often brought on by activity.

Rattle—(Like shaking a baby rattle)
Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing
clip or fastener/incorrect clearance.

Knock —(Like a knock on a door)
Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action.

Tick—(Like a clock second hand)
Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver
action or road conditions.

Thump—(Heavy, muffled knock noise)
Thump characteristics include softer knock/dead sound often brought on by activity.

Buzz—(Like a bumble bee)
Buzz characteristics include high frequency rattle/firm contact.

Often the degree of acceptable noise level will vary depending upon the person. A noise that you may
judge as acceptable may be very irritating to the customer.

Weather conditions, especially humidity and temperature, may have a great effect on noise level.
SBT842

GW-6
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Revision: 2004 November 2004 FX35/FX45
DUPLICATE THE NOISE AND TEST DRIVE
If possible, drive the vehicle with the customer until the noise is duplicated. Note any additional information on
the Diagnostic Worksheet regarding the conditions or location of the noise. This information can be used to
duplicate the same conditions when you confirm the repair.
If the noise can be duplicated easily during the test drive, to help identify the source of the noise, try to dupli-
cate the noise with the vehicle stopped by doing one or all of the following:
1) Close a door.
2) Tap or push/pull around the area where the noise appears to be coming from.
3) Rev the engine.
4) Use a floor jack to recreate vehicle “twist”.
5) At idle, apply engine load (electrical load, half-clutch on M/T models, drive position on A/T models).
6) Raise the vehicle on a hoist and hit a tire with a rubber hammer.

Drive the vehicle and attempt to duplicate the conditions the customer states exist when the noise occurs.

If it is difficult to duplicate the noise, drive the vehicle slowly on an undulating or rough road to stress the
vehicle body.
CHECK RELATED SERVICE BULLETINS
After verifying the customer concern or symptom, check ASIST for Technical Service Bulletins (TSBs) related
to that concern or symptom.
If a TSB relates to the symptom, follow the procedure to repair the noise.
LOCATE THE NOISE AND IDENTIFY THE ROOT CAUSE
1. Narrow down the noise to a general area. To help pinpoint the source of the noise, use a listening tool
(Chassis Ear: J-39570, Engine Ear and mechanics stethoscope).
2. Narrow down the noise to a more specific area and identify the cause of the noise by:

removing the components in the area that you suspect the noise is coming from.
Do not use too much force when removing clips and fasteners, otherwise clips and fastener can be broken
or lost during the repair, resulting in the creation of new noise.

tapping or pushing/pulling the component that you suspect is causing the noise.
Do not tap or push/pull the component with excessive force, otherwise the noise will be eliminated only
temporarily.

feeling for a vibration with your hand by touching the component(s) that you suspect is (are) causing the
noise.

placing a piece of paper between components that you suspect are causing the noise.

looking for loose components and contact marks.
Refer to GW-7, "
Generic Squeak and Rattle Troubleshooting" .
REPAIR THE CAUSE

If the cause is a loose component, tighten the component securely.

If the cause is insufficient clearance between components:
–separate components by repositioning or loosening and retightening the component, if possible.
–insulate components with a suitable insulator such as urethane pads, foam blocks, felt cloth tape or ure-
thane tape. A Nissan Squeak and Rattle Kit (J-43980) is available through your authorized Nissan Parts
Department.
CAUTION:
Do not use excessive force as many components are constructed of plastic and may be damaged.
Always check with the Parts Department for the latest parts information.
The following materials are contained in the Nissan Squeak and Rattle Kit (J-43980). Each item can be
ordered separately as needed.
URETHANE PADS [1.5 mm (0.059 in) thick]
Insulates connectors, harness, etc.
76268-9E005: 100×135 mm (3.94×5.31 in)/76884-71L01: 60×85 mm (2.36×3.35 in)/76884-
71L02: 15×25 mm (0.59×0.98 in)
INSULATOR (Foam blocks)
Insulates components from contact. Can be used to fill space behind a panel.
73982-9E000: 45 mm (1.77 in) thick, 50×50 mm (1.97×1.97 in)/73982-
50Y00: 10 mm (0.39 in) thick, 50×50 mm (1.97×1.97 in)

SQUEAK AND RATTLE TROUBLE DIAGNOSES
GW-7
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2004 November 2004 FX35/FX45
INSULATOR (Light foam block)
80845-71L00: 30 mm (1.18 in) thick, 30×50 mm (1.18×1.97 in)
FELT CLOTHTAPE
Used to insulate where movement does not occur. Ideal for instrument panel applications.
68370-4B000: 15×25 mm (0.59×0.98 in) pad/68239-13E00: 5 mm (0.20 in) wide tape roll
The following materials, not found in the kit, can also be used to repair squeaks and rattles.
UHMW (TEFLON) TAPE
Insulates where slight movement is present. Ideal for instrument panel applications.
SILICONE GREASE
Used in of UHMW tape that will be visible or not fit.
Note: Will only last a few months.
SILICONE SPRAY
Use when grease cannot be applied.
DUCT TAPE
Use to eliminate movement.
CONFIRM THE REPAIR
Confirm that the cause of a noise is repaired by test driving the vehicle. Operate the vehicle under the same
conditions as when the noise originally occurred. Refer to the notes on the Diagnostic Worksheet.
Generic Squeak and Rattle TroubleshootingAIS003A1
Refer to Table of Contents for specific component removal and installation information.
INSTRUMENT PANEL
Most incidents are caused by contact and movement between:
1. The cluster lid A and instrument panel
2. Acrylic lens and combination meter housing
3. Instrument panel to front pillar garnish
4. Instrument panel to windshield
5. Instrument panel mounting pins
6. Wiring harnesses behind the combination meter
7. A/C defroster duct and duct joint
These incidents can usually be located by tapping or moving the components to duplicate the noise or by
pressing on the components while driving to stop the noise. Most of these incidents can be repaired by apply-
ing felt cloth tape or silicon spray (in hard to reach areas). Urethane pads can be used to insulate wiring har-
ness.
CAUTION:
Do not use silicone spray to isolate a squeak or rattle. If you saturate the area with silicone, you will
not be able to recheck the repair.
CENTER CONSOLE
Components to pay attention to include:
1. Shifter assembly cover to finisher
2. A/C control unit and cluster lid C
3. Wiring harnesses behind audio and A/C control unit
The instrument panel repair and isolation procedures also apply to the center console.
DOORS
Pay attention to the:
1. Finisher and inner panel making a slapping noise
2. Inside handle escutcheon to door finisher
3. Wiring harnesses tapping
4. Door striker out of alignment causing a popping noise on starts and stops
Tapping or moving the components or pressing on them while driving to duplicate the conditions can isolate
many of these incidents. You can usually insulate the areas with felt cloth tape or insulator foam blocks from
the Nissan Squeak and Rattle Kit (J-43980) to repair the noise.

GW-8
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Revision: 2004 November 2004 FX35/FX45
TRUNK
Trunk noises are often caused by a loose jack or loose items put into the trunk by the owner.
In addition look for:
1. Trunk lid dumpers out of adjustment
2. Trunk lid striker out of adjustment
3. The trunk lid torsion bars knocking together
4. A loose license plate or bracket
Most of these incidents can be repaired by adjusting, securing or insulating the item(s) or component(s) caus-
ing the noise.
SUNROOF/HEADLINING
Noises in the sunroof/headlining area can often be traced to one of the following:
1. Sunroof lid, rail, linkage or seals making a rattle or light knocking noise
2. Sunvisor shaft shaking in the holder
3. Front or rear windshield touching headlining and squeaking
Again, pressing on the components to stop the noise while duplicating the conditions can isolate most of these
incidents. Repairs usually consist of insulating with felt cloth tape.
SEATS
When isolating seat noise it's important to note the position the seat is in and the load placed on the seat when
the noise is present. These conditions should be duplicated when verifying and isolating the cause of the
noise.
Cause of seat noise include:
1. Headrest rods and holder
2. A squeak between the seat pad cushion and frame
3. The rear seatback lock and bracket
These noises can be isolated by moving or pressing on the suspected components while duplicating the con-
ditions under which the noise occurs. Most of these incidents can be repaired by repositioning the component
or applying urethane tape to the contact area.
UNDERHOOD
Some interior noise may be caused by components under the hood or on the engine wall. The noise is then
transmitted into the passenger compartment.
Causes of transmitted underhood noise include:
1. Any component mounted to the engine wall
2. Components that pass through the engine wall
3. Engine wall mounts and connectors
4. Loose radiator mounting pins
5. Hood bumpers out of adjustment
6. Hood striker out of adjustment
These noises can be difficult to isolate since they cannot be reached from the interior of the vehicle. The best
method is to secure, move or insulate one component at a time and test drive the vehicle. Also, engine RPM
or load can be changed to isolate the noise. Repairs can usually be made by moving, adjusting, securing, or
insulating the component causing the noise.

SQUEAK AND RATTLE TROUBLE DIAGNOSES
GW-9
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2004 November 2004 FX35/FX45
Diagnostic WorksheetAIS003A2
SBT860

GW-10
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Revision: 2004 November 2004 FX35/FX45
SBT844

WINDSHIELD GLASS
GW-11
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2004 November 2004 FX35/FX45
WINDSHIELD GLASSPFP:72712
Removal and InstallationAIS003A3
REMOVAL
1. Remove the front pillar garnish. Refer to EI-37, "BODY SIDE TRIM" .
2. Partially remove the headlining (front edge). Refer to EI-42, "
HEADLINING" .
3. Remove the front wiper arms. Refer to WW-28, "
Removal and Installation of Front Wiper Arms, Adjust-
ment of Wiper Arms Stop Location" .
4. Remove the cowl top cover. Refer to EI-24, "
COWL TOP" .
5. Pull the molding using the pliers.
6. Apply a protective tape around the windshield glass to protect the painted surface from damage.
After removing moldings, remove glass using piano wire or power cutting tool and an inflatable pump bag.

If a windshield glass is to be reused, mark the body and the glass with mating marks.
PIIA9190E
1. Dam rubber 2. Molding 3. Windshield glass
4. Spacer 5. Mirror base 6. Bond
7. Insulator 8. Panel 9. Body side (outer)
10. Cowl top cover 11. Pad 12. Bracket
