WW-50
REAR WIPER AND WASHER SYSTEM
Revision: 2004 November 2004 FX35/FX45
Removal and Installation of Washer NozzleAKS007AJ
REMOVAL
1. Remove high-mounted stop lamp. Refer to LT- 1 2 3 , "High-
Mounted Stop Lamp" in “LT” section.
2. Remove screw and remove washer nozzle from high-mounted
stop lamp.
INSTALLATION
Install in the reverse order of removal.
Washer Tube LayoutAKS0057W
Adjustable range : -15°– +15° (In any direction)
SKIA5087E
SKIA5089E
SKIA5090E
Page 4442 of 4449
REAR WIPER AND WASHER SYSTEM
WW-51
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2004 November 2004 FX35/FX45
Check Valve InspectionAKS0057X
A check valve is provided in the washer fluid line. Be careful not to
connect check valve to washer tube in the wrong direction.
Removal and Installation of Rear Wiper and Washer SwitchAKS0057Y
Refer to WW-33, "Removal and Installation of Front Wiper and Washer Switch" .
Removal and Installation of Washer TankAKS0057Z
Refer to WW-33, "Removal and Installation of Washer Tank" .
Removal and Installation of Washer PumpAKS00580
Refer to WW-34, "Removal and Installation of Washer Motor" .
SEL411H
Page 4443 of 4449
WW-52
CIGARETTE LIGHTER
Revision: 2004 November 2004 FX35/FX45
CIGARETTE LIGHTERPFP:35330
Wiring Diagram — CIGAR —AKS007AA
TKWM0668E
Page 4444 of 4449
CIGARETTE LIGHTER
WW-53
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2004 November 2004 FX35/FX45
Removal and Installation of Cigarette LighterAKS007AB

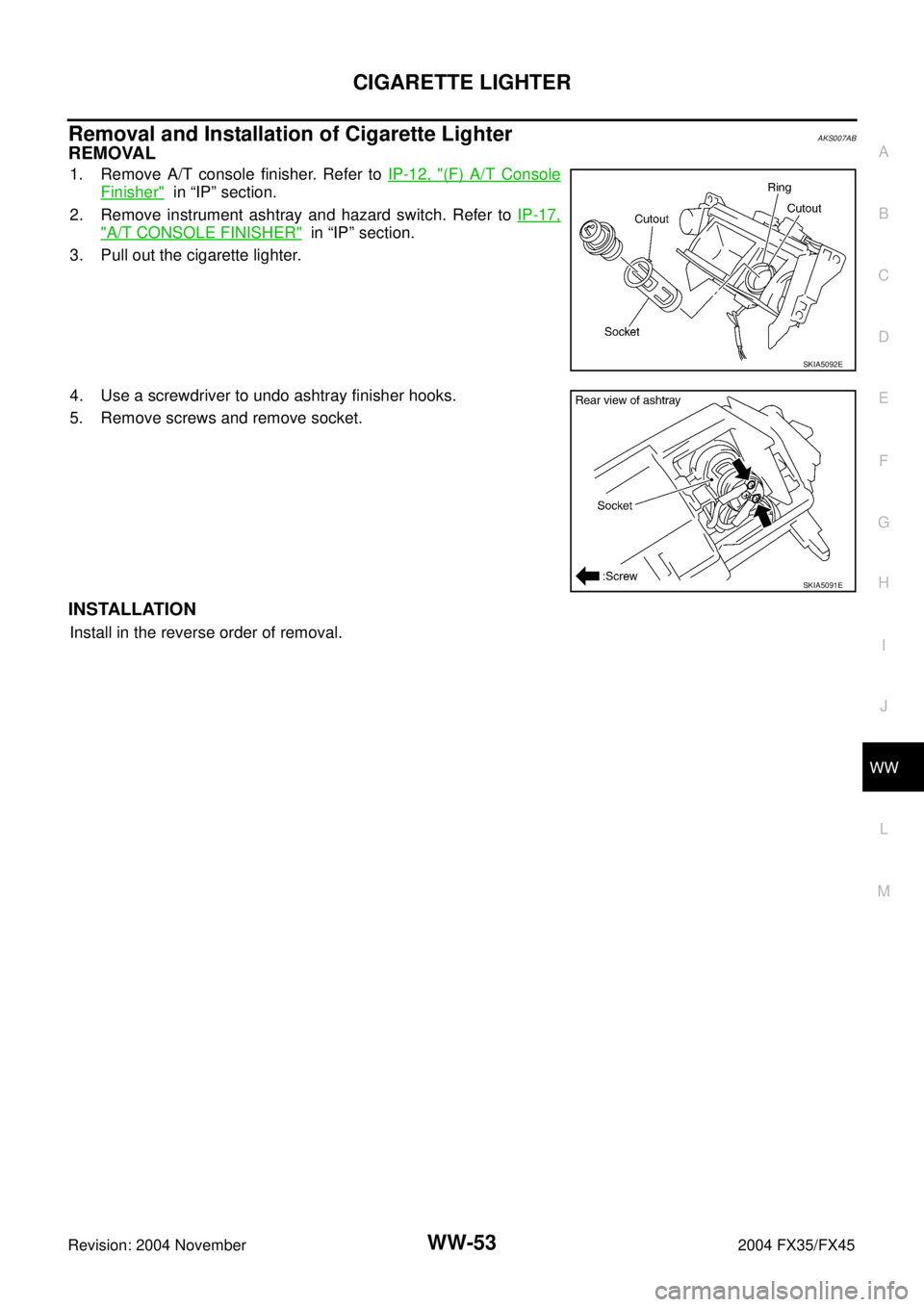

REMOVAL
1. Remove A/T console finisher. Refer to IP-12, "(F) A/T Console
Finisher" in “IP” section.
2. Remove instrument ashtray and hazard switch. Refer to IP-17,
"A/T CONSOLE FINISHER" in “IP” section.
3. Pull out the cigarette lighter.
4. Use a screwdriver to undo ashtray finisher hooks.
5. Remove screws and remove socket.
INSTALLATION
Install in the reverse order of removal.
SKIA5092E
SKIA5091E
Page 4445 of 4449
WW-54
POWER SOCKET
Revision: 2004 November 2004 FX35/FX45
POWER SOCKETPFP:253A2
Wiring Diagram — P/SCKT —AKS00581
TKWH0245E
Page 4446 of 4449
POWER SOCKET
WW-55
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2004 November 2004 FX35/FX45

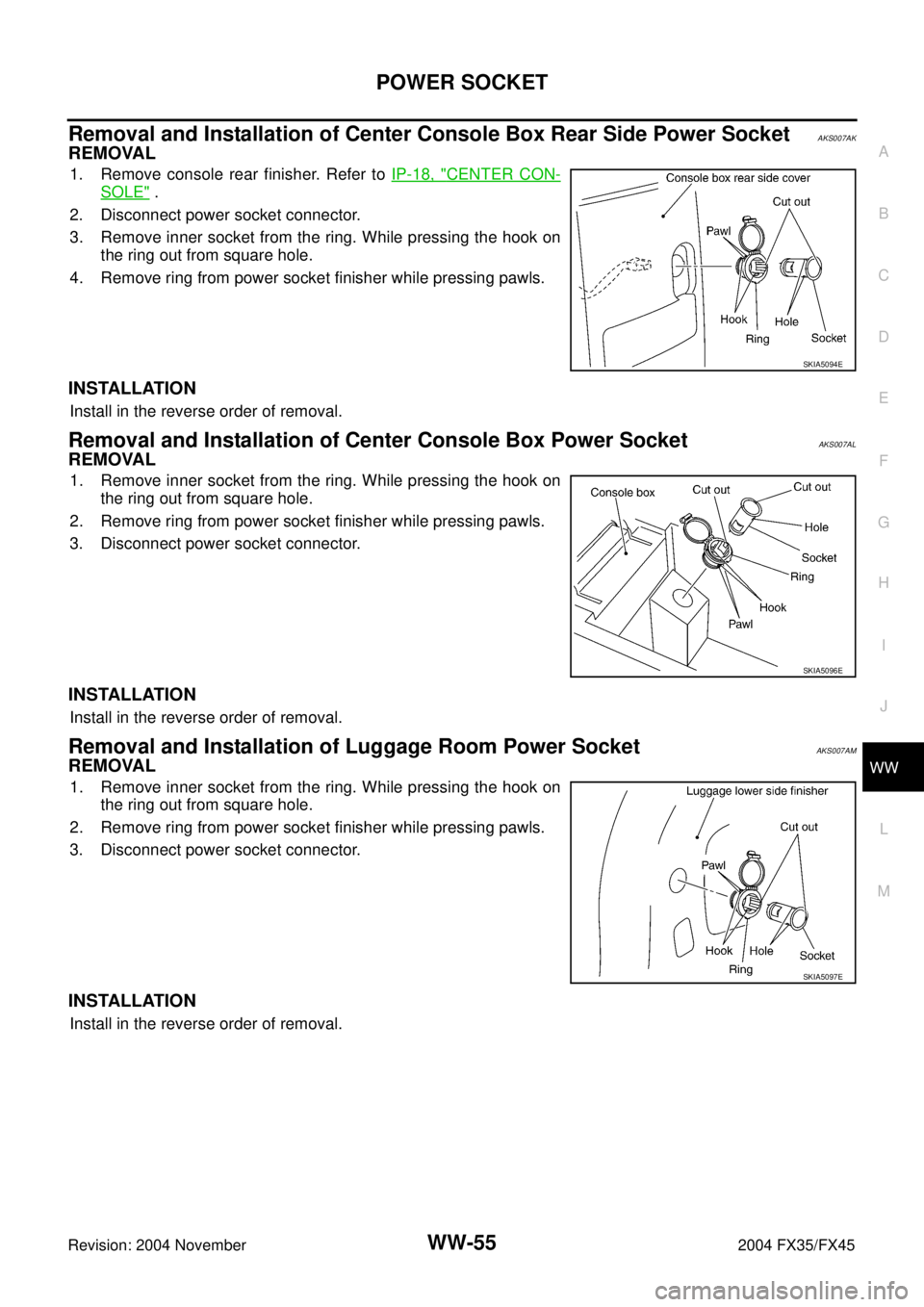

Removal and Installation of Center Console Box Rear Side Power SocketAKS007AK
REMOVAL
1. Remove console rear finisher. Refer to IP-18, "CENTER CON-
SOLE" .
2. Disconnect power socket connector.
3. Remove inner socket from the ring. While pressing the hook on
the ring out from square hole.
4. Remove ring from power socket finisher while pressing pawls.
INSTALLATION
Install in the reverse order of removal.
Removal and Installation of Center Console Box Power SocketAKS007AL
REMOVAL
1. Remove inner socket from the ring. While pressing the hook on
the ring out from square hole.
2. Remove ring from power socket finisher while pressing pawls.
3. Disconnect power socket connector.
INSTALLATION
Install in the reverse order of removal.
Removal and Installation of Luggage Room Power SocketAKS007AM
REMOVAL
1. Remove inner socket from the ring. While pressing the hook on
the ring out from square hole.
2. Remove ring from power socket finisher while pressing pawls.
3. Disconnect power socket connector.
INSTALLATION
Install in the reverse order of removal.
SKIA5094E
SKIA5096E
SKIA5097E
Page 4447 of 4449
WW-56
HORN
Revision: 2004 November 2004 FX35/FX45
HORNPFP:25610
Wiring Diagram — HORN —AKS00583
TKWM0669E
Page 4448 of 4449
HORN
WW-57
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2004 November 2004 FX35/FX45
Removal and InstallationAKS00584
REMOVAL
1. Remove front grille. Refer to EI-23, "Removal and Installation"
in “EI” section.
2. Disconnect all horn connectors.
3. Remove horn mounting bolt and remove horn from vehicle.
INSTALLATION
Tighten horn bolt to specified torque.
SKIA5093E
Horn mounting bolt
: 5.8 N·m (0.59 kg-m, 51 in-lb)
Page 4449 of 4449
