AUTOMATIC DRIVE POSITIONER
Revision: 2004 November 2004 FX35/FX45
4. CHECK LUMBER SUPPORT SWITCH GROUND CIRCUIT
Check continuity between lumber support switch connector B158
terminal 16B (B) and ground.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Repair or replace harness between l"memory switch and lumber support switch" and ground. 16B (B) – Ground : Continuity should exist.
PIIA6708E

POWER SEAT
SE-93
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2004 November 2004 FX35/FX45
POWER SEATPFP:87016
Automatic Drive Positioner Interlocking Power SeatAIS003L4
A trouble diagnosis of a automatic drive positioner interlocking power seat is refer toSE-11, "AUTOMATIC
DRIVE POSITIONER" .

SE-94
POWER SEAT
Revision: 2004 November 2004 FX35/FX45

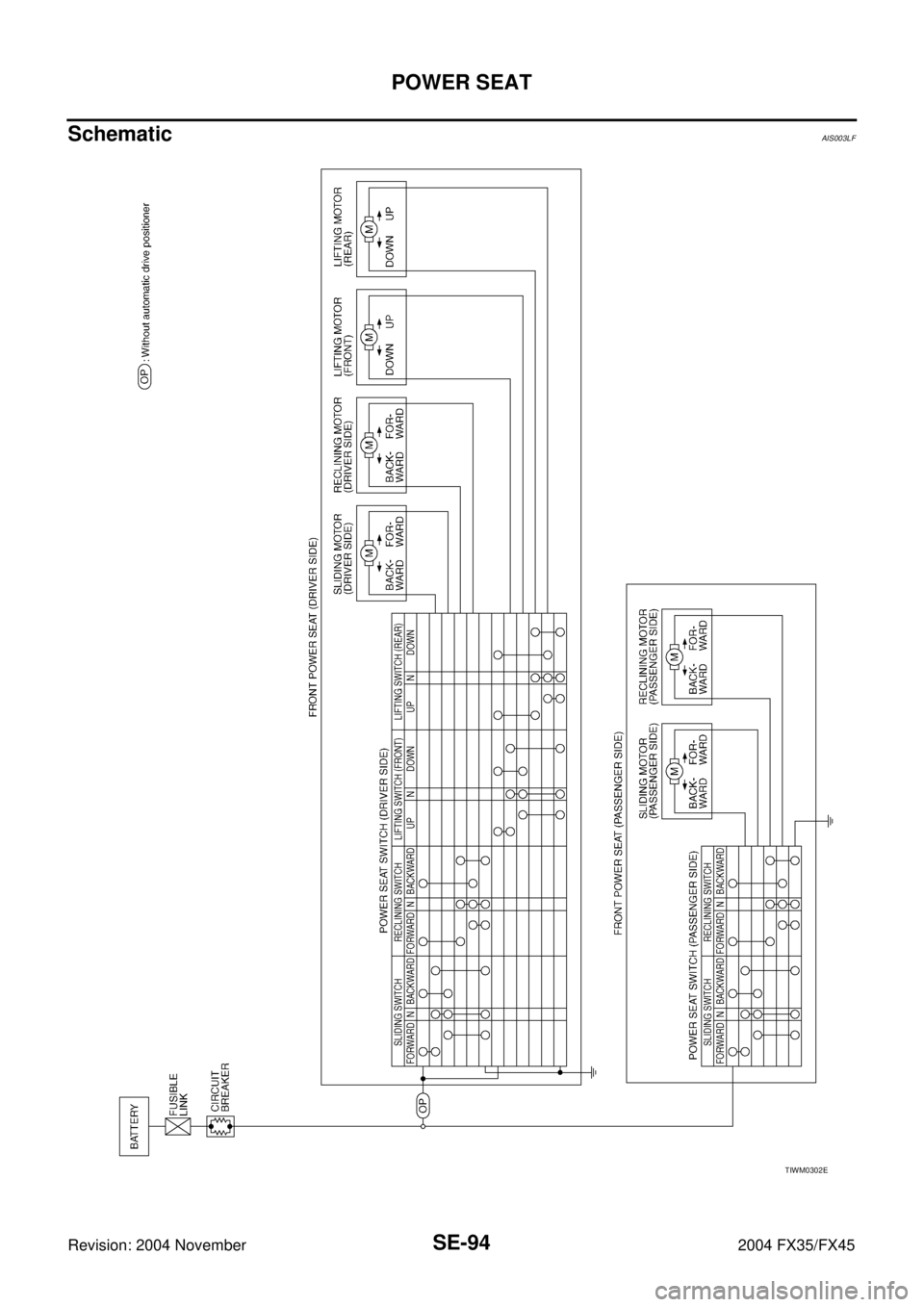

SchematicAIS003LF
TIWM0302E

POWER SEAT
SE-95
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2004 November 2004 FX35/FX45

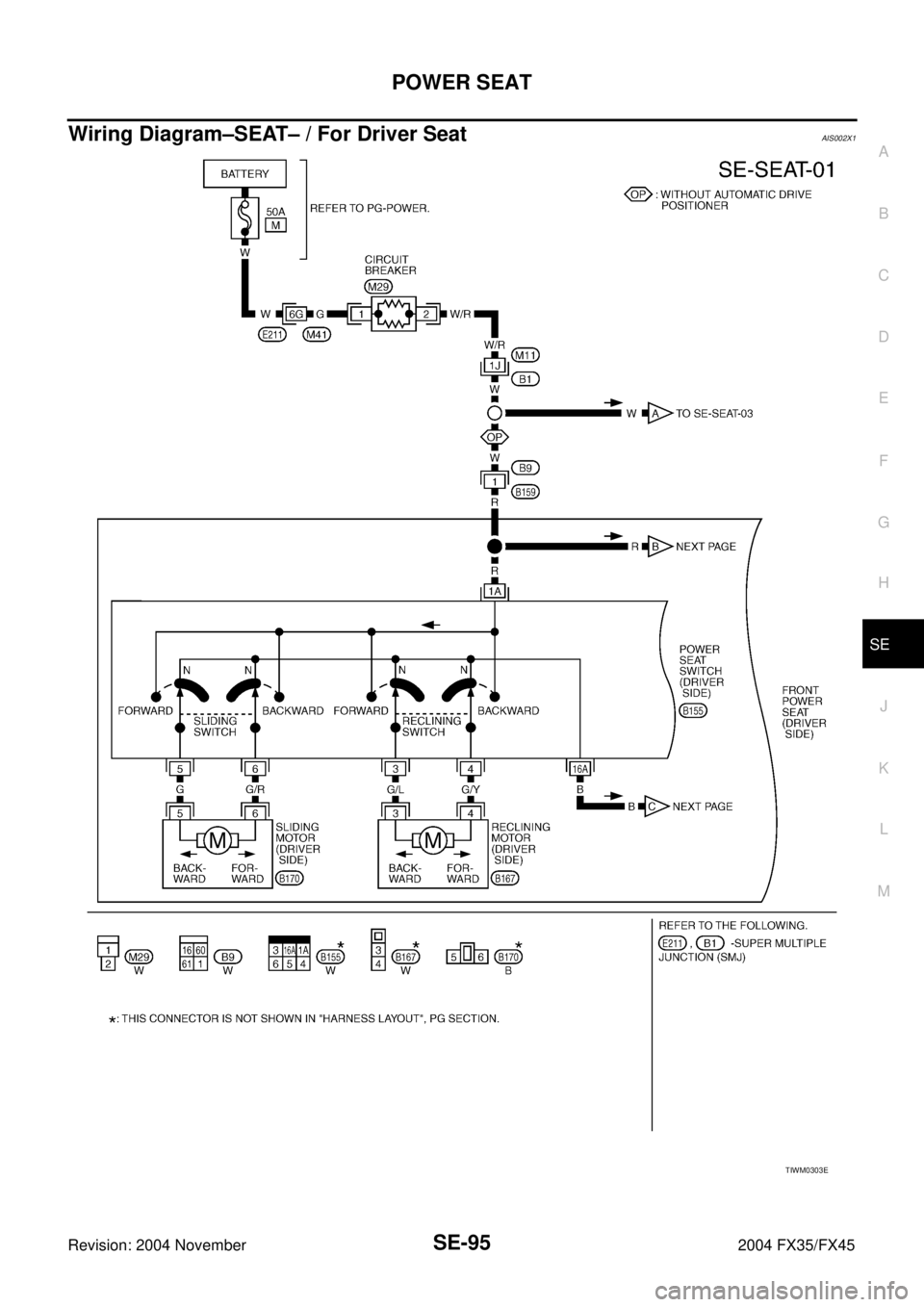

Wiring Diagram–SEAT– / For Driver SeatAIS002X1
TIWM0303E

SE-96
POWER SEAT
Revision: 2004 November 2004 FX35/FX45

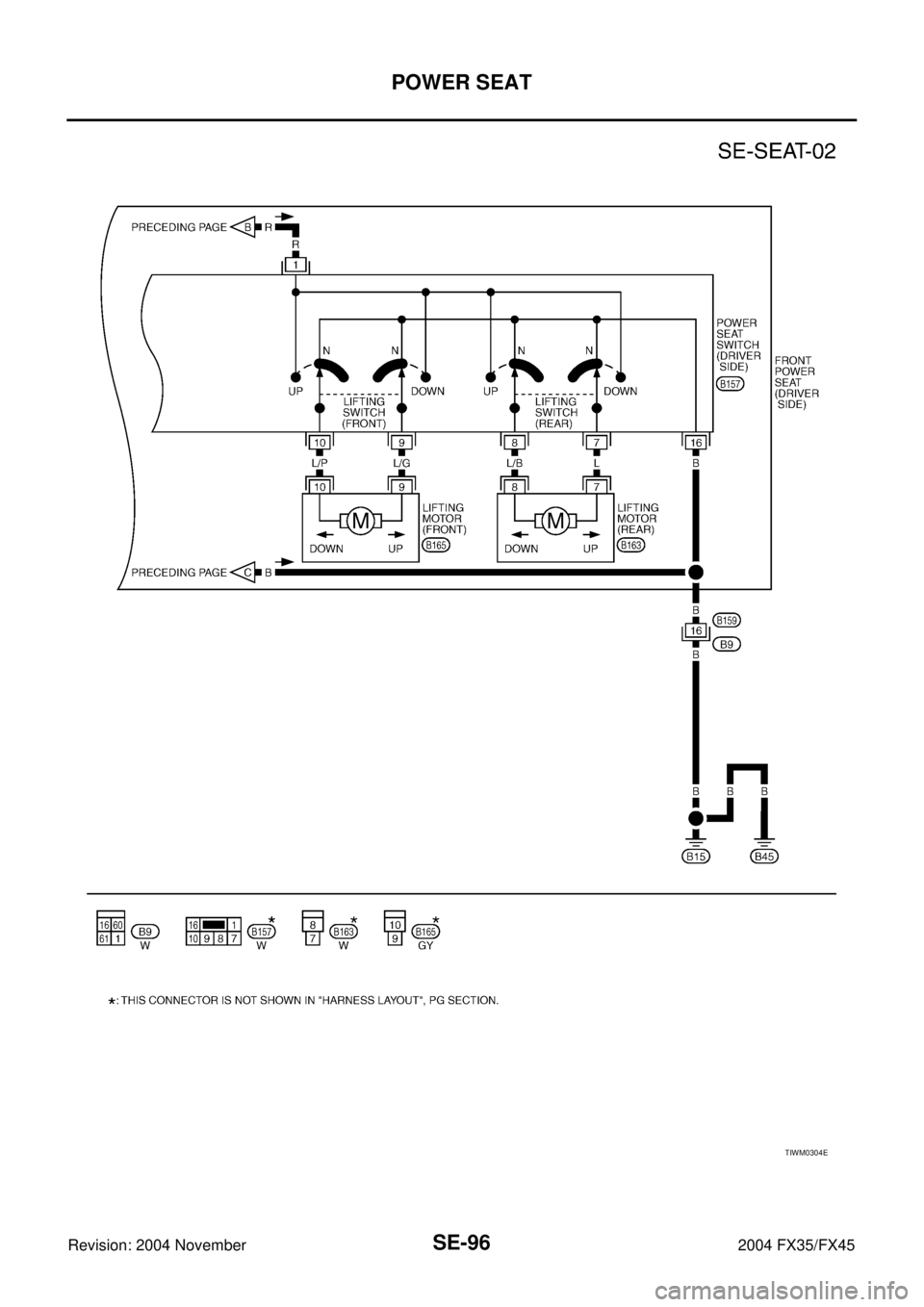

TIWM0304E

POWER SEAT
SE-97
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2004 November 2004 FX35/FX45

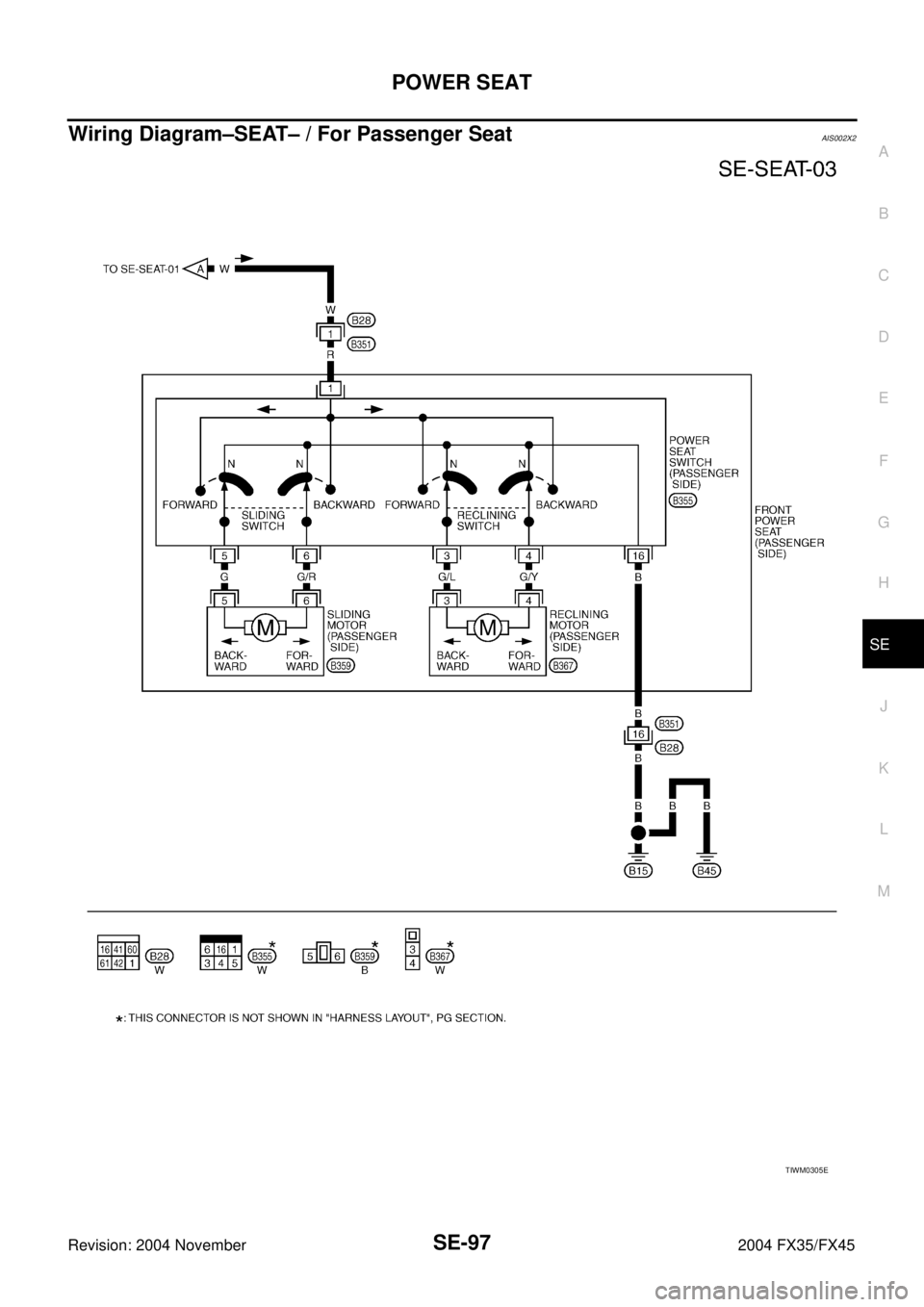

Wiring Diagram–SEAT– / For Passenger SeatAIS002X2
TIWM0305E

SE-98
HEATED SEAT
Revision: 2004 November 2004 FX35/FX45
HEATED SEATPFP:87335
DescriptionAIS002X3

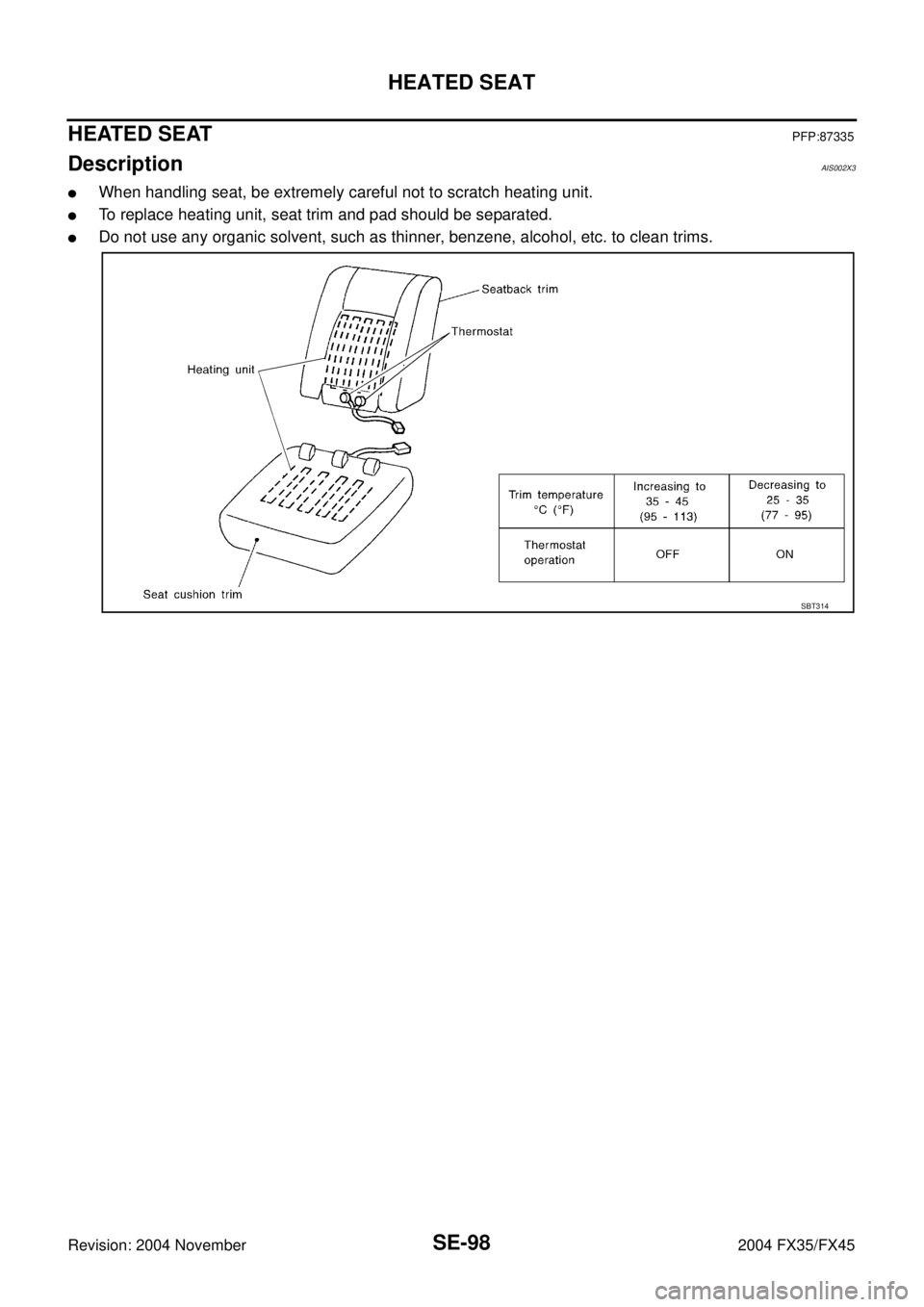

When handling seat, be extremely careful not to scratch heating unit.

To replace heating unit, seat trim and pad should be separated.

Do not use any organic solvent, such as thinner, benzene, alcohol, etc. to clean trims.
SBT314

HEATED SEAT
SE-99
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2004 November 2004 FX35/FX45

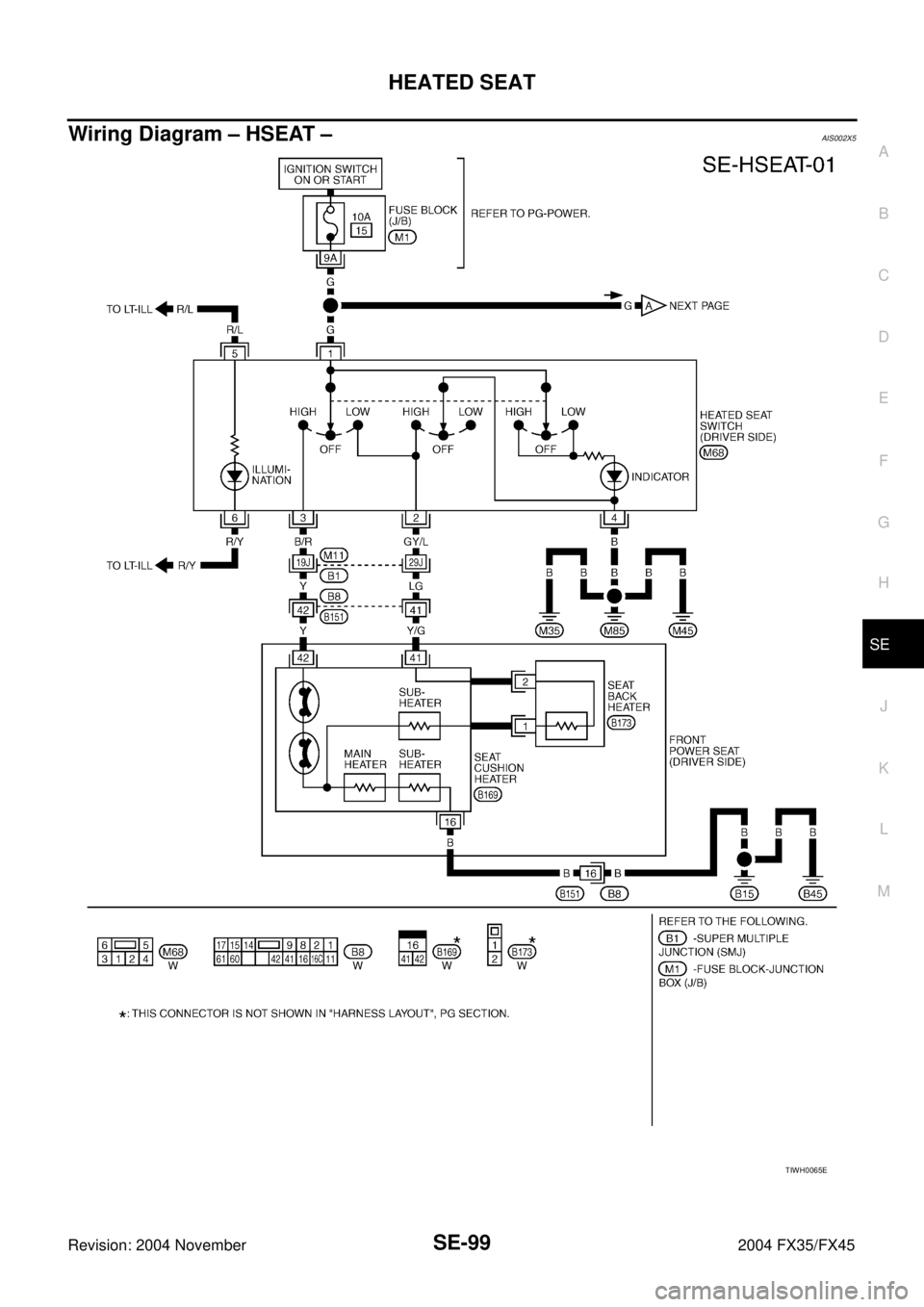

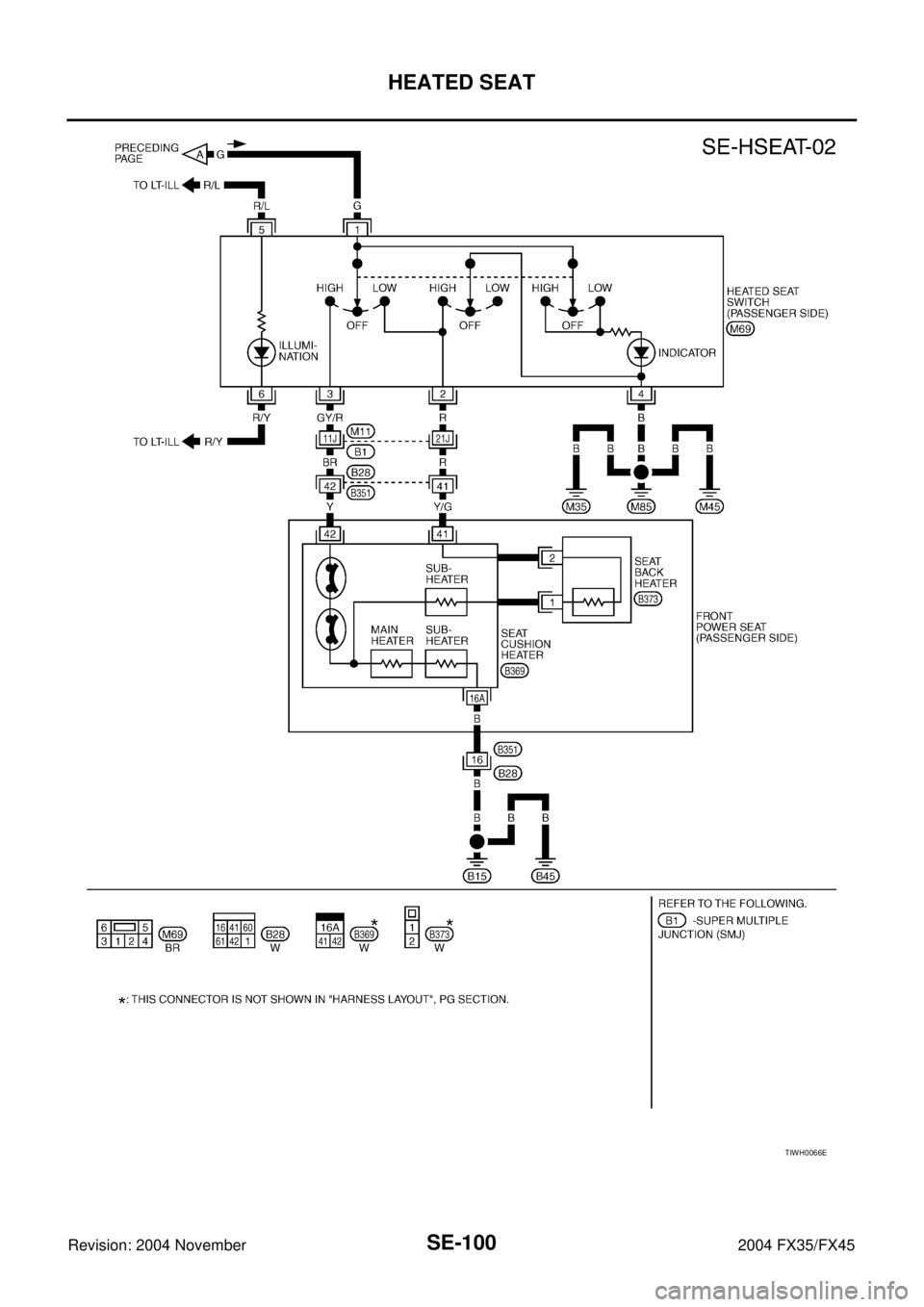

Wiring Diagram – HSEAT –AIS002X5
TIWH0065E

SE-100
HEATED SEAT
Revision: 2004 November 2004 FX35/FX45
TIWH0066E

FRONT SEAT
SE-101
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2004 November 2004 FX35/FX45
FRONT SEATPFP:87000

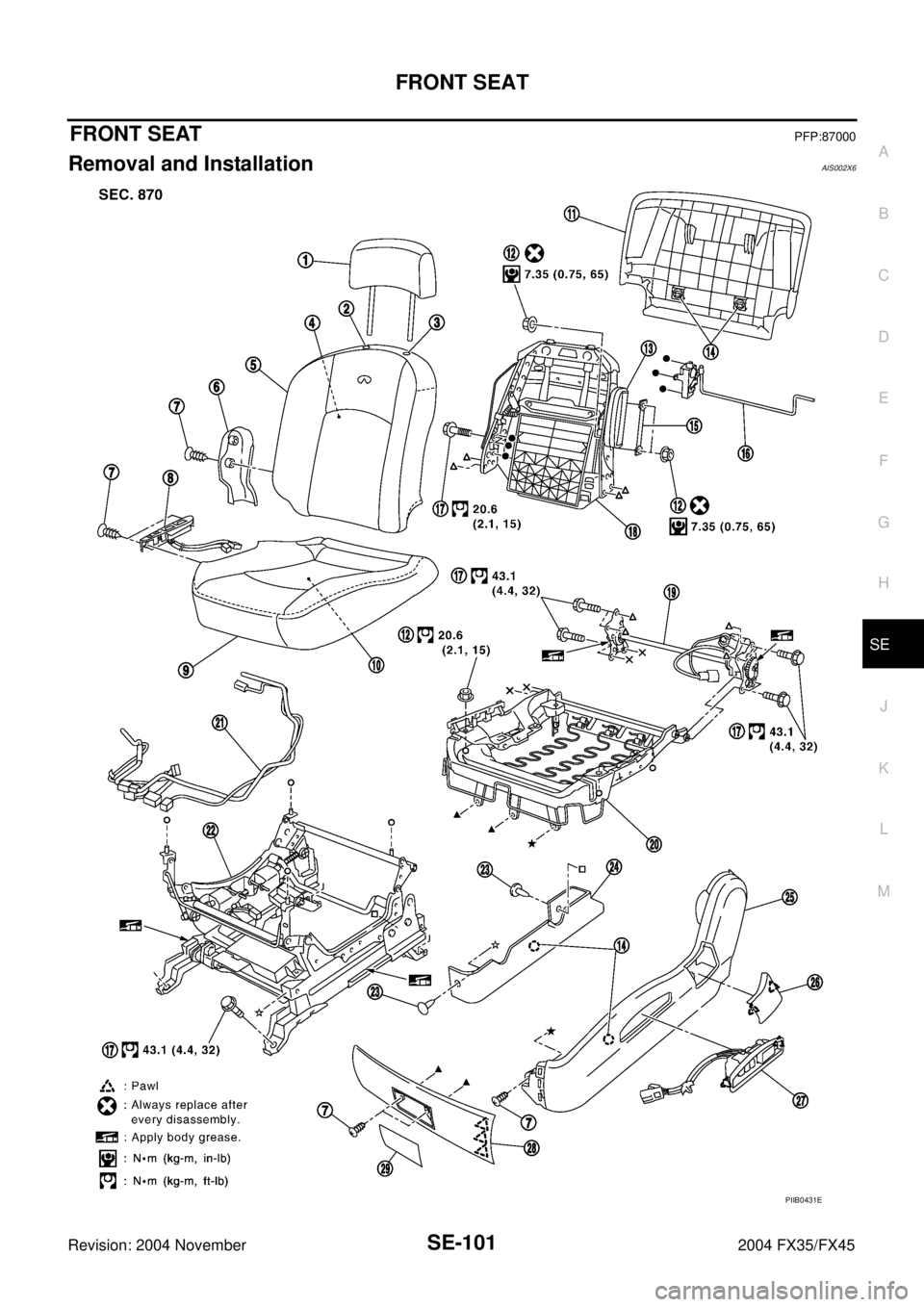

Removal and InstallationAIS002X6
PIIB0431E
