display INFINITI FX35 2004 Service Manual

LAN-172
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2004 November 2004 FX35/FX45
Work FlowAKS00C1Q
1. When there are no indications of “BCM”, “METER A/C AMP”, “AUTO DRIVE POS.” or “IPDM E/R” on
“SELECT SYSTEM” display of CONSULT-II, print the “SELECT SYSTEM”.
2. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “A/T”, “ALL MODE AWD/4WD”, “BCM”,
“METER A/C AMP”, “ABS”, “AUTO DRIVE POS.”, and “IPDM E/R” displayed on CONSULT-II.
3. Print all the data of “CAN DIAG SUPPORT MNTR” for “ENGINE”, “A/T”, “ALL MODE AWD/4WD”, “BCM”,
“METER A/C AMP”, “ABS”, “AUTO DRIVE POS.”, and “IPDM E/R” displayed on CONSULT-II.
4. Attach the printed sheet of “SELECT SYSTEM”, “SELF-DIAG RESULTS” and “CAN DIAG SUPPORT
MNTR” onto the check sheet. Refer to LAN-174, "
CHECK SHEET" .
5. Based on the indications of “SELECT SYSTEM” and the results of “CAN DIAG SUPPORT MNTR”, put
marks “v” onto the items with “No indication”, “NG”, or “UNKWN” in the check sheet table. Refer to LAN-
174, "CHECK SHEET" .
NOTE:

If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” as “CAN DIAG SUPPORT MNTR” for the diag-
nosed control unit, replace the control unit.

The “CAN DIAG SUPPORT MNTR” items, which are not in check sheet table, are not related to diag-
nostic procedure on service manual.
So it is not necessary to check the status of “CAN DIAG SUPPORT MNTR” items which are not indi-
cated in check sheet table.
6. Check CAN communication line of the integrated display system. Refer to AV- 8 5 , "
CAN Communication
Line Inspection" .
7. Attach the CAN DIAG MONITOR check sheet onto the check sheet. Refer to LAN-174, "
CHECK SHEET"
.
PKIA2093E
PKIA8260E
PKIA8343E

CAN SYSTEM (TYPE 5)
LAN-173
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
8. Mark the “NG” or “UNKWN” item of the check sheet table with “v” from the result of CAN DIAG MONITOR
check sheet. Refer to LAN-174, "
CHECK SHEET" .
NOTE:
If “NG” is displayed on “CAN COMM” as “CAN DIAG MNTR” for the diagnosed control unit, replace the
control unit. Refer to AV- 8 5 , "
CAN Communication Line Inspection" .
9. According to the check sheet results (example), start inspection. Refer to LAN-176, "
CHECK SHEET
RESULTS (EXAMPLE)" .

LAN-174
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2004 November 2004 FX35/FX45
CHECK SHEET
NOTE:
If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” or “CAN COMM” for the diagnosed control unit,
replace the control unit.
PKIA8003E

LAN-176
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2004 November 2004 FX35/FX45

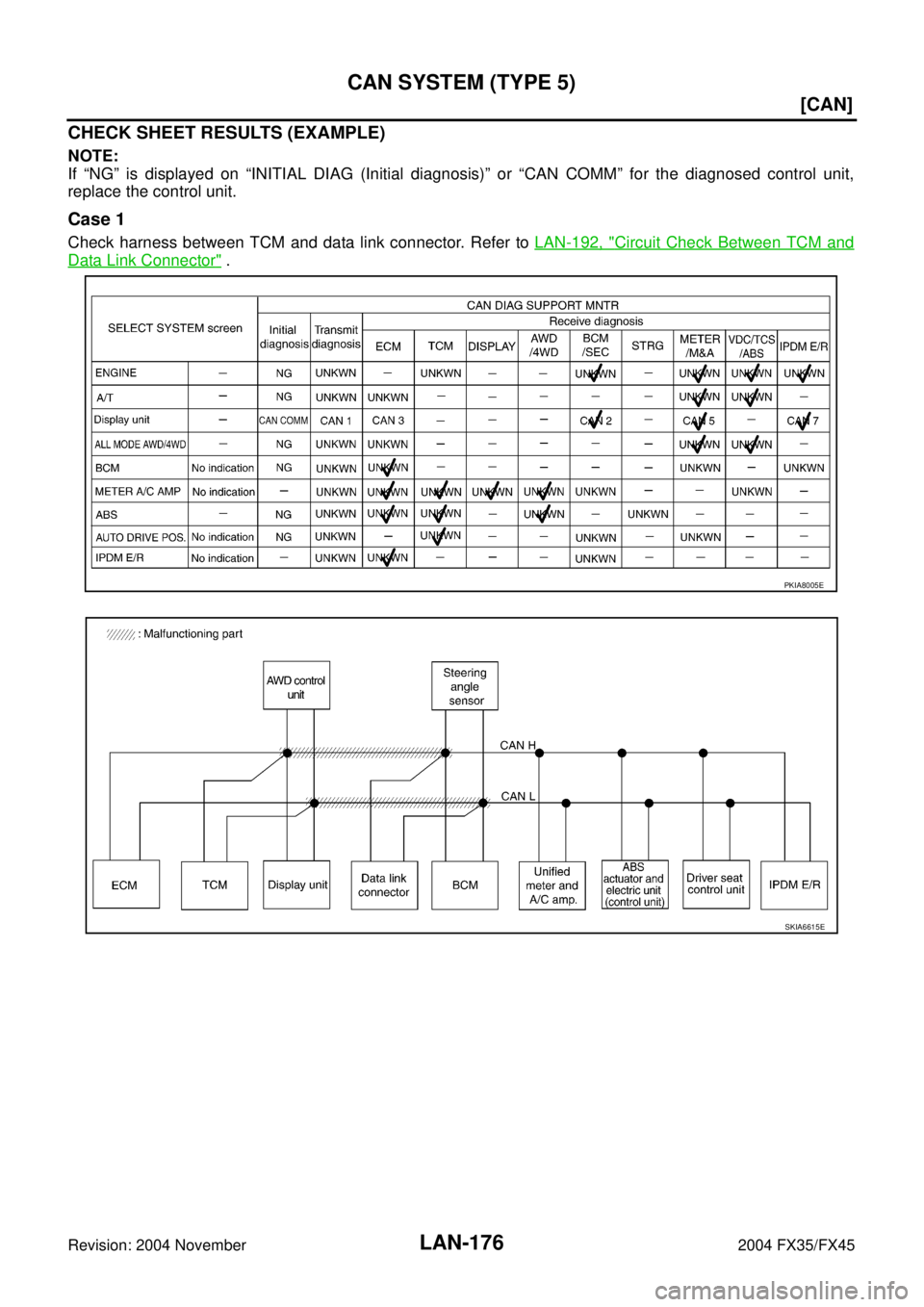

CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” or “CAN COMM” for the diagnosed control unit,
replace the control unit.
Case 1
Check harness between TCM and data link connector. Refer to LAN-192, "Circuit Check Between TCM and
Data Link Connector" .
PKIA8005E
SKIA6615E

LAN-182
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2004 November 2004 FX35/FX45
Case 7
Check display unit circuit. Refer to LAN-195, "Display Unit Circuit Check" .
PKIA8011E
SKIA6621E

CAN SYSTEM (TYPE 5)
LAN-195
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ECM connector.
2. Check resistance between ECM harness connector M90 termi-
nals 94 (L) and 86 (R).
OK or NG
OK >> Replace ECM.
NG >> Repair harness between ECM and harness connector
M82.
TCM Circuit CheckAKS00C1W
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side
and harness side).
–A/T assembly connector
–Harness connector F102
–Harness connector M82
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect A/T assembly connector.
2. Check resistance between A/T assembly harness connector
F44 terminals 3 (L) and 8 (R).
OK or NG
OK >> Replace control valve with TCM.
NG >> Repair harness between A/T assembly and display unit.
Display Unit Circuit CheckAKS00C1X
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of display unit for damage, bend and loose connection (unit side and har-
ness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.94 (L) - 86 (R) : Approx. 108 - 132Ω
SKIA6865E
3 (L) - 8 (R) : Approx. 54 - 66Ω
SKIA6866E

LAN-196
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect display unit connector.
2. Check resistance between display unit harness connector M62
terminals 14 (L) and 16 (R).
OK or NG
OK >> Replace display unit.
NG >> Repair harness between display unit and harness con-
nector M82.
AWD Control Unit Circuit CheckAKS00C1Y
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of AWD control unit for damage, bend and loose connection (control unit
side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect AWD control unit connector.
2. Check resistance between AWD control unit harness connector
M92 terminals 8 (L) and 16 (R).
OK or NG
OK >> Replace AWD control unit.
NG >> Repair harness between AWD control unit and harness
connector M82.
Data Link Connector Circuit CheckAKS00C1Z
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check data link connector and terminals for damage, bend and loose connection (connector side and har-
ness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.14 (L) - 16 (R) : Approx. 54 - 66Ω
SKIA6867E
8 (L) - 16 (R) : Approx. 54 - 66Ω
SKIA6889E

LAN-200
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2004 November 2004 FX35/FX45
IPDM E/R Circuit CheckAKS00C25
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side
and harness side).
–IPDM E/R connector
–Harness connector E205
–Harness connector B5
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check resistance between IPDM E/R harness connector E9 ter-
minals 48 (L) and 49 (R).
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness between IPDM E/R and harness con-
nector B8.
CAN Communication Circuit CheckAKS00C26
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side,
unit side, control unit side, sensor side, meter side and harness side).
–ECM
–A/T assembly
–Display unit
–AWD control unit
–BCM
–Steering angle sensor
–Unified meter and A/C amp.
–ABS actuator and electric unit (control unit)
–Driver seat control unit
–IPDM E/R
–Between ECM and IPDM E/R
–Between ECM and A/T assembly
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.48 (L) - 49 (R) : Approx. 108 - 132Ω
SKIA6873E

CAN SYSTEM (TYPE 5)
LAN-201
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–ECM connector
–Harness connector M82
–Display unit connector
–AWD control unit connector
–BCM connector
–Steering angle sensor connector
–Unified meter and A/C amp. connector
–Harness connector M41
2. Check continuity between data link connector M5 terminals 6 (L)
and 14 (R).
OK or NG
OK >> GO TO 3.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.

Harness between data link connector and ECM

Harness between data link connector and harness
connector M82

Harness between data link connector and display unit

Harness between data link connector and AWD control unit

Harness between data link connector and BCM

Harness between data link connector and steering angle sensor

Harness between data link connector and unified meter and A/C amp.

Harness between data link connector and harness connector M41
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between data link connector M5 terminals 6 (L), 14
(R) and ground.
OK or NG
OK >> GO TO 4.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.

Harness between data link connector and ECM

Harness between data link connector and harness
connector M82

Harness between data link connector and display unit

Harness between data link connector and AWD control unit

Harness between data link connector and BCM

Harness between data link connector and steering angle sensor

Harness between data link connector and unified meter and A/C amp.

Harness between data link connector and harness connector M41 6 (L) - 14 (R) : Continuity should not exist.
SKIA6868E
6 (L) - Ground : Continuity should not exist.
14 (R) - Ground : Continuity should not exist.
SKIA6874E

CAN SYSTEM (TYPE 6)
LAN-211
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
Work FlowAKS00C2D
1. When there are no indications of “AIR PRESSURE MONITOR”, “INTELLIGENT KEY”, “BCM”, “METER A/
C AMP”, “AUTO DRIVE POS.” or “IPDM E/R” on “SELECT SYSTEM” display of CONSULT-II, print the
“SELECT SYSTEM”.
2. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “A/T”, “AIR PRESSURE MONITOR”, “ALL
MODE AWD/4WD”, “ICC”, “INTELLIGENT KEY”, “BCM”, “METER A/C AMP”, “ABS”, “AUTO DRIVE
POS.”, and “IPDM E/R” displayed on CONSULT-II.
3. Print all the data of “CAN DIAG SUPPORT MNTR” for “ENGINE”, “A/T”, “AIR PRESSURE MONITOR”,
“ALL MODE AWD/4WD”, “ICC”, “INTELLIGENT KEY”, “BCM”, “METER A/C AMP”, “ABS”, “AUTO DRIVE
POS.”, and “IPDM E/R” displayed on CONSULT-II.
4. Attach the printed sheet of “SELECT SYSTEM”, “SELF-DIAG RESULTS” and “CAN DIAG SUPPORT
MNTR” onto the check sheet. Refer to LAN-213, "
CHECK SHEET" .
5. Based on the indications of “SELECT SYSTEM” and the results of “CAN DIAG SUPPORT MNTR”, put
marks “v” onto the items with “No indication”, “NG”, or “UNKWN” in the check sheet table. Refer to LAN-
213, "CHECK SHEET" .
NOTE:

If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” as “CAN DIAG SUPPORT MNTR” for the diag-
nosed control unit, replace the control unit.

The “CAN DIAG SUPPORT MNTR” items, which are not in check sheet table, are not related to diag-
nostic procedure on service manual.
So it is not necessary to check the status of “CAN DIAG SUPPORT MNTR” items which are not indi-
cated in check sheet table.
6. Check CAN communication line of the navigation system. Refer to AV- 1 5 8 , "
CAN Communication Line
Check" .
PKIA2093E
PKIA8260E
PKIA8343E
