display INFINITI FX35 2004 Service Manual

LAN-212
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2004 November 2004 FX35/FX45
7. Attach the CAN DIAG SUPPORT MONITOR check sheet onto the check sheet. Refer to LAN-213,
"CHECK SHEET" .
8. Mark the “NG” or “UNKWN” item of the check sheet table with “v” from the result of CAN DIAG SUPPORT
MONITOR check sheet. Refer to LAN-213, "
CHECK SHEET" .
NOTE:
If “NG” is displayed on “CAN COMM” as “CAN DIAG SUPPORT MONITOR” for the diagnosed control
unit, replace the control unit. Refer to AV- 1 5 8 , "
CAN Communication Line Check" .
9. According to the check sheet results (example), start inspection. Refer to LAN-216, "
CHECK SHEET
RESULTS (EXAMPLE)" .

CAN SYSTEM (TYPE 6)
LAN-213
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45

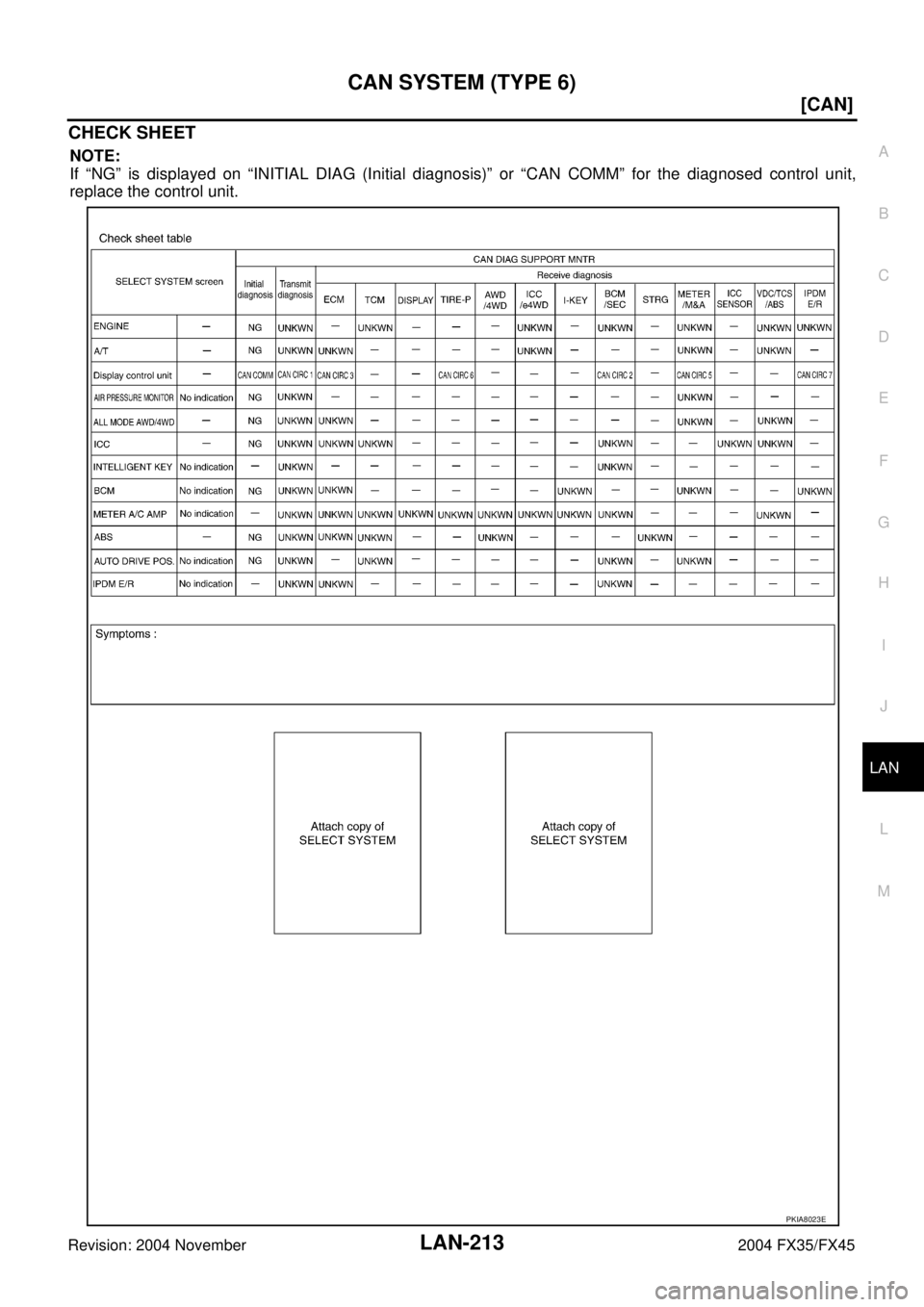

CHECK SHEET
NOTE:
If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” or “CAN COMM” for the diagnosed control unit,
replace the control unit.
PKIA8023E

LAN-216
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2004 November 2004 FX35/FX45

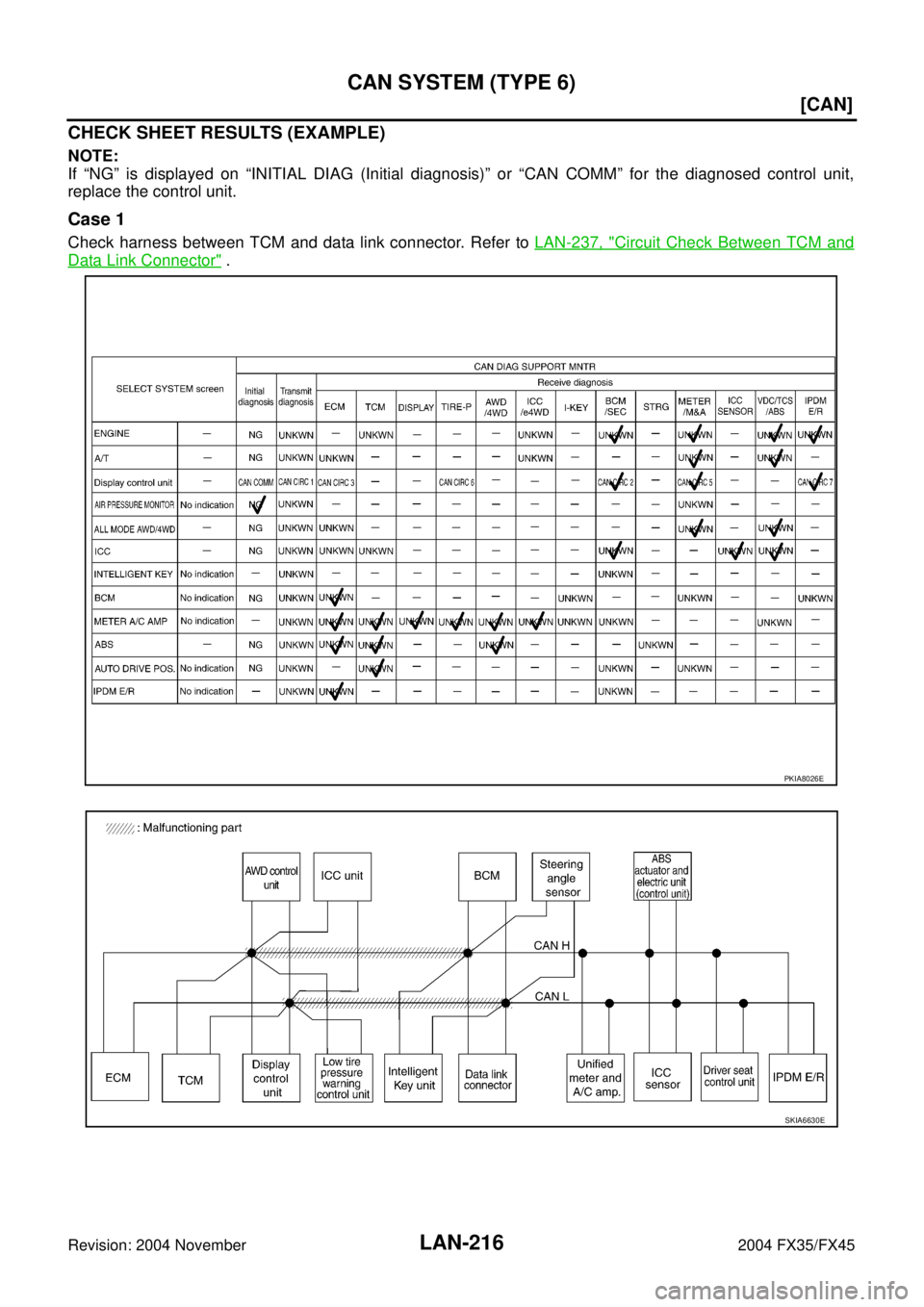

CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” or “CAN COMM” for the diagnosed control unit,
replace the control unit.
Case 1
Check harness between TCM and data link connector. Refer to LAN-237, "Circuit Check Between TCM and
Data Link Connector" .
PKIA8026E
SKIA6630E

LAN-222
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2004 November 2004 FX35/FX45

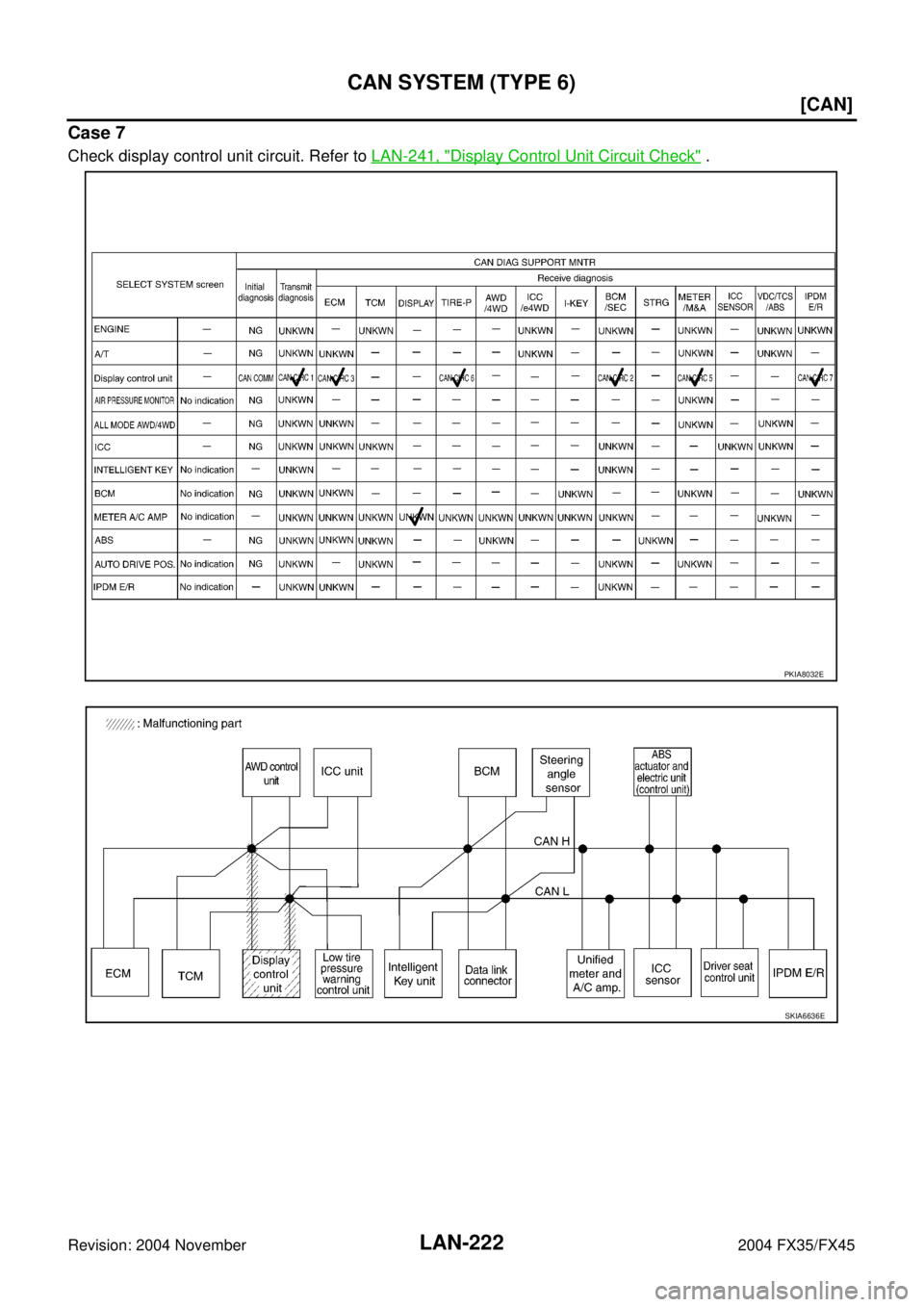

Case 7
Check display control unit circuit. Refer to LAN-241, "Display Control Unit Circuit Check" .
PKIA8032E
SKIA6636E

CAN SYSTEM (TYPE 6)
LAN-241
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect A/T assembly connector.
2. Check resistance between A/T assembly harness connector
F44 terminals 3 (L) and 8 (R).
OK or NG
OK >> Replace control valve with TCM.
NG >> Repair harness between A/T assembly and display con-
trol unit.
Display Control Unit Circuit CheckAKS00C2K
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of display control unit for damage, bend and loose connection (control unit
side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect display control unit connector.
2. Check resistance between display control unit harness connec-
tor M76 terminals 25 (L) and 26 (R).
OK or NG
OK >> Replace display control unit.
NG >> Repair harness between display control unit and har-
ness connector M82.
Low Tire Pressure Warning Control Unit Circuit CheckAKS00C2L
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of low tire pressure warning control unit for damage, bend and loose con-
nection (control unit side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.3 (L) - 8 (R) : Approx. 54 - 66Ω
SKIA6866E
25 (L) - 26 (R) : Approx. 54 - 66Ω
SKIA6884E

LAN-248
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2004 November 2004 FX35/FX45
CAN Communication Circuit CheckAKS00C2X
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side,
control unit side, unit side, sensor side, meter side and harness side).
–ECM
–A/T assembly
–Display control unit
–AWD control unit
–Low tire pressure warning control unit
–ICC unit
–Intelligent Key unit
–BCM
–Steering angle sensor
–Unified meter and A/C amp.
–ICC sensor
–ABS actuator and electric unit (control unit)
–Driver seat control unit
–IPDM E/R
–Between ECM and IPDM E/R
–Between ECM and A/T assembly
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.

CAN SYSTEM (TYPE 6)
LAN-249
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–ECM connector
–Harness connector M82
–Display control unit connector
–Low tire pressure warning control unit connector
–AWD control unit connector
–ICC unit connector
–Intelligent Key unit connector
–BCM connector
–Steering angle sensor connector
–Unified meter and A/C amp. connector
–Harness connector M41
2. Check continuity between data link connector M5 terminals 6 (L)
and 14 (R).
OK or NG
OK >> GO TO 3.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.

Harness between data link connector and ECM

Harness between data link connector and harness
connector M82

Harness between data link connector and display control unit

Harness between data link connector and low tire pressure warning control unit

Harness between data link connector and AWD control unit

Harness between data link connector and ICC unit

Harness between data link connector and Intelligent Key unit

Harness between data link connector and BCM

Harness between data link connector and steering angle sensor

Harness between data link connector and unified meter and A/C amp.

Harness between data link connector and harness connector M41 6 (L) - 14 (R) : Continuity should not exist.
SKIA6868E

LAN-250
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2004 November 2004 FX35/FX45
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between data link connector M5 terminals 6 (L), 14
(R) and ground.
OK or NG
OK >> GO TO 4.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.

Harness between data link connector and ECM

Harness between data link connector and harness
connector M82

Harness between data link connector and display control unit

Harness between data link connector and low tire pressure warning control unit

Harness between data link connector and AWD control unit

Harness between data link connector and ICC unit

Harness between data link connector and Intelligent Key unit

Harness between data link connector and BCM

Harness between data link connector and steering angle sensor

Harness between data link connector and unified meter and A/C amp.

Harness between data link connector and harness connector M41
4. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect A/T assembly connector.
2. Check continuity between A/T assembly harness connector F44
terminals 3 (L) and 8 (R).
OK or NG
OK >> GO TO 5.
NG >> Repair harness between A/T assembly and harness
connector F102.
5. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between A/T assembly harness connector F44 ter-
minals 3 (L), 8 (R) and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair harness between A/T assembly and harness
connector F102. 6 (L) - Ground : Continuity should not exist.
14 (R) - Ground : Continuity should not exist.
SKIA6874E
3 (L) - 8 (R) : Continuity should not exist.
SKIA6866E
3 (L) - Ground : Continuity should not exist.
8 (R) - Ground : Continuity should not exist.
SKIA6875E

LT-18
HEADLAMP - XENON TYPE -
Revision: 2004 November 2004 FX35/FX45
3. CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
OK or NG
OK >> INSPECTION END
NG >> Check ground circuit harness.
CONSULT-II Functions (BCM)AKS007MJ

CONSULT-II executes the following functions by combining data reception and command transmission via
the communication line from BCM. Work support, self-diagnosis, data monitor, and active test display.
CONSULT-II BASIC OPERATION
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. With the ignition switch OFF, connect CONSULT-II and CON-
SULT-II CONVERTER to the data link connector, then turn igni-
tion switch ON.
2. Touch “START (NISSAN BASED VHCL)”.
Terminals
Continuity
Connector Terminal (Wire color)
M449 (B)
Ground Yes
52 (B)
PKIA5191E
BCM diagnosis part Check item, diagnosis mode Description
HEADLAMPWORK SUPPORT Changes the setting for each function.
DATA MONITOR Displays BCM input data in real time.
ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
BCM CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read.
PBIB1503E
SKIA3098E

HEADLAMP - XENON TYPE -
LT-19
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45
3. Touch “BCM” on “SELECT SYSTEM” screen.
If “BCM” is not indicated, refer to GI-40, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
4. Touch “HEAD LAMP” on “SELECT TEST ITEM” screen.
WORK SUPPORT
Operation Procedure
1. Touch “HEAD LAMP” on “SELECT TEST ITEM” screen.
2. Touch “WORK SUPPORT” on “SELECT DIAG MODE” screen.
3. Touch item on “SELECT WORK ITEM” screen.
4. Touch “START”.
5. Touch “CHANGE SET”.
6. The setting will be changed and “CUSTOMIZING COMPLETED” will be displayed.
7. Touch “END”.
Display Item List
DATA MONITOR
Operation Procedure
1. Touch “HEAD LAMP” on “SELECT TEST ITEM” screen.
2. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
3. Touch either “ALL SIGNALS” or “SELECTION FROM MENU” on the “DATA MONITOR” screen.
4. Touch “START”.
5. When “SELECTION FROM MENU” is selected, touch individual items to be monitored. When “ALL SIG-
NALS” is selected, all the items will be monitored.
6. Touch “RECORD” while monitoring, then the status of the monitored item can be recorded. To stop
recording, touch “STOP”.
PKIA5222E
PKIA5226E
Item Description CONSULT-II Factory setting
BATTERY SAVER
SETExterior lamp battery saver control mode can be changed in this mode.
Selects exterior lamp battery saver control mode between two ON/OFF.ON×
OFF —
ALL SIGNALS Monitors all the signals.
SELECTION FROM MENU Selects and monitors individual signal.
