Trouble Diagnosis with Battery/Starting/Charging System TesterAKS0079K
NOTE:
To ensure a complete and thorough diagnosis, the battery, starter and alternator test segments must be done
as a set from start to finish.
1. Turn off all loads on the vehicle electrical system.
2. Perform battery and starting system test with Battery/Starting/
Charging system tester.
3. Press “ENTER” to begin the charging system test.
4. Start engine.
5. Press “ENTER” until “LOADS OFF REV ENGINE 5 SEC” is dis-
played.
6. Raise and hold the engine speed at 1,500 to 2,000 rpm for about
5 seconds, then return the engine to idle.
Once the increase in engine rpm is detected, press “ENTER” to
continue.
NOTE:
If after 30 seconds an increase in engine idle speed is not
detected, “RPM NOT DETECTED” will display.
Some engines may have a higher idle initially after starting,
particularly when the engine is cold. The tester may detect
this without any other action being taken. If this occurs, con-
tinue on with the testing process. The final results will not be affected.
7. The tester now checks the engine at idle and performs the
DIODE/RIPPLE check.
8. When complete, the tester will prompt you to turn on the follow-
ing electrical loads.
Heater fan set to highest speed. Do not run the A/C or wind-
shield defroster.
Headlamp high beam
Rear window defogger
NOTE:
Do not run the windshield wipers or any other cyclical loads.
9. Press “ENTER” to continue.
SEL417X
SEL418X
SEL419X
SEL420X
Page 4116 of 4449
CHARGING SYSTEM
SC-27
C
D
E
F
G
H
I
J
L
MA
B
SC
Revision: 2004 November 2004 FX35/FX45
10. Raise and hold the engine speed at 1,500 to 2,000 rpm for about
5 seconds, then return the engine to idle. Once the increase in
engine rpm is detected, press “ENTER” to continue.
NOTE:
If after 30 seconds an increase in engine idle speed is not
detected, “RPM NOT DETECTED” will be displayed. Press
“ENTER” to restart the test.
11. Diagnostic result is displayed on the tester. Refer to SC-27,
"DIAGNOSTIC RESULT ITEM CHART" .
12. Press “ENTER” then test output code is displayed. Record the
test output code on the repair order.
13. Toggle back to the “DIAGNOSTIC SCREEN” for test results.
DIAGNOSTIC RESULT ITEM CHART
SEL421X
SEL422X
SEL577X
Diagnostic item Service procedure
CHARGING SYSTEM NORMAL Charging system is normal and will also show DIODE RIPPLE test result.
NO CHARGING VOLTAGE Go to SC-28, "
WORK FLOW" .
LOW CHARGING VOLTAGE Go to SC-28, "
WORK FLOW" .
HIGH CHARGING VOLTAGE Go to SC-28, "
WORK FLOW" .
DIODE RIPPLE NORMAL Diode ripple is OK and will also show CHARGING VOLTAGE test result.
EXCESS RIPPLE DETECTEDReplace the alternator. Perform “DIODE RIPPLE” test again using Battery/Starting/Charging
system tester to confirm repair.
DIODE RIPPLE NOT DETECTED Go to SC-28, "
WORK FLOW" .
Page 4140 of 4449
AUTOMATIC DRIVE POSITIONER
SE-11
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2004 November 2004 FX35/FX45
AUTOMATIC DRIVE POSITIONERPFP:28491
System Description AIS002XB
The system automatically moves the driver seat to facilitate entry/exit to/from the vehicle. The automatic
driver positioner control unit can also store the optimum driving positions (driver seat, pedal position and
door mirror position) for 2 people. If the driver is changes, one-touch operation allows changing to the
other driving position.
The settings (ON/OFF) of the automatic sliding seat (Entry/Exiting operation) at entry/exit can be changed
as desired, using the display unit in the center of the instrument panel. The set content is transmitted by
CAN communication, from display unit (without NAVI) or display control unit (with NAVI) to driver seat con-
trol unit.
Using CONSULT-II, the seat slide amount at entry/exit setting can be changed.
MANUAL OPERATION
The driving position [seat position, steering wheel position (tilt, telescopic) and door mirror position] can be
adjusted with the power seat switch or ADP steering switch or door mirror remote control switch.
NOTE:
The seat can be manually operated with the ignition switch OFF.
The door mirrors can be manually operated with the ignition switch turned ACC or ON.
A U T O M AT I C O P E R AT I O N
NOTE:
Disconnecting the battery erases the stored memory.
After connecting the battery, insert the key into the ignition cylinder and turn the driver door switch ON (open)→OFF (close)→ON
(open), the Entry/ Exiting operation becomes possible.
After exiting operation is carried out, return operation can be operated.
NOTE:
During automatic operation, if the ignition switch is turned ON→START, the automatic operation is suspended. When the ignition switch
returns to ON, it resumes.
MEMORY STORING AND KEY FOB INTERLOCK STORING
Store the 2 driving positions and shifts to the stored driving position with the memory switch.
Function Description
Memory switch operation The seat, steering and door mirror move to the stored driving position by pushing
memory switch (1 or 2).
Entry/Exiting functionExiting operation At exit, the seat moves backward and steering wheel moves forward/upward.
Entry operationAt entry, the seat and steering wheel returns from the exiting position to the previous
driving position.
Key fob interlock operationPerform memory operation, exiting operation and entry operation by pressing key fob
unlock button.
Auto operation temporary stop
conditions.When ignition switch turned to START during memory switch operation and return opera-
tion, memory switch operation and entry operation is stopped.
Auto operation stop conditions.
When the vehicle speed becomes 7 km/h (4 MPH) or higher.
When the setting switch, memory switch 1, or 2 are pressed.
When A/T selector lever is in any position other than P.
When the door mirror remote control switch is operated (when ignition switch turned to
ON or ACC).
When power seat switch turned ON.
When ADP steering switch turned ON (telescopic operation or tilt operation).
When door mirror operates (only memory switch operation).
When driver seat sliding Entry/Exiting setting is OFF (only entry/exiting operation).
When steering wheel tilt and telescopic Entry/Exiting setting is OFF (only entry/exiting
operation).
When the tilt and telescopic sensor malfunction is detected.
Page 4164 of 4449
AUTOMATIC DRIVE POSITIONER
SE-35
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2004 November 2004 FX35/FX45
7. Based on the trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to SE-42,
"Symptom Chart" .
8. Does the automatic drive positioner system operate normally?
If it is normal, GO TO 8.
If it is not normal, GO TO 3.
9. INSPECTION END
Preliminary CheckAIS002XK
SETTING CHANGE FUNCTION
The settings of the automatic driving positioner system can be changed, using CONSULT-II and the display
unit in the center of the instrument panel.
×: Applicable –: Not applicable
It is possible to set sliding driver seat for entry/exit of vehicle by pressing set switch.
NOTE:
After the setting is registered, the new setting is effective, even if the battery is disconnected.
CHECK POWER SUPPLY AND GROUND
1. CHECK FUSE
Check if any of the following fuses in the BCM are blown.
NOTE:
Refer to SE-15, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blownout, be sure to eliminate cause of malfunction before installing new fuse. Refer to
SE-15, "
Component Parts and Harness Connector Location" .
Setting item ContentCONSULT–II
(WORK SUPPORT)Display unitFactory
setting
Change seat sliding volume
settingThe distance at retain operation
can be selected from the following
3 modes.40 mm
—×
80 mm —
150 mm —
Change the Entry/Exit seat
slide function settingThe seat sliding turnout and return
at entry/exit can be selected: ON
(operated) – OFF (not operated)ON ON: Indicator lamp ON×
OFF OFF: Indicator lamp OFF —
Change the Entry/Exit tilt
steering wheel function settingLift up and backward steering
wheel at entry and exit can be
selected: ON (operated) - OFF (not
operated)ON ON: Indicator lamp ON×
OFF OFF: Indicator lamp OFF —
Reset custom settings All settings to default. —Default: Setting button
OFF—
Content Setting change operation Indicator LEDs
The seat sliding turnout and
steering wheel up/backward at
entry/exit can be operated.
Press the set switch for more than 10 secondsBlinking twice
The seat sliding turnout and
steering wheel up/backward at
entry/exit can be not operated.Blinking ones
Unit Power source Fuse/fusible link No.
BCMACC or ON power supply 6 (10A)
ON or STRAT power supply 1 (15A)
Battery power supply 22 (15A)
Battery power supply M (50A)
Page 4167 of 4449
SE-38
AUTOMATIC DRIVE POSITIONER
Revision: 2004 November 2004 FX35/FX45
8. CHECK GROUND CIRCUIT (AUTOMATIC DRIVE POSITIONER CONTROL UNIT)
Check continuity between the automatic drive positioner control unit connector M50 terminal 40 (B), 48 (B)
and ground.
OK or NG
OK >> Driver seat control unit circuit is OK.
NG >> Repair or replace harness between automatic drive
positioner control unit and ground.
CONSULT-II FunctionAIS002YF
The following functions are performed by combining data received and command transmitted via the commu-
nication line from the driver seat control unit.
*1: For setting automatic drive positioner functions only.
*2: Refer to BL-40, "
Data Monitor" .
*3: During vehicle driving, do not perform active test.
CONSULT-II INSPECTION PROCEDURE
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. Turn ignition switch “OFF”.
2. Connect “CONSULT-II” and “CONSULT-II CONVERTER” to the
data link connector.
3. Turn ignition switch “ON”.40 (B) – Ground : Continuity should exist.
48 (B) – Ground : Continuity should exist.

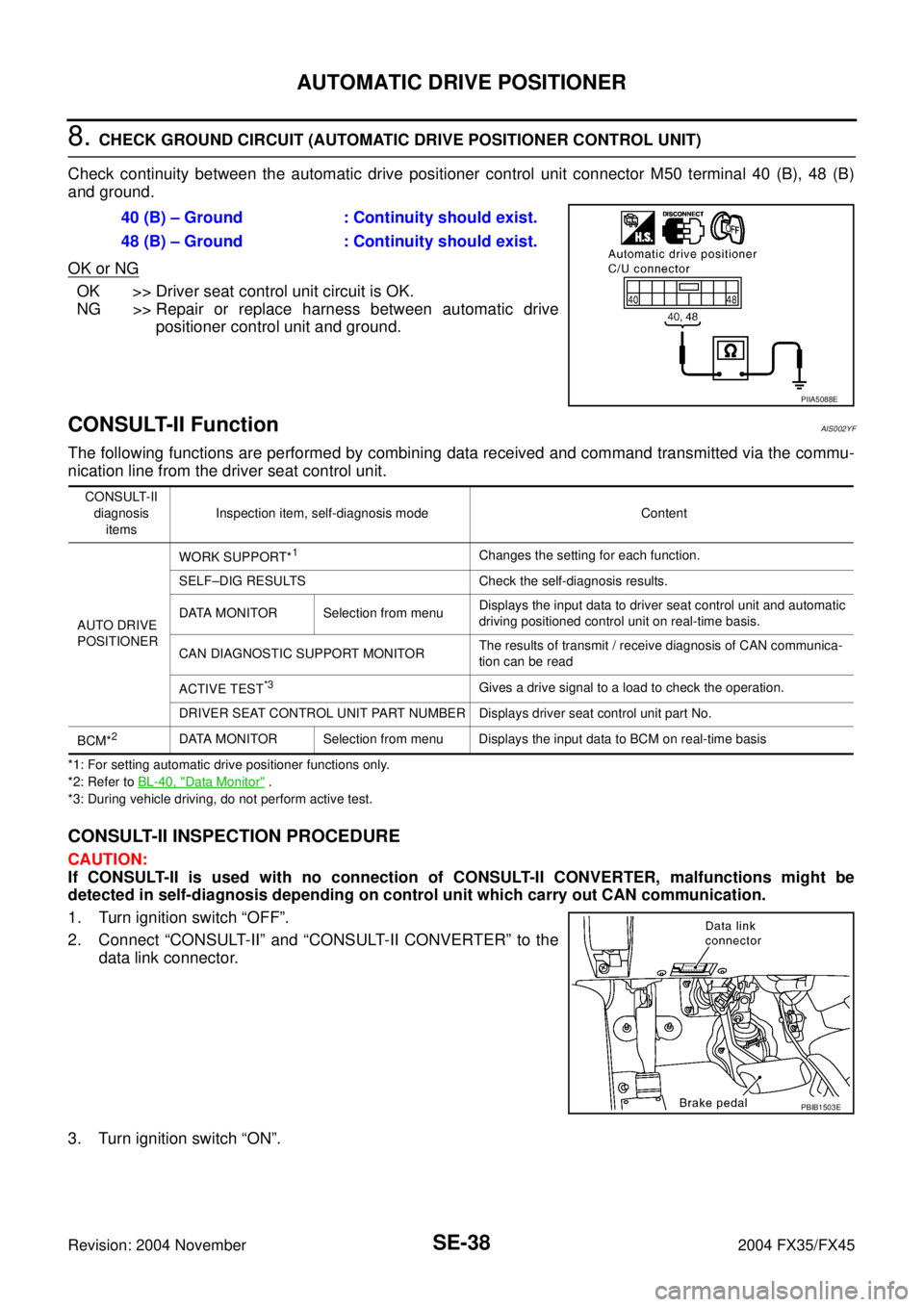

PIIA5088E
CONSULT-II
diagnosis
itemsInspection item, self-diagnosis mode Content
AUTO DRIVE
POSITIONERWORK SUPPORT*
1Changes the setting for each function.
SELF–DIG RESULTS Check the self-diagnosis results.
DATA MONITOR Selection from menuDisplays the input data to driver seat control unit and automatic
driving positioned control unit on real-time basis.
CAN DIAGNOSTIC SUPPORT MONITORThe results of transmit / receive diagnosis of CAN communica-
tion can be read
ACTIVE TEST
*3Gives a drive signal to a load to check the operation.
DRIVER SEAT CONTROL UNIT PART NUMBER Displays driver seat control unit part No.
BCM*
2DATA MONITOR Selection from menu Displays the input data to BCM on real-time basis
PBIB1503E
Page 4168 of 4449
AUTOMATIC DRIVE POSITIONER
SE-39
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2004 November 2004 FX35/FX45
4. Touch “START (NISSAN BASED VHCL)”.
5. Touch “AUTO DRIVE POS” and "BCM".
If “AUTO DRIVE POS.” is not indicated, refer toGI-40, "
CON-
SULT-II Data Link Connector (DLC) Circuit" .
6. Select diagnosis mode.
“DATA MONITOR”, “ACTIVE TEST”, “SELF-DIAG RESULTS“,
“ECU PART NUMBER” and “WORK SUPPORT” are available.
SELF-DIAGNOSIS RESULTS
Display Item List
MBIB0233E
PIIA4817E
PIIB1679E
CONSULT-II display Item Malfunction is detected when...Reference
page
CAN COMM CIRC
[U1000]CAN communication Malfunction is detected in CAN communication.SE-42
SEAT SLIDE
[B2112]Seat slide motorWhen any manual and automatic operations are not performed, if
any motor operations of seat slide is detected for 0.1 second or
more, status is judged “Output error”.SE-44
SE-56
SEAT RECLINING
[B2113]Seat reclining motorWhen any manual and automatic operations are not performed, if
any motor operations of seat reclining is detected for 0.1 second or
more, status is judged “Output error”.SE-45
SE-57
SEAT LIFTER FR
[B2114]Seat lifting FR motorWhen any manual and automatic operations are not performed, if
any motor operations of seat lifting FR is detected for 0.1 second or
more, status is judged “Output error”.SE-46
SE-58
SEAT LIFTER RR
[B2115]Seat lifting RR motorWhen any manual and automatic operations are not performed, if
any motor operations of seat lifting RR is detected for 0.1 second or
more, status is judged “Output error”.SE-48
SE-59
TILT OUTPUT
[B2116]Tilt motorWhen any manual and automatic operations are not performed, if
any motor operations of seat tilt is detected for 0.1 second or more,
status is judged “Output error”.SE-51
SE-61
Page 4169 of 4449
SE-40
AUTOMATIC DRIVE POSITIONER
Revision: 2004 November 2004 FX35/FX45
NOTE:
The displays of CAN communication and P range switch display error detecting condition from memory
erase to the present on “TIME”.
–If error is detected in the past and present error is detected, “CRNT” is displayed.
–If error is detected in the past and present error is not detected, “PAST” is displayed.
–If error has never been detected, nothing is displayed on “TIME”.
Any items other than CAN communication and P range switch count error detection frequency occurred
after erase history to “1-127”.
–If error was detected in the past, error detection frequency from memory erase to the present is displayed
on “TIME”.
–If error has never been detected, nothing is displayed on “TIME”.
–Can clear the detected memory.
Normal: Clear memory in normal condition, history is erased and nothing is displayed on “TIME”.
Error: Clear memory in error condition, error is detected again and “1” is displayed on “TIME”.
CAN DIAGNOSIS SUPPORT MONITOR
Can Diagnosis Support Monitor
DATA MONITOR
Selection from Menu
TILT SENSOR
[B2118]Tilt sensorWhen tilt sensor detects 0.1V or lower, or 4.9V or higher, for 0.5 sec-
onds or more.SE-61
TELESCO SEN-
SOR
[B2119]Telescopic sensorWhen telescopic sensor detects 0.1V or lower, or 4.9V or higher, for
0.5 seconds or more.SE-60
P RANGE SW
[B2125]P RANGE SWWith the A/T selector lever in P position (P range switch ON), if the
vehicle speed of 7 km/h (4 MPH) or higher was input the detente
switch input system is judged malfunctioning.SE-82
UART COMM
[B2128]UART communica-
tionMalfunction is detected in UART communication.SE-89
CONSULT-II display Item Malfunction is detected when...Reference
page
Monitor item [UNIT] Contents
CAN COMM [OK/NG] When CAN communication circuit is abnormal, it displays “NG”.
CAN CIRC 1 [OK/UNKWN]
Displays [OK/UNKWN] condition of the CAN communication judged by signal
input. CAN CIRC 2 [OK/UNKWN]
CAN CIRC 3 [OK/UNKWN]
CAN CIRC 4 [OK/UNKWN]
Monitor item [OPERATION or UNIT] Contents
SLIDE SW–FR “ON/OFF” ON/OFF status judged from the sliding switch (FR) signal is displayed.
SLIDE SW–RR “ON/OFF” ON/OFF status judged from the sliding switch (RR) signal is displayed.
RECLN SW–FR “ON/OFF” ON/OFF status judged from the reclining switch (FR) signal is displayed.
RECLN SW–RR “ON/OFF” ON/OFF status judged from the reclining switch (RR) signal is displayed.
LIFT FR SW–UP “ON/OFF” ON/OFF status judged from the FR lifter switch (UP) signal is displayed.
LIFT FR SW–DN “ON/OFF” ON/OFF status judged from the FR lifter switch (DOWN) signal is displayed.
LIFT RR SW–UP “ON/OFF” ON/OFF status judged from the RR lifter switch (UP) signal is displayed.
LIFT RR SW–DN “ON/OFF” ON/OFF status judged from the RR lifter switch (DOWN) signal is displayed.
MIR CON SW–UP “ON/OFF”ON/OFF status judged from the door mirror remote control switch (UP) signal is
displayed.
MIR CON SW–DN “ON/OFF”ON/OFF status judged from the door mirror remote control switch (DOWN) signal
is displayed.
Page 4170 of 4449
AUTOMATIC DRIVE POSITIONER
SE-41
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2004 November 2004 FX35/FX45
ACTIVE TEST
CAUTION:
During vehicle driving, do not perform active test.
NOTE:
If active test is performed, reset seat memory and key fob interlock drive positioner after performing work.
Display Item List
MIR CON SW–RH “ON/OFF”ON/OFF status judged from the door mirror remote control switch (RIGHT) signal
is displayed.
MIR CON SW–LH “ON/OFF”ON/OFF status judged from the door mirror remote control switch (LEFT) signal s
displayed.
MIR CHNG SW–R “ON/OFF”ON/OFF status judged from the door mirror remote control switch (switching to
RIGHT) signal is displayed.
MIR CHNG SW–L “ON/OFF”ON/OFF status judged from the door mirror remote control switch (switching to
LEFT) signal is displayed.
TELESCO SW-FR “ON/OFF” ON/OFF status judged from the telescoping switch (FR) signal is displayed.
TELESCO SW-RR “ON/OFF” ON/OFF status judged from the telescoping switch (RR) signal is displayed.
TILT SW-UP “ON/OFF” ON/OFF status judged from the tilt switch (UP) signal is displayed.
TILT SW-DOWN “ON/OFF” ON/OFF status judged from the tilt switch (DOWN) signal is displayed.
SET SW “ON/OFF” ON/OFF status judged from the setting switch signal is displayed.
MEMORY SW1 “ON/OFF” ON/OFF status judged from the seat memory switch 1 signal is displayed.
MEMORY SW2 “ON/OFF” ON/OFF status judged from the seat memory switch 2 signal is displayed.
P POSI SW “ON/OFF”The selector lever position “OFF (P position) / ON (other than P position)” judged
from the P range switch signal is displayed.
STARTER SW “ON/OFF”Ignition key switch ON (START, ON) /OFF (ignition switch IGN, ACC, or OFF)
status judged from the ignition switch signal is displayed.
SLIDE PULSE —Value (32768) when battery connects is as standard. If it moves backward, the
value increases. If it moves forward, the value decreases.
RECLN RULSE —Value (32768) when battery connects is as standard. If it moves backward, the
value increases. If it moves forward, the value decreases.
LIFT FR PULSE —Value (32768) when battery connects is as standard. If it moves DOWN, the value
increases. If it moves UP, the value decreases.
LIFT RR PULSE —Value (32768) when battery connects is as standard. If it moves DOWN, the value
increases. If it moves UP, the value decreases.
TILT SEN “V” The tilt position (voltage) judged from the tilt sensor signal is displayed.
TELESCO SEN “V”The telescoping position (voltage) judged from the telescoping sensor signal is
displayed.
MIR/SE RH R–L “V” Voltage output from RH door mirror sensor (LH/RH) is displayed.
MIR/SE RH U–D “V” Voltage output from RH door mirror sensor (UP/DOWN) is displayed.
MIR/SE LH R–L “V” Voltage output from LH door mirror sensor (LH/RH) is displayed.
MIR/SE LH U–D “V” Voltage output from LH door mirror sensor (UP/DOWN) is displayed.Monitor item [OPERATION or UNIT] Contents
Test item Description
TILT MOTOR The tilt motor is activated by receiving the drive signal.
TELESCO MOTOR The telescopic motor is activated by receiving the drive signal.
SEAT SLIDE The sliding motor is activated by receiving the drive signal.
SEAT RECLINING The reclining motor is activated by receiving the drive signal.
SEAT LIFTER FR The front end lifter motor is activated by receiving the drive signal.
SEAT LIFTER RR The rear end lifter motor is activated by receiving the drive signal.
MEMORY SW INDCTR The memory switch indicator is lit by receiving the drive signal.
Page 4171 of 4449
SE-42
AUTOMATIC DRIVE POSITIONER
Revision: 2004 November 2004 FX35/FX45
Can Communication Inspection Using CONSULT-II (Self-diagnosis)AIS002XL
1. SELF-DIAGNOSTIC RESULT CHECK
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. Connect to CONSULT-II, and select “AUTO DRIVE POS.” on the “SELECT DAIAG SYSTEM” screen.
2. Select “SELF-DIAG RESULTS” on “SELECT DISG MODE” screen.
3. Check display content in self-diagnostic results.
Displayed U1000?
Yes >> INSPECTION END
No >> Refer to LAN-4, "
Precautions When Using CONSULT-II" .
Symptom ChartAIS002XM
MIRROR MOTOR RHThe RH mirror motor moves the mirror UP/DOWN and LEFT/RIGHT by receiving the drive
signal.
MIRROR MOTOR LHThe LH mirror motor moves the mirror UP/DOWN and LEFT/RIGHT by receiving the drive
signal. Test item Description
Symptom Diagnoses / service procedureReference
page
Only setting change function cannot be set with display.Interacted display system (with out NAVI)AV- 5 5
Navigation system (with NAVI)AV- 8 8
A part of seat system does not operate (both automati-
cally and manually).1. Sliding motor circuit check SE-44
2. Reclining motor circuit check SE-45
3. Front lifter motor circuit checkSE-46
4. Rear lifter motor circuit checkSE-48
5. If the above systems are normal, replace the driver
seat control unit.SE-15
A part of steering tilt, telescopic and door mirror does not
operate (both automatically and manually).1.Tilt motor circuit checkSE-51
2. Telescopic motor circuit checkSE-49
3. Mirror motor LH circuit check SE-52
4. Mirror motor RH circuit check SE-54
5. If the above systems are normal, replace the automatic
drive positioner control unit.SE-15
A part of seat system does not operate (only automatic
operation).1. Sliding sensor circuit checkSE-56
2. Reclining sensor circuit checkSE-57
3. Front lifting sensor circuit checkSE-58
4. Rear lifting sensor circuit checkSE-59
5. If the above systems are normal, replace the driver
seat control unit.SE-15
A part of door mirror system dose not operate (only auto-
matic operation).1. Mirror sensor LH circuit checkSE-622. Mirror sensor RH circuit checkSE-63
3. If all the above systems are normal, replace the auto-
matic drive positioner control unit.SE-15
Page 4186 of 4449
AUTOMATIC DRIVE POSITIONER
SE-57
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2004 November 2004 FX35/FX45
Reclining Sensor Circuit CheckAIS002XT
1. CHECK FUNCTION
With CONSULT-II
Check operation with “RECLINING PUL SE” on the DATA MONITOR to make sure the pulse changes.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check signal between driver seat control unit connector and
ground, with oscilloscope.
OK or NG
OK >> Reclining sensor circuit is OK.
NG >> GO TO 2.
2. CHECK RECLINING SENSOR HARNESS CONTINUITY
1. Disconnect driver seat control unit connector and reclining motor connector.
2. Check continuity between driver seat control unit connector
B152 terminals 28C (B/W), 29 (G/L) and reclining motor connec-
tor B166 terminals 28 (B/W), 29 (G/L).
3. Check continuity between driver seat control unit connector
B152 terminals 28C (B/W), 29 (G/L) and ground.
OK or NG
OK >> Replace reclining motor.
NG >> Repair or replace harness between connectors driver seat control unit and reclining motor.
Monitor item [POERATION or UNIT] Contents
RECLN PUL SE —The seat reclining position (pulse) judged
from the reclining sensor is displayed
PIIA4558E
ConnectorTerminals
(Wire color)
Condition Signal
(+) (–)
B152 29 (G/L) GroundReclining
motor
operation
PIIA6107E
SIIA0692J
28C (B/W) – 28 (B/W) : Continuity should exist.
29 (G/L) – 29 (G/L) : Continuity should exist.
28C (B/W) – Ground : Continuity should not exist.
29 (G/L) – Ground : Continuity should not exist.
PIIA6108E
