SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2005 July 2005 FX
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitABS006JQ
ENGINE COOLANT CAPACITY (APPROXIMATE)
Unit: (US qt, Imp qt)
RADIATOR
Unit: kPa (kg/cm2 , psi)
THERMOSTAT
WATER CONTROL VALVE
Engine coolant capacity (With reservoir tank at “MAX” level) 10.0 (10-5/8, 8-3/4)
Reservoir tank engine coolant capacity (at “MAX” level) 0.8 (7/8, 3/4)
Radiator cap relief pressure Standard 78 - 98 (0.8 - 1.0, 11 - 14)
Limit 59 (0.6, 9)
Leakage testing pressure 157 (1.6, 23)
Valve opening temperature 80 - 84 °C (176 - 183 °F)
Maximum valve lift More than 10 mm/ 95 °C (0.39 in/ 203 °F)
Valve closing temperature 77 °C (171 °F)
Valve opening temperature 93.5 - 96.5 °C (200 - 206 °F)
Maximum valve lift More than 8 mm/ 108 °C (0.315 in/ 226 °F)
Valve closing temperature 90 °C (194 °F)

DI-1
DRIVER INFORMATION SYSTEM
K ELECTRICAL
CONTENTS
C
D E
F
G H
I
J
L
M
SECTION DI
A
B
DI
Revision: 2005 July 2005 FX
DRIVER INFORMATION SYSTEM
PRECAUTION ............................................................ 4
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 4
COMBINATION METERS ...................................... ..... 5
System Description ............................................. ..... 5
UNIFIED METER CONTROL UNIT ................. ..... 5
UNIFIED METER AND A/C AMP. .................... ..... 5
HOW TO CHANGE THE DISPLAY FOR ODO/
TRIP METER ................................................... ..... 6
POWER SUPPLY AND GROUND CIRCUIT ... ..... 6
SPEEDOMETER .............................................. ..... 7
TACHOMETER ................................................ ..... 7
WATER TEMPERATURE GAUGE ................... ..... 7
FUEL GAUGE .................................................. ..... 7
Component Parts and Harness Connector Location ..... 7

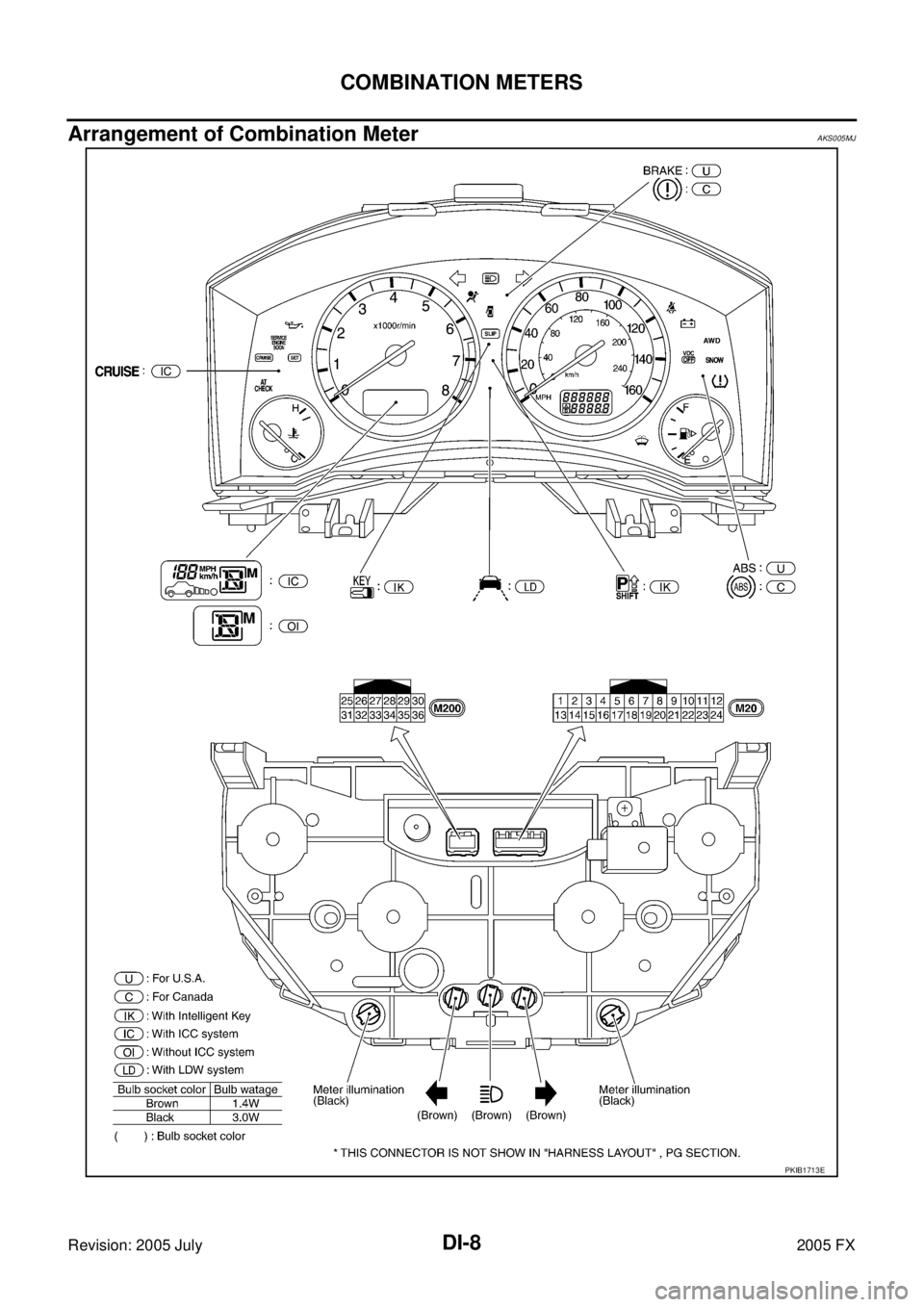

Arrangement of Combination Meter .................... ..... 8

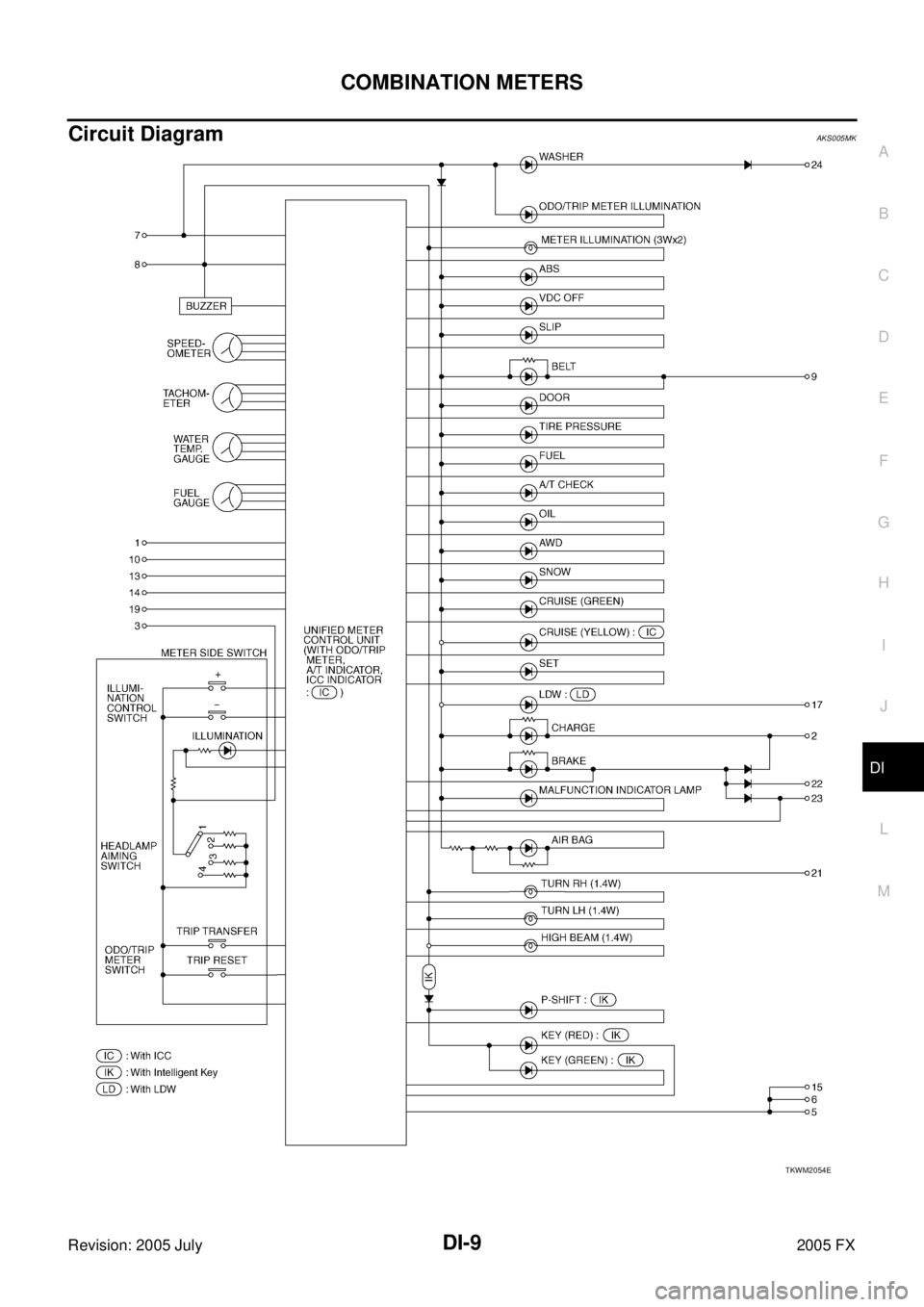

Circuit Diagram ................................................... ..... 9
Wiring Diagram — METER — ............................. ... 10
Terminals and Reference Value for Combination
Meter ................................................................... ... 12
Terminals and Reference Value for Unified Meter
and A/C Amp. ...................................................... ... 13
Self-Diagnosis Mode of Combination Meter ........ ... 14
SELF-DIAGNOSIS FUNCTION ....................... ... 14
OPERATION PROCEDURE ............................ ... 14
CONSULT-II Function (METER A/C AMP) .......... ... 14
Trouble Diagnosis ............................................... ... 15
HOW TO PERFORM TROUBLE DIAGNOSIS ... 15
PRELIMINARY CHECK ................................... ... 15
Symptom Chart 1 ................................................ ... 17
Symptom Chart 2 ................................................ ... 17
Power Supply and Ground Circuit Inspection ..... ... 18
Vehicle Speed Signal Inspection ......................... ... 20
Engine Speed Signal Inspection ......................... ... 21
Engine Coolant Temperature Signal Inspection .. ... 21
Fuel Level Sensor Signal Inspection ................... ... 22
Odo/Trip Meter and Illumination Control Switch
Inspection ............................................................ ... 24
Fuel Gauge Pointer Fluctuates, Indicator Wrong Value or Varies ....................................................
... 24
Fuel Gauge Does Not Move to FULL Position .... ... 24
Electrical Components Inspection ....................... ... 25
CHECK FUEL LEVEL SENSOR UNIT ............. ... 25
Removal and Installation of Combination Meter .. ... 25
Disassembly and Assembly of Combination Meter ... 26
DISASSEMBLY ................................................ ... 26
ASSEMBLY ...................................................... ... 27
Removal and Installation of Odo/Trip Meter and Illu-
mination Control Switch ....................................... ... 27
REMOVAL ........................................................ ... 27
INSTALLATION ................................................ ... 27
UNIFIED METER AND A/C AMP ........................... ... 28
System Description .............................................. ... 28
INPUT/OUTPUT SIGNALS .............................. ... 28
FAIL-SAFE ....................................................... ... 29
CAN Communication System Description ........... ... 29
CAN Communication Unit .................................... ... 29
Schematic ............................................................ ... 30
CONSULT-II Function (METER A/C AMP) .......... ... 31
CONSULT-II BASIC OPERATION .................... ... 31
SELF-DIAGNOSTIC RESULTS ........................ ... 32
DATA MONITOR .............................................. ... 32
DTC [U1000] CAN Communication Circuit .......... ... 34
DTC [B2202] Meter Communication Circuit ........ ... 34
DTC [B2205] Vehicle Speed Circuit ..................... ... 37
Removal and Installation of Unified Meter and A/C
Amp. .................................................................... ... 37
REMOVAL ........................................................ ... 37
INSTALLATION ................................................ ... 37
COMPASS .............................................................. ... 38
System Description .............................................. ... 38
DIRECTION DISPLAY ...................................... ... 38
Wiring Diagram – COMPAS – ............................. ... 40
Removal and Installation of Compass ................. ... 41
WARNING LAMPS ................................................. ... 42
Schematic ............................................................ ... 42
Wiring Diagram — WARN — ............................... ... 43
Oil Pressure Warning Lamp Stays Off (Ignition
Switch ON) .......................................................... ... 51

DI-2Revision: 2005 July 2005 FX
Oil Pressure Warning Lamp Does Not Turn Off (Oil
Pressure Is Normal) ............................................. ... 52
Component Inspection ......................................... ... 53
OIL PRESSURE SWITCH ................................ ... 53
A/T INDICATOR ..................................................... ... 54
Wiring Diagram — AT/IND — .............................. ... 54
A/T Indicator Is Malfunction ................................. ... 56
WARNING CHIME .................................................. ... 58
System Description .............................................. ... 58
FUNCTION ....................................................... ... 58
IGNITION KEY WARNING CHIME (WITHOUT
INTELLIGENT KEY) ......................................... ... 58
IGNITION KEY WARNING CHIME (WITH INTEL-
LIGENT KEY) ................................................... ... 59
LIGHT WARNING CHIME ................................ ... 59
SEAT BELT WARNING CHIME ........................ ... 59
CAN Communication System Description ........... ... 60
CAN Communication Unit .................................... ... 60
Component Parts and Harness Connector Location ... 61
Schematic ............................................................ ... 62
Wiring Diagram — CHIME — .............................. ... 63
Terminals and Reference Value for BCM ............. ... 66
Terminals and Reference Value for Unified Meter
and A/C Amp. ...................................................... ... 67
Terminals and Reference Value for Combination
Meter ................................................................... ... 67
Trouble Diagnosis ................................................ ... 68
HOW TO PERFORM TROUBLE DIAGNOSIS . ... 68
PRELIMINARY CHECK .................................... ... 68
CONSULT-II Function (BCM) ............................... ... 69
DIAGNOSTIC ITEMS DESCRIPTION .............. ... 69
CONSULT-II BASIC OPERATION PROCEDURE
... 69
DATA MONITOR ............................................... ... 70
ACTIVE TEST .................................................. ... 70
SELF-DIAGNOSTIC RESULTS ........................ ... 71
All Warnings Are Not Operated ........................... ... 71
Key Warning Chime and Light Warning Chime Does
Not Operate (Seat Belt Warning Chime Does Oper-
ate) ...................................................................... ... 72
Key Warning Chime Does Not Operate (Without
Intelligent Key) ..................................................... ... 73
Key Warning Chime Does Not Operate (With Intel-
ligent Key, When Mechanical Key Is Used) ......... ... 75
Key Warning Chime Does Not Operate (With Intel-
ligent Key, When Intelligent Key Is Carried With The
Driver) .................................................................. ... 77
Light Warning Chime Does Not Operate ............. ... 79
Seat Belt Warning Chime Does Not Operate ...... ... 80
LANE DEPARTURE WARNING SYSTEM ............. ... 82
Precautions for Lane Departure Warning (LDW)
system ................................................................. ... 82
System Description .............................................. ... 82
LDW SYSTEM OPERATION ............................ ... 82
POWER SUPPLY AND GROUND CIRCUIT .... ... 84
CAN Communication ........................................... ... 84
SYSTEM DESCRIPTION ................................. ... 84
CAN COMMUNICATION UNIT ......................... ... 85
Action Test ........................................................... ... 85 LDW SYSTEM RUNNING TEST ......................
... 85
Camera Aiming Adjustment ................................. ... 86
OUTLINE .......................................................... ... 86
PREPARATION ................................................. ... 86
TARGET SETTING ........................................... ... 86
VEHICLE HEIGHT CHECK .............................. ... 89
AIMING ADJUSTMENT .................................... ... 89
Component Parts and Harness Connector Location ... 93
Schematic ............................................................ ... 94
Wiring Diagram — LDW — .................................. ... 95
Terminals and Reference Value for LDW Camera
Unit ....................................................................... ... 98
CONSULT-II Function (LDW) ............................... ... 98
DESCRIPTION ................................................. ... 98
CONSULT-II BASIC OPERATION .................... ... 98
WORK SUPPORT ............................................ ... 99
SELF-DIAG RESULTS ...................................... ... 99
DATA MONITOR ............................................... .100
ACTIVE TEST ................................................... .101
Trouble Diagnosis ................................................ .102
HOW TO PERFORM TROUBLE DIAGNOSIS . .102
SYMPTOM CHART ........................................... .102
Preliminary Inspection .......................................... .103
Power Supply and Ground Circuit Inspection ...... .104
DTC [C1B00] CAMERA UNIT MALF ................... .104
DTC [C1B01] CAM AIMING INCMP .................... .104
DTC [C1B02] VHCL SPD DATA MALF ................ .105
DTC [C1B03] ABNRML TEMP DETECT ............. .105
DTC [U1000] CAN COMM CIRCUIT ................... .105
DTC [U1010] CONTROL UNIT (CAN) ................. .105
LDW Chime Circuit Inspection ............................. .106
LDW Switch Circuit Inspection ............................. .107
LDW Indicator Lamp Circuit Inspection ................ .109
Turn Signal Input Inspection ................................ .110
Removal and Installation for LDW Camera Unit .. . 111
REMOVAL ......................................................... . 111
INSTALLATION ................................................. . 111
Removal and Installation for LDW Chime ............ . 111
REMOVAL ......................................................... . 111
INSTALLATION ................................................. . 111
Removal and Installation for LDW Switch ............ . 111
CLOCK ................................................................... .112
Wiring Diagram — CLOCK — .............................. .112
Removal and Installation of Clock ........................ .113
REMOVAL ......................................................... .113
INSTALLATION ................................................. .113
REAR VIEW MONITOR .......................................... .114
System Description .............................................. .114
POWER SUPPLY AND GROUND .................... .114
AV COMMUNICATION LINE ............................ .114
REAR VIEW CAMERA OPERATION ............... .114
Component Parts and Harness Connector Location .115
Schematic ............................................................ .116
Wiring Diagram — R/VIEW — ............................. .117
Terminals and Reference Value for Rear View Cam-
era Control Unit .................................................... .120
CONSULT-II Function (REARVIEW CAMERA) ... .121
CONSULT-II BASIC OPERATION .................... .121
WORK SUPPORT ............................................ .122

DI-3
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
DATA MONITOR ..............................................
. 122
Side Distance Guideline Correction .................... . 123
SIDE DISTANCE GUIDELINE CORRECTION
PROCEDURE .................................................. . 123
Power Supply and Ground Circuit Inspection ..... . 125
Rear View Is Not Displayed With The A/T Selector
Lever In R-Position .............................................. . 126
The Rear View Image Is Distorted ...................... . 130 Removal and Installation of Rear View Camera Con-
trol Unit ................................................................ .131
REMOVAL ........................................................ .131
INSTALLATION ................................................ .131
Removal and Installation of Rear View Camera .. .131
REMOVAL ........................................................ .131
INSTALLATION ................................................ .132

DI-4
PRECAUTION
Revision: 2005 July 2005 FX
PRECAUTION PFP:00011
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
AKS00CS7
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

COMBINATION METERS DI-5
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
COMBINATION METERSPFP:24814
System DescriptionAKS005MH
UNIFIED METER CONTROL UNIT

Speedometer, odo/trip meter, tachometer, fuel gauge and water temperature gauge are controlled by the
unified meter control unit, which is built into the combination meter. Unified meter control unit receives sig-
nals from unified meter and A/C amp.

Warning lamp and indicator lamp of combination meter are controlled by signals drawn from the unified
meter and A/C amp.

Digital meter is adopted for odo/trip meter*.
*The record of the odo meter is kept even if the battery cable is disconnected. The record of the trip meter
is erased when the battery cable is disconnected.

Odo/trip meter, A/T indicator and ICC system display segments can be checked in diagnosis mode.

Meters/gauges can be checked in diagnosis mode.
Illumination Control
The unified meter control unit outputs the odo/trip meter and A/T
indicator lighting when the ignition switch is turned on. When the
lighting switch is turned on, light on for the combination meter dial,
illumination control switch and external lighting are output. In addi-
tion, when the lighting switch is turned on, the illumination control
switch on the left side of the combination meter can be used to
adjust the brightness of each light. The brightness can be adjusted
to sixteen different levels: From 0 (no lights) to 15 (maximum).
Pressing the illumination control switch will brighten or darken the
lights. When the ignition switch is in the START position, the combi-
nation meter dial lighting and illumination control switch lighting are
turned off.
UNIFIED METER AND A/C AMP.
Refer to DI-28, "System Description" in “UNIFIED METER AND A/C AMP”.
SKIA4795E

DI-6
COMBINATION METERS
Revision: 2005 July 2005 FX
HOW TO CHANGE THE DISPLAY FOR ODO/TRIP METER

The vehicle speed signal and the memory signals from the meter memory circuit are processed by the
combination meter and the mileage is displayed.

Switch modes with following procedure.

When trip transfer switch is pressed, trip meter display changes.

If trip reset switch is pressed for 1 second or more while trip A is
displayed, only trip A is reset. (Trip B operates the same way.)

If the battery is disconnected, odometer mileage will be retained
but the trip meter is reset to 0.0.
POWER SUPPLY AND GROUND CIRCUIT
Power is supplied at all times

through 10A fuse [No. 19, located in the fuse block (J/B)]

to combination meter terminal 8, and

to unified meter and A/C amp. terminal 21.
With the ignition switch in the ON or START position, power is supplied

through 10A fuse [No. 14, located in the fuse block (J/B)]

to combination meter terminal 7,

through 10A fuse [No. 12, located in the fuse block (J/B)]

to unified meter and A/C amp. terminal 22.
With the ignition switch in the ACC or ON position, power is supplied

through 15A fuse [No. 10, located in the fuse block (J/B)], and

through 15A fuse [No. 11, located in the fuse block (J/B)]

to unified meter and A/C amp. terminal 46.
Ground is supplied

to combination meter terminals 5, 6 and 15

through grounds M35, M45 and M85,

to unified meter and A/C amp. terminals 29 and 30

through grounds M35, M45 and M85.
PKIA2382E
SKIA4817E

COMBINATION METERS DI-7
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
SPEEDOMETER
ABS actuator and electric unit (control unit) provides a vehicle speed signal to the unified meter and A/C amp.
with CAN communication line. After unified meter and A/C amp. received the vehicle speed signal, it changes
the signal to 8 pulse signal and provides the 8 pulse signal to the combination meter for the speedometer.
TACHOMETER
The tachometer indicates engine speed in revolutions per minute (rpm).
ECM provides an engine speed signal to unified meter and A/C amp. with CAN communication line. Unified
meter and A/C amp. provides an engine speed signal to combination meter for tachometer with communica-
tion line between unified meter and A/C amp. and combination meter.
WATER TEMPERATURE GAUGE
The water temperature gauge indicates the engine coolant temperature.
ECM provides an engine coolant temperature signal to unified meter and A/C amp. with CAN communication
line. Unified meter and A/C amp. provides a engine coolant temperature signal to combination meter for water
temperature gauge with communication line between unified meter and A/C amp. and combination meter.
FUEL GAUGE
The fuel gauge indicates the approximate fuel level in the fuel tank.
The fuel gauge is regulated by a variable ground signal supplied

from unified meter and A/C amp. terminal 36

through the fuel level sensor unit and fuel pump (main) terminals 5 and 2, and

through the fuel level sensor unit (sub) terminals 2 and 1

to unified meter and A/C amp. terminal 28 for the fuel gauge.
Unified meter and A/C amp. provides a fuel level signal to combination meter for fuel gauge with communica-
tion line between unified meter and A/C amp. and combination meter.
Component Parts and Harness Connector LocationAKS005MI
PKIB1955E

DI-8
COMBINATION METERS
Revision: 2005 July 2005 FX
Arrangement of Combination MeterAKS005MJ
PKIB1713E

COMBINATION METERS DI-9
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
Circuit DiagramAKS005MK
TKWM2054E
