Page 3601 of 4731
LAN-182
[CAN]
CAN SYSTEM (TYPE 4)
Revision: 2005 July 2005 FX

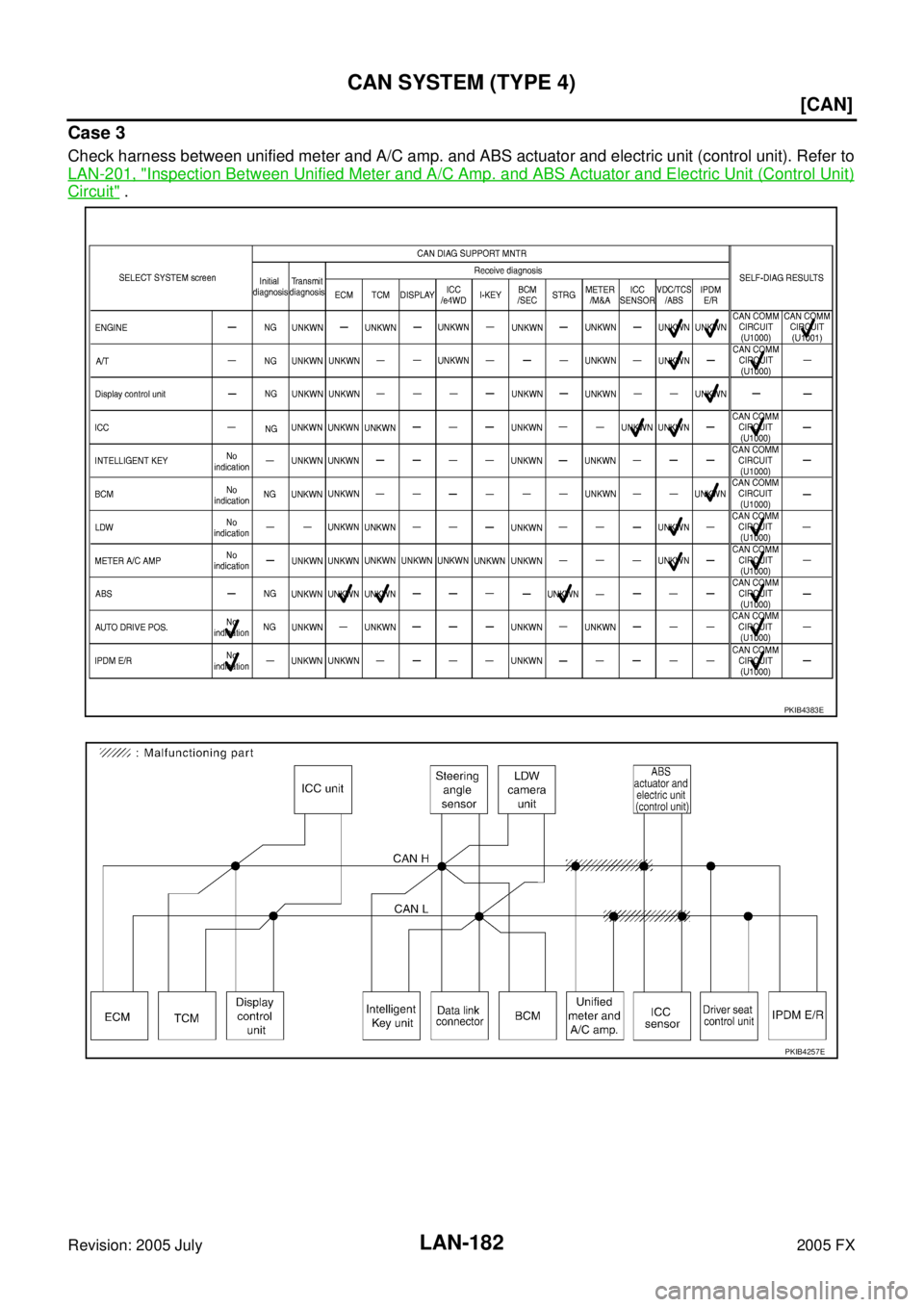

Case 3
Check harness between unified meter and A/C amp. and ABS actuator and electric unit (control unit). Refer to
LAN-201, "
Inspection Between Unified Meter and A/C Amp. and ABS Actuator and Electric Unit (Control Unit)
Circuit" .
PKIB4383E
PKIB4257E
Page 3602 of 4731
CAN SYSTEM (TYPE 4) LAN-183
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
Case 4
Check harness between ABS actuator and electric unit (control unit) and driver seat control unit. Refer to LAN-
202, "Inspection Between ABS Actuator and Electric Unit (Control Unit) and Driver Seat Control Unit Circuit" .
PKIB4384E
PKIB4258E
Page 3603 of 4731
LAN-184
[CAN]
CAN SYSTEM (TYPE 4)
Revision: 2005 July 2005 FX
Case 5
Check ECM circuit. Refer to LAN-203, "ECM Circuit Inspection" .
PKIB4385E
PKIB4259E
Page 3604 of 4731
CAN SYSTEM (TYPE 4) LAN-185
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
Case 6
Check TCM circuit. Refer to LAN-203, "TCM Circuit Inspection" .
PKIB4386E
PKIB4260E
Page 3605 of 4731
LAN-186
[CAN]
CAN SYSTEM (TYPE 4)
Revision: 2005 July 2005 FX
Case 7
Check display control unit circuit. Refer to LAN-204, "Display Control Unit Circuit Inspection" .
PKIB4387E
PKIB4261E
Page 3606 of 4731
CAN SYSTEM (TYPE 4) LAN-187
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
Case 8
Check ICC unit circuit. Refer to LAN-204, "ICC Unit Circuit Inspection" .
PKIB4388E
PKIB4262E
Page 3607 of 4731
LAN-188
[CAN]
CAN SYSTEM (TYPE 4)
Revision: 2005 July 2005 FX
Case 9
Check Intelligent Key unit circuit. Refer to LAN-205, "Intelligent Key Unit Circuit Inspection" .
PKIB4389E
PKIB4263E
Page 3608 of 4731
CAN SYSTEM (TYPE 4) LAN-189
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
Case 10
Check data link connector circuit. Refer to LAN-205, "Data Link Connector Circuit Inspection" .
PKIB4390E
PKIB4264E
Page 3609 of 4731
LAN-190
[CAN]
CAN SYSTEM (TYPE 4)
Revision: 2005 July 2005 FX
Case 11
Check BCM circuit. Refer to LAN-206, "BCM Circuit Inspection" .
PKIB4391E
PKIB4265E
Page 3610 of 4731
CAN SYSTEM (TYPE 4) LAN-191
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2005 July 2005 FX
Case 12
Check steering angle sensor circuit. Refer to LAN-206, "Steering Angle Sensor Circuit Inspection" .
PKIB4392E
PKIB4266E
