HARNESS CONNECTOR PFP:00011
DescriptionAKS007W3
HARNESS CONNECTOR (TAB-LOCKING TYPE)

The tab-locking type connectors help prevent accidental looseness or disconnection.

The tab-locking type connectors are disconnected by pushing or lifting the locking tab(s). Refer to the fig-
ure below.
Refer to the next page for description of the slide-locking type connector.
CAUTION:
Do not pull the harness or wires when disconnecting the connector.
[Example]
SEL769DA

HARNESS CONNECTOR PG-75
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2005 July 2005 FX
HARNESS CONNECTOR (SLIDE-LOCKING TYPE)

A new style slide-locking type connector is used on certain systems and components, especially those
related to OBD.

The slide-locking type connectors help prevent incomplete locking and accidental looseness or discon-
nection.

The slide-locking type connectors are disconnected by pushing or pulling the slider. Refer to the figure
below.
CAUTION:

Do not pull the harness or wires when disconnecting the connector.

Be careful not to damage the connector support bracket when disconnecting the connector.
[Example]
SEL769V

PG-76
ELECTRICAL UNITS
Revision: 2005 July 2005 FX
ELECTRICAL UNITS PFP:00011
Terminal Arrangement AKS007W5

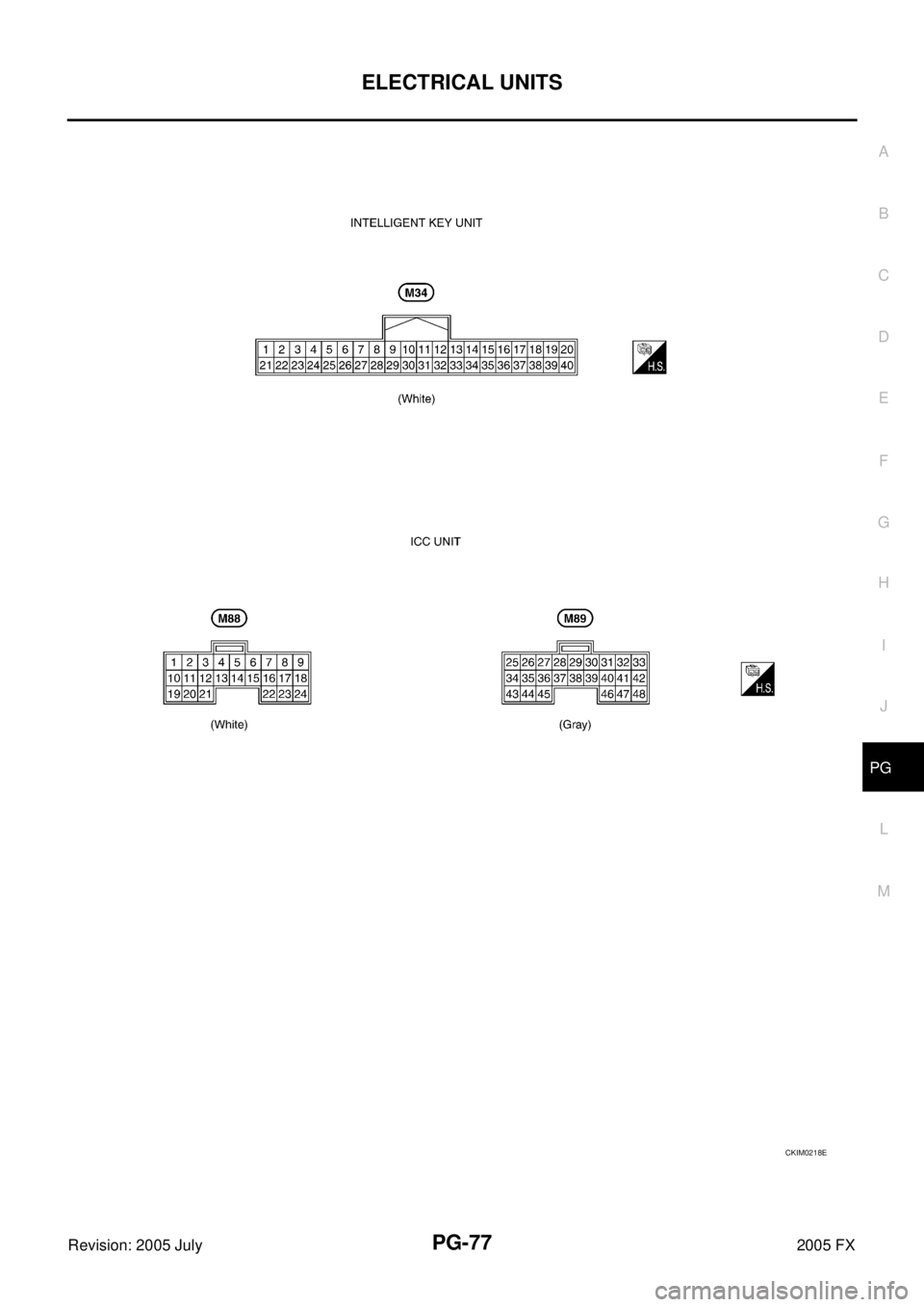

CKIM0217E

ELECTRICAL UNITS PG-77
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2005 July 2005 FX

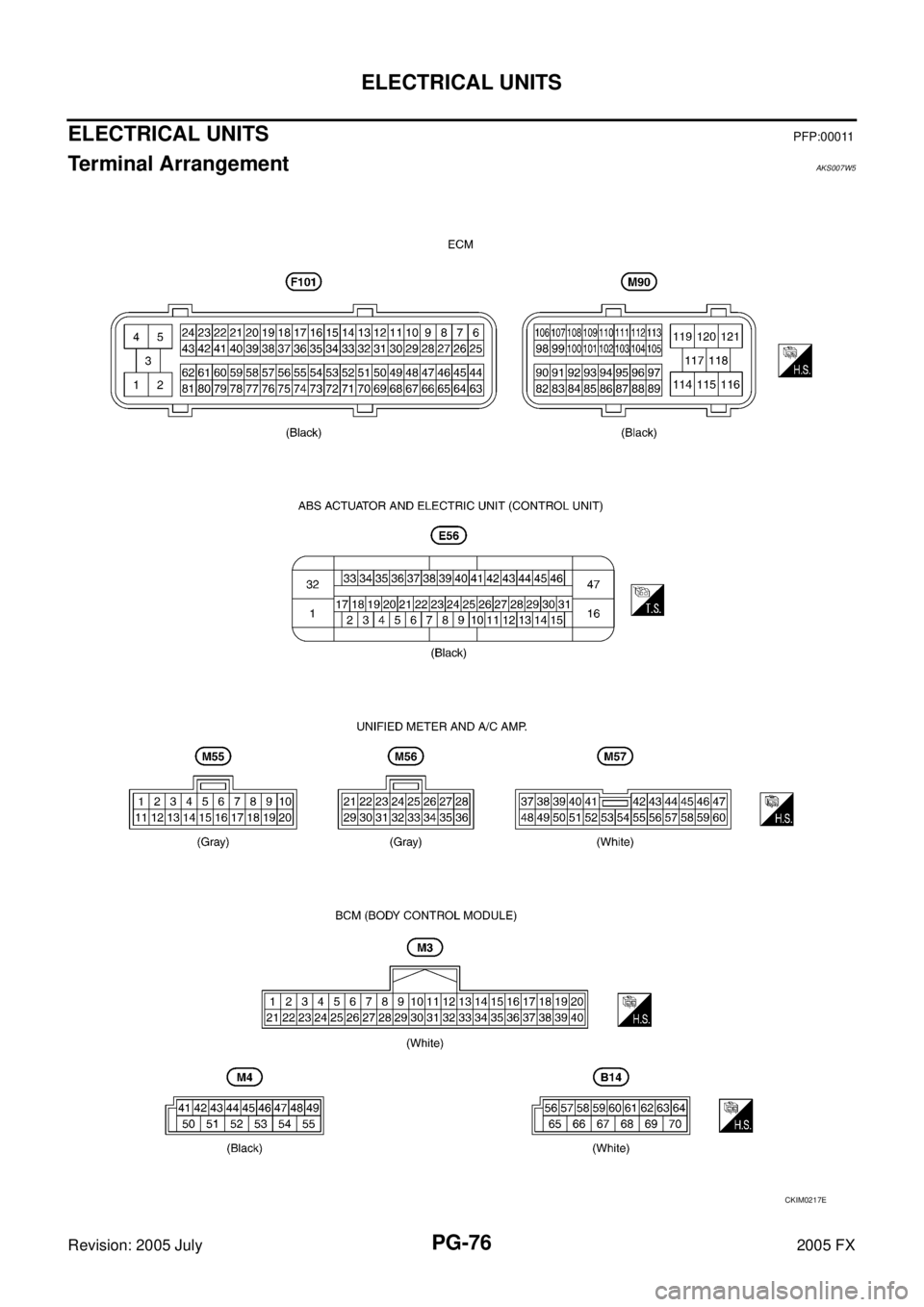

CKIM0218E

PG-78
SMJ (SUPER MULTIPLE JUNCTION)
Revision: 2005 July 2005 FX
SMJ (SUPER MULTIPLE JUNCTION)PFP:B4341
Terminal ArrangementAKS007W6
CKIH0255E

SMJ (SUPER MULTIPLE JUNCTION) PG-79
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2005 July 2005 FX
CKIM0220E

PG-80
STANDARDIZED RELAY
Revision: 2005 July 2005 FX
STANDARDIZED RELAY PFP:00011
Description AKS007W7
NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS
Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.
TYPE OF STANDARDIZED RELAYS

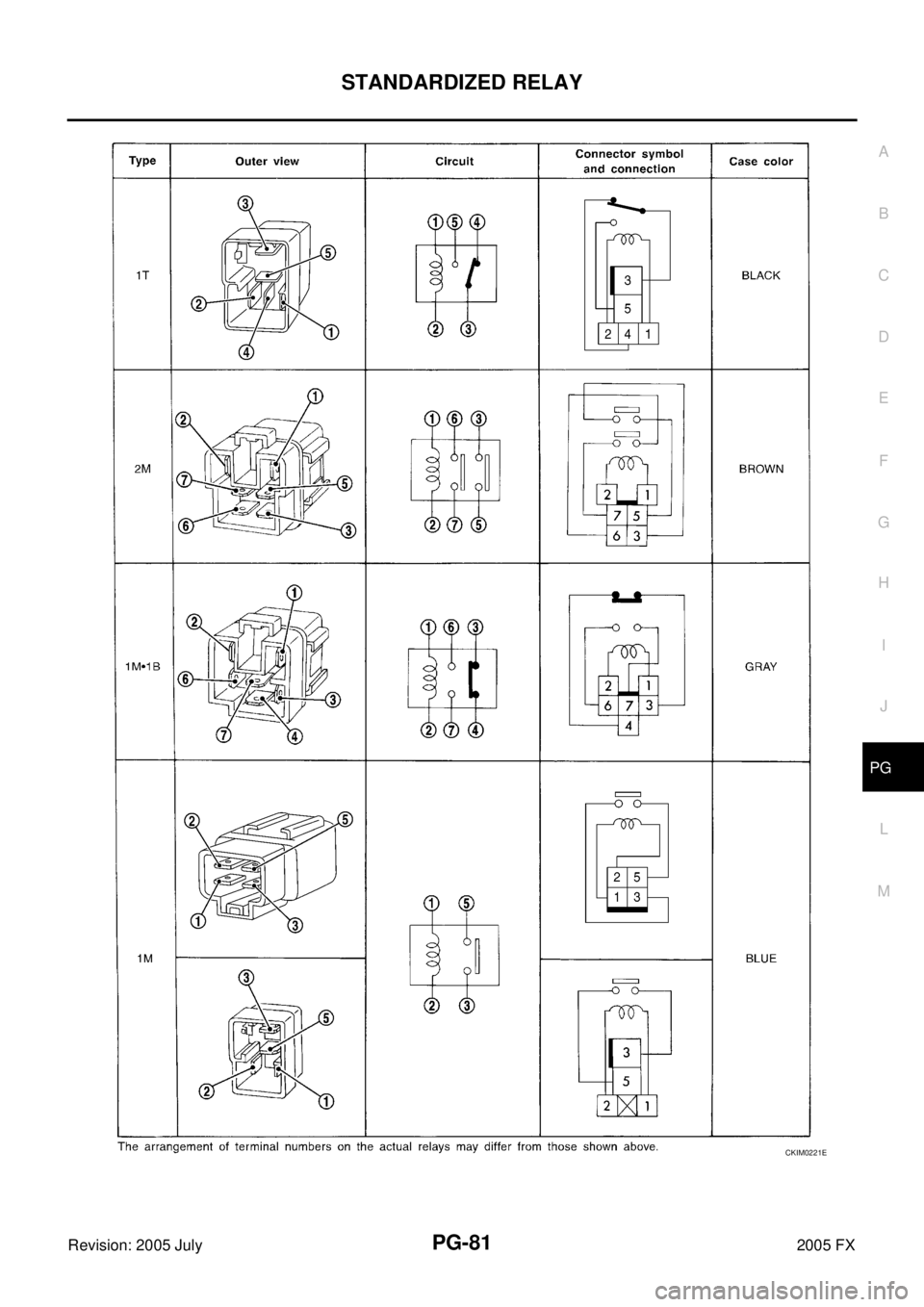

SEL881H
1M ···················· 1 Make 2M ···················· 2 Make
1T ···················· 1 Transfer 1M·1B ···················· 1 Make 1 Break
SEL882H

STANDARDIZED RELAY PG-81
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2005 July 2005 FX
CKIM0221E

PG-82
FUSE BLOCK - JUNCTION BOX (J/B)
Revision: 2005 July 2005 FX
FUSE BLOCK - JUNCTION BOX (J/B)PFP:24350
Terminal ArrangementAKS007W8
CKIM0222E

FUSE, FUSIBLE LINK AND RELAY BOX PG-83
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2005 July 2005 FX
FUSE, FUSIBLE LINK AND RELAY BOXPFP:24382
Terminal ArrangementAKS007W9
CKIM0223E
