DTC P1574 ICC VEHICLE SPEED SENSORPFP:31036
Component DescriptionABS007ZD
The ECM receives two vehicle speed signals via CAN communication line. One is sent from “unified meter and
A/C amp.”, and the other is from TCM (Transmission control module). The ECM uses these signals for ICC
control. Refer to ACS-6, "
DESCRIPTION" for ICC functions.
On Board Diagnosis LogicABS007ZE

This self-diagnosis has the one trip detection logic.

The MIL will not light up for this self-diagnosis.
NOTE:

If DTC P1574 is displayed with DTC U1000, U1001, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-171
.

If DTC P1574 is displayed with DTC P0500, first perform the trouble diagnosis for DTC P0500.
Refer to EC-391
.

If DTC P1574 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-402
.
DTC Confirmation ProcedureABS007ZF
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Step 3 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test
is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-II
1. Start engine.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Drive the vehicle at more than 40 km/h (25MPH).
4. If DTC is detected, go to EC-606, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
DTC No. Trouble Diagnosis
Name DTC Detecting Condition Possible Cause
P1574
1574 ICC vehicle speed
sensor ECM detects a difference between two vehicle
speed signals is out of the specified range.

Harness or connectors
(The CAN communication line is open or
shorted.)

Unified meter and A/C amp.

ABS actuator and electric unit (control unit)

Wheel sensor

TCM

ECM
SEF058Y

EC-606
[VQ35DE]
DTC P1574 ICC VEHICLE SPEED SENSOR
Revision: 2005 July 2005 FX
Diagnostic ProcedureABS007ZG
1. CHECK DTC WITH TCM
Check DTC with TCM. Refer to AT- 3 9 , "
ON BOARD DIAGNOSTIC (OBD) SYSTEM" .
OK or NG
OK >> GO TO 2.
NG >> Perform trouble shooting relevant to DTC indicated.
2. CHECK DTC WITH “ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)”
Refer to BRC-12, "
TROUBLE DIAGNOSIS" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace.
3. CHECK DTC WITH “UNIFIED METER AND A/C AMP”
Refer to DI-5, "
COMBINATION METERS" .
>> INSPECTION END

DTC P1574 ASCD VEHICLE SPEED SENSOR EC-607
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DTC P1574 ASCD VEHICLE SPEED SENSORPFP:31036
Component DescriptionABS006WQ
The ECM receives two vehicle speed signals via CAN communication line. One is sent from “unified meter and
A/C amp.”, and the other is from TCM (Transmission control module). The ECM uses these signals for ASCD
control. Refer to EC-36, "
AUTOMATIC SPEED CONTROL DEVICE (ASCD)" for ASCD functions.
On Board Diagnosis LogicABS006WR
This self-diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:

If DTC P1574 is displayed with DTC U1000, U1001, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-171
.

If DTC P1574 is displayed with DTC P0500, first perform the trouble diagnosis for DTC P0500.
Refer to EC-391

If DTC P1574 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-402
DTC Confirmation ProcedureABS006WS
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Step 3 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test
is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-II
1. Start engine.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Drive the vehicle at more than 40 km/h (25 MPH).
4. If DTC is detected, go to EC-608, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
DTC No. Trouble Diagnosis
Name DTC Detecting Condition Possible Cause
P1574
1574 ASCD vehicle speed
sensor ECM detects a difference between two vehicle
speed signals is out of the specified range.

Harness or connectors
(The CAN communication line is open or
shorted.)

Unified meter and A/C amp.

ABS actuator and electric unit (control unit)

Wheel sensor

TCM

ECM
SEF058Y

EC-608
[VQ35DE]
DTC P1574 ASCD VEHICLE SPEED SENSOR
Revision: 2005 July 2005 FX
Diagnostic ProcedureABS006WT
1. CHECK DTC WITH TCM
Check DTC with TCM. Refer to AT- 3 9 , "
ON BOARD DIAGNOSTIC (OBD) SYSTEM" .
OK or NG
OK >> GO TO 2.
NG >> Perform trouble shooting relevant to DTC indicated.
2. CHECK DTC WITH “ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)”
Refer to BRC-12, "
TROUBLE DIAGNOSIS" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace.
3. CHECK DTC WITH “UNIFIED METER AND A/C AMP.”
Refer to DI-5, "
COMBINATION METERS" .
>> INSPECTION END

DTC P1706 PNP SWITCH EC-609
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DTC P1706 PNP SWITCHPFP:32006
Component DescriptionABS006WU
When the gear position is P or N, park/neutral position (PNP) switch is ON.
ECM detects the position because the continuity of the line (the ON signal) exists.
CONSULT-II Reference Value in Data Monitor ModeABS006WV
Specification data are reference values.
On Board Diagnosis LogicABS006WW
DTC Confirmation ProcedureABS006WX
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “P/N POSI SW” in “DATA MONITOR” mode with CON- SULT-II. Then check the “P/N POSI SW” signal under the follow-
ing conditions.
If NG, go to EC-612, "
Diagnostic Procedure" .
If OK, go to following step.
3. Select “DATA MONITOR” mode with CONSULT-II.
4. Start engine and warm it up to normal operating temperature.
5. Maintain the following conditions for at least 60 consecutive sec- onds.
6. If 1st trip DTC is detected, go to EC-612, "
Diagnostic Procedure"
.
Overall Function CheckABS006WY
Use this procedure to check the overall function of the park/neutral position (PNP) switch circuit. During this
check, a 1st trip DTC might not be confirmed.
MONITOR ITEM CONDITION SPECIFICATION
P/N POSI SW

Ignition switch: ON Selector lever: P or N ON
Selector lever: Except above OFF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1706
1706 Park/neutral position
switch The signal of the park/neutral position (PNP)
switch is not changed in the process of engine
starting and driving.

Harness or connectors
[The park/neutral position (PNP) switch
circuit is open or shorted.]

Park/neutral position (PNP) switch

Unified meter and A/C amp.
Position (Selector lever) Known-good signal
P or N position ON
Except above position OFF
ENG SPEED 1,000 - 6,375 rpm
COOLAN TEMP/S More than 70 °C (158 °F)
B/FUEL SCHDL 2.0 - 31.8 msec
VHCL SPEED SE More than 64 km/h (40 MPH)
Selector lever Suitable position
SEF212Y
SEF213Y

EC-610
[VQ35DE]
DTC P1706 PNP SWITCH
Revision: 2005 July 2005 FX
WITH GST
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 102 (PNP switch signal) and ground under the following conditions.
3. If NG, go to EC-612, "
Diagnostic Procedure" .
Condition (Gear position) Voltage V (Known-good data)
P or N position Approx. 0
Except above position BATTERY VOLTAGE
(11 - 14V)
MBIB0043E

DTC P1706 PNP SWITCH EC-611
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Wiring DiagramABS006WZ

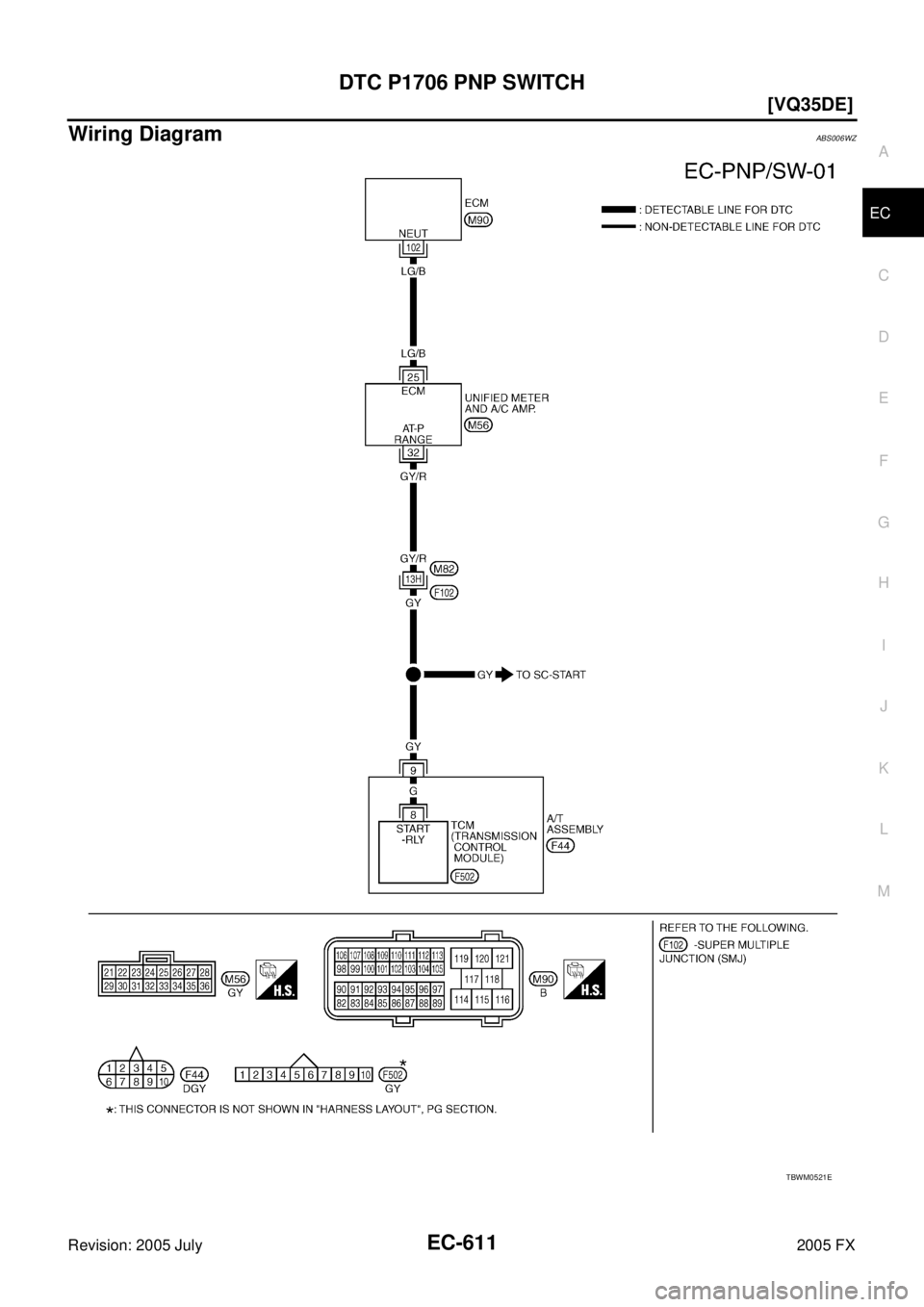

TBWM0521E

EC-612
[VQ35DE]
DTC P1706 PNP SWITCH
Revision: 2005 July 2005 FX
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureABS006X0
1. CHECK DTC WITH TCM
Refer to AT- 3 9 , "
OBD-II Diagnostic Trouble Code (DTC)" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace.
2. CHECK STARTING SYSTEM
Turn ignition switch OFF, then turn it to START.
Does starter motor operate?
Ye s o r N o
Yes >> GO TO 3.
No >> Refer to SC-10, "
STARTING SYSTEM" .
3. CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-I
1. Turn ignition switch OFF.
2. Disconnect A/T assembly harness connector.
3. Disconnect unified meter and A/C amp. harness connector.
4. Check harness continuity between A/T assembly terminal 9 and “unified meter and A/C amp.” terminal 32. Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors F102, M82

Harness for open or short between A/T assembly and unified meter and A/C amp.
>> Repair open circuit or short to ground or short to power in harness or connectors.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
102 LG/B PNP switch [Ignition switch: ON]

Selector lever: P or N
Approximately 0V
[Ignition switch: ON]

Except above position BATTERY VOLTAGE
(11 - 14V)
Continuity should exist.

DTC P1706 PNP SWITCH EC-613
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
5. CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-II
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 102 and “unified meter and A/C amp.” terminal 25. Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
6. CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-III
1. Check harness continuity between A/T assembly terminal 9 and TCM terminal 8. Refer to AT- 1 0 9 , "
DTC P0615 START SIGNAL CIRCUIT" .
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK INTERMITTENT INCIDENT
Refer to EC-854, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 8.
NG >> Repair or replace.
8. REPLACE “UNIFIED METER AND A/C AMP.”
Refer to DI-28, "
UNIFIED METER AND A/C AMP" .
>> INSPECTION END
Continuity should exist.
Continuity should exist.

EC-614
[VQ35DE]
DTC P1805 BRAKE SWITCH
Revision: 2005 July 2005 FX
DTC P1805 BRAKE SWITCHPFP:25320
DescriptionABS006X1
Brake switch signal is applied to the ECM through the stop lamp switch when the brake pedal is depressed.
This signal is used mainly to decrease the engine speed when the vehicle is driving.
CONSULT-II Reference Value in Data Monitor ModeABS006X2
Specification data are reference values.
On Board Diagnosis LogicABS006X3
The MIL will not light up for this diagnosis.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode.
DTC Confirmation ProcedureABS006X4
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Fully depress the brake pedal for at least 5 seconds.
3. Erase the DTC with CONSULT-II.
4. Select “DATA MONITOR” mode with CONSULT-II.
5. If 1st trip DTC is detected, go to EC-616, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
MONITOR ITEM CONDITION SPECIFICATION
BRAKE SW

Ignition switch: ON Brake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1805
1805 Brake switch A brake switch signal is not sent to ECM for
extremely long time while the vehicle is driving.

Harness or connectors
(Stop lamp switch circuit is open or
shorted.)

Stop lamp switch
Engine operating condition in fail-safe mode
ECM controls the electric throttle control actuator by regulating the throttle opening to a small range.
Therefore, acceleration will be poor.
Vehicle condition Driving condition
When engine is idling Normal When accelerating Poor acceleration
SEF058Y
