WATER INLET AND THERMOSTAT ASSEMBLYPFP:21200
ComponentsNBS003K7
Removal and InstallationNBS003K8
REMOVAL
1. Remove front engine undercover using power tool.
2. Drain engine coolant from radiator drain plug at the bottom of radiator, and from water drain plug at the front of cylinder block. Refer to CO-11, "
Changing Engine Coolant" and CO-22, "WATER PUMP" .
CAUTION:

Perform this step when the engine is cold.

Do not spill engine coolant on drive belts.
3. Remove air duct (inlet). Refer to EM-17, "
AIR CLEANER AND AIR DUCT" .
4. Disconnect radiator hose (lower) and oil cooler water hose from water inlet and thermostat assembly.
5. Remove water inlet and thermostat assembly. CAUTION:
Do not disassemble water inlet and thermostat assembly.
Replace them as a unit, if necessary.
1. Water inlet and thermostat assembly 2. Gasket
SBIA0483E
SLC962AB

CO-28
[VQ35DE]
WATER INLET AND THERMOSTAT ASSEMBLY
Revision: 2006 December 2006 FX35/FX45
INSPECTION AFTER REMOVAL
1. Check valve seating condition at ordinary room temperatures. It should seat tightly.
2. Check valve operation.

If the malfunctioning condition, when valve seating at ordinary
room temperature, or measured values are out of the standard,
replace water inlet and thermostat assembly.
INSTALLATION
Note the following, and install in the reverse order of removal.

Be careful not to spill engine coolant over engine room. Use rag to absorb engine coolant.
INSPECTION AFTER INSTALLATION

Check for leaks of engine coolant using the radiator cap tester adapter [SST: EG17650301 (J33984-A)]
and the radiator cap tester (commercial service tool). Refer to CO-11, "
LEAK CHECK" .

Start and warm up the engine. Visually make sure that there is no leaks of engine coolant.
Thermostat
Valve opening temperature 76 - 79 °C (169 - 174 °F)
Maximum valve lift 8.6 mm / 90 °C (0.339 in / 194 °F)
Valve closing temperature 71 °C (160 °F)
SLC949A

WATER OUTLET AND WATER PIPING CO-29
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2006 December 2006 FX35/FX45
WATER OUTLET AND WATER PIPINGPFP:11060
ComponentsNBS003K9
Removal and InstallationNBS003KA
REMOVAL
1. Remove front engine undercover with power tool.
2. Drain engine coolant from radiator drain plug at the bottom of radiator, and from water drain plug at the front of cylinder block. Refer to CO-11, "
Changing Engine Coolant" and CO-22, "WATER PUMP" .
CAUTION:

Perform this step when the engine is cold.

Do not spill engine coolant on drive belts.
3. Remove engine cover with power tool. Refer to EM-19, "
INTAKE MANIFOLD COLLECTOR" .
4. Remove air duct (inlet), air duct and air cleaner case assembly. Refer to EM-17, "
AIR CLEANER AND AIR
DUCT" .
5. Remove radiator hose (upper) and heater hose.
6. Remove the following parts, when remove water outlet.

A/T fluid charging pipe; Refer to AT- 2 6 6 , "TRANSMISSION ASSEMBLY" .

Intake manifold collectors (upper and lower). Refer to EM-19, "INTAKE MANIFOLD COLLECTOR" .

Rocker cover (right bank). Refer to EM-51, "ROCKER COVER" .
7. Remove engine coolant temperature sensor as necessary. CAUTION:
Be careful not to damage engine coolant temperature sensor.
8. Remove water outlet, heater pipe, water bypass hoses and water pipe.
1. Harness bracket 2. Water hose 3. Water bypass hose
4. Engine coolant temperature sensor 5. Gasket 6. Water outlet
7. Heater hose 8. Water pipe 9. Radiator hose (upper)
10. Heater pipe 11. Washer 12. O-ring
SBIA0484E

CO-30
[VQ35DE]
WATER OUTLET AND WATER PIPING
Revision: 2006 December 2006 FX35/FX45
INSTALLATION
Note the following, and install in the reverse order of removal.

Securely insert each hose, and install clamp at a position where it does not interfere with the pipe bulge.

When inserting water pipe into water outlet, apply neutral detergent to O-ring.
INSPECTION AFTER INSTALLATION

Check for leaks of engine coolant using the radiator cap tester adapter [SST: EG17650301 (J33984-A)]
and the radiator cap tester (commercial service tool). Refer to CO-11, "
LEAK CHECK" .

Start and warm up the engine. Visually make sure that there is no leaks of engine coolant.

SERVICE DATA AND SPECIFICATIONS (SDS) CO-31
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2006 December 2006 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00100
Standard and LimitNBS003KB
ENGINE COOLANT CAPACITY (APPROXIMATE)
Unit: (US qt, Imp qt)
RADIATOR
Unit: kPa (kg/cm2 , psi)
THERMOSTAT
Engine coolant capacity [With reservoir tank (“MAX” level)] 8.6 (9-1/8, 7- 5/8)
Reservoir tank engine coolant capacity (At “MAX” level) 0.8 (7/8, 3/4)
Cap relief pressure Standard 78 - 98 (0.8 - 1.0, 11 - 14)
Limit 59 (0.6, 9)
Leakage testing pressure 157 (1.6, 23)
Valve opening temperature 76 - 79 °C (169 - 174 °F)
Maximum valve lift 8.6 mm / 90 °C (0.339 in / 194 °F)
Valve closing temperature 71 °C (160 °F)

CO-32
[VK45DE]
PRECAUTIONS
Revision: 2006 December 2006 FX35/FX45
[VK45DE]PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NBS003KC
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

PREPARATION CO-33
[VK45DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2006 December 2006 FX35/FX45
PREPARATIONPFP:00002
Special Service ToolsNBS003KD
The actual shapes of Kent-Moore tools may from those of special service tools illustrated here.
Commercial Service ToolsNBS003KE

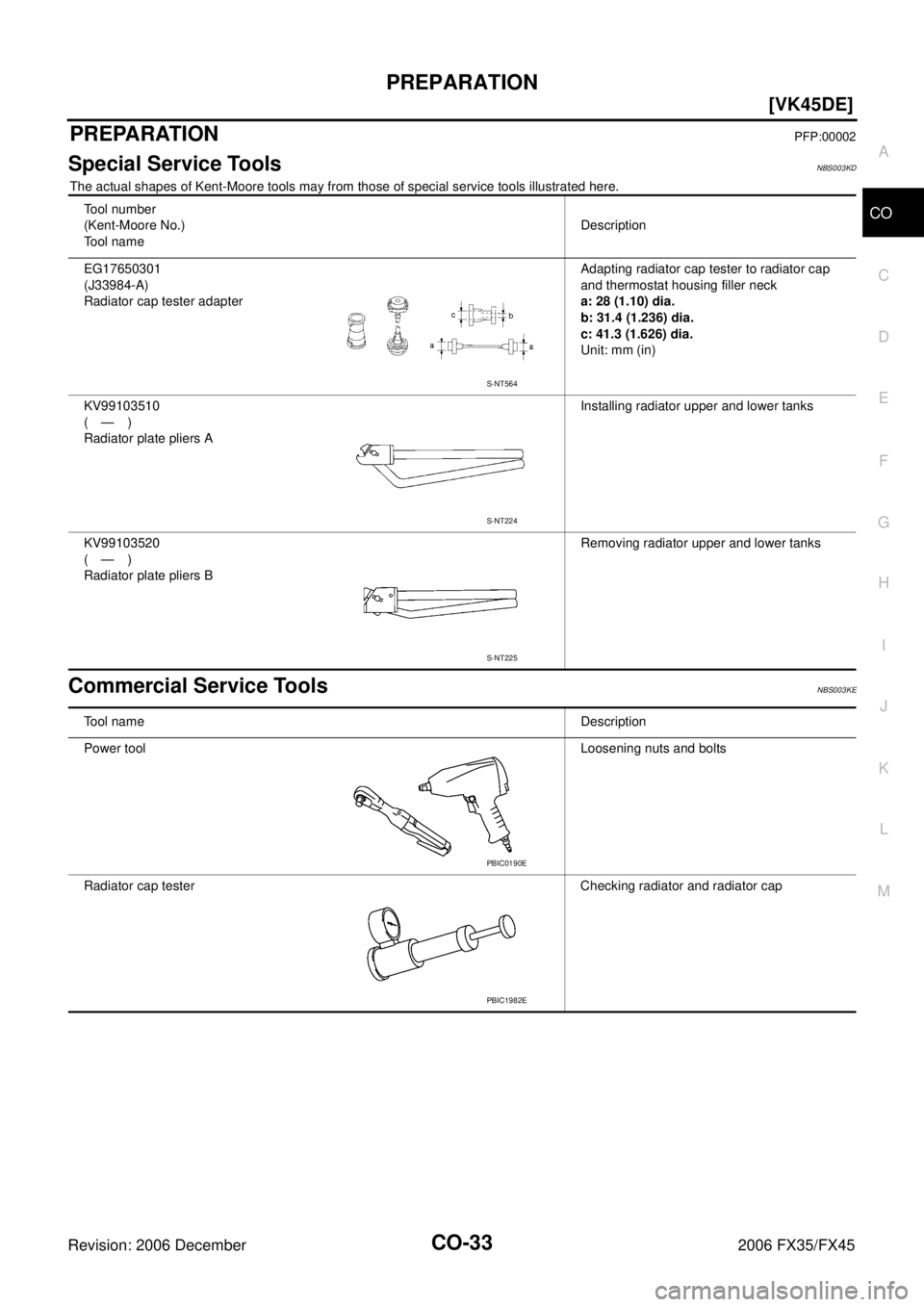

Tool number
(Kent-Moore No.)
Tool name Description
EG17650301
(J33984-A)
Radiator cap tester adapter Adapting radiator cap tester to radiator cap
and thermostat housing filler neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)
KV99103510
(—)
Radiator plate pliers A Installing radiator upper and lower tanks
KV99103520
(—)
Radiator plate pliers B Removing radiator upper and lower tanks
S-NT564
S-NT224
S-NT225
Tool name
Description
Power tool Loosening nuts and bolts
Radiator cap tester Checking radiator and radiator cap
PBIC0190E
PBIC1982E

CO-34
[VK45DE]
OVERHEATING CAUSE ANALYSIS
Revision: 2006 December 2006 FX35/FX45
OVERHEATING CAUSE ANALYSISPFP:00012
Troubleshooting ChartNBS003KF
Symptom Check items
Cooling sys-
tem parts
malfunction Poor heat transfer
Water pump malfunction Worn or loose drive belt
—
Thermostat and water con-
trol valve stuck closed —
Damaged fins Dust contamination or
paper clogging
Physical damage
Clogged radiator cooling
tube Excess foreign material
(rust, dirt, sand, etc.)
Reduced air flow Cooling fan does not oper-
ate
Fan assembly —
High resistance to fan rota-
tion
Damaged fan blades
Damaged radiator shroud — — —
Improper engine coolant
mixture ratio —— —
Poor engine coolant quality — Engine coolant density —
Insufficient engine coolant Engine coolant leaks Cooling hose
Loose clamp
Cracked hose
Water pump Poor sealing
Radiator cap Loose
Poor sealing
Radiator O-ring for damage, deterio-
ration or improper fitting
Cracked radiator tank
Cracked radiator core
Reservoir tank Cracked reservoir tank
Overflowing reservoir tank Exhaust gas leaks into
cooling system Cylinder head deterioration
Cylinder head gasket dete-
rioration

OVERHEATING CAUSE ANALYSIS CO-35
[VK45DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2006 December 2006 FX35/FX45
Except cool-
ing system
parts mal-
function — Overload on engine
Abusive driving
High engine rpm under no
load
Driving in low gear for
extended time
Driving at extremely high
speed
Powertrain system mal-
function
—
Installed improper size
wheels and tires
Dragging brakes
Improper ignition timing
Blocked or restricted air
flow Blocked bumper —
—
Blocked radiator grille
Installed car brassiere
Mud contamination or
paper clogging
Blocked radiator —
Blocked condenser Blocked air flow
Installed large fog lamp
Symptom Check items

CO-36
[VK45DE]
COOLING SYSTEM
Revision: 2006 December 2006 FX35/FX45
COOLING SYSTEMPFP:21020
Cooling CircuitNBS003KG
PBIC1559E
