RADIATOR (ALUMINUM TYPE)PFP:21460

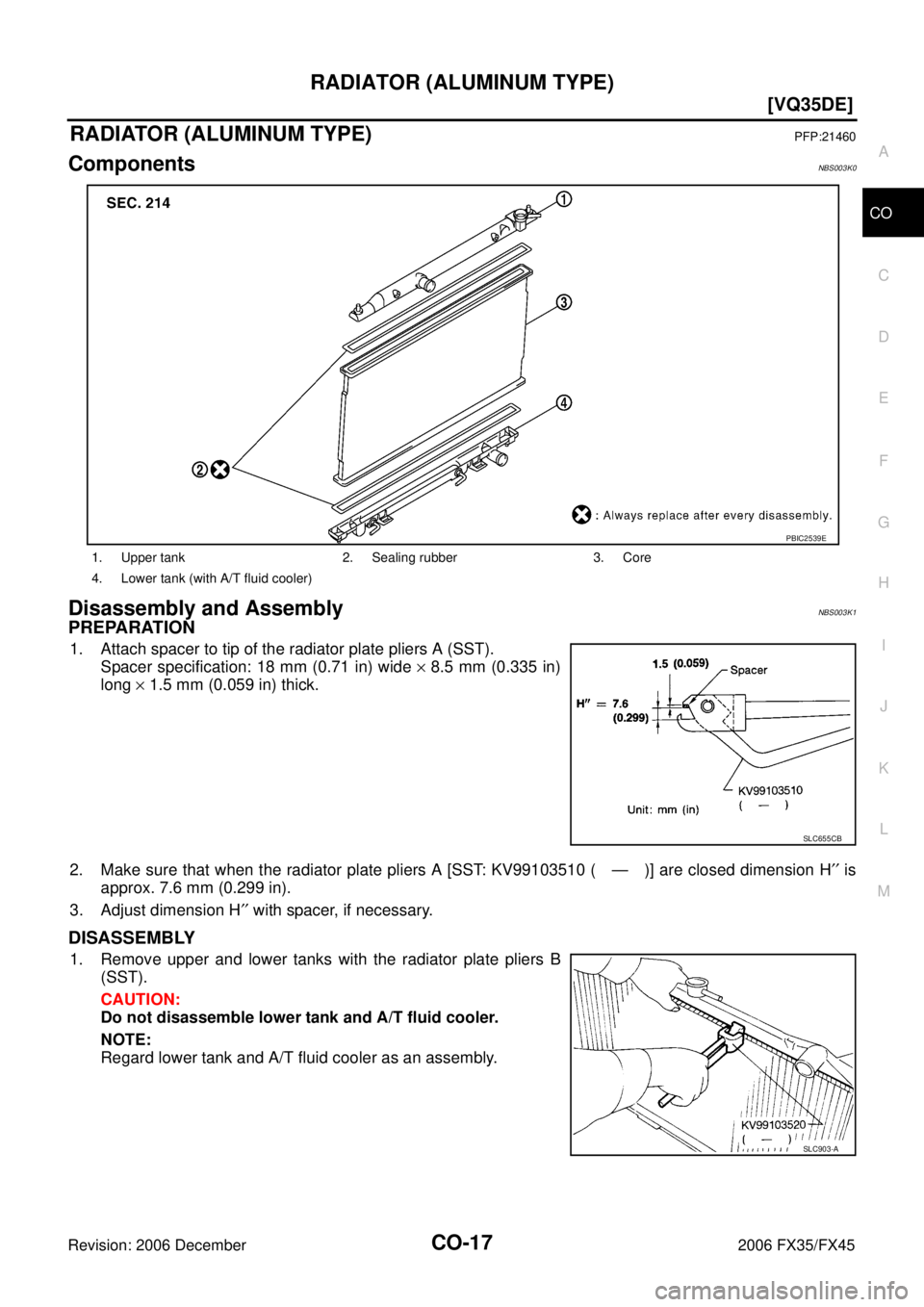

ComponentsNBS003K0
Disassembly and AssemblyNBS003K1
PREPARATION
1. Attach spacer to tip of the radiator plate pliers A (SST). Spacer specification: 18 mm (0.71 in) wide × 8.5 mm (0.335 in)
long × 1.5 mm (0.059 in) thick.
2. Make sure that when the radiator plate pliers A [SST: KV99103510 ( — )] are closed dimension H ′′ is
approx. 7.6 mm (0.299 in).
3. Adjust dimension H ′′ with spacer, if necessary.
DISASSEMBLY
1. Remove upper and lower tanks with the radiator plate pliers B
(SST).
CAUTION:
Do not disassemble lower tank and A/T fluid cooler.
NOTE:
Regard lower tank and A/T fluid cooler as an assembly.
1. Upper tank 2. Sealing rubber 3. Core
4. Lower tank (with A/T fluid cooler)
PBIC2539E
SLC655CB
SLC903-A

CO-18
[VQ35DE]
RADIATOR (ALUMINUM TYPE)
Revision: 2006 December 2006 FX35/FX45

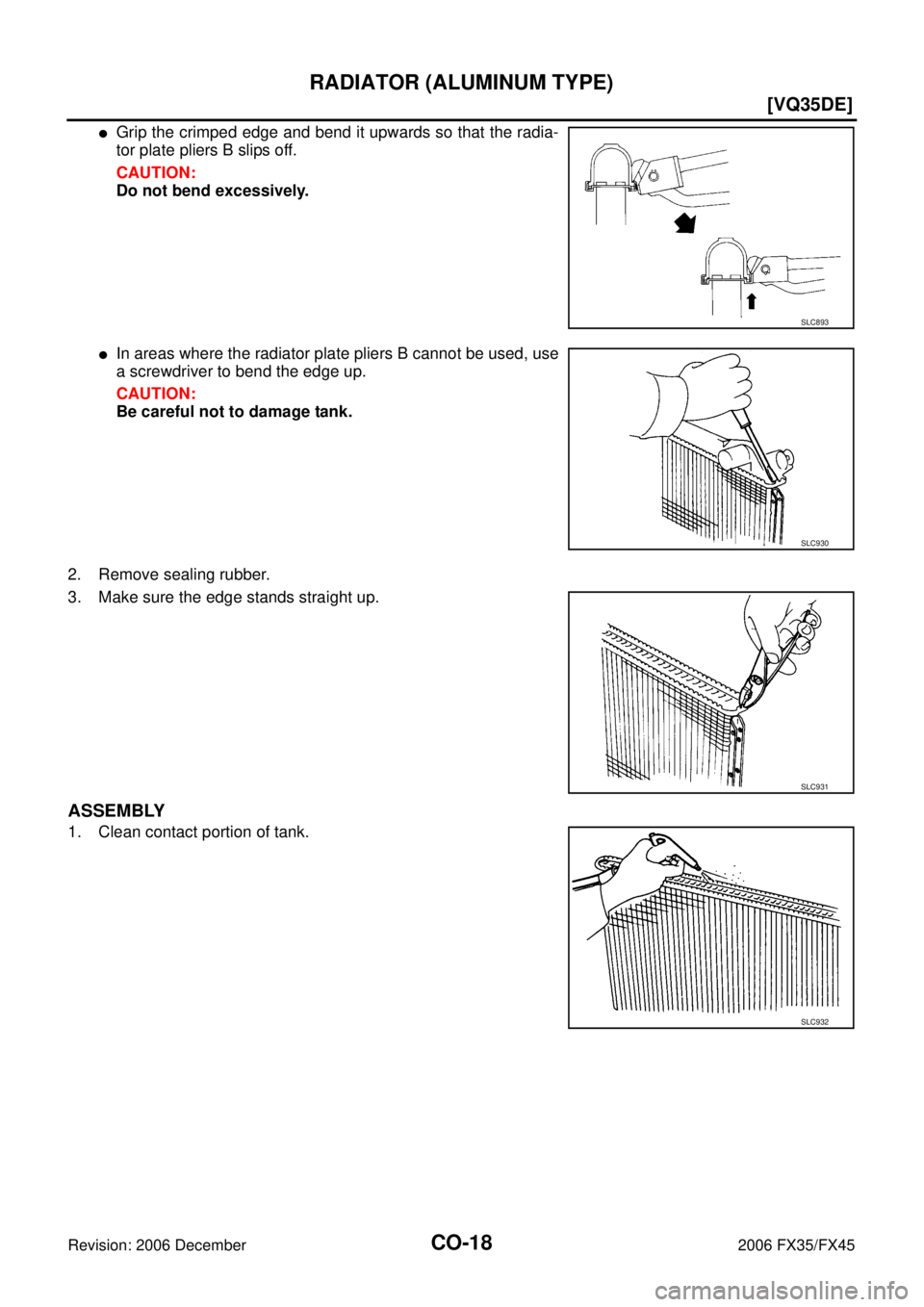

Grip the crimped edge and bend it upwards so that the radia-
tor plate pliers B slips off.
CAUTION:
Do not bend excessively.

In areas where the radiator plate pliers B cannot be used, use
a screwdriver to bend the edge up.
CAUTION:
Be careful not to damage tank.
2. Remove sealing rubber.
3. Make sure the edge stands straight up.
ASSEMBLY
1. Clean contact portion of tank.
SLC893
SLC930
SLC931
SLC932

RADIATOR (ALUMINUM TYPE) CO-19
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2006 December 2006 FX35/FX45

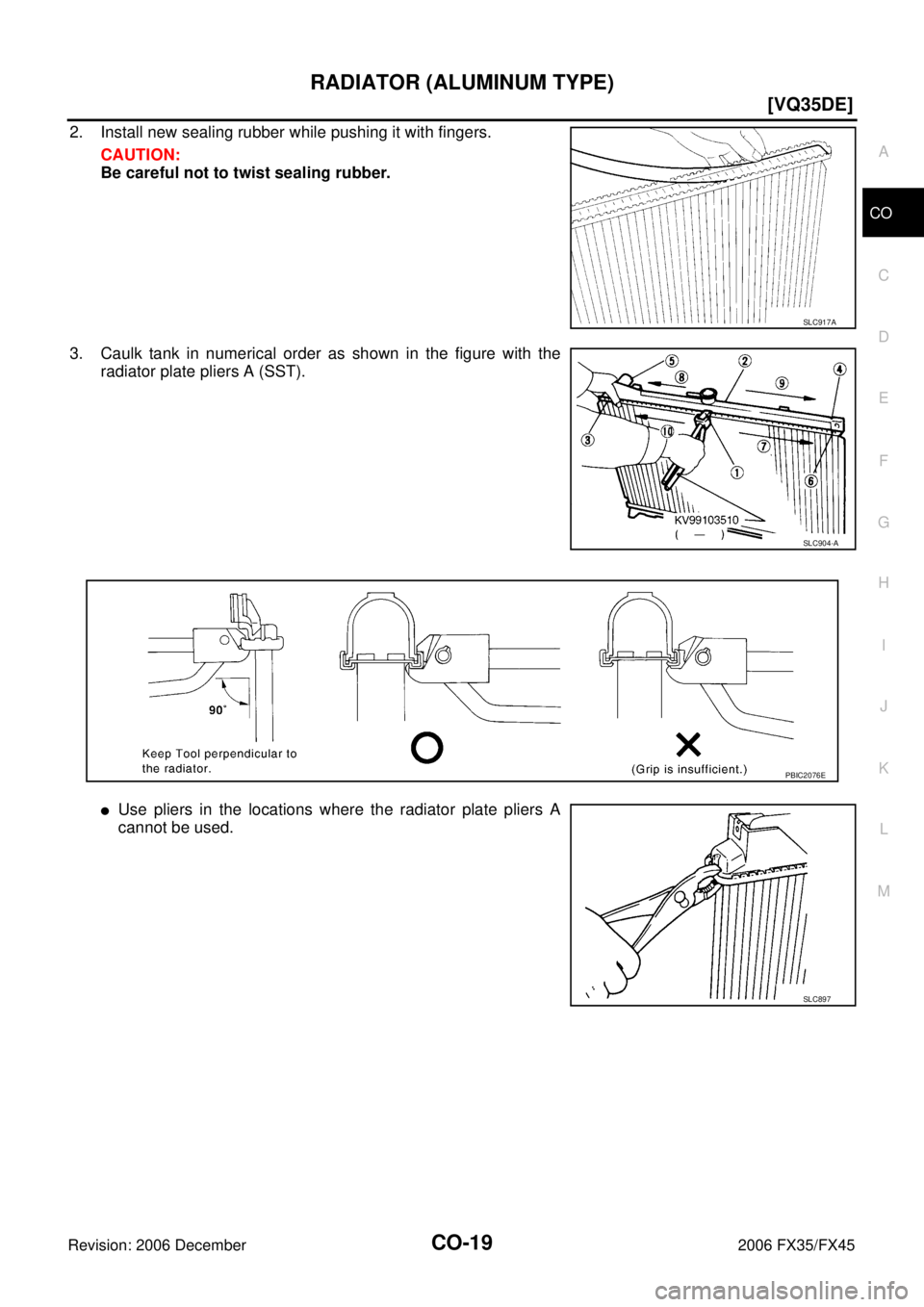

2. Install new sealing rubber while pushing it with fingers. CAUTION:
Be careful not to twist sealing rubber.
3. Caulk tank in numerical order as shown in the figure with the radiator plate pliers A (SST).

Use pliers in the locations where the radiator plate pliers A
cannot be used.
SLC917A
SLC904-A
PBIC2076E
SLC897

CO-20
[VQ35DE]
RADIATOR (ALUMINUM TYPE)
Revision: 2006 December 2006 FX35/FX45
4. Make sure that the rim is completely crimped down.
5. Make sure that there is no leakage. Refer to CO-20, "
INSPECTION" .
INSPECTION
1. Apply pressure with the radiator cap tester adapter (SST) and
the radiator cap tester (commercial service tool).
WARNING:
To prevent the risk of hose coming undone while under
pressure, securely fasten it down with hose clamp.
CAUTION:
Attach hose to A/T fluid cooler to seal its inlet and outlet. (A/
T models)
2. Check for leakage by soaking radiator in water container with the testing pressure applied. Standard height “H” : 8.0 - 8.4 mm (0.315 - 0.331 in)
SLC554A
Testing pressure
: 157 kPa (1.6 kg/cm
2 , 23 psi)
SLC933-A
SLC934

COOLING FAN CO-21
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2006 December 2006 FX35/FX45
COOLING FANPFP:21140
ComponentsNBS003K2
Removal and Installation NBS003K3
REMOVAL
1. Remove air duct (inlet), power duct and air cleaner case assembly. Refer to EM-17, "AIR CLEANER AND
AIR DUCT" .
2. Disconnect harness connector from fan motors, and move harness to aside.
3. Remove radiator cooling fan assembly.
CAUTION:
Be careful not to damage or scratch on radiator core.
INSTALLATION
Installation is the reverse order of removal.
INSPECTION AFTER INSTALLATION
Make sure that fan motors operate normally.
NOTE:
Cooling fans are controlled by ECM. For details, refer to EC-497, "
DTC P1217 ENGINE OVER TEMPERA-
TURE" .
Disassembly and Assembly NBS003K4
DISASSEMBLY
1. Remove cooling fans (RH and LH) from fan motors.
2. Remove fan motors from fan shroud.
INSPECTION AFTER DISASSEMBLY
Cooling Fan
Inspect cooling fan for crack or unusual bend.

If anything is found, replace cooling fan.
ASSEMBLY
Assemble in the reverse order of disassembly.
CAUTION:
Cooling fans and fan motors are different between RH and LH. Be careful not to misassemble them.
1. Cooling fan (RH) 2. Cooling fan (LH) 3. Fan shroud
4. Fan motor
PBIC3047E

CO-22
[VQ35DE]
WATER PUMP
Revision: 2006 December 2006 FX35/FX45
WATE R P U M PPFP:21020
ComponentsNBS003K5
Removal and InstallationNBS003K6
CAUTION:

When removing water pump assembly, be careful not to get engine coolant on drive belts.

Water pump cannot be disassembled and should be replaced as a unit.

After installing water pump, connect hose and clamp securely, then check for leaks using the radi-
ator cap tester (commercial service tool) and the radiator cap tester adapter [SST: EG17650301
(J33984-A)].
REMOVAL
1. Remove front engine undercover with power tool.
2. Remove drive belts. Refer to EM-15, "
DRIVE BELTS" .
3. Drain engine coolant from radiator. Refer to CO-11, "
Changing Engine Coolant" .
CAUTION:

Perform this step when the engine is cold.

Do not spill engine coolant on drive belts.
4. Remove air duct (inlet), power duct and air cleaner case assembly. Refer to EM-17, "
AIR CLEANER AND
AIR DUCT" .
5. Remove water drain plug (front) on water pump side of cylinder block to drain engine coolant from engine inside.
6. Remove chain tensioner cover and water pump cover from front timing chain case.

U s e t h e s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 ( J 3 7 2 2 8 ) ] t o c u t l i q u i d g a s k e t f o r r e m o v a l .
1. Timing chain tensioner (primary) 2. Chain tensioner cover 3. Water pump cover
4. Water pump 5. O-rings 6. Water drain plug (front)
SBIA0482E
PBIC2662E

WATER PUMP CO-23
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2006 December 2006 FX35/FX45
7. Remove timing chain tensioner (primary) as follows:
a. Remove lower mounting bolt. CAUTION:
Be careful not to drop mounting bolt inside timing chain
case.
b. Loosen upper mounting bolt slowly, and then turn chain ten- sioner (primary) on the mounting bolt so that plunger is fully
expanded.
NOTE:
Even if plunger is fully expanded, it is not dropped from the body
of timing chain tensioner (primary).
c. Turn crankshaft pulley clockwise so that timing chain on the tim- ing chain tensioner (primary) side is loose.
d. Remove upper mounting bolt, and then remove timing chain ten- sioner (primary).
CAUTION:
Be careful not to drop mounting bolt inside timing chain
case.
8. Remove water pump as follows:
a. Remove three water pump mounting bolts. Secure a gap between water pump gear and timing chain, by turning crank-
shaft pulley counterclockwise until timing chain looseness on
water pump sprocket becomes maximum.
PBIC3575E
PBIC1805E
PBIC3576E
PBIC1193E

CO-24
[VQ35DE]
WATER PUMP
Revision: 2006 December 2006 FX35/FX45
b. Screw M8 bolts [pitch: 1.25 mm (0.0492 in) length: approx. 50 mm (1.97 in)] into water pumps upper and lower mounting bolt
holes until they reach timing chain case. Then, alternately
tighten each bolt for a half turn, and pull out water pump.
CAUTION:

Pull straight out while preventing vane from contacting
socket in installation area.

Remove water pump without causing sprocket to contact
timing chain.
c. Remove M8 bolts and O-rings from water pump. CAUTION:
Do not disassemble water pump.
INSPECTION AFTER REMOVAL

Check for badly rusted or corroded water pump body assembly.

Check for rough operation due to excessive end play.

If anything is found, replace water pump.
INSTALLATION
1. Install new O-rings to water pump.

Apply engine oil and engine coolant to O-rings as shown in
the figure.

Locate O-ring with white paint mark to engine front side.
2. Install water pump. CAUTION:
Do not allow cylinder block to nip O-rings when installing
water pump.

Make sure timing chain and water pump sprocket are
engaged.

Insert water pump by tightening mounting bolts alternately
and evenly.
3. Install timing chain tensioner (primary) as follows:
JLC357B
SLC943A
PBIC1397E
PBIC1058E

WATER PUMP CO-25
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2006 December 2006 FX35/FX45
a. Turn crankshaft pulley clockwise so that timing chain on the tim- ing chain tensioner (primary) side is loose.
b. Pull plunger stopper tab up (or turn lever downward) so as to remove plunger stopper tab from the ratchet of plunger.
NOTE:
Plunger stopper tab and lever are synchronized.
c. Push plunger into the inside of tensioner body.
d. Hold plunger in the fully compressed position by engaging plunger stopper tab with the tip of ratchet.
e. To secure lever, insert stopper pin through hole of lever into ten- sioner body hole.

The lever parts and the tab are synchronized. Therefore, the
plunger will be secured under this condition.
NOTE:
Figure shows the example of 1.2 mm (0.047 in) diameter thin screwdriver being used as the stopper pin.
f. Install timing chain tensioner (primary).

Remove dust and foreign material completely from backside of timing chain tensioner (primary) and
from installation area of rear timing chain case.
g. Remove stopper pin.
h. Make sure again that timing chain and water pump sprocket are engaged.
4. Install chain tensioner cover and water pump cover as follows:
a. Before installing, remove all traces of old liquid gasket from mat- ing surface of water pump cover and chain tensioner cover
using a scraper. Also remove traces of old liquid gasket from the
mating surface of front timing chain case.
PBIC1805E
PBIC3568E
PBIC3577E
SLC446B

CO-26
[VQ35DE]
WATER PUMP
Revision: 2006 December 2006 FX35/FX45
b. Apply a continuous bead of liquid gasket with the tube presser [SST: WS39930000 ( — )] to mating surface of chain ten-
sioner cover and water pump cover.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS" .
CAUTION:
Attaching should be done within 5 minutes after coating.
c. Tighten mounting bolts.
5. Install water drain plug (front) on water pump side of cylinder block.

Apply liquid gasket to the thread of water drain plug (front).
Use Genuine RTV Silicone Sealant or equivalent. Refer to GI-48, "
RECOMMENDED CHEMICAL
PRODUCTS AND SEALANTS" .
6. Install in the reverse order of removal for remaining parts.

After starting engine, let idle for three minutes, then rev engine up to 3,000 rpm under no load to
purge air from the high-pressure chamber of chain tensioner. Engine may produce a rattling
noise. This indicates that air still remains in the chamber and is not a matter of concern.
INSPECTION AFTER INSTALLATION

Check for leaks of engine coolant using the radiator cap tester adapter [SST: EG17650301 (J33984-A)]
and the radiator cap tester (commercial service tool). Refer to CO-11, "
LEAK CHECK" .

Start and warm up the engine. Visually make sure that there is no leaks of engine coolant.
PBIC2663E
