engine INFINITI FX35 2006 Service Manual

SQUEAK AND RATTLE TROUBLE DIAGNOSES RF-7
C
D E
F
G H
J
K L
M A
B
RF
Revision: 2006 December 2006 FX35/FX45
TRUNK
Trunk noises are often caused by a loose jack or loose items put into the trunk by the owner.
In addition look for:
1. Trunk lid dumpers out of adjustment
2. Trunk lid striker out of adjustment
3. Trunk lid torsion bars knocking together
4. A loose license plate or bracket
Most of these incidents can be repaired by adjusting, securing or insulating the item(s) or component(s) caus-
ing the noise.
SUNROOF/HEADLINING
Noises in the sunroof/headlining area can often be traced to one of the following:
1. Sunroof lid, rail, linkage or seals making a rattle or light knocking noise
2. Sunvisor shaft shaking in the holder
3. Front or rear windshield touching headlining and squeaking
Again, pressing on the components to stop the noise while duplicating the conditions can isolate most of these
incidents. Repairs usually consist of insulating with felt cloth tape.
SEATS
When isolating seat noise it's important to note the position the seat is in and the load placed on the seat when
the noise is present. These conditions should be duplicated when verifying and isolating the cause of the
noise.
Cause of seat noise include:
1. Headrest rods and holder
2. A squeak between the seat pad cushion and frame
3. Rear seatback lock and bracket
These noises can be isolated by moving or pressing on the suspected components while duplicating the con-
ditions under which the noise occurs. Most of these incidents can be repaired by repositioning the component
or applying urethane tape to the contact area.
UNDERHOOD
Some interior noise may be caused by components under the hood or on the engine wall. The noise is then
transmitted into the passenger compartment.
Causes of transmitted underhood noise include:
1. Any component mounted to the engine wall
2. Components that pass through the engine wall
3. Engine wall mounts and connectors
4. Loose radiator mounting pins
5. Hood bumpers out of adjustment
6. Hood striker out of adjustment
These noises can be difficult to isolate since they cannot be reached from the interior of the vehicle. The best
method is to secure, move or insulate one component at a time and test drive the vehicle. Also, engine RPM
or load can be changed to isolate the noise. Repairs can usually be made by moving, adjusting, securing, or
insulating the component causing the noise.

DIFFERENTIAL GEAR OIL RFD-9
C E F
G H
I
J
K L
M A
B
RFD
Revision: 2006 December 2006 FX35/FX45
DIFFERENTIAL GEAR OILPFP:KLD30
Changing Differential Gear OilNDS000CT
DRAINING
1. Stop engine.
2. Remove drain plug (1) and drain gear oil.
3. Set a gasket on drain plug (1) and install it to final drive assem- bly and tighten to the specified torque. Refer to RFD-18, "
COM-
PONENTS" .
CAUTION:
Do not reuse gasket.
FILLING
1. Remove filler plug (1). Fill with new gear oil until oil level reaches
the specified level near filler plug mounting hole.
2. After refilling oil, check oil level. Set a gasket to filler plug (1), then install it to final drive assembly. Refer to RFD-18, "
COMPO-
NENTS" .
CAUTION:
Do not reuse gasket.
Checking Differential Gear OilNDS000CU
OIL LEAKAGE AND OIL LEVEL

Make sure that oil is not leaking from final drive assembly or around it.

Remove filler plug (1) and check oil level from filler plug mount-
ing hole as shown in the figure.
CAUTION:
Do not start engine while checking oil level.

Set a gasket on filler plug (1) and install it on final drive assem-
bly. Refer to RFD-18, "
COMPONENTS" .
CAUTION:
Do not reuse gasket.
PDIA0748J
Oil grade and Viscosity:
Refer to MA-12, "
Fluids and Lubricants" .
Oil capacity:
Approx. 1.4 (3 US pt, 2-1/2 Imp pt)
PDIA0749J
PDIA0749J

RSU-2
PRECAUTIONS
Revision: 2006 December 2006 FX35/FX45
PRECAUTIONSPFP:00001
CautionsNES000G0

When installing rubber bushings, final tightening must be carried out under unladen conditions with tires
on level ground. Oil will shorten the life of rubber bushings. Be sure to wipe off any spilled oil.

Unladen conditions means that fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and
mats are in designated positions.

After servicing suspension parts, be sure to check wheel alignment.

Caulking nuts are not reusable. Always use new ones when installing. Since new caulking nuts are pre-
oiled, tighten as they are.

REAR SUSPENSION ASSEMBLY RSU-5
C
D
F
G H
I
J
K L
M A
B
RSU
Revision: 2006 December 2006 FX35/FX45
REAR SUSPENSION ASSEMBLYPFP:55020
On-Vehicle Inspection and ServiceNES000HU
Make sure the mounting conditions (looseness, back lash) of each component and component status (wear,
damage) are normal.
INSPECTION OF BALL JOINT END PLAY
Measure axial end play by installing and moving up/down with an
iron pry bar or something similar between suspension arm and axle.
CAUTION:
Be careful not to damage ball joint boot.
SHOCK ABSORBER INSPECTION
Check shock absorber for oil leakage, damage and replace if necessary.
Wheel Alignment InspectionNES000HV
DESCRIPTION

Measure wheel alignment under unladen conditions. “Unladen conditions” means that fuel, engine cool-
ant, and lubricant are full. Spare tire, jack, hand tools and mats in designated positions.
PRELIMINARY INSPECTION

Check tires for improper air pressure and wear.

Check road wheels for runout.

Check wheel bearing axial end play.

Check ball joint axial end play of suspension arm.

Check shock absorber operation.

Check each mounting point of axle and suspension for looseness and deformation.

Check each link, arm and member for cracks, deformation, and other damage.

Check vehicle posture.
GENERAL INFORMATION AND RECOMMENDATIONS

A four-wheel thrust alignment should be performed.
–This type of alignment is recommended for any NISSAN/INFINITI vehicle.
–The four-wheel “thrust” process helps ensure that the vehicle is properly aligned and the steering wheel is
centered.
–The alignment rack itself should be capable of accepting any NISSAN/INFINITI vehicle.
–The rack should be checked to ensure that it is level.

Make sure the machine is properly calibrated.
–Your alignment equipment should be regularly calibrated in order to give correct information.
–Check with the manufacturer of your specific equipment for their recommended Service/Calibration
Schedule. Standard value
Axial end play : 0 mm (0 in)
SEIA0245J

RSU-18
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2006 December 2006 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Wheel Alignment (Unladen*)NES000LV
*: Fuel, engine coolant and lubricant oil full. Spare tire, jack, hand tools and mats are in designated positions.
Ball JointNES000GH
Wheelarch Height (Unladen*)NES000GI
*: Fuel, engine coolant and engine oil full. Spare tire, jack, hand tools and mats are in designated positions. Camber
Degree minute (Decimal degree) Minimum –1
° 18 ′ (–1.30 °)
Nominal –0 ° 48 ′ (–0.80 °)
Maximum –0 ° 18 ′ (–0.30 °)
Total toe-in Distance
Minimum 2.4 mm (0.09 in)
Nominal 4.7 mm (0.19 in)
Maximum 7.0 mm (0.28 in)
Angle (left wheel or right wheel)
Degree minute (Decimal degree) Minimum 0
° 05 ′ (0.08 °)
Nominal 0 ° 10 ′ (0.17 °)
Maximum 0 ° 15 ′ (0.25 °)
Axial end play 0 mm (0 in)
Swing torque 0.5 − 3.4 N·m (0.06 − 0.34 kg-m, 5 − 30 in-lb)
Measurement on spring balance (cotter pinhole position) 9.7 − 66.0 N (0.99 − 6.7 kg, 2.18 − 14.8 lb)
Rotating torque 0.5 − 3.4 N·m (0.06 − 0.34 kg-m, 5 − 30 in-lb)
Destination USA Canada
Engine VQ35DE VK45DE VQ35DE VK45DE
Axle 2WD AWD AWD
Tire size 265/60R18 265/50R20 265/60R18 265/50R20 265/60R18 265/50R20
Front (Hf) 835 mm
(32.87 in) 834 mm
(32.83 in) 834 mm
(32.83 in) 833 mm
(32.80 in) 832 mm
(32.76 in) 834 mm
(32.83 in) 833 mm
(32.80 in) 832 mm
(32.76 in)
Rear (Hr) 822 mm
(32.36 in) 821 mm
(32.32 in) 829 mm
(32.64 in) 827 mm
(32.56 in) 825 mm
(32.48 in) 827 mm
(32.56 in) 826 mm
(32.52 in) 823 mm
(32.40 in)
SFA818A

SC-1
STARTING & CHARGING SYSTEM
K ELECTRICAL
CONTENTS
C
D E
F
G H
I
J
L
M
SECTION SC
A
B
SC
Revision: 2006 December 2006 FX35/FX45
STARTING & CHARGING SYSTEM
PRECAUTIONS ..................................................... ..... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 2
PREPARATION ...................................................... ..... 3
Special Service Tools .......................................... ..... 3
Commercial Service Tools ................................... ..... 3
BATTERY ............................................................... ..... 4
How to Handle Battery ........................................ ..... 4
METHODS OF PREVENTING OVER-DIS-
CHARGE .......................................................... ..... 4
CHECKING ELECTROLYTE LEVEL ............... ..... 5
SPECIFIC GRAVITY CHECK .......................... ..... 5
CHARGING THE BATTERY ............................ ..... 6
Trouble Diagnoses with Battery Service Center .. ..... 7
Removal and Installation ..................................... ..... 7
REMOVAL ........................................................ ..... 7
INSTALLATION ................................................ ..... 7
STARTING SYSTEM ............................................. ..... 8
System Description ............................................. ..... 8

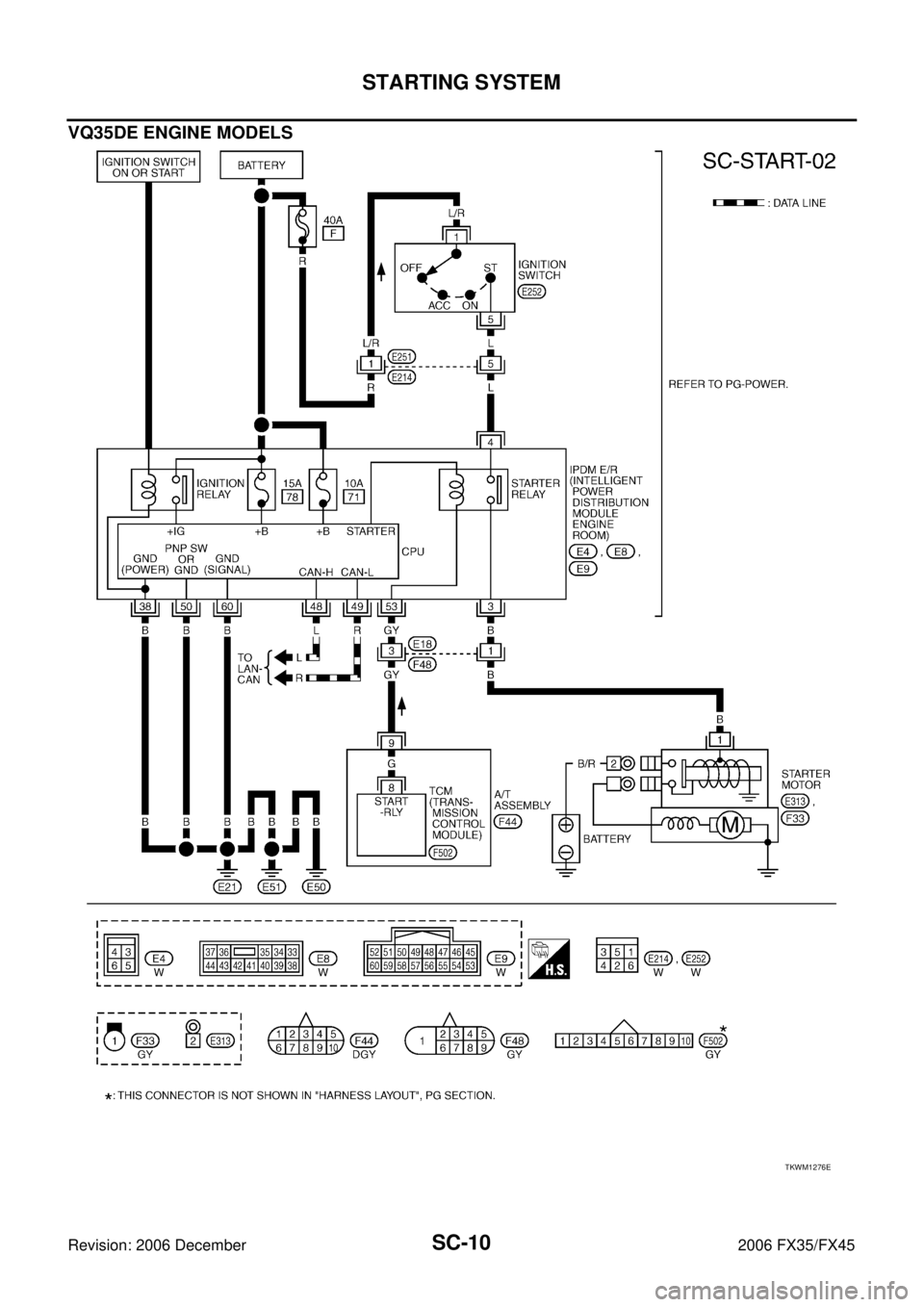

Wiring Diagram — START — .............................. ..... 9
VK45DE ENGINE MODELS ............................ ..... 9
VQ35DE ENGINE MODELS ............................ ... 10
Trouble Diagnosis with Starting/Charging System
Tester (Starting) ................................................... .... 11
DIAGNOSTIC PROCEDURE 1 ........................ ... 12
DIAGNOSTIC PROCEDURE 2 ........................ ... 13
MINIMUM SPECIFICATION OF CRANKING
VOLTAGE REFERENCING COOLANT TEM-
PERATURE ...................................................... ... 13
Removal and Installation ..................................... ... 14 VK45DE ENGINE MODELS .............................
... 14
VQ35DE ENGINE MODELS (2WD) ................. ... 15
VQ35DE ENGINE MODELS (AWD) ................. ... 16
Disassembly and Assembly ................................. ... 17
VK45DE ENGINE MODELS ............................. ... 17
VQ35DE ENGINE MODELS (2WD) ................. ... 18
VQ35DE ENGINE MODELS (AWD) ................. ... 19
INSPECTION AFTER DISASSEMBLY ............. ... 19
CHARGING SYSTEM ............................................ ... 20
System Description .............................................. ... 20
MALFUNCTION INDICATOR ........................... ... 20
Wiring Diagram — CHARGE — .......................... ... 21
VK45DE ENGINE MODELS ............................. ... 21
VQ35DE ENGINE MODELS ............................ ... 22
Trouble Diagnosis with Starting/Charging System
Tester (Charging) ................................................. ... 23
PRELIMINARY INSPECTION .......................... ... 24
DIAGNOSTIC PROCEDURE 1 ........................ ... 25
DIAGNOSTIC PROCEDURE 2 ........................ ... 25
DIAGNOSTIC PROCEDURE 3 ........................ ... 25
DIAGNOSTIC PROCEDURE 4 ........................ ... 26
Removal and Installation ..................................... ... 27
VK45DE ENGINE MODELS ............................. ... 27
VQ35DE ENGINE MODELS ............................ ... 28
Disassembly and Assembly ................................. ... 30
VK45DE ENGINE MODELS ............................. ... 30
VQ35DE ENGINE MODELS ............................ ... 31
SERVICE DATA AND SPECIFICATIONS (SDS) ... ... 32
Battery ................................................................. ... 32
Starter .................................................................. ... 32
Alternator ............................................................. ... 32

SC-4
BATTERY
Revision: 2006 December 2006 FX35/FX45
BATTERYPFP:AYBGL
How to Handle BatteryNKS0056P
CAUTION:

If it becomes necessary to start the engine with a booster battery and jumper cables, use a 12-volt
booster battery.

After connecting battery cables, ensure that they are tightly clamped to battery terminals for good
contact.
METHODS OF PREVENTING OVER-DISCHARGE
The following precautions must be taken to prevent over-discharging
a battery.

The battery surface (particularly its top) should always be kept
clean and dry.

The terminal connections should be clean and tight.

At every routine maintenance, check the electrolyte level.
This also applies to batteries designated as “low maintenance”
and “maintenance-free”.

When the vehicle is not going to be used over a long period of
time, disconnect the battery cable from the negative terminal.

Check the charge condition of the battery.
Periodically check the specific gravity of the electrolyte. Keep a
close check on charge condition to prevent over-discharge.
MEL040F
ELA0349D
MEL042F

SC-8
STARTING SYSTEM
Revision: 2006 December 2006 FX35/FX45
STARTING SYSTEMPFP:23300
System Description NKS002UQ
Power is supplied at all times

through 40A fusible link (letter F, located in the fuse and fusible link block)

to ignition switch terminal 1,

through 15A fuse (No. 78, located in the IPDM E/R)

to CPU of IPDM E/R,

through 10A fuse (No. 71, located in the IPDM E/R)

to CPU of IPDM E/R.
When the selector lever in the P or N position, power is supplied

from TCM, and through A/T assembly terminal 9

to IPDM E/R terminal 53.
Ground is supplied

to IPDM E/R terminals 38, 50 and 60

from grounds E21, E50 and E51.
With the ignition switch in the START position, and provided that the IPDM E/R receives a starter relay ON sig-
nal from the CAN lines, the IPDM E/R is energized and power is supplied

from ignition switch terminal 5

to IPDM E/R terminal 4 and

through IPDM E/R terminal 3

to starter motor terminal 1.
The starter motor plunger closes and provides a closed circuit between the battery and starter motor. The
starter motor is grounded to the engine block. With power and ground supplied, cranking occurs and the
engine starts.

STARTING SYSTEM SC-9
C
D E
F
G H
I
J
L
M A
B
SC
Revision: 2006 December 2006 FX35/FX45
Wiring Diagram — START —NKS002UR
VK45DE ENGINE MODELS
TKWM1275E

SC-10
STARTING SYSTEM
Revision: 2006 December 2006 FX35/FX45
VQ35DE ENGINE MODELS
TKWM1276E
