engine INFINITI FX35 2006 Service Manual

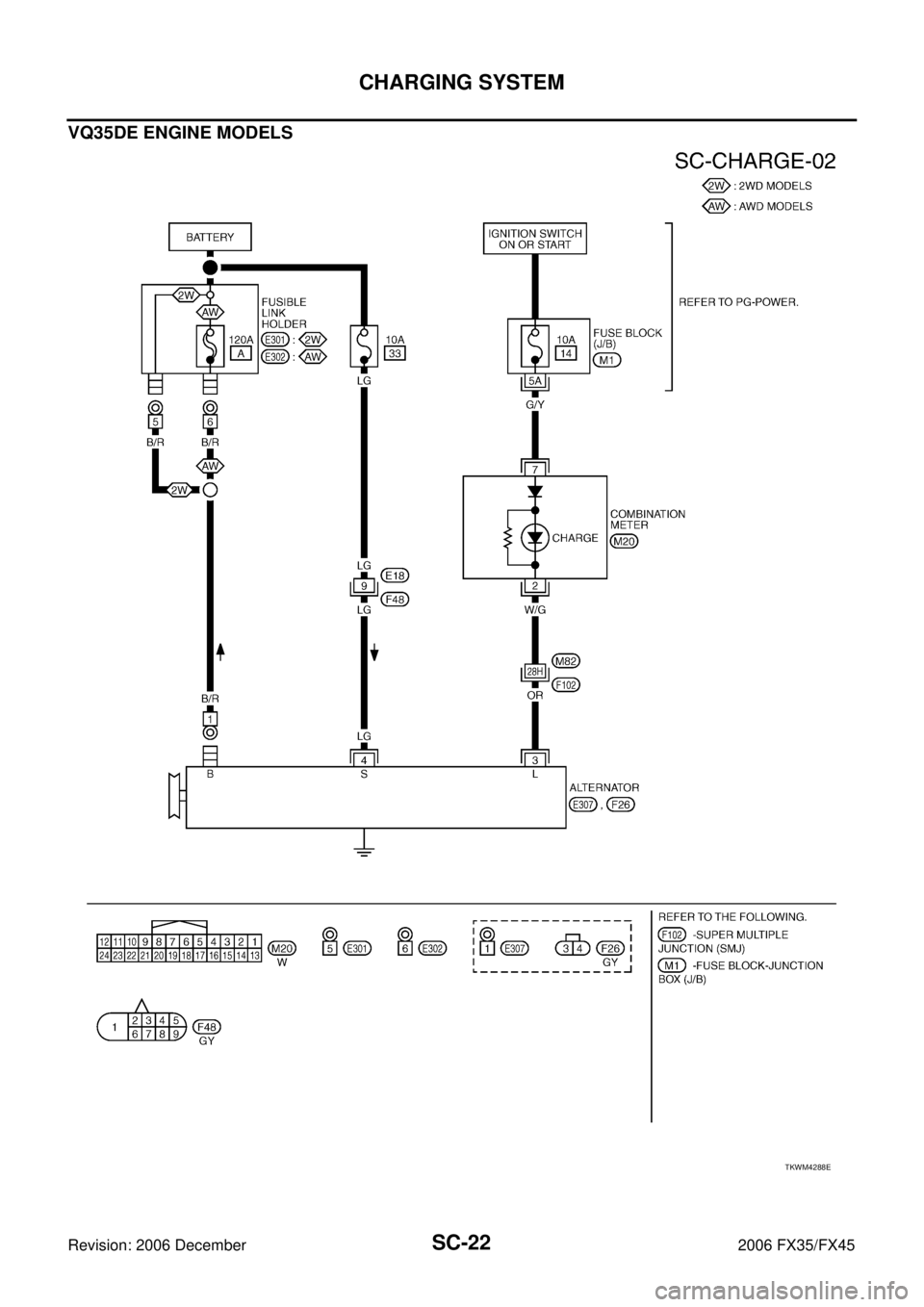

SC-22
CHARGING SYSTEM
Revision: 2006 December 2006 FX35/FX45
VQ35DE ENGINE MODELS
TKWM4288E

SC-26
CHARGING SYSTEM
Revision: 2006 December 2006 FX35/FX45
2. CHECK ALTERNATOR “S” TERMINAL CIRCUIT
1. Disconnect alternator connector.
2. Check voltage between alternator harness connector E311 (VK45DE) or F26 (VQ35DE) terminal 4 and ground.
OK or NG
OK >> Go to SC-23, "Trouble Diagnosis with Starting/Charging
System Tester (Charging)" .
NG >> Harness for open between alternator and fuse.
DIAGNOSTIC PROCEDURE 4
Check “B” Terminal Circuit
1. CHECK “B” TERMINAL CONNECTION
1. Turn ignition switch OFF.
2. Check if “B” terminal is clean and tight.
OK or NG
OK >> GO TO 2.
NG >> Repair “B” terminal connection. Confirm repair by performing complete Starting/Charging system
test. Refer to Technical Service Bulletin.
2. CHECK ALTERNATOR “B” TERMINAL CIRCUIT
Check voltage between alternator “B” terminal E307 terminal 1 and
ground.
OK or NG
OK >> GO TO 3.
NG >> Check the following.

Harness for open between alternator and fusible link
(VK45DE and VQ35DE AWD)

Harness for open between alternator and battery
(VQ35DE 2WD)
3. CHECK “B” TERMINAL CONNECTION (VOLTAGE DROP TEST)
1. Start engine.
2. When engine running at idle and warm, check voltage between alternator “B” terminal E307 terminal 1 and battery positive ter-
minal.
OK or NG
OK >> Go to SC-23, "Trouble Diagnosis with Starting/Charging
System Tester (Charging)" .
NG >> Check harness between battery and alternator for poor continuity.
4 – Ground : Battery voltage
SKIB8494E
1 – Ground : Battery voltage
PKIB8809E
1 – Battery positive terminal : Less than 0.2 V
PKIB8810E

CHARGING SYSTEM SC-27
C
D E
F
G H
I
J
L
M A
B
SC
Revision: 2006 December 2006 FX35/FX45
Removal and Installation NKS002UY
VK45DE ENGINE MODELS
Removal
1. Disconnect the battery cable from the negative terminal.
2. Remove engine front undercover, using power tools.
3. Remove radiator shroud (lower). Refer to CO-41, "
RADIATOR" .
4. Remove alternator, water pump and A/C compressor belt. Refer to EM-174, "
Removal and Installation" .
5. Remove alternator mounting bolts, using power tools.
6. Disconnect alternator connector.
7. Remove “B” terminal nut.
8. Remove alternator ground harness mounting bolt.
9. Remove alternator assembly downward from the vehicle.
1. Alternator ground harness mounting bolt 2. B terminal nut 3. B terminal harness
4. Alternator Nut 5. Alternator bracket 6. Alternator connector
7. Alternator 8. Alternator mounting bolt 9. Alternator stay
10. Alternator mounting bolt 11. Alternator stay mounting bolt 12. Alternator ground harness : N·m (kg-m, in-lb) : N·m (kg-m, ft-lb) : Engine front
SKIB7209E
PKIA2954E
PKIA2820E

SC-28
CHARGING SYSTEM
Revision: 2006 December 2006 FX35/FX45
Alternator Pulley Inspection
Perform the following.

Make sure that alternator pulley does not rattle.

Make sure that alternator pulley nut is tight.
Installation
Installation is the reverse order of removal.

Install alternator, and check tension of belt. Refer to EM-174, "Checking Drive Belts" .
CAUTION:
Be sure to tighten “B” terminal nut carefully.
VQ35DE ENGINE MODELS
Removal
1. Disconnect the battery cable from the negative terminal.
2. Remove engine front undercover, using power tools.
3. Remove alternator and power steering oil pump belt. Refer to EM-16, "
Removal and Installation" .
4. Disconnect alternator connector.
5. Remove “B” terminal nut.
6. Remove harness clip and water hose bracket from alternator. Alternator pulley nut:
: 73.5 N·m (7.5 kg-m, 54 ft-lb)
1. B terminal nut 2. B terminal harness 3. Alternator connector
4. Alternator mounting bolt 5. Alternator stay mounting bolt 6. Alternator stay
7. Alternator
: N·m (kg-m, ft-lb) : Engine front
PKIB8815E
PKIA2358E

SC-30
CHARGING SYSTEM
Revision: 2006 December 2006 FX35/FX45
Disassembly and AssemblyNKS002UZ
VK45DE ENGINE MODELS
1. Stator assembly 2. Slip ring 3. Rotor assembly
4. Retainer 5. Front bearing 6. Front bracket assembly
7. Pulley 8. Pulley nut 9. Fun guide
10. Double labyrinth seal 11. IC voltage regulator assembly 12. Diode assembly
13. Rear bracket assembly 14. B terminal nut 15. Through-bolt and nut : N·m (kg-m, in-lb) : N·m (kg-m, ft-lb)
SKIB7210E

CHARGING SYSTEM SC-31
C
D E
F
G H
I
J
L
M A
B
SC
Revision: 2006 December 2006 FX35/FX45
VQ35DE ENGINE MODELS
1. Rear bearing 2. Rotor assembly 3. Retainer
4. Front bearing 5. Through-bolt 6. Front bracket assembly
7. Pulley 8. Pulley nut 9. Stator assembly
10. IC voltage regulator assembly 11. Diode assembly 12. Rear bracket assembly
13. B terminal nut : N·m (kg-m, in-lb) : N·m (kg-m, ft-lb) : Always replace after every disas- sembly
SKIB6480E

SE-4
PREPARATION
Revision: 2006 December 2006 FX35/FX45
PREPARATIONPFP:00002
Special Service ToolsNIS001UJ
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Commercial Service ToolsNIS001UK
Tool number
(Kent-Moore No.)
Tool name Description
(J39570)
Chassis ear Location the noise
(J43980)
NISSAN Squeak and Rattle
Kit Repairing the cause of the noise
SIIA0993E
SIIA0994E
Tool name
Description
Engine ear Location the noise
SIIA0995E

SE-6
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Revision: 2006 December 2006 FX35/FX45
DUPLICATE THE NOISE AND TEST DRIVE
If possible, drive the vehicle with the customer until the noise is duplicated. Note any additional information on
the Diagnostic Worksheet regarding the conditions or location of the noise. This information can be used to
duplicate the same conditions when you confirm the repair.
If the noise can be duplicated easily during the test drive, to help identify the source of the noise, try to dupli-
cate the noise with the vehicle stopped by doing one or all of the following:
1) Close a door.
2) Tap or push/pull around the area where the noise appears to be coming from.
3) Rev the engine.
4) Use a floor jack to recreate vehicle “twist”.
5) At idle, apply engine load (electrical load, half-clutch on M/T model, drive position on A/T model).
6) Raise the vehicle on a hoist and hit a tire with a rubber hammer.

Drive the vehicle and attempt to duplicate the conditions the customer states exist when the noise occurs.

If it is difficult to duplicate the noise, drive the vehicle slowly on an undulating or rough road to stress the
vehicle body.
CHECK RELATED SERVICE BULLETINS
After verifying the customer concern or symptom, check ASIST for Technical Service Bulletins (TSBs) related
to that concern or symptom.
If a TSB relates to the symptom, follow the procedure to repair the noise.
LOCATE THE NOISE AND IDENTIFY THE ROOT CAUSE
1. Narrow down the noise to a general area. To help pinpoint the source of the noise, use a listening tool (Chassis Ear: J-39570,Engine Ear and mechanics stethoscope).
2. Narrow down the noise to a more specific area and identify the cause of the noise by:

removing the components in the area that you suspect the noise is coming from.
Do not use too much force when removing clips and fasteners, otherwise clips and fastener can be broken
or lost during the repair, resulting in the creation of new noise.

tapping or pushing/pulling the component that you suspect is causing the noise.
Do not tap or push/pull the component with excessive force, otherwise the noise will be eliminated only
temporarily.

feeling for a vibration with your hand by touching the component(s) that you suspect is (are) causing the
noise.

placing a piece of paper between components that you suspect are causing the noise.

looking for loose components and contact marks.
Refer to SE-7, "
Generic Squeak and Rattle Troubleshooting" .
REPAIR THE CAUSE

If the cause is a loose component, tighten the component securely.

If the cause is insufficient clearance between components:
–separate components by repositioning or loosening and retightening the component, if possible.
–insulate components with a suitable insulator such as urethane pads, foam blocks, felt cloth tape or ure-
thane tape. A Nissan Squeak and Rattle Kit (J-43980) is available through your authorized Nissan Parts
Department.
CAUTION:
Do not use excessive force as many components are constructed of plastic and may be damaged.
NOTE:
Always check with the Parts Department for the latest parts information.
The following materials are contained in the Nissan Squeak and Rattle Kit (J-43980). Each item can be
ordered separately as needed.
URETHANE PADS [1.5 mm (0.059 in) thick]
Insulates connectors, harness, etc.
76268-9E005: 100 × 135 mm (3.94 × 5.31 in)/76884-71L01: 60 × 85 mm (2.36 × 3.35 in)/76884-71L02:15 ×
25 mm (0.59 × 0.98 in)
INSULATOR (Foam blocks)
Insulates components from contact. Can be used to fill space behind a panel.
73982-9E000: 45 mm (1.77 in) thick, 50 × 50 mm (1.97 × 1.97 in)/73982-50Y00: 10 mm (0.39 in) thick, 50
× 50 mm (1.97 × 1.97 in)

SE-8
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Revision: 2006 December 2006 FX35/FX45
TRUNK
Trunk noises are often caused by a loose jack or loose items put into the trunk by the owner.
In addition look for:
1. Trunk lid dumpers out of adjustment
2. Trunk lid striker out of adjustment
3. The trunk lid torsion bars knocking together
4. A loose license plate or bracket
Most of these incidents can be repaired by adjusting, securing or insulating the item(s) or component(s) caus-
ing the noise.
SUNROOF/HEADLINING
Noises in the sunroof/headlining area can often be traced to one of the following:
1. Sunroof lid, rail, linkage or seals making a rattle or light knocking noise
2. Sun-visor shaft shaking in the holder
3. Front or rear windshield touching headlining and squeaking
Again, pressing on the components to stop the noise while duplicating the conditions can isolate most of these
incidents. Repairs usually consist of insulating with felt cloth tape.
SEATS
When isolating seat noise it's important to note the position the seat is in and the load placed on the seat when
the noise is present. These conditions should be duplicated when verifying and isolating the cause of the
noise.
Cause of seat noise include:
1. Headrest rods and holder
2. A squeak between the seat pad cushion and frame
3. The rear seatback lock and bracket
These noises can be isolated by moving or pressing on the suspected components while duplicating the con-
ditions under which the noise occurs. Most of these incidents can be repaired by repositioning the component
or applying urethane tape to the contact area.
UNDERHOOD
Some interior noise may be caused by components under the hood or on the engine wall. The noise is then
transmitted into the passenger compartment.
Causes of transmitted under-hood noise include:
1. Any component mounted to the engine wall
2. Components that pass through the engine wall
3. Engine wall mounts and connectors
4. Loose radiator mounting pins
5. Hood bumpers out of adjustment
6. Hood striker out of adjustment
These noises can be difficult to isolate since they cannot be reached from the interior of the vehicle. The best
method is to secure, move or insulate one component at a time and test drive the vehicle. Also, engine RPM
or load can be changed to isolate the noise. Repairs can usually be made by moving, adjusting, securing, or
insulating the component causing the noise.

TF-1
TRANSFER
D DRIVELINE/AXLE
CONTENTS
C E F
G H
I
J
K L
M
SECTION TF
A
B
TF
Revision: 2006 December 2006 FX35/FX45
TRANSFER
PRECAUTIONS ..................................................... ..... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 3
Precautions ......................................................... ..... 3
Service Notice or Precautions ............................. ..... 4
PREPARATION ...................................................... ..... 5
Special Service Tools .......................................... ..... 5
Commercial Service Tools ................................... ..... 7
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ........................................... ..... 8
NVH Troubleshooting Chart ................................ ..... 8
TRANSFER FLUID ................................................ ..... 9
Replacement ....................................................... ..... 9
DRAINING ........................................................ ..... 9
FILLING ............................................................ ..... 9
Inspection ............................................................ ..... 9
FLUID LEAKAGE AND FLUID LEVEL ............. ..... 9
AWD SYSTEM ....................................................... ... 10
Power Transfer Diagram ..................................... ... 10
System Description ............................................. ... 10
DESCRIPTION ................................................. ... 10
ELECTRIC CONTROLLED COUPLING .......... .... 11
AWD CONTROL UNIT ..................................... .... 11
AWD WARNING LAMP .................................... ... 12
System Diagram .................................................. ... 12
COMPONENTS FUNCTION DESCRIPTION .. ... 13
CAN Communication ........................................... ... 13
SYSTEM DESCRIPTION ................................. ... 13
TROUBLE DIAGNOSIS ......................................... ... 14
Fail-Safe Function ............................................... ... 14
How to Perform Trouble Diagnosis ..................... ... 14
BASIC CONCEPT ............................................ ... 14
Location of Electrical Parts .................................. ... 15
Circuit Diagram ................................................... ... 16
Wiring Diagram — AWD — ................................. ... 17
Trouble Diagnosis Chart for Symptoms .............. ... 20
AWD Control Unit Input/Output Signal Reference
Values ................................................................. ... 20 AWD CONTROL UNIT INSPECTION TABLE ..
... 20
CONSULT-II Function (ALL MODE AWD/4WD) .. ... 22
FUNCTION ....................................................... ... 22
CONSULT-II SETTING PROCEDURE ............. ... 22
SELF-DIAG RESULT MODE ............................ ... 22
DATA MONITOR MODE ................................... ... 24
ACTIVE TEST MODE ...................................... ... 25
AWD CONTROL UNIT PART NUMBER .......... ... 25
TROUBLE DIAGNOSIS FOR SYSTEM ................. ... 26
Power Supply Circuit for AWD Control Unit ......... ... 26
CONSULT-II REFERENCE VALUE IN DATA
MONITOR MODE ............................................. ... 26
DIAGNOSTIC PROCEDURE ........................... ... 26
AWD Control Unit ................................................ ... 27
DIAGNOSTIC PROCEDURE ........................... ... 27
ABS System ........................................................ ... 27
DIAGNOSTIC PROCEDURE ........................... ... 27
AWD Solenoid ..................................................... ... 28
CONSULT-II REFERENCE VALUE IN DATA
MONITOR MODE ............................................. ... 28
DIAGNOSTIC PROCEDURE ........................... ... 28
COMPONENT INSPECTION ........................... ... 30
AWD Actuator Relay ............................................ ... 31
CONSULT-II REFERENCE VALUE IN DATA
MONITOR MODE ............................................. ... 31
DIAGNOSTIC PROCEDURE ........................... ... 31
Engine Control Signal .......................................... ... 32
DIAGNOSTIC PROCEDURE ........................... ... 32
CAN Communication Line ................................... ... 32
DIAGNOSTIC PROCEDURE ........................... ... 32
TROUBLE DIAGNOSIS FOR SYMPTOMS ........... ... 33
AWD Warning Lamp Does Not Turn ON When The
Ignition Switch Is Turned to ON ........................... ... 33
DIAGNOSTIC PROCEDURE ........................... ... 33
AWD Warning Lamp Does Not Turn OFF Several
Seconds after Engine Started .............................. ... 33
DIAGNOSTIC PROCEDURE ........................... ... 33
Heavy Tight-Corner Braking Symptom Occurs
When The Vehicle Is Driven and The Steering Wheel
Is Turned Fully to Either Side after The Engine Is
