INFINITI FX35 2006 Service Manual

COMBINATION METERS DI-21
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
Engine Coolant Temperature Signal InspectionNKS002ZR
Symptom: Water temperature gauge indication is malfunction.
1. CHECK COMBINATION METER INPUT SIGNAL
1. Connect CONSULT-II, and start engine.
2. Select “METER A/C AMP” on CONSULT-II.
3. Using “W TEMP METER” on “DATA MONITOR”, compare the value of “DATA MONITOR” with water temperature gauge
pointer of combination meter.
OK or NG
OK >> GO TO 2.
NG >> Replace combination meter.
2. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
1. Select “ENGINE” on CONSULT-II.
2. Using “COOLAN TEMP/S” on “DATA MONITOR”, print out the CONSULT-II screen.
3. Select “METER A/C AMP” on CONSULT-II.
4. Using “W TEMP METER” on “DATA MONITOR”, compare the value of “DATA MONITOR” with that of the “COOLAN TEMP/S”.
OK or NG
OK >> Perform ECM self-diagnosis. Refer to EC-119, "CON-
SULT-II Function (ENGINE)" (VQ35DE) or EC-780,
"CONSULT-II Function (ENGINE)" (VK45DE).
NG >> Replace unified meter and A/C amp. Refer to DI-37,
"Removal and Installation of Unified Meter and A/C
Amp." .
Fuel Level Sensor Signal InspectionNKS002ZS
Symptom:

Fuel gauge indication is malfunctioning.

Low-fuel warning lamp indication is irregular.
NOTE:
The following symptoms are not malfunctions.
Fuel gauge

Depending on vehicle posture or driving circumstance, the fuel level in the tank varies, and the pointer
may fluctuate.

If the vehicle is fueled with the ignition switch ON, the pointer will move slowly.
Low-fuel warning lamp

Depending on vehicle posture or driving circumstance, the fuel in the tank flows and the warning lamp ON
timing may change.
Water temperature gauge pointer Reference value of data monitor [ °C ( °F)]
Hot Approx. 130 (266)
Middle Approx. 70 - 105 (158 - 221) Cold Approx. 50 (122)
PKIA2091E
SKIA4368E

DI-22
COMBINATION METERS
Revision: 2006 December 2006 FX35/FX45
1. CHECK COMBINATION METER INPUT SIGNAL
1. Select “METER A/C AMP” on CONSULT-II.
2. Using “FUEL METER” on “DATA MONITOR”, compare the value of “DATA MONITOR” with fuel gauge pointer of combination
meter.
OK or NG
OK >> GO TO 2.
NG >> Replace combination meter.
2. CHECK FUEL LEVEL SENSOR (SUB) CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect unified meter and A/C amp. connector and fuel level sensor unit (sub) connector.
3. Check continuity between unified meter and A/C amp. harness connector (A) M56 terminal 28 and fuel level sensor unit (sub)
harness connector (B) B40 terminal 1.
4. Check continuity between unified meter and A/C amp. harness connector (A) M56 terminal 28 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK FUEL LEVEL SENSOR (MAIN·SUB) CIRCUIT
1. Disconnect fuel level sensor unit and fuel pump (main) connector.
2. Check continuity between fuel level sensor unit (sub) harness connector (A) B40 terminal 2 and fuel level sensor unit and fuel
pump (main) harness connector (B) B39 terminal 2.
3. Check continuity between fuel level sensor unit (sub) harness connector (A) B40 terminal 2 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
Fuel gauge pointer Reference value of data monitor [lit.]
Full Approx. 86
Three quarters Approx. 70 Half Approx. 48
A quarter Approx. 25 Empty Approx. 9
PKIA2088E
28 – 1 : Continuity should exist.
28 – Ground : Continuity should not exist.
SKIB8527E
2 – 2 : Continuity should exist.
2 – Ground : Continuity should not exist.
SKIB8697E

COMBINATION METERS DI-23
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
4. CHECK FUEL LEVEL SENSOR (MAIN) CIRCUIT
1. Check continuity between fuel level sensor unit and fuel pump (main) harness connector (A) B39 terminal 5 and unified meter
and A/C amp. harness connector (B) M56 terminal 36.
2. Check continuity between fuel level sensor unit and fuel pump (main) harness connector (A) B39 terminal 5 and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK FUEL LEVEL SENSOR
Check components. Refer to DI-24, "
FUEL LEVEL SENSOR UNIT" .
OK or NG
OK >> Check fuel level sensor unit installation, and check whether the float arm interferes or binds with any of the internal components in the fuel tank. Repair or replace malfunctioning part, if neces-
sary.
NG >> Replace fuel level sensor unit.
Fuel Gauge Pointer Fluctuates, Indicator Wrong Value or VariesNKS002ZU
1. CHECK FUEL GAUGE FLUCTUATION
Test drive vehicle to see if gauge fluctuates only during driving or at the instant of stopping.
Does the indication value vary only during driving or at the instant of stopping?
YES >> The pointer fluctuation may be caused by fuel level change in the fuel tank. Condition is normal.
NO >> Ask the customer about the situation when the symptom occurs in detail, and perform the trouble diagnosis.
Fuel Gauge Does Not Move to FULL PositionNKS002ZV
1. QUESTION 1
Does it take a long time for the pointer to move to FULL position?
YES >> GO TO 2.
NO >> GO TO 3.
2. QUESTION 2
Was the vehicle fueled with the ignition switch ON?
YES >> Be sure to fuel the vehicle with the ignition switch OFF. Otherwise, it will take a long time to move to FULL position because of the characteristic of the fuel gauge.
NO >> GO TO 3.
3. QUESTION 3
Is the vehicle parked on an incline?
YES >> Check the fuel level indication with vehicle on a level surface.
NO >> GO TO 4. 5 – 36 : Continuity should exist.
5 – Ground : Continuity should not exist.
SKIB8528E

DI-24
COMBINATION METERS
Revision: 2006 December 2006 FX35/FX45
4. QUESTION 4
During driving, does the fuel gauge pointer move gradually toward EMPTY position?
YES >> Check the fuel level sensor unit. Refer to DI-24, "FUEL LEVEL SENSOR UNIT" .
NO >> The float arm may interfere or bind with any of the components in the fuel tank.
Odo/Trip Meter and Illumination Control Switch InspectionNKS002ZT
Symptom: Illumination control does not operate.
1. CHECK ODO/TRIP METER AND ILLUMINATION CONTROL SWITCH
1. Remove odo/trip meter and illumination control switch. Refer to DI-27, "
Removal and Installation of Odo/
Trip Meter and Illumination Control Switch" .
2. Check continuity odo/trip meter and illumination control switch. Refer to DI-24, "
ODO/TRIP METER AND
ILLUMINATION CONTROL SWITCH" .
OK or NG
OK >> Replace combination meter.
NG >> Replace odo/trip meter and illumination control switch.
Electrical Components InspectionNKS002ZW
ODO/TRIP METER AND ILLUMINATION CONTROL SWITCH
Check continuity between terminals 25, 26, 35 or 36 and 27.
FUEL LEVEL SENSOR UNIT
For removal, refer to FL-4, "FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY" .
Fuel Level Sensor Unit and Fuel Pump (Main)
Check the resistance between terminals 2 and 5.
*1 and *2: When float rod is in contact with stopper.

If the results of check are NG, check the fuel level sensor unit
and fuel pump (main) harness. Refer to DI-25, "
Fuel Level Sen-
sor Unit and Pump (Main) Harness" .
Terminal Condition Continuity
25
27 Illumination control switch (–) is pressed. Yes
Illumination control switch (–) is released. No
26 Illumination control switch (+) is pressed. Yes
Illumination control switch (+) is released. No
35 Trip transfer switch is pressed. Yes
Trip transfer switch is released. No
36 Trip reset switch is pressed. Yes
Trip reset switch is released. No
SKIB8529E
Terminal Float position [mm (in)] Resistance
value [ Ω]
25 *1 Full 236 (9.29) Approx. 3
*2 Empty 29 (1.14) Approx. 80
SKIB3550J

COMBINATION METERS DI-25
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
Fuel Level Sensor Unit and Pump (Main) Harness
Check continuity at following terminals.

If the results of check are NG, replace fuel pump assembly. If the
results of check are OK, replace fuel level sensor unit.
Fuel Level Sensor Unit (Sub)
Check resistance between terminals 1 and 2.
*1 and *2: When float rod is in contact with stopper.
Removal and Installation of Combination MeterNKS003IC
Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
Disassembly and Assembly of Combination MeterNKS002ZY
Terminal Continuity
2 - Signal terminal (A) Ye s
5 - Ground terminal (B)
SKIB3551J
Terminal Float position [mm (in)] Resistance
value [ Ω]
12 *1 Full 6 (0.24) Approx. 3
*2 Empty 203 (7.99) Approx. 48
SKIB8530E
1. Rear cover 2. Screws 3. Plate
4. Unified meter control unit assembly 5. Front cover 6. Reinforcing metal
7. Switch and meter housing
SKIA5790E

DI-26
COMBINATION METERS
Revision: 2006 December 2006 FX35/FX45
DISASSEMBLY
1. Remove screws (A) and remove rear cover (1).
2. Disconnect odo/trip meter and illumination control switch con- nector (2).
3. Remove screws (A).
4. Remove tabs (A) and remove switch and meter housing (1).
5. Remove screws (A) and remove reinforcing metal (1).
SKIB8477E
SKIB8478E
SKIB8479E
SKIB8480E

COMBINATION METERS DI-27
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
6. Remove screws (A) and remove plate (1).
7. Disengage tabs (A) to separate front cover (1).
ASSEMBLY
Assembly is the reverse order of disassembly.
Removal and Installation of Odo/Trip Meter and Illumination Control SwitchNKS002ZZ
REMOVAL
1. Remove combination meter. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove switch and meter housing. Refer to DI-25, "
Disassembly and Assembly of Combination Meter" .
3. Remove screws (2), and remove switch assembly.
4. Remove screws (5), and remove odo/trip meter and illumination control switch.
INSTALLATION
Installation is the reverse order of removal.
SKIB8481E
SKIB8482E
SKIA5795E
SKIA5796E

DI-28
UNIFIED METER AND A/C AMP
Revision: 2006 December 2006 FX35/FX45

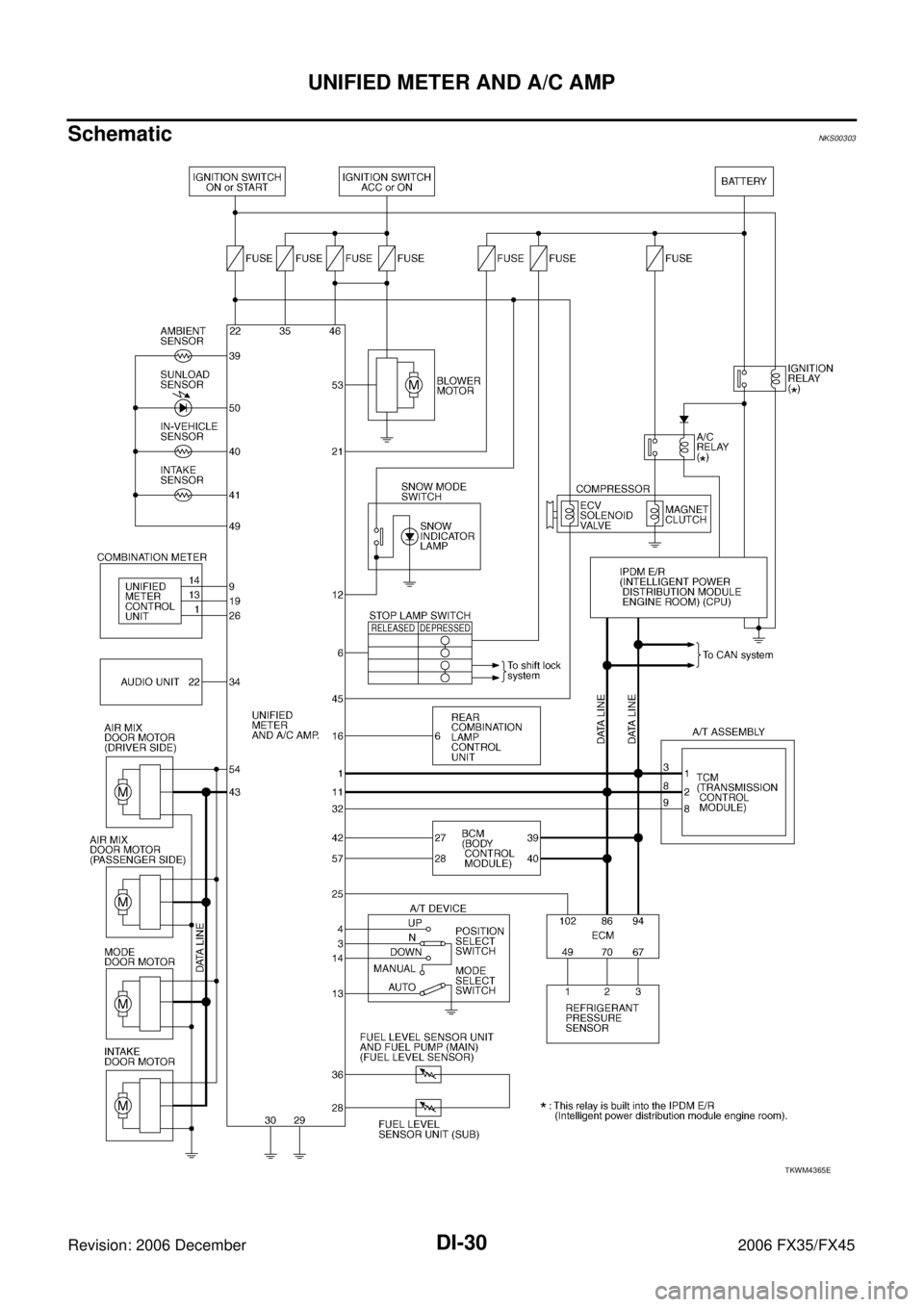

UNIFIED METER AND A/C AMPPFP:27760
System DescriptionNKS00300

For the unified meter and A/C amp., the signal required for controlling the combination meter are inte-
grated in the A/C auto amp.

The unified meter and A/C amp. corresponds to a CONSULT-II function (self-diagnosis results, CAN diag-
nosis support monitor, data monitor).
COMBINATION METER CONTROL FUNCTION

Unified meter and A/C amp. receives necessary information for combination meter from each unit by CAN
communication.

Unified meter and A/C amp. transmits a signals with communication line (TX, RX) between unified meter
and A/C amp. and combination meter.
Input/output signals between unified meter and A/C amp. and combination meter.
NOTE:
Combination meter performs fail-safe operation when unified meter and A/C amp. communication is malfunctioning. Refer to DI-8,
"FAIL-SAFE" . Unit Input Output
Unified meter and A/C amp.

Seat belt buckle switch signal (Driver's side)

Parking brake signal

Illumination control nighttime required signal

Refuel status signal

Low-fuel warning lamp condition signal

Combination meter receive error signal

Delivery destination data signal

Combination meter specifications signal

Vehicle speed signal (8-pulse)

Engine speed signal

Engine coolant temperature signal

Fuel level sensor signal (resistance value)

Malfunction indicator lamp signal

ABS warning lamp signal

Low tire pressure warning lamp signal

Brake warning lamp signal

A/T CHECK warning lamp signal

ICC warning lamp signal

Oil pressure switch signal

Door switch signal

AWD warning lamp signal

Key warning lamp signal

VDC OFF indicator lamp signal

SLIP indicator lamp signal

CRUISE indicator lamp signal

SET indicator lamp signal

High beam request signal

Turn indicator signal

Snow mode switch signal

ICC system display signal

Shift position indicator signal

Manual mode indicator signal

Manual mode gear position signal

CAN communication condition signal of A/T

Position lights request signal

Buzzer output signal

UNIFIED METER AND A/C AMP DI-29
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
A/C AUTO AMP. FUNCTION
Unified meter and A/C amp. controls each operation for A/C auto amp. Regarding A/C control, refer to AT C -
30, "AIR CONDITIONER CONTROL" in ATC section.
OTHER FUNCTIONS
Drive Computer Function
The signals required for the distance to empty (DTE) display are centralized in the unified meter and A/C
amp., converted into data, and transmitted to the display unit (without NAVI) and display control unit (with
NAVI) using CAN communication.
Signal Buffer Function
Unified meter and A/C amp. transmits each signal to other units with CAN communication.

DI-30
UNIFIED METER AND A/C AMP
Revision: 2006 December 2006 FX35/FX45
SchematicNKS00303
TKWM4365E
