WORK FLOW
A good understanding of the malfunction conditions can make troubleshooting faster and more accurate.
In general, each customer feels differently about a malfunction. It is important to fully understand the symp-
toms or conditions for a customer complaint.
Make good use of the two sheets provided, “Information From Customer” (Refer to AT- 4 8
) and “DIAGNOSTIC
WORKSHEET” (Refer to AT- 4 8
), to perform the best troubleshooting possible.

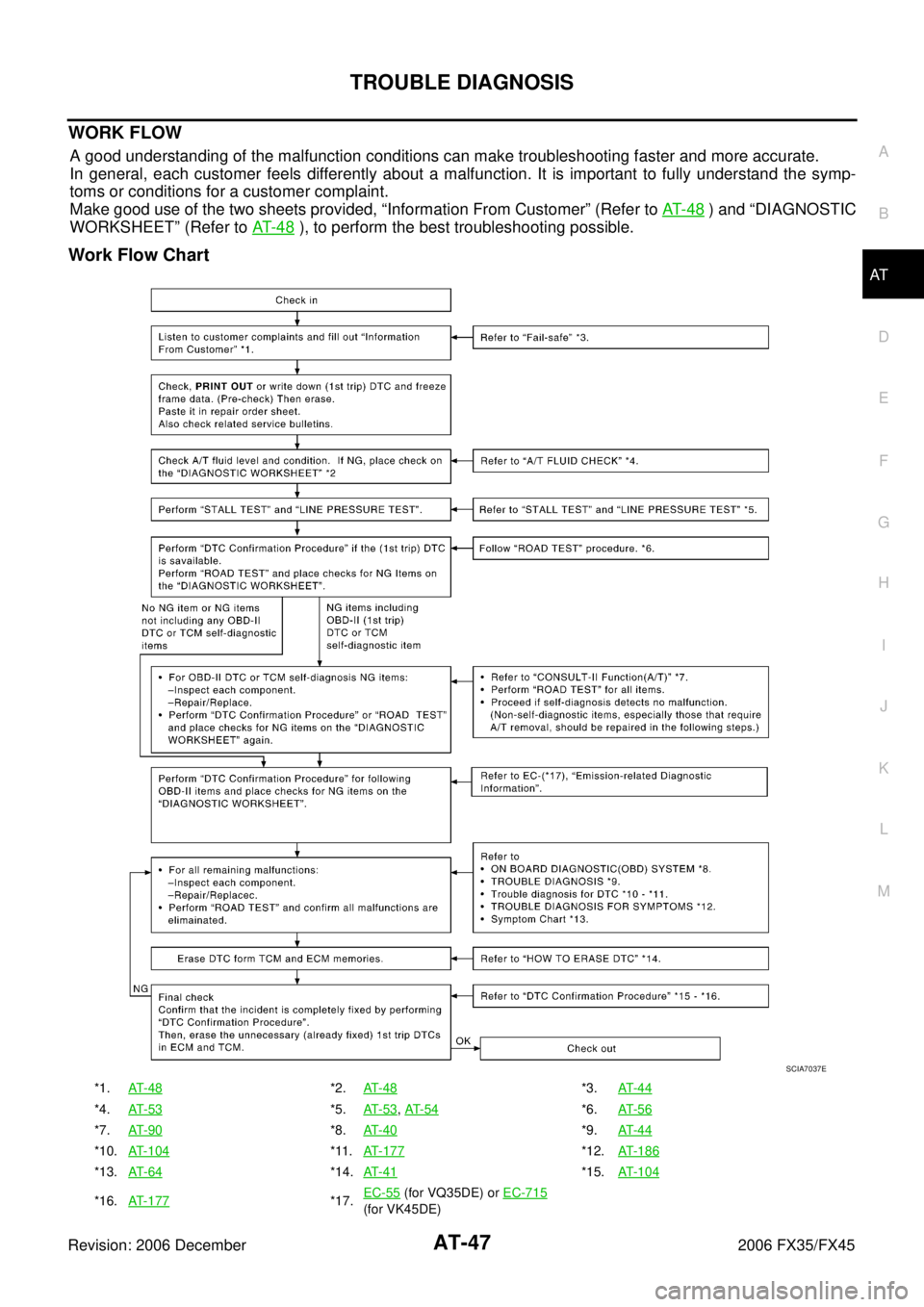

Work Flow Chart
*1.AT- 4 8*2.AT- 4 8*3. AT- 4 4
*4.AT- 5 3*5.AT- 5 3, AT- 5 4*6. AT- 5 6
*7.AT- 9 0*8.AT- 4 0*9. AT- 4 4
*10.AT-104*11.AT- 1 7 7*12. AT- 1 8 6
*13.AT- 6 4*14.AT- 4 1*15. AT- 1 0 4
*16.AT-177*17. EC-55 (for VQ35DE) or
EC-715
(for VK45DE)
SCIA7037E

AT-48
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
DIAGNOSTIC WORKSHEET
Information from Customer
KEY POINTS

WHAT ..... Vehicle and A/T model

WHEN ..... Date, Frequencies

WHERE ..... Road conditions

HOW..... Operating conditions, Symptoms
Diagnostic Worksheet Chart
Customer name MR/MS Model and Year VIN
Trans. Model Engine Mileage
Malfunction Date Manuf. Date In Service Date
Frequency ❏ Continuous ❏ Intermittent ( times a day)
Symptoms ❏ Vehicle does not move. ( ❏ Any position ❏ Particular position)
❏ No up-shift ( ❏ 1st → 2nd ❏ 2nd → 3rd ❏ 3rd → 4th ❏ 4th → 5th)
❏ No down-shift ( ❏ 5th → 4th ❏ 4th → 3rd ❏ 3rd → 2nd ❏ 2nd → 1st)
❏ Lock-up malfunction
❏ Shift point too high or too low.
❏ Shift shock or slip ( ❏ N → D ❏ Lock-up ❏ Any drive position)
❏ Noise or vibration
❏ No kick down
❏ No pattern select
❏ Others
()
A/T CHECK indicator lamp ❏ Continuously lit ❏ Not lit
Malfunction indicator lamp (MIL) ❏ Continuously lit ❏ Not lit
1 ❏ Read the item on cautions concerning fail-safe and understand the customer's complaint. AT- 4 4
2 ❏
A/T fluid inspection AT- 5 3❏ Leak (Repair leak location.)
❏ State
❏ Amount
3 ❏
Stall test and line pressure test AT- 5 3
, AT-
54❏ Stall test
❏ Torque converter one-way clutch
❏ Front brake
❏ High and low reverse clutch
❏ Low coast brake
❏ Forward brake
❏ Reverse brake
❏ Forward one-way clutch ❏
1st one-way clutch
❏ 3rd one-way clutch
❏ Engine
❏ Line pressure low
❏ Except for input clutch and direct
clutch, clutches and brakes OK
❏ Line pressure inspection - Suspected part:

TROUBLE DIAGNOSIS AT-49
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 December 2006 FX35/FX45
4 ❏
Perform all road tests and enter checks in required inspection items. AT- 5 6
4-1. Check before engine is started
AT- 5 7
❏ The A/T CHECK Indicator Lamp does come on. AT- 1 8 9 .
❏ Perform self-diagnostics. Enter checks for detected items. AT- 9 2
, AT- 1 0 2 .
❏ AT-104, "
DTC U1000 CAN COMMUNICATION LINE" .
❏ AT-107, "
DTC P0615 START SIGNAL CIRCUIT" .
❏ AT- 111 , "
DTC P0700 TCM"
❏ AT-112, "DTC P0705 PARK/NEUTRAL POSITION SWITCH" .
❏ AT-116, "
DTC P0717 TURBINE REVOLUTION SENSOR" .
❏ AT-118, "
DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)" .
❏ AT-123, "
DTC P0725 ENGINE SPEED SIGNAL" .
❏ AT-125, "
DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE" .
❏ AT-127, "
DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)" .
❏ AT-129, "
DTC P0745 LINE PRESSURE SOLENOID VALVE" .
❏ AT-131, "
DTC P1705 THROTTLE POSITION SENSOR" .
❏ AT-134, "
DTC P1710 A/T FLUID TEMPERATURE SENSOR CIRCUIT" .
❏ AT-139, "
DTC P1721 VEHICLE SPEED SENSOR MTR" .
❏ AT-141, "
DTC P1730 A/T INTERLOCK" .
❏ AT-144, "
DTC P1731 A/T 1ST ENGINE BRAKING" .
❏ AT-146, "
DTC P1752 INPUT CLUTCH SOLENOID VALVE" .
❏ AT-148, "
DTC P1754 INPUT CLUTCH SOLENOID VALVE FUNCTION" .
❏ AT-150, "
DTC P1757 FRONT BRAKE SOLENOID VALVE" .
❏ AT-152, "
DTC P1759 FRONT BRAKE SOLENOID VALVE FUNCTION" .
❏ AT-154, "
DTC P1762 DIRECT CLUTCH SOLENOID VALVE" .
❏ AT-156, "
DTC P1764 DIRECT CLUTCH SOLENOID VALVE FUNCTION" .
❏ AT-158, "
DTC P1767 HIGH AND LOW REVERSE CLUTCH SOLENOID VALVE" .
❏ AT-160, "
DTC P1769 HIGH AND LOW REVERSE CLUTCH SOLENOID VALVE
FUNCTION" .
❏ AT-162, "
DTC P1772 LOW COAST BRAKE SOLENOID VALVE" .
❏ AT-164, "
DTC P1774 LOW COAST BRAKE SOLENOID VALVE FUNCTION" .
❏ AT-166, "
DTC P1815 MANUAL MODE SWITCH" .
❏ AT-171, "
DTC P1841 ATF PRESSURE SWITCH 1" .
❏ AT-173, "
DTC P1843 ATF PRESSURE SWITCH 3" .
❏ AT-175, "
DTC P1845 ATF PRESSURE SWITCH 5" .
❏ AT-177, "
DTC P1846 ATF PRESSURE SWITCH 6" .
4-2. Check at Idle
AT- 5 7
❏ AT- 1 9 0 , "Engine Cannot Be Started in “P” or “N” Position" .
❏ AT- 1 9 1 , "
In “P” Position, Vehicle Moves When Pushed"
❏ AT- 1 9 2 , "In “N” Position, Vehicle Moves" .
❏ AT- 1 9 3 , "
Large Shock (“N” to “D” Position)" .
❏ AT- 1 9 6 , "
Vehicle Does Not Creep Backward in “R” Position" .
❏ AT- 1 9 9 , "
Vehicle Does Not Creep Forward in “D” Position" .
4-3. Cruise Test
AT- 5 8
Part 1
❏ AT- 2 0 1 , "
Vehicle Cannot Be Started From D1" .
❏ AT- 2 0 4 , "
A/T Does Not Shift: D1 → D2" .
❏ AT- 2 0 6 , "
A/T Does Not Shift: D2 → D3" .
❏ AT- 2 0 8 , "
A/T Does Not Shift: D3 → D4" .
❏ AT- 2 11 , "
A/T Does Not Shift: D4 → D5" .
❏ AT- 2 1 3 , "
A/T Does Not Lock-up"
❏ AT- 2 1 5 , "A/T Does Not Hold Lock-up Condition" .
❏ AT- 2 1 7 , "
Lock-up Is Not Released" .
❏ AT- 2 1 7 , "
Engine Speed Does Not Return to Idle" .

AT-50
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
44-3. Part 2
AT- 6 0
❏ AT-201, "Vehicle Cannot Be Started From D1" .
❏ AT-204, "
A/T Does Not Shift: D1 → D2" .
❏ AT-206, "
A/T Does Not Shift: D2 → D3" .
❏ AT-208, "
A/T Does Not Shift: D3 → D4" .
Part 3 AT- 6 1
❏ AT-219, "Cannot Be Changed to Manual Mode" .
❏ AT-219, "
A/T Does Not Shift: 5th Gear → 4th Gear" .
❏ AT-221, "
A/T Does Not Shift: 4th Gear → 3rd Gear" .
❏ AT-223, "
A/T Does Not Shift: 3rd Gear → 2nd Gear" .
❏ AT-225, "
A/T Does Not Shift: 2nd Gear → 1st Gear" .
❏ AT-227, "
Vehicle Does Not Decelerate by Engine Brake" .
❏ Perform self-diagnostics. Enter checks for detected items. AT- 9 2
, AT-102 .
❏ AT-104, "
DTC U1000 CAN COMMUNICATION LINE" .
❏ AT-107, "
DTC P0615 START SIGNAL CIRCUIT" .
❏ AT- 111 , "
DTC P0700 TCM"
❏ AT- 11 2 , "DTC P0705 PARK/NEUTRAL POSITION SWITCH" .
❏ AT- 11 6 , "
DTC P0717 TURBINE REVOLUTION SENSOR" .
❏ AT- 11 8 , "
DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)" .
❏ AT-123, "
DTC P0725 ENGINE SPEED SIGNAL" .
❏ AT-125, "
DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE" .
❏ AT-127, "
DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)" .
❏ AT-129, "
DTC P0745 LINE PRESSURE SOLENOID VALVE" .
❏ AT-131, "
DTC P1705 THROTTLE POSITION SENSOR" .
❏ AT-134, "
DTC P1710 A/T FLUID TEMPERATURE SENSOR CIRCUIT" .
❏ AT-139, "
DTC P1721 VEHICLE SPEED SENSOR MTR" .
❏ AT-141, "
DTC P1730 A/T INTERLOCK" .
❏ AT-144, "
DTC P1731 A/T 1ST ENGINE BRAKING" .
❏ AT-146, "
DTC P1752 INPUT CLUTCH SOLENOID VALVE" .
❏ AT-148, "
DTC P1754 INPUT CLUTCH SOLENOID VALVE FUNCTION" .
❏ AT-150, "
DTC P1757 FRONT BRAKE SOLENOID VALVE" .
❏ AT-152, "
DTC P1759 FRONT BRAKE SOLENOID VALVE FUNCTION" .
❏ AT-154, "
DTC P1762 DIRECT CLUTCH SOLENOID VALVE" .
❏ AT-156, "
DTC P1764 DIRECT CLUTCH SOLENOID VALVE FUNCTION" .
❏ AT-158, "
DTC P1767 HIGH AND LOW REVERSE CLUTCH SOLENOID VALVE" .
❏ AT-160, "
DTC P1769 HIGH AND LOW REVERSE CLUTCH SOLENOID VALVE
FUNCTION" .
❏ AT-162, "
DTC P1772 LOW COAST BRAKE SOLENOID VALVE" .
❏ AT-164, "
DTC P1774 LOW COAST BRAKE SOLENOID VALVE FUNCTION" .
❏ AT-166, "
DTC P1815 MANUAL MODE SWITCH" .
❏ AT-171, "
DTC P1841 ATF PRESSURE SWITCH 1" .
❏ AT-173, "
DTC P1843 ATF PRESSURE SWITCH 3" .
❏ AT-175, "
DTC P1845 ATF PRESSURE SWITCH 5" .
❏ AT-177, "
DTC P1846 ATF PRESSURE SWITCH 6" .
5 ❏ Inspect each system for items found to be NG in the self-diagnostics and repair or replace the malfunctioning parts.
6 ❏ Perform all road tests and enter the checks again for the required items. AT- 5 6
7 ❏
For any remaining NG items, perform the “diagnostics procedure” and repair or replace the malfunctioning
parts. See the chart for diagnostics by symptoms. (This chart also contains other symptoms and inspection pro-
cedures.) AT- 6 4
8
❏ Erase the results of the self-diagnostics from the TCM. AT- 9 5,
AT-
102

TROUBLE DIAGNOSIS AT-51
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 December 2006 FX35/FX45

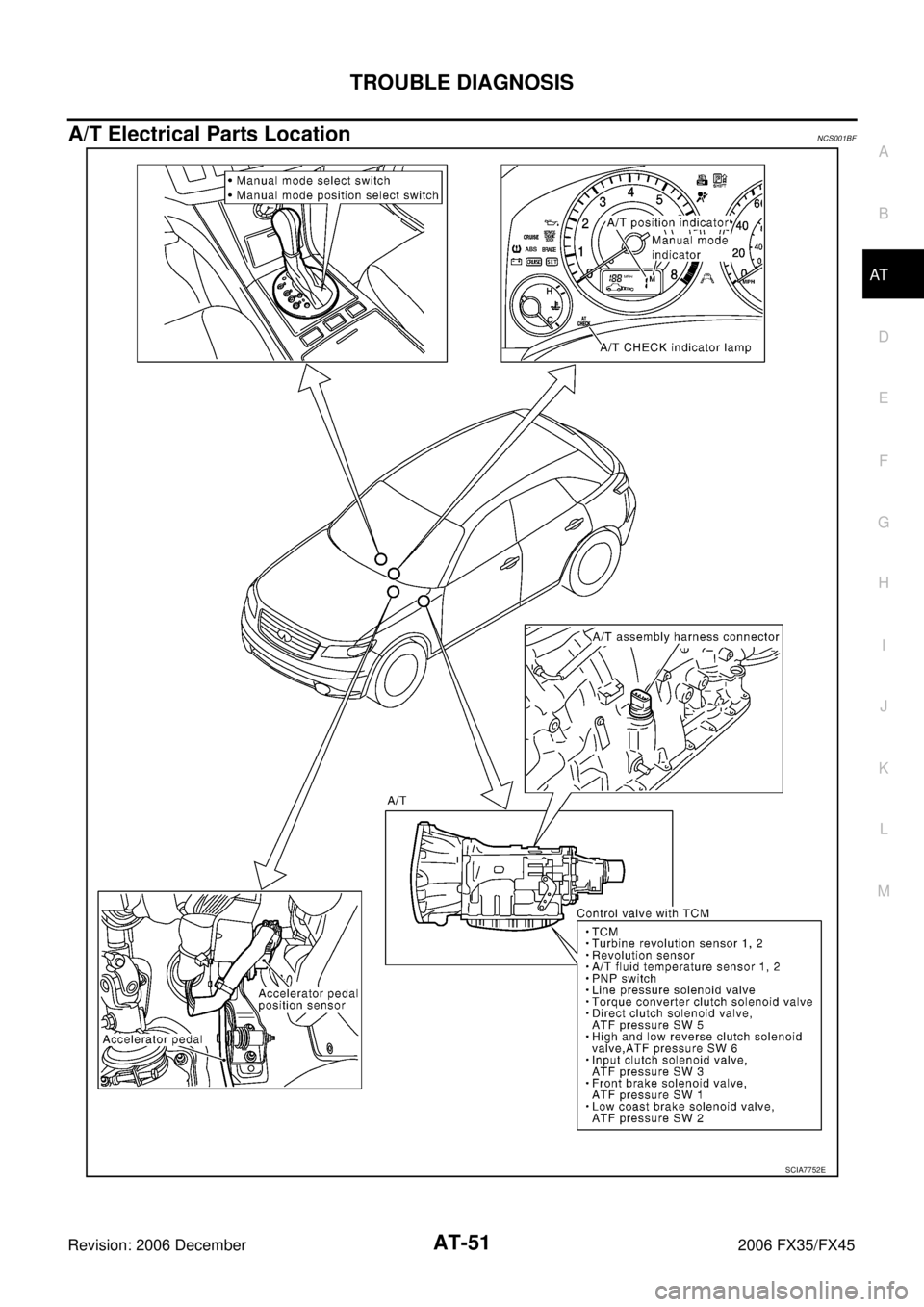

A/T Electrical Parts LocationNCS001BF
SCIA7752E

AT-52
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
Circuit DiagramNCS001BG
TCWM0495E

TROUBLE DIAGNOSIS AT-53
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 December 2006 FX35/FX45
Inspections Before Trouble DiagnosisNCS001BH
A/T CHECK
A/T Fluid Leakage and A/T Fluid Level Check
Check for A/T fluid leakage and check the A/T fluid level. Refer to AT- 1 3 , "Checking A/T Fluid" .
A/T Fluid Condition Check
Inspect the A/T fluid condition.
STALL TEST
Stall Test Procedure
1. Inspect the amount of engine oil. Replenish the engine oil if necessary.
2. Drive for about 10 minutes to warm up the vehicle so that the A/ T fluid temperature is 50 to 80 °C (122 to 176 °F). Check the
amount of ATF. Replenish if necessary.
3. Securely engage the parking brake so that the tires do not turn.
4. Start engine, apply foot brake, and place selector lever in “D” position.
5. While holding down the foot brake, gradually press down the accelerator pedal.
6. Quickly read off the stall speed, then quickly remove your foot from the accelerator pedal.
CAUTION:
Do not hold down the accelerator pedal for more than 5 sec-
onds during this test.
7. Move the selector lever to the “N” position.
Fluid condition Conceivable Cause Required Operation
Varnished (viscous
varnish state) Clutch, brake
scorched Replace the ATF and check the A/T
main unit and the vehicle for mal-
functions (wire harnesses, cooler
pipes, etc.)
Milky white or
cloudy Water in the fluid
Replace the ATF and check for
places where water is getting in.
Large amount of
metal powder mixed
in Unusual wear of
sliding parts within
A/T Replace the ATF and check for
improper operation of the A/T.
SAT638A
SAT647B
SCIA7463E
Stall speed
VQ35DE engine : 2,650 - 2,950 rpm
VK45DE engine : 2,260 - 2,560 rpm
SAT514G

AT-54
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
8. Cool down the ATF. CAUTION:
Run the engine at idle for at least 1 minute.
9. Repeat steps 5 through 8 with selector lever in “R” position.
Judgement of Stall Test
O: Stall speed within standard value position
H: Stall speed higher than standard value
L: Stall speed lower than standard value
Stall test standard value position
LINE PRESSURE TEST
Line Pressure Test Port
Line Pressure Test Procedure
1. Inspect the amount of engine oil and replenish if necessary.
2. Drive the car for about 10 minutes to warm it up so that the ATF reaches in range of 50 to 80 °C (122 to
176 °F), then inspect the amount of ATF and replenish if necessary.
NOTE:
The A/T fluid temperature rises in range of 50 to 80 °C (122 to 176 °F) during 10 minutes of driving.
3. Remove the front propeller shaft from vehicle (with AWD models). Refer to PR-5, "
Removal and Installa-
tion" .
Selector lever position
Expected problem location
“D”, “M” “R”
Stall speed HO

Forward brake

Forward one-way clutch

1st one-way clutch

3rd one-way clutch
OH

Reverse brake
LL

Engine and torque converter one-way clutch
HH

Line pressure low
Does not shift-up “D” or “M” position 1 → 2 Slipping in 2nd, 3rd or 4th gear Direct clutch slippage
Does not shift-up “D” or “M” position 2 → 3 Slipping in 3rd, 4th or 5th gear High and low reverse clutch slippage
Does not shift-up “D” or “M” position 3 → 4 Slipping in 4th or 5th gear Input clutch slippage
Does not shift-up “D” or “M” position 4 → 5 Slipping in 5th gear Front brake slippage
SCIA2187E

TROUBLE DIAGNOSIS AT-55
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 December 2006 FX35/FX45
4. After warming up remove the oil pressure detection plug and install the oil pressure gauge [ST2505S001(J-34301-C)].
CAUTION:
When using the oil pressure gauge, be sure to use the O-
ring attached to the oil pressure detection plug.
5. Securely engage the parking brake so that the tires do not turn.
6. Start the engine, then measure the line pressure at both idle and the stall speed.
CAUTION:

Keep the brake pedal pressed all the way down during
measurement.

When measuring the line pressure at the stall speed,
refer to AT- 5 3 , "
STALL TEST" .
7. After the measurements are complete, install the oil pressure detection plug and tighten to the specified torque.
CAUTION:

Do not reuse the O-ring.

Apply ATF to the O-ring.
Line Pressure
SCIA5309E
SCIA7463E
:7.3 N·m (0.74 kg-m, 65 in-lb)SAT493G
Engine speed Line pressure kPa (kg/cm2 , psi)
“R” position “D”, “M” positions
At idle speed 425 - 465 (4.3 - 4.7, 62 - 67) 379 - 428 (3.9 - 4.4, 55 - 62)
At stall speed 1,605 - 1,950 (16.4 - 19.9, 233 - 283) 1,310 - 1,500 (13.4 - 15.3, 190 - 218)

AT-56
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
Judgement of Line Pressure Test
ROAD TEST
Description

The road test checks overall performance of the A/T and analyzes possible malfunction causes.

The road test is carried out in the following three stages.
1. Check before engine is started. Refer to AT- 5 7
.
2. Check at idle. Refer to AT- 5 7
.
3. Cruise test

Inspect all the items from Part 1 to Part 3. Refer to AT- 5 8 , AT- 6 0 , AT- 6 1 .

Before beginning the road test, check the test procedure and inspection items.

Test all inspection items until the symptom is uncovered. Diagnose NG items when all road tests are com-
plete.
Judgement Possible cause
Idle speed Low for all positions
(“P”, “R”, “N”, “D”,
“M”) Possible causes include malfunctions in the pressure supply system and low oil pump output.
For example

Oil pump wear

Pressure regulator valve or plug sticking or spring fatigue

Oil strainer
oil pump
pressure regulator valve passage oil leak

Engine idle speed too low
Only low for a spe-
cific position Possible causes include an oil pressure leak in a passage or device related to the position after
the pressure is distributed by the manual valve.
High Possible causes include a sensor malfunction or malfunction in the line pressure adjustment func-
tion.
For example

Accelerator pedal position signal malfunction

ATF temperature sensor malfunction

Line pressure solenoid malfunction (sticking in OFF state, filter clog, cut line)

Pressure regulator valve or plug sticking
Stall speed Line pressure does
not rise higher than
the line pressure for
idle. Possible causes include a sensor malfunction or malfunction in the pressure adjustment function.
For example

Accelerator pedal position signal malfunction

TCM breakdown

Line pressure solenoid malfunction (shorting, sticking in ON state)

Pressure regulator valve or plug sticking

Pilot valve sticking or pilot filter clogged
The pressure rises,
but does not enter
the standard posi-
tion. Possible causes include malfunctions in the pressure supply system and malfunction in the pres-
sure adjustment function.
For example

Accelerator pedal position signal malfunction

Line pressure solenoid malfunction (sticking, filter clog)

Pressure regulator valve or plug sticking

Pilot valve sticking or pilot filter clogged
Only low for a spe-
cific position Possible causes include an oil pressure leak in a passage or device related to the position after
the pressure is distributed by the manual valve.
