Camshaft Cam Height

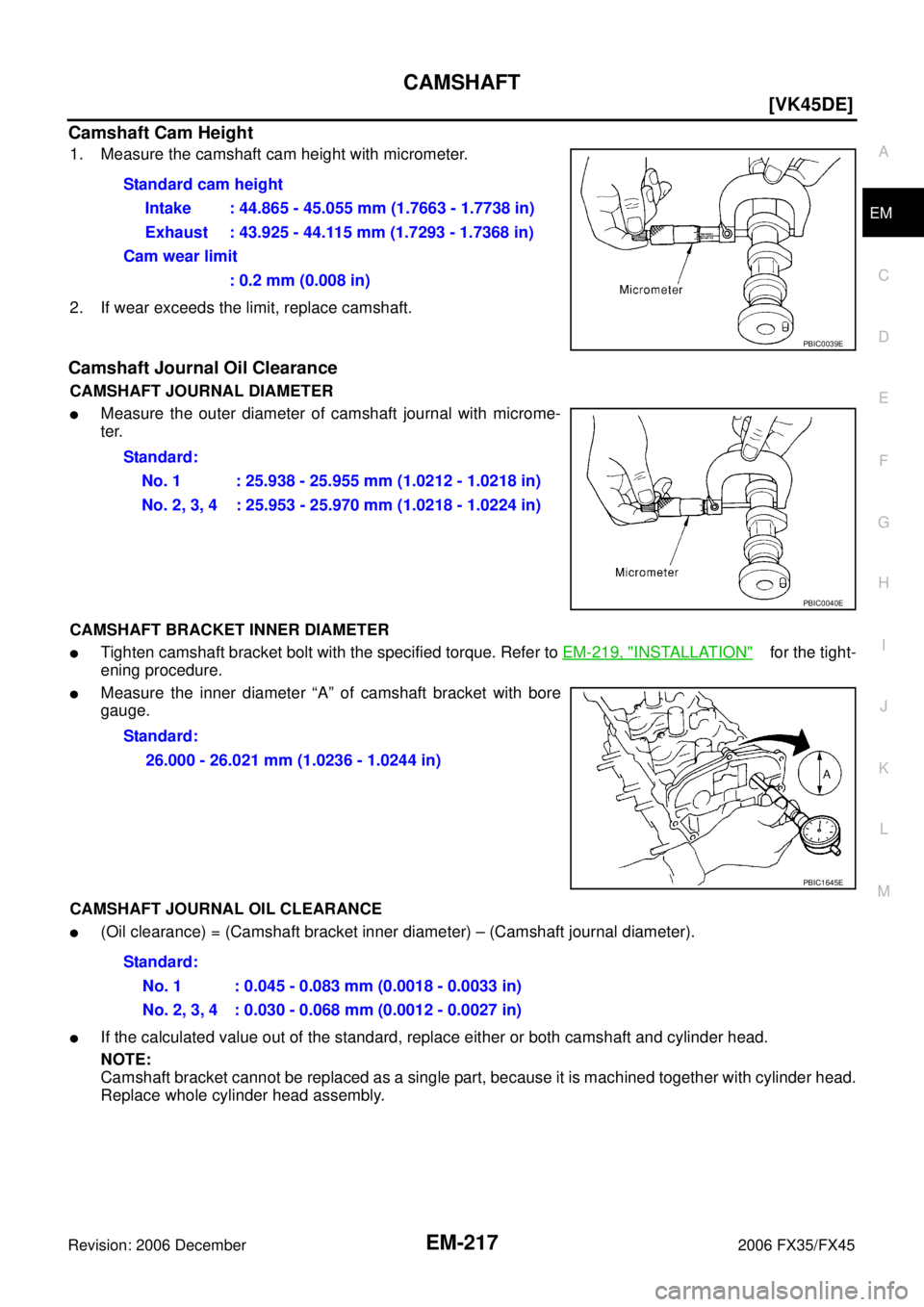

1. Measure the camshaft cam height with micrometer.
2. If wear exceeds the limit, replace camshaft.
Camshaft Journal Oil Clearance
CAMSHAFT JOURNAL DIAMETER

Measure the outer diameter of camshaft journal with microme-
ter.
CAMSHAFT BRACKET INNER DIAMETER

Tighten camshaft bracket bolt with the specified torque. Refer to EM-219, "INSTALLATION" for the tight-
ening procedure.

Measure the inner diameter “A” of camshaft bracket with bore
gauge.
CAMSHAFT JOURNAL OIL CLEARANCE

(Oil clearance) = (Camshaft bracket inner diameter) – (Camshaft journal diameter).

If the calculated value out of the standard, replace either or both camshaft and cylinder head.
NOTE:
Camshaft bracket cannot be replaced as a single part, because it is machined together with cylinder head.
Replace whole cylinder head assembly. Standard cam height
Intake : 44.865 - 45.055 mm (1.7663 - 1.7738 in)
Exhaust : 43.925 - 44.115 mm (1.7293 - 1.7368 in)
Cam wear limit : 0.2 mm (0.008 in)
PBIC0039E
Standard:No. 1 : 25.938 - 25.955 mm (1.0212 - 1.0218 in)
No. 2, 3, 4 : 25.953 - 25.970 mm (1.0218 - 1.0224 in)
PBIC0040E
Standard: 26.000 - 26.021 mm (1.0236 - 1.0244 in)
PBIC1645E
Standard:No. 1 : 0.045 - 0.083 mm (0.0018 - 0.0033 in)
No. 2, 3, 4 : 0.030 - 0.068 mm (0.0012 - 0.0027 in)

EM-218
[VK45DE]
CAMSHAFT
Revision: 2006 December 2006 FX35/FX45
Camshaft End Play

Install dial indicator in thrust direction on front end of camshaft.
Measure the end play of dial indicator when camshaft is moved
forward/backward (in direction to axis).

Measure the following parts if out of the limit.
–Dimension “A” for camshaft No. 1 journal
–Dimension “B” for cylinder head No. 1 journal bearing

Refer to the standards above, and then replace camshaft and/or
cylinder head.
Camshaft Sprocket Runout
1. Put V-block on precise flat table, and support No. 2 and 5 journal of camshaft.
CAUTION:
Do not support journal No. 1 (on the side of camshaft sprocket) because it has a different diameter
from the other four locations.
2. Measure the camshaft sprocket runout with dial indicator. (Total indicator reading)

If it exceeds the limit, replace camshaft sprocket.
Valve Lifter and Adjusting Shim
Check if surface of valve lifter and adjusting shim has any wear or
cracks.

If anything above is found, replace valve lifter.

When replacing adjusting shim, refer to EM-224, "ADJUST-
MENT" .
Standard:
0.115 - 0.188 mm (0.0045 - 0.0074 in)
PBIC2446E
Standard : 30.500 - 30.548 mm (1.2008 - 1.2027 in)
Standard : 30.360 - 30.385 mm (1.1953 - 1.1963 in)
KBIA2426J
Limit : 0.15 mm (0.0059 in)
PBIC0930E
PBIC0231E

CAMSHAFT EM-219
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 December 2006 FX35/FX45
Valve Lifter Clearance

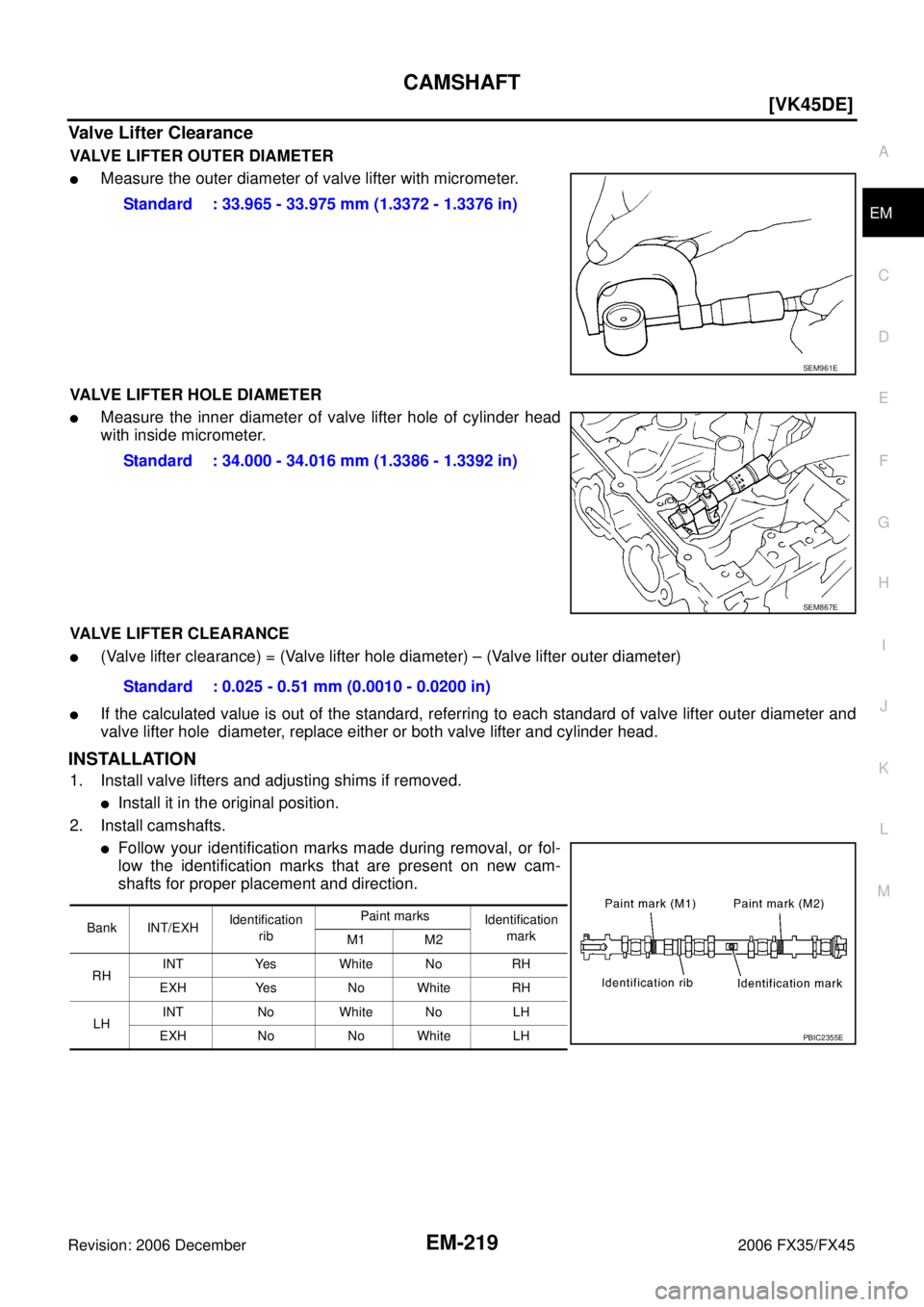

VALVE LIFTER OUTER DIAMETER

Measure the outer diameter of valve lifter with micrometer.
VALVE LIFTER HOLE DIAMETER

Measure the inner diameter of valve lifter hole of cylinder head
with inside micrometer.
VALVE LIFTER CLEARANCE

(Valve lifter clearance) = (Valve lifter hole diameter) – (Valve lifter outer diameter)

If the calculated value is out of the standard, referring to each standard of valve lifter outer diameter and
valve lifter hole diameter, replace either or both valve lifter and cylinder head.
INSTALLATION
1. Install valve lifters and adjusting shims if removed.

Install it in the original position.
2. Install camshafts.

Follow your identification marks made during removal, or fol-
low the identification marks that are present on new cam-
shafts for proper placement and direction. Standard : 33.965 - 33.975 mm (1.3372 - 1.3376 in)
SEM961E
Standard : 34.000 - 34.016 mm (1.3386 - 1.3392 in)
SEM867E
Standard : 0.025 - 0.51 mm (0.0010 - 0.0200 in)
Bank INT/EXH
Identification
rib Paint marks
Identification
mark
M1 M2
RH INT Yes White No RH
EXH Yes No White RH
LH INT No White No LH
EXH No No White LH
PBIC2355E

EM-220
[VK45DE]
CAMSHAFT
Revision: 2006 December 2006 FX35/FX45

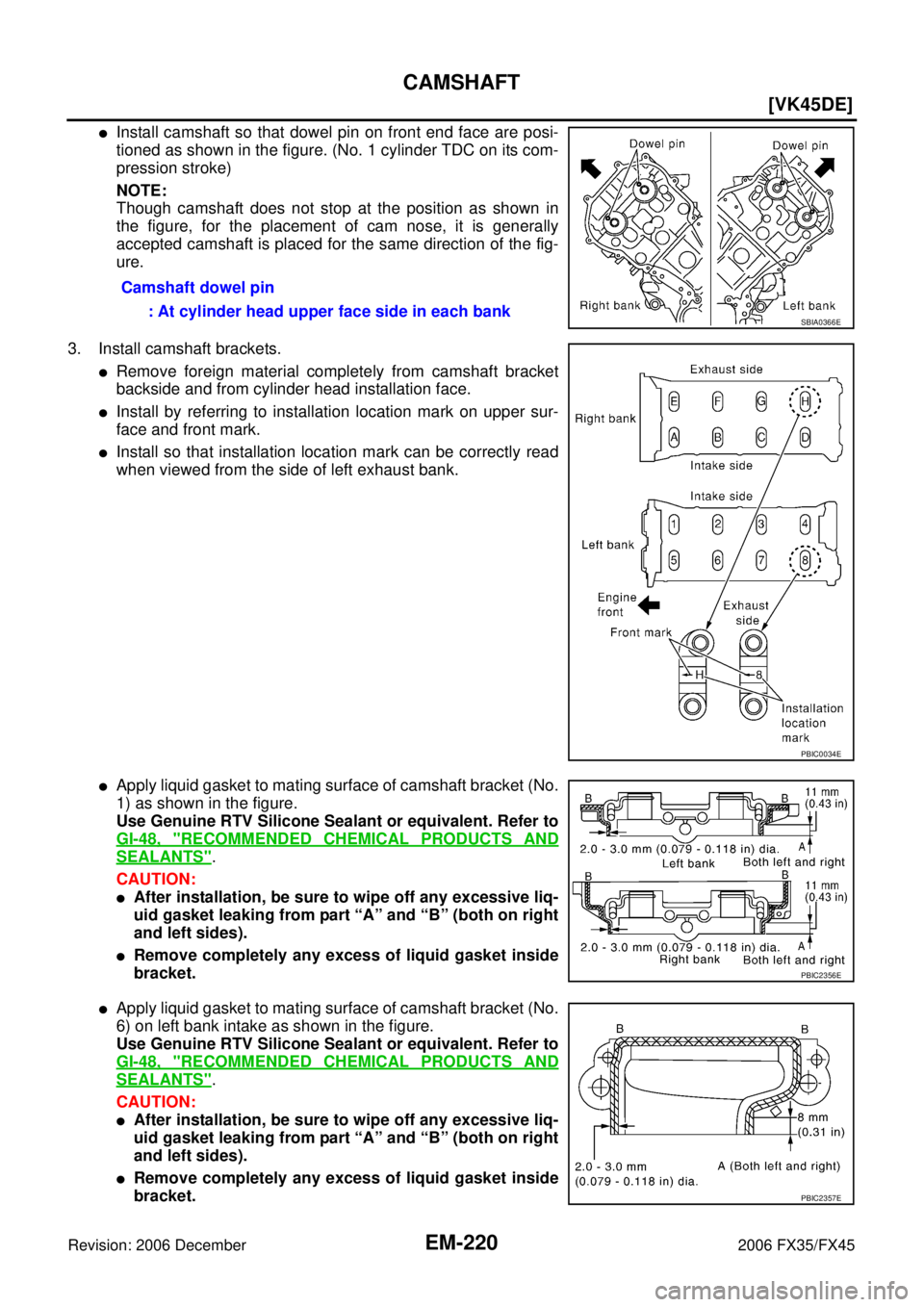

Install camshaft so that dowel pin on front end face are posi-
tioned as shown in the figure. (No. 1 cylinder TDC on its com-
pression stroke)
NOTE:
Though camshaft does not stop at the position as shown in
the figure, for the placement of cam nose, it is generally
accepted camshaft is placed for the same direction of the fig-
ure.
3. Install camshaft brackets.

Remove foreign material completely from camshaft bracket
backside and from cylinder head installation face.

Install by referring to installation location mark on upper sur-
face and front mark.

Install so that installation location mark can be correctly read
when viewed from the side of left exhaust bank.

Apply liquid gasket to mating surface of camshaft bracket (No.
1) as shown in the figure.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS".
CAUTION:

After installation, be sure to wipe off any excessive liq-
uid gasket leaking from part “A” and “B” (both on right
and left sides).

Remove completely any excess of liquid gasket inside
bracket.

Apply liquid gasket to mating surface of camshaft bracket (No.
6) on left bank intake as shown in the figure.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS".
CAUTION:

After installation, be sure to wipe off any excessive liq-
uid gasket leaking from part “A” and “B” (both on right
and left sides).

Remove completely any excess of liquid gasket inside
bracket.
Camshaft dowel pin
: At cylinder head upper face side in each bank
SBIA0366E
PBIC0034E
PBIC2356E
PBIC2357E

CAMSHAFT EM-221
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 December 2006 FX35/FX45
4. Tighten camshaft bracket bolts in the following steps, in numeri- cal order as shown in the figure.
a. Tighten No. 9 to 12 in numerical order as shown.
b. Tighten No. 1 to 8 in numerical order as shown.
c. Tighten No. 13 to 14 in numerical order as shown. (Left bank only)
d. Tighten all bolts in numerical order as shown.
e. Tighten No. 1 to 12 in numerical order as shown.
f. Tighten No. 13 to 14 in numerical order as shown. (Left bank only)
CAUTION:
After tightening mounting bolts of camshaft brackets, be sure to wipe off excessive liquid gasket
from the parts listed below.

Mating surface of rocker cover

Mating surface of front cover
5. Install camshaft sprockets.

Install by checking with identification mark on surface.

Install camshaft sprocket (EXH) by selectively using the
groove of dowel pin according to the bank. (Common part
used for both banks.)

Lock the hexagonal part of camshaft in the same way as for
removal, and tighten mounting bolts.
6. Check and adjust the valve clearance. Refer to EM-222, "
Valve Clearance" .
7. Install in the reverse order of removal after this step.
INSPECTION AFTER INSTALLATION
Inspection of Camshaft Sprocket (INT) Oil Groove
CAUTION:

Perform this inspection only when DTC P0011 and/or P0021 are detected in self-diagnostic results
of CONSULT-II and it is directed according to inspection procedure of EC section. Refer to EC-748,
"TROUBLE DIAGNOSIS" .

Check when the engine is cold so as to prevent burns from any splashing engine oil.
1. Check the engine oil level. Refer to LU-25, "
ENGINE OIL" .
2. Perform the following procedure so as to prevent the engine from being unintentionally started while checking.
a. Release fuel pressure. Refer to EC-746, "
FUEL PRESSURE RELEASE" .
b. Disconnect ignition coil and injector harness connectors.
3. Remove intake valve timing control solenoid valve. Refer to EM-203, "
TIMING CHAIN" .
: 1.96 N·m (0.2 kg-m, 1 ft-lb)
: 1.96 N·m (0.2 kg-m, 1 ft-lb)
: 1.96 N·m (0.2 kg-m, 1 ft-lb)
: 5.88 N·m (0.6 kg-m, 4 ft-lb)
: 10.41 N·m (1.1 kg-m, 8 ft-lb)
: 31.35 N·m (3.2 kg-m, 23 ft-lb)
PBIC0031E
PBIC2345E

EM-222
[VK45DE]
CAMSHAFT
Revision: 2006 December 2006 FX35/FX45
4. Crank the engine, and then make sure that engine oil comes out from intake valve timing control cover oil hole. End crank after
checking.
WARNING:
Be careful not to touch rotating parts (drive belt, idler pul-
ley, and crankshaft pulley, etc.).
CAUTION:
Engine oil may squirt from intake valve timing control sole-
noid valve installation hole during cranking. Use a shop
cloth to prevent the engine components and the vehicle. Do
not allow engine oil to get on rubber components such as
drive belt or engine mount insulators. Immediately wipe off
any splashed engine oil.

Clean oil groove between oil strainer and intake valve timing control solenoid valve if engine oil does not
come out from intake valve timing control cover oil hole. Refer to LU-23, "
LUBRICATION SYSTEM" .
5. Remove components between intake valve timing control solenoid valve and camshaft sprocket (INT), and then check each oil groove for clogging.

Clean oil groove if necessary. Refer to LU-23, "LUBRICATION SYSTEM" .
6. After inspection, install removed parts.
Valve ClearanceNBS003IF
INSPECTION
In cases of removing/installing or replacing camshaft and valve-related parts, or of unusual engine conditions
due to changes in valve clearance (found malfunctions during starting, idling or causing noise), perform
inspection as follows:
1. Remove rocker covers (right and left bank). Refer to EM-200, "
ROCKER COVER" .
2. Measure the valve clearance as follows:
a. Set No. 1 cylinder at TDC of its compression stroke.

Rotate crankshaft pulley in clockwise to align TDC identifica-
tion notch (without paint mark) with timing indicator on front
cover.

Make sure that both intake and exhaust cam noses of No. 1
cylinder (engine front side of left bank) are located as shown
in the figure.

If not, turn crankshaft one revolution (360 degrees) and align
as shown in the figure.
PBIC2848E
PBIC2341E
KBIA0400J

CAMSHAFT EM-223
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 December 2006 FX35/FX45
b. Use feeler gauge, measure the clearance between valve lifter and camshaft.
Valve clearance:
Unit: mm (in)
*:Approximately 80 °C (176 °F)

By referring to the figure, measure the valve clearances at
locations marked “ ×” as shown in the table below (locations
indicated with black arrow in figure).
NOTE:
Firing order 1-8-7-3-6-5-4-2

No.1 cylinder at compression TDC
c. Rotate crankshaft pulley clockwise (when view from engine front) by 270 degrees from the position of No. 1 cylinder com-
pression TDC to align No. 3 cylinder at TDC of its compression
stroke.
NOTE:
Crankshaft pulley mounting bolt flange has a angle mark every
90 degrees. They can be used as a guide to rotation angle.
SEM139D
Cold Hot * (reference data)
Intake 0.26 - 0.34 (0.010 - 0.013) 0.304 - 0.416 (0.012 - 0.016)
Exhaust 0.29 - 0.37 (0.011 - 0.015) 0.308 - 0.432 (0.012 - 0.017)
Measuring position (right bank) No. 2
CYL. No. 4
CYL. No. 6
CYL. No. 8
CYL.
No. 1 cylinder at
compression TDC EXH
×
INT ××
Measuring position (left bank) No. 1
CYL. No. 3
CYL. No. 5
CYL. No. 7
CYL.
No. 1 cylinder at
compression TDC INT
××
EXH ××
PBIC2358E
PBIC2346E

EM-224
[VK45DE]
CAMSHAFT
Revision: 2006 December 2006 FX35/FX45

By referring to the figure, measure the valve clearances at
locations marked “ ×” as shown in the table below (locations
indicated with white arrow in figure)

No. 3 cylinder at compression TDC
d. Rotate crankshaft pulley clockwise (when view from engine front) by 90 degrees from the position of No. 3 cylinder compres-
sion TDC to align No. 6 cylinder at TDC of its compression
stroke.

By referring to the figure, measure the valve clearances at
locations marked “ ×” as shown in the table below.

No. 6 cylinder at compression TDC
3. For the measured value are out of the standard, perform adjustment. Refer to EM-224, "
ADJUSTMENT" .
ADJUSTMENT
NOTE:
Adjust valve clearance while engine is cold.
1. Thoroughly wipe off engine oil around adjusting shim using rag.
2. Rotate crankshaft to position cam nose on camshaft of valve that must be adjusted upward.
Measuring position (right bank) No. 2
CYL. No. 4
CYL. No. 6
CYL. No. 8
CYL.
No. 3 cylinder at
compression TDC EXH
×
INT ×
Measuring position (left bank) No. 1
CYL. No. 3
CYL. No. 5
CYL. No. 7
CYL.
No. 3 cylinder at
compression TDC INT
××
EXH ××
PBIC2358E
PBIC2346E
Measuring position (right bank) No. 2
CYL. No. 4
CYL. No. 6
CYL. No. 8
CYL.
No. 6 cylinder at
compression TDC EXH
× ×
INT ×
PBIC0824E

CAMSHAFT EM-225
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 December 2006 FX35/FX45
3. Using small screwdriver, turn the round hole of adjusting shim in the direction of the arrow.
CAUTION:
perform (the above procedure) during camshaft do not con-
tact with adjusting shim.

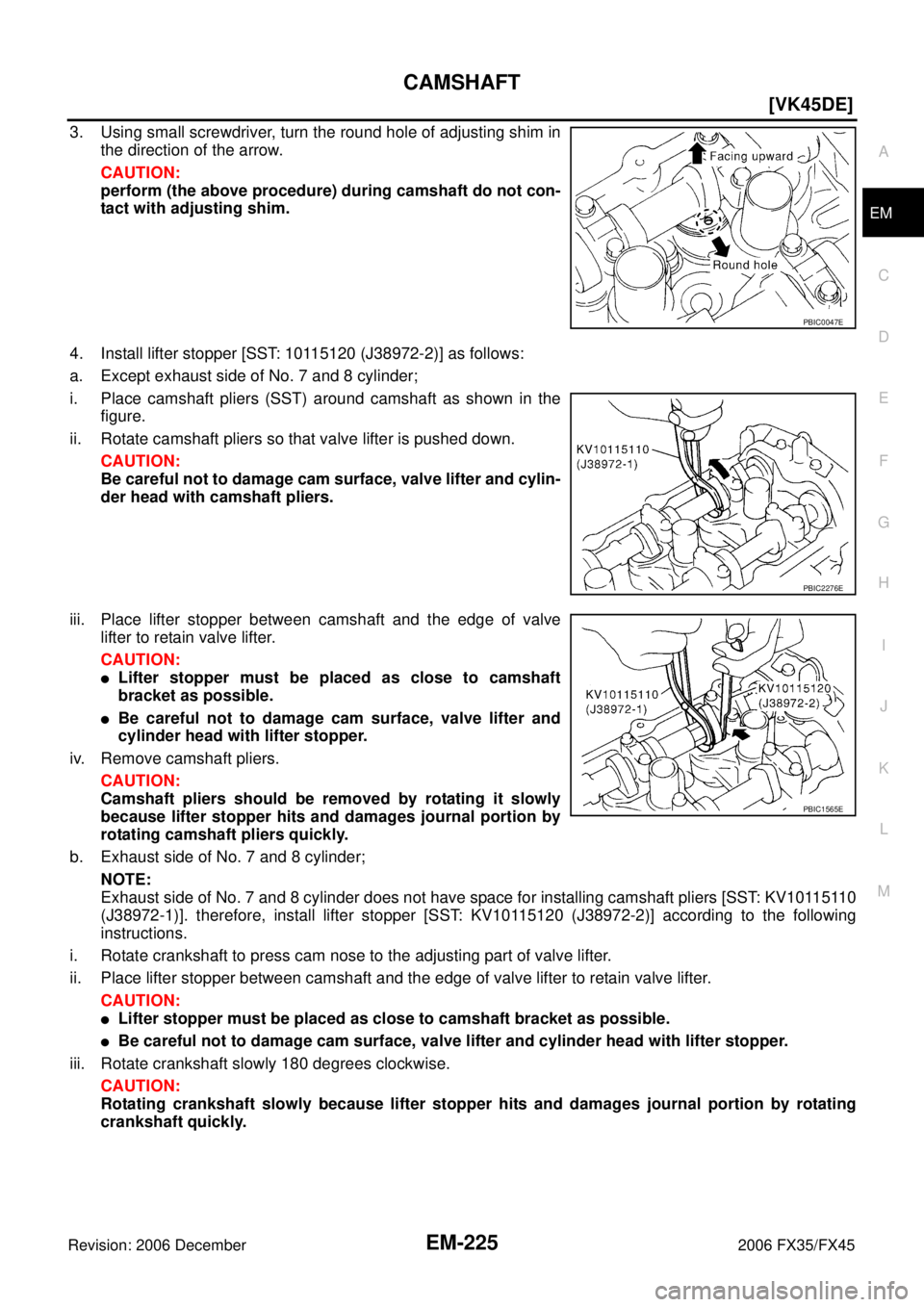

4. Install lifter stopper [SST: 10115120 (J38972-2)] as follows:
a. Except exhaust side of No. 7 and 8 cylinder;
i. Place camshaft pliers (SST) around camshaft as shown in the figure.
ii. Rotate camshaft pliers so that valve lifter is pushed down. CAUTION:
Be careful not to damage cam surface, valve lifter and cylin-
der head with camshaft pliers.
iii. Place lifter stopper between camshaft and the edge of valve lifter to retain valve lifter.
CAUTION:

Lifter stopper must be placed as close to camshaft
bracket as possible.

Be careful not to damage cam surface, valve lifter and
cylinder head with lifter stopper.
iv. Remove camshaft pliers. CAUTION:
Camshaft pliers should be removed by rotating it slowly
because lifter stopper hits and damages journal portion by
rotating camshaft pliers quickly.
b. Exhaust side of No. 7 and 8 cylinder;
NOTE:
Exhaust side of No. 7 and 8 cylinder does not have space for installing camshaft pliers [SST: KV10115110
(J38972-1)]. therefore, install lifter stopper [SST: KV10115120 (J38972-2)] according to the following
instructions.
i. Rotate crankshaft to press cam nose to the adjusting part of valve lifter.
ii. Place lifter stopper between camshaft and the edge of valve lifter to retain valve lifter.
CAUTION:

Lifter stopper must be placed as close to camshaft bracket as possible.

Be careful not to damage cam surface, valve lifter and cylinder head with lifter stopper.
iii. Rotate crankshaft slowly 180 degrees clockwise. CAUTION:
Rotating crankshaft slowly because lifter stopper hits and damages journal portion by rotating
crankshaft quickly.
PBIC0047E
PBIC2276E
PBIC1565E

EM-226
[VK45DE]
CAMSHAFT
Revision: 2006 December 2006 FX35/FX45

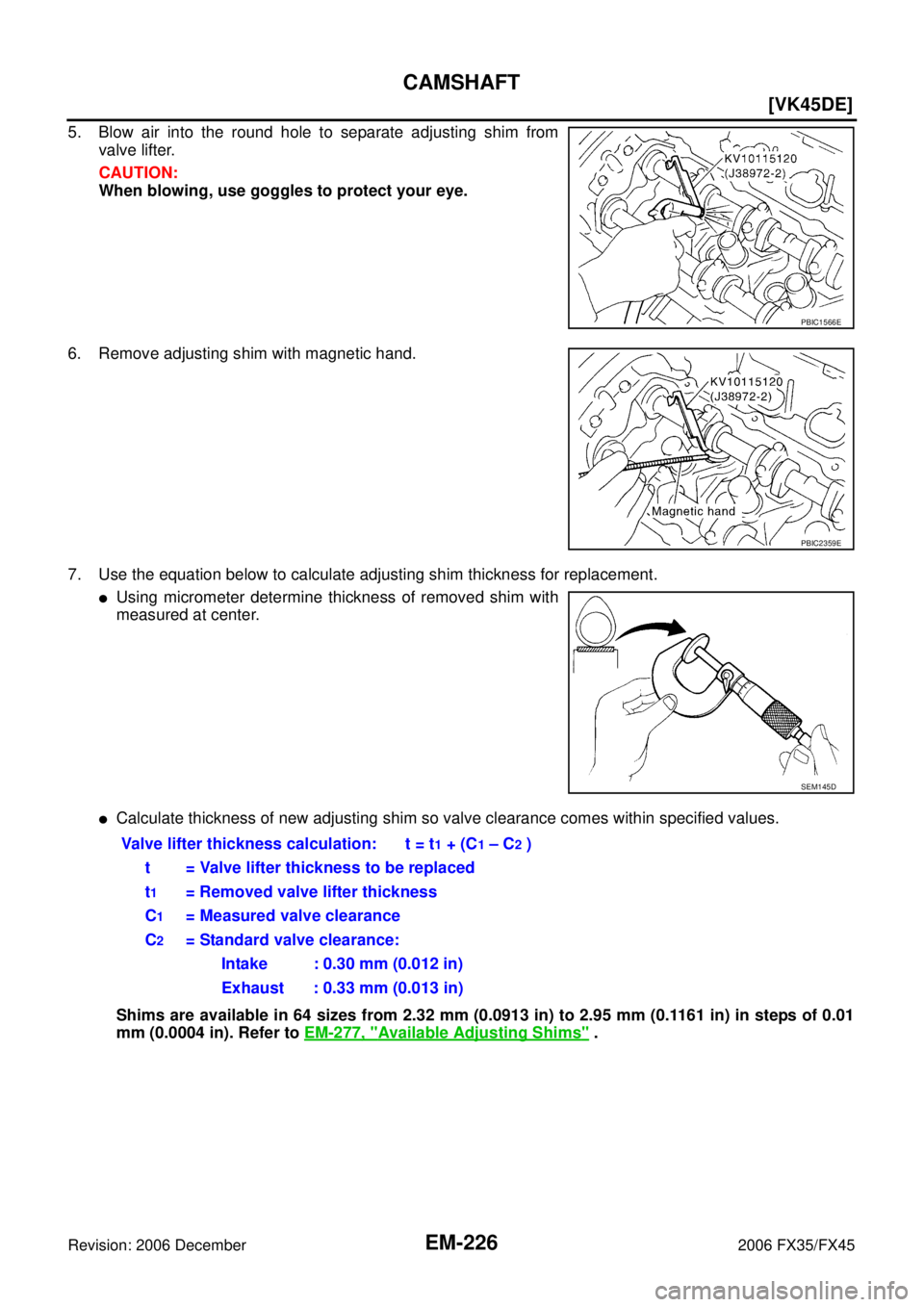

5. Blow air into the round hole to separate adjusting shim from valve lifter.
CAUTION:
When blowing, use goggles to protect your eye.
6. Remove adjusting shim with magnetic hand.
7. Use the equation below to calculate adjusting shim thickness for replacement.

Using micrometer determine thickness of removed shim with
measured at center.

Calculate thickness of new adjusting shim so valve clearance comes within specified values.
Shims are available in 64 sizes from 2.32 mm (0.0913 in) to 2.95 mm (0.1161 in) in steps of 0.01
mm (0.0004 in). Refer to EM-277, "
Available Adjusting Shims" .
PBIC1566E
PBIC2359E
SEM145D
Valve lifter thickness calculation: t = t1 + (C1 – C2 )
t = Valve lifter thickness to be replaced
t
1 = Removed valve lifter thickness
C
1= Measured valve clearance
C
2= Standard valve clearance: Intake : 0.30 mm (0.012 in)
Exhaust : 0.33 mm (0.013 in)
