INFINITI FX35 2006 Service Manual

PARKING, LICENSE PLATE AND TAIL LAMPS LT-149
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 December 2006 FX35/FX45

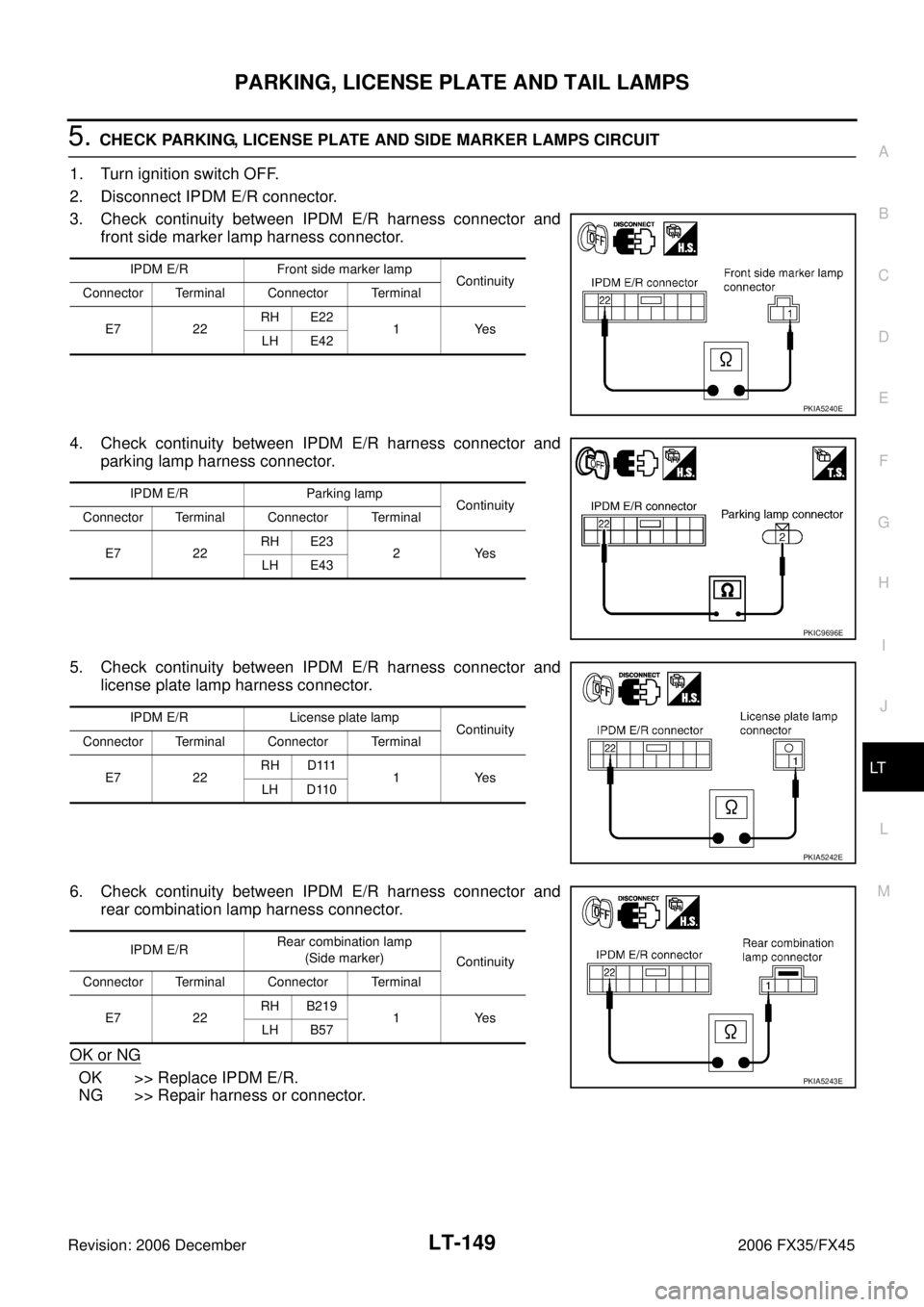

5. CHECK PARKING, LICENSE PLATE AND SIDE MARKER LAMPS CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector.
3. Check continuity between IPDM E/R harness connector and front side marker lamp harness connector.
4. Check continuity between IPDM E/R harness connector and parking lamp harness connector.
5. Check continuity between IPDM E/R harness connector and license plate lamp harness connector.
6. Check continuity between IPDM E/R harness connector and rear combination lamp harness connector.
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness or connector.
IPDM E/R Front side marker lamp Continuity
Connector Terminal Connector Terminal
E7 22 RH E22
1Yes
LH E42
PKIA5240E
IPDM E/R Parking lamp Continuity
Connector Terminal Connector Terminal
E7 22 RH E23
2Yes
LH E43
PKIC9696E
IPDM E/R License plate lamp Continuity
Connector Terminal Connector Terminal
E7 22 RH D111
1Yes
LH D110
PKIA5242E
IPDM E/R Rear combination lamp
(Side marker) Continuity
Connector Terminal Connector Terminal
E7 22 RH B219
1Yes
LH B57
PKIA5243E

LT-150
PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: 2006 December 2006 FX35/FX45
6. CHECK GROUND
1. Turn ignition switch OFF.
2. Check continuity between front side maker lamp harness con- nector and ground.
3. Check continuity between parking lamp harness connector and ground.
4. Check continuity between license plate lamp harness connector and ground.
5. Check continuity between rear combination lamp harness con- nector and ground.
OK or NG
OK >> Check bulb.
NG >> Repair harness or connector.
Front side marker
lamp connector Terminal
Ground Continuity
RH E22 2Yes
LH E42
PKIA5244E
Parking lamp con-
nector Terminal
Ground Continuity
RH E23 3Yes
LH E43
PKIC9688E
License plate lamp
connector Te r m i n a l
Ground Continuity
RH D111 2Yes
LH D110
PKIA5246E
Rear combination
lamp (Side marker) connector Terminal
Ground Continuity
RH B219 2Yes
LH B57
PKIA5247E

PARKING, LICENSE PLATE AND TAIL LAMPS LT-151
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 December 2006 FX35/FX45
Tail Lamp Does Not OperateNKS003HC
1. CHECK STOP LAMP AND TURN SIGNAL LAMP
Make sure stop lamps and turn signal lamps is illuminated.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2. CHECK INPUT SIGNAL
Check voltage between rear combination lamp control unit harness
connector B65 terminal 2 and ground.
OK or NG
OK >> Replace rear combination lamp control unit.
NG >> Repair harness or connector.
3. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Check voltage between rear combination lamp control unit har- ness connector B65 terminal 1 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK GROUND CIRCUIT
1. Disconnect rear combination lamp control unit connector.
2. Check continuity between rear combination lamp control unit harness connector B65 terminal 7 and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
(+)
(-) Condition Voltage
Rear com-
bination
lamp con-
trol unit
connector Terminal
B65 2 Ground Lighting switch 1ST
position is ON Battery voltage
Lighting switch 1ST position is OFF Approx. 0 V
PKIA5248E
1 – Ground : Battery voltage.
PKIB3526E
7 – Ground : Continuity should exist.
SKIA5908E

LT-152
PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: 2006 December 2006 FX35/FX45
5. CHECK REAR COMBINATION LAMPS CIRCUIT
1. Disconnect rear combination lamp RH and LH connectors.
2. Check continuity between rear combination lamp control unit harness connector B65 terminal 11 and rear combination lamp
LH harness connector B57 terminal 3.
3. Check continuity between rear combination lamp control unit harness connector B65 terminal 10 and rear combination lamp
LH harness connector B57 terminal 4.
4. Check continuity between rear combination lamp control unit harness connector B65 terminal 9 and rear combination lamp RH harness connector B219 terminal 3.
5. Check continuity between rear combination lamp control unit harness connector B65 terminal 8 and rear combination lamp RH harness connector B219 terminal 4.
OK or NG
OK >> Replace rear combination lamp control unit or rear combination lamp, and then check if turn signal lamps is illuminated.
NG >> Repair harness or connector.
Parking, License Plate, Side Maker and Tail Lamps Do Not Turn OFF (After
Approx. 10 Minutes)
NKS003HD
1. CHECK IPDM E/R
1. Turn ignition switch ON. Turn combination switch (lighting switch) to the OFF position. Turn ignition switch OFF.
2. Verify that parking, license plate, and tail lamps turn on and off after approximately 10 minutes.
OK or NG
OK >> Ignition relay malfunction. Refer to PG-18, "Function of Detecting Ignition Relay Malfunction" .
NG >> INSPECTION END
License Plate LampNKS003HE
BULB REPLACEMENT, REMOVAL AND INSTALLATION
1. Remove screws and remove license plate lamp from back door.
2. Disconnect license plate lamp connector. 11 – 3 : Continuity should exist.
10 – 4 : Continuity should exist.
9 – 3 : Continuity should exist.
8 – 4 : Continuity should exist.
SKIA5910E
SKIA5567E

PARKING, LICENSE PLATE AND TAIL LAMPS LT-153
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 December 2006 FX35/FX45
3. Insert a flat head or suitable tool and remove housing.
4. Remove bulb from it's socket.
5. Installation is the reverse order of removal.
Front Parking LampNKS003HF
BULB REPLACEMENT
For bulb replacement, refer to LT- 3 5 , "Bulb Replacement" .
REMOVAL AND INSTALLATION
For front parking lamp removal and installation procedures, refer to LT- 3 6 , "Removal and Installation" .
Ta i l L a m pNKS003HG
BULB REPLACEMENT
For bulb replacement, refer to LT- 1 5 4 , "Bulb Replacement" .
REMOVAL AND INSTALLATION
For tail lamp removal and installation procedures, refer to LT- 1 5 4 , "Removal and Installation" .
Front Side Marker LampNKS003HH
BULB REPLACEMENT
For bulb replacement, refer to LT- 3 5 , "Bulb Replacement" .
REMOVAL AND INSTALLATION
For head lamp removal and installation procedures, refer to LT- 3 6 , "Removal and Installation" .
Rear Side Marker LampNKS003HI
BULB REPLACEMENT
For bulb replacement, refer to LT- 1 5 4 , "Bulb Replacement" .
REMOVAL AND INSTALLATION
For rear side marker lamp removal and installation procedures, refer to LT- 1 5 4 , "Removal and Installation" .
Rear Combination Lamp Control UnitNKS003HJ
REMOVAL AND INSTALLATION
Refer to LT- 11 0 , "Removal and Installation of Rear Combination Lamp Control Unit" .
License plate lamp : 12 V - 5 W
SKIA5568E

LT-154
REAR COMBINATION LAMP
Revision: 2006 December 2006 FX35/FX45
REAR COMBINATION LAMPPFP:26554
Bulb ReplacementNKS003HK
REAR FENDER SIDE (REAR SIDE MARKER LAMP BULB)
1. Remove rear combination lamp.
2. Turn bulb socket counterclockwise and unlock it.
3. Remove bulb.
BACK DOOR SIDE (BACK-UP LAMP)
1. Remove rear combination lamp.
2. Turn bulb socket counterclockwise and unlock it.
3. Remove bulb.
Removal and InstallationNKS003HL
REMOVAL
Rear Fender Side
1. Remove bumper side cover A. Refer to EI-17, "Removal and
Installation" .
2. Disconnect rear combination lamp connector.
3. Remove rear combination lamp mounting bolts.
4. Pull rear combination lamp toward side of the vehicle and remove from the vehicle.
SKIA5569E
PKIB3634E
Stop/tail lamp and rear turn signal lamp
(rear fender side) : LED (Replace together with rear combination
lamp assembly.)
Rear side marker lamp (rear fender side) : 12 V - 3.8 W
Back-up lamp (back door side) : 12 V - 18 W
SKIA5571E

REAR COMBINATION LAMP LT-155
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 December 2006 FX35/FX45
Trunk Lid Side
1. Remove back door finisher. Refer to EI-46, "Removal and Instal-
lation" .
2. Disconnect rear combination lamp connector.
3. Remove rear combination lamp mounting nuts.
4. Remove rear combination lamp from back door.
5. Remove seal packing from back door.
INSTALLATION
Installation is the reverse order of removal.

Installation a new seal packing to the rear combination lamp.
CAUTION:
Seal packing cannot be reused.
PKIB3635E
Rear combination lamp (trunk lid side)
mounting nut : 5.5 N·m (0.56 kg-m, 49 in-lb)
Rear combination lamp (rear fender
side) mounting nut : 3.2 N·m (0.33 kg-m, 28 in-lb)

LT-156
INTERIOR ROOM LAMP
Revision: 2006 December 2006 FX35/FX45
INTERIOR ROOM LAMPPFP:26410
Component Parts and Harness Connector LocationNKS002YM
System DescriptionNKS002YN
When the room lamp and personal lamp switch is in DOOR position, room lamp and personal lamp ON/OFF is
controlled by timer according to signals from switches including key switch, front door switch driver side,
unlock signal from keyfob, door lock and unlock switch, key cylinder lock and unlock switch, ignition switch.
PKIC9697E

INTERIOR ROOM LAMP LT-157
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 December 2006 FX35/FX45
When the room lamp and personal lamp turns ON, there is a gradual brightening over 1 second. When room
lamp and personal lamp turns OFF, there is a gradual dimming over 1 second.
The room lamp and personal lamp timer is controlled by the BCM (body control module).
Room lamp and personal lamp timer control settings can be changed with CONSULT-II.
Ignition keyhole illumination turns ON at time when driver door is opened (door switch ON) or removed keyfob
from key cylinder. Illumination turns OFF when driver door is closed (door switch OFF).
Step lamp turns ON at time when driver door or passenger door is opened (door switch ON). Lamp turns OFF
when the driver, passenger doors are closed (all door switches OFF).
POWER SUPPLY AND GROUND
Power is supplied at all times (without Intelligent Key system)

through 15A fuse [No. 22, located in fuse block (J/B)]

to key switch terminal 2 and

to BCM terminal 42,

through 50A fusible link (letter M, located in fuse, fusible link and relay box)

to BCM terminal 55,

through 10A fuse [No. 19, located in fuse block (J/B)]

to combination meter terminal 8.
Power is supplied at all times (with Intelligent Key system)

through 10A fuse (No.38, located in fuse, fusible link and relay box)

to key switch and ignition knob switch terminal 1,

through 15A fuse [No.22, located in fuse block (J/B)]

to BCM terminal 42 and

to key switch and ignition knob switch terminal 3,

through 50A fusible link (letter M, located in fuse, fusible link and relay box)

to BCM terminal 55,

through 10A fuse [No. 19, located in fuse block (J/B)]

to combination meter terminal 8.
When key plate inserted to key switch, power is supplied (without Intelligent Key system)

through key switch terminal 1

to BCM terminal 37.
When inserted key plate to key switch, power is supplied (with Intelligent Key system)

through key switch and ignition knob switch terminal 4

to BCM terminal 37.
When moved ignition knob switch, power is supplied (with Intelligent Key system)

through ignition knob switch terminal 2

to intelligent key unit terminal 27.
With ignition switch in the ON or START position, power is supplied

through 15A fuse [No. 1, located in fuse block (J/B)]

to BCM terminal 38.
Ground is supplied

to BCM terminals 49 and 52

through grounds terminals M35, M45 and M85.
When driver side door is opened, ground is supplied

through case ground of front door switch (driver side)

through front door switch (driver side) terminal 1

to BCM terminal 62.
When passenger side door is opened, ground is supplied

through case ground of front door switch (passenger side)

through front door switch (passenger side) terminal 1

to BCM terminal 12.

LT-158
INTERIOR ROOM LAMP
Revision: 2006 December 2006 FX35/FX45
When rear door LH is opened, ground is supplied

through case ground of rear door switch LH

through rear door switch LH terminal 1

to BCM terminal 63, and

to personal lamp LH terminal 1.
When rear door RH is opened, ground is supplied

through case ground of rear door switch RH

through rear door switch RH terminal 1

to BCM terminal 13, and

to personal lamp RH terminal 1.
When driver side door is unlocked by door lock and unlock switch, BCM receives a ground signal

through grounds terminals M35, M45 and M85

to power window main switch (door lock and unlock switch) terminal 17 or front power window switch
(passenger side) (door lock and unlock switch) terminal 11

from power window main switch (door lock and unlock switch) terminal 14 or front power window switch
(passenger side) (door lock and unlock switch) terminal 16

to BCM terminal 22.
When front driver side door is unlocked by driver side door lock assembly (key cylinder switch), BCM receives
a ground signal

through grounds M35, M45 and M85

to front door lock assembly (driver side) (key cylinder switch) terminal 5

from front door lock assembly (driver side) (key cylinder switch) terminal 6

to power window main switch (door lock and unlock switch) terminal 6

from power window main switch (door lock and unlock switch) terminal 14

to BCM terminal 22.
When a signal, or combination of signals is received by BCM, ground is supplied

to interior room lamp terminal 1 (without DVD player),

to map lamp terminal 2,

to front door inside handle illumination terminal 2, and

to rear door inside handle illumination terminal 2

through BCM terminal 48.
With power and supplied, interior lamp illuminates.
SWITCH OPERATION
When driver door switch is ON (door is opened), ground is supplied

through BCM terminal 1

to ignition keyhole illumination terminal 2.
And power is supplied

from BCM terminal 41

to ignition keyhole illumination terminal 1.
When any door switch is ON (door is opened), ground is supplied

through BCM terminal 47

to front step lamp (driver side and passenger side) and rear step lamp (LH and RH) terminals 2

through rear door switch (LH or RH) terminal 1

to personal lamp (LH or RH) terminals 1.
And power is supplied

from BCM terminal 41

to front step lamp (driver side and passenger side) and rear step lamp (LH and RH) terminals 1, and

to personal lamp (LH and RH) terminals 2
When map lamp switch is ON, ground is supplied
