NAVIGATION SYSTEM AV-121
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 December 2006 FX35/FX45

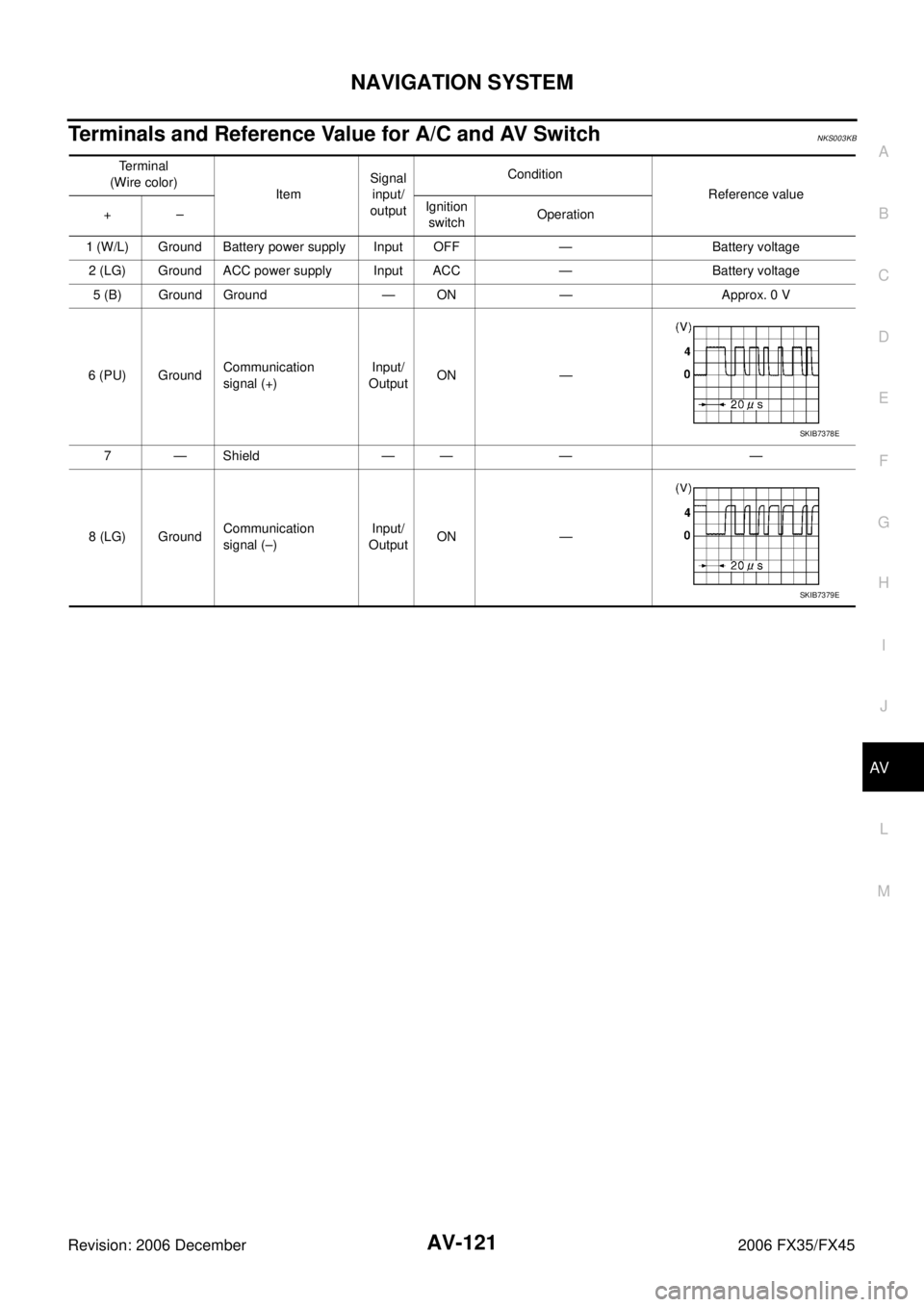

Terminals and Reference Value for A/C and AV SwitchNKS003KB
Terminal
(Wire color) Item Signal
input/
output Condition
Reference value
+– Ignition
switch Operation
1 (W/L) Ground Battery power supply Input OFF — Battery voltage 2 (LG) Ground ACC power supply Input ACC — Battery voltage
5 (B) Ground Ground — ON — Approx. 0 V
6 (PU) Ground Communication
signal (+) Input/
Output ON —
7 — Shield — — — —
8 (LG) Ground Communication
signal (–) Input/
Output ON —
SKIB7378E
SKIB7379E

AV-122
NAVIGATION SYSTEM
Revision: 2006 December 2006 FX35/FX45
Special Note for Trouble DiagnosisNKS003KD
Prior to performing trouble diagnosis, make sure there are no corresponding description in the “Example of
Symptoms Possible No Malfunction”. Refer to AV- 1 5 2 , "
Example of Symptoms Possible No Malfunction" .
On Board Self-Diagnosis FunctionNKS003KE
DESCRIPTION

Trouble diagnosis function of navigation system has a Self Diagnosis mode by automatic operation and a
Confirmation/Adjustment mode by manual operation.

Self Diagnosis mode checks for connections between the units constituting this system, analyzes each
individual unit at the same time, and displays the results on the display.

Confirmation/Adjustment mode displays trouble diagnosis that require an operation and a judgment by a
human (auto-decision cannot be performed by the system), confirmation of preset value, and an error his-
tory.
DIAGNOSIS ITEM
Mode Description
Self Diagnosis (DCU)

Display control unit diagnosis

Analyzes connection between the display control unit and each unit, and
operation of each unit.
Self Diagnosis (NAVI)

NAVI control unit diagnosis (DVD-ROM drive will not be diagnosed
when no DVD-ROM is in it.).

Analyzes connection between the NAVI control unit and the GPS
antenna.
Confirmation/
Adjustment Display Diagnosis
Color tone and shading of the display control unit-generated image can be
checked by the display of a color bar and a gray scale.
Vehicle Signals Diagnosis of signals that are input to display control unit can be performed
for Vehicle Speed, IGN, Reverse and Light.
Auto Climate Control Refer to ATC-52, "
Self-diagnosis Function" .
Navigation Display Diagnosis
Color tone and shading of the NAVI control unit-generated image can be
checked by the display of a color bar and a gray scale.
Vehicle Signals Diagnosis of signals that are input to NAVI control unit can be performed
for Vehicle speed, Lights, Ignition and Reverse.
Navigation Steering
Angle
Adjustment This mode is used to correct difference between actual turning angle of a
vehicle and turning angle of the vehicle mark on the display.
Speed
Calibration Under ordinary conditions, the navigation system distance measuring
function will automatically compensate for minute decreases in wheel and
tire diameter caused by tire wear or low-pressure. Speed Calibration can
immediately restore system accuracy in cases such as when distance cal-
ibration is needed because of the use of tire chains.
Error History Malfunctions that occurred in the past are displayed, along with the num-
ber of times each has occurred. Time and location when/where the errors
occurred are also displayed.
Delete Unit Connection Log Erase the connection history of unit and error history.
CAN DIAG SUPPOPT MONITOR The transmitting/receiving of CAN communication can be monitored.

NAVIGATION SYSTEM AV-123
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 December 2006 FX35/FX45
Self-Diagnosis Mode (DCU)NKS003KF
OPERATION PROCEDURE
1. Start the engine.
2. Turn the audio system OFF.
3. While pressing the “4” button, turn the volume control dial clock- wise or counterclockwise for 30 clicks or more. (When the self-
diagnosis mode is started, a short beep will be heard.)

Shifting from current screen to previous screen is performed
by pressing “BACK” button.
4. The initial trouble diagnosis screen will be shown, and items “Self Diagnosis (DCU)”, “Self Diagnosis (NAVI)”, “Confirmation/
Adjustment” and “CAN DIAG SUPPORT MONITOR” will
become selective.
5. Perform self-diagnosis by selecting the “Self Diagnosis (DCU)”.

Self-diagnosis screen is displayed, and then self-diagnosis
starts.

The bar graph visible below self-diagnosis screen displays
progress of the diagnosis.
6. When the self-diagnosis completes, optional part confirmation screen will be shown.

When connection of an optional part is judged error, a screen
to check if the optional part is actually fitted on the vehicle or
not will be shown. When fitted, select the switch of the part on
the screen and press “End”. Then the “SELF DIAGNOSIS”
screen will be shown.

When the optional part is connected normally, the switch for
the part will not appear on the screen.
SKIB8642E
SKIB7874E
SKIA4208E
SKIB8673E

AV-124
NAVIGATION SYSTEM
Revision: 2006 December 2006 FX35/FX45
7. On the diagnosis results screen, each unit name and connection line will be colored according to the diagnosis result, as follows.
NOTE:

Satellite = Satellite radio tuner

DCU = Display control unit

Multifunction switch = A/C and AV switch

Navigation = NAVI control unit

GPS = GPS antenna

If multiple malfunctions occur at the same time for a single unit, the screen switch colors are determined
according to the following order of priority: red > yellow > gray.
8. Select a switch on the diagnosis results screen, and comments for the diagnosis results will be shown.
SELF-DIAGNOSIS RESULT
Quick Reference Table
1. Select the applicable diagnosis number in the quick reference table of diagnosis result.
2. Confirm the possible malfunction with the diagnosis table, and then perform inspection.
3. Turn ignition switch OFF and perform self-diagnosis again.

When A/C and AV switch has a malfunction, the self-diagnosis cannot be started. Refer to AV- 1 3 7 , "A/C
and AV Switch Self-Diagnosis Function" .

When display has a malfunction, the self-diagnosis cannot be started. Refer to AV-141, "All Images Are
Not Displayed" .
Green : No malfunctioning.
Gray : Cannot be judged by self-diagnosis results.
Red : Unit is malfunctioning.
SKIB7875E
SKIA4211E
Switch color Screen switch
Diagnosis
No.
DCU Display Audio Unit Navigation GPS Satellite
Red × 1
Gray ×
2
×× 3
×× 4
× 5
× 6

NAVIGATION SYSTEM AV-125
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 December 2006 FX35/FX45
Self-Diagnosis Codes
Diagnosis No. Possible cause Action to take
1 Display control unit malfunction is detected. Replace display control unit.
2 Malfunction is detected on communication signal between
display control unit and display. 1. Check communication circuit between display control
unit and display.
2. Check communication signal between display control unit and display.
3. If the results from the above checkup show no malfunc- tion, replace either display control unit or display, and
then start self-diagnosis.
4. If self-diagnosis results still show any malfunction, replace the other unit.
3

Audio unit power supply circuit malfunction is detected.

Malfunction is detected on communication signal
between display control unit and audio unit. 1. Check audio unit power supply circuit.
2. Check communication circuit between display control unit and audio unit.
3. Check communication signal between display control unit and audio unit.
4. If the results from the above checkup show no malfunc- tion, replace either display control unit or audio unit, and
then start self-diagnosis.
5. If self-diagnosis results still show any malfunction, replace the other unit.
4

NAVI control unit power supply and ground circuit mal-
function is detected.

Malfunction is detected on communication signal
between display control unit and NAVI control unit. 1. Check NAVI control unit power supply and ground cir-
cuit.
2. Check communication circuit between display control unit and NAVI control unit.
3. If the results from the above checkup show no malfunc- tion, replace either display control unit or NAVI control
unit, and then start self-diagnosis.
4. If self-diagnosis results still show any malfunction, replace the other unit.
5 GPS antenna connection malfunction is detected. 1. Check if GPS antenna feeder line is snapped or
pinched.
2. If the results from the above checkup show no malfunc- tion, replace GPS antenna, and then restart self-diagno-
sis.
3. If self-diagnosis results still show any malfunction, replace NAVI control unit.
6

Satellite radio tuner power supply and ground circuit
malfunction is detected.

Malfunction is detected on communication signal
between audio unit and satellite radio tuner. 1. Check satellite radio tuner power supply and ground cir-
cuit.
2. Check communication circuit between audio unit and satellite radio tuner.
3. Check communication signal between audio unit and satellite radio tuner.
4. If the results from the above checkup show no malfunc- tion, replace either audio unit or satellite radio tuner, and
then start self-diagnosis.
5. If self-diagnosis results still show any malfunction, replace the other unit.

AV-126
NAVIGATION SYSTEM
Revision: 2006 December 2006 FX35/FX45
Self-Diagnosis Mode (NAVI)NKS003KG
OPERATION PROCEDURE
1. Start the engine.
2. Turn the audio system OFF.
3. While pressing the “4” button, turn the volume control dial clock- wise or counterclockwise for 30 clicks or more. (When the self-
diagnosis mode is started, a short beep will be heard.)

Shifting from current screen to previous screen is performed
by pressing “BACK” button.
4. The initial trouble diagnosis screen will be shown, and items “Self Diagnosis (DCU)”, “Self Diagnosis (NAVI)”, “Confirmation/
Adjustment” and “CAN DIAG SUPPORT MONITOR” will
become selective.
NOTE:
Select “Self Diagnosis (DCU)” when “Self Diagnosis (NAVI)” is
not available. Repair malfunctioning part.
5. Perform self-diagnosis by selecting the “Self Diagnosis (NAVI)”.

Self-diagnosis screen is displayed, and then self-diagnosis
starts.

The bar graph visible below self-diagnosis screen displays
progress of the diagnosis.
6. On the diagnosis results screen, each unit name and connection line will be colored according to the diagnosis result, as follows.
NOTE:

Control unit = NAVI control unit

Only Control unit (NAVI control unit) is displayed in red.

If multiple malfunctions occur at the same time for a single unit, the screen switch colors are determined
according to the following order of priority: red > yellow > gray.
SKIB8642E
SKIB7874E
SKIB6972E
Diagnosis results Unit Connection line
Normal Green Green
Connection malfunction Gray Yellow
DVD-ROM drive undiagnosed Gray Green
DVD-ROM and DVD-ROM drive malfunction Yellow Green
Unit returned an error Red Green
SKIB7772E

NAVIGATION SYSTEM AV-127
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 December 2006 FX35/FX45
7. Select a switch on the diagnosis results screen, and comments for the diagnosis results will be shown.
SKIB3659E

AV-128
NAVIGATION SYSTEM
Revision: 2006 December 2006 FX35/FX45
SELF-DIAGNOSIS RESULT
Check the applicable display in the following table, and then repair the malfunctioning parts.
Quick Reference Table
Self-diagnosis result screen Possible cause Action to take NAVI control unit malfunction is
detected. Replace NAVI control unit.
Refer to AV- 1 5 5 , "
Removal and Installa-
tion of NAVI Control Unit" .

Malfunction is detected on DVD-
ROM drive pickup lens in NAVI con-
trol unit.

There is dirt and damage on the
DVD-ROM. 1. Check if the inserted DVD-ROM is
specified for this navigation system,
and the DVD-ROM is dirty, scratched or
warped.
2. If the results from the above checkup show no malfunction, insert the same
DVD-ROM, and then restart self-diag-
nosis.
3. If self-diagnosis results still show any malfunction, replace NAVI control unit.
DVD-ROM not inserted is detected. Insert DVD-ROM.
GPS antenna connection malfunction
is detected. 1. Check if GPS antenna feeder line is
snapped or pinched.
2. If the results from the above checkup show no malfunction, replace GPS
antenna, and then restart self-diagno-
sis.
3. If self-diagnosis results still show any malfunction, replace NAVI control unit.
SKIB7773E
SKIB7774E
SKIB7775E
SKIB7776E

NAVIGATION SYSTEM AV-129
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 December 2006 FX35/FX45
Confirmation/Adjustment ModeNKS003KH
OPERATION PROCEDURE
1. Start the engine.
2. Turn the audio system OFF.
3. While pressing the “4” button, turn the volume control dial clock- wise or counterclockwise for 30 clicks or more. (When the self-
diagnosis mode is started, a short beep will be heard.)

Shifting from current screen to previous screen is performed
by pressing “BACK” button.
4. The initial trouble diagnosis screen will be shown, and items “Self Diagnosis (DCU)”, “Self Diagnosis (NAVI)”, “Confirmation/
Adjustment” and “CAN DIAG SUPPORT MONITOR” will
become selective.
5. Select “Confirmation/Adjustment”.
6. Each diagnosis is shown by selecting each screen switch on Confirmation/Adjustment screen.
SKIB8642E
SKIB7874E
SKIA4220E

AV-130
NAVIGATION SYSTEM
Revision: 2006 December 2006 FX35/FX45
DISPLAY DIAGNOSIS
Color tone and shading of the display control unit-generated image can be checked by the display of a color
bar and a gray scale.

If RGB signal is malfunctioning, the tint of the color bar display is as follows.
VEHICLE SIGNALS
A comparison check can be made of each actual vehicle signal and
the signals recognized by the display control unit.
NOTE:
In case of confirming light signal, set the following D/N mode to ON/
OFF of lighting switch (normal setting).

OFF: D (Day mode)

ON: N (Night mode)
Unless above setting, light signal (ON/OFF) may not be accurately
displayed. R (red) signal error : Light blue (Cyan) tint
G (green) signal error : Purple (Magenta) tint
B (blue) signal error : Yellow tint
SKIB7777E
SKIB7778E
Diagnosis item Display Condition Remarks
Vehicle Speed ON When vehicle speed is more than 0 km/h (0 MPH)
Changes in indication may be delayed.
This is normal.
OFF When vehicle speed is 0 km/h (0 MPH)
— Ignition switch in ACC position
IGN ON Ignition switch ON
—
OFF Ignition switch ACC position
Reverse ON Selector lever in R position
Changes in indication may be delayed.
This is normal.
OFF Selector lever in any position other than R position
— Ignition switch in ACC position
IVCS OFF — This vehicle does not use it.
Light ON Lighting switch ON
—
OFF Lighting switch OFF
