sensor INFINITI FX35 2007 Service Manual

DTC P0643 SENSOR POWER SUPPLY EC-1153
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
48 L Sensor power supply
(EVAP control system pres-
sure sensor) [Ignition switch: ON]
Approximately 5V
49 PU Sensor power supply
(Refrigerant pressure sen-
sor) [Ignition switch: ON]
Approximately 5V
68 SB Sensor power supply
(Power steering pressure
sensor) [Ignition switch: ON]
Approximately 5V
82 B/W Sensor ground
(APP sensor 1 / ICC steer-
ing switch / ASCD steering
switch) [Engine is running]

Warm-up condition

Idle speed
Approximately 0V
83 G/OR Sensor ground
(APP sensor 2) [Engine is running]

Warm-up condition

Idle speed
Approximately 0V
90 L/B Sensor power supply
(APP sensor 1) [Ignition switch: ON]
Approximately 5V
91 G Sensor power supply
(APP sensor 2) [Ignition switch: ON]
Approximately 5V
98 Y/R Accelerator pedal position
sensor 2 [Ignition switch: ON]

Engine stopped

Accelerator pedal: Fully released
0.15 - 0.60V
[Ignition switch: ON]

Engine stopped

Accelerator pedal: Fully depressed 1.95 - 2.40V
106 OR Accelerator pedal position
sensor 1 [Ignition switch: ON]

Engine stopped

Accelerator pedal: Fully released
0.5 - 1.0V
[Ignition switch: ON]

Engine stopped

Accelerator pedal: Fully depressed 3.9 - 4.7V

EC-1154
[VK45DE]
DTC P0643 SENSOR POWER SUPPLY
Revision: 2006 July 2007 FX35/FX45
Diagnostic ProcedureNBS004DD
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to EC-819, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2. CHECK ACCELERATOR PEDAL POSITION SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 6 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
PBIB2195E
PBIB1548E
Voltage: Approximately 5V
PBIB0914E

DTC P0643 SENSOR POWER SUPPLY EC-1155
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
3. CHECK SENSOR POWER SUPPLY CIRCUITS
Check harness for short to power and short to ground, between the following terminals.
OK or NG
OK >> GO TO 4.
NG >> Repair short to ground or short to power in harness or connectors.
4. CHECK COMPONENTS
Check the following.

EVAP control system pressure sensor (Refer to EC-1101, "Component Inspection" .)

Refrigerant pressure sensor (Refer to AT C - 8 9 , "COMPONENT INSPECTION" .)

Power steering pressure sensor (Refer to EC-1143, "Component Inspection" .)
OK or NG
OK >> GO TO 7.
NG >> Replace malfunctioning component.
5. CHECK APP SENSOR
Refer to EC-1263, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-745, "
Accelerator Pedal Released Position Learning" .
3. Perform EC-745, "
Throttle Valve Closed Position Learning" .
4. Perform EC-745, "
Idle Air Volume Learning" .
>> INSPECTION END
7. CHECK INTERMITTENT INCIDENT
Refer to EC-812, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
ECM terminal Sensor terminal Reference Wiring Diagram
90 APP sensor terminal 6 EC-1152
48 EVAP control system pressure sensor terminal 3EC-1098
49 Refrigerant pressure sensor terminal 1EC-1346
68 PSP sensor terminal 1 EC-1140

DTC P1140, P1145 IVT CONTROL POSITION SENSOR EC-1161
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
DTC P1140, P1145 IVT CONTROL POSITION SENSORPFP:23731
Component DescriptionNBS004B9
Intake valve timing control position sensors are located in the front of
cylinder heads in both bank 1 and bank 2.
This sensor uses a Hall IC.
The cam position is determined by the intake camshaft sprocket con-
cave (in four places). The ECM provides feedback to the intake valve
timing control for appropriate target valve open-close timing accord-
ing to drive conditions based on detected cam position.
CONSULT-II Reference Value in Data Monitor ModeNBS004BA
Specification data are reference values.
On Board Diagnosis LogicNBS004BB
DTC Confirmation ProcedureNBS004BC
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Maintain the following conditions for at least 10 seconds.
4. If 1st trip DTC is detected, go to EC-1166, "
Diagnostic Proce-
dure" .
SEF359Z
MONITOR ITEM CONDITION SPECIFICATION
INT/V TIM (B1)
INT/V TIM (B2)

Engine: After warming up

Selector lever: P or N

Air conditioner switch: OFF

No load Idle
−5° - 5 °CA
2,000 rpm Approx. 0 ° - 20 °CA
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1140
11 4 0
(Bank 1)
Intake valve timing control
position sensor circuit An excessively high or low voltage from the
sensor is sent to ECM.

Harness or connectors
(Intake valve timing control position
sensor circuit is open or shorted)

Intake valve timing control position
sensor

Crankshaft position sensor (POS)

Camshaft position sensor (PHASE)

Accumulation of debris to the signal
pick-up portion of the camshaft
sprocket
P1145
11 4 5
(Bank 2)
ENG SPEED More than idle speed
Selector lever P or N position
SEF058Y

EC-1162
[VK45DE]
DTC P1140, P1145 IVT CONTROL POSITION SENSOR
Revision: 2006 July 2007 FX35/FX45
WITH GST
Follow the procedure “WITH CONSULT-II” above.

DTC P1140, P1145 IVT CONTROL POSITION SENSOR EC-1163
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45

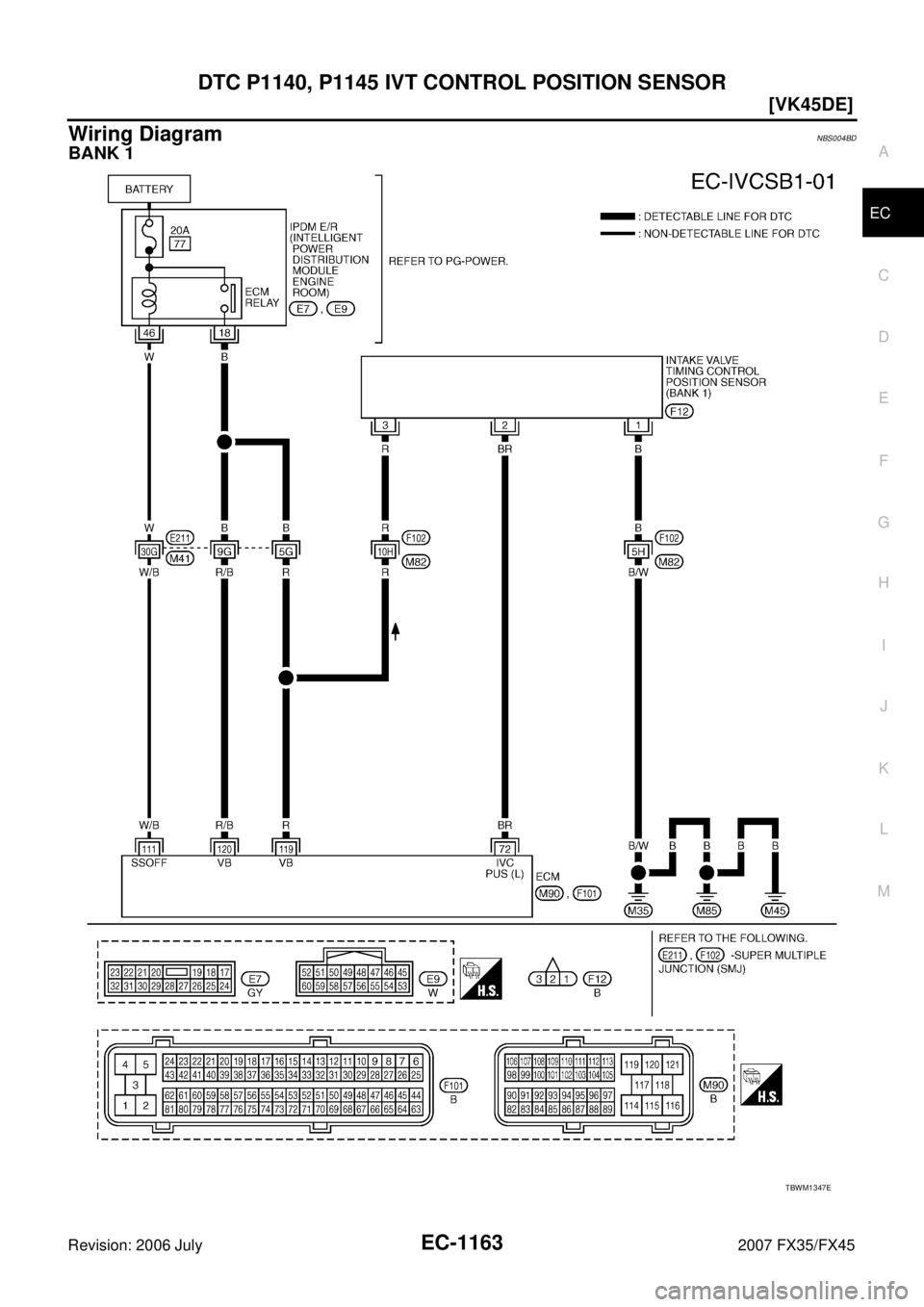

Wiring DiagramNBS004BD
BANK 1
TBWM1347E

EC-1164
[VK45DE]
DTC P1140, P1145 IVT CONTROL POSITION SENSOR
Revision: 2006 July 2007 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.) TER-
MINAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
72 BR Intake valve timing control
position sensor (Bank 1) [Engine is running]

Warm-up condition

Idle speed
0 - 1.0V
[Engine is running]

Engine speed: 2,000rpm 0 - 1.0V
111 W / B ECM relay
(Self shut-off) [Engine is running]
[Ignition switch: OFF]

For a few seconds after turning ignition
switch OFF 0 - 1.5V
[Ignition switch: OFF]

More than a few seconds after turning igni-
tion switch OFF BATTERY VOLTAGE
(11 - 14V)
11 9
120 R
R/B Power supply for ECM
[Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
PBIB2046E

DTC P1140, P1145 IVT CONTROL POSITION SENSOR EC-1165
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45

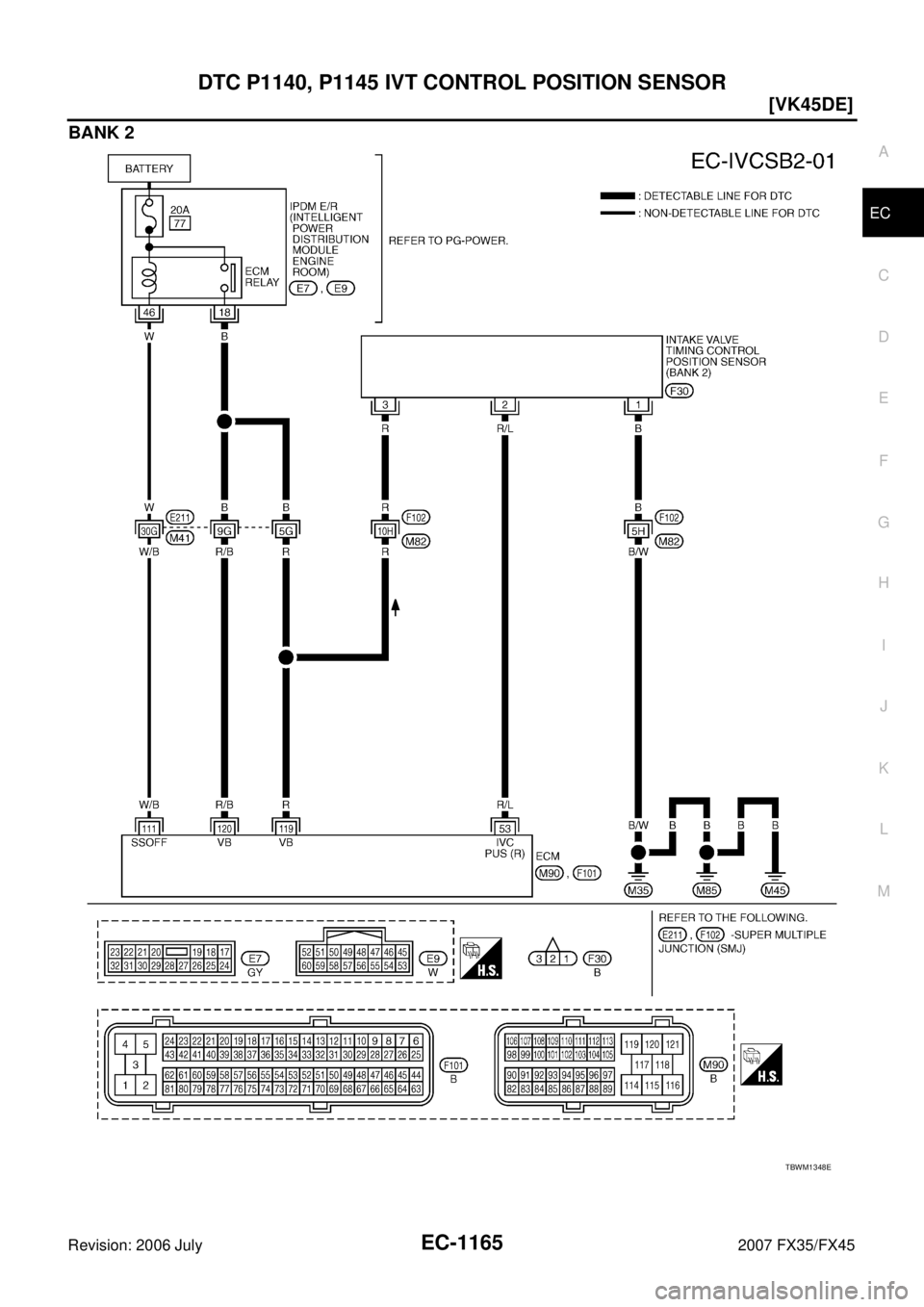

BANK 2
TBWM1348E

EC-1166
[VK45DE]
DTC P1140, P1145 IVT CONTROL POSITION SENSOR
Revision: 2006 July 2007 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureNBS004BE
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to EC-819, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
53 R/L Intake valve timing control
position sensor (Bank 2) [Engine is running]

Warm-up condition

Idle speed
0 - 1.0V
[Engine is running]

Engine speed: 2,000 rpm 0 - 1.0V
111 W / B ECM relay
(Self shut-off) [Engine is running]
[Ignition switch: OFF]

For a few seconds after turning ignition
switch OFF 0 - 1.5V
[Ignition switch: OFF]

More than a few seconds after turning igni-
tion switch OFF BATTERY VOLTAGE
(11 - 14V)
11 9
120 R
R/B Power supply for ECM
[Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
PBIB2046E
PBIB2195E

DTC P1140, P1145 IVT CONTROL POSITION SENSOR EC-1167
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
2. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR POWER SUPPLY CIRCUIT
1. Disconnect intake valve timing control position sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between intake valve timing control position sen- sor terminal 3 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E211, M41

Harness connectors F102, M82

Harness for open or short between intake valve timing control position sensor and IPDM E/R

Harness for open or short between intake valve timing control position sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR GROUND CIRCUIT FOR OPEN AND
SHORT 1. Turn ignition switch OFF.
2. Check harness continuity between intake valve timing control position sensor terminal 1 and ground. Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5. Voltage: Battery voltage
PBIB1517E
SEF509Y
Continuity should exist.
