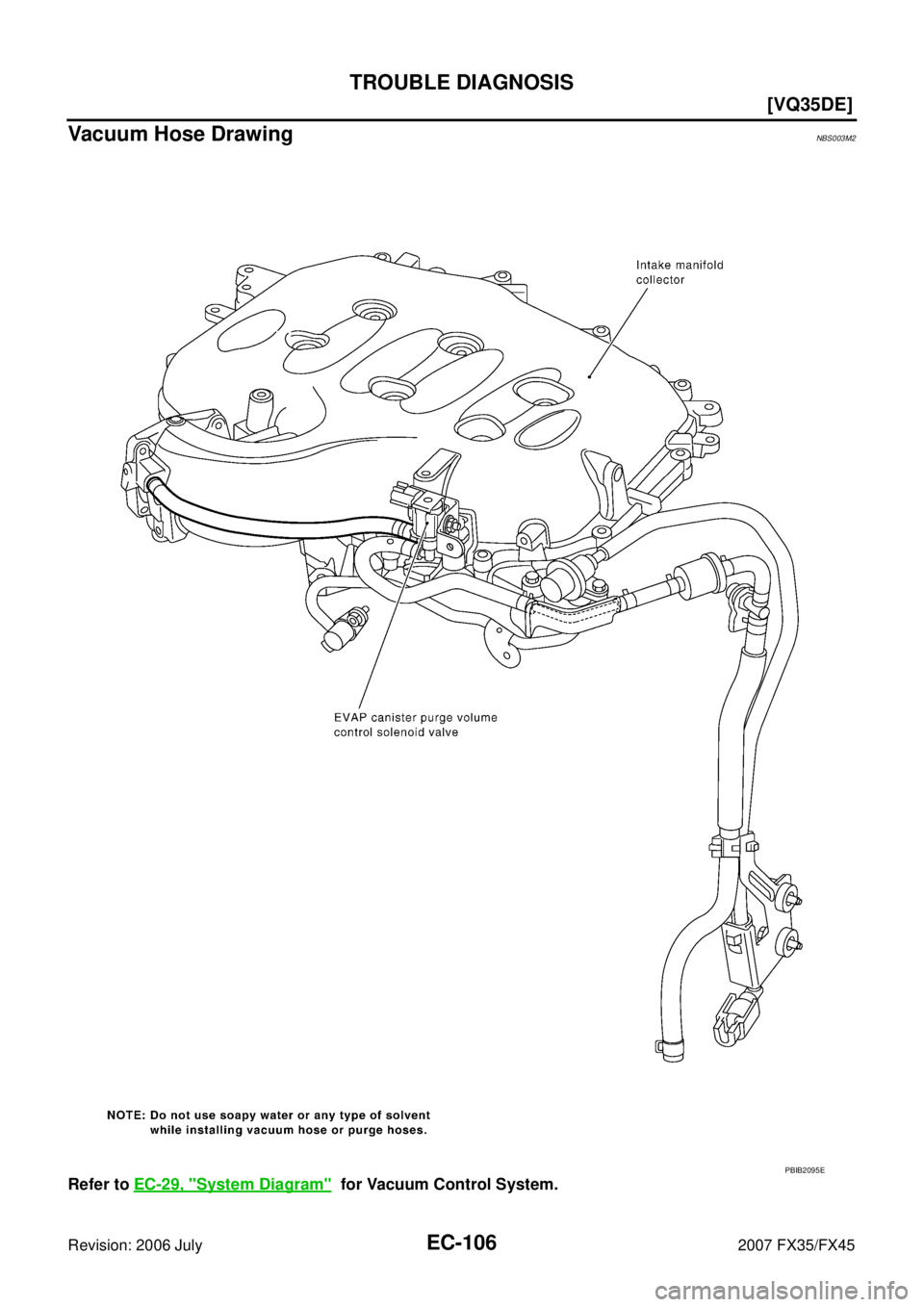

Vacuum Hose DrawingNBS003M2
Refer to EC-29, "System Diagram" for Vacuum Control System.
PBIB2095E

TROUBLE DIAGNOSIS EC-107
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45

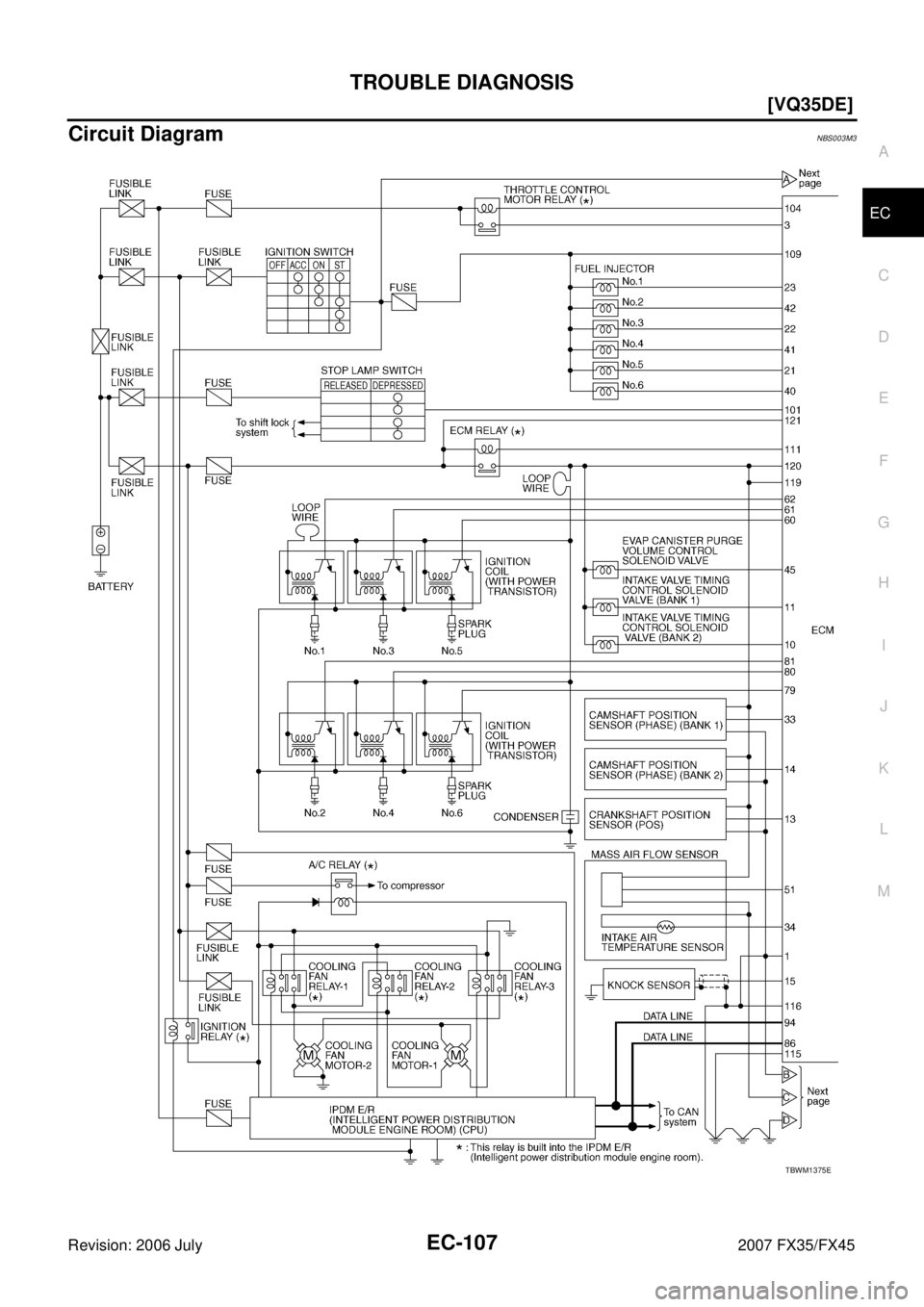

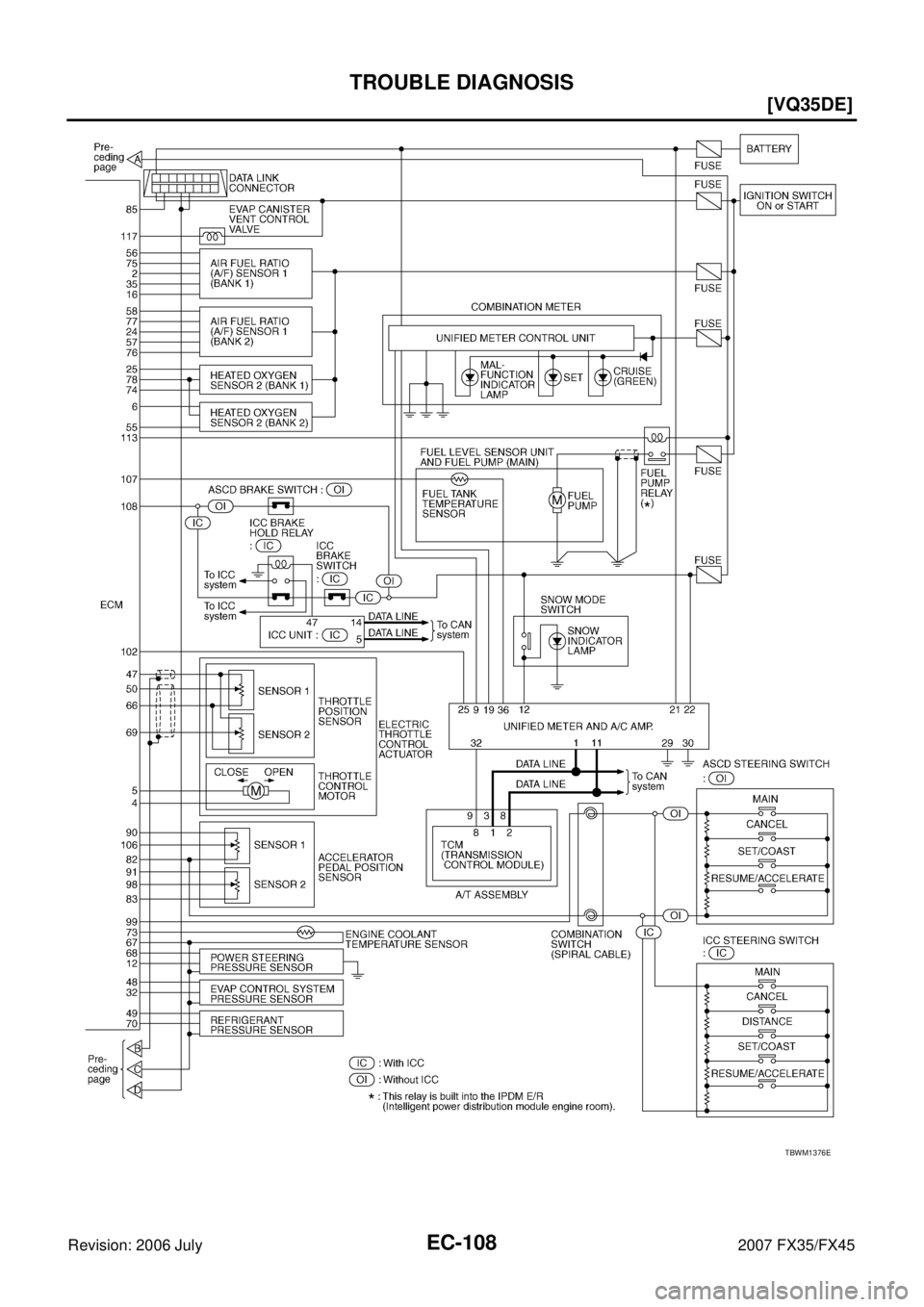

Circuit DiagramNBS003M3
TBWM1375E

EC-108
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
TBWM1376E

TROUBLE DIAGNOSIS EC-109
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45

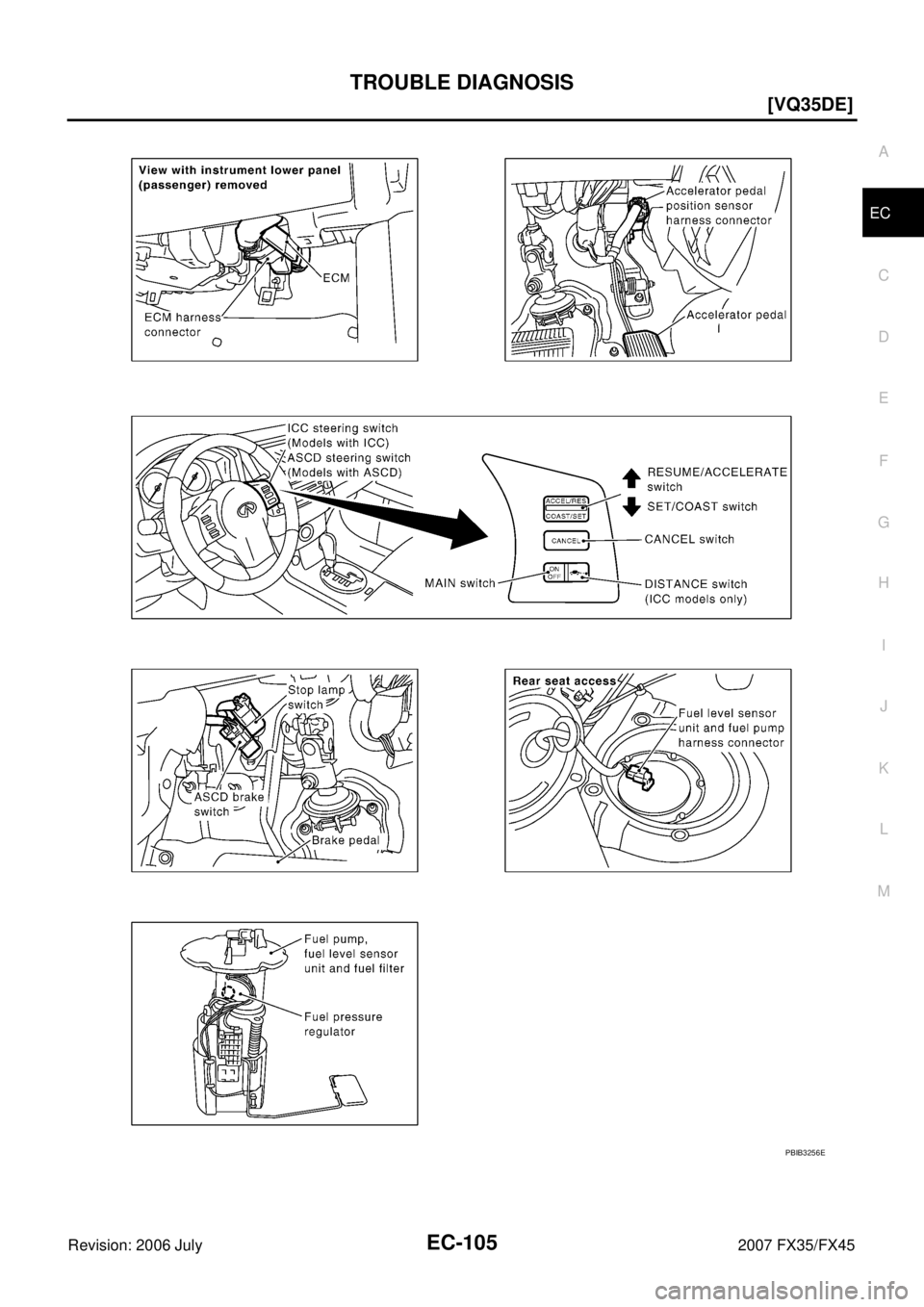

ECM Harness Connector Terminal LayoutNBS003M4
ECM Terminals and Reference ValueNBS003M5
PREPARATION
ECM is located behind the passenger side instrument lower panel.
For this inspection, remove passenger side instrument lower panel.
ECM INSPECTION TABLE
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.
PBIB3368E
PBIB1578E
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
1 B ECM ground [Engine is running]

Idle speedBody ground
2R/L A/F sensor 1 heater
(bank 1) [Engine is running]

Warm-up condition

Idle speed Approximately 5V
3R Throttle control motor relay
power supply [Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
4L/W Throttle control motor
(Close) [Ignition switch: ON]

Engine stopped

Selector lever: D

Accelerator pedal: Fully released 0 - 14V
PBIB1584E
PBIB1104E

EC-110
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
5L/B Throttle control motor
(Open) [Ignition switch: ON]
Engine stopped

Selector lever: D

Accelerator pedal: Fully depressed 0 - 14V
6R Heated oxygen sensor 2
heater (bank 2) [Engine is running]

Engine speed: Below 3,600 rpm after the
following conditions are met
–Engine: After warming up
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load 0 - 1.0V
[Ignition switch: ON]

Engine stopped
[Engine is running]

Engine speed: Above 3,600 rpm BATTERY VOLTAGE
(11 - 14V)
10 OR Intake valve timing control
solenoid valve (bank 2) [Engine is running]

Warm-up condition

Idle speed
BATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Warm-up condition

When revving engine up to 2,500 rpm
quickly 7 - 12V
11 B R Intake valve timing control
solenoid valve (bank 1) [Engine is running]

Warm-up condition

Idle speed
BATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Warm-up condition

When revving engine up to 2,500 rpm
quickly 7 - 12V
12 R/G Power steering pressure
sensor [Engine is running]

Steering wheel: Being turned
0.5 - 4.5V
[Engine is running]

Steering wheel: Not being turned 0.4 - 0.8V
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
PBIB1105E
PBIB1790E
PBIB1790E

TROUBLE DIAGNOSIS EC-111
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
13 Y Crankshaft position sensor
(POS) [Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle Approximately 1.6V
[Engine is running]

Engine speed: 2,000 rpm Approximately 1.4V
14 BR Camshaft position sensor
(PHASE) (bank 2) [Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle 1.0 - 4.0V
[Engine is running]

Engine speed: 2,000 rpm 1.0 - 4.0V
15 W Knock sensor [Engine is running]

Idle speedApproximately 2.5V
16 G
A/F sensor 1 (bank 1) [Engine is running]

Warm-up condition

Idle speed Approximately 3.1V
35 B/R Approximately 2.6V
56 L Approximately 2.3V
75 R/B Approximately 2.3V
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
PBIB1041E
PBIB1042E
PBIB1039E
PBIB1040E

EC-112
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
21
22
23 W
G
R Fuel injector No. 5
Fuel injector No. 3
Fuel injector No. 1 [Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle BATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Warm-up condition

Engine speed: 2,000 rpm BATTERY VOLTAGE
(11 - 14V)
24 L A/F sensor 1 heater
(Bank 2) [Engine is running]

Warm-up condition

Idle speed Approximately 5V
25 P Heated oxygen sensor 2
heater (bank 1) [Engine is running]

Engine speed: Below 3,600 rpm after the
following conditions are met
–Engine: After warming up
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load 0 - 1.0V
[Ignition switch: ON]

Engine stopped
[Engine is running]

Engine speed: Above 3,600 rpm BATTERY VOLTAGE
(11 - 14V)
32 OR EVAP control system pres-
sure sensor [Ignition switch: ON]
Approximately 1.8 - 4.8V
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
SEC984C
SEC985C
PBIB1584E

TROUBLE DIAGNOSIS EC-113
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
33 R/L Camshaft position sensor
(PHASE) (bank 1) [Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle 1.0 - 4.0V
[Engine is running]

Engine speed: 2,000 rpm 1.0 - 4.0V
34 OR Intake air temperature sen-
sor [Engine is running] Approximately 0 - 4.8V
Output voltage varies with intake
air temperature.
40
41
42 LG
B
P Fuel injector No. 6
Fuel injector No. 4
Fuel injector No. 2 [Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle BATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Warm-up condition

Engine speed: 2,000 rpm BATTERY VOLTAGE
(11 - 14V)
45 GY EVAP canister purge vol-
ume control solenoid valve [Engine is running]

Idle speed

Accelerator pedal is not depressed even
slightly, after engine starting BATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Engine speed is about 2,000 rpm (More
than 100 seconds after starting engine) BATTERY VOLTAGE
(11 - 14V)
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
PBIB1039E
PBIB1040E
SEC984C
SEC985C
SEC990C
SEC991C

EC-114
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
47 L Sensor power supply
(Throttle position sensor) [Ignition switch: ON]
Approximately 5V
48 LG Sensor power supply
(EVAP control system pres-
sure sensor) [Ignition switch: ON]
Approximately 5V
49 PU Sensor power supply
(Refrigerant pressure sen-
sor) [Ignition switch: ON]
Approximately 5V
50 W Throttle position sensor 1 [Ignition switch: ON]

Engine stopped

Selector lever: D

Accelerator pedal: Fully released
More than 0.36V
[Ignition switch: ON]

Engine stopped

Selector lever: D

Accelerator pedal: Fully depressed Less than 4.75V
51 L/W Mass air flow sensor [Engine is running]

Warm-up condition

Idle speed
1.0 - 1.2V
[Engine is running]

Warm-up condition

Engine speed: 2,500 rpm 1.6 - 2.0V
55 W/R Heated oxygen sensor 2
(bank 2) [Engine is running]

Revving engine from idle to 3,000 rpm
quickly after the following conditions are met
–Engine: After warming up
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load 0 - Approximately 1.0V
57 G A/F sensor 1 (Bank 2) [Engine is running]

Warm-up condition

Idle speed Approximately 2.6V
58 Y Approximately 2.3V
76 P Approximately 3.1V
77 BR Approximately 2.3V
60
61
62 PU
L
Y Ignition signal No. 5
Ignition signal No. 3
Ignition signal No. 1 [Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle 0 - 0.2V
[Engine is running]

Warm-up condition

Engine speed: 2,500 rpm 0.1 - 0.4V
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
SEC986C
SEC987C
