INFINITI FX35 2007 Service Manual

TROUBLE DIAGNOSIS EC-95
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
Fail-Safe ChartNBS003LZ
When the DTC listed below is detected, the ECM enters fail-safe mode and the MIL lights up.

When there is an open circuit on MIL circuit, the ECM cannot warn the driver by MIL lighting up when
there is malfunction on engine control system.
Therefore, when electrical controlled throttle and part of ECM related diagnoses are continuously detected
as NG for 5 trips, ECM warns the driver that engine control system malfunctions and MIL circuit is open by
means of operating fail-safe function.
The fail-safe function also operates when above diagnoses except MIL circuit are detected and demands
the driver to repair the malfunction.
DTC No. Detected items Engine operating condition in fail-safe mode
P0102
P0103 Mass air flow sensor circuit Engine speed will not rise more than 2,400 rpm due to the fuel cut.
P0117
P0118 Engine coolant tempera-
ture sensor circuit Engine coolant temperature will be determined by ECM based on the time after turning
ignition switch ON or START.
CONSULT-II displays the engine coolant temperature decided by ECM.
Condition Engine coolant temperature decided
(CONSULT-II display)
Just as ignition switch is turned
ON or START 40
°C (104 °F)
More than approx. 4 minutes after
ignition ON or START 80
°C (176 °F)
Except as shown above 40 - 80
°C (104 - 176 °F)
(Depends on the time)
When the fail-safe system for engine coolant temperature sensor is activated, the cooling
fan operates while engine is running.
P0122
P0123
P0222
P0223
P2135 Throttle position sensor The ECM controls the electric throttle control actuator in regulating the throttle opening in
order for the idle position to be within +10 degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal
condition.
So, the acceleration will be poor.
P0643 Sensor power supply ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return spring.
P2100
P2103 Throttle control motor relay ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P2101 Electric throttle control function ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P2118 Throttle control motor ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return spring.
P2119 Electric throttle control actuator (When electric throttle control actuator does not function properly due to the return spring
malfunction:)
ECM controls the electric throttle actuator by regulating the throttle opening around the
idle position. The engine speed will not rise more than 2,000 rpm.
(When throttle valve opening angle in fail-safe mode is not in specified range:)
ECM controls the electric throttle control actuator by regulating the throttle opening to 20
degrees or less.
(When ECM detects the throttle valve is stuck open:)
While the vehicle is driving, it slows down gradually by fuel cut. After the vehicle stops,
the engine stalls.
The engine can restart in N or P position, and engine speed will not exceed 1,000 rpm or
more.
P2122
P2123
P2127
P2128
P2138 Accelerator pedal position
sensor The ECM controls the electric throttle control actuator in regulating the throttle opening in
order for the idle position to be within +10 degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal
condition.
So, the acceleration will be poor.
Engine operating condition in fail-safe mode Engine speed will not rise more than 2,500 rpm due to the fuel cut

EC-96
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
Symptom Matrix ChartNBS003M0
SYSTEM — BASIC ENGINE CONTROL SYSTEM
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel pump circuit 11232 22 3 2 EC-636
Fuel pressure regulator system334444444 4 EC-85
Fuel injector circuit 11232 22 2 EC-629
Evaporative emission system 334444444 4EC-38
Air Positive crankcase ventilation sys-
tem 33 4444444 41
EC-50
Incorrect idle speed adjustment 1 1 1 1 1 EC-76
Electric throttle control actuator 112332222 2 2 EC-563,
EC-574
IgnitionIncorrect ignition timing adjustment33111 11 1 EC-76
Ignition circuit 11222 22 2EC-650
Power supply and ground circuit22333 33 23 EC-148
Mass air flow sensor circuit
1
12 2
222 2 EC-187,
EC-196
Engine coolant temperature sensor circuit
3 33
EC-209,
EC-221
Air fuel ratio (A/F) sensor EC-239
EC-239
EC-248
EC-257
EC-605
Throttle position sensor circuit
22 EC-214
,
EC-338
,
EC-509
,
EC-511
,
EC-590
Accelerator pedal position sensor circuit 3 2 1 EC-483
,
EC-576
,
EC-583
,
EC-597
Knock sensor circuit 2 3 EC-355
Crankshaft position sensor (POS) circuit 2 2EC-360
Camshaft position sensor (PHASE) circuit 3 2EC-367
Vehicle speed signal circuit 2 3 3 3EC-465
Power steering pressure sensor circuit 2 3 3EC-471

TROUBLE DIAGNOSIS EC-97
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
1 - 6: The numbers refer to the order of inspection.
(continued on next page) ECM 22333333333
EC-476
,
EC-480
Intake valve timing control solenoid valve cir-
cuit 32 13223 3
EC-180
Park/neutral position (PNP) switch circuit 3 3 3 3 3 EC-488
Refrigerant pressure sensor circuit 2 3 3 4EC-663
Electrical load signal circuit 3EC-627
Air conditioner circuit223333333 3 2 AT C - 4 0
ABS actuator and electric unit (control unit) 4 BRC-11
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA

EC-98
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
SYSTEM — ENGINE MECHANICAL & OTHER
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel tank 5
5 FL-10
Fuel piping 5 5 5 5 5 5
EM-45
Vapor lock —
Valve deposit 5 555 55 5 —
Poor fuel (Heavy weight gaso-
line, Low octane) —
Air Air duct
55555 5 EM-17
Air cleaner
EM-17
Air leakage from air duct
(Mass air flow sensor — electric
throttle control actuator) 5555 EM-17
Electric throttle control actuator
EM-19
Air leakage from intake manifold/
Collector/Gasket EM-19,
EM-24
Cranking Battery 111111
1 1
SC-5
Generator circuit
SC-24
Starter circuit 3SC-11
Signal plate 6EM-123
Park/neutral position (PNP)
switch 4
AT- 11 2
Engine Cylinder head
55555 55 5 EM-101
Cylinder head gasket 4 3
Cylinder block
66666 66 6 4
EM-123
Piston
Piston ring
Connecting rod
Bearing
Crankshaft

TROUBLE DIAGNOSIS EC-99
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
1 - 6: The numbers refer to the order of inspection. Va l v e
mecha-
nism Timing chain
55555 55 5 EM-64
Camshaft
EM-83
Intake valve timing controlEM-64
Intake valve
3 EM-101
Exhaust valve
Exhaust Exhaust manifold/Tube/Muffler/ Gasket 55555 55 5 EM-26
,
EX-
3Three way catalyst
Lubrica-
tion Oil pan/Oil strainer/Oil pump/Oil
filter/Oil gallery/Oil cooler 55555 55 5 EM-30
,
LU-
17 , LU-10 ,
LU-14
Oil level (Low)/Filthy oil LU-7
Cooling
Radiator/Hose/Radiator filler cap
55555 55 45 CO-14,
CO-17
Thermostat 5 CO-27
Water pumpCO-22
Water galleryCO-29
Cooling fan 5EC-227
Coolant level (Low)/Contami-
nated coolant 5
CO-11
IVIS (Infiniti Vehicle Immobilizer System —
NATS) 11
EC-52 or
BL-205
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA

EC-100
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45

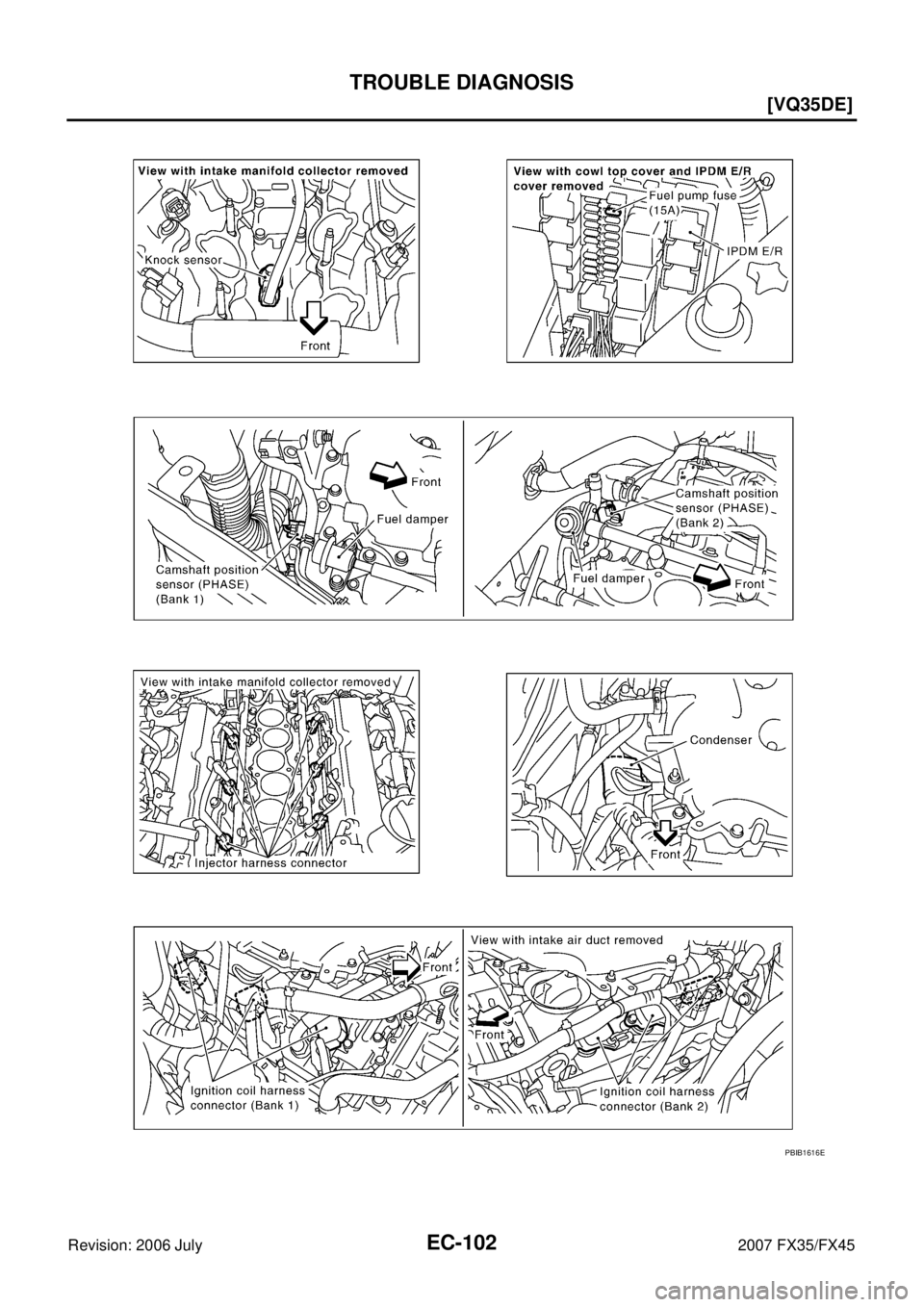

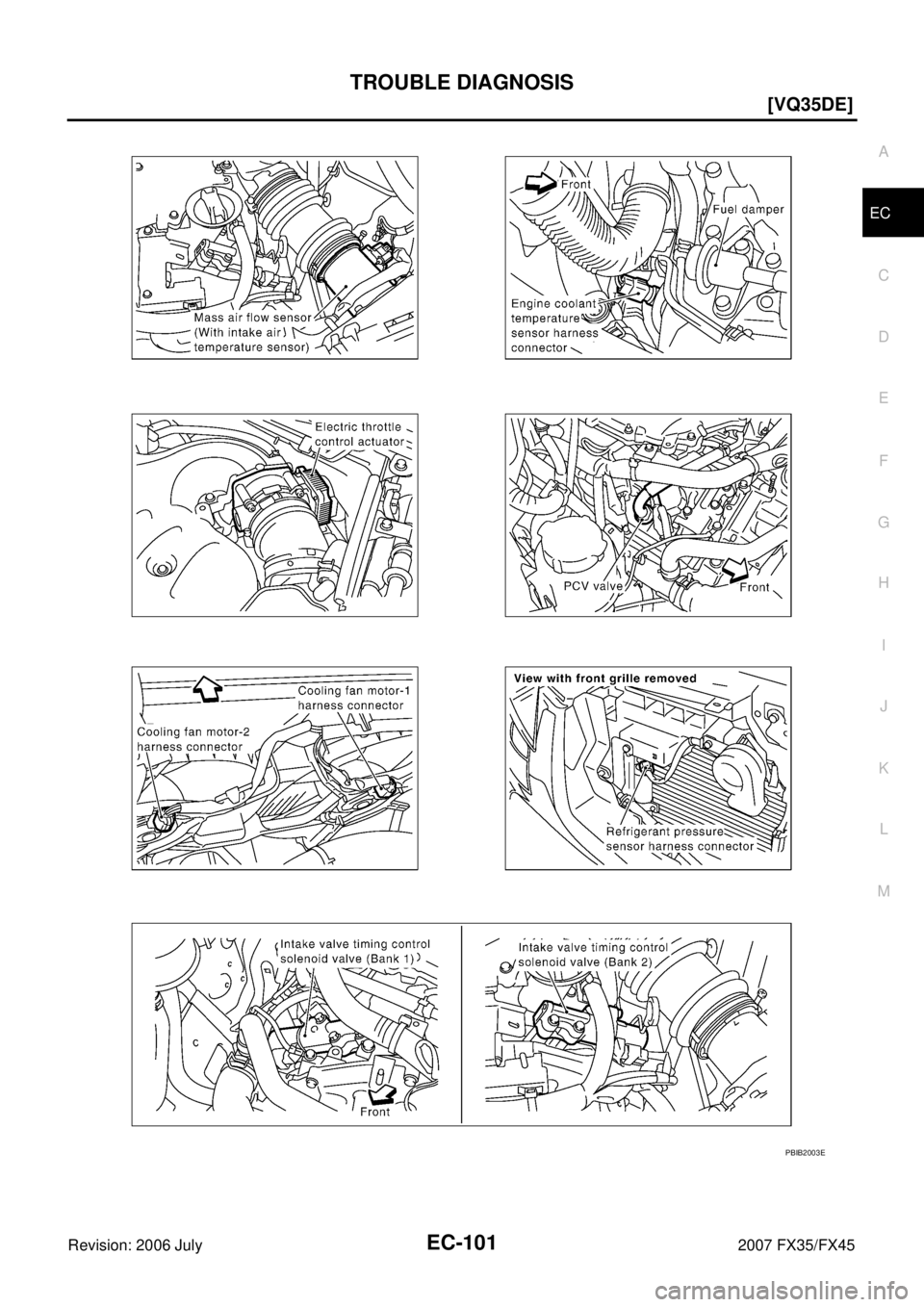

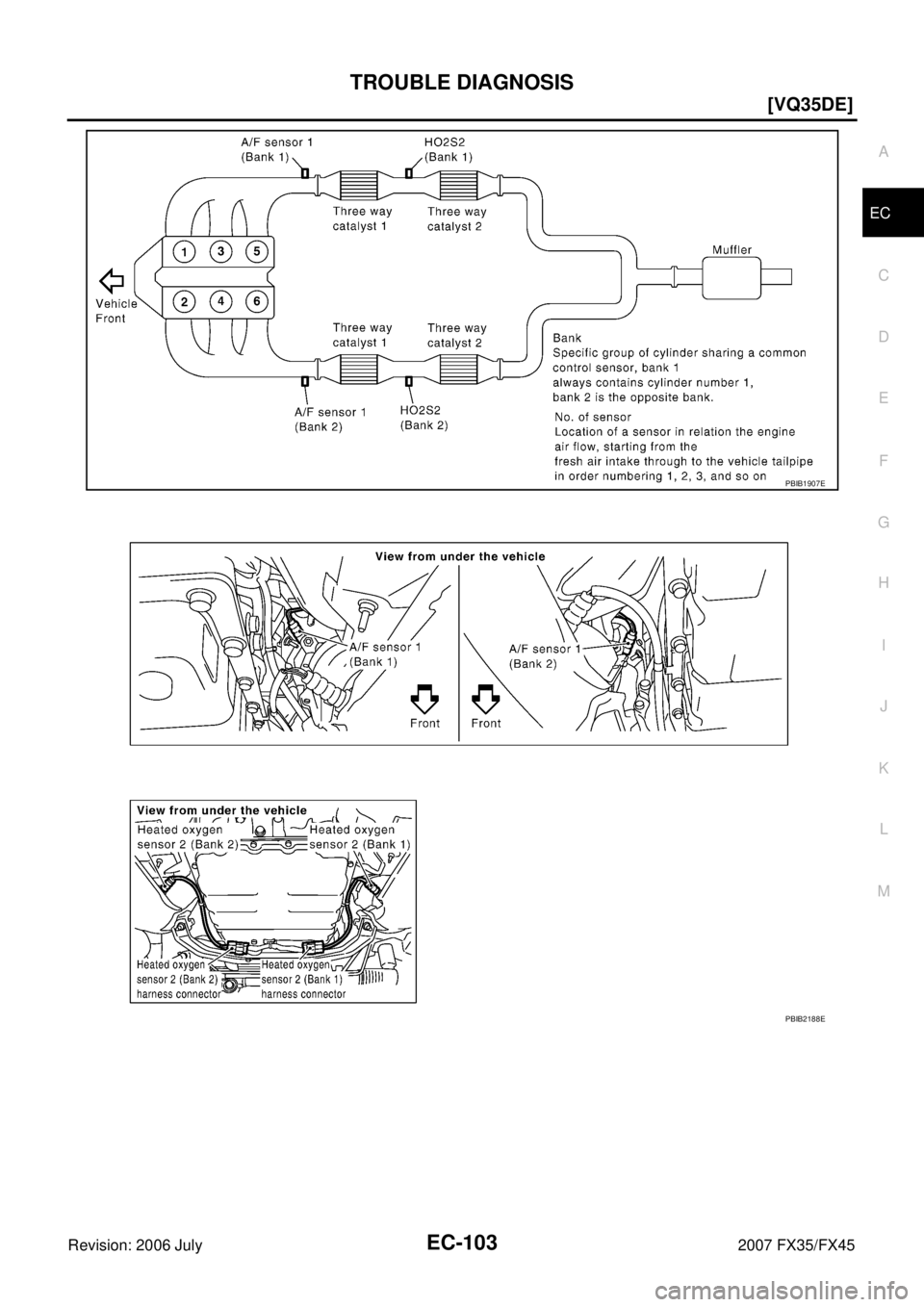

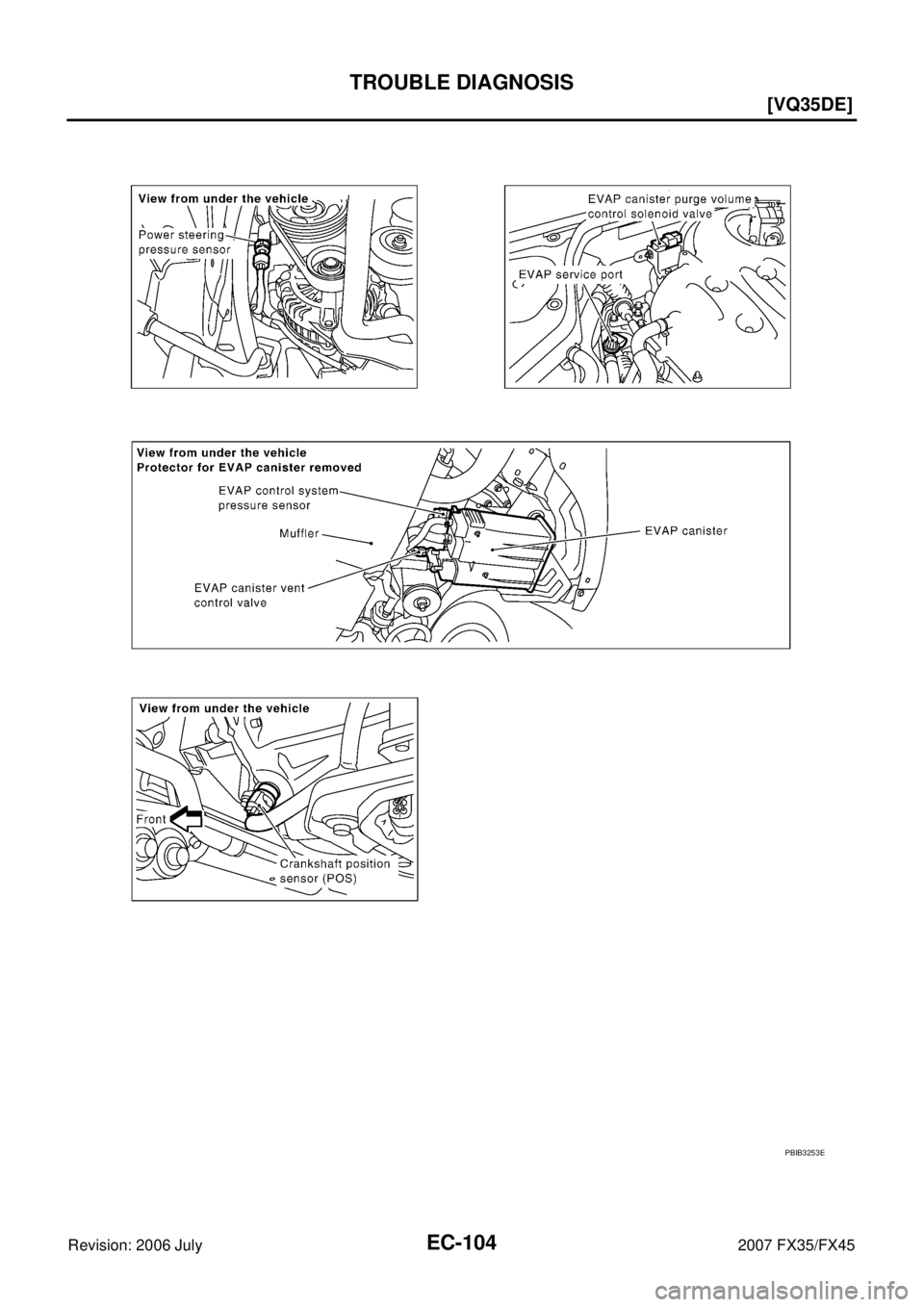

Engine Control Component Parts LocationNBS003M1
PBIB2002E

TROUBLE DIAGNOSIS EC-101
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
PBIB2003E

EC-102
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
PBIB1616E

TROUBLE DIAGNOSIS EC-103
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
PBIB1907E
PBIB2188E

EC-104
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
PBIB3253E
