Page 617 of 4366

INFINITI FX35 2007 User Guide AUDIO AV-11 C D E F G H I J L M A B AV Revision: 2006 July 2007 FX35/FX45 TKWM4385E

Page 618 of 4366

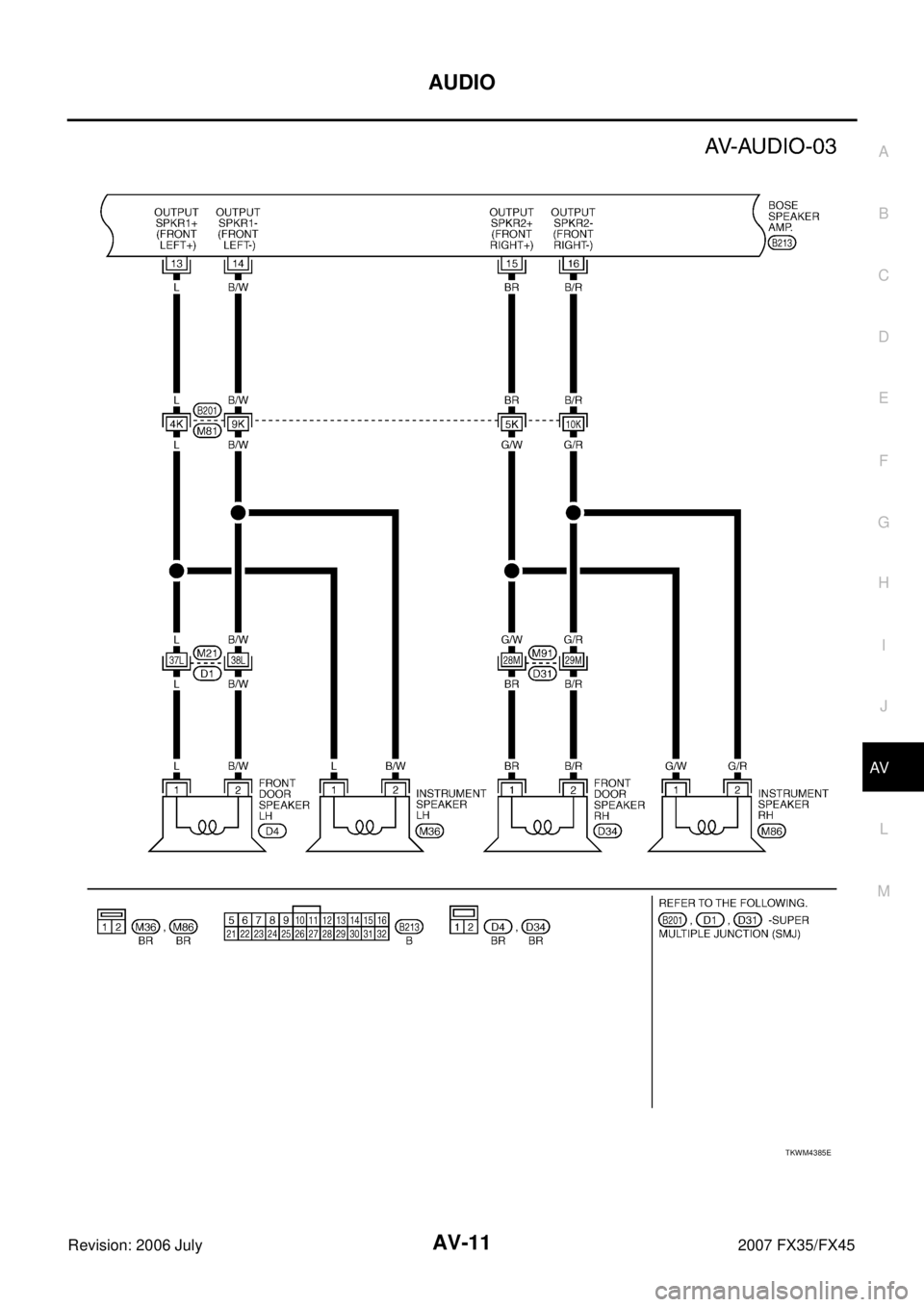

INFINITI FX35 2007 User Guide AV-12 AUDIO Revision: 2006 July 2007 FX35/FX45 TKWM4386E

Page 619 of 4366

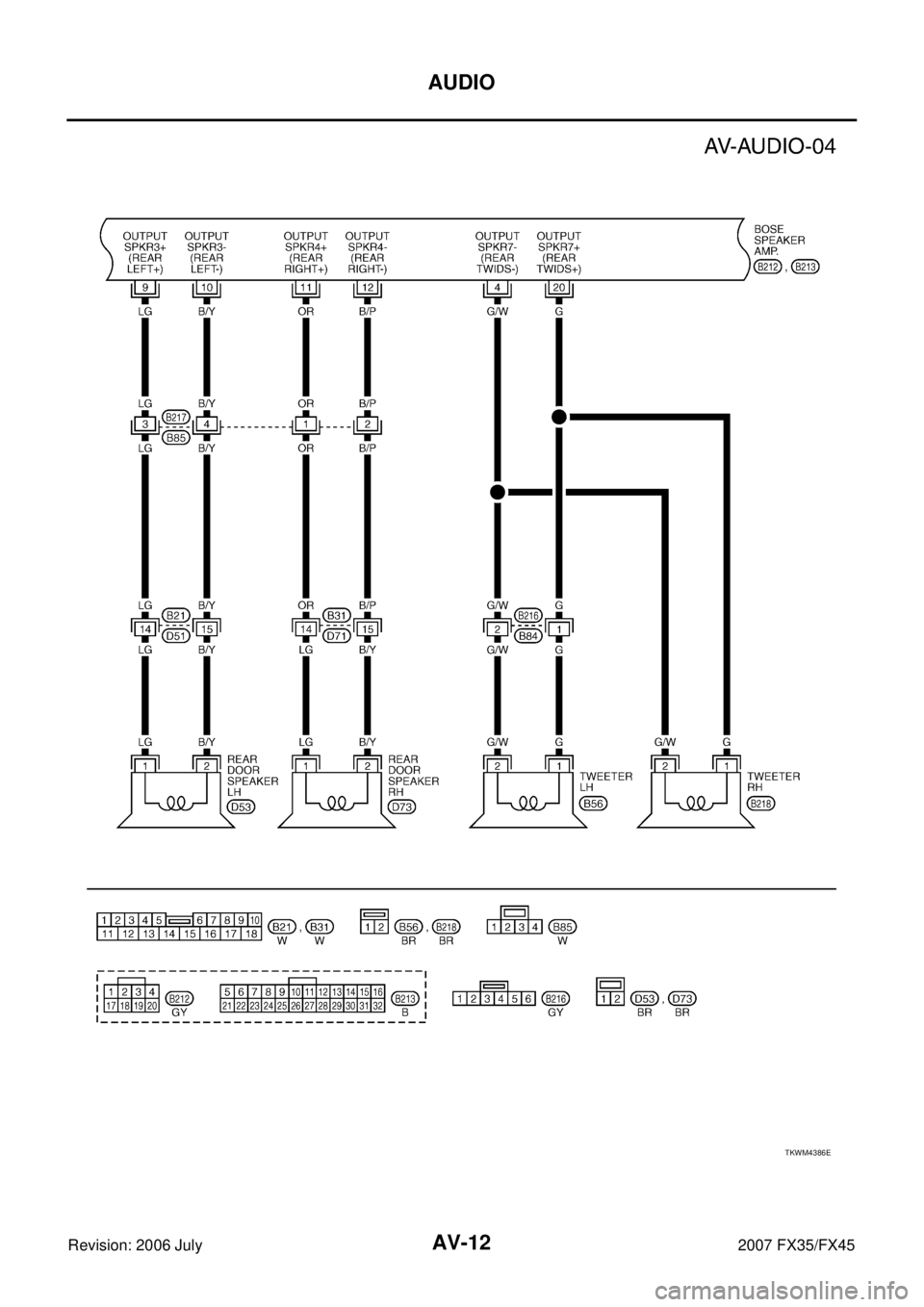

INFINITI FX35 2007 User Guide AUDIO AV-13 C D E F G H I J L M A B AV Revision: 2006 July 2007 FX35/FX45 TKWM4387E

Page 620 of 4366

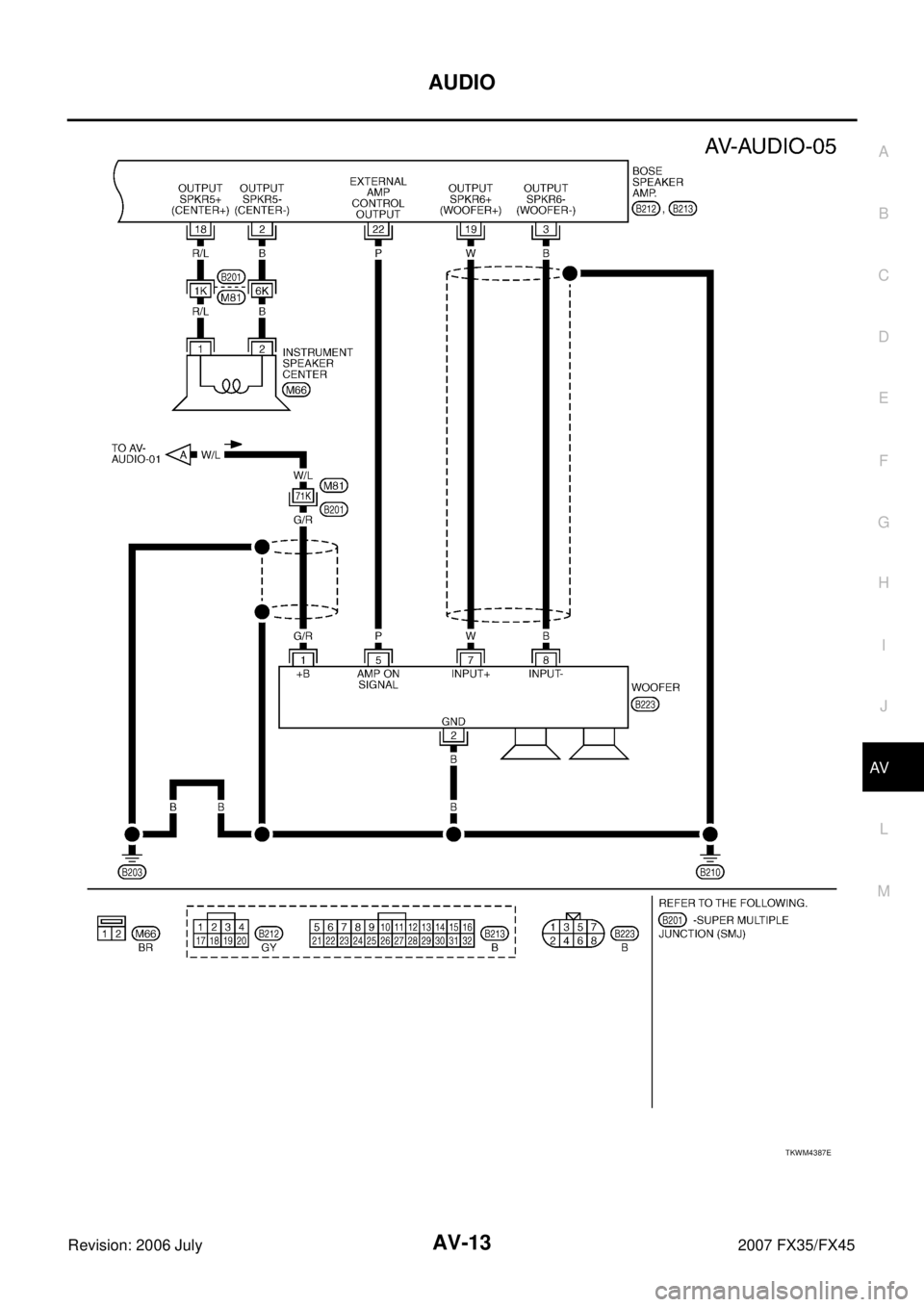

INFINITI FX35 2007 User Guide AV-14 AUDIO Revision: 2006 July 2007 FX35/FX45 TKWM4388E

Page 621 of 4366

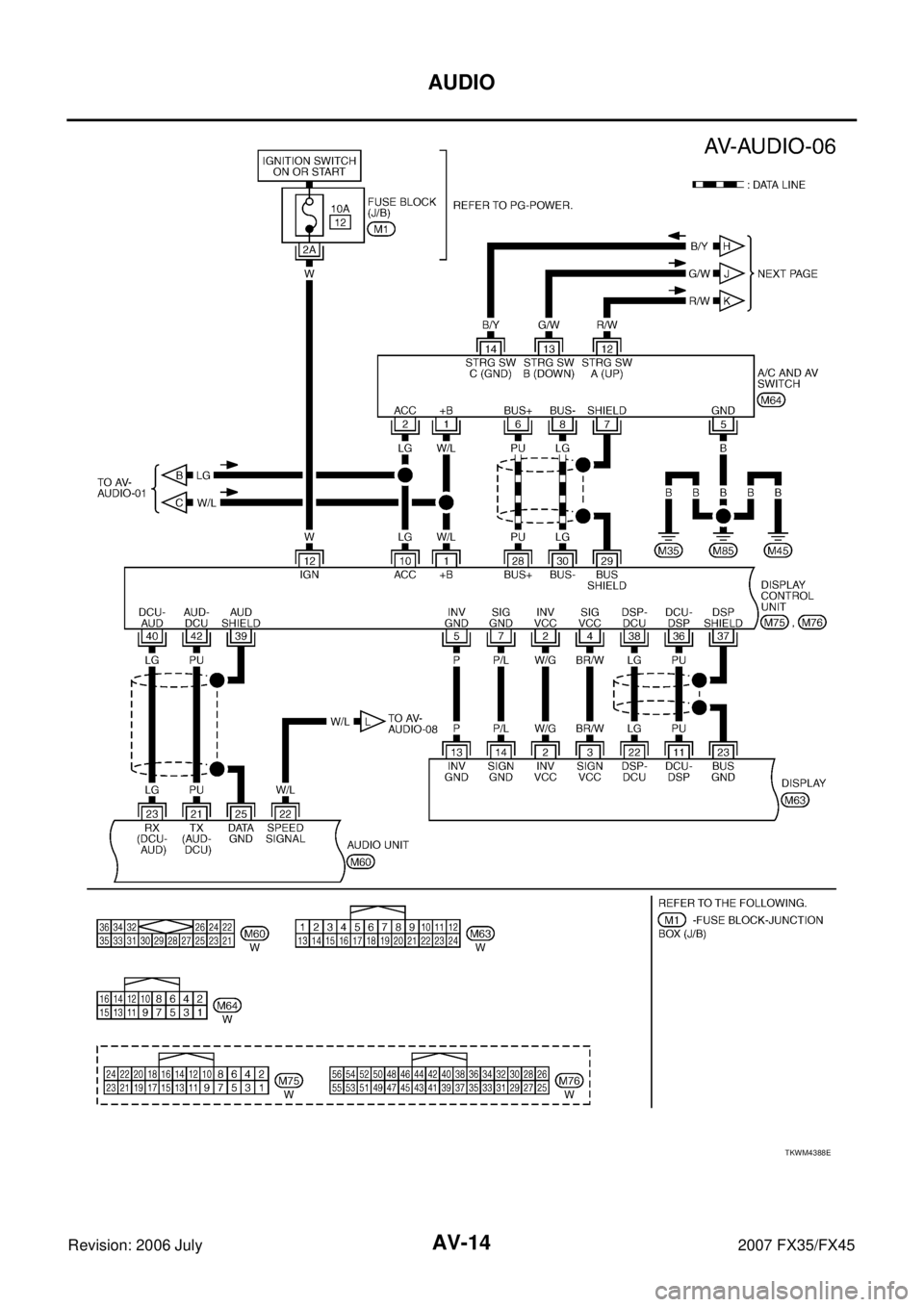

INFINITI FX35 2007 User Guide AUDIO AV-15 C D E F G H I J L M A B AV Revision: 2006 July 2007 FX35/FX45 TKWM4389E

Page 622 of 4366

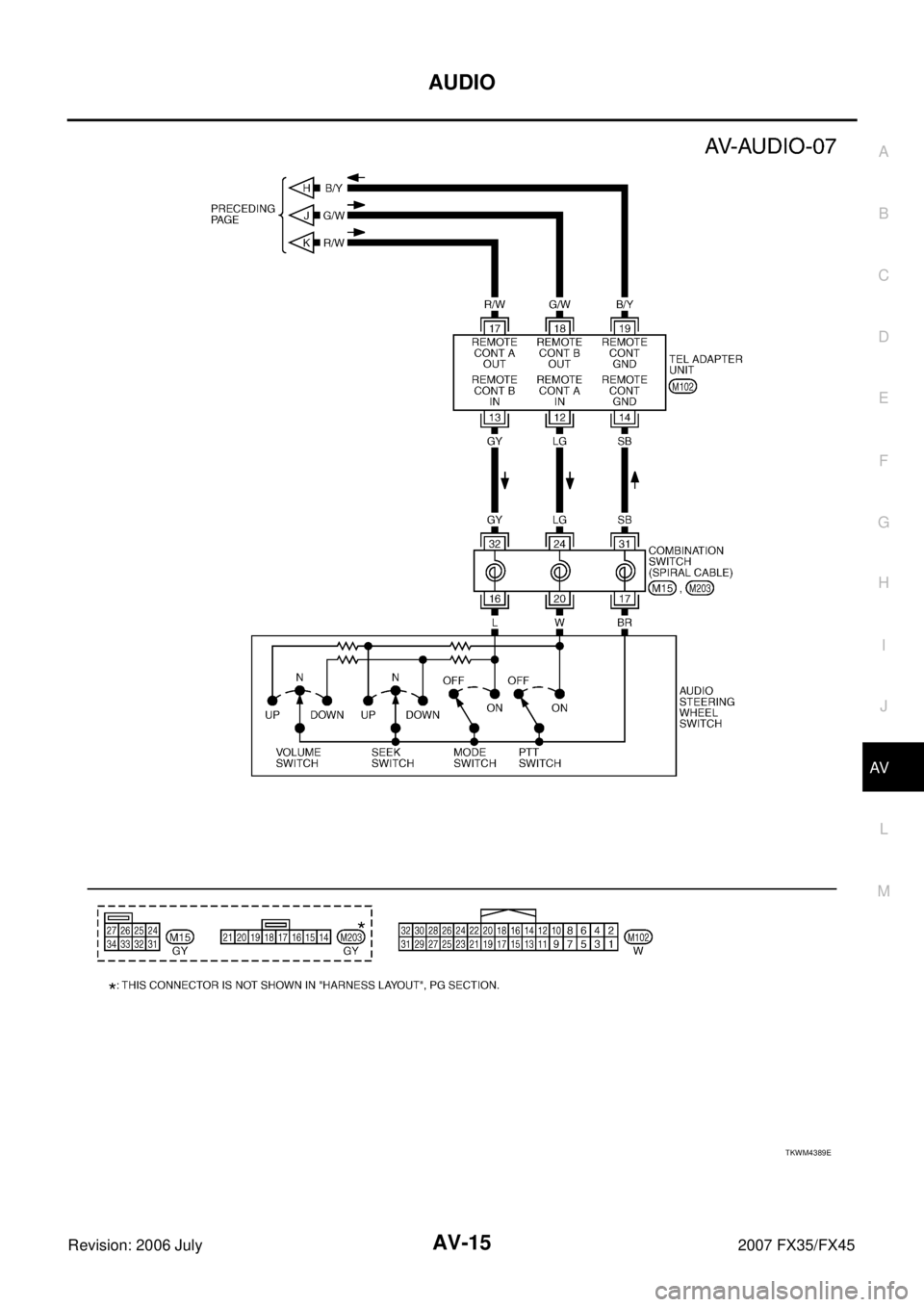

INFINITI FX35 2007 User Guide AV-16 AUDIO Revision: 2006 July 2007 FX35/FX45 TKWM4390E

Page 623 of 4366

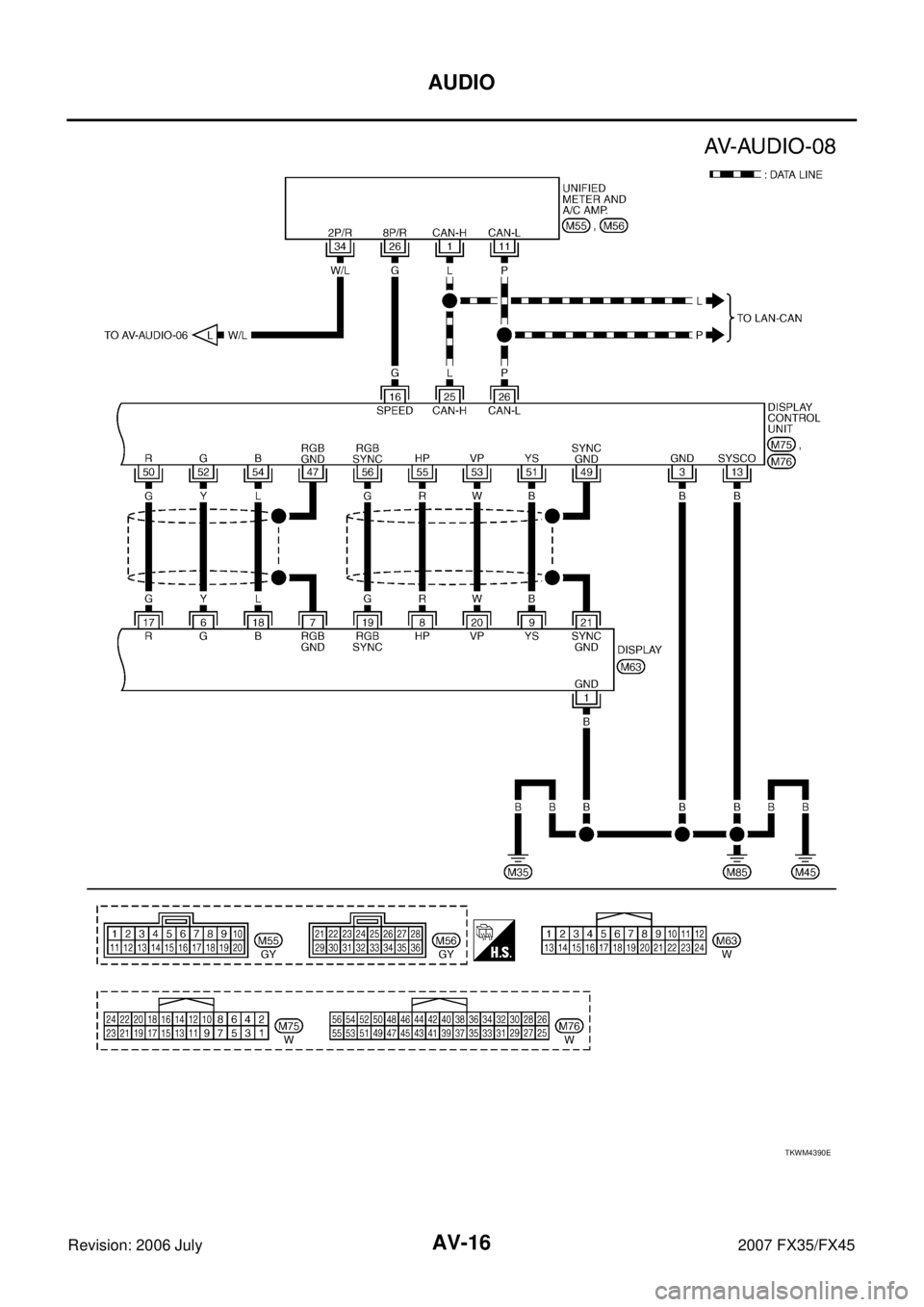

INFINITI FX35 2007 User Guide AUDIO AV-17 C D E F G H I J L M A B AV Revision: 2006 July 2007 FX35/FX45 TKWM4391E

Page 624 of 4366

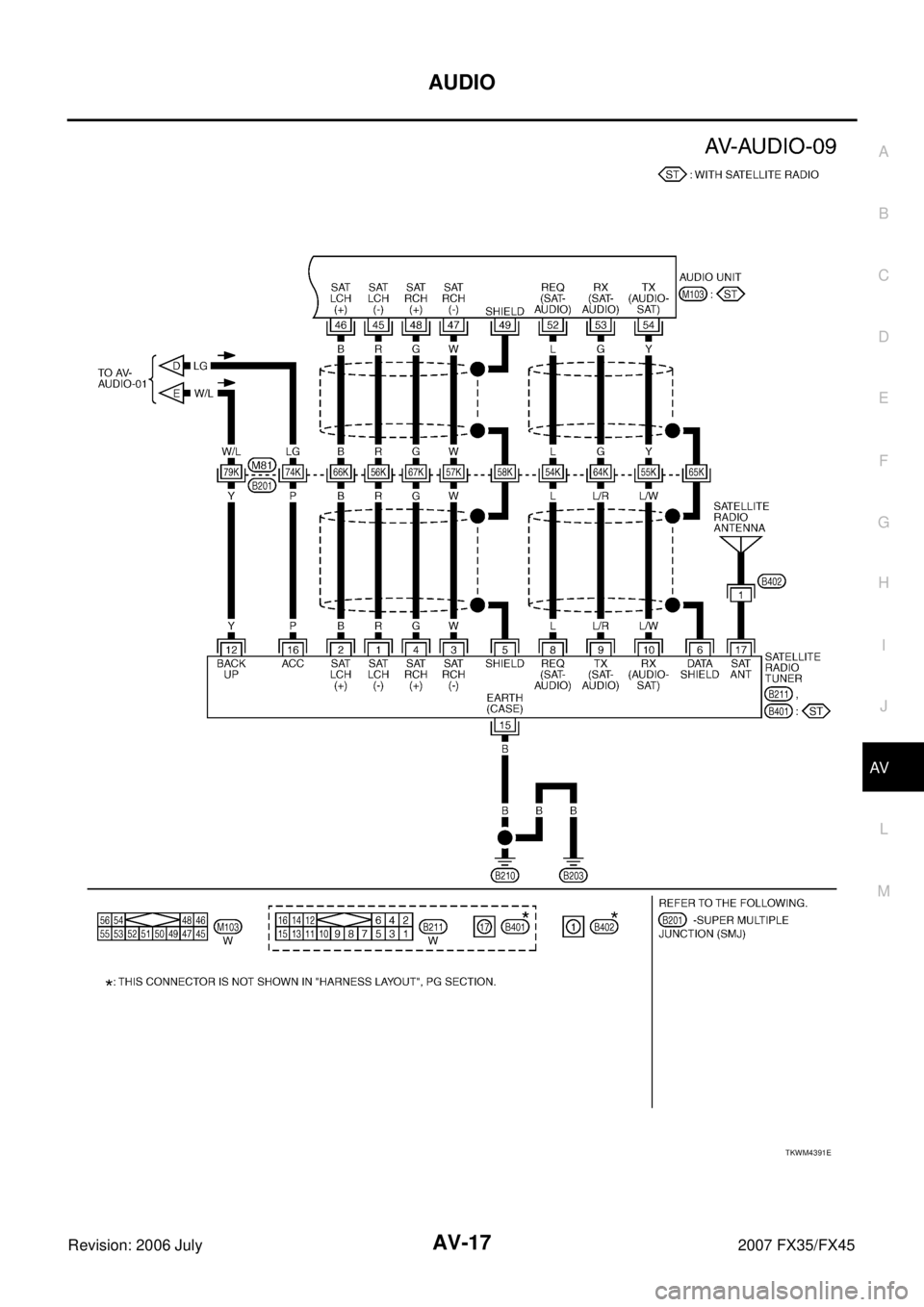

INFINITI FX35 2007 User Guide AV-18 AUDIO Revision: 2006 July 2007 FX35/FX45 TKWM4392E

Page 625 of 4366

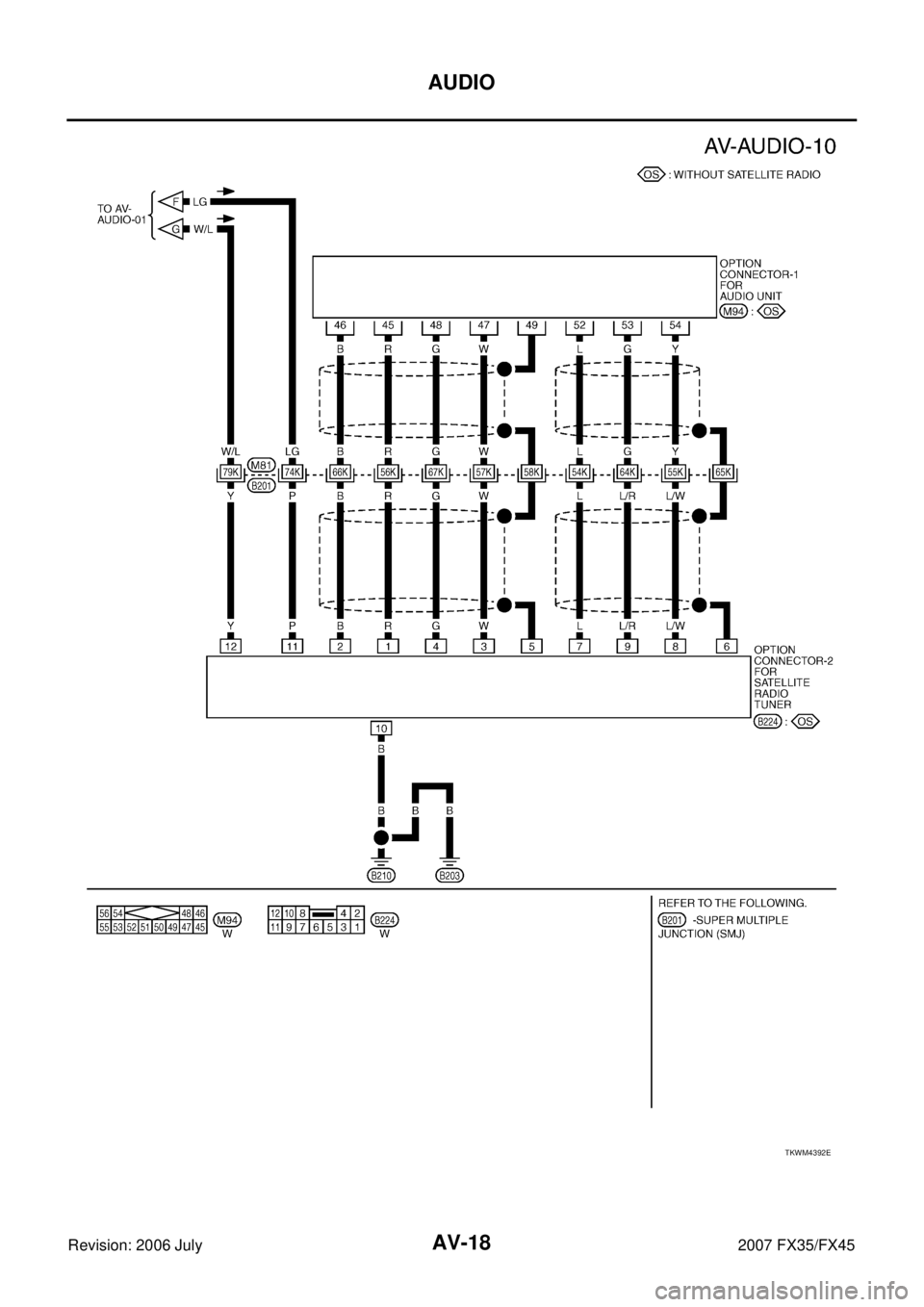

INFINITI FX35 2007 User Guide AUDIO AV-19 C D E F G H I J L M A B AV Revision: 2006 July 2007 FX35/FX45 Schematic — AUDIO — Without Navigation SystemNKS003AN TKWM4393E

Page 626 of 4366

INFINITI FX35 2007 User Guide AV-20 AUDIO Revision: 2006 July 2007 FX35/FX45 Wiring Diagram — AUDIO — / Without Navigation SystemNKS003AO TKWM4394E
