audio INFINITI FX35 2007 Owner's Manual

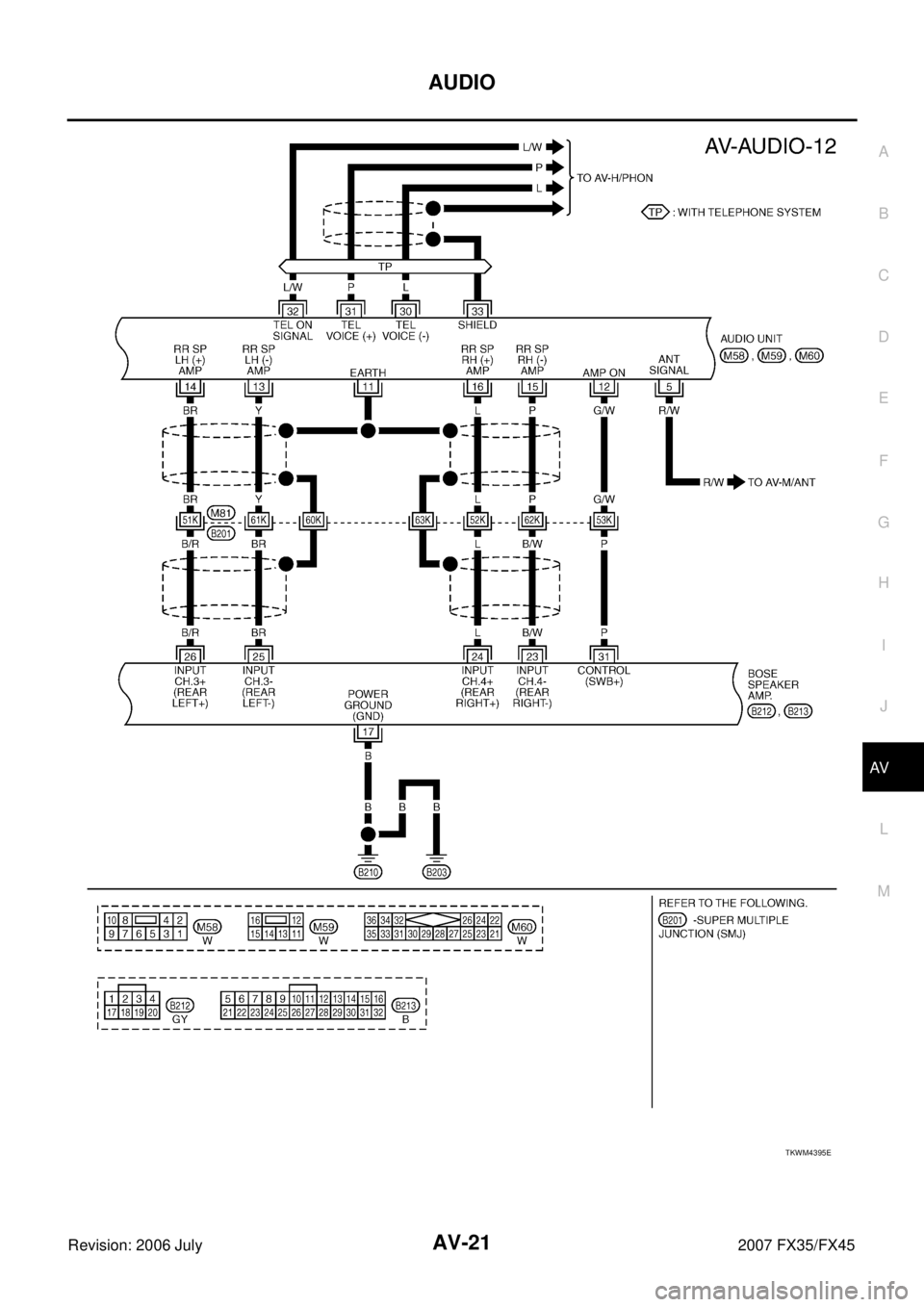

AUDIO AV-21
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 July 2007 FX35/FX45
TKWM4395E

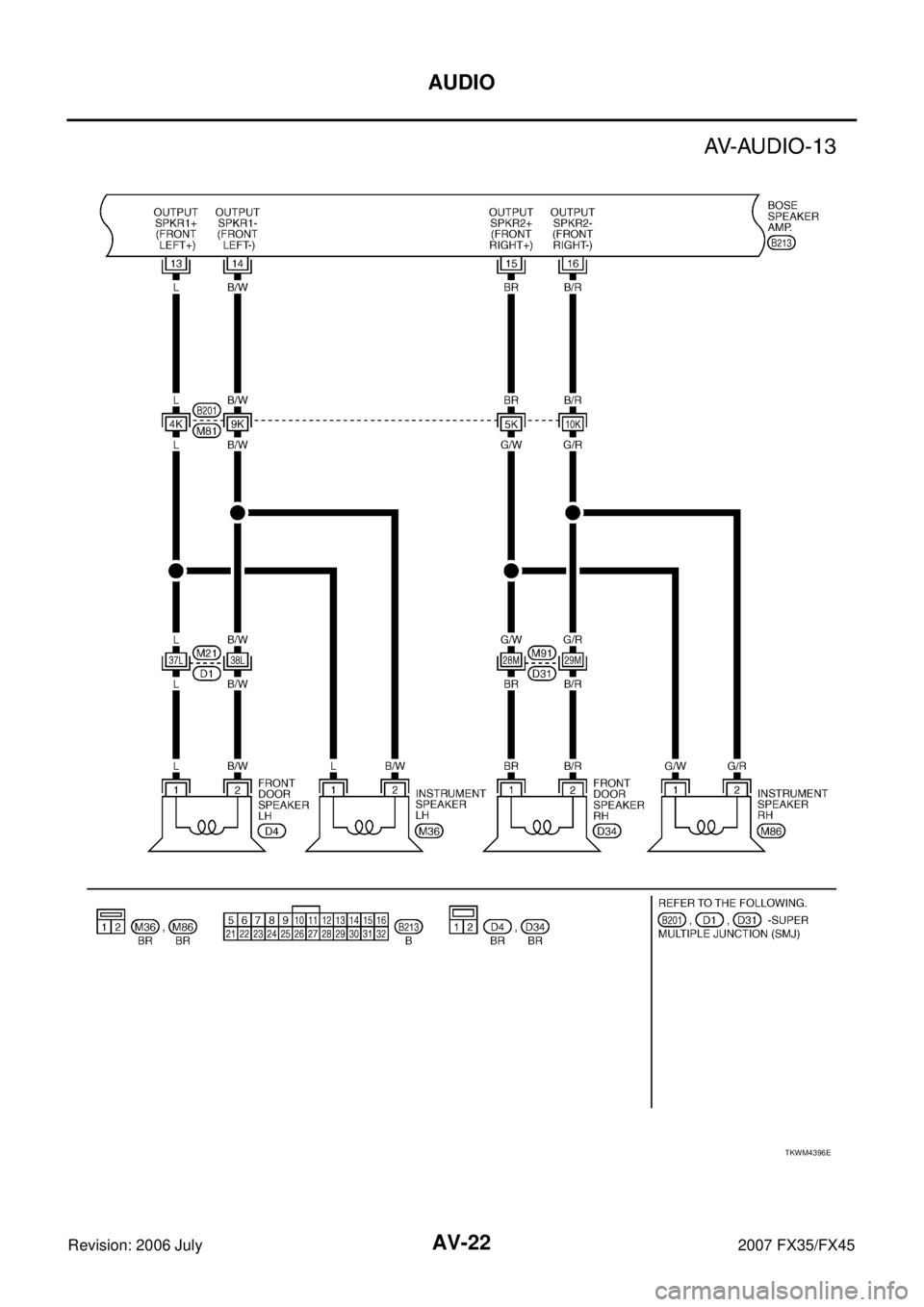

AV-22
AUDIO
Revision: 2006 July 2007 FX35/FX45
TKWM4396E

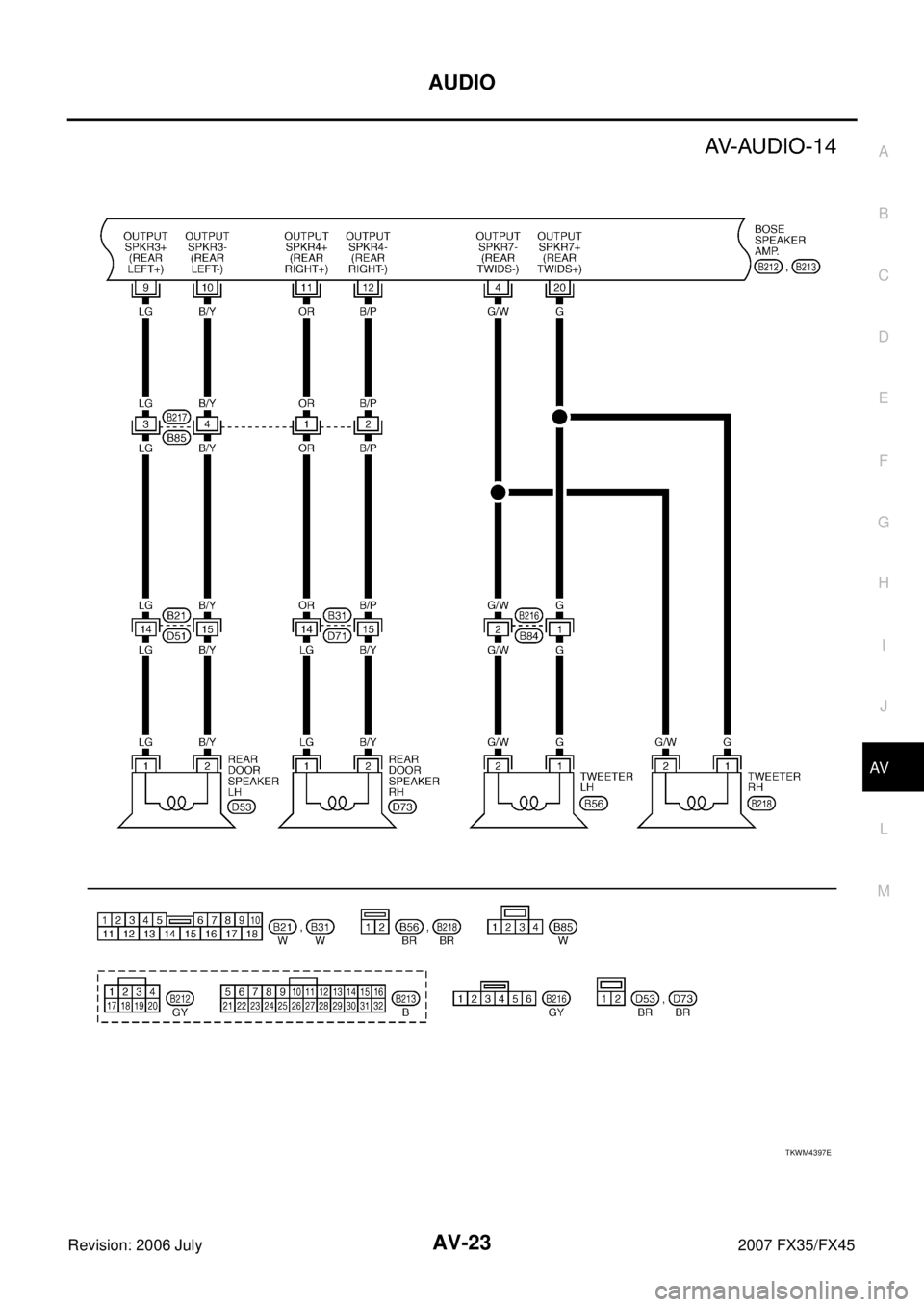

AUDIO AV-23
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 July 2007 FX35/FX45
TKWM4397E

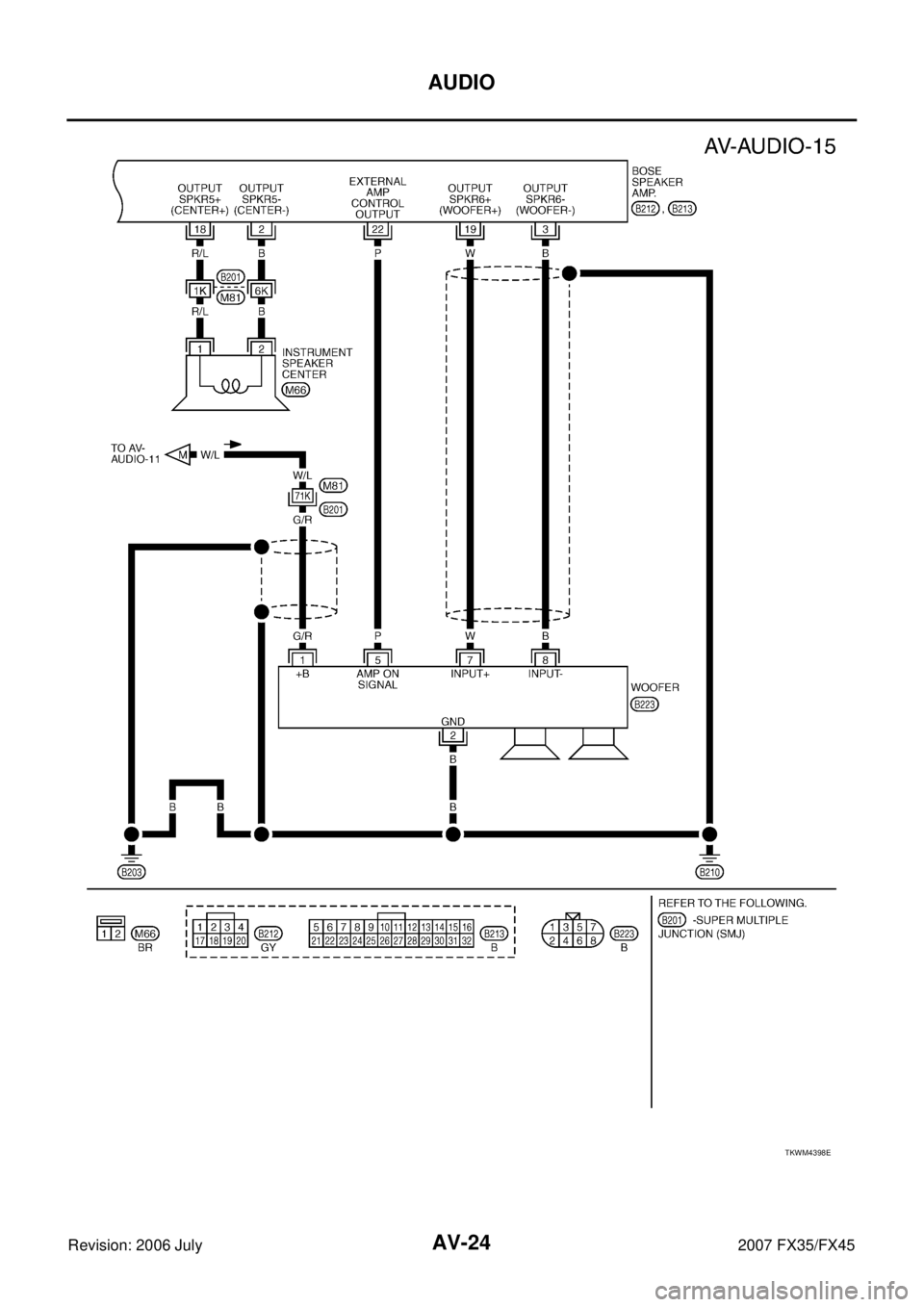

AV-24
AUDIO
Revision: 2006 July 2007 FX35/FX45
TKWM4398E

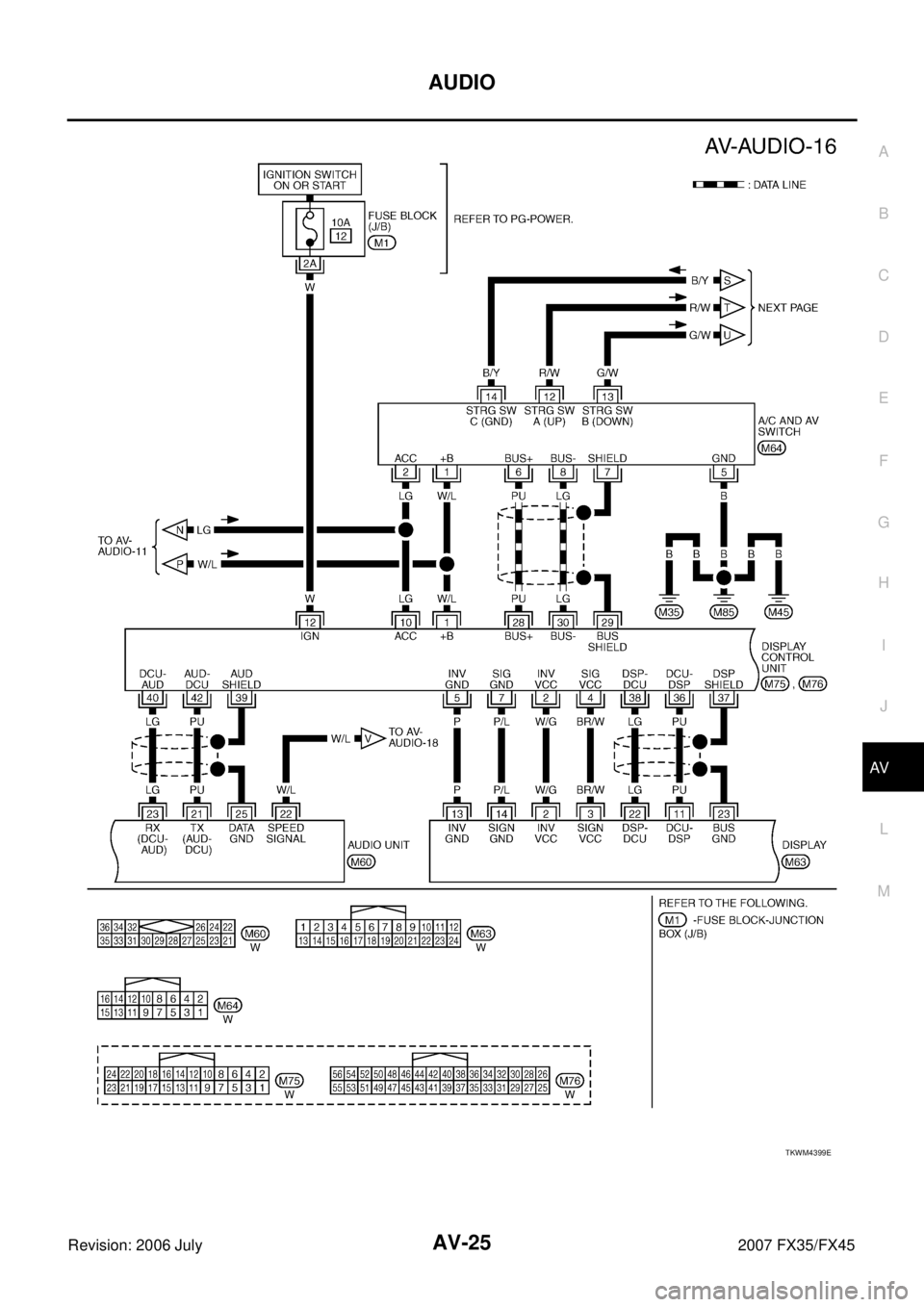

AUDIO AV-25
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 July 2007 FX35/FX45
TKWM4399E

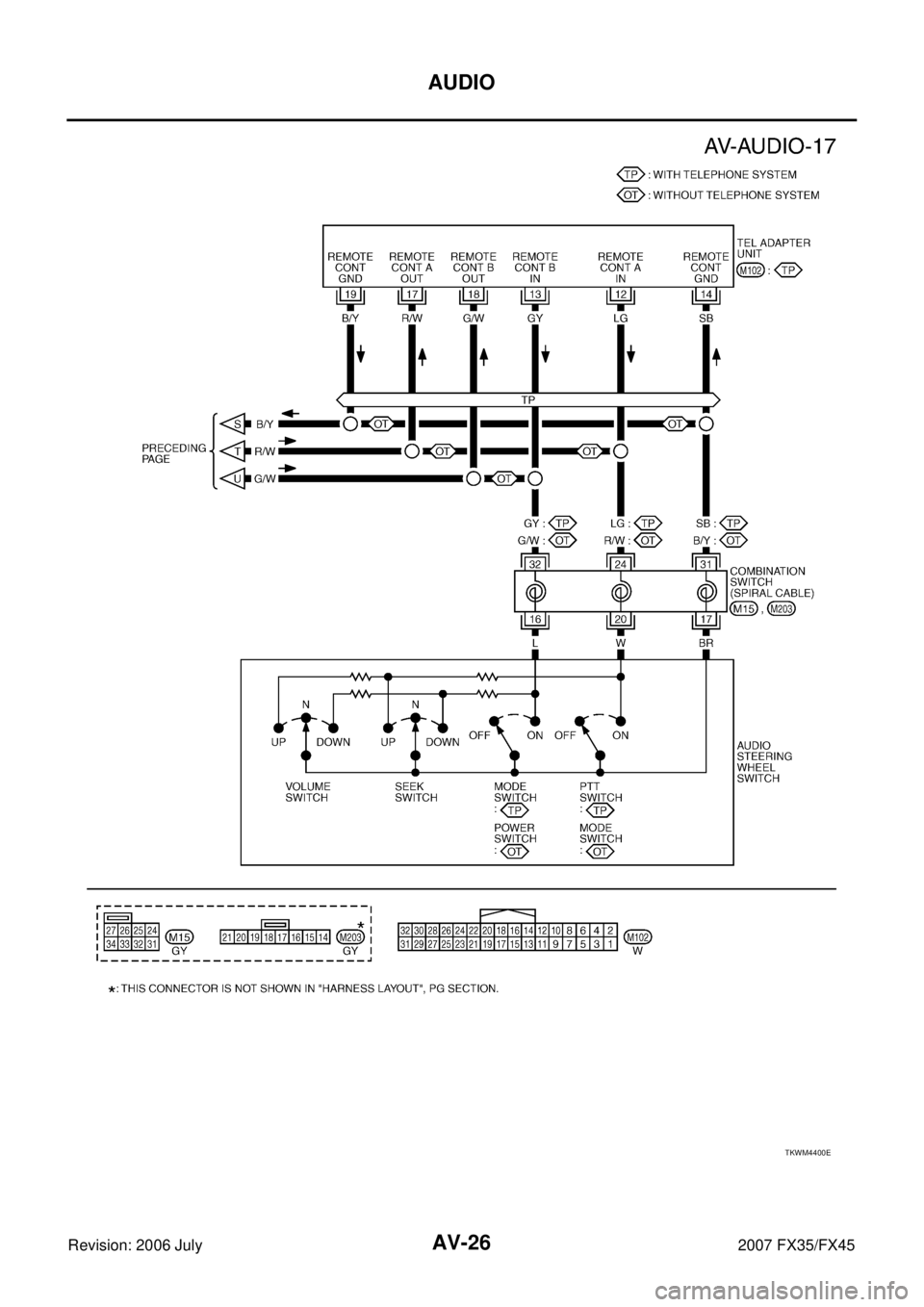

AV-26
AUDIO
Revision: 2006 July 2007 FX35/FX45
TKWM4400E

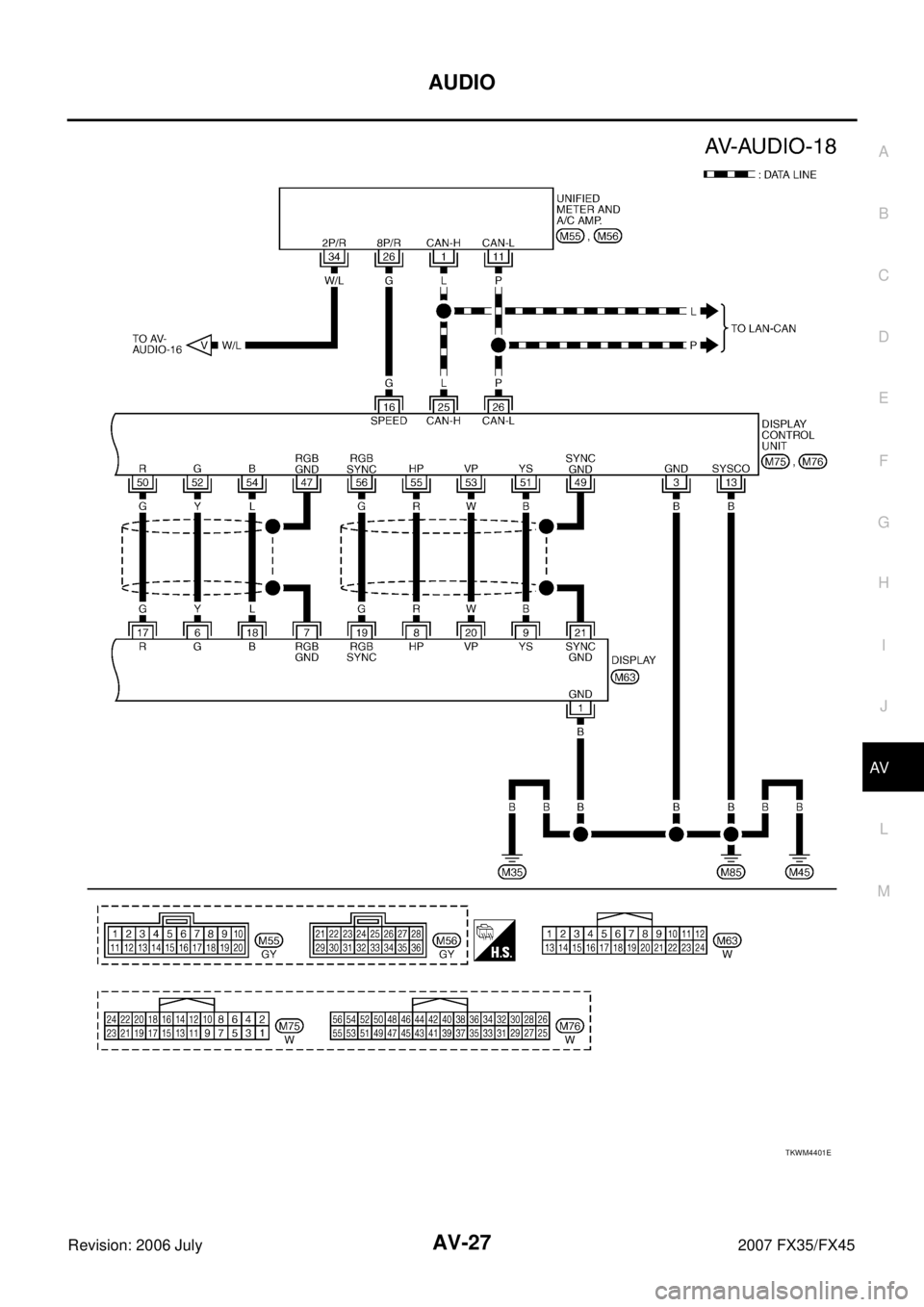

AUDIO AV-27
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 July 2007 FX35/FX45
TKWM4401E

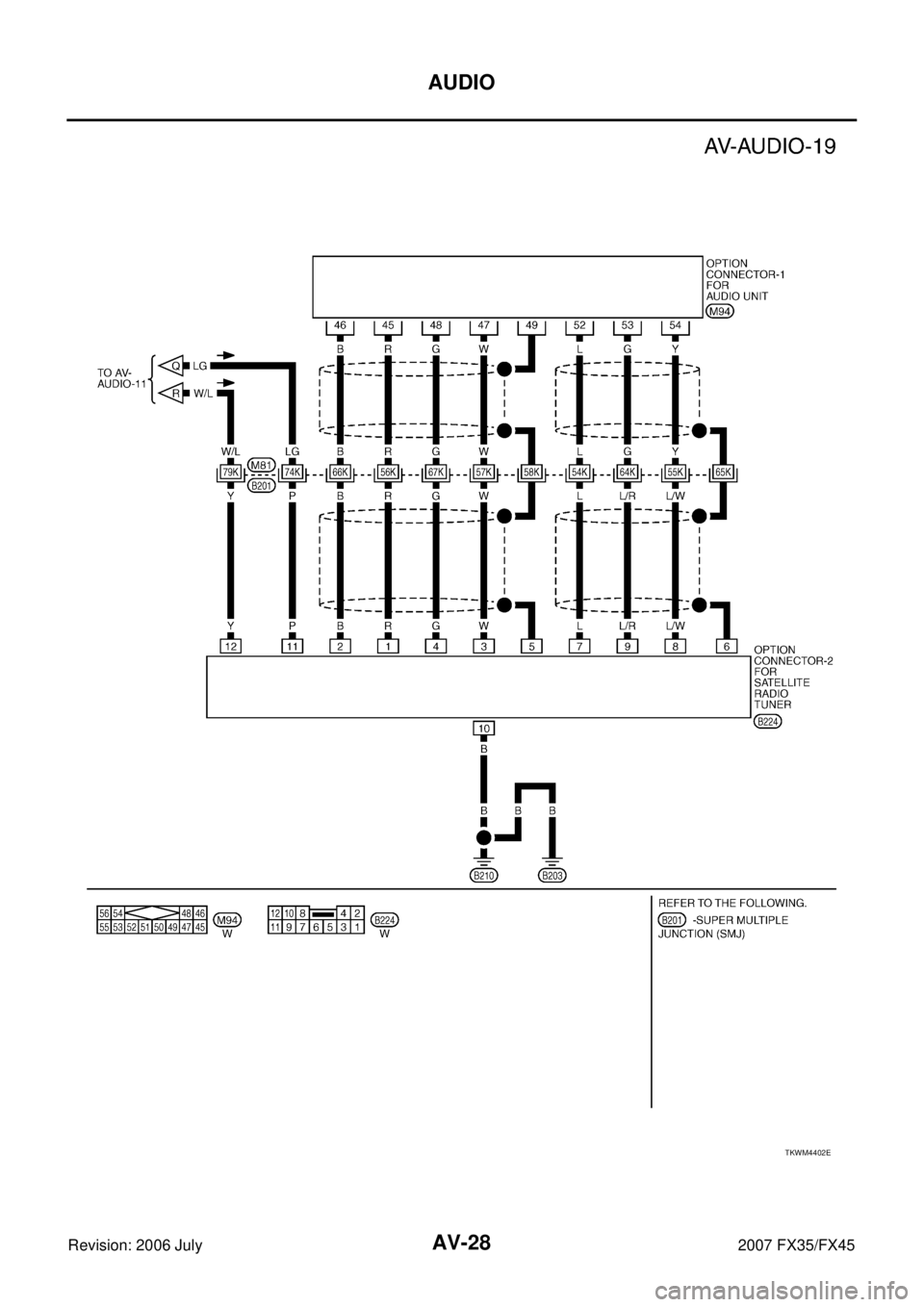

AV-28
AUDIO
Revision: 2006 July 2007 FX35/FX45
TKWM4402E

AUDIO AV-29
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 July 2007 FX35/FX45
Terminals and Reference Value for Audio UnitNKS003L8
Terminal
(Wire color) Item Signal
input/
output Condition
Reference value
+– Ignition
switch Operation
2 (W) 1 (B) Audio signal front LH Output ACC Receive audio signal
4 (G) 3 (R) Audio signal front RH Output ACC Receive audio signal
5 (R/W) Ground Antenna amp. ON
signal Output ACC — Approx. 12 V
6 (W/L) Ground Battery power supply Input OFF — Battery voltage 9 — Shield — — — —
10 (LG) Ground ACC power supply Input ACC — Battery voltage 11 — Shield — — — —
12 (G/W) Ground BOSE speaker amp.
ON signal Output ACC — Approx. 12 V
14 (BR) 13 (Y) Audio signal rear LH Output ACC Receive audio signal
16 (L) 15 (P) Audio signal rear RH Output ACC Receive audio signal
21 (PU) Ground Communication signal
(AUDIO-DCU) Output ACC
Operate audio volume
switch
SKIB3609E
SKIB3609E
SKIB3609E
SKIB3609E
SKIB3606E

AV-30
AUDIO
Revision: 2006 July 2007 FX35/FX45
22 (W/L) Ground Vehicle speed signal
(2 pulse) Input ON When vehicle speed is
approx. 40 km/h (25 MPH)
23 (LG) Ground Communication signal
(DCU-AUDIO) Input ACC Operate audio volume
switch
25 — Shield — — — —
46 (B)* 45 (R)* Satellite radio audio
signal LH Input ONReceive satellite radio audio
signal
48 (G)* 47 (W)* Satellite radio audio
signal RH Input ON
Receive satellite radio audio
signal
49* — Shield — — — —
52 (L)* Ground Communication signal
REQ (SAT-AUDIO) Input ON
When setting to satellite
radio mode
53 (G)* Ground Communication signal
Rx (SAT-AUDIO) Input ON When setting to satellite
radio mode
54 (Y)* Ground Communication signal
Tx (AUDIO-SAT) Output ONWhen setting to satellite
radio mode
Te r m i n a l
(Wire color) Item Signal
input/
output Condition
Reference value
+– Ignition
switch Operation
ELF1080D
SKIB3607E
SKIB3609E
SKIB3609E
SKIB7338E
SKIB7337E
SKIB7336E
