1. Fuel injector (Bank 2) 2. Fuel injector (Bank 1) 3. VIAS control solenoid valve
4. Vacuum tank 5. Power valve actuator 6. EVAP canister purge volume control solenoid valve
7. EVAP service port 8. Cooling fan motor
PBIB3227E

EC-766
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
: Vehicle front

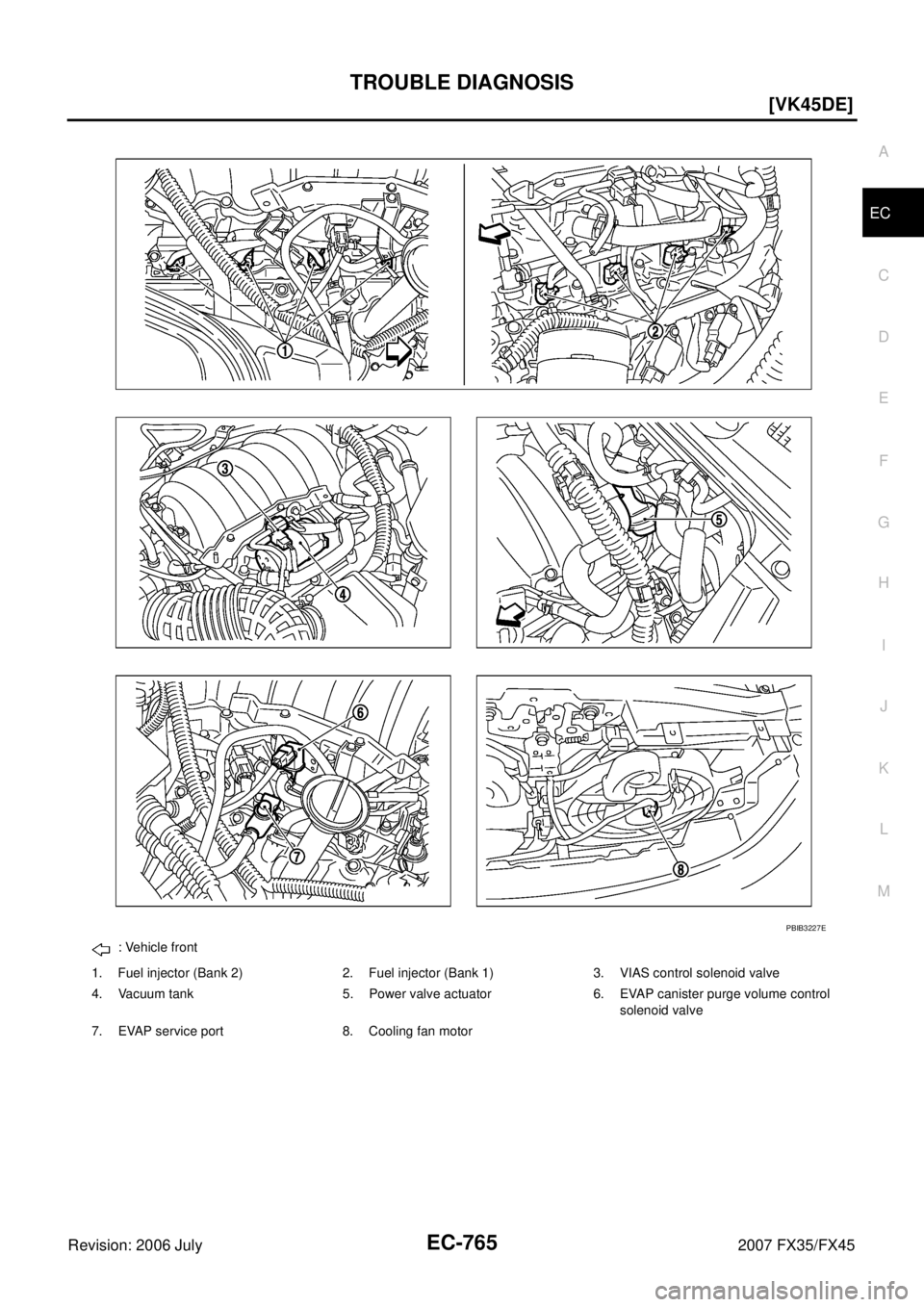

1. Fuel pump fuse 2. IPDM E/R 3. ICC brake hold relay (ICC models only)
4. Crankshaft position sensor (POS) 5. Power steering pressure sensor 6. EVAP canister vent control valve
7. EVAP canister 8. EVAP control system pressure sensor
PBIB3228E

TROUBLE DIAGNOSIS EC-767
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
PBIB2710E
1. Air fuel ratio (A/F) sensor 1 (Bank 1) 2. Heated oxygen sensor 2 (Bank 1) 3. Heated oxygen sensor 2 (Bank 1)
harness connector
4. Heated oxygen sensor 2 (Bank 2) harness connector 5. Heated oxygen sensor 2 (Bank 2) 6. Air fuel ratio (A/F) sensor 1 (Bank 2)
PBIB3239E

EC-768
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
1. ECM 2. Accelerator pedal position sensor 3. Stop lamp switch
4. ICC brake switch (models with ICC)
ASCD brake switch
(models with ASCD) 5. Fuel level sensor unit and fuel pump
harness connector 6. ICC steering switch
(models with ICC)
ASCD steering switch
(models with ASCD)
7. MAIN switch 8. DISTANCE switch (ICC models only) 9. CANCEL switch
10. SET/COAST switch 11. RESUME/ACCELERATE switch
PBIB3229E

TROUBLE DIAGNOSIS EC-769
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
Vacuum Hose DrawingNBS00422
Refer to EC-691, "System Diagram" for Vacuum Control System.

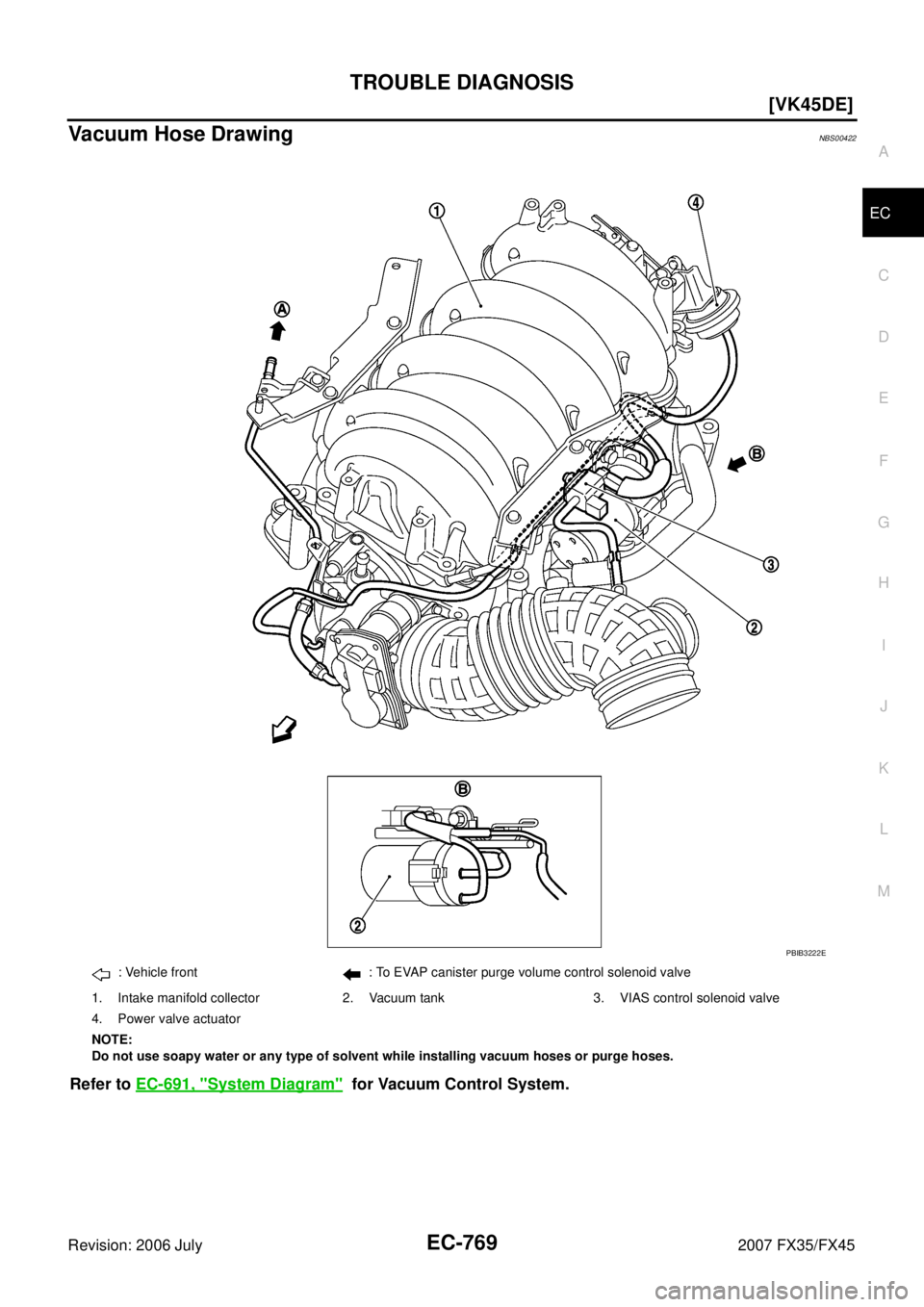

: Vehicle front : To EVAP canister purge volume control solenoid valve
1. Intake manifold collector 2. Vacuum tank 3. VIAS control solenoid valve
4. Power valve actuator
NOTE:
Do not use soapy water or any type of solvent while installing vacuum hoses or purge hoses.
PBIB3222E

EC-770
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45

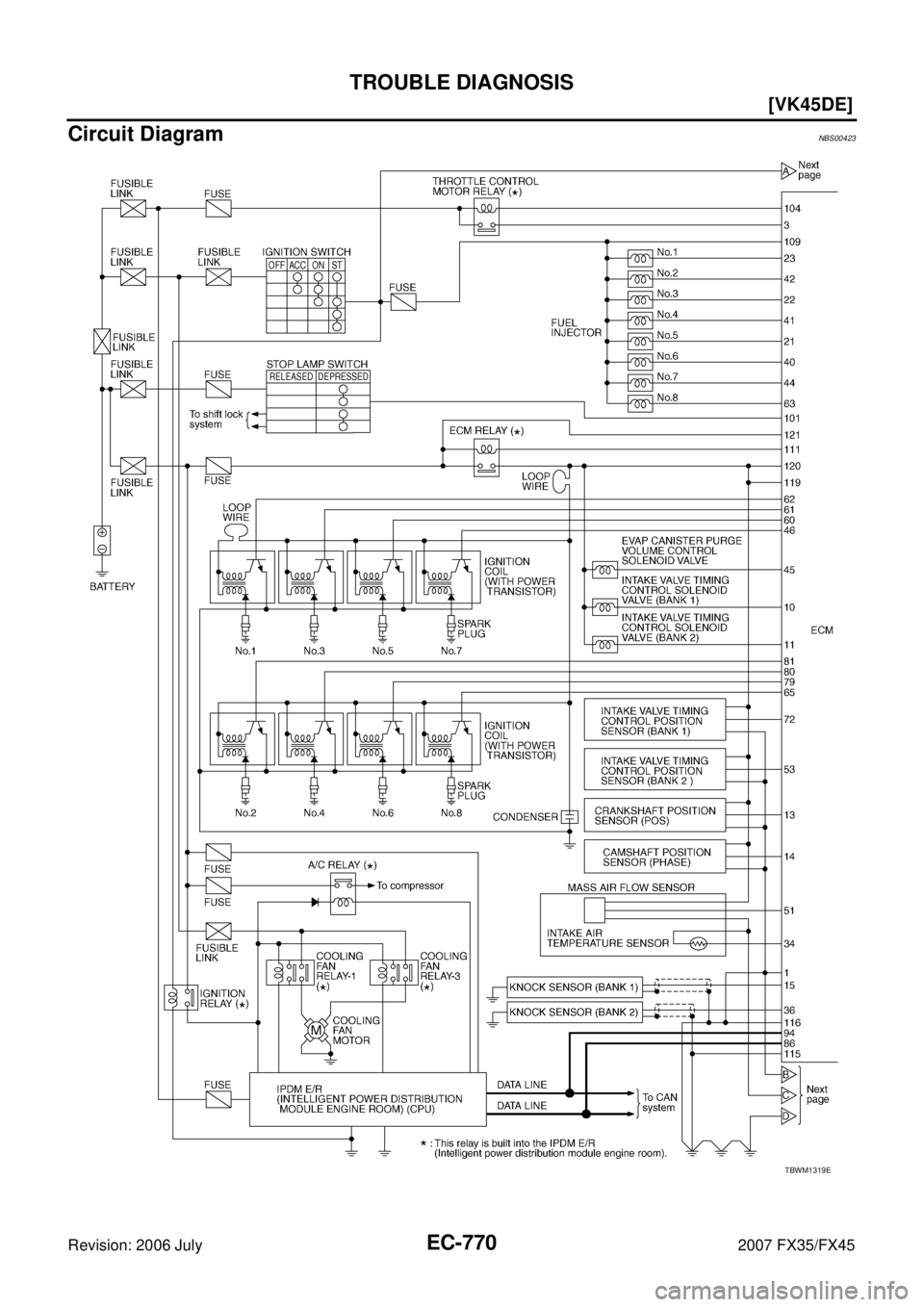

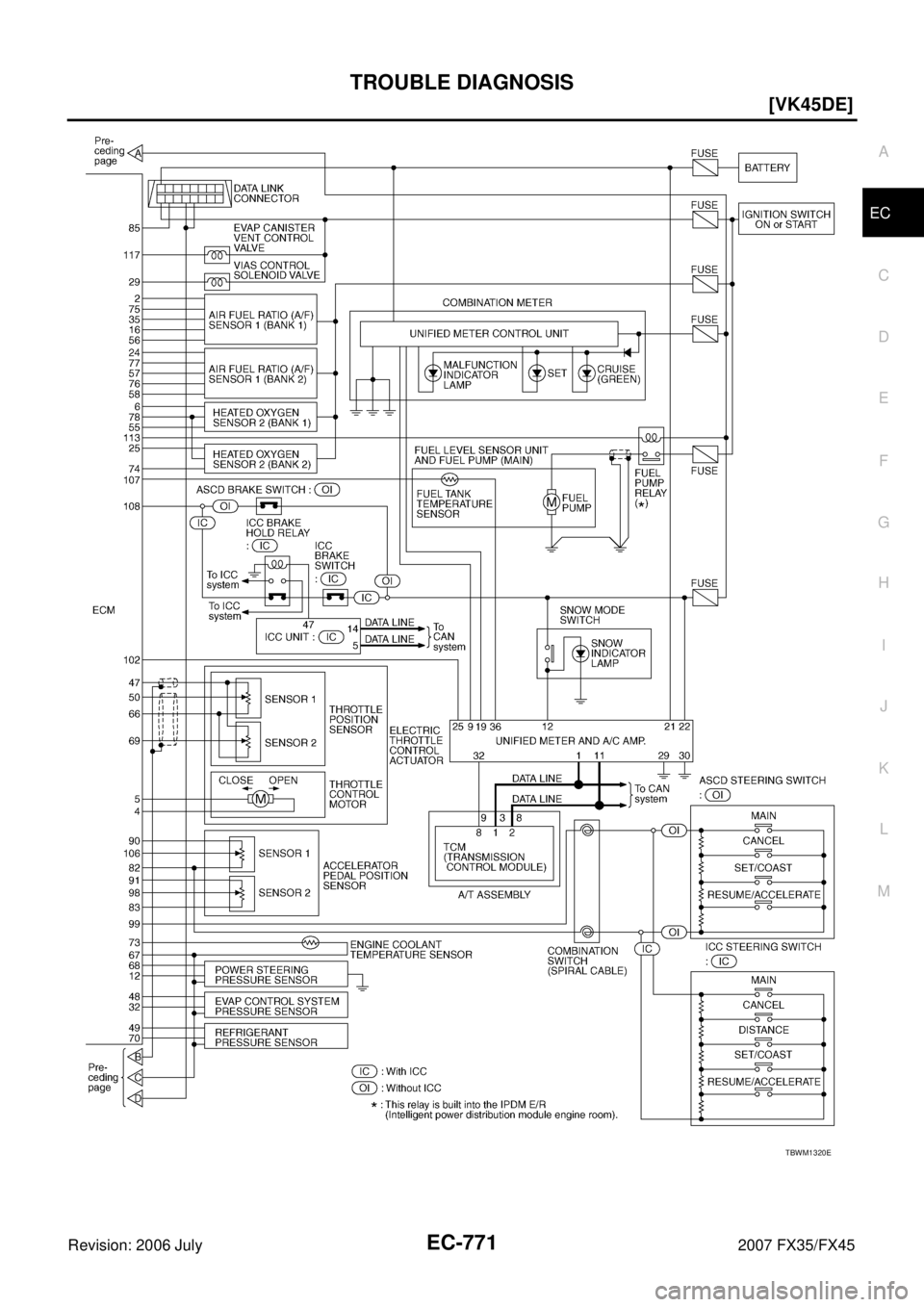

Circuit DiagramNBS00423
TBWM1319E

TROUBLE DIAGNOSIS EC-771
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
TBWM1320E

EC-772
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
ECM Harness Connector Terminal LayoutNBS00424
ECM Terminals and Reference ValueNBS00425
PREPARATION
ECM (1) is located behind the passenger side instrument lower
panel. For this inspection, remove passenger side instrument lower
panel.
ECM INSPECTION TABLE
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.
PBIB3368E
PBIB3240E
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
1 B ECM ground [Engine is running]

Idle speedBody ground
2P A/F sensor 1 heater
(Bank 1) [Engine is running]

Warm-up condition

Idle speed Approximately 5V
3P Throttle control motor relay
power supply [Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
4L/W Throttle control motor
(Close) [Ignition switch: ON]

Engine stopped

Selector lever: D

Accelerator pedal: Fully released 0 - 14V
PBIB1584E
PBIB1104E

TROUBLE DIAGNOSIS EC-773
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
5L/B Throttle control motor
(Open) [Ignition switch: ON]
Engine stopped

Selector lever: D

Accelerator pedal: Fully depressed 0 - 14V
6R Heated oxygen sensor 2
heater (Bank 1) [Engine is running]

Engine speed: Below 3,600 rpm after the
following conditions are met
–Engine: After warming up
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load 0 - 1.0V
[Ignition switch: ON]

Engine stopped
[Engine is running]

Engine speed: Above 3,600 rpm BATTERY VOLTAGE
(11 - 14V)
10 OR Intake valve timing control
solenoid valve (Bank 1) [Engine is running]

Warm-up condition

Idle speed
BATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Warm-up condition

Engine speed: 2,000rpm 7 - 12V
11 B R Intake valve timing control
solenoid valve (Bank 2) [Engine is running]

Warm-up condition

Idle speed
BATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Warm-up condition

Engine speed: 2,000rpm 7 - 12V
12 R/G Power steering pressure
sensor [Engine is running]

Steering wheel: Being turned
0.5 - 4.5V
[Engine is running]

Steering wheel: Not being turned 0.4 - 0.8V
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
PBIB1105E
PBIB1790E
PBIB1790E

EC-774
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
13 Y Crankshaft position sensor
(POS) [Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle 1.0 - 2.0V
[Engine is running]

Engine speed: 2,000 rpm 1.0 - 2.0V
14 W Camshaft position sensor
(PHASE) [Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle 1.0 - 4.0V
[Engine is running]

Engine speed: 2,000 rpm 1.0 - 4.0V
15 W Knock sensor (Bank 1) [Engine is running]

Idle speedApproximately 2.5V
16 R
A/F sensor 1 (Bank 1) [Engine is running]

Warm-up condition

Idle speed Approximately 3.1V
35 G Approximately 2.6V
56 B Approximately 2.3V
75 OR Approximately 2.3V
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
PBIB1041E
PBIB1042E
PBIB1039E
PBIB1040E
