INFINITI FX35 2007 Service Manual

DTC P1574 ASCD VEHICLE SPEED SENSOR EC-1225
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
DTC P1574 ASCD VEHICLE SPEED SENSORPFP:31036
Component DescriptionNBS004ES
The ECM receives two vehicle speed sensor signals via CAN communication line. One is sent from “unified
meter and A/C amp.”, and the other is from TCM (Transmission control module). The ECM uses these signals
for ASCD control. Refer to EC-697, "
AUTOMATIC SPEED CONTROL DEVICE (ASCD)" for ASCD functions.
On Board Diagnosis LogicNBS004ET
This self-diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:

If DTC P1574 is displayed with DTC U1000, U1001, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-820, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .

If DTC P1574 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010.
Refer to EC-823, "
DTC U1010 CAN COMMUNICATION" .

If DTC P1574 is displayed with DTC P0500, first perform the trouble diagnosis for DTC P0500.
Refer to EC-1133, "
DTC P0500 VSS"

If DTC P1574 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-1148, "
DTC P0605 ECM"
DTC Confirmation ProcedureNBS004EU
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Step 3 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test
is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-II
1. Start engine (VDC switch OFF).
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Drive the vehicle at more than 40 km/h (25 MPH).
4. If DTC is detected, go to EC-1226, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
DTC No. Trouble diagnosis
name DTC detecting condition Possible cause
P1574
1574 ASCD vehicle speed
sensor ECM detects a difference between two vehicle
speed signals is out of the specified range.

Harness or connectors
(The CAN communication line is open or
shorted.)

Unified meter and A/C amp.

ABS actuator and electric unit (control unit)

Wheel sensor

TCM

ECM
PBIB2673E

EC-1226
[VK45DE]
DTC P1574 ASCD VEHICLE SPEED SENSOR
Revision: 2006 July 2007 FX35/FX45
Diagnostic ProcedureNBS004EV
1. CHECK DTC WITH TCM
Check DTC with TCM. Refer to AT- 4 0
.
OK or NG
OK >> GO TO 2.
NG >> Perform trouble shooting relevant to DTC indicated.
2. CHECK DTC WITH “ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)”
Refer to BRC-11, "
TROUBLE DIAGNOSIS" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace.
3. CHECK DTC WITH “UNIFIED METER AND A/C AMP.”
Refer to DI-28, "
UNIFIED METER AND A/C AMP" .
>> INSPECTION END

DTC P1715 INPUT SPEED SENSOR (TURBINE REVOLUTION SENSOR) EC-1227
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
DTC P1715 INPUT SPEED SENSOR (TURBINE REVOLUTION SENSOR)PFP:31935
DescriptionNBS004LL
ECM receives turbine revolution sensor signal from TCM through CAN communication line. ECM uses this
signal for engine control.
CONSULT-II Reference Value in Data Monitor ModeNBS004LM
Specification data are reference values.
On Board Diagnosis LogicNBS004LN
NOTE:

If DTC P1715 is displayed with DTC U1000, U1001 first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-820, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .

If DTC P1715 is displayed with DTC U1010 first perform the trouble diagnosis for DTC U1010. Refer
to EC-823, "
DTC U1010 CAN COMMUNICATION" .

If DTC P1715 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-1148, "
DTC P0605 ECM" .

If DTC P1715 is displayed with DTC P0335, first perform the trouble diagnosis for DTC P0335.
Refer to EC-1031, "
DTC P0335 CKP SENSOR (POS)" .

If DTC P1715 is displayed with DTC P0340, first perform the trouble diagnosis for DTC P0340.
Refer to EC-1038, "
DTC P0340 CAMSHAFT POSITION (CMP) SENSOR (PHASE)" .
The MIL will not lights up for this diagnosis.
Diagnostic ProcedureNBS004LO
1. CHECK DTC WITH TCM
Check DTC with TCM. Refer to AT- 4 0 , "
OBD-II Diagnostic Trouble Code (DTC)" .
OK or NG
OK >> GO TO 2.
NG >> Perform trouble shooting relevant to DTC indicated.
2. REPLACE TCM
Replace TCM. Refer to AT- 4 4 , "
TROUBLE DIAGNOSIS" .
>> INSPECTION END
MONITOR ITEM CONDITION SPECIFICATION
I/P PULLY SPD

Vehicle speed: More than 20 km/h (12 MPH) Almost the same speed as
the tachometer indication
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1715
1715 Input speed sensor
(Turbine revolution sen-
sor)
(TCM output) Turbine revolution sensor signal is differ-
ent from the theoretical value calculated
by ECM from revolution sensor signal
and engine rpm signal.

Harness or connectors
(The CAN communication line is open or
shorted)

Harness or connectors
(Turbine revolution sensor circuit is open or
shorted)

TCM

EC-1228
[VK45DE]
DTC P1800 VIAS CONTROL SOLENOID VALVE
Revision: 2006 July 2007 FX35/FX45
DTC P1800 VIAS CONTROL SOLENOID VALVEPFP:14955
Component DescriptionNBS004FC
The VIAS control solenoid valve (1) cuts the intake manifold vacuum
signal for power valve actuator. It responds to ON/OFF signals from
the ECM. When the solenoid is off, the vacuum signal from the
intake manifold is cut. When the ECM sends an ON signal the coil
pulls the plunger downward and feeds the vacuum signal to the
power valve actuator.

Vacuum tank (2)
CONSULT-II Reference Value in Data Monitor ModeNBS004FD
Specification data are reference values.
On Board Diagnosis LogicNBS004FE
The MIL will not light up for this self-diagnosis.
DTC Confirmation ProcedureNBS004FF
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 11V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for at least 5 seconds.
4. If 1st trip DTC is detected, go to EC-1230, "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
PBIB3236E
MONITOR ITEM CONDITION SPECIFICATION
VIAS S/V

Selector lever: P or N ON

Engine speed: More than 5,000 rpm

Selector lever: Except P or N

Engine speed: Less than 5,000 rpm OFF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1800
1800 VIAS control solenoid valve cir-
cuit An excessively low or high voltage signal
is sent to ECM through the valve

Harness or connectors
(The solenoid valve circuit is open or
shorted.)

VIAS control solenoid valve
SEF058Y

DTC P1800 VIAS CONTROL SOLENOID VALVE EC-1229
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45

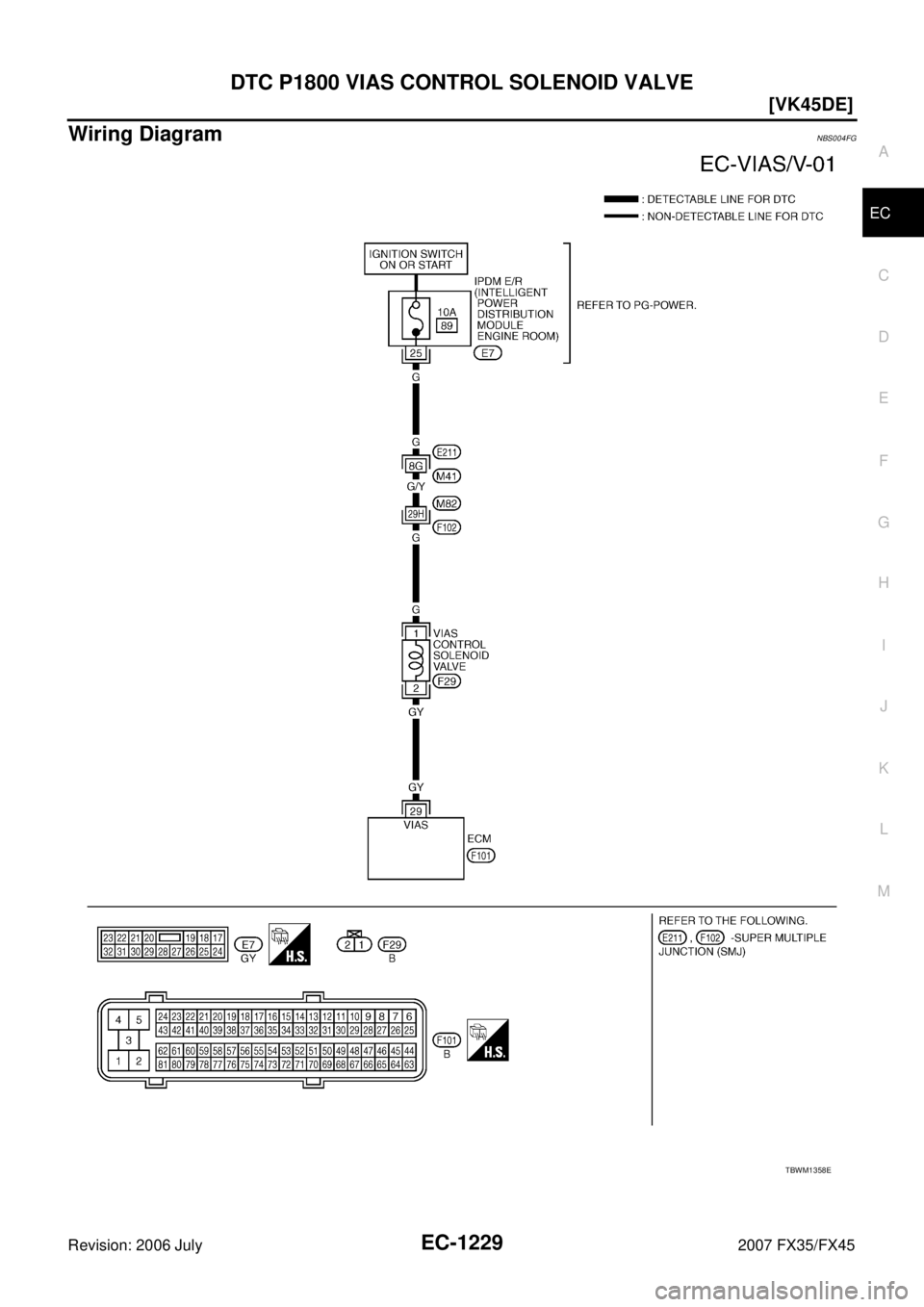

Wiring DiagramNBS004FG
TBWM1358E

EC-1230
[VK45DE]
DTC P1800 VIAS CONTROL SOLENOID VALVE
Revision: 2006 July 2007 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureNBS004FH
1. CHECK VIAS CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect VIAS control solenoid valve (1) harness connector.
–Vacuum tank (2)
3. Turn ignition switch ON.
4. Check voltage between VIAS control solenoid valve terminal 1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E211, M41

Harness connectors M82, F102

Harness for open or short between VIAS control solenoid valve and IPDM E/R
>> Repair harness or connectors.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
29 GY VIAS control solenoid valve [Engine is running]

Selector lever: P or N
0 - 1.0V
[Engine is running]

Selector lever: D

Engine speed: Below 5,000 rpm BATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Engine speed: Above 5,000 rpm 0 - 1.0V
PBIB3236E
Voltage: Battery voltage
PBIB0173E

DTC P1800 VIAS CONTROL SOLENOID VALVE EC-1231
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
3. CHECK VIAS CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 29 and VIAS control solenoid valve terminal 2. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK VIAS CONTROL SOLENOID VALVE
Refer to EC-1231, "
Component Inspection" .
OK or NG
OK >> GO TO 5.
NG >> Replace VIAS control solenoid valve.
5. CHECK INTERMITTENT INCIDENT
Refer to EC-812, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
Component InspectionNBS004FI
VIAS CONTROL SOLENOID VALVE
With CONSULT-II
1. Reconnect harness connectors disconnected.
2. Turn ignition switch ON.
3. Perform “VIAS SOL VALVE” in “ACTIVE TEST” mode.
4. Check air passage continuity and operation delay time under the following conditions.
Operation takes less than 1 second.
Without CONSULT-II
Check air passage continuity and operation delay time under the fol-
lowing conditions.
Operation takes less than 1 second. Continuity should exist.
Condition
VIAS SOL VALVE Air passage continuity
between A and B Air passage continuity
between A and C
ON Yes No
OFF No Yes
PBIB0177E
Condition Air passage continuity
between A and B Air passage continuity
between A and C
12V direct current supply
between terminals 1 and 2 Ye s N o
No supply No Yes
MEC488B

EC-1232
[VK45DE]
DTC P1800 VIAS CONTROL SOLENOID VALVE
Revision: 2006 July 2007 FX35/FX45
Removal and InstallationNBS004FJ
VIAS CONTROL SOLENOID VALVE
Refer to EM-179, "INTAKE MANIFOLD" .

DTC P1805 BRAKE SWITCH EC-1233
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
DTC P1805 BRAKE SWITCHPFP:25320
DescriptionNBS004FK

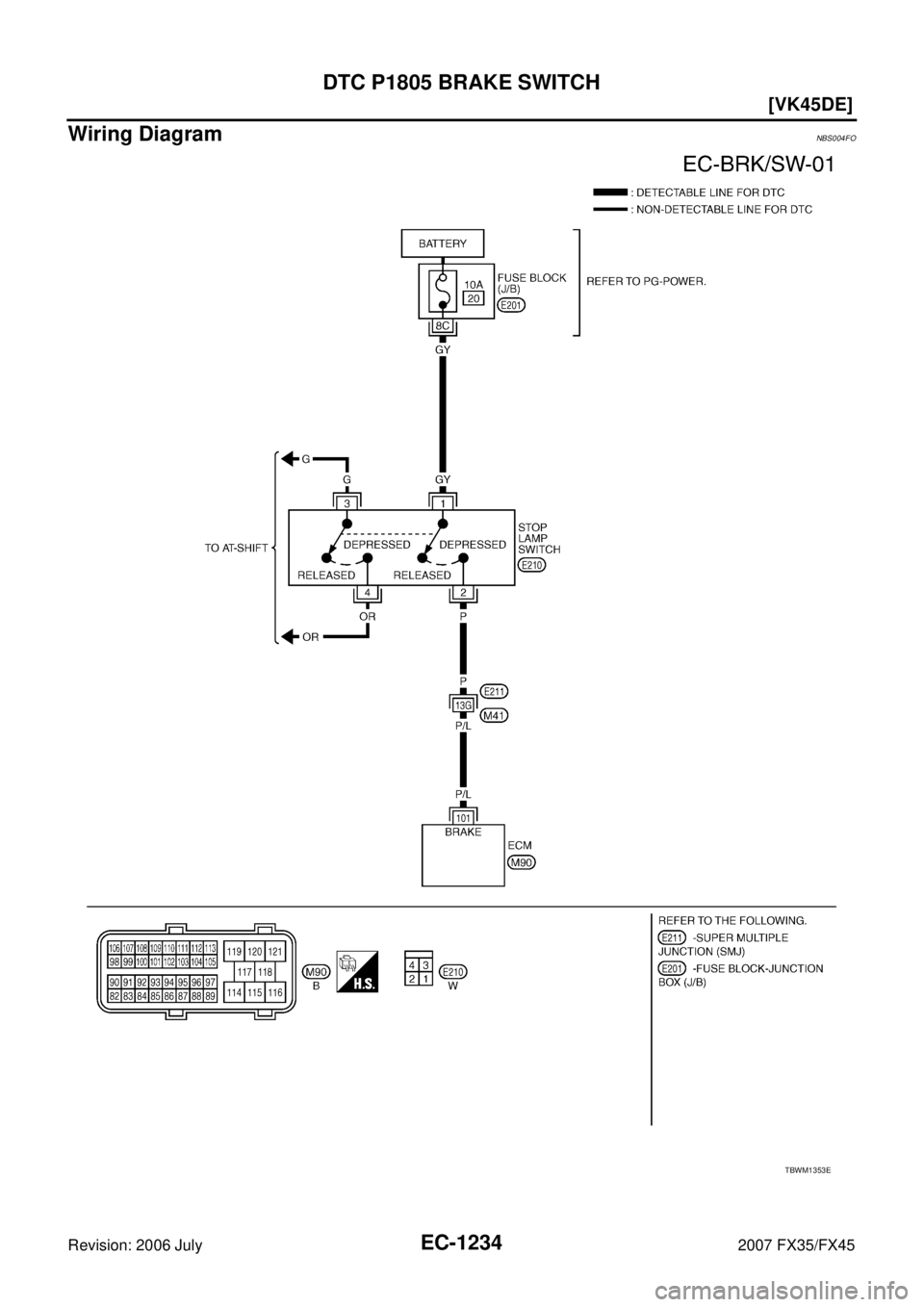

Brake switch signal is applied to the ECM through the stop lamp switch when the brake pedal is depressed.
This signal is used mainly to decrease the engine speed when the vehicle is driving.
CONSULT-II Reference Value in Data Monitor ModeNBS004FL
Specification data are reference values.
On Board Diagnosis LogicNBS004FM
The MIL will not light up for this diagnosis.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode.
DTC Confirmation ProcedureNBS004FN
WITH CONSULT-II
1. Turn ignition switch ON.
2. Fully depress the brake pedal for at least 5 seconds.
3. Erase the DTC with CONSULT-II.
4. Select “DATA MONITOR” mode with CONSULT-II.
5. If 1st trip DTC is detected, go to EC-1235, "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
MONITOR ITEM CONDITION SPECIFICATION
BRAKE SW

Ignition switch: ON Brake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1805
1805 Brake switch A brake switch signal is not sent to ECM for
extremely long time while the vehicle is driving.

Harness or connectors
(Stop lamp switch circuit is open or
shorted.)

Stop lamp switch
Engine operating condition in fail-safe mode
ECM controls the electric throttle control actuator by regulating the throttle opening to a small range.
Therefore, acceleration will be poor.
Vehicle condition Driving condition
When engine is idling Normal When accelerating Poor acceleration
SEF058Y

EC-1234
[VK45DE]
DTC P1805 BRAKE SWITCH
Revision: 2006 July 2007 FX35/FX45
Wiring DiagramNBS004FO
TBWM1353E
